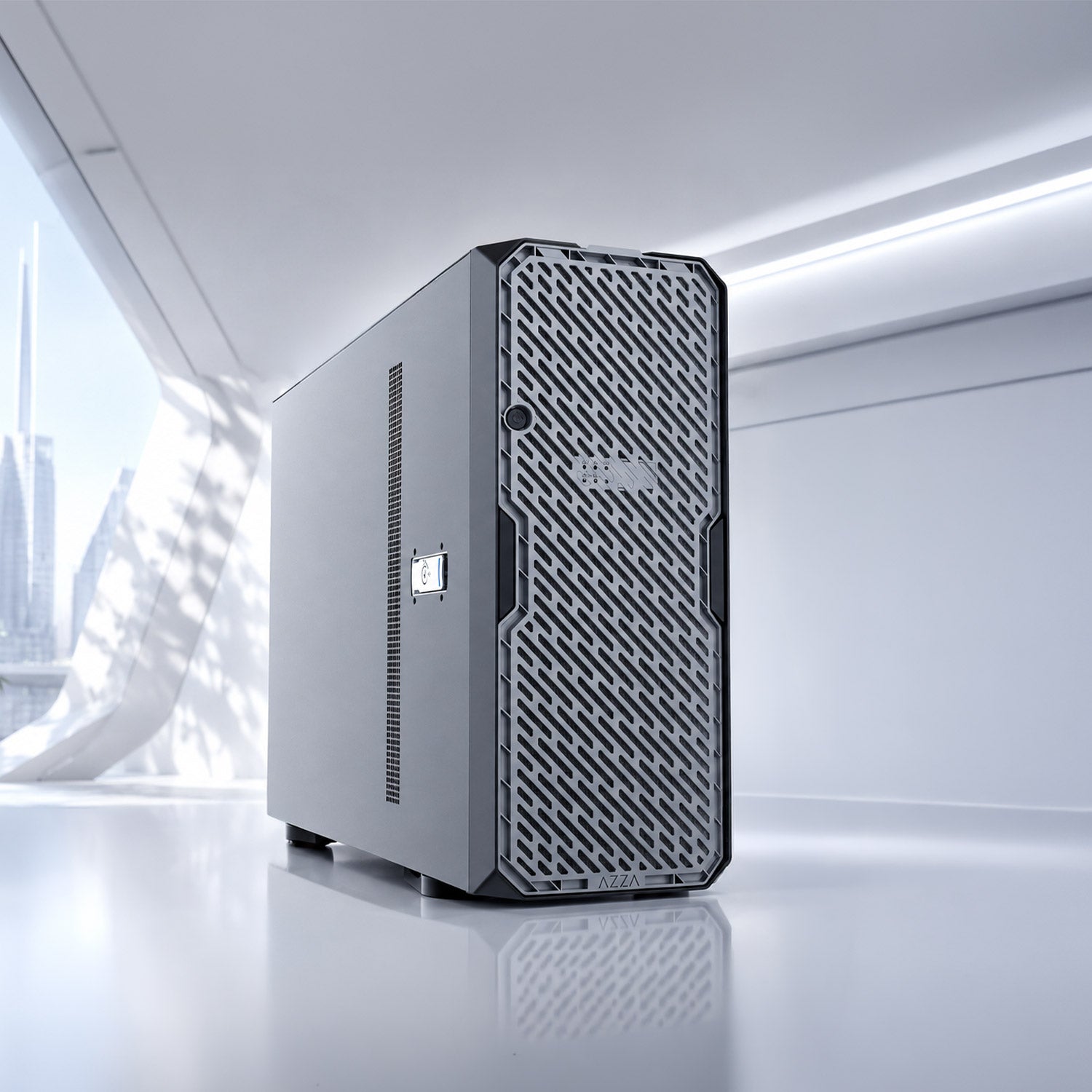

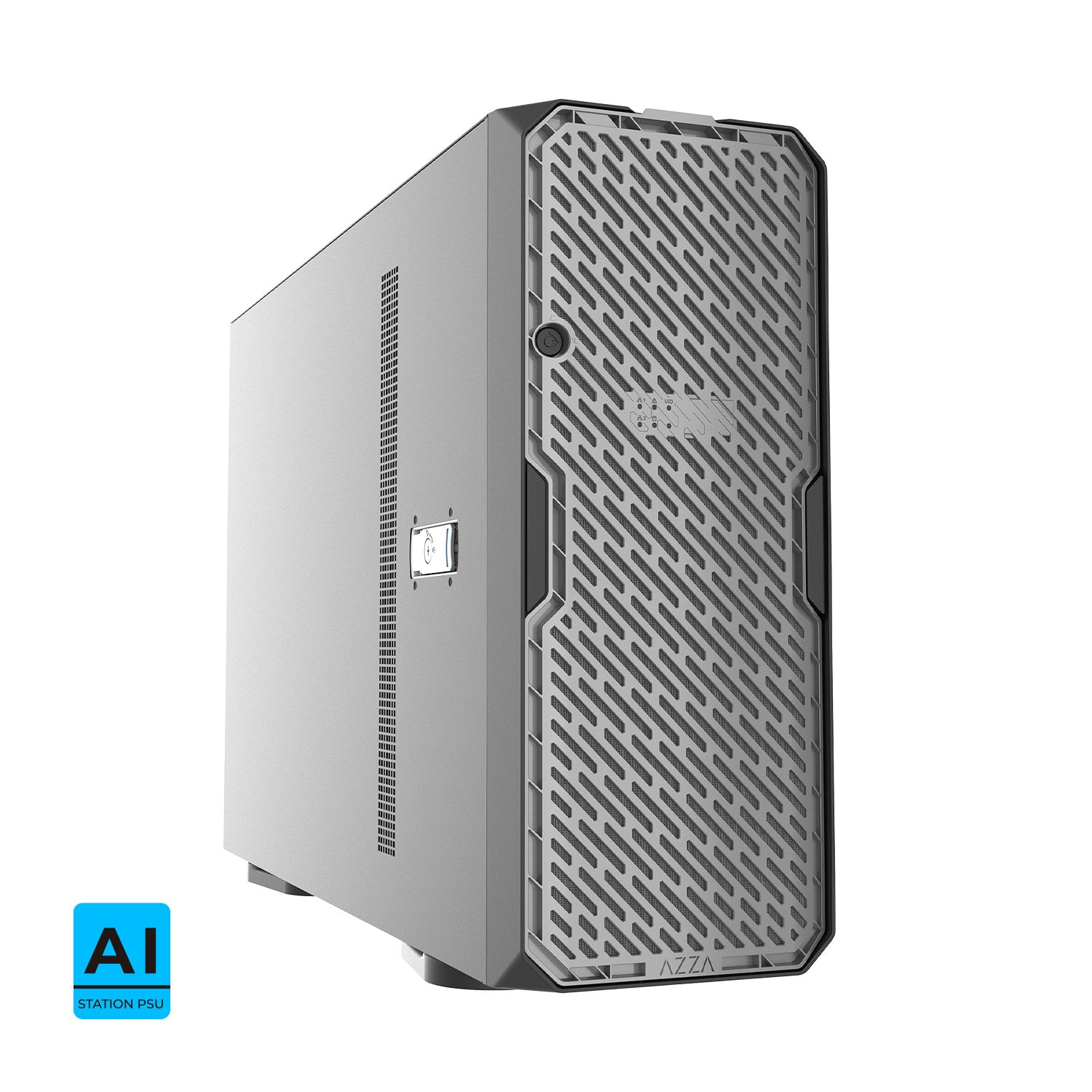

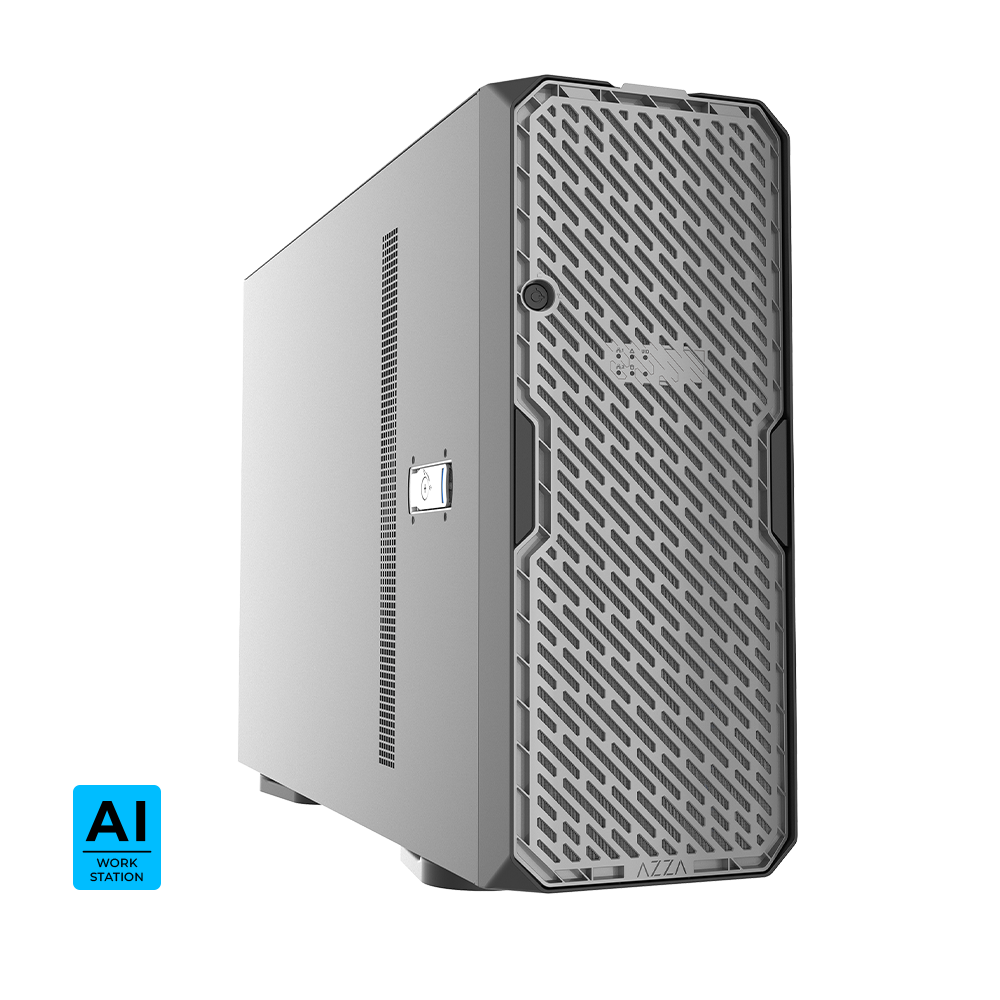

CSAZ-680X01
TRAIL

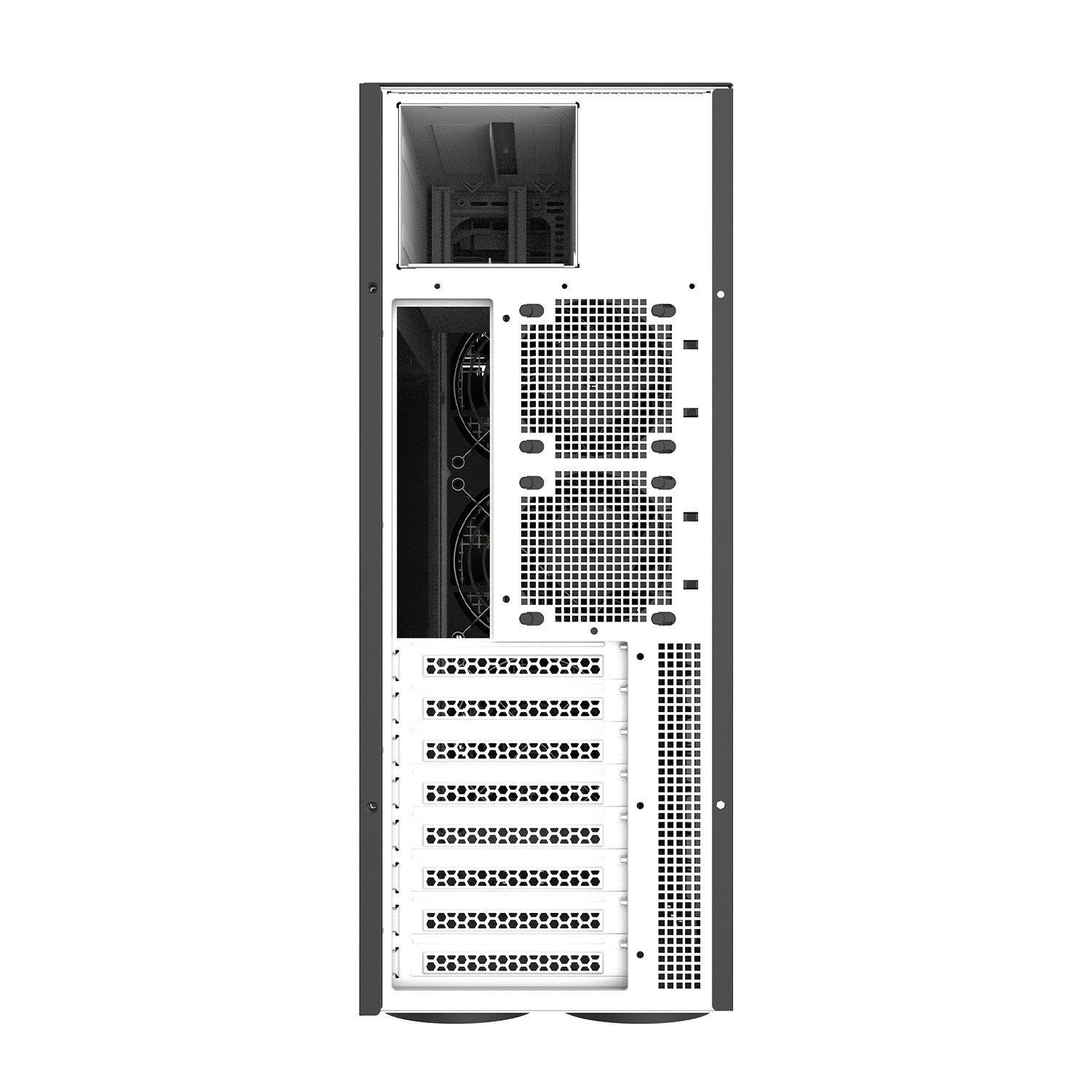

Supports up to eight hot-swappable 2.5"/3.5" SAS/SATA drives for flexible storage expansion. Accommodates graphics cards up to 370mm in length and provides eight PCIe expansion slots for high-performance configurations.

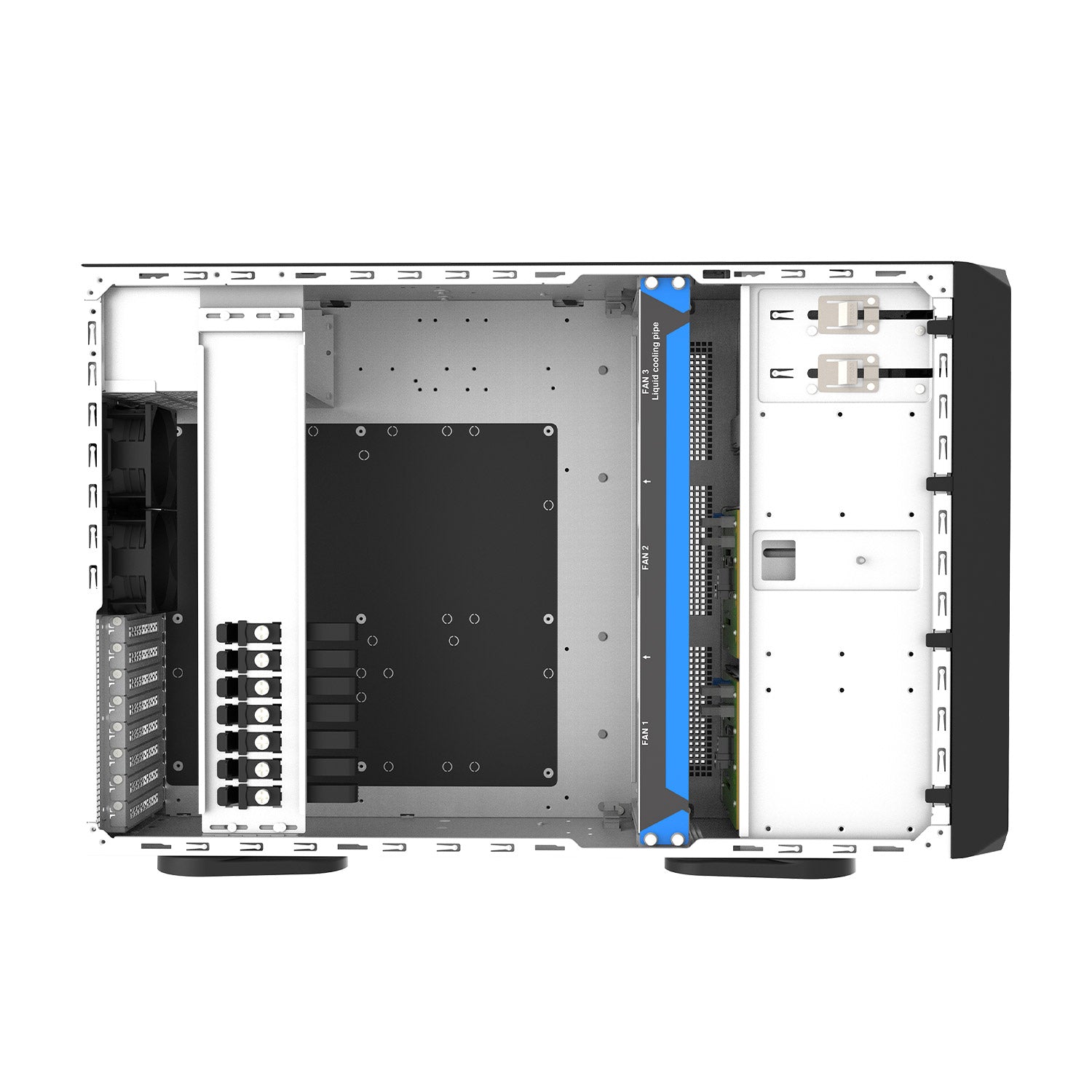

The optimized cooling design supports multiple material-grade fans and up to a 360mm liquid cooling radiator for efficient thermal management. A lockable front door adds extra security, while the built-in Mini-SAS HD backplane with SAS 12Gb/s support delivers reliable high-speed storage performance.

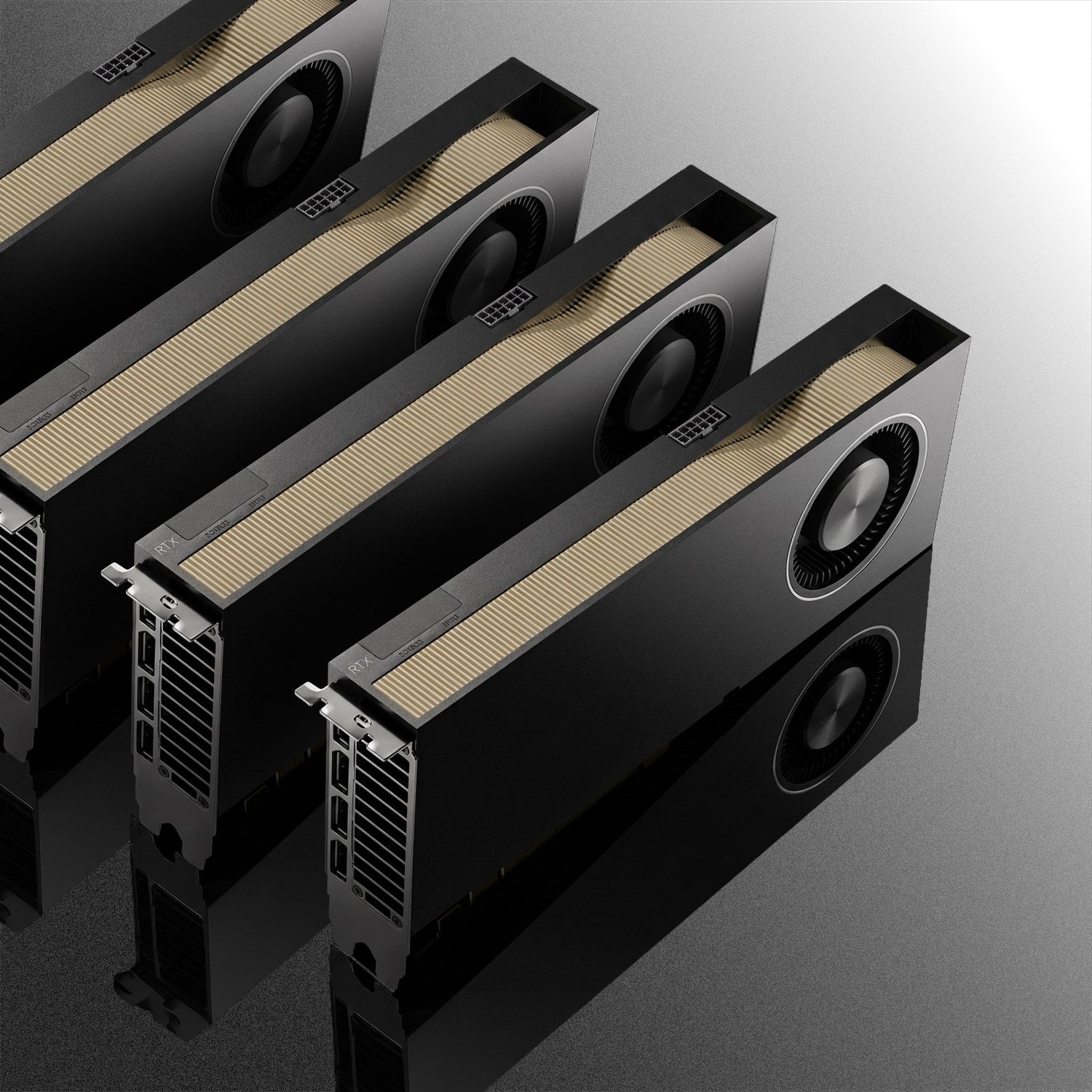

4-GPU AI Workstation Chassis
Transform your desktop into a data center, accommodating up to four double-width, 370mm GPUs to fuel your heaviest deep learning and LLM training workloads.

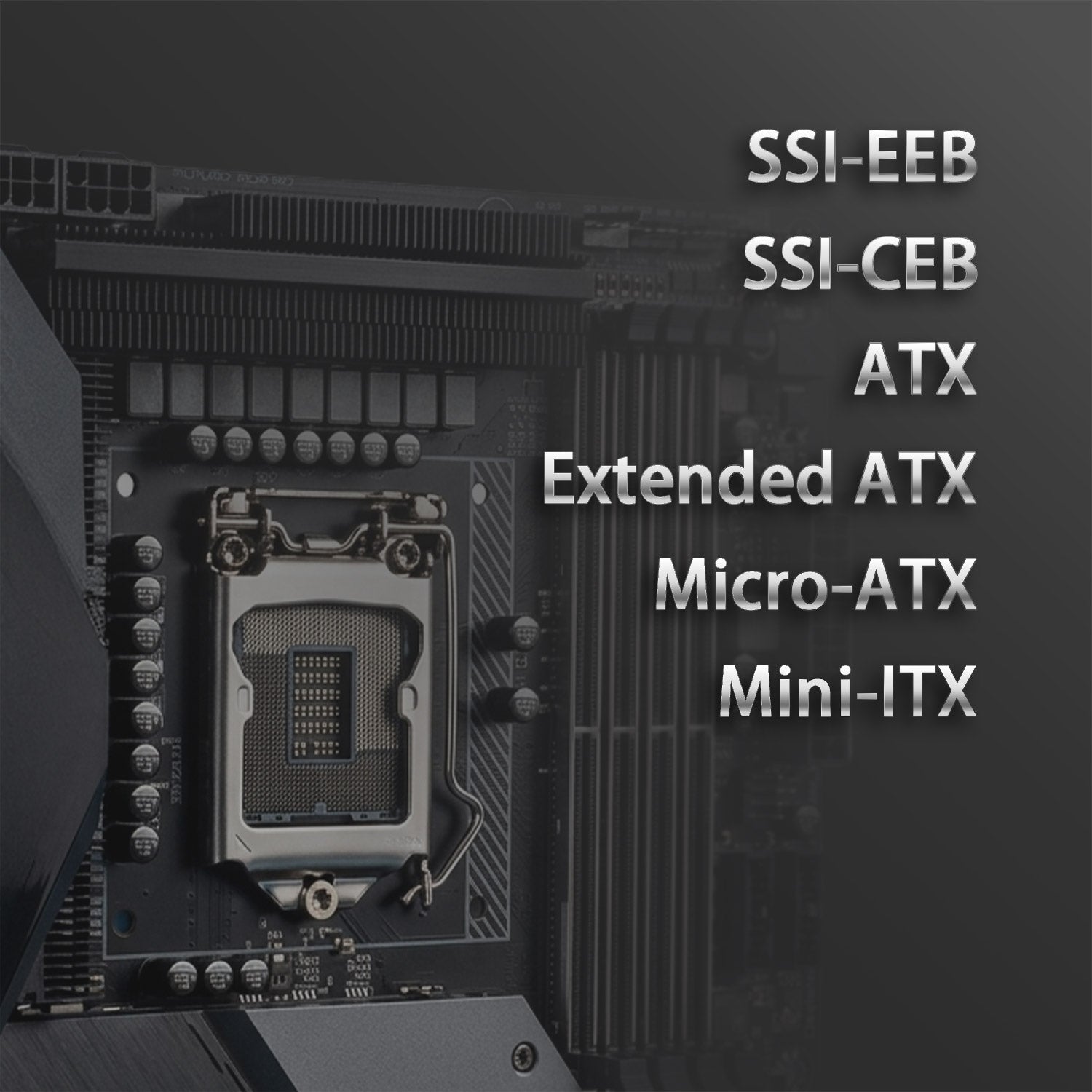

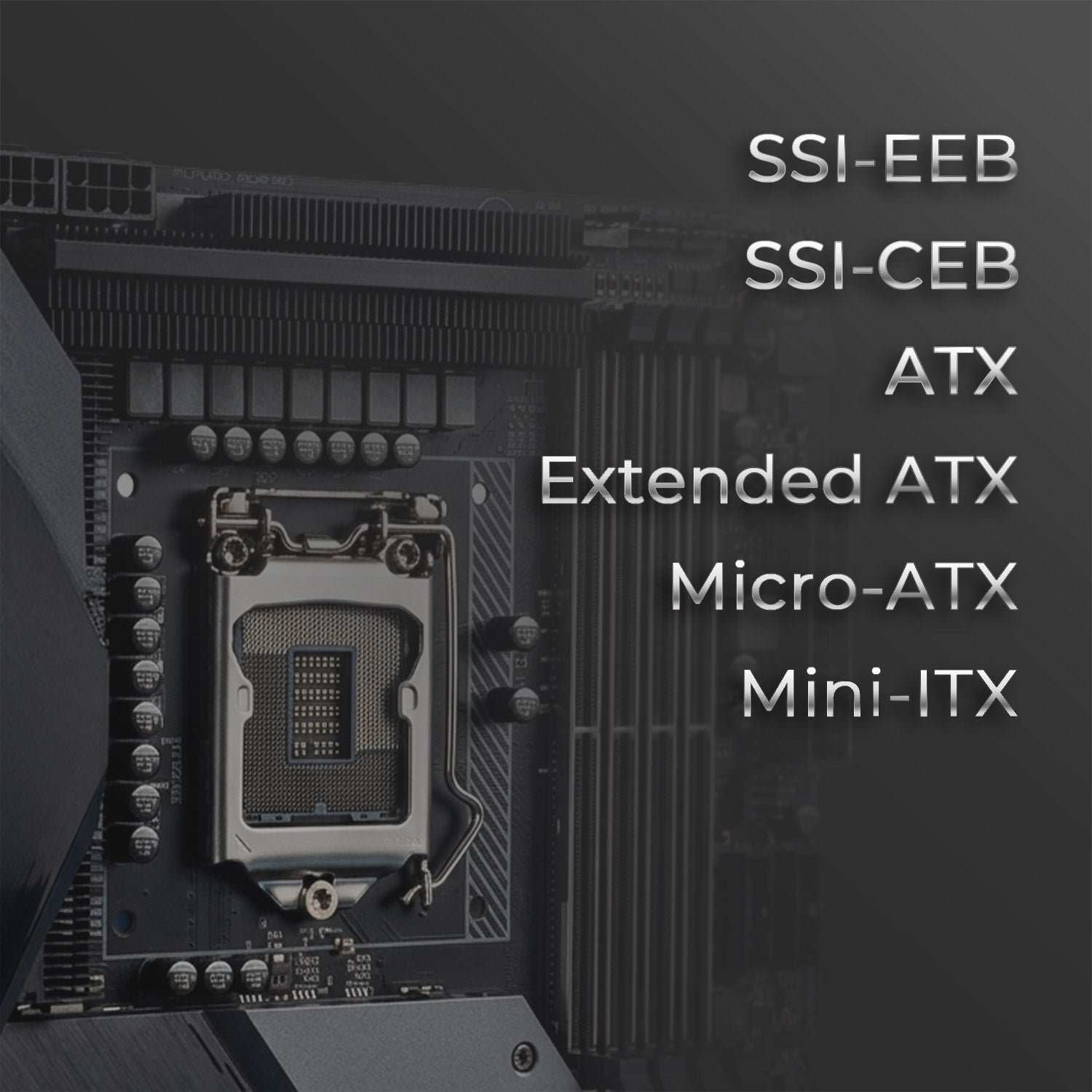

Extensive Motherboard Support
Highly versatile, supporting everything from consumer-grade Mini-ITX, Micro-ATX, and ATX, up to server-grade SSI-CEB and dual-processor SSI-EEB motherboards.

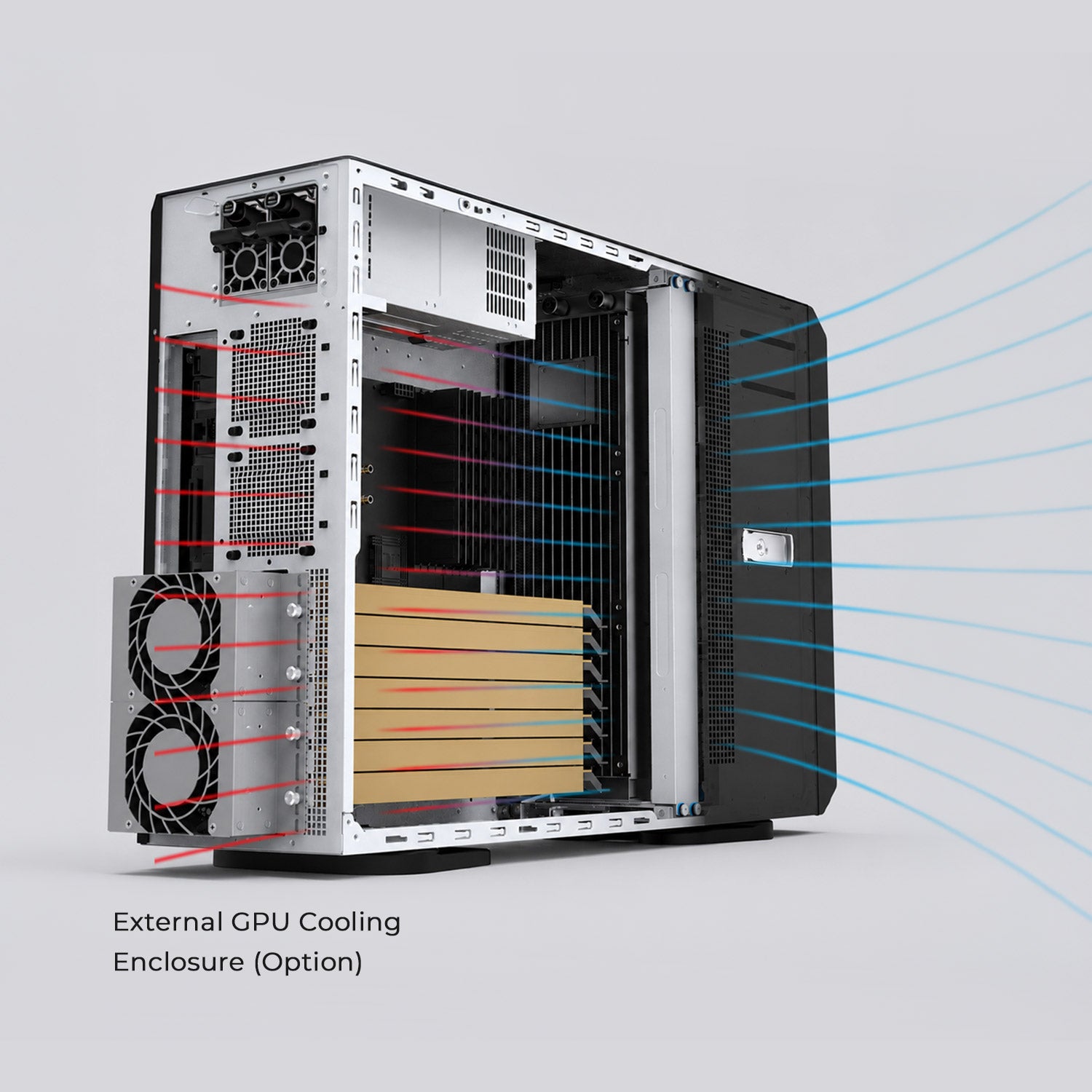

Advanced Cooling
Massive CPU Cooler Clearance: Supports CPU coolers up to 180mm in height, accommodating most large tower air coolers on the market.

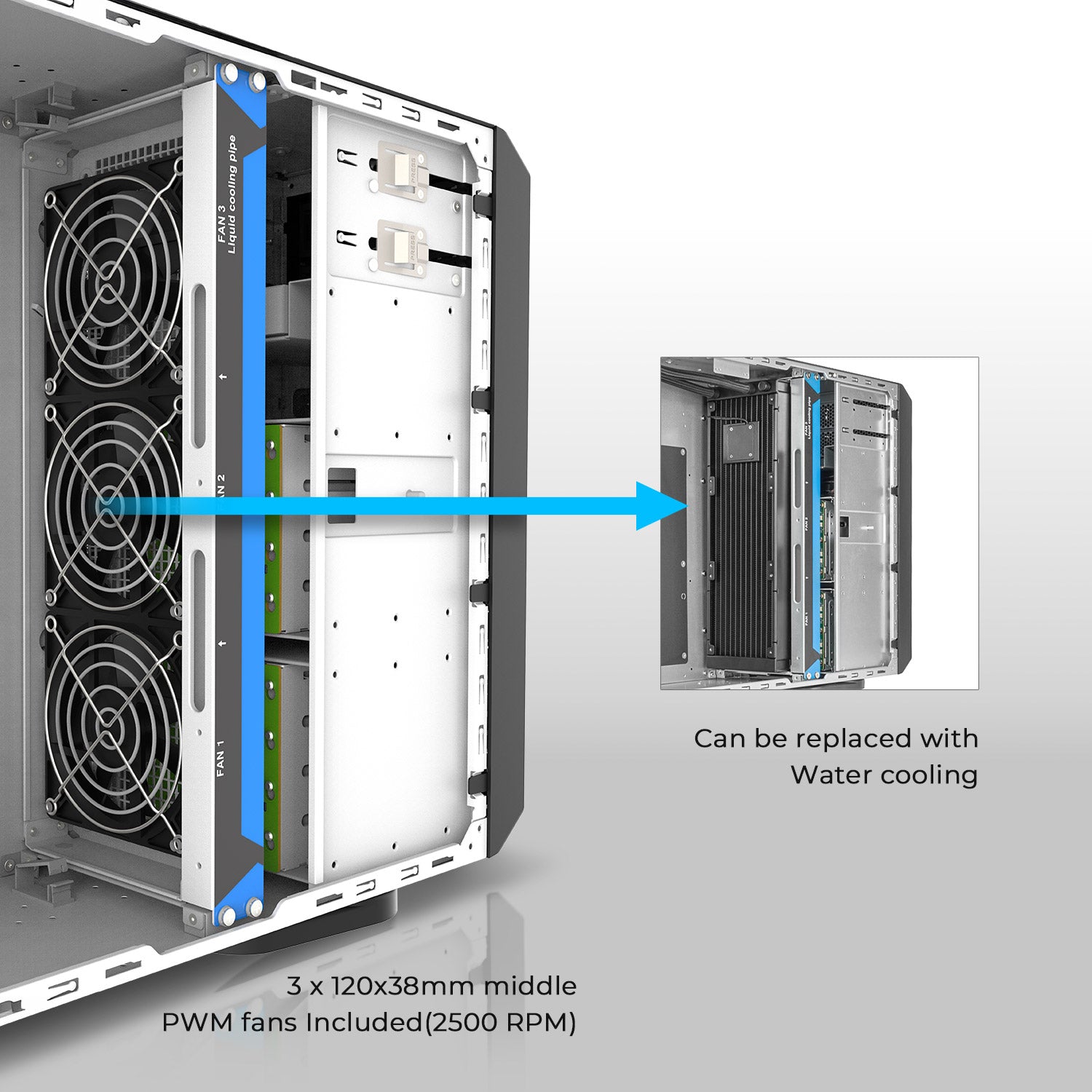

Pre-installed High-Spec Fans:
3 x 120x38mm middle PWM fans Included(2500 RPM)
2 x 80x38mm rear CPU module high-speed PWM fans Included(6300 RPM)
The middle section can optional accommodate up to a 360mm radiator

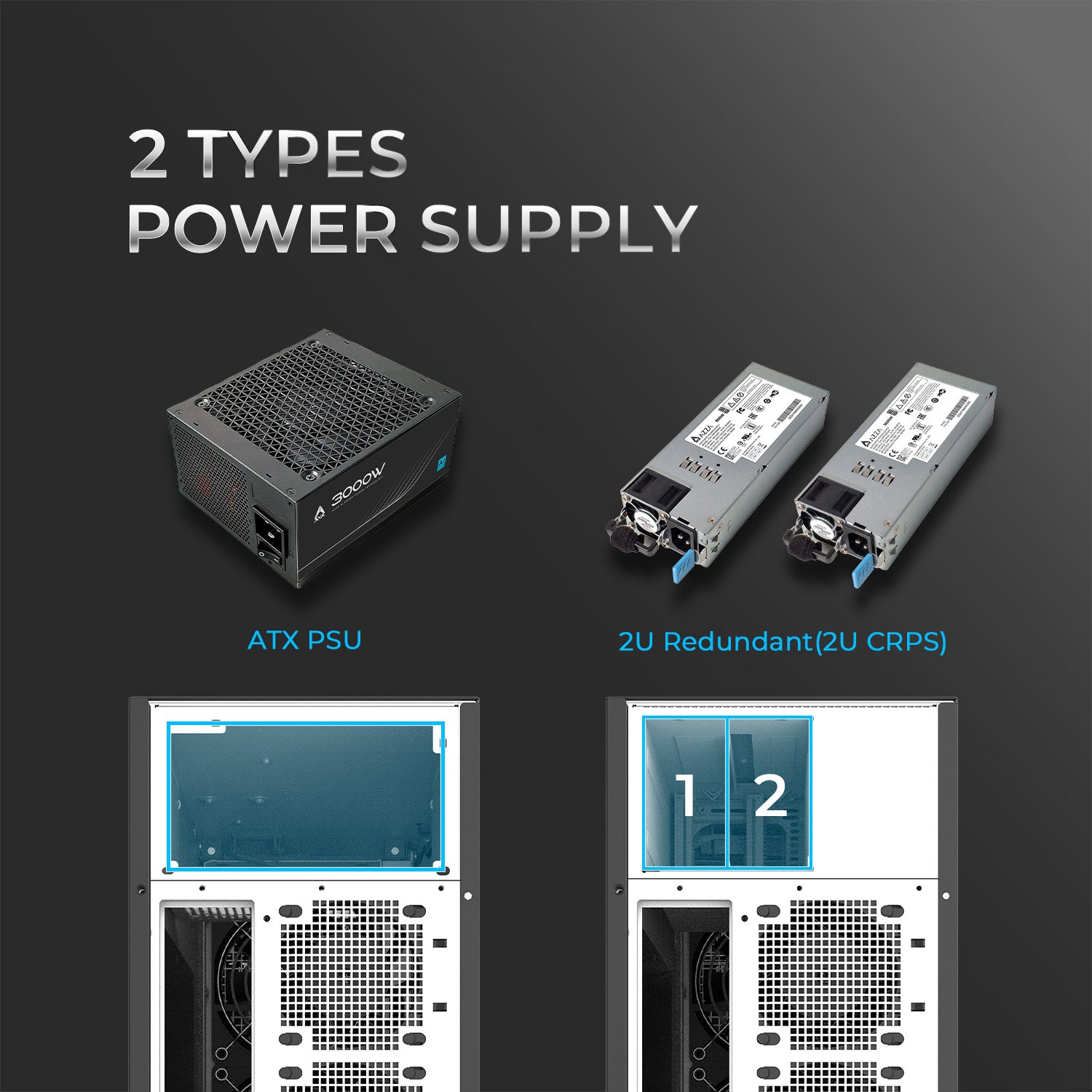

Dual Power Supply Options
Offers the flexibility to install standard consumer ATX PSU or enterprise-grade 2U Redundant Power Supplies (2U CRPS) to ensure 24-hour uptime.

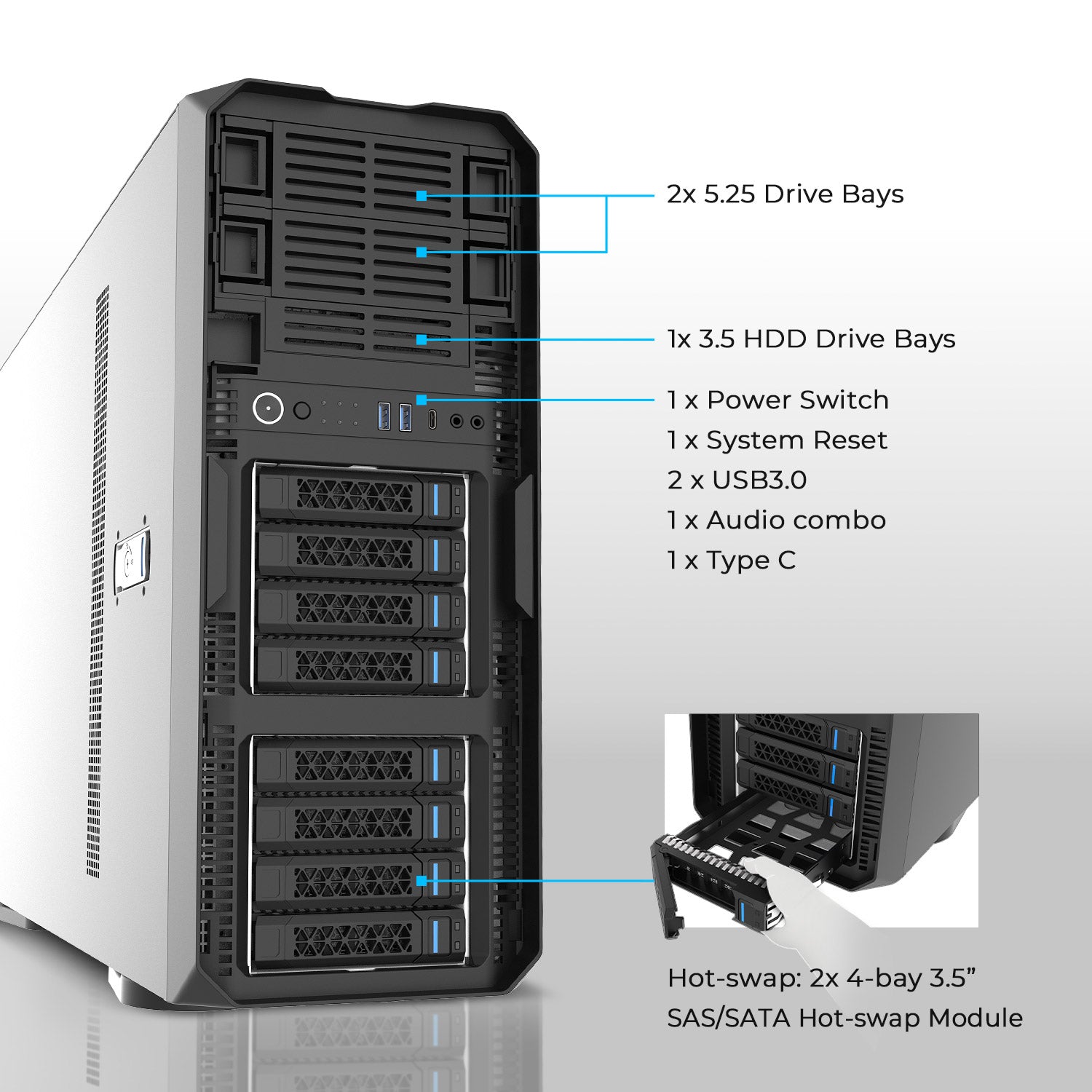

Enterprise-Grade Storage
Hot-Swappable Drives: Features two 4-bay 3.5" SAS/SATA Hot-swap modules for seamless drive maintenance and scaling.

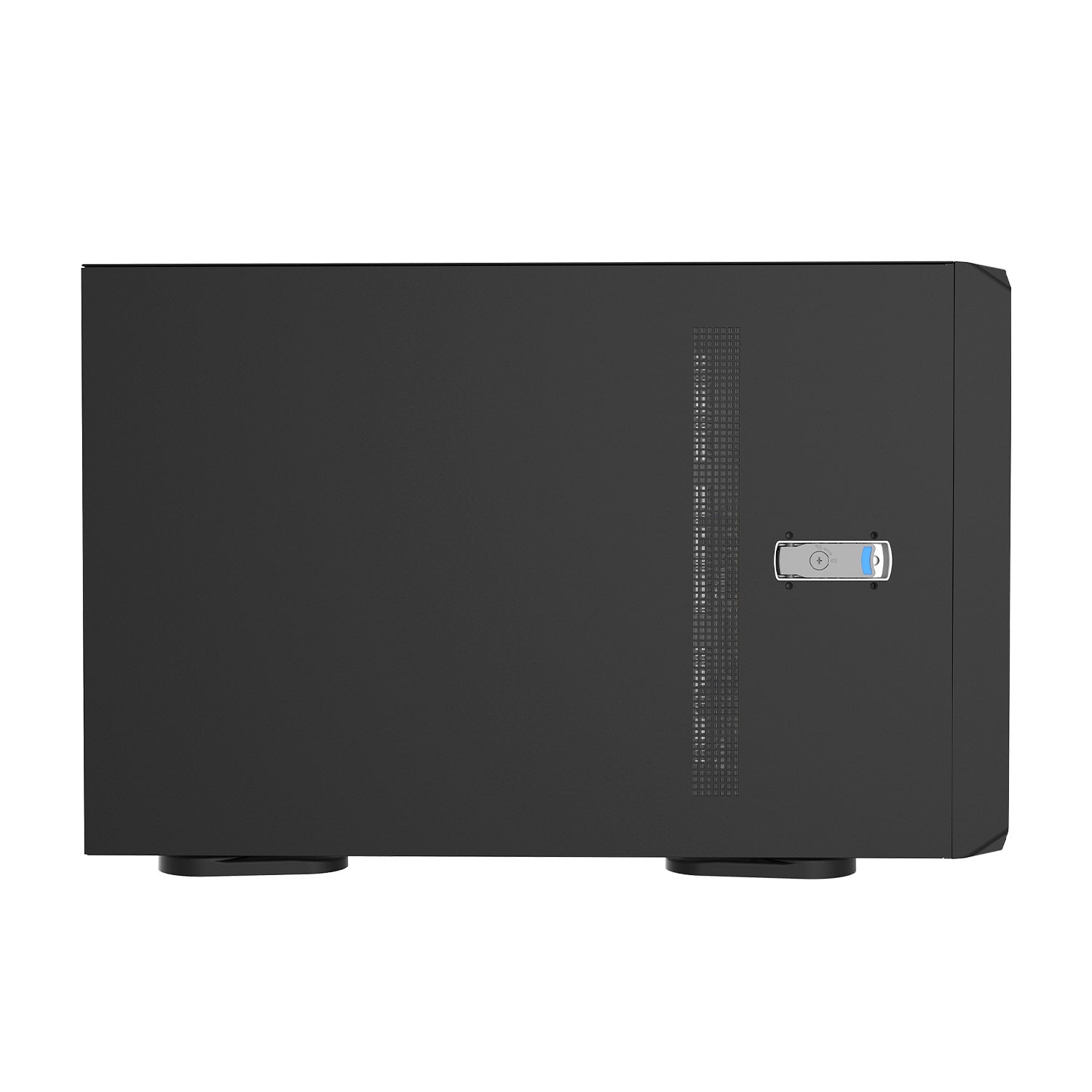

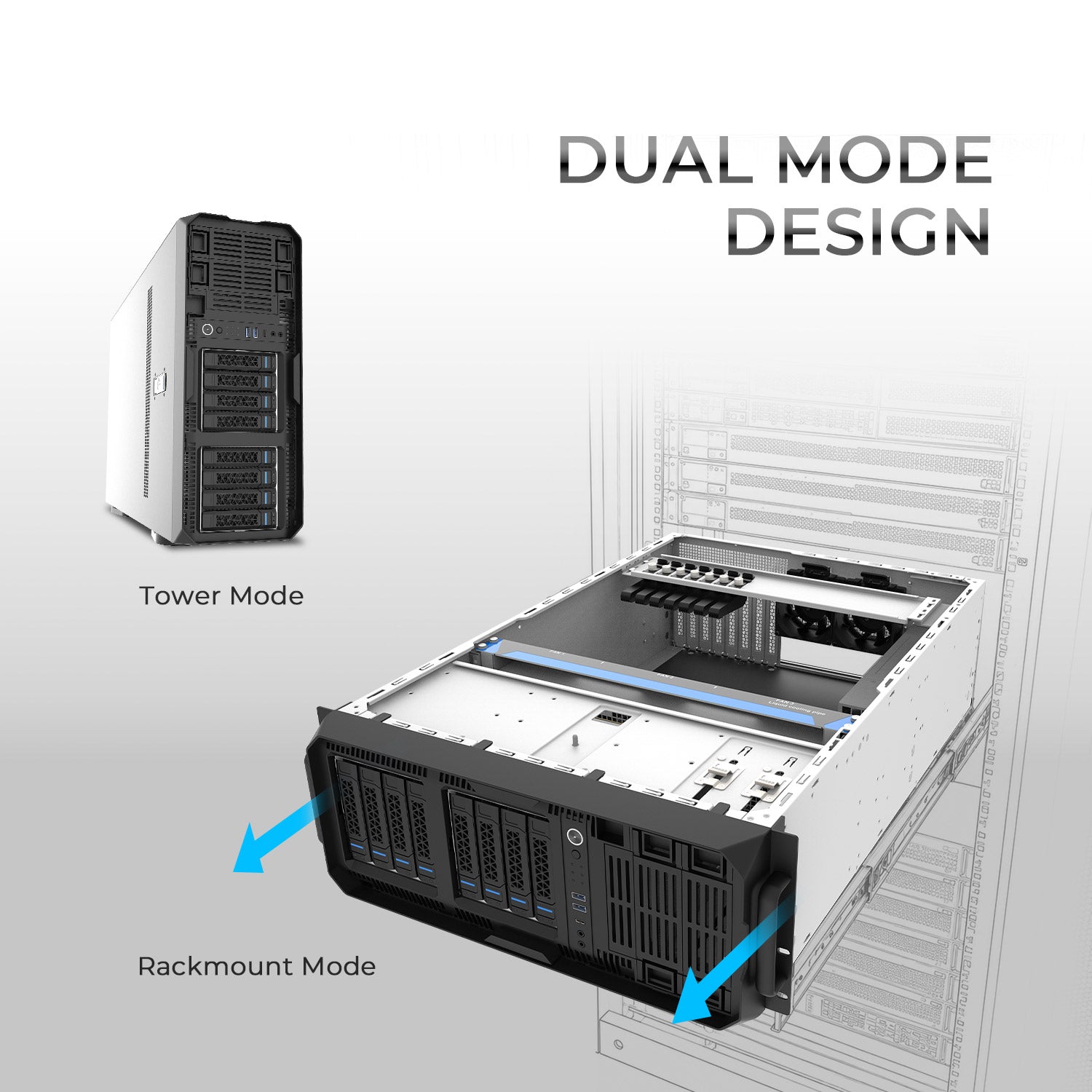

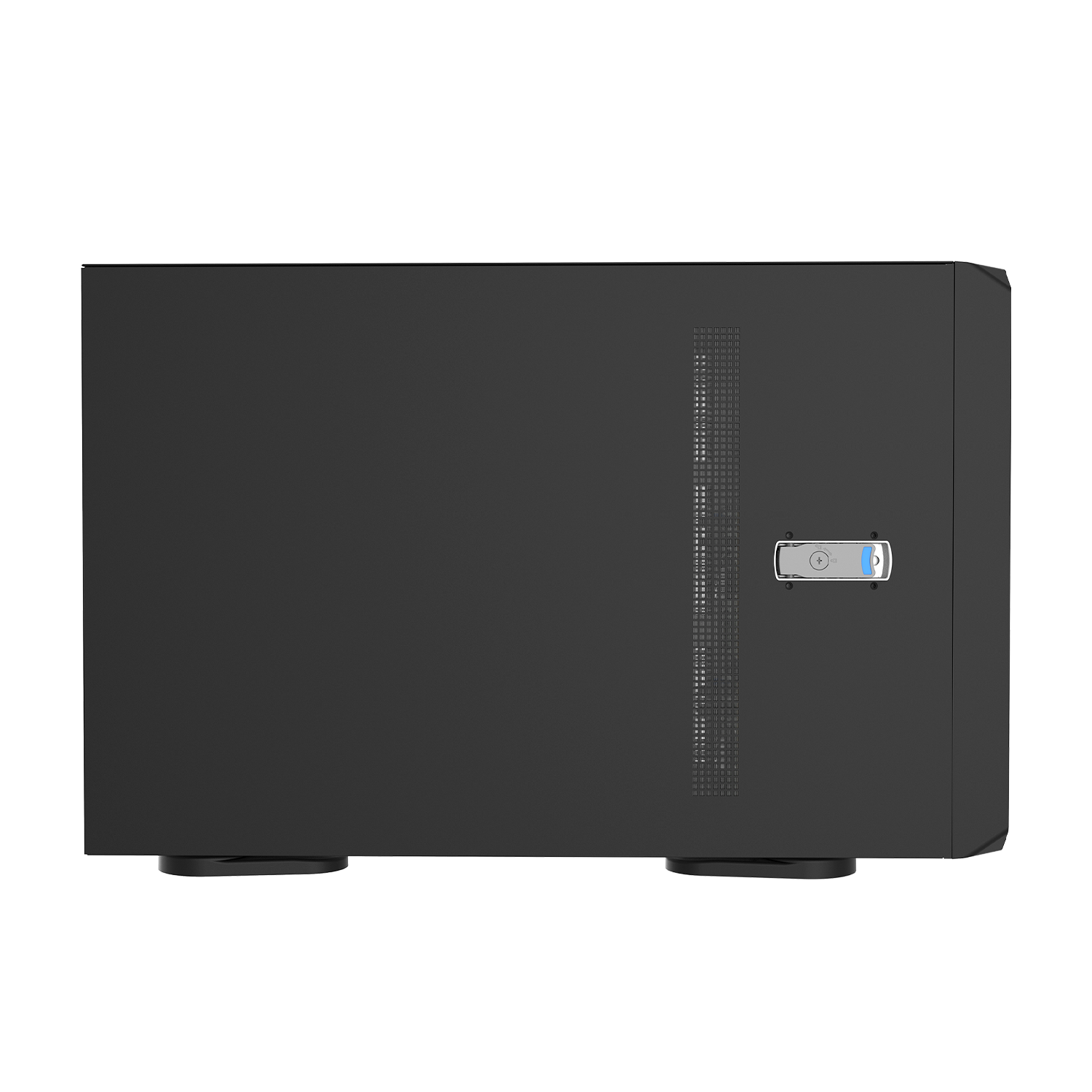

Flexible Dual Mode Design
Deploy as a tower workstation or mount in a standard 4U rack. One chassis, two configurations—built for maximum deployment flexibility.
12Gb/s High-Speed

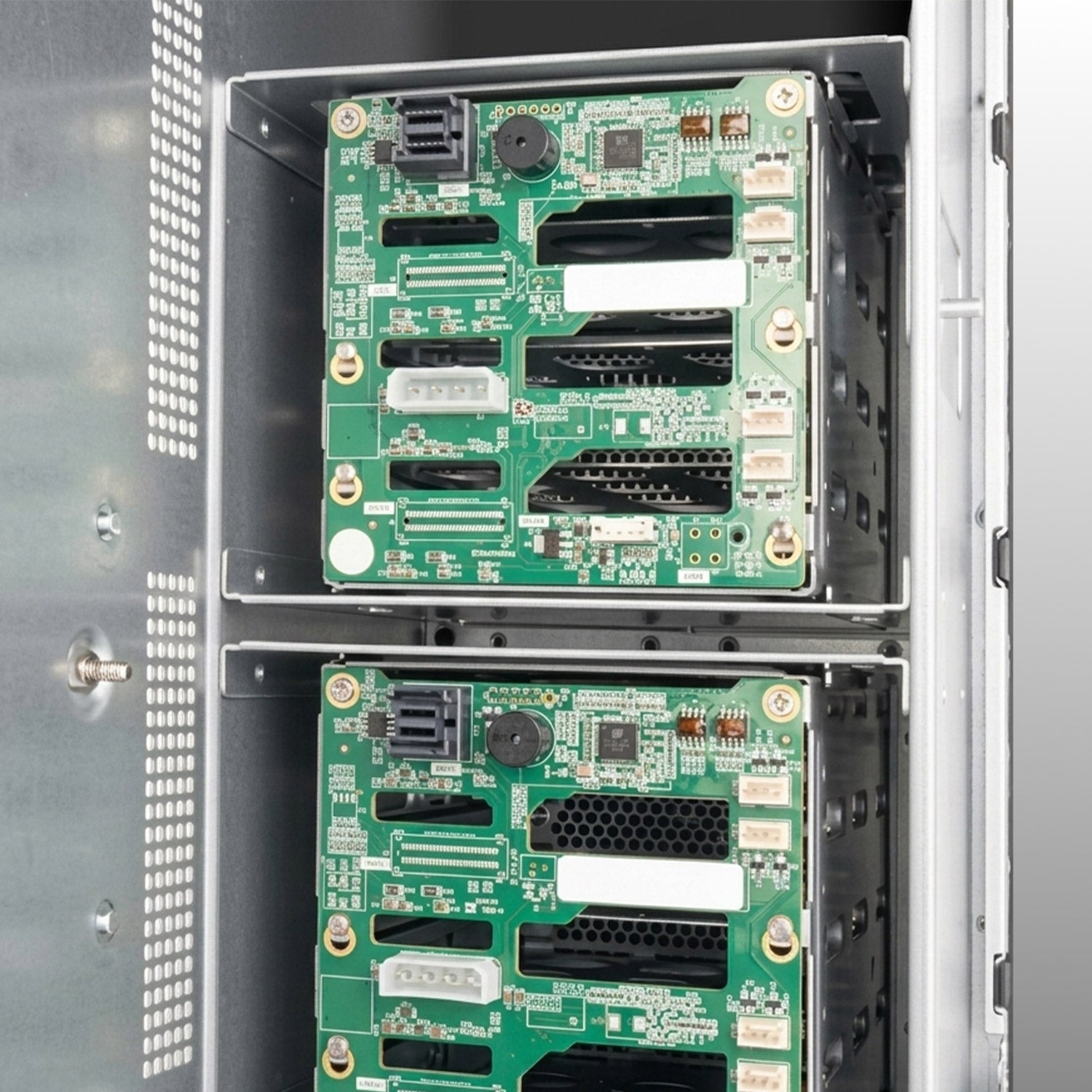

Delivers 12Gb/s bandwidth for peak SAS/SATA performance. Built-in SGPIO enables real-time drive status and effortless fault detection.

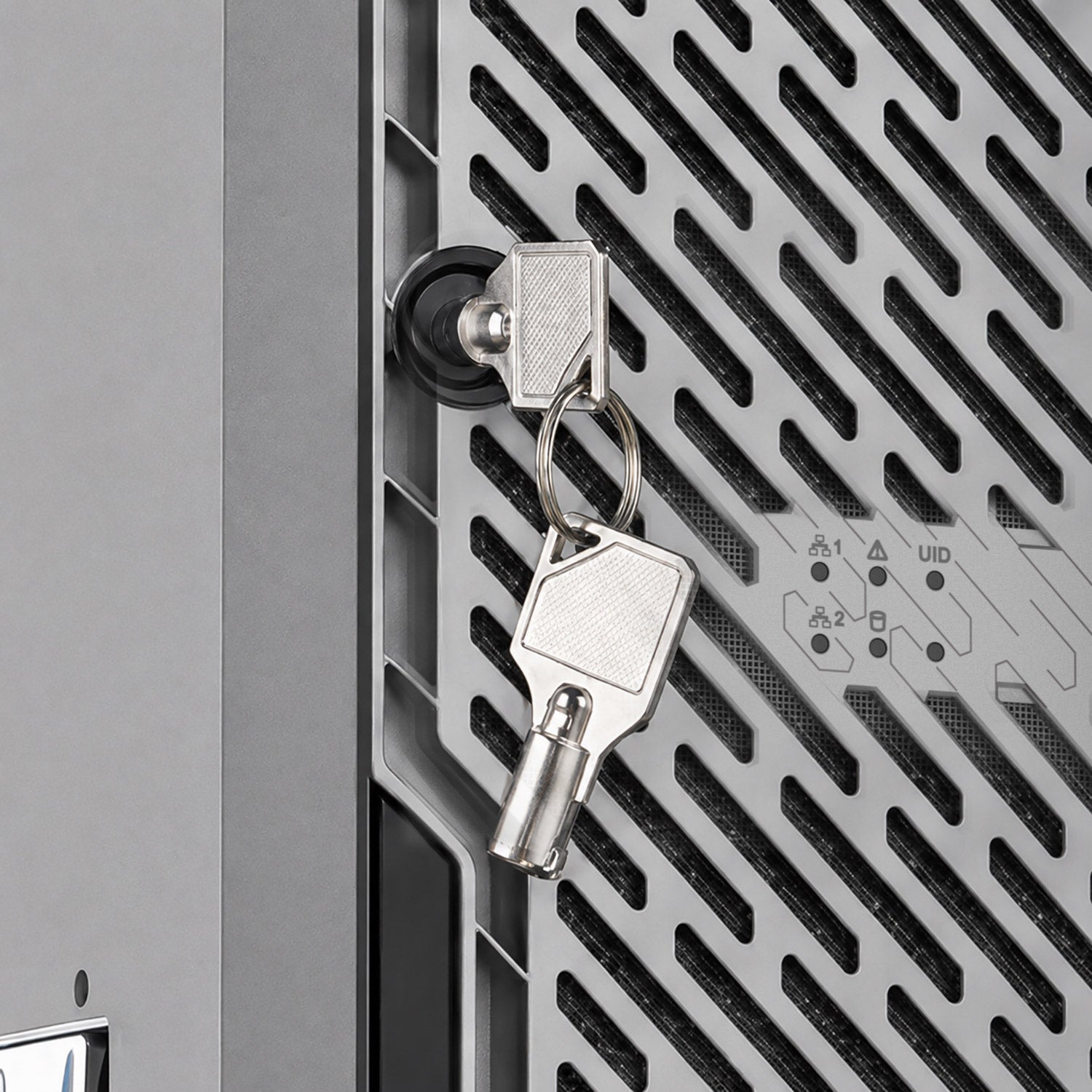

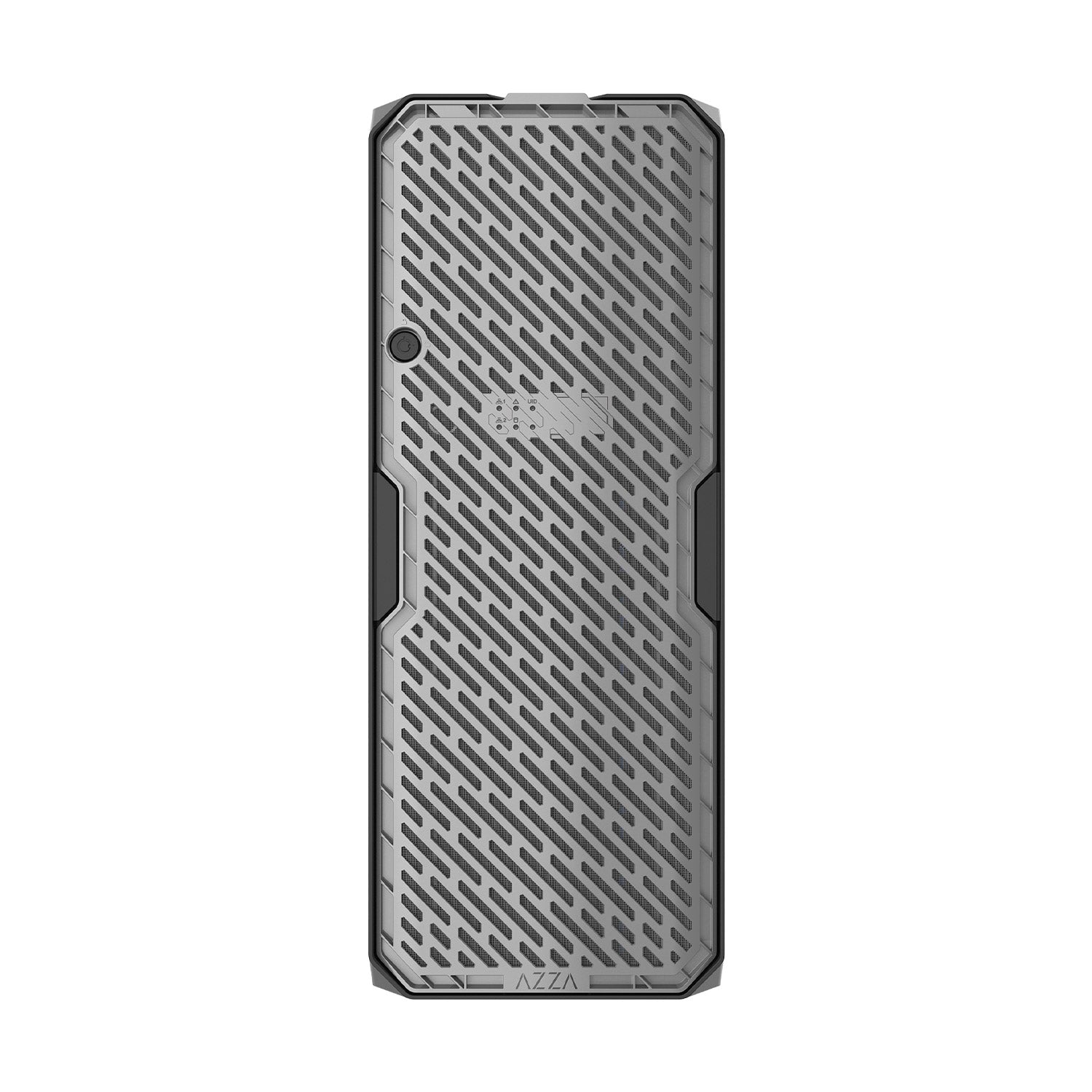

Double Protection
Lockable Front Panel and Intrusion Switch Provide Maximum Physical Security Protection

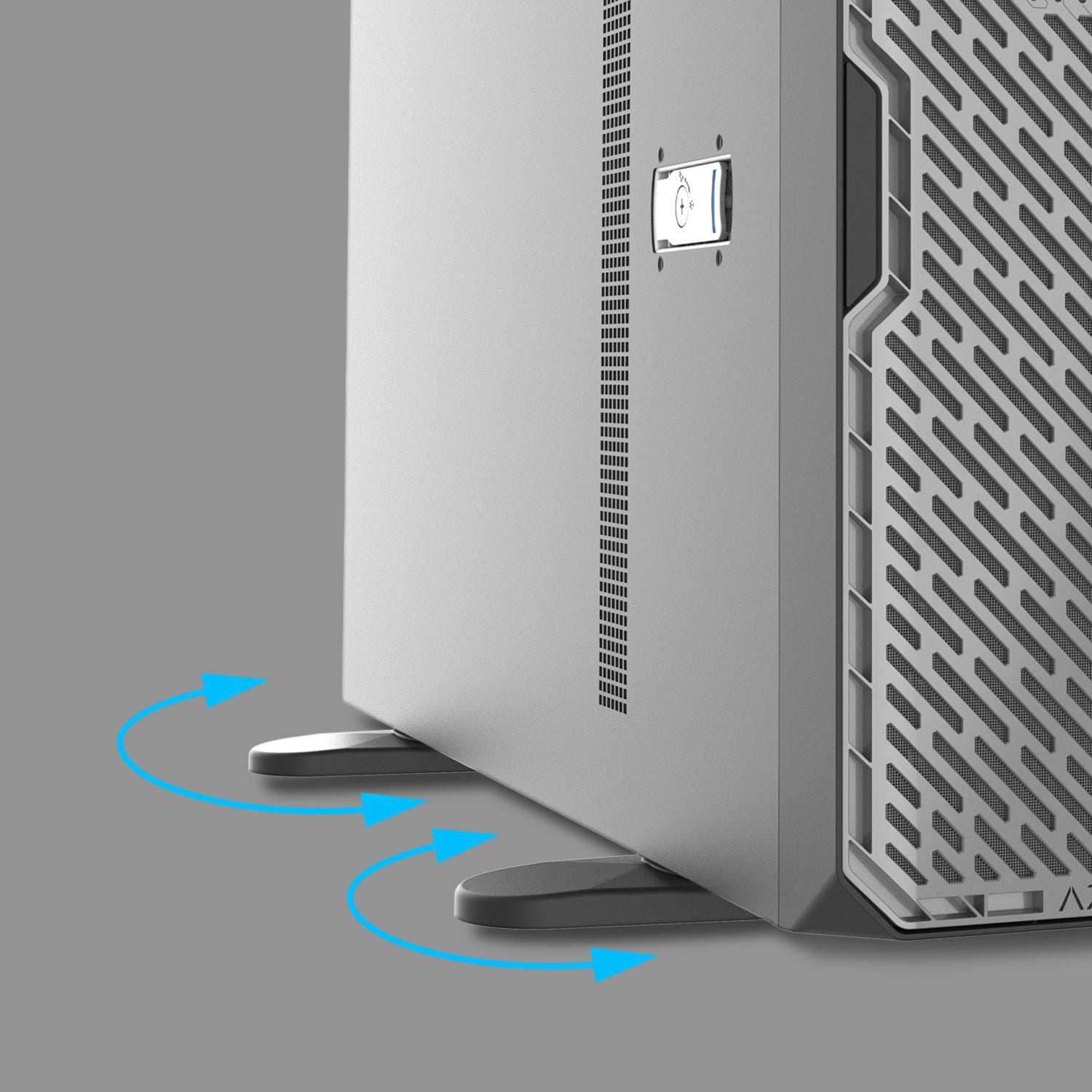

Rotatable Stand
Rotatable feet turn outward to expand the base for enhanced vertical stability, folding easily for compact storage.
