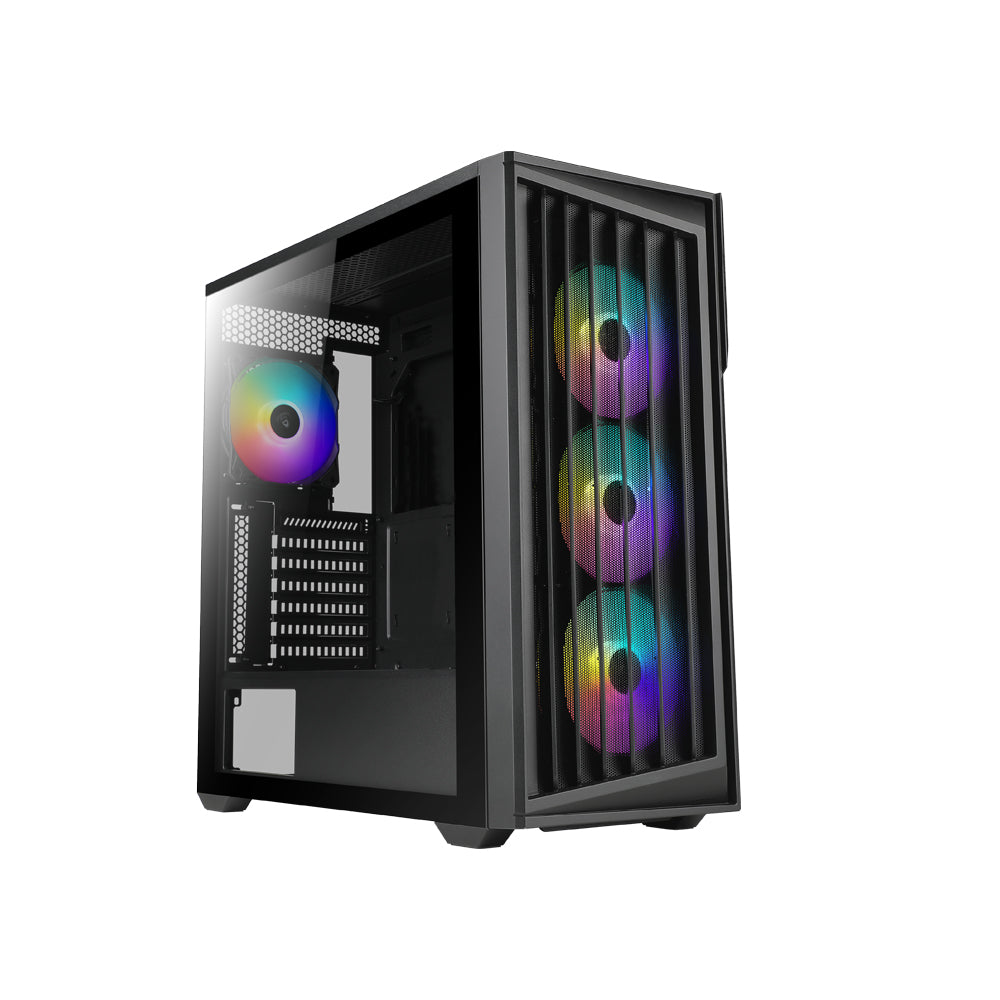

TORRENT

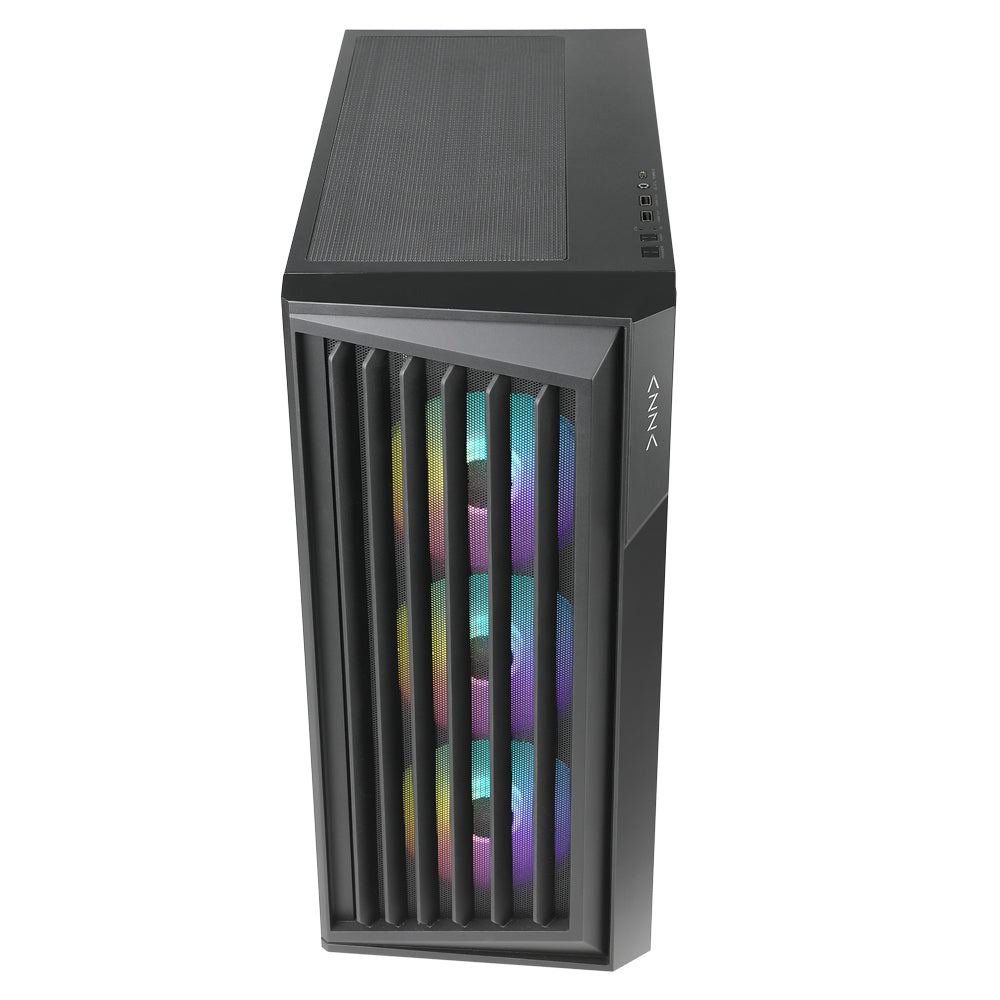

Neat and grim lines cascade on the front panel. The Torrent provides maximum airflow for a better experience with a meshed front panel design. The tempered glass side panel displays internal hardware briefly.

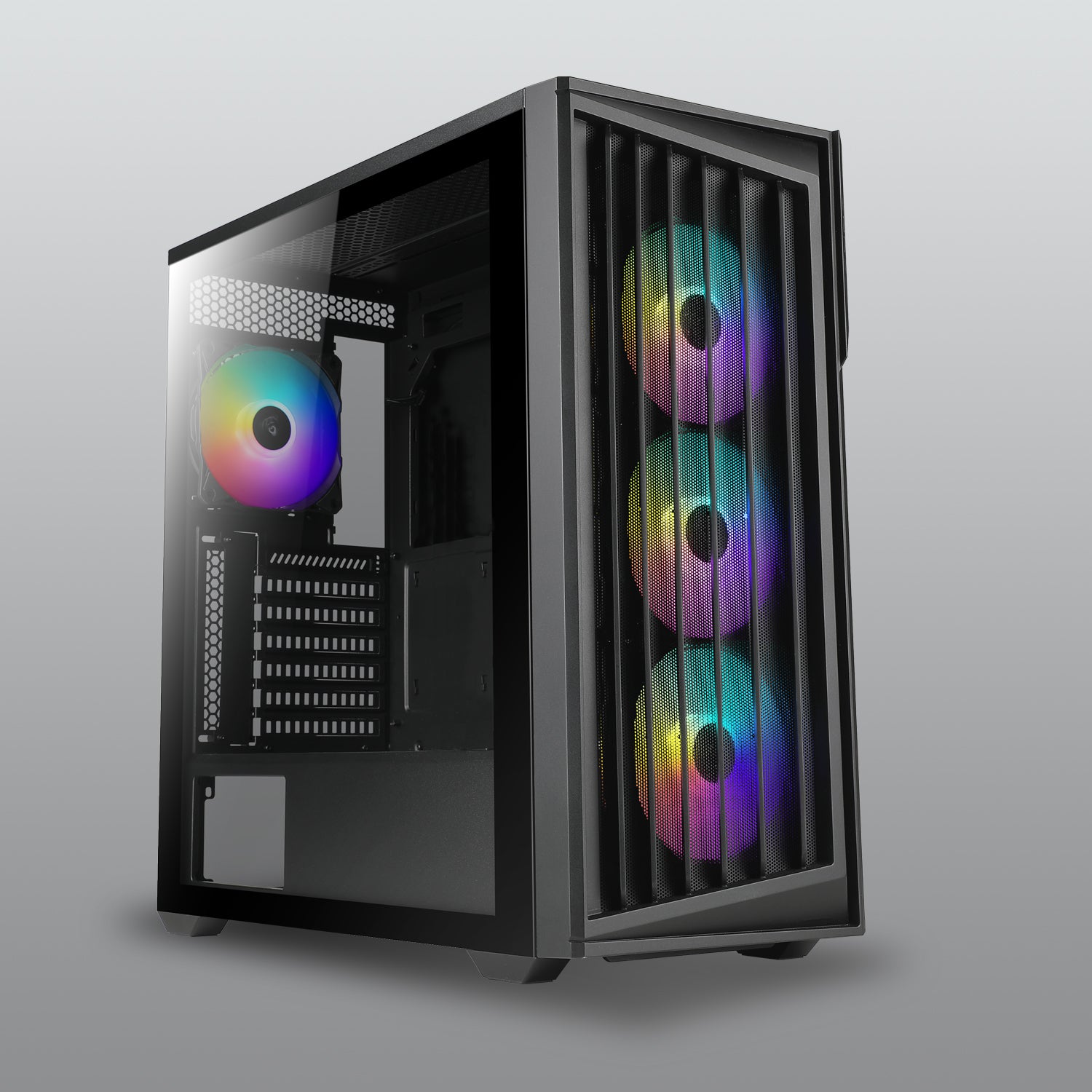

TORRENT

ATX Mid-Tower

Premium Style

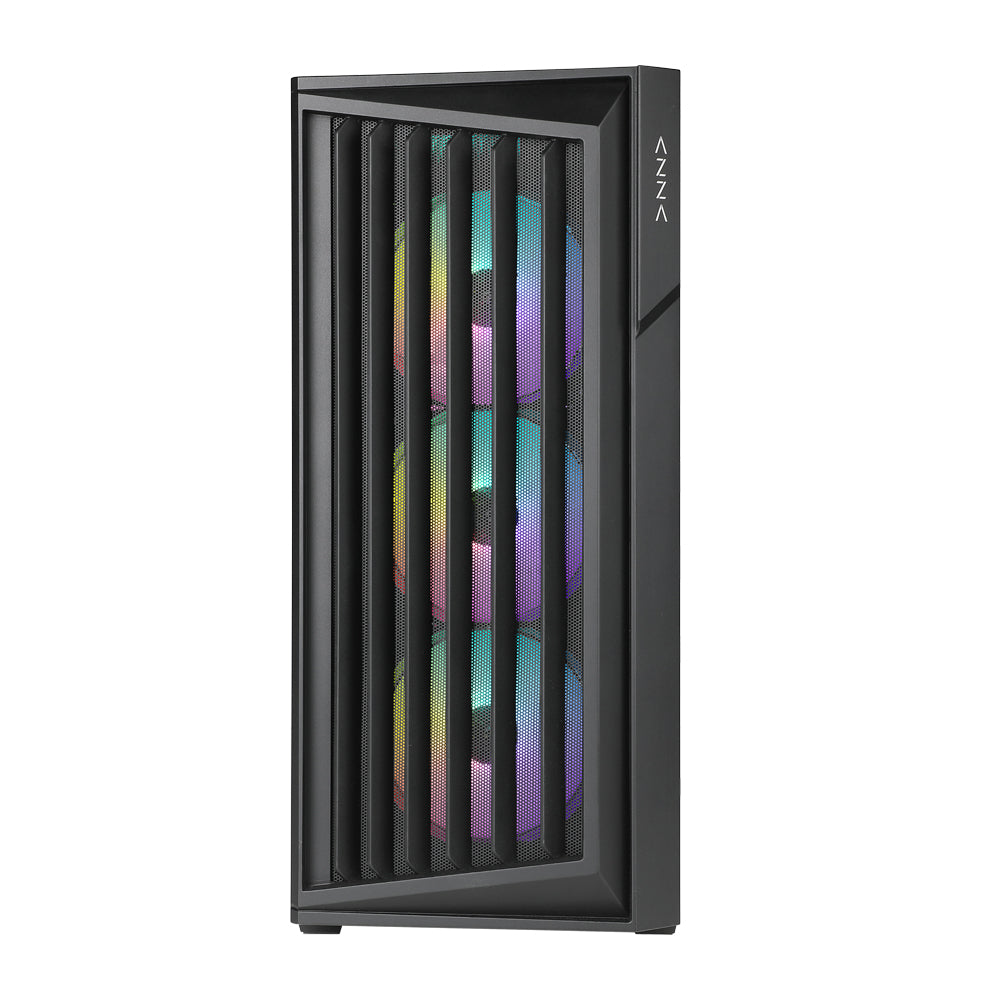

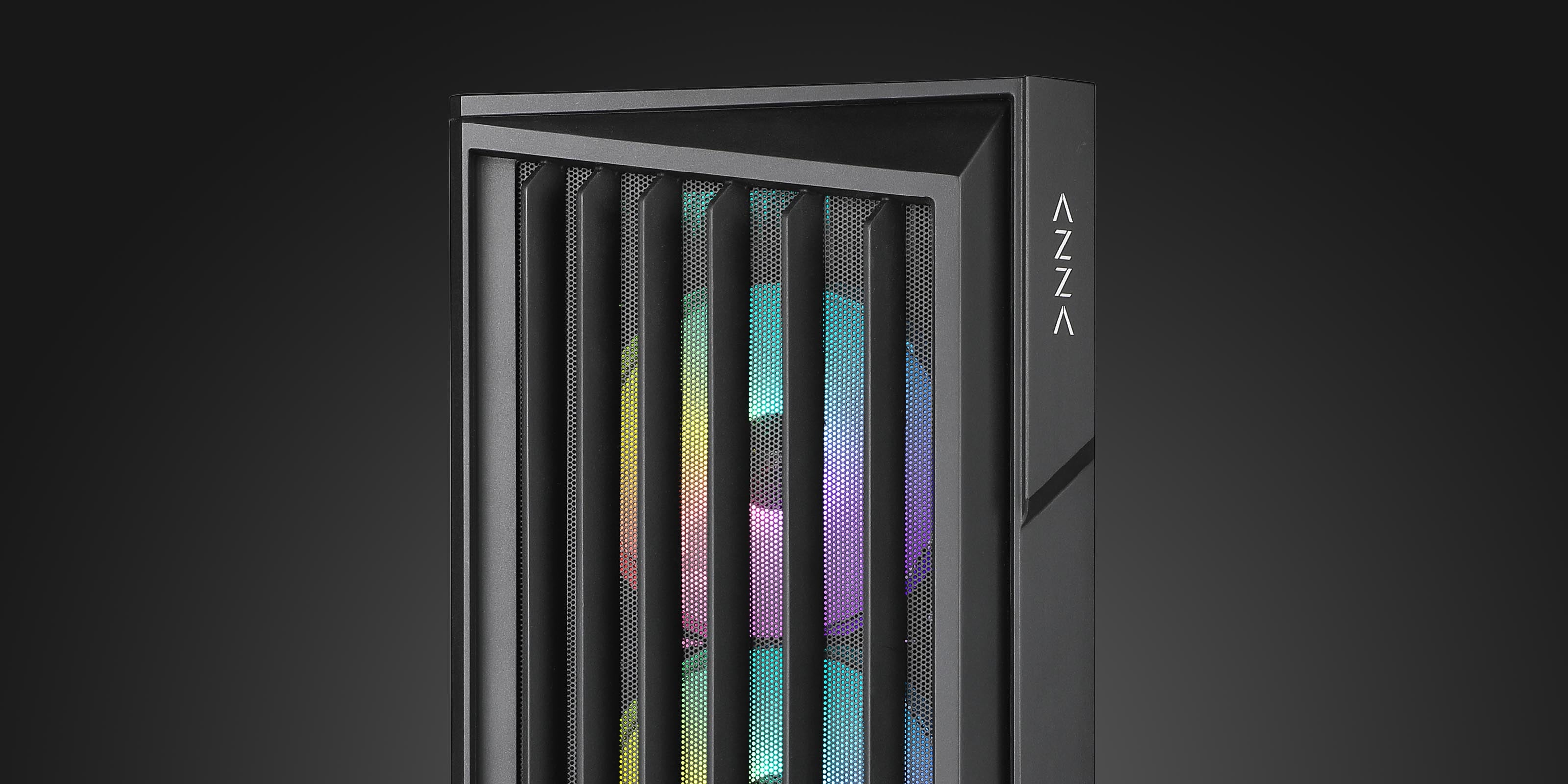

With the angular front panel design, The Torrent radiates a quite luxury atmosphere.
It includes 3 x 120 mm ARGB front fans and 1 x 120 mm ARGB rear fan.

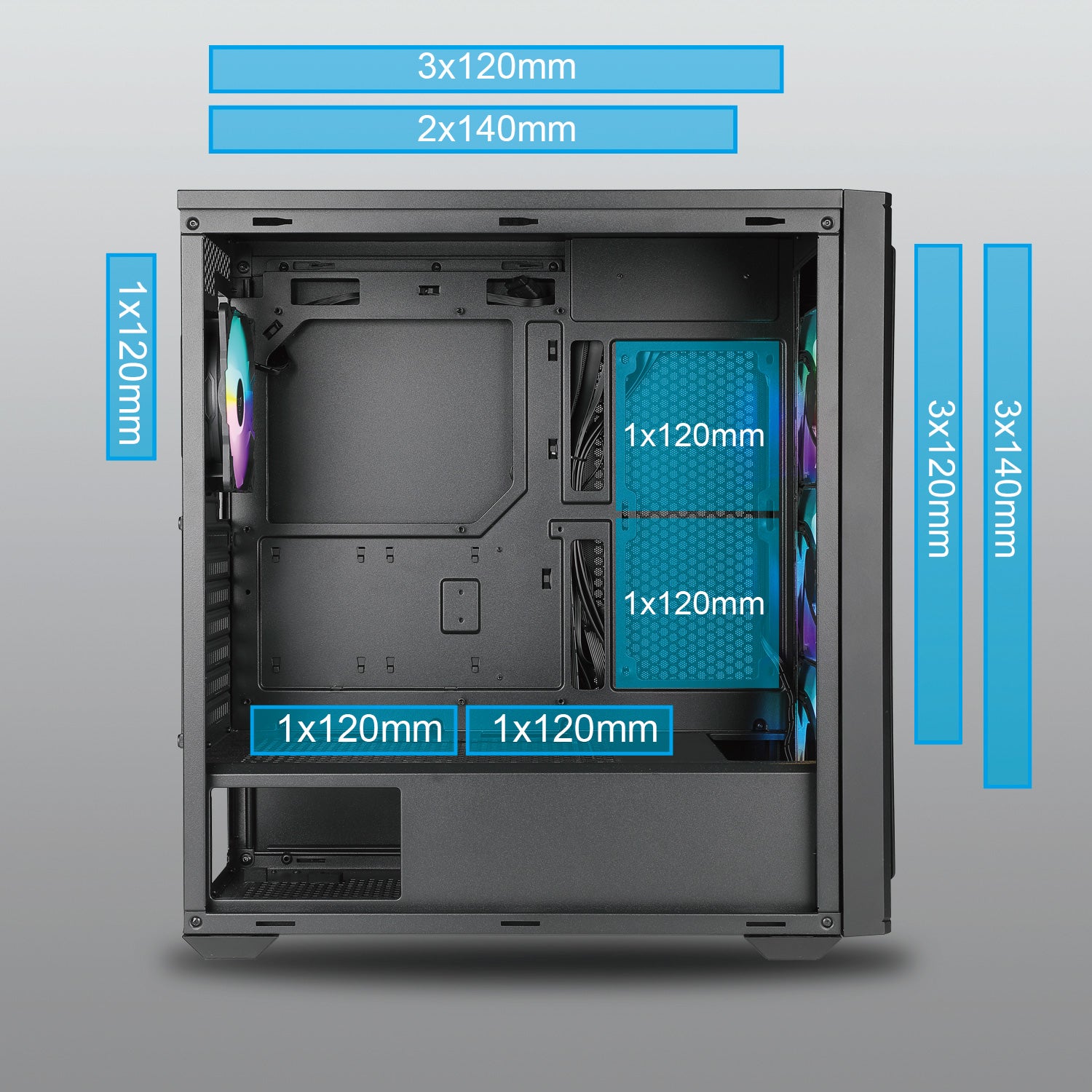

Impressive Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120 mm fans above the PSU shroud, bringing the total fan support up to 11 x 120 mm fans!

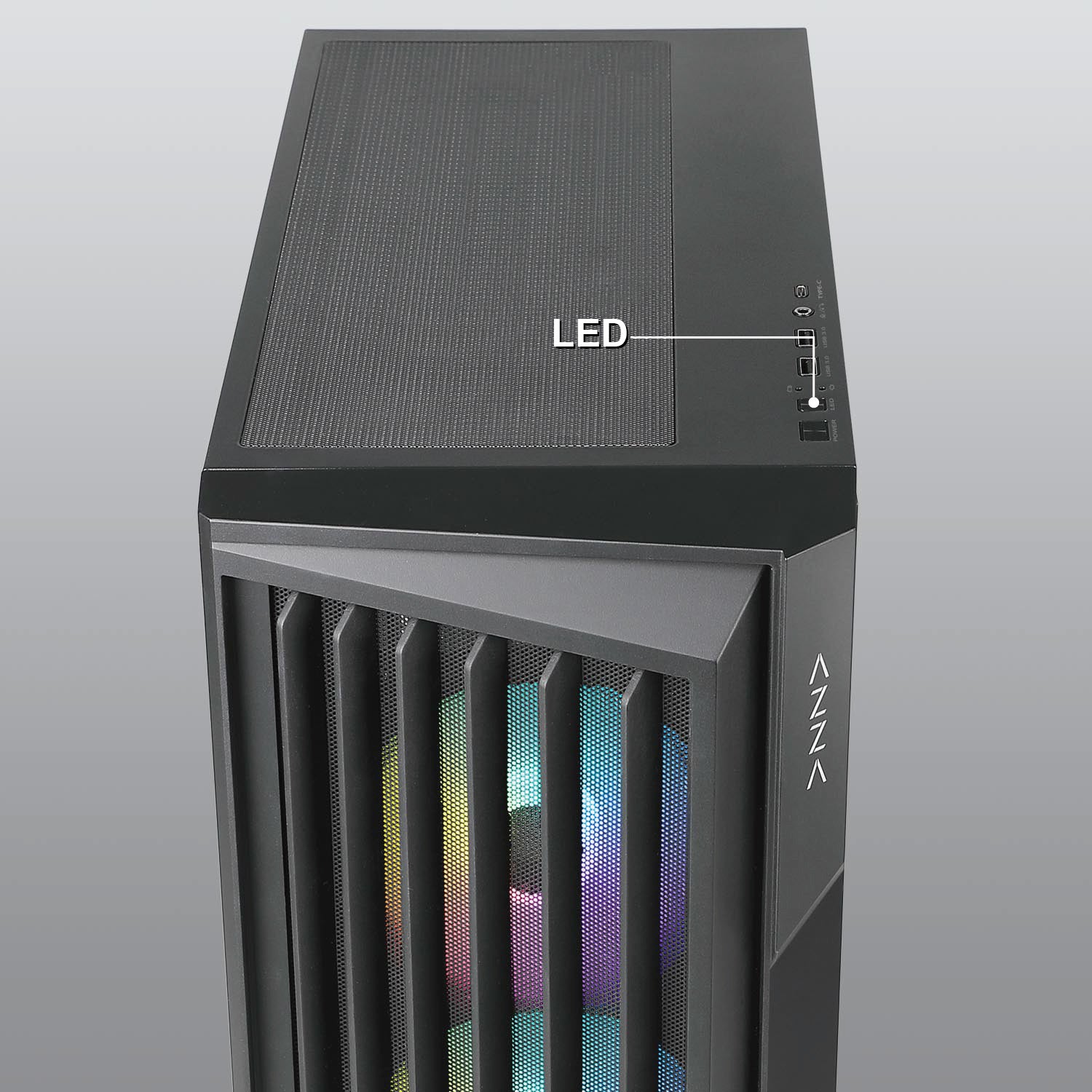

Customize Your Styles

Controllable fan lighting via the top panel LED button offers different lighting modes.

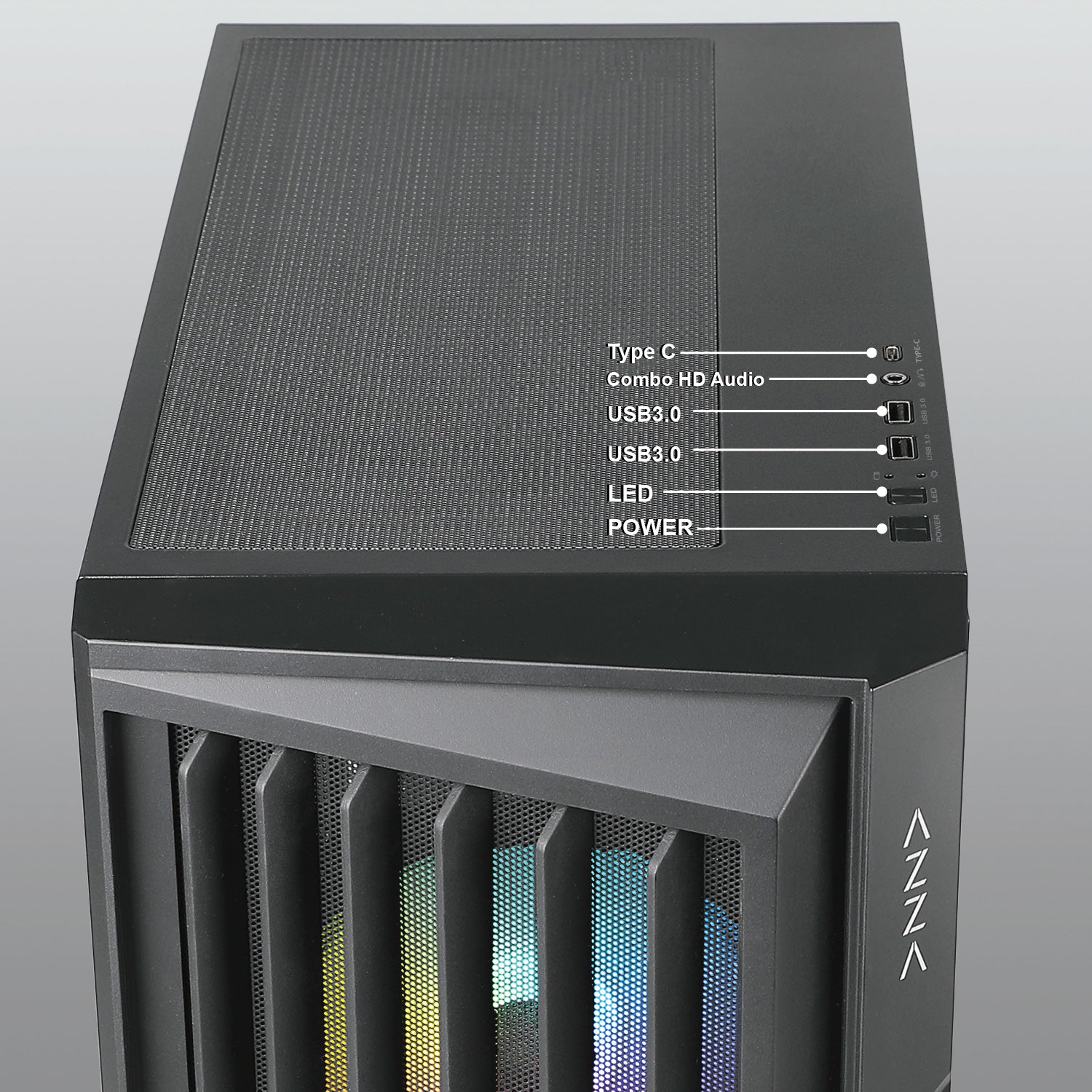

Intuitive I/O

The Torrent presents a clean front I/O which includes:

  • Power button
  • LED button
  • 2 x USB 3.0 ports
  • Combo HD Audio
  • Type-C x1

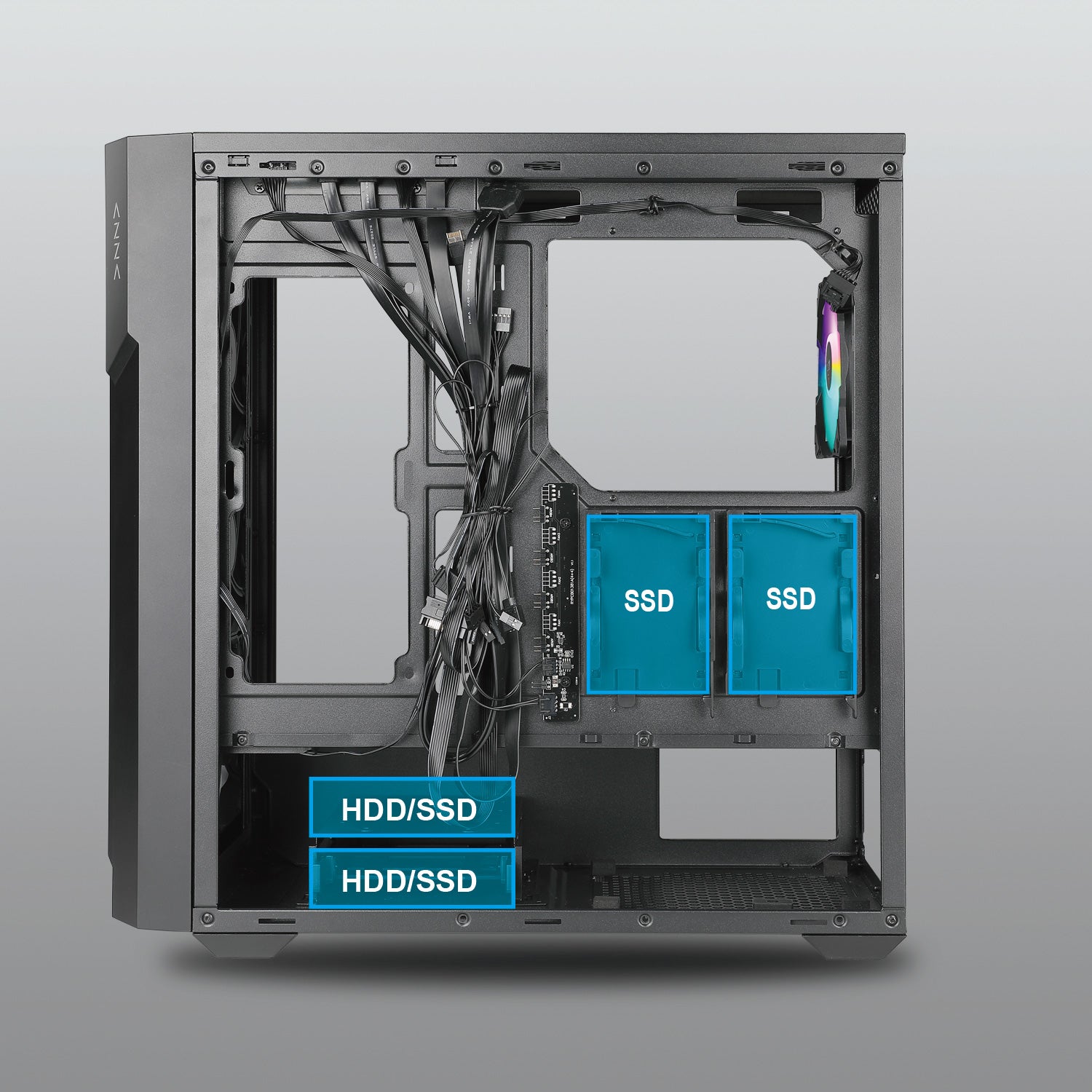

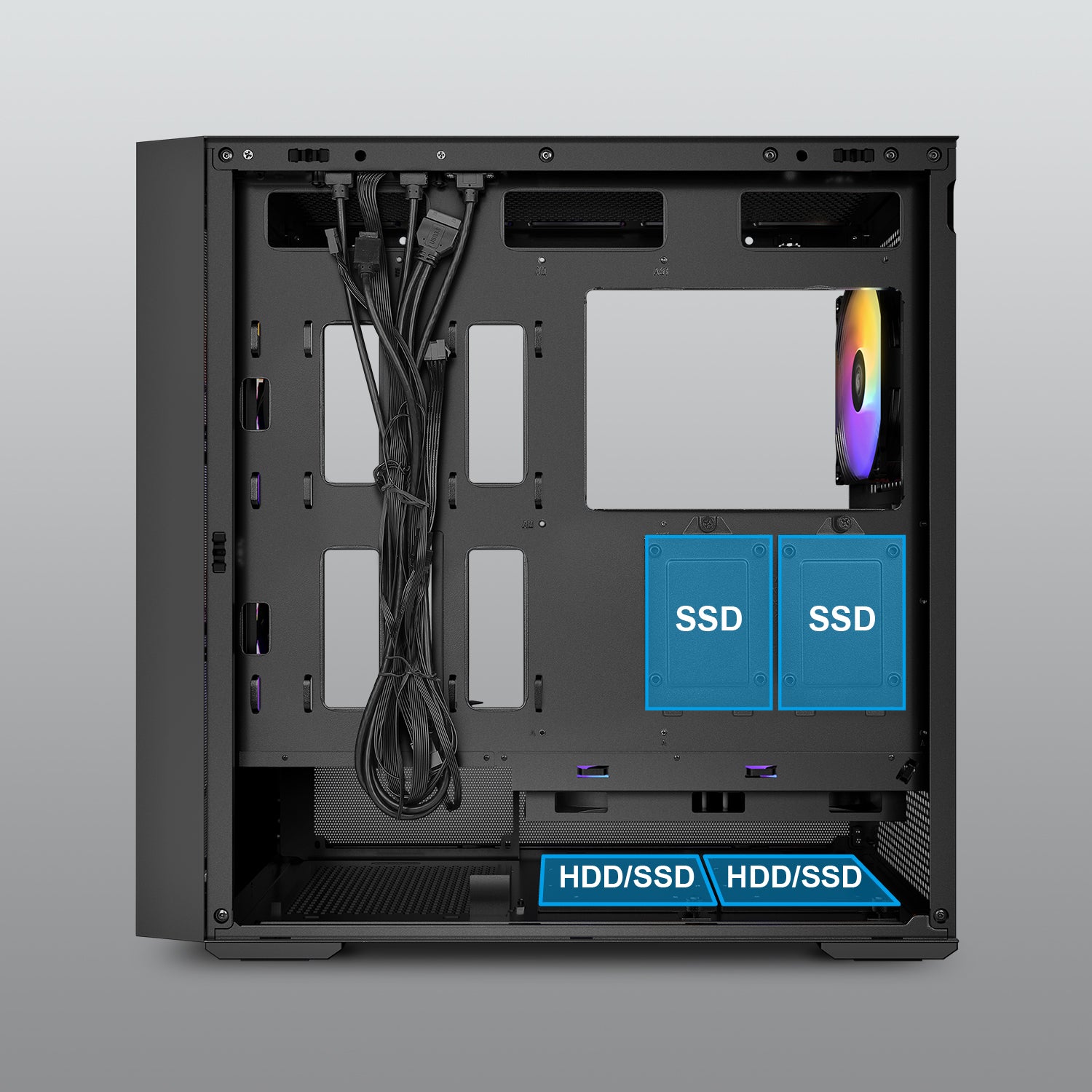

Flexible Storage Options

Drive cage tray supports 1 x 2.5" SSD or 1 x 3.5" HDD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD

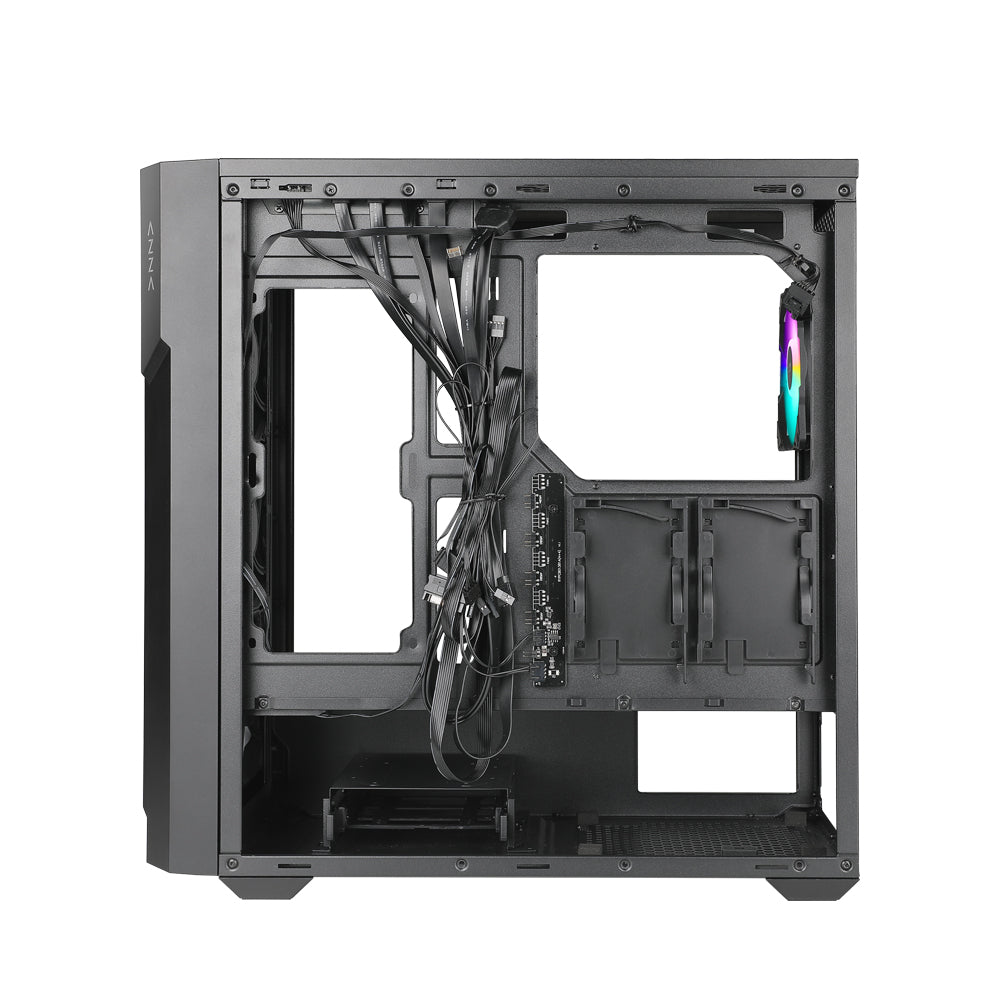

Right side panel support 2 x 2.5" SSDs

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

Top Cooling Support

Fans: Up to 3 x 120 mm or 2 x140 mm

Radiator: Up to 360 mm

Side Cooling Support

Fan: 2 x 120 mm

Radiator: Up to 240 mm

Rear Cooling Support

Fan: 1 x 120 mm

SPECIFICATIONS

CSAZ-490

Download Manual
Type

ATX Mid Tower

Color

Black

Side Panels

Left side panel: Slidable tempered glass panel

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 380 mm

Motherboard Compatibility

ATX、Micro ATX、ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

Top Ports

Power button, LED button, Combo HD Audio, USB 3.0 x 2,Type-C x1

Case Dimension (H x W x D)

480x215x470mm/19.1x8.7x18.3 inches

Weight

Kg /lbs

Addressable RGB Light Effects

Addressable RGB devices connected to the ARGB&PWM control board can be controlled with the LED button or motherboard lighting software.

Available Fan Ports

3x120mm or 3x140mm fan ports in the front
3x120mm or 2x140mm fan ports on the top
2x120mm fan ports on the mb side
1x120mm fan port in the rear
2 x 120 mm fan ports on the PSU shroud

Included Fans

3x120mm LFO-5212D ARGB&PWM Fan in the front

1x120mm LFO-5212D ARGB&PWM Fan in the rear

Water Cooling

Supports radiators up to 280/360mm in the Front
Supports radiators up to 280/360mm in the Top

Dust Filters

Removable (magnetic) dustproof net on the top , dust filter on bottom of chassis

Power Supply Support

Bottom mounted ATX Power Supply
