TIARA
Cooling holes all around the bottom panel create an efficient vertical air path, accelerating air flow from all angles. The Tiara provides decent dimensions, with up to a maximum 400mm graphic card inside the chamber.
ATX Mid-Tower Case
Diverse Material Design

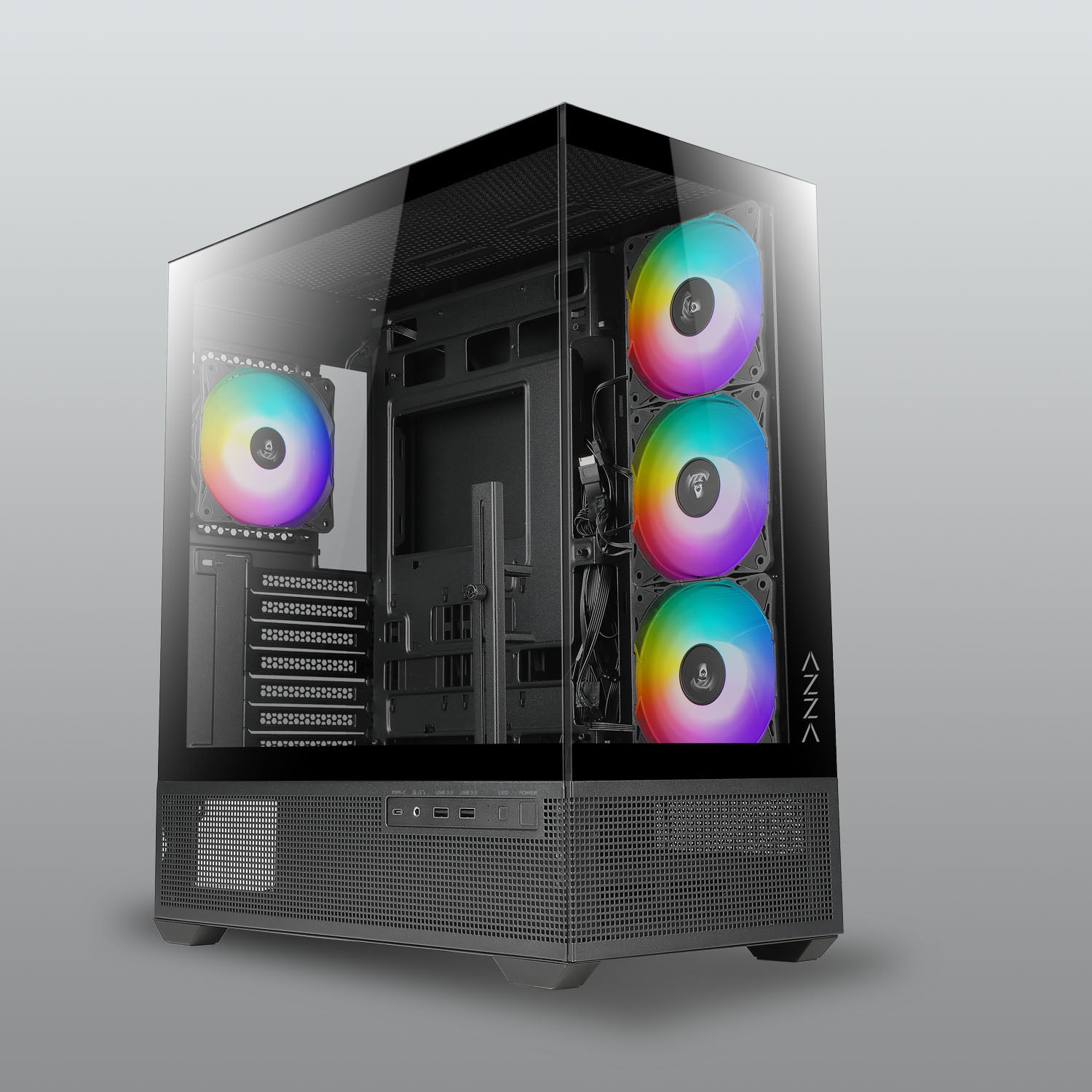

The Tiara combined with glass and mesh hole panel design,presents a succinct appearance and wonderful heat dissipation at once.It includes 3 x 120mm ARGB side fans and 1 x 120mm ARGB rear fan,as well as a VGA support bar.
Impressive Airflow Support
Direct airflow to the GPU can be achieved by adding 3 x 120mm fans above the PSU shroud,bringing the total fans support up to 10 x 120mm fans!

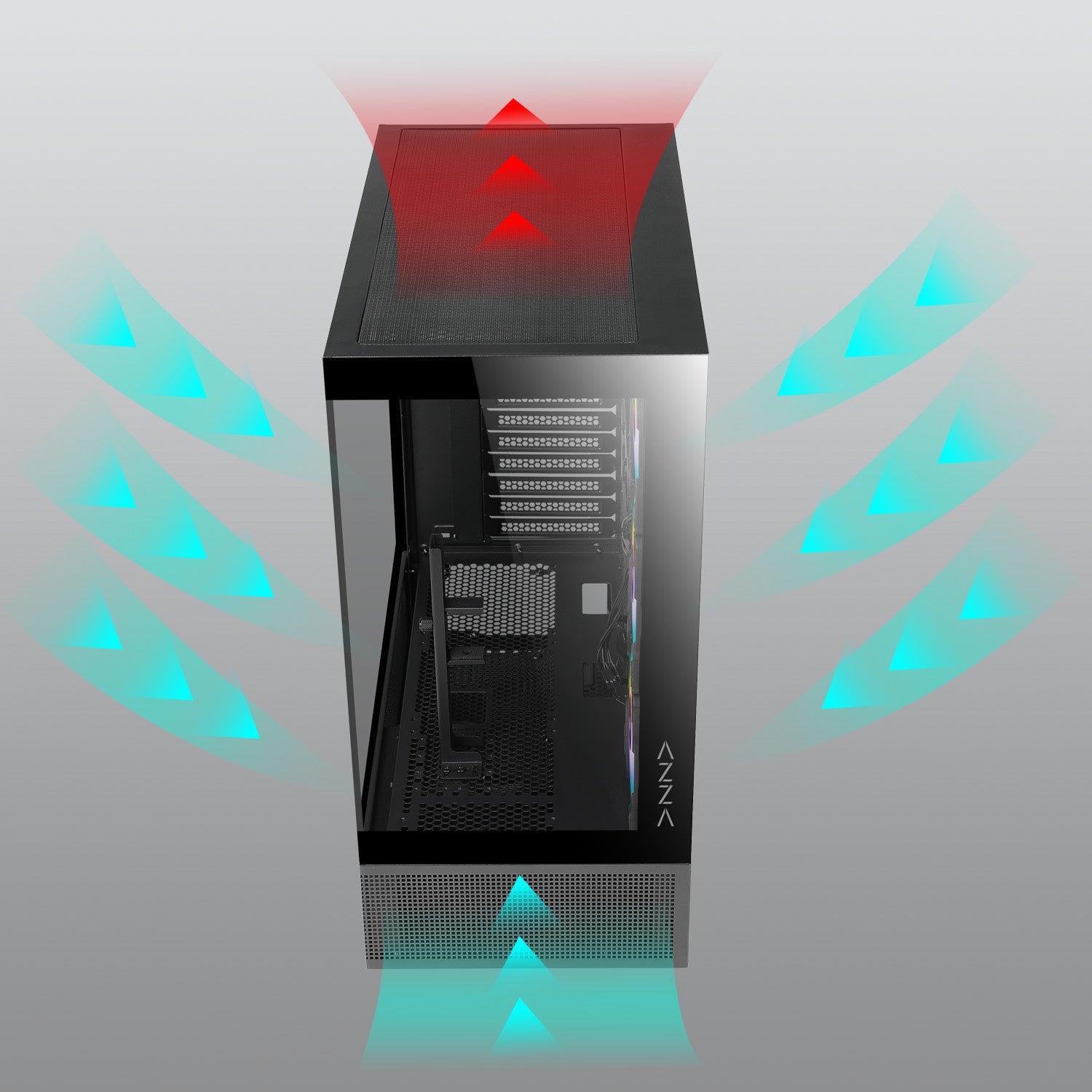

Wonderful Unrestricted Airflow
Right and bottom solid panel with grids to enhance heat dissipation and ventilation all around the chamber.

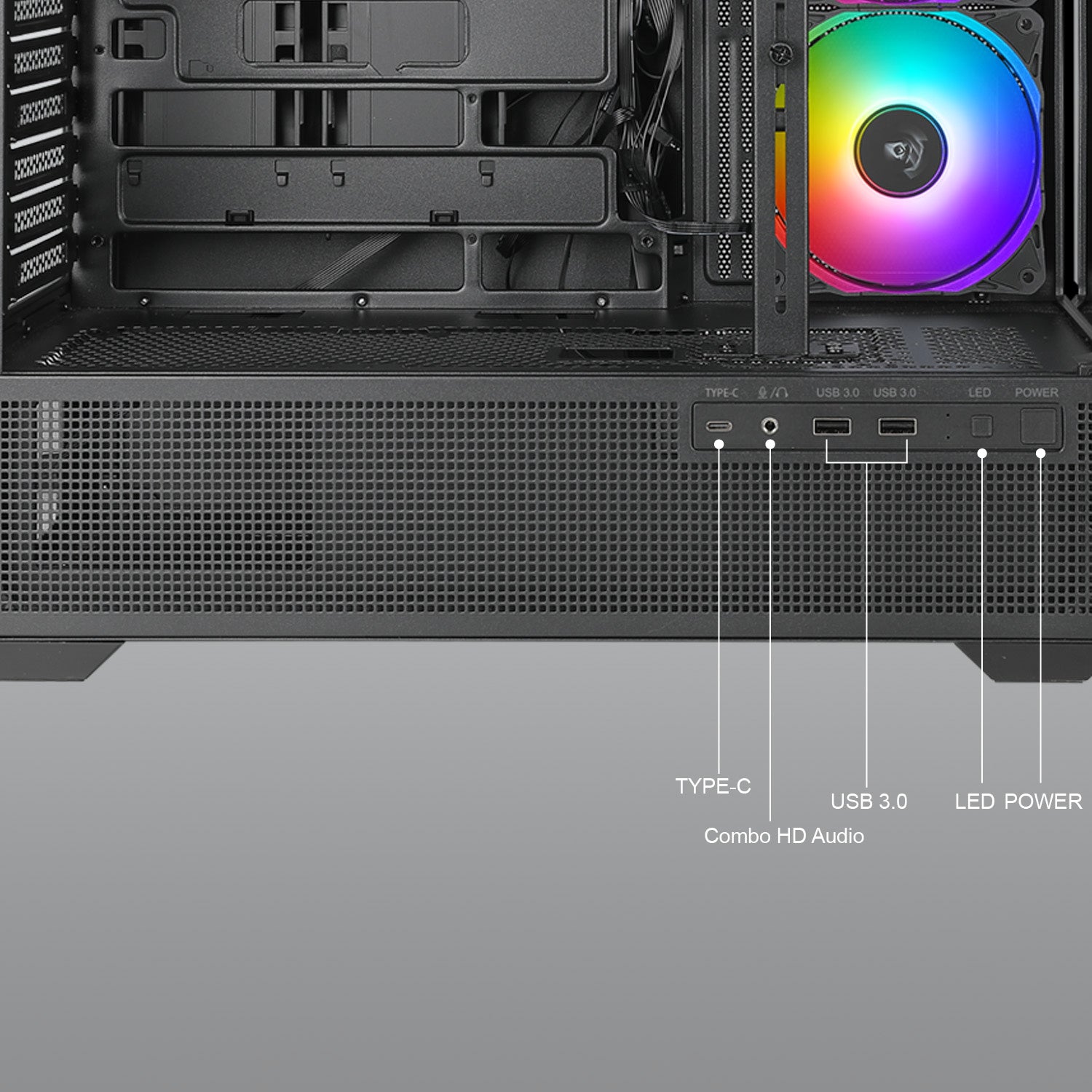

Intuitive I/O
The Tiara presents a clean front I/O which includes:
- Power button
- LED button
- Combo HD Audio
- 1 x USB 3.0 port
- 1 x Type C

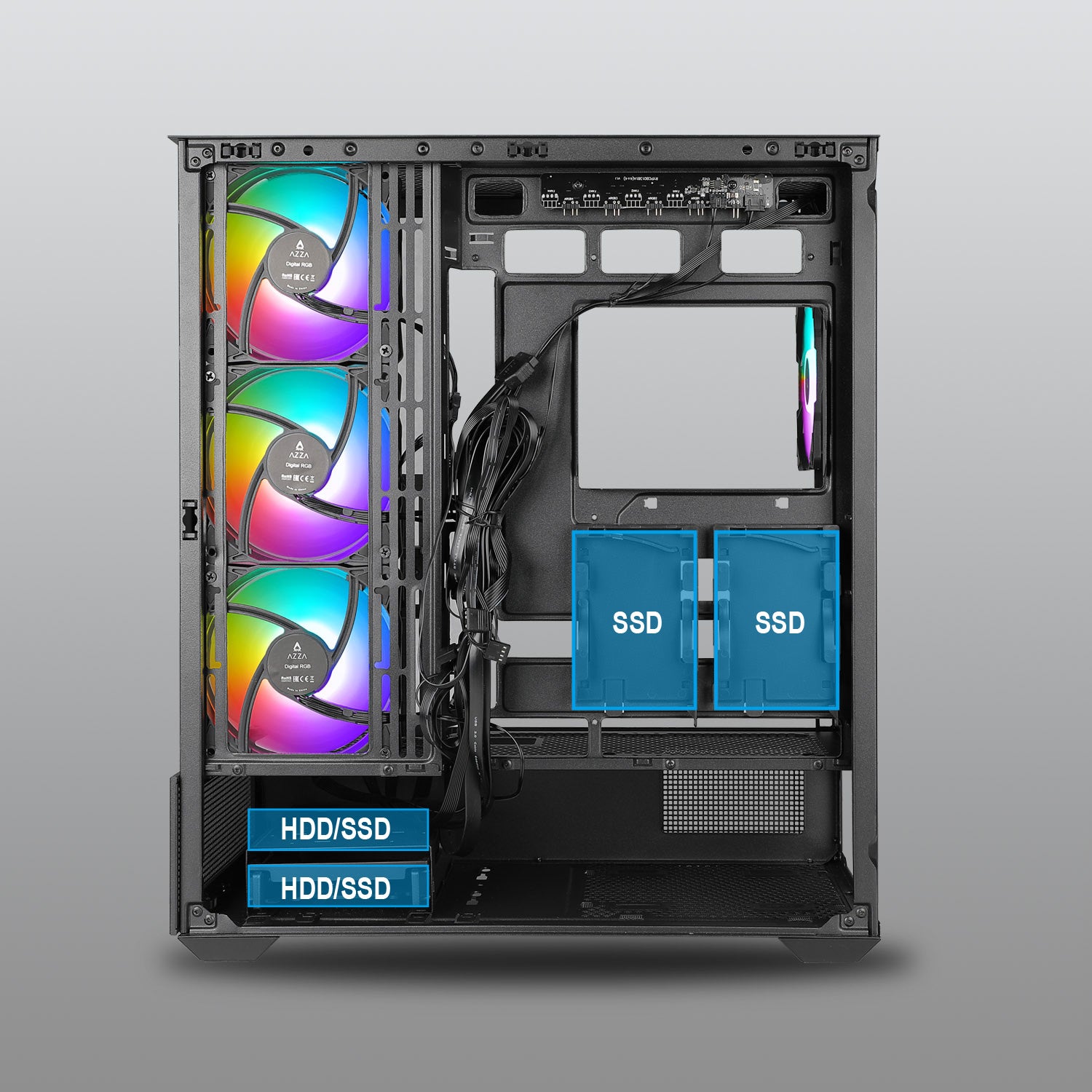

Flexible Storage Options
Drive cage tray supports 1x 3.5" HDD or 1x 2.5” SSD
Top of drive cage support 1x 3.5" HDD or 1x 2.5” SSD
Right side panel support 2x 2.5” SSD

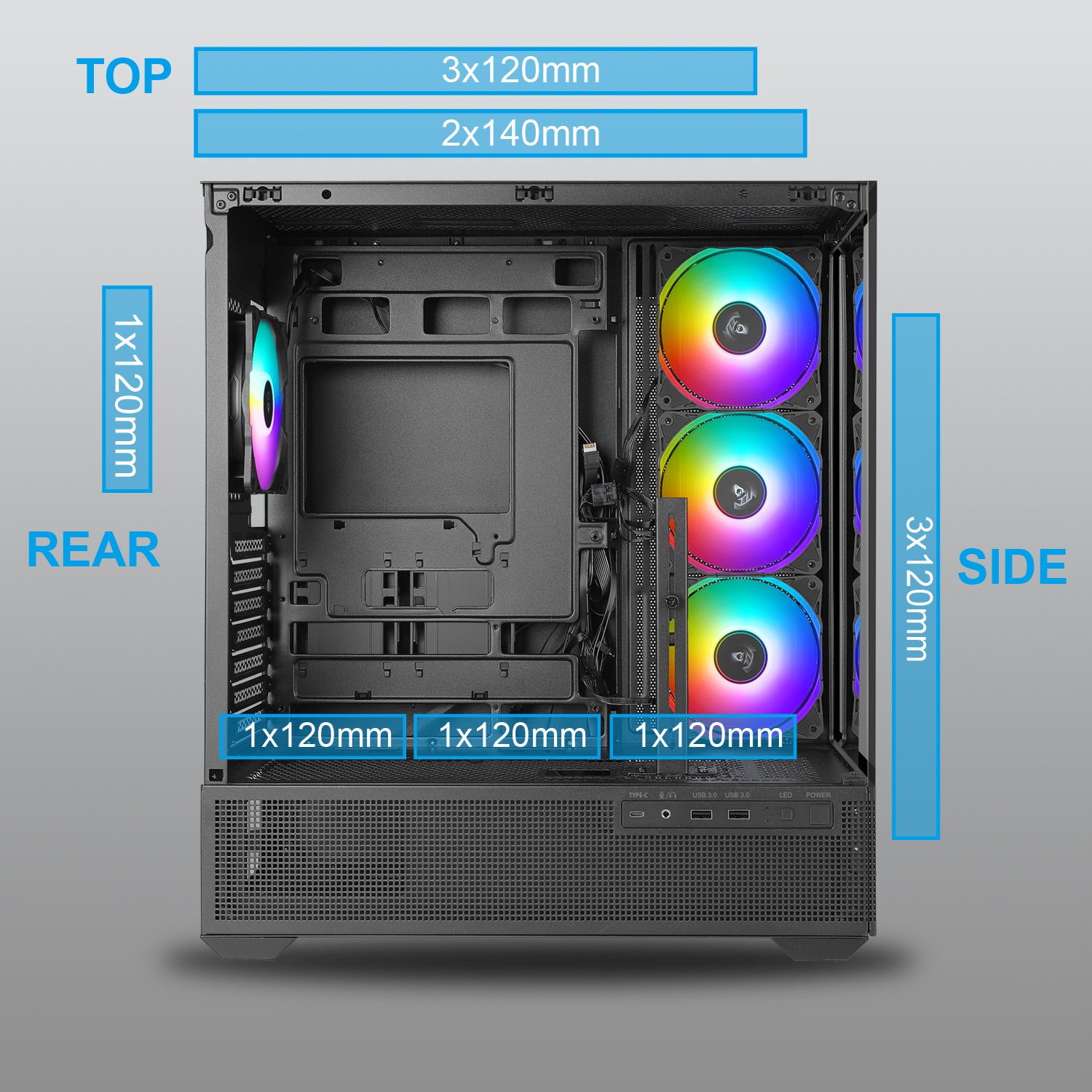

Side Cooling Support
Fans: Up to 3 x 120mm
Radiator: Up to 360mm

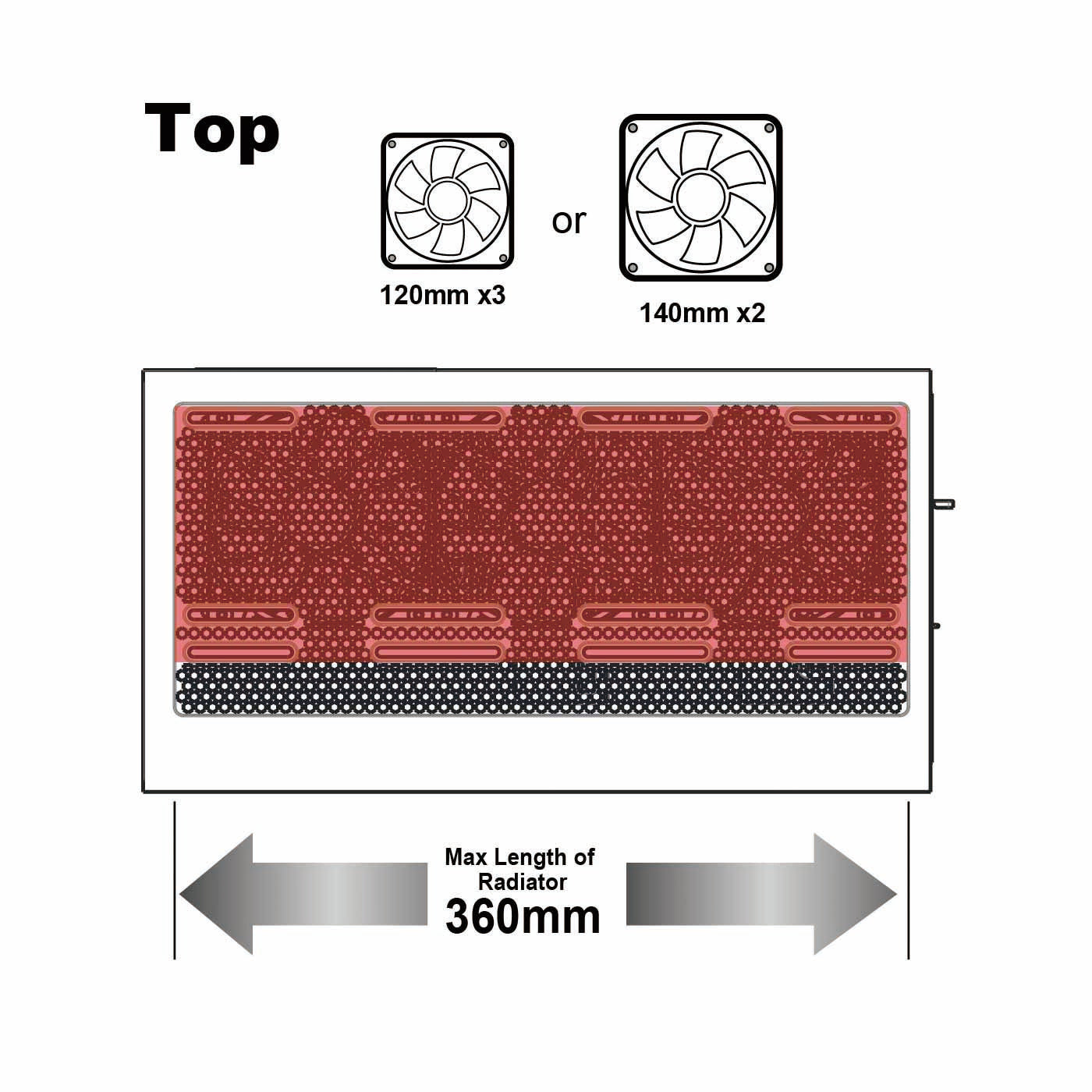

Top Cooling Support
Fans: Up to 3 x 120mm or 2 x 140mm
Radiator: Up to 360mm
Rear Cooling Support
Fans: Up to 1 x 120mm
ATX Mid Tower
Black
side panel: Tempered Glass
Up to 170 mm
Up to 400 mm long video card ，Wide<155mm
ATX(Back-connect supported) 、Micro ATX、ITX
Up to 4
Up to 2
7
Power button
LED button
Combo HD Audio
USB 3.0 x 2
Type C x1
482 mm x 225 mm x 420 mm
6.38Kg /14lbs
Addressable RGB devices connected to the ARGB&PWM control board can be controlled with the LED button or motherboard lighting software.
3x120mm on the mb side
3x120mm or 2x140mm fan ports on the top
1x120mm fan port in the rear
3 x 120 mm fan ports on the PSU shroud
3 x 120mm LFO-5612D ARGB&PWM Fan on the MB side
1 x 120mm LFO-5612DR ARGB&PWM fan in the rear
Supports radiators up to 240/280mm on the Side
Supports radiators up to 280/360mm in the Top
Removable (magnetic) dustproof net on the top , dust filter on bottom of chassis.
Bottom mounted ATX power supply
VGA Holder
