CSAZ-280B

SPECTRA BLACK

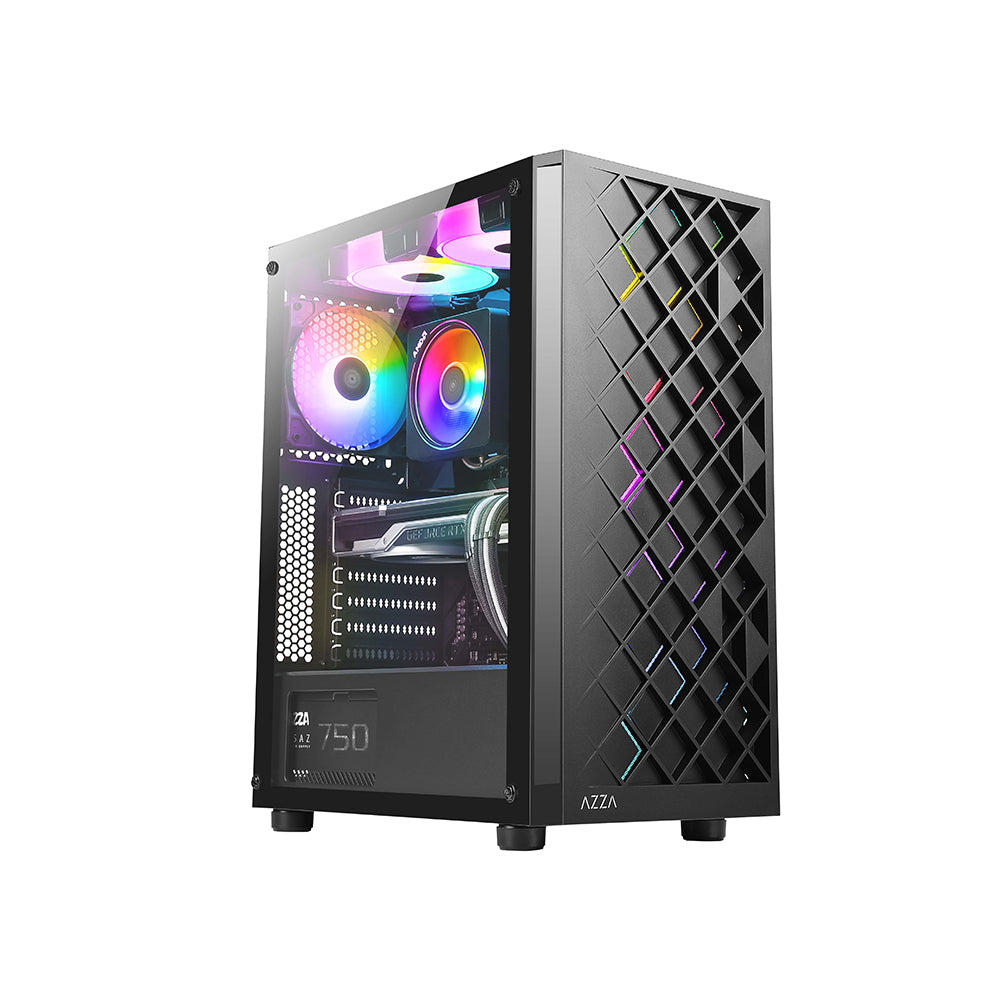

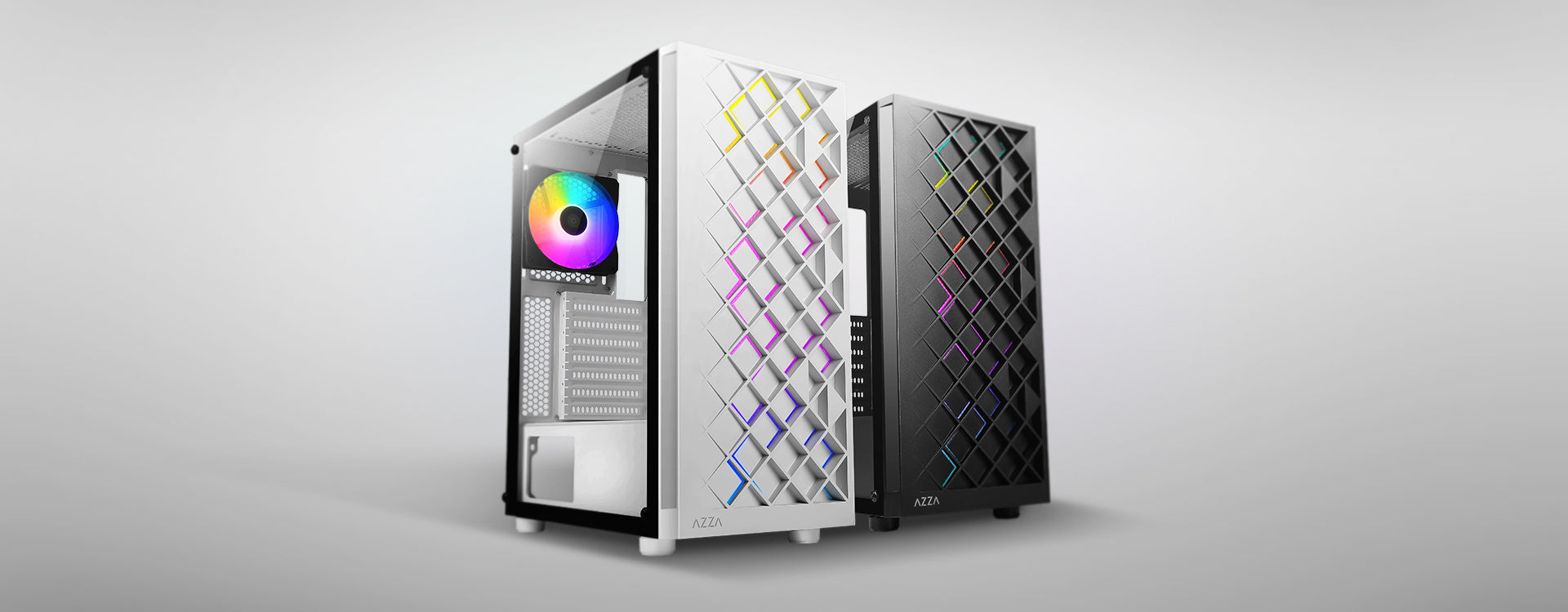

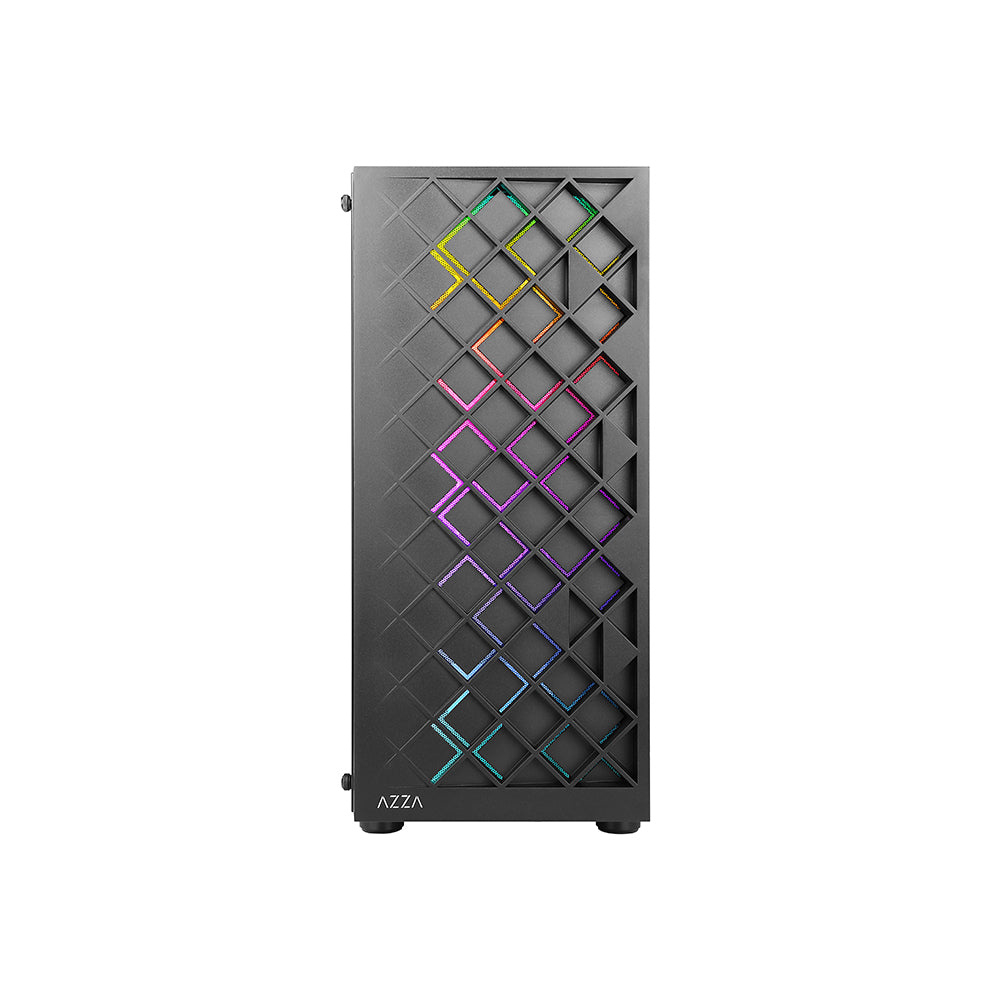

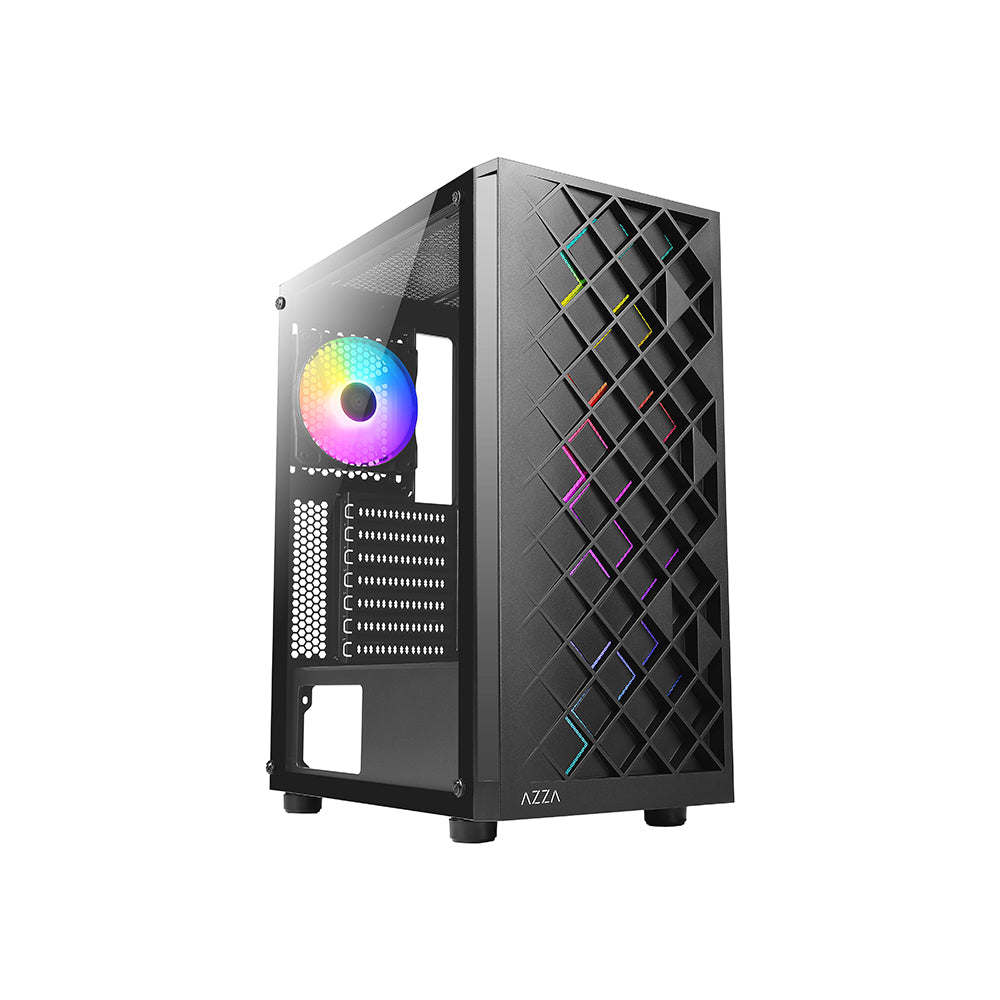

For those looking for a fun yet refined look in a case. The front panel of the SPECTRA mimicks trickling, cascading diamonds that give off a subtle hint of playful colors. Fully customize your color schemes with the built-in functions.
Amazon
Newegg

Spectra

ATX Mid-Tower Case

Premium Look

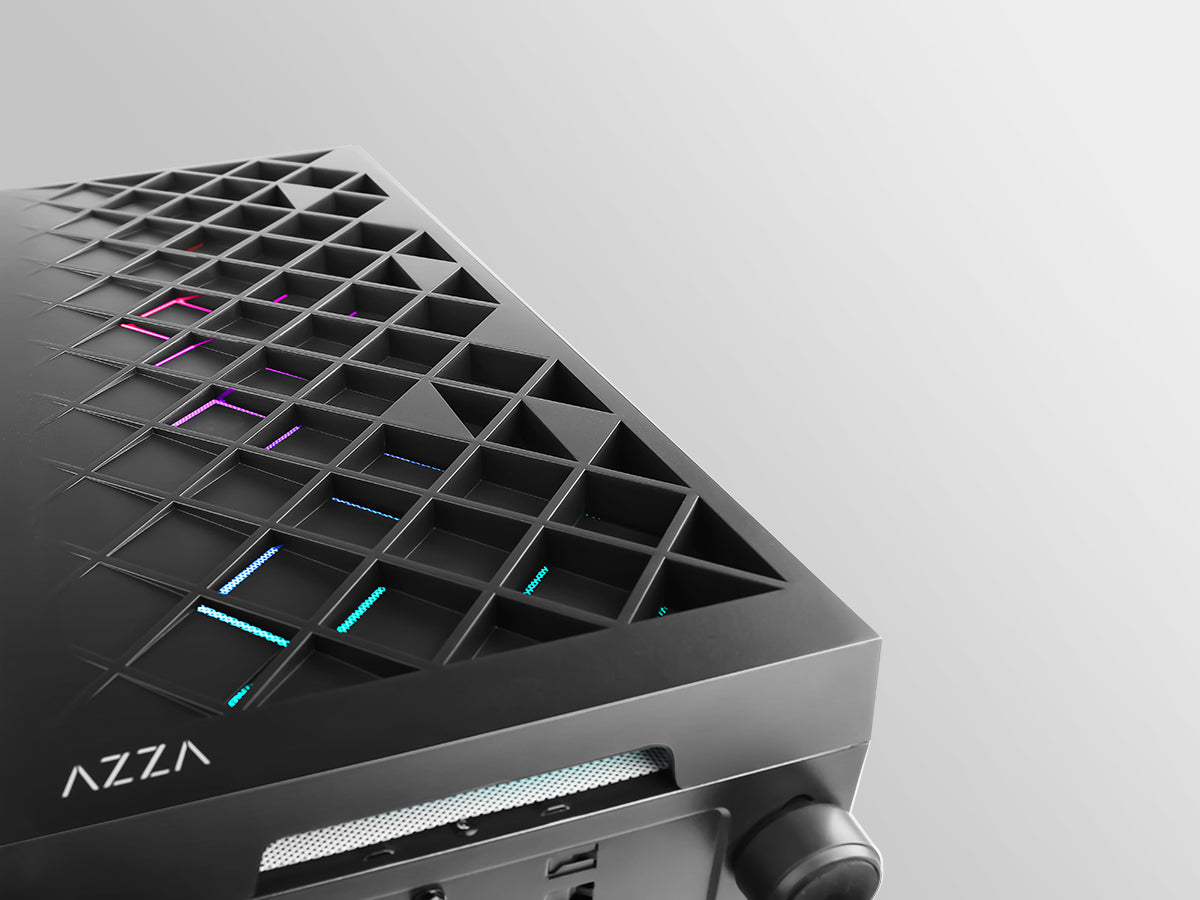

The SPECTRA's unique front panel houses a removable magnetic mesh sheet allowing for good airflow and dust control, all while maintaining its classic look.

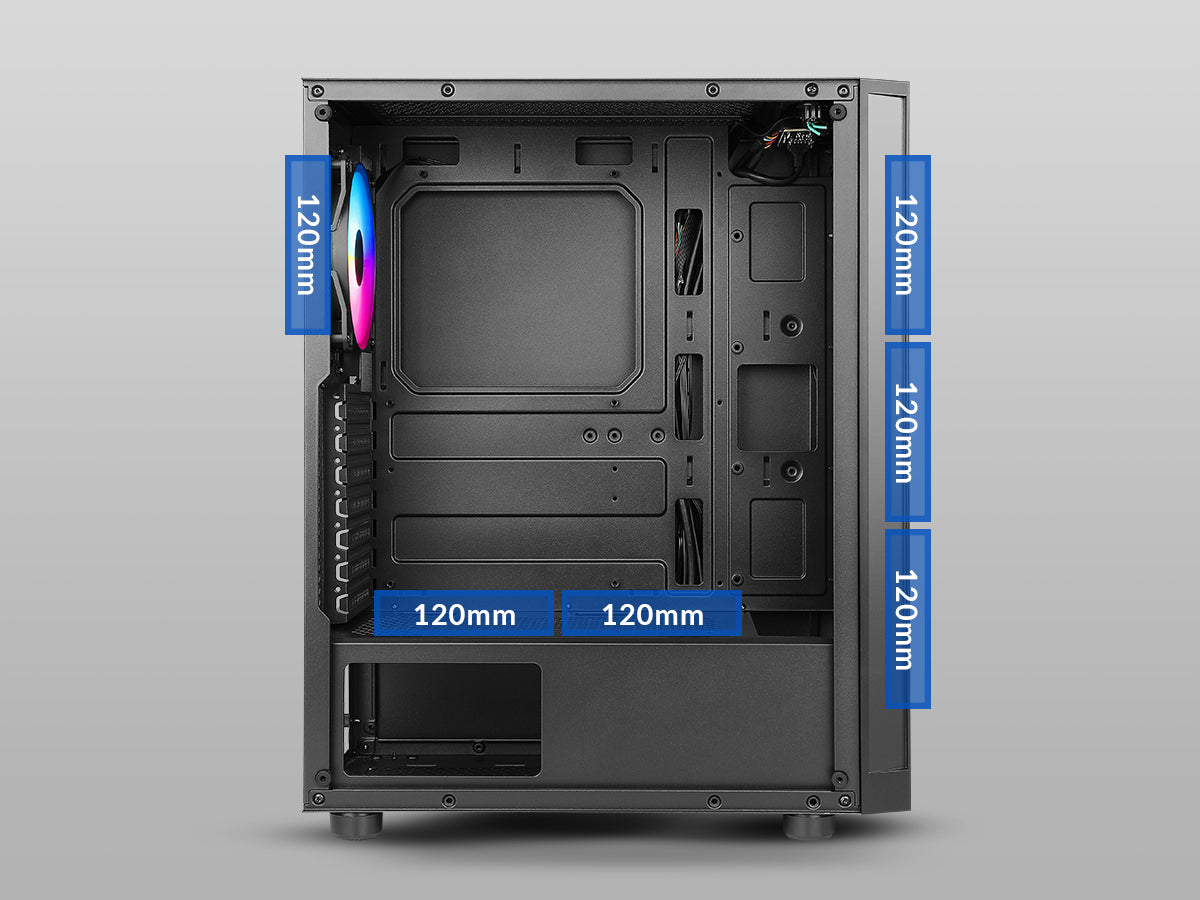

Multifaceted Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120 mm fans above the PSU shroud, bringing the total fan support up to 8 x 120 mm fans.

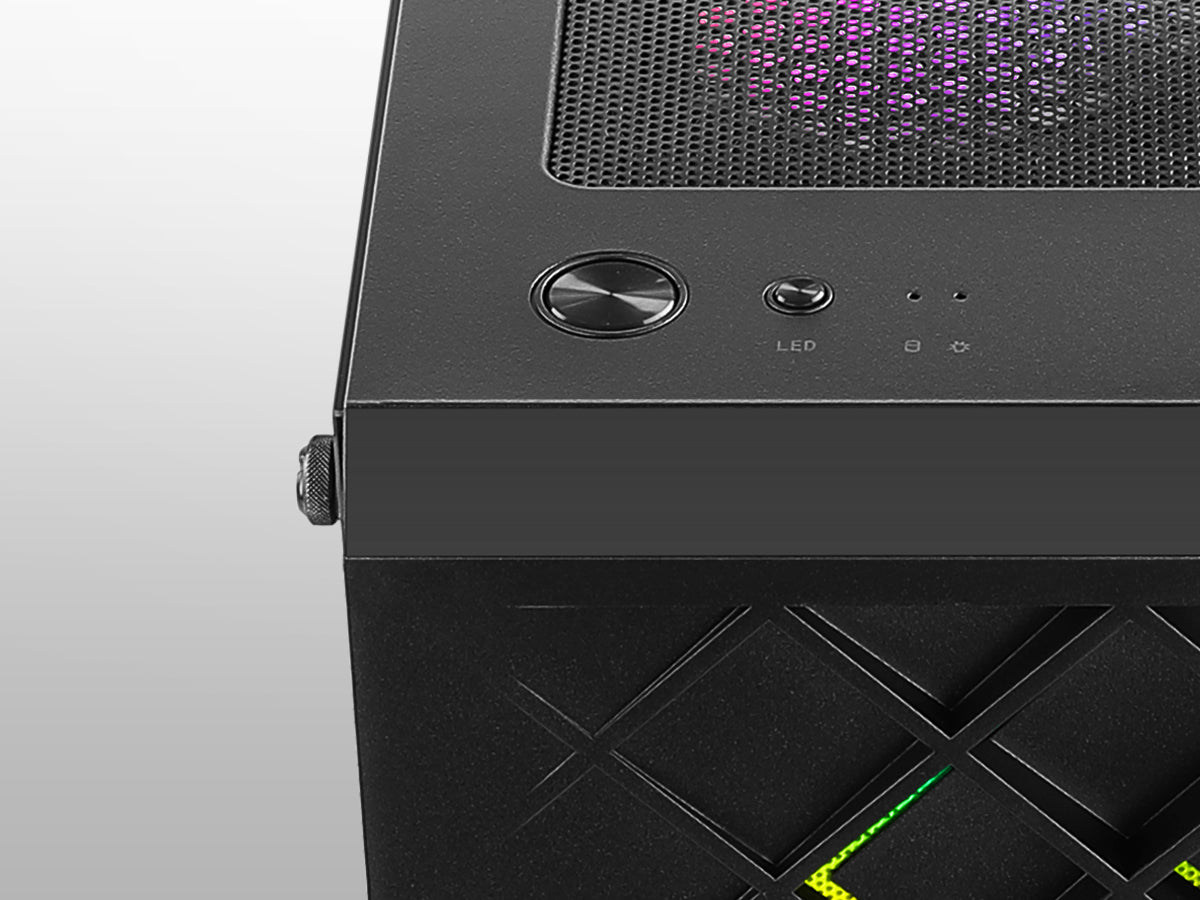

Customize Your Style

Controllable fan lighting via the top panel LED button offers 13 lighting modes.

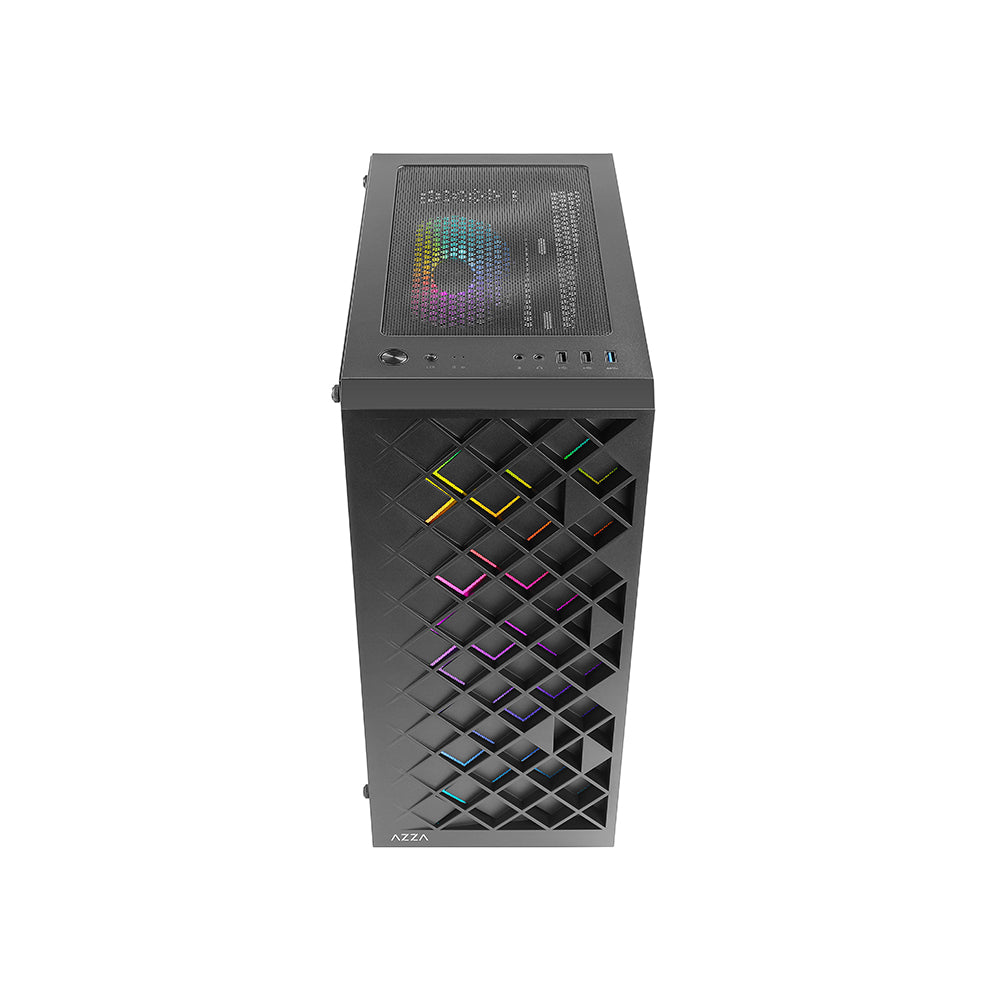

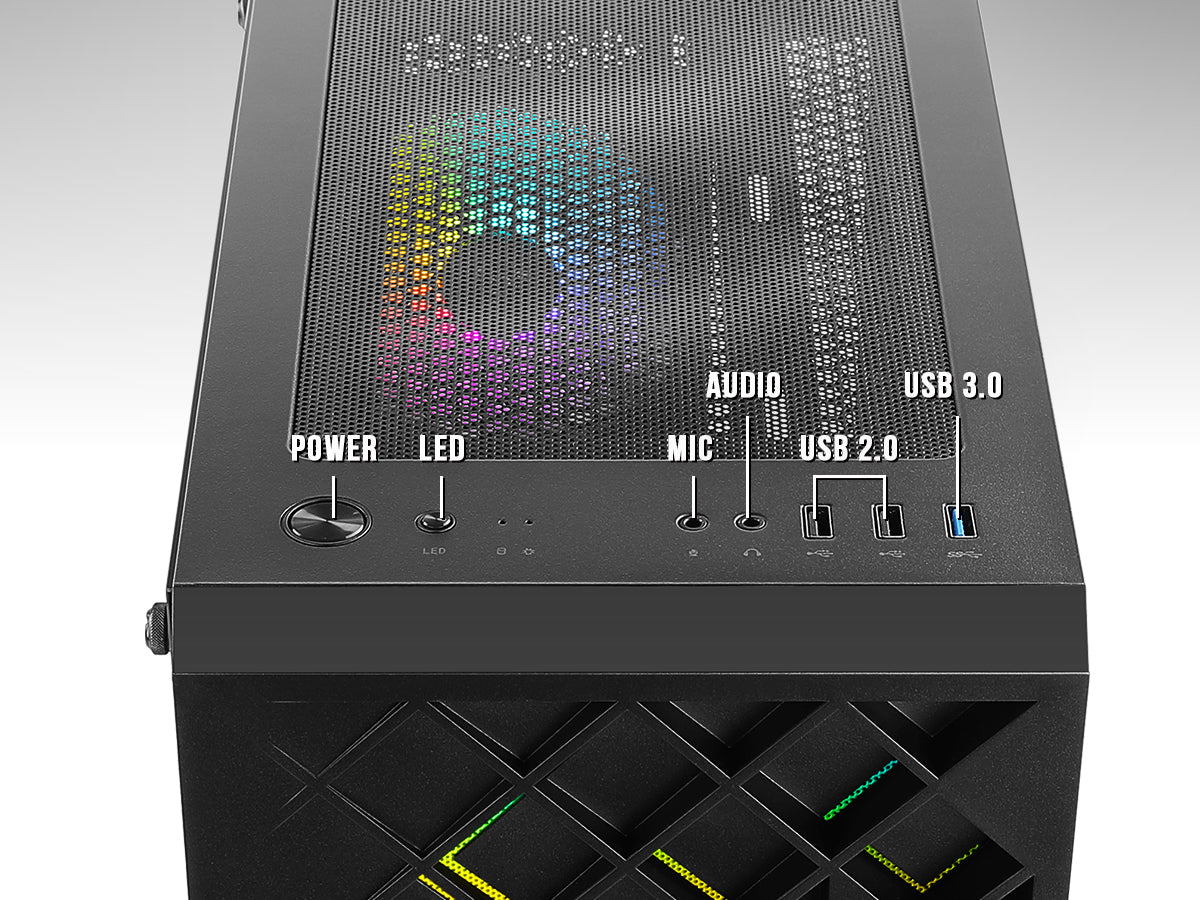

Intuitive I/O

The SPECTRA presents a clean top I/O which includes:

  • Power button
  • LED button
  • Individual Mic and HD Audio jacks
  • 1 x USB 3.0 port
  • 2 x USB 2.0 ports

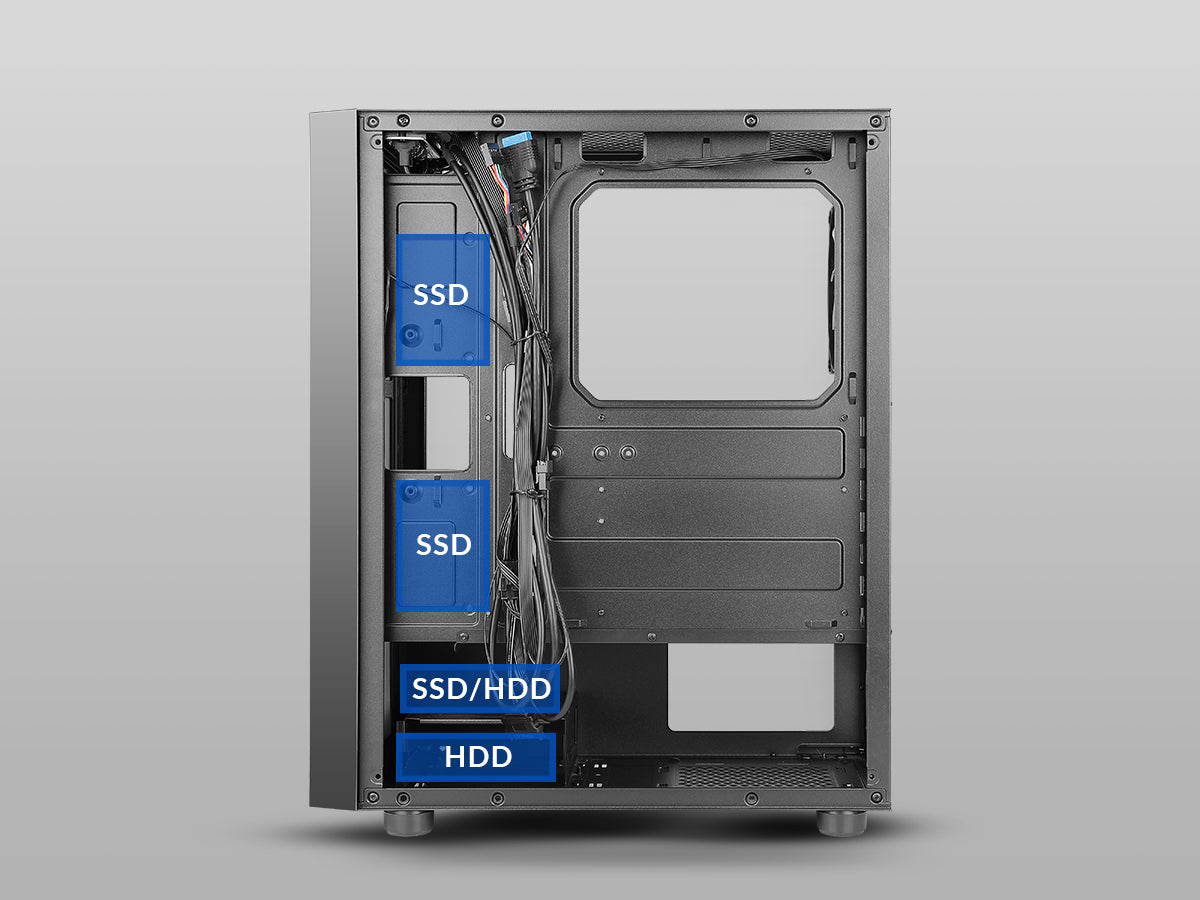

Array of Storage Options

Drive cage tray supports 1 x 3.5" HDD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD
Left side mounting holes support 2 x 2.5" SSDs

Top Cooling Support

Fans: 2 x 120 mm

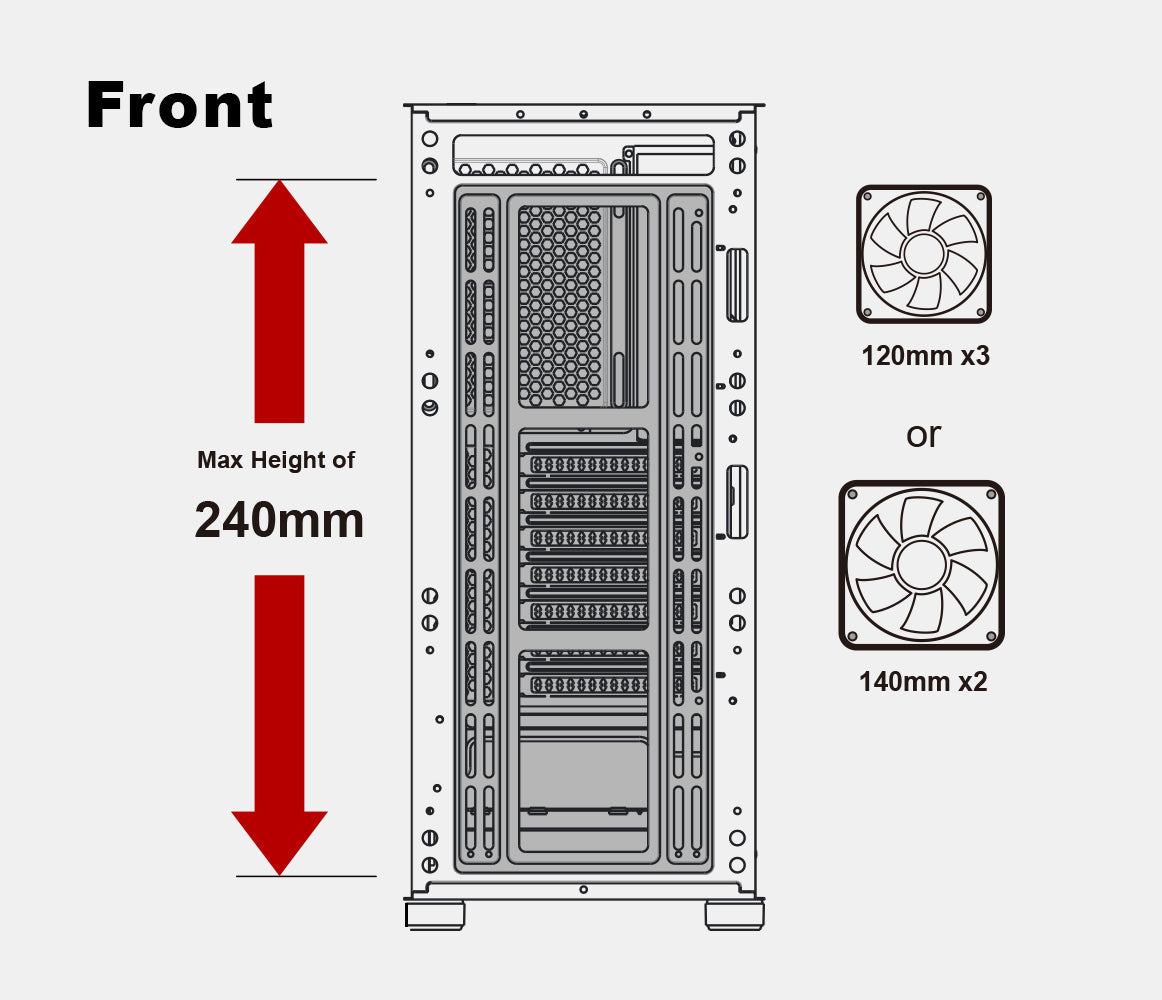

Front Cooling Support

Fans: Up to 3 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

Rear Cooling Support

Fan: 1 x 120 mm (1 x 120 mm ARGB fan included)

SPECIFICATIONS

CSAZ-280B

Download Manual
Type

ATX Mid Tower

Color

CSAZ-280B : Black (exterior) / Black (interior)

Side Panels

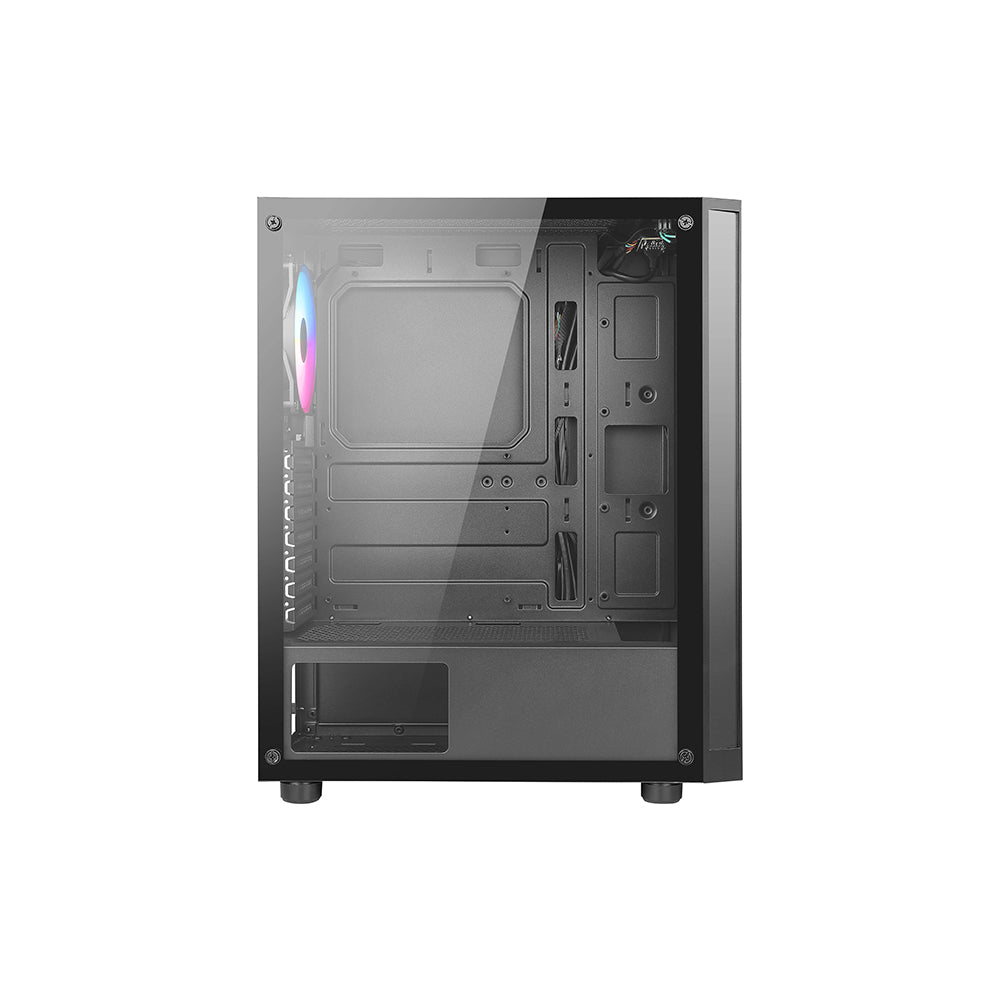

Left: Tempered glass with rubber mounts
Right: Steel panel

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 290 mm

Motherboard Compatibility

ATX, Micro-ATX, ITX

2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 2

Expansion slots

7

Top I/O Ports

Power button
LED button
HD audio
2 x USB 2.0
1 x USB 3.0

Case Dimension (H x W x D)

458 mm x 200 mm x 365 mm

Weight

4.4 kg / 9.7 lbs

Lighting Effects

The LED button will cycle through different ARGB lighting modes.

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in the front
2 x 120 mm fan ports on the top
2 x 120 mm fan ports on top of PSU shroud
1 x 120 mm fan port in the rear

Included Fan

1 x 120 mm LFO-3612D ARGB fan in the rear

Dust Filters

Removable (magnetic) dustproof net on the top and front
Removable dust filter on bottom of chassis

Water Cooling

Supports radiators up to 240 mm in the front

Power Supply Support

Bottom mounted ATX power supply
