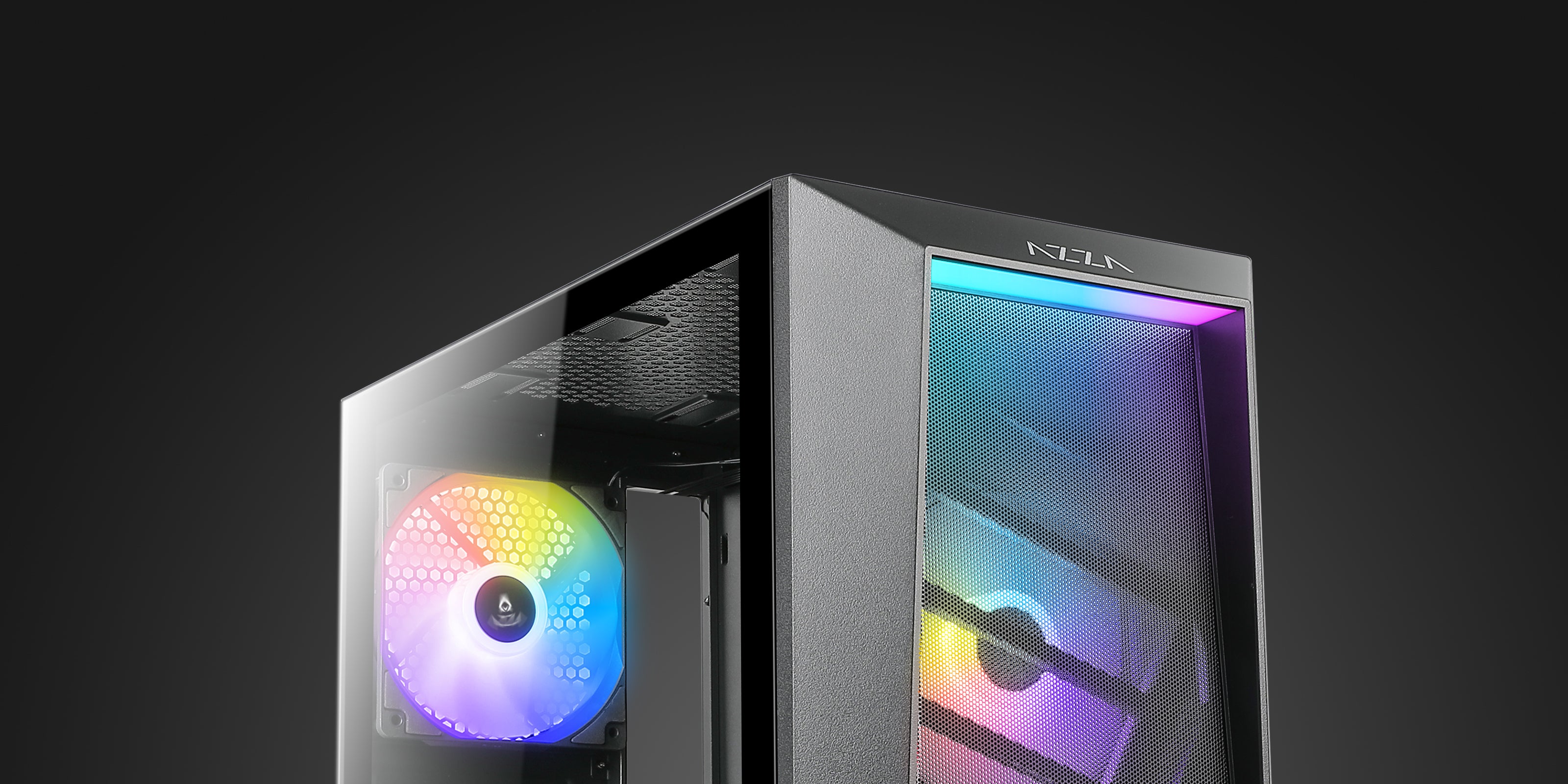

SENTINEL


RGB light penetrates the ancient temple’s entrance, radiating a unique, feminine beauty. The Sentinel mirrors a mysterious entranceway, designed to guide airflow into your hardware. Its stunning front panel features an appealing digital RGB strip, allowing you to showcase your build in all its glory.

SENTINEL

ATX Mid-Tower Case

Available Fan Port

3x120mm fan ports in the front
2x120mm or 2x140mm fan ports on the top
1x120mm fan port in the rear
Supports radiators up to 360mm in the front

Array of Storage

1x hard disk bracket support 3.5” HDD or 2.5” SSD
3x 2.5” SSD metal tray support

Intuitive I/O

The sentinel presents a simple top I/O which includes:

  • Power button
  • LED button
  • 1x USB 3.0 port
  • 1x USB 3.0 port
  • 1 x Type-C
  • HD Audio

Top Cooling Support

Fans: 2x120mm or 2x140mm

Rear Cooling Support

Fans: Up to 1 x 120mm

Front Cooling Support

Fans: Up to 3 x 120mm

SPECIFICATIONS

CSAZ-203A01

Download Manual
Type

ATX Mid Tower

Color

Black/Black(interior)

Side Panels

Left side panel: Tempered glass with rubber mounts

Max CPU Cooler Height

Up to 160 mm

Max Video Card Length

Up to 320 mm

Motherboard Compatibility

ATX、Micro ATX、ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 1

Expansion Slots

7

Top I/O Ports

Power button
LED button
HD Audio
Type-C*1
USB3.0*1
USB2.0*1

Case Dimension (H x W x D)

454 mm x 203.5 mm x 415.5 mm

Weight

5.92Kg /13.05lbs

Tempered Glass Sides Window

High-quality tempered glass side window allows for clear visuals to inner components

Addressable RGB Light Effects

ARGB fans are controlled using the LED button. All addressable RGB devices can sync with the motherboard, allowing the motherboard software to control lighting directly.

Available Fan Ports

3x120mm fan ports in the front (2x120mm LFO-5812D addressable ARGB fan included)
2x120mm or 2x140mm fan ports on the top
1x120mm fan port in the rear (1x120mm LFO-5812D addressable ARGB fan included)

Water Cooling

Supports radiators up to 360 mm in the front

Dust Filters

Removable (magnetic) dustproof net on the top , removable dust filter on bottom of chassis.

Power Supply Support

Bottom mounted ATX power supply
