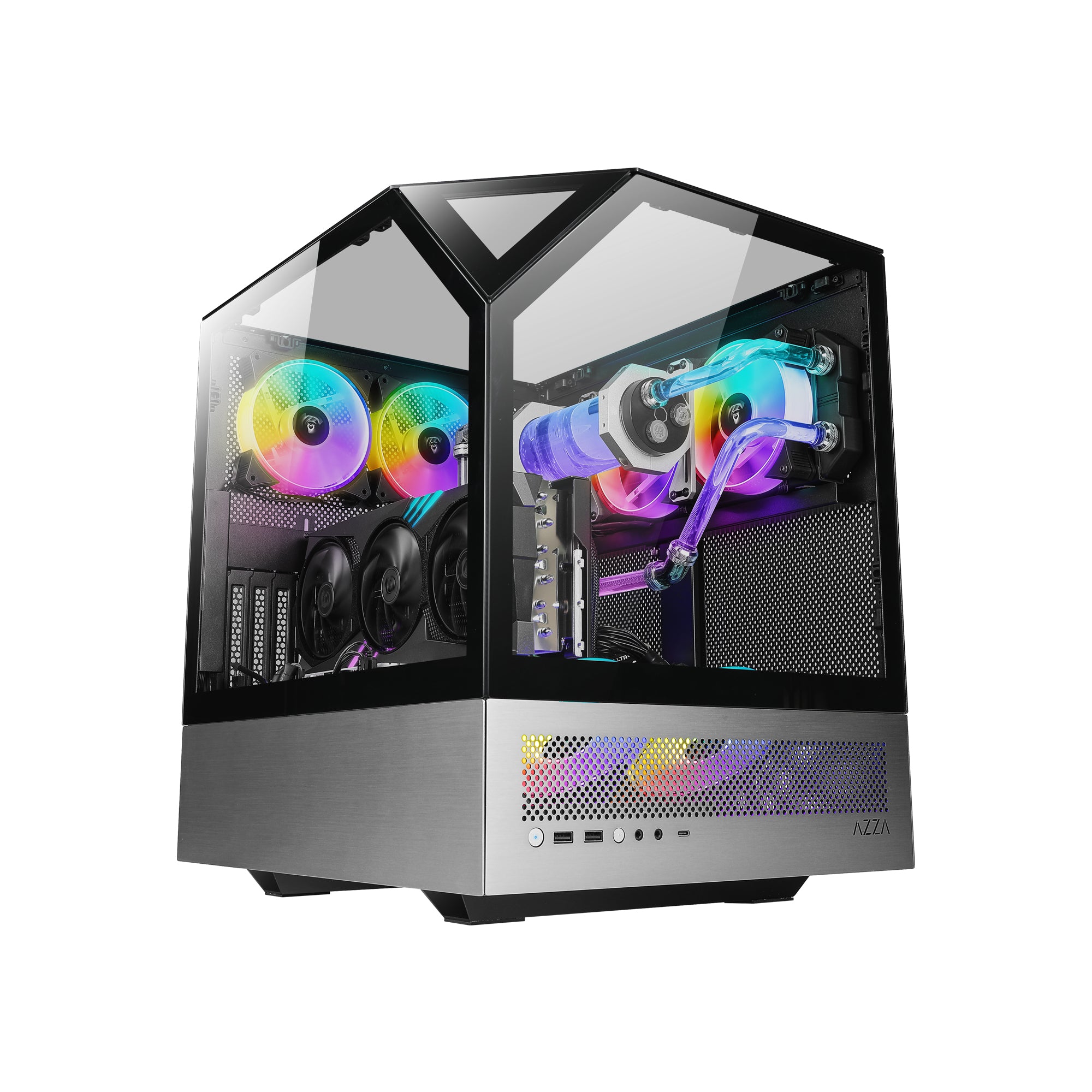

SANCTUM


A distinctive design that offers a panoramic, unobstructed view, and easy access to your build. Encased within four sides of full-glass panels, your system is showcased in an extraordinary visual display. This elegant chassis is designed with airflow optimization for unparalleled performance.

AZZA

SANCTUM

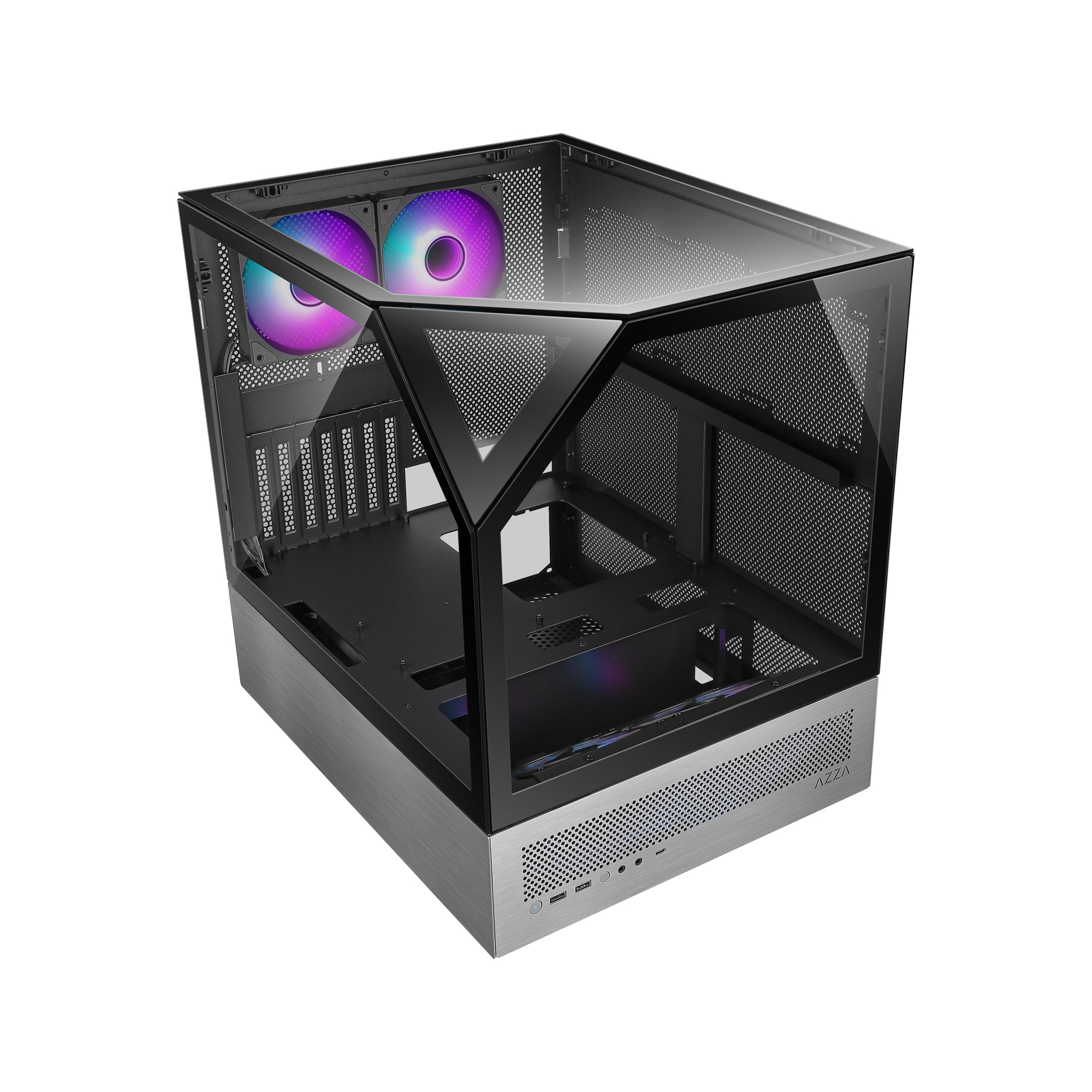

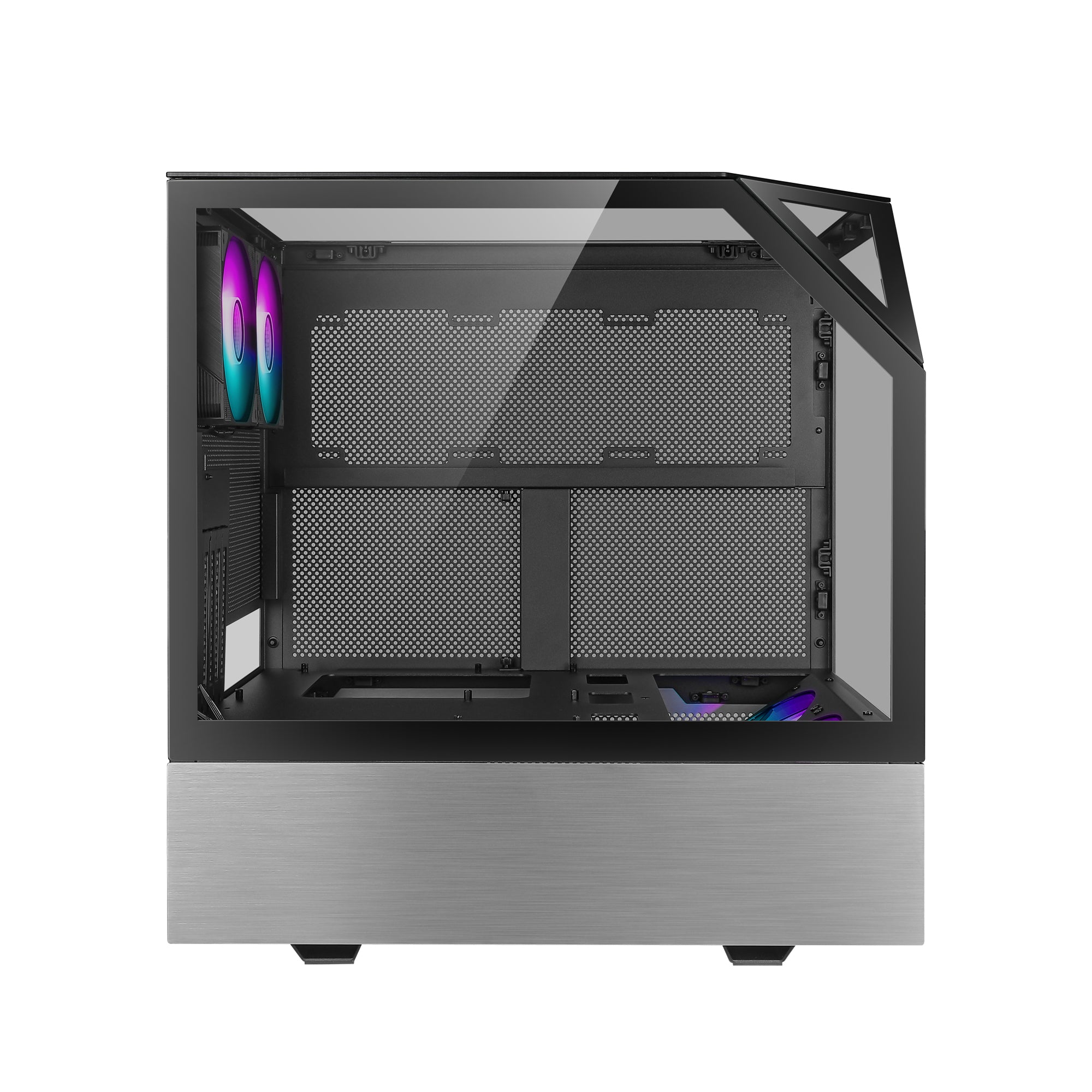

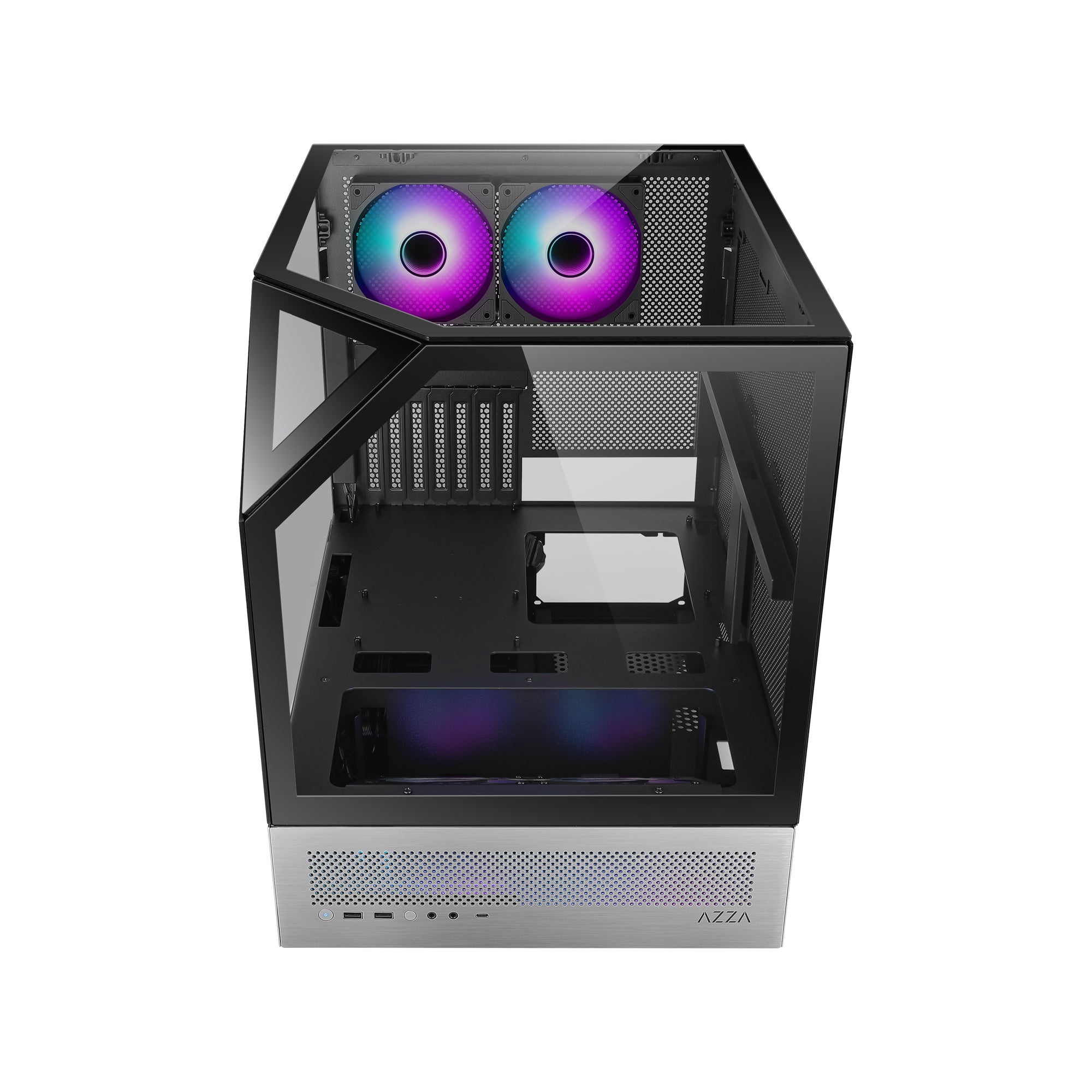

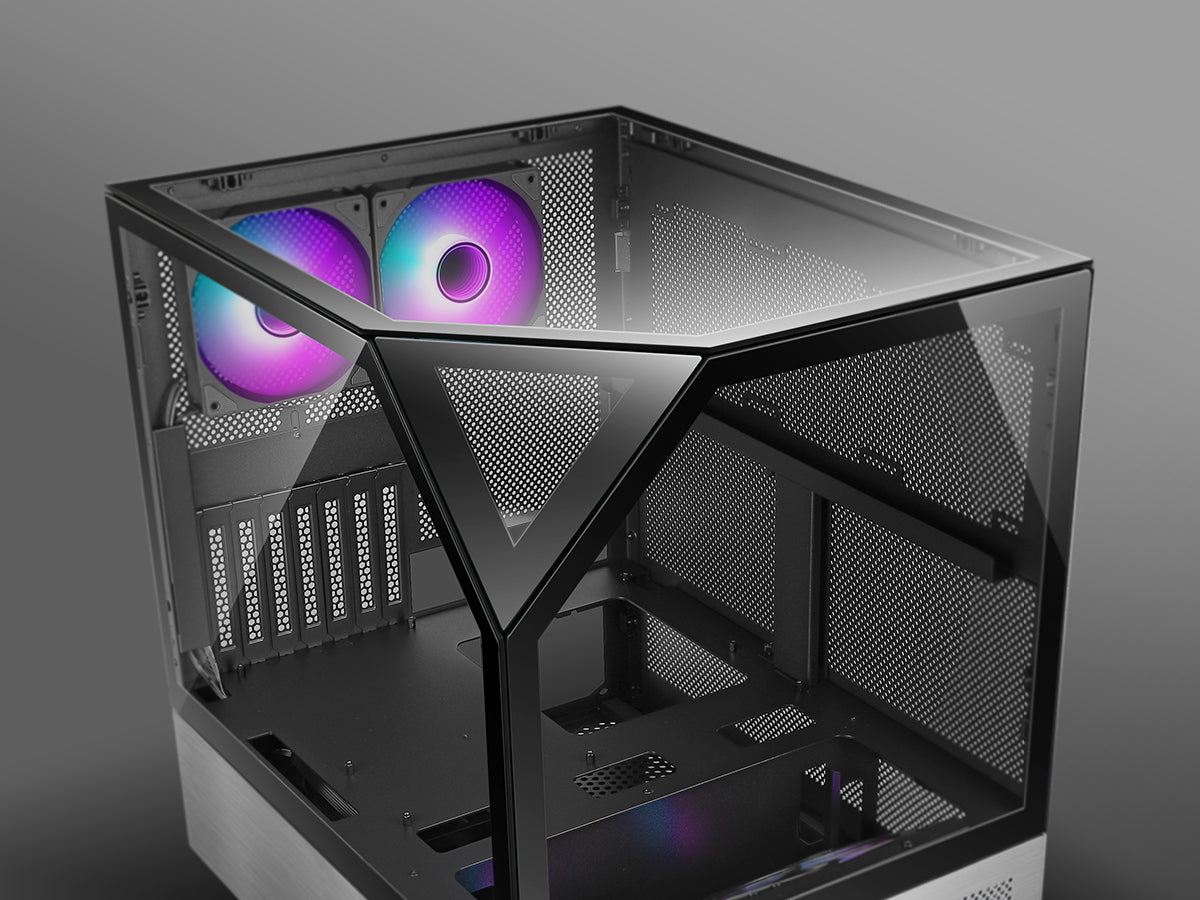

4 Full-Side Tempered Glass Panels

This SANCTUM 810 offers an unobstructed, panoramic view of the interior through its four sides of full glass panels. Each high-quality tempered glass panel and can be effortlessly removed without the need for tools, for quick and easy access to the inner components, combining elegance with functionality.

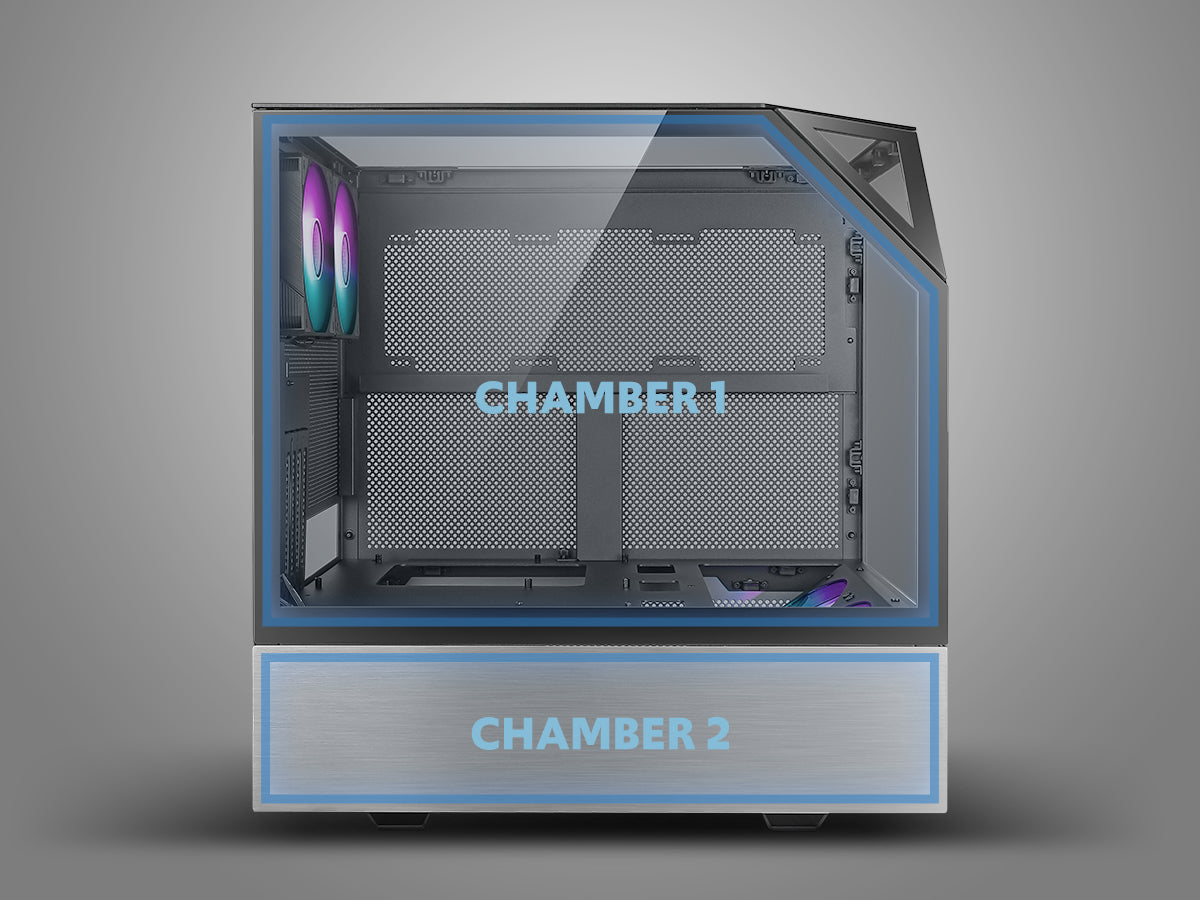

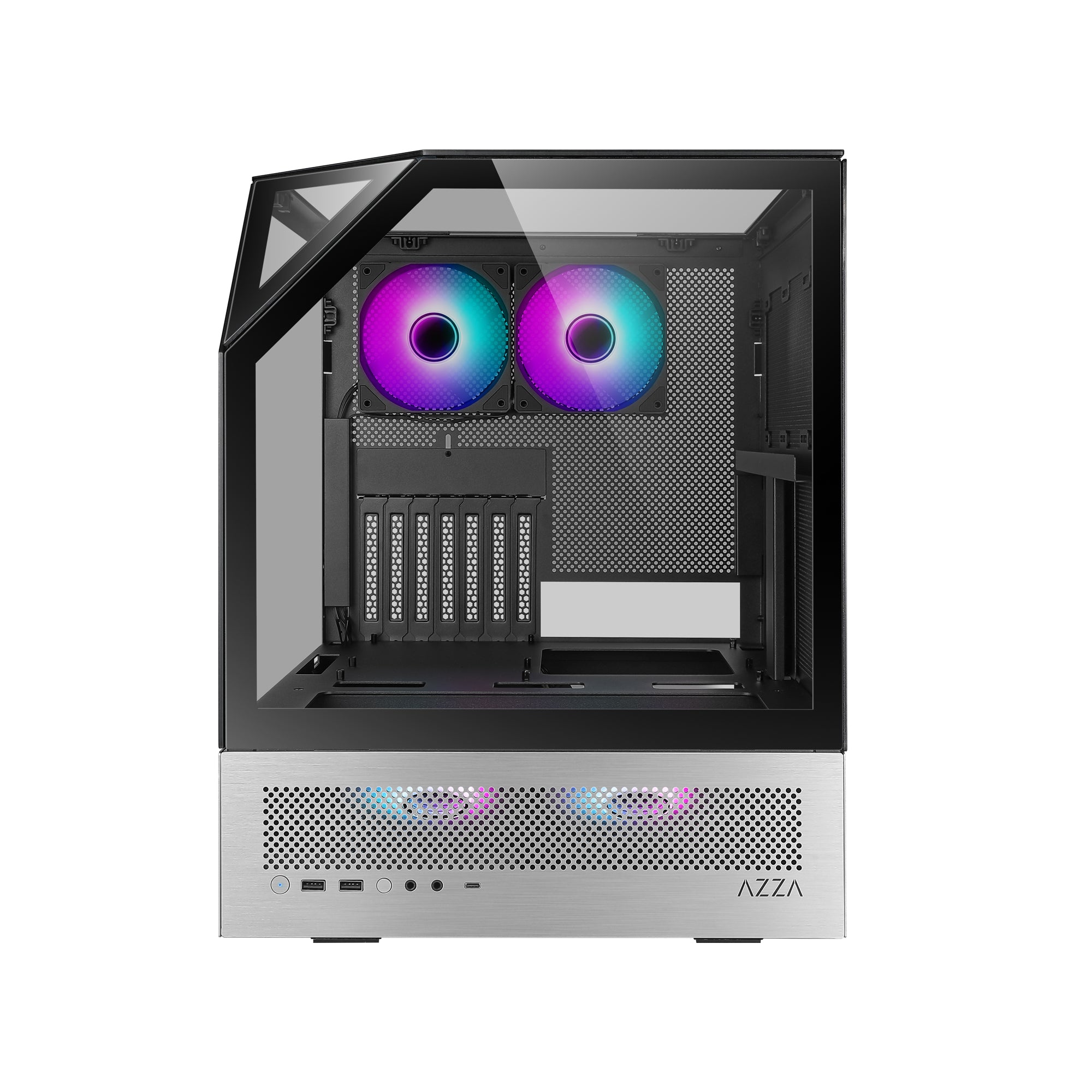

Dual-Chamber Design

The sleek aluminum base, is a second chamber, providing ample space for cable management and ingeniously angled front fans, for effiecient airflow when drawing in or pushing air through the mesh cover for optimal cooling for the GPU.

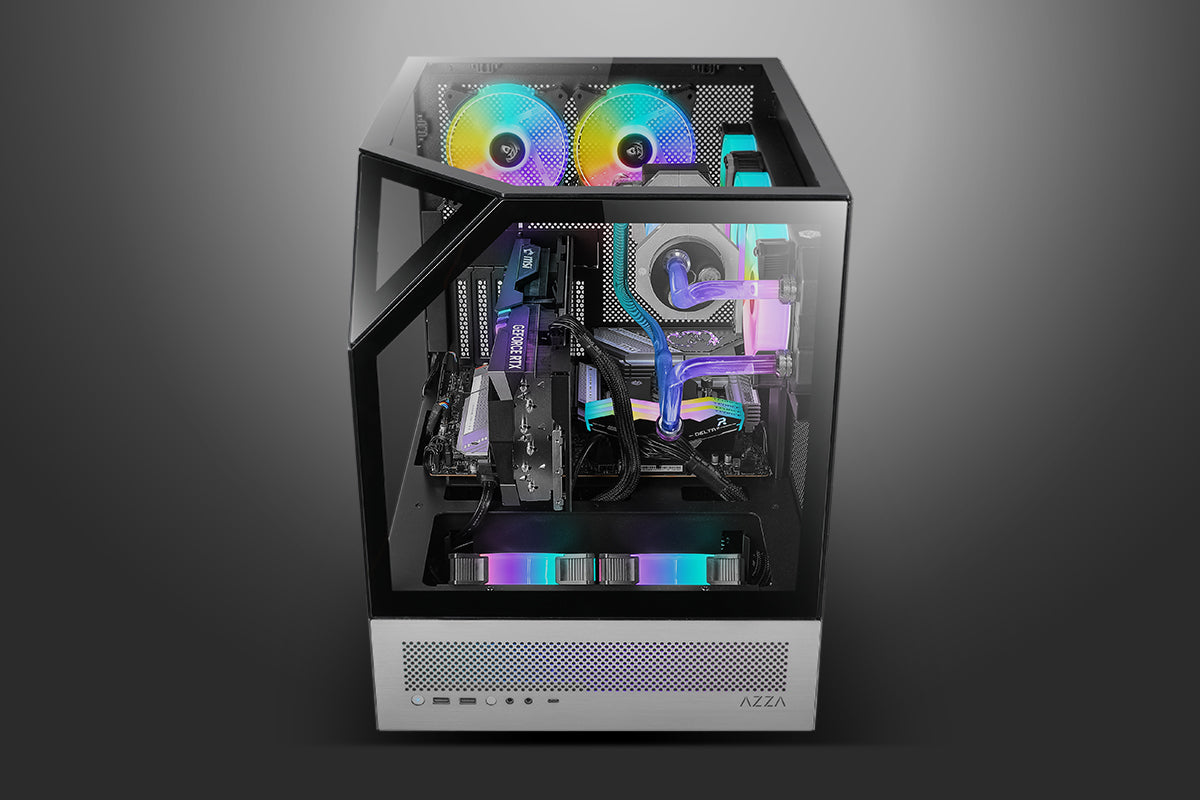

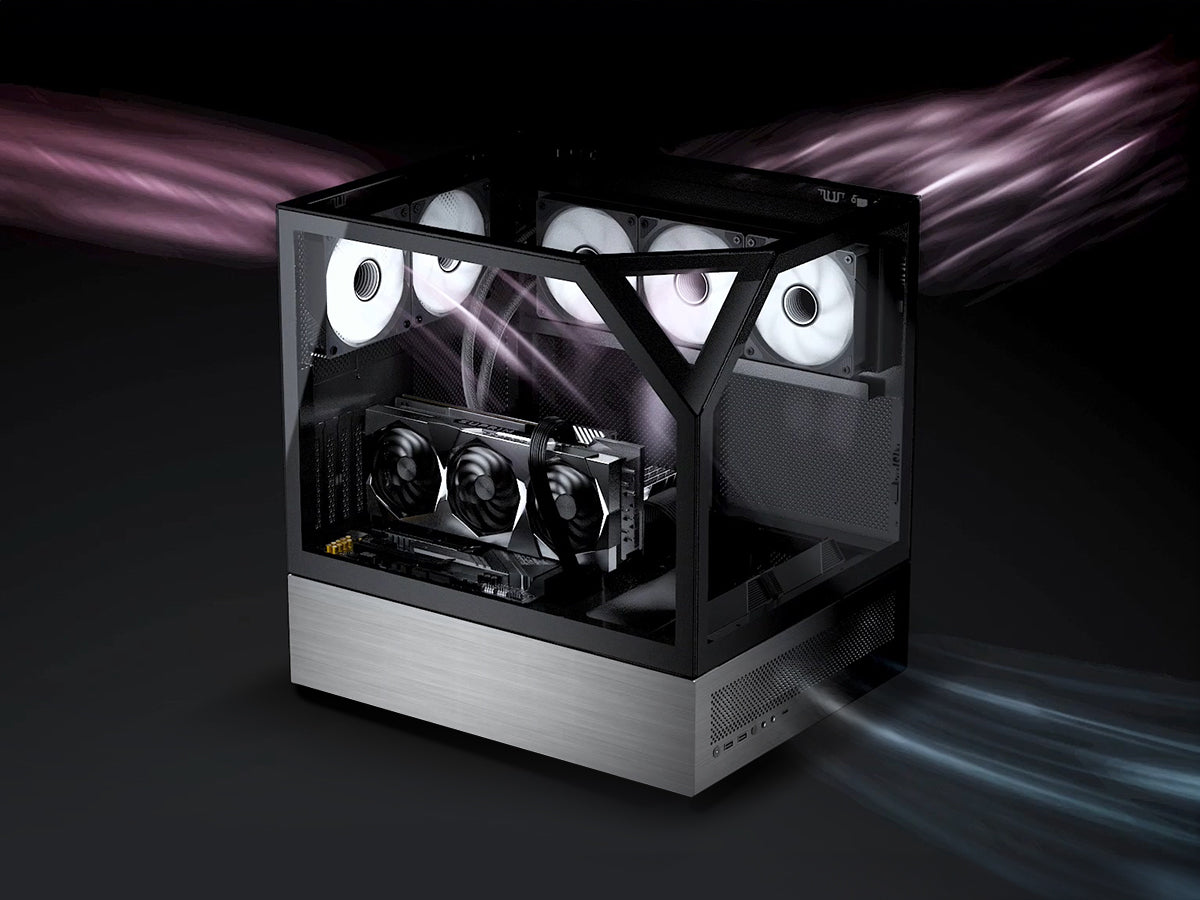

Thermal Performance

Designed to enhance airflow performance, the bottom chamber has the option for adding fans at an angle to direct airflow straight to the GPU. Accommodating a 360 Radiator, the case is well-suited for advanced cooling solutions.

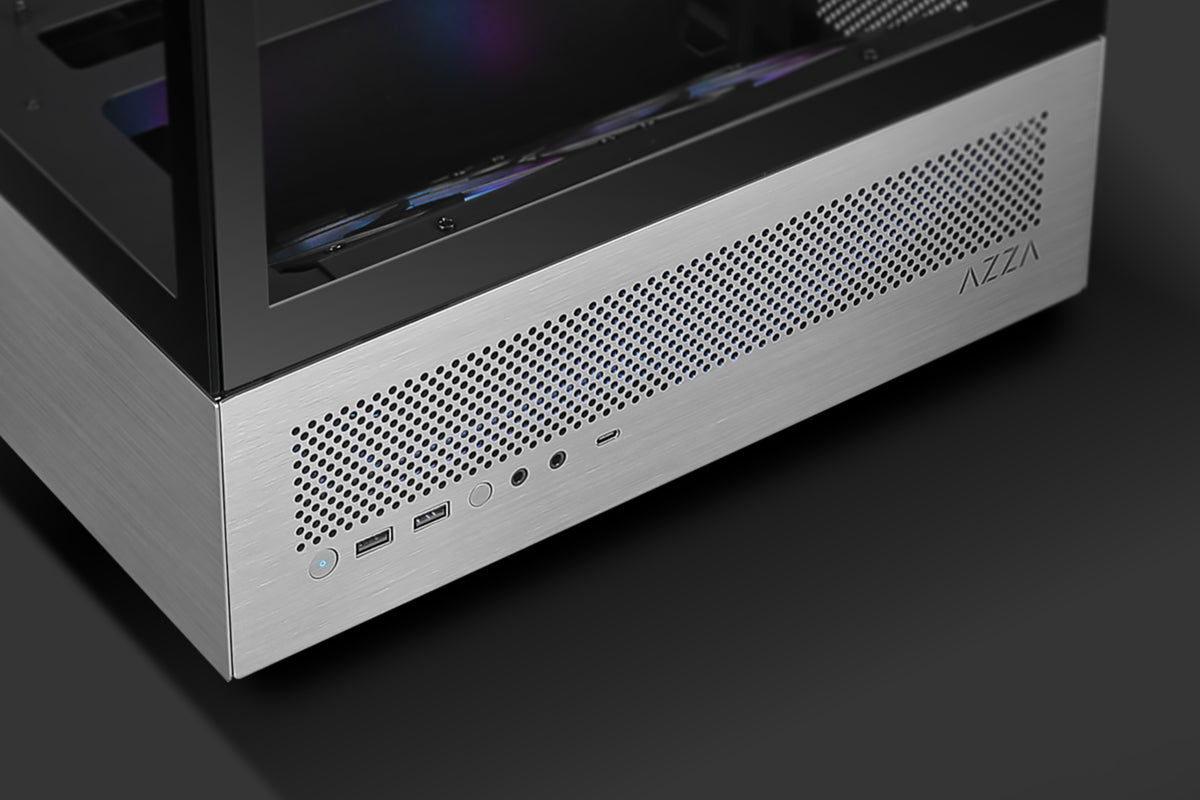

Quality Crafted Aluminum Panels

The SANCTUM's exquisite aluminum panels are precisely crafted by CNC machine, ensuring quality design and fit. This meticulous process imparts the panels with clean, diamond-cut edges, enhancing the overall elegance and refinement of the design.

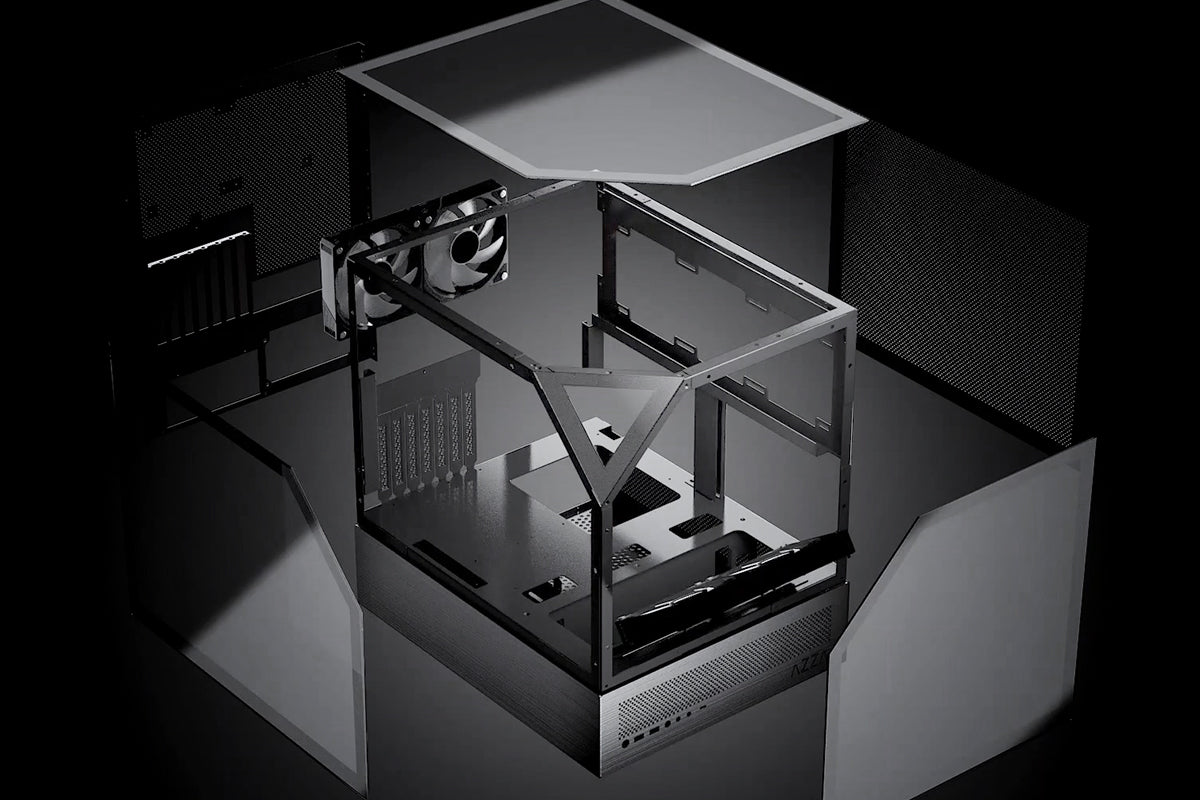

Ease Of Access

Each of the aluminum and glass panels provide effortless access to crucial components such as the motherboard, GPU, and power supply. This ease of accessibility not only streamlines the process of maintaining your system but also simplifies any upgrades, offering a user-friendly experience.

Fan Support

The cooling system is further bolstered by havinig a total of 7 fans for an efficient airflow configuration.

SPECIFICATIONS

CSAZ-810

Download Manual
Type

ATX

Chassis Thickness

SPCC 0.8-1.2 mm / AL 2mm

Max CPU Cooler Height

Up to 190mm

Max Video Card Length

Up to 400mm

Power Supply

Not included

Motherboard Compatibility

EATX(<300mm) ATX, Micro-ATX, Mini-ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 2

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

I/O Ports

Power button, Reset button, HD Audio, USB 3.0 x 2,Type-C

Case Dimension (H x W x D)

475 x 356 x 455 mm /18.7 x 14 x 17.9 inches

Weight

13.3kg / 29.3lbs

Addressable RGB Light

All addressable RGB light devices controlled by motherboard

Available Fan Port
  • 2x120mm fan ports in the front (2x120mm LFO-4312D ARGB fan included)
  • 3x120mm fan ports on the side
  • 2x120mm fan port in the rear (2x120mm LFO-4312D ARGB fan included)
Water Cooling

Supports radiators up to 360 mm on the side

Power Supply Support

Bottom mounted ATX power supply

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
