REAVER

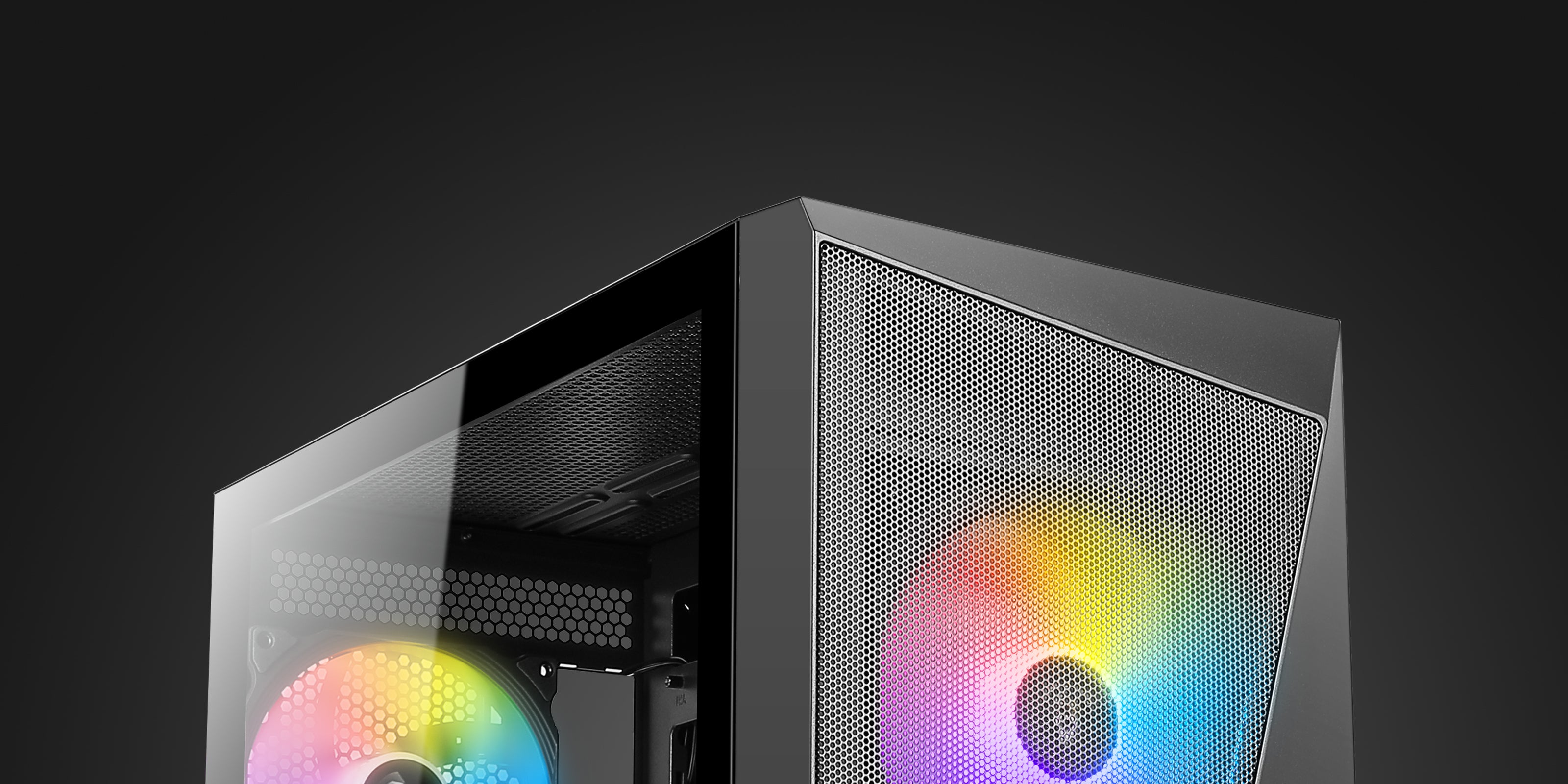

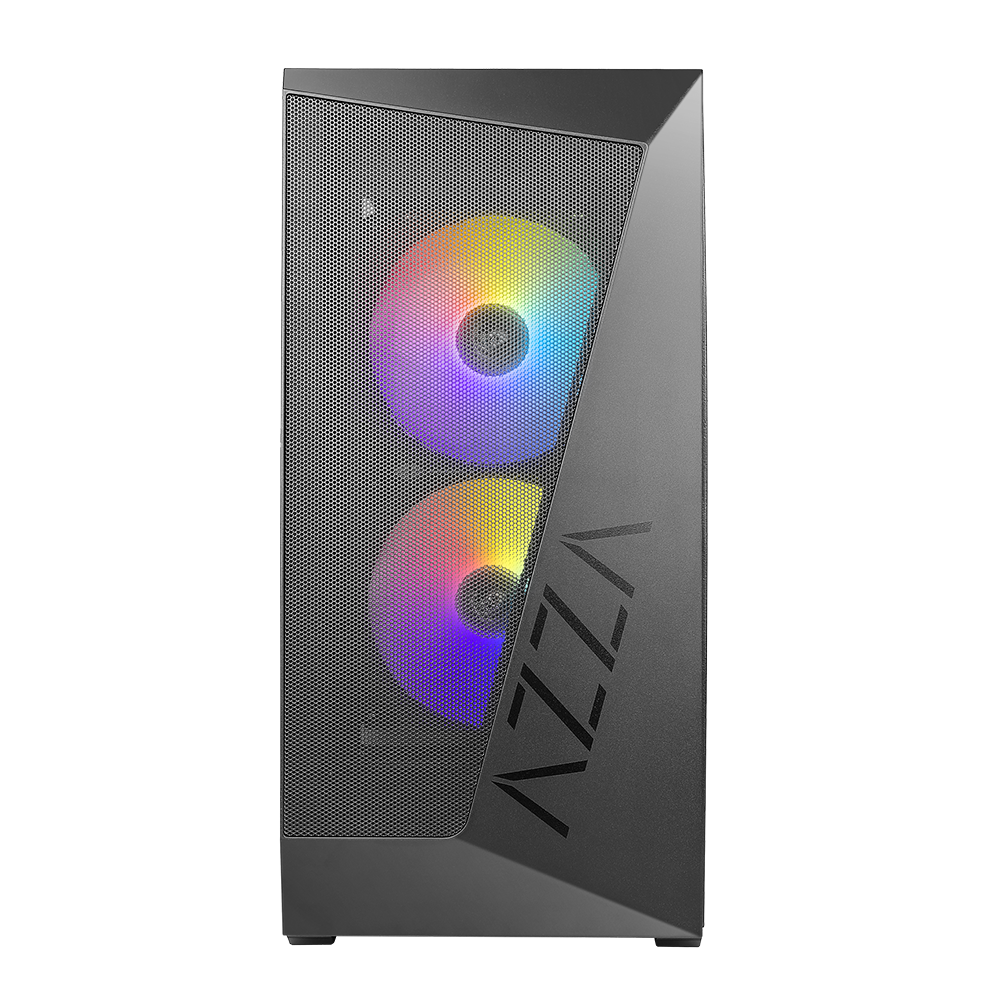

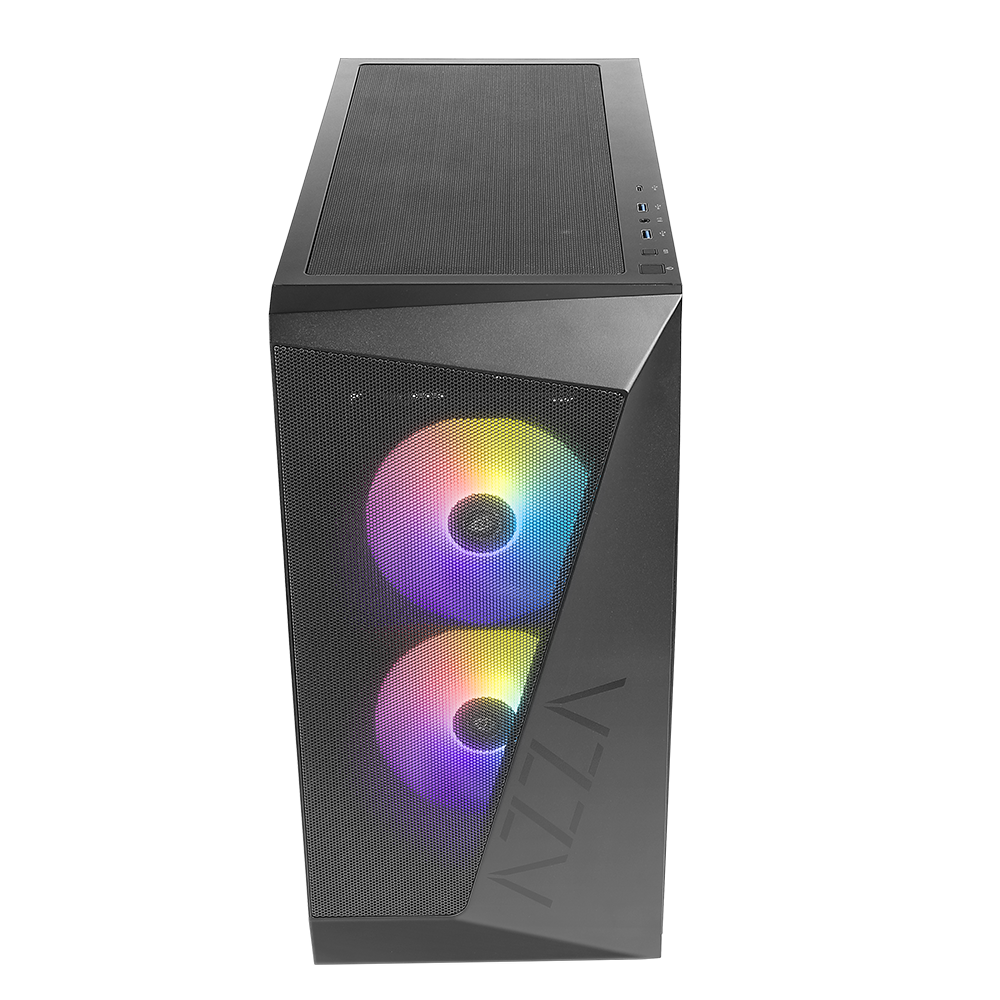

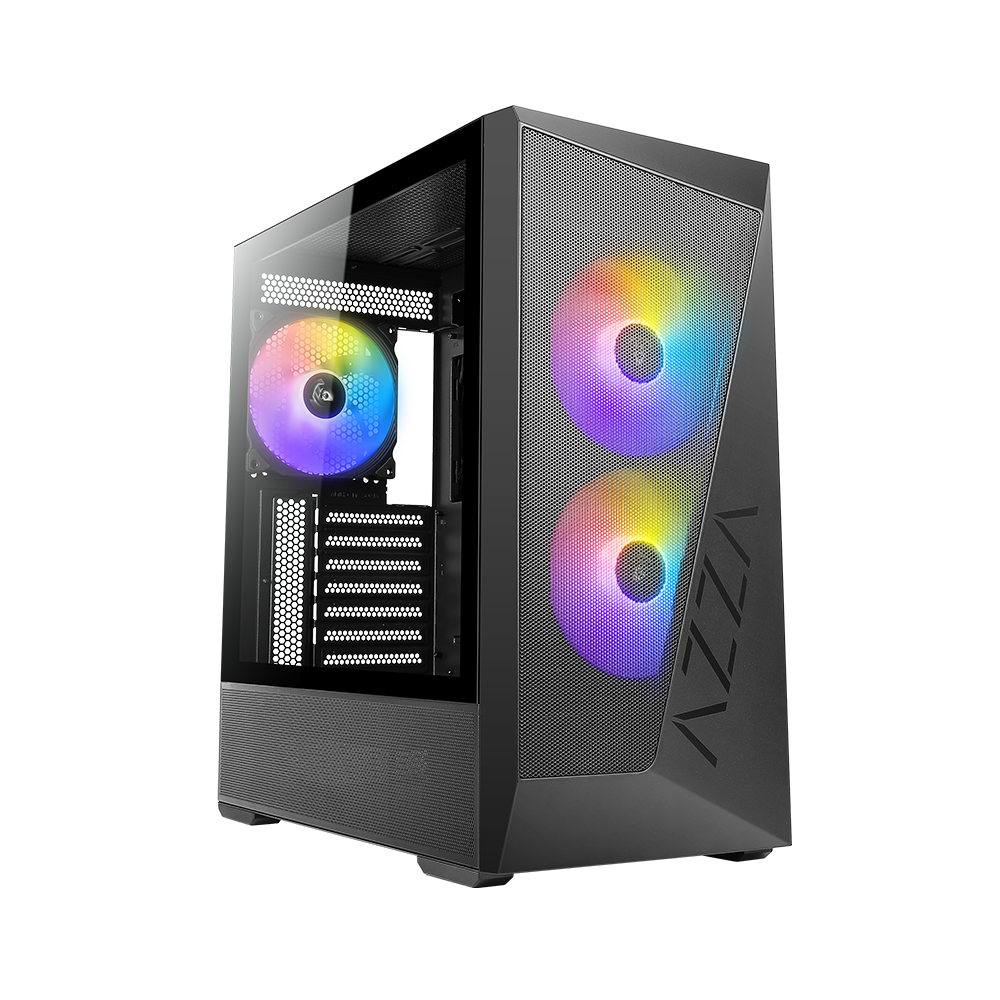

Irregular, sharp lines separate the front panel into mesh and plastic sections. The Reaver makes you a formidable opponent in every match, embodying the ruthless and brutal nature of a warrior. Pre-installed with five fans, ensuring efficient heat dissipation while preserving a sleek, cool aesthetic.

REAVER

ATX Mid-Tower

Performance Optimized

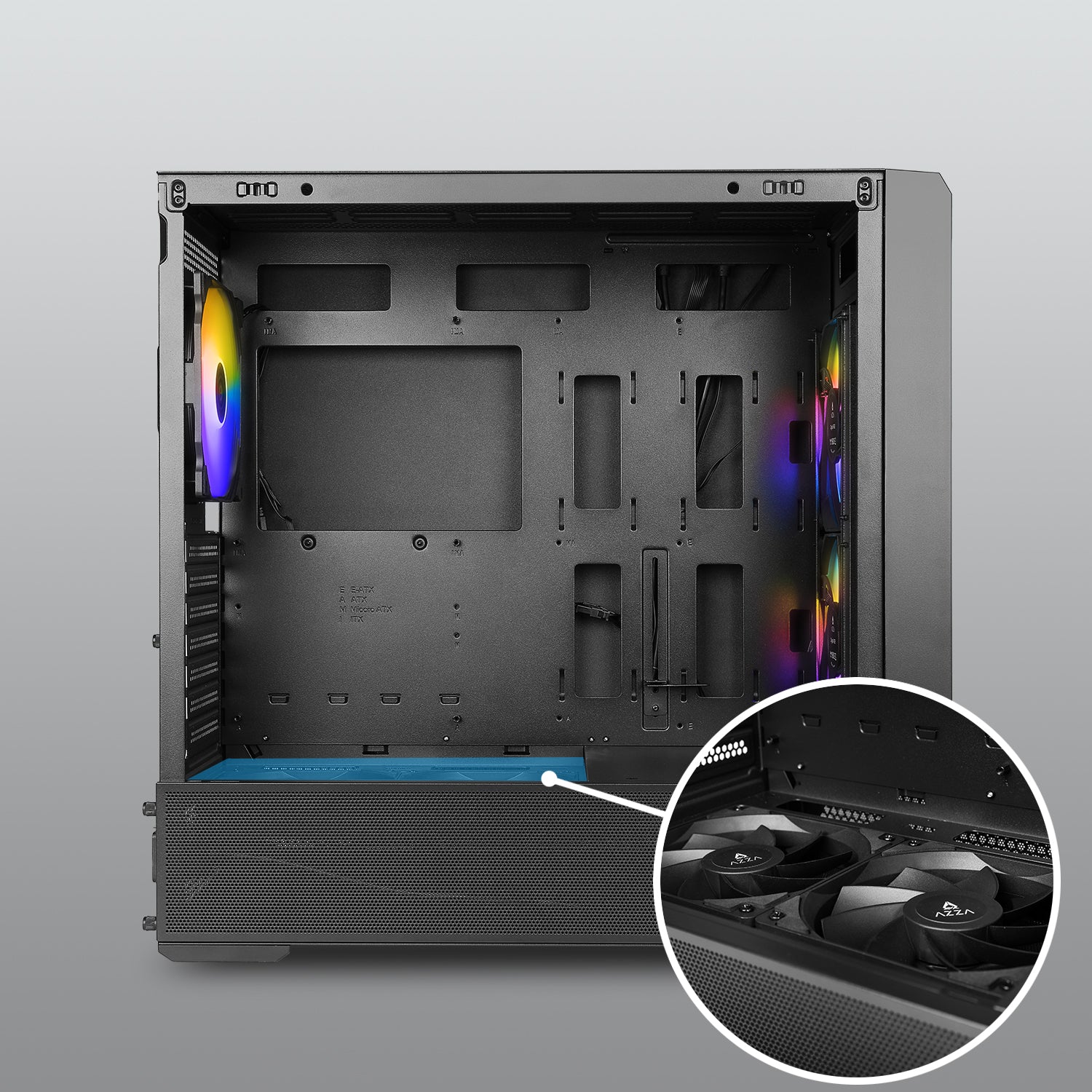

The Reaver is designed for optimized gaming experience, featuring 2 x 140mm ARGB front fans, 1 x 120mm ARGB rear fan, and 2 x 120mm classic fans at the top of the PSU shroud, which provide vertical airflow to your graphics card.

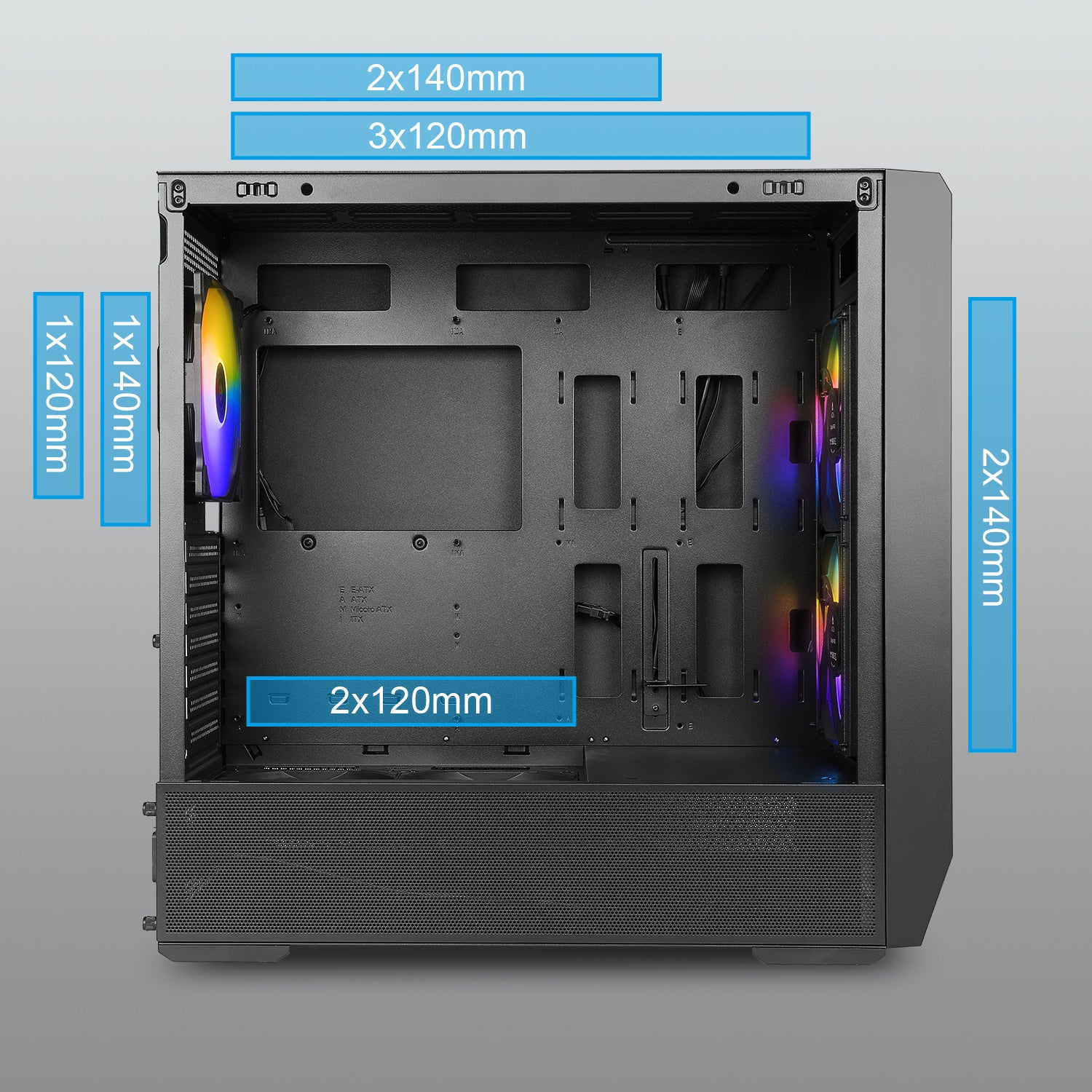

Impressive Airflow Support

2x140mm fan ports in the front
1x120mm or 1x140mm fan port in the rear
2x120mm fan ports Top of PSU Shroud
3x120mm or 2x140mm fan ports on the top
Supports radiators up to 280/360mm on the top

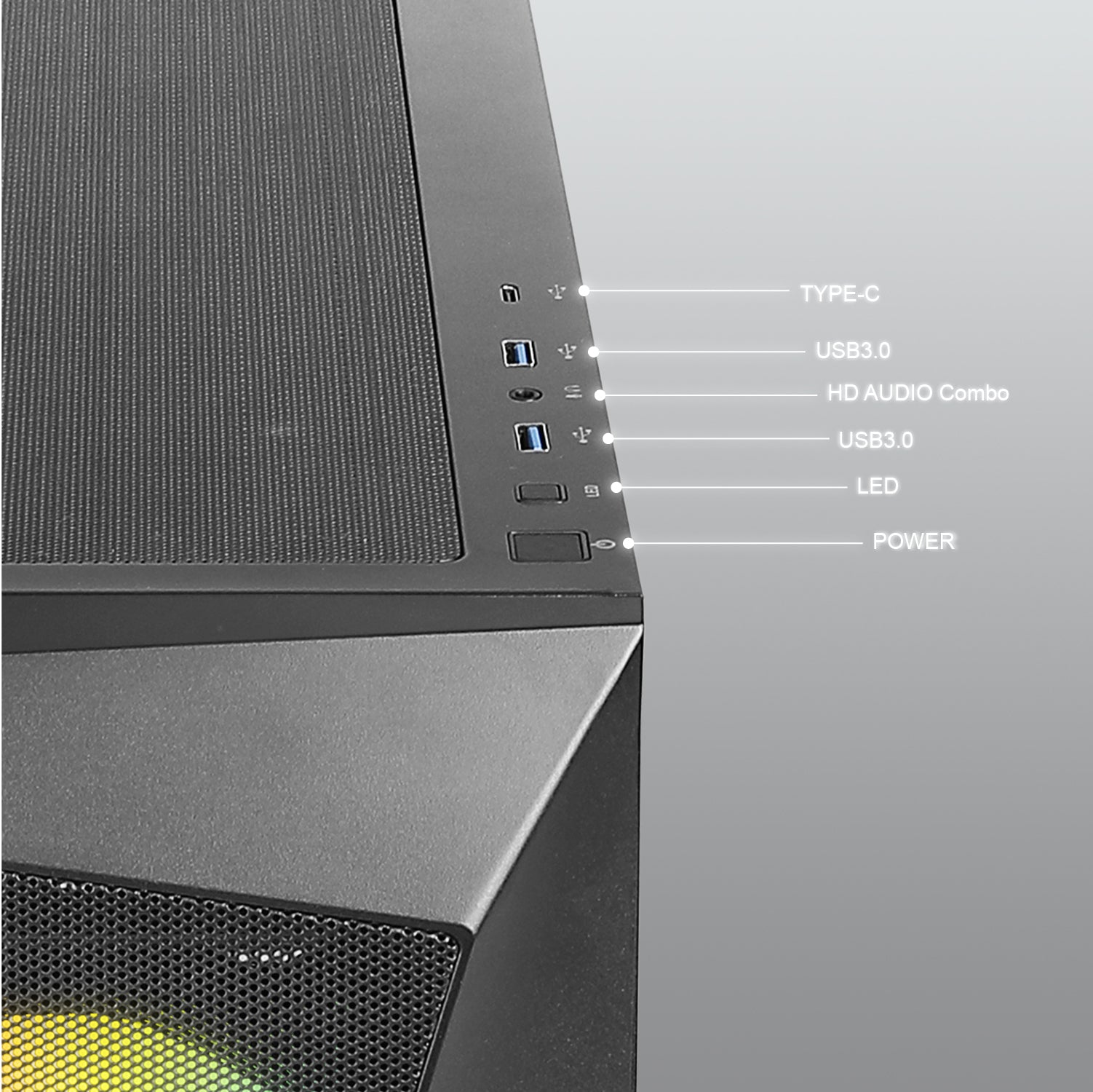

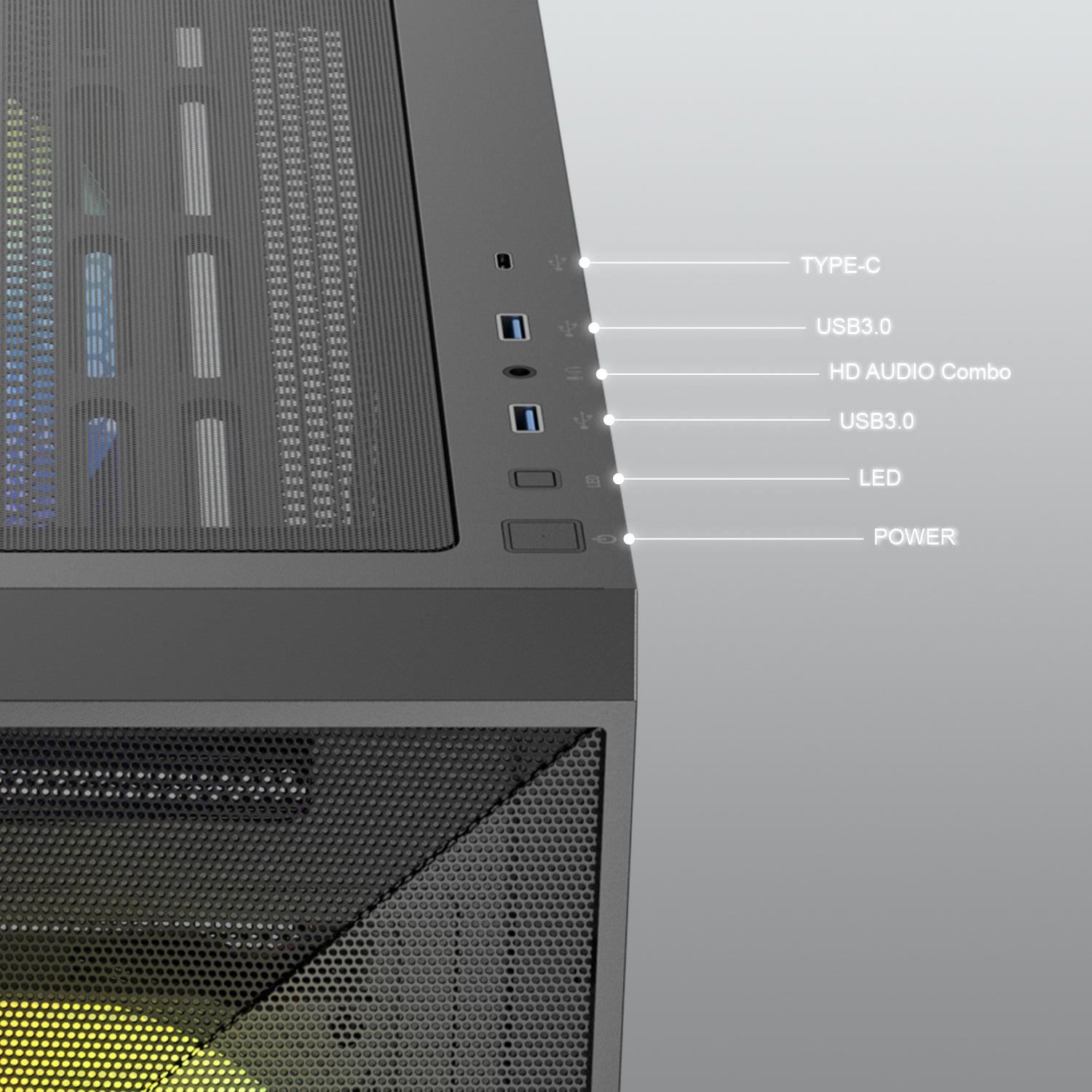

Intuitive I/O

The Reaver presents a clean front I/O which includes:

  • Power button
  • LED button
  • HD Audio Combo
  • 2 x USB 3.0 ports
  • 1 x Type C

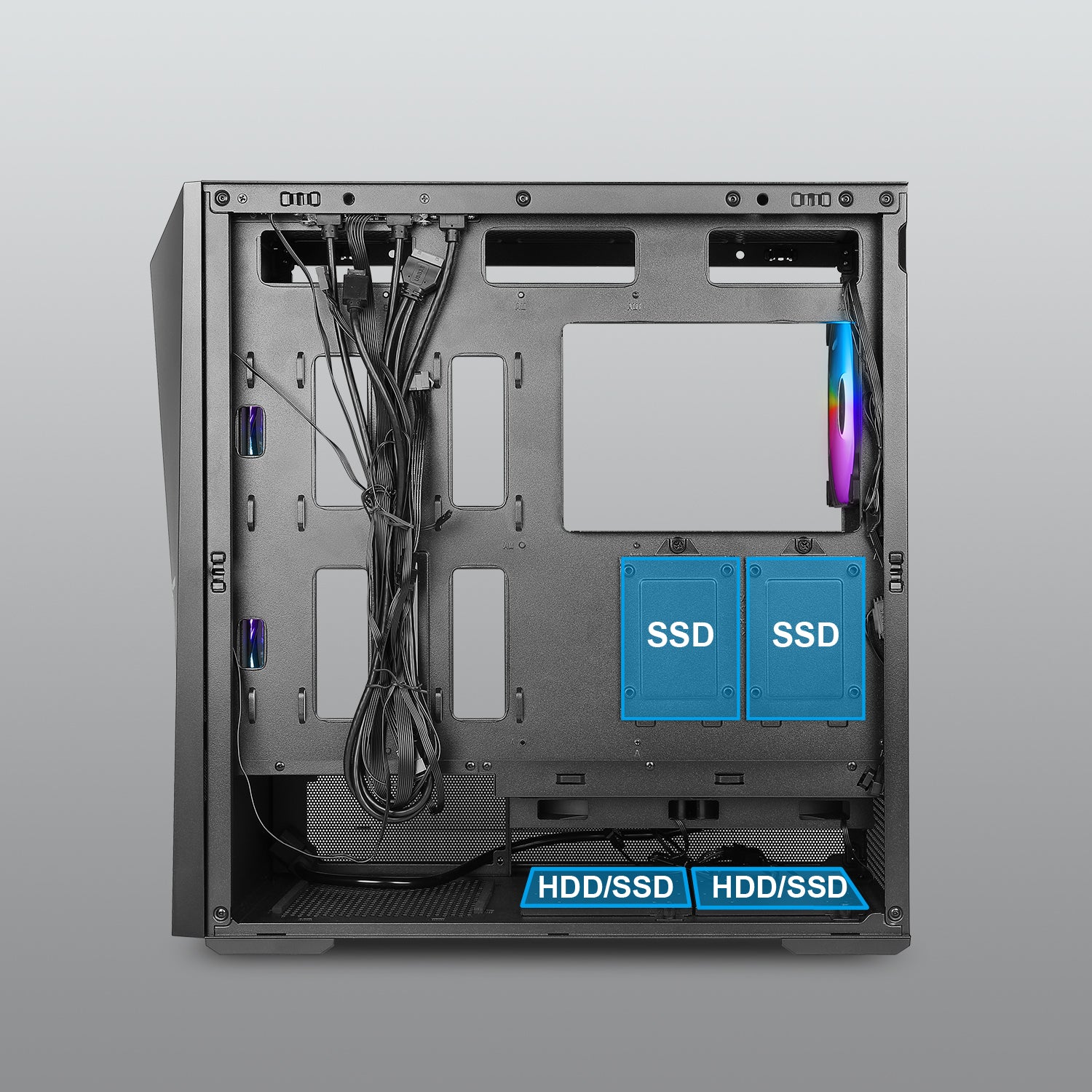

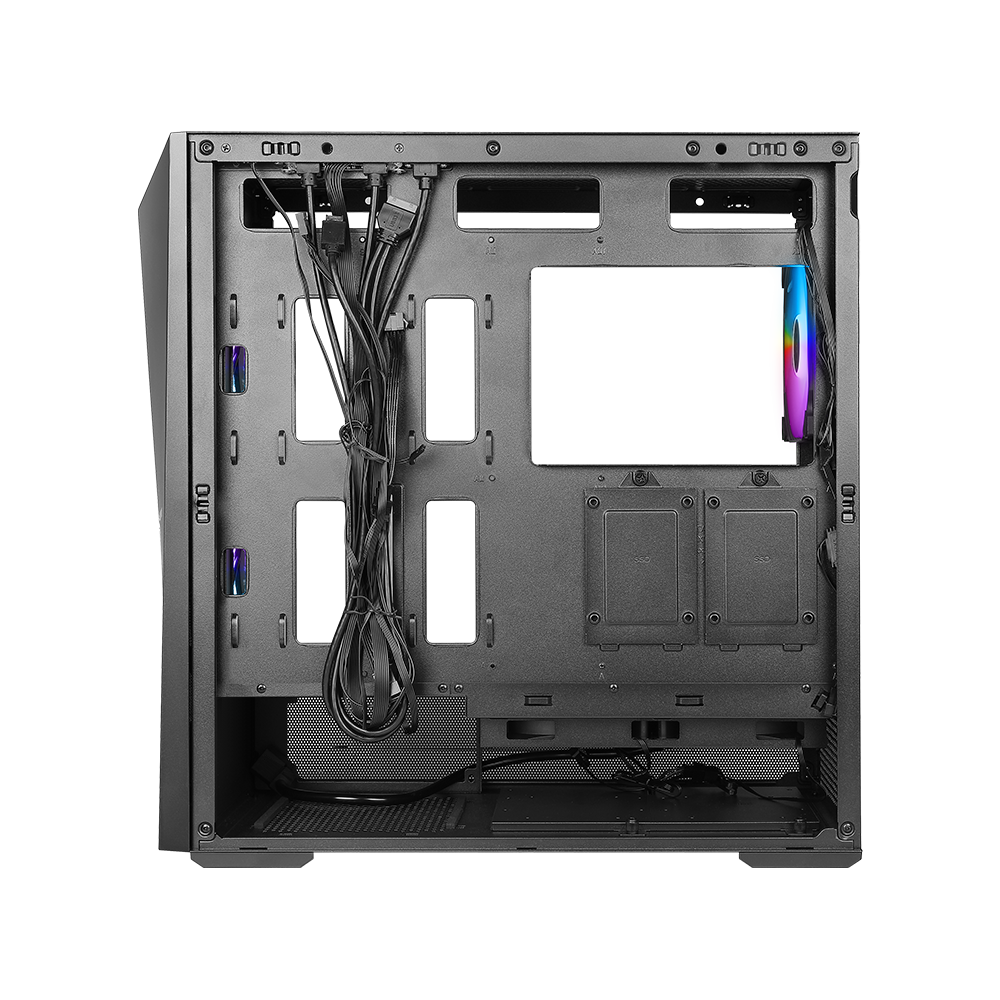

Flexible Storage Options

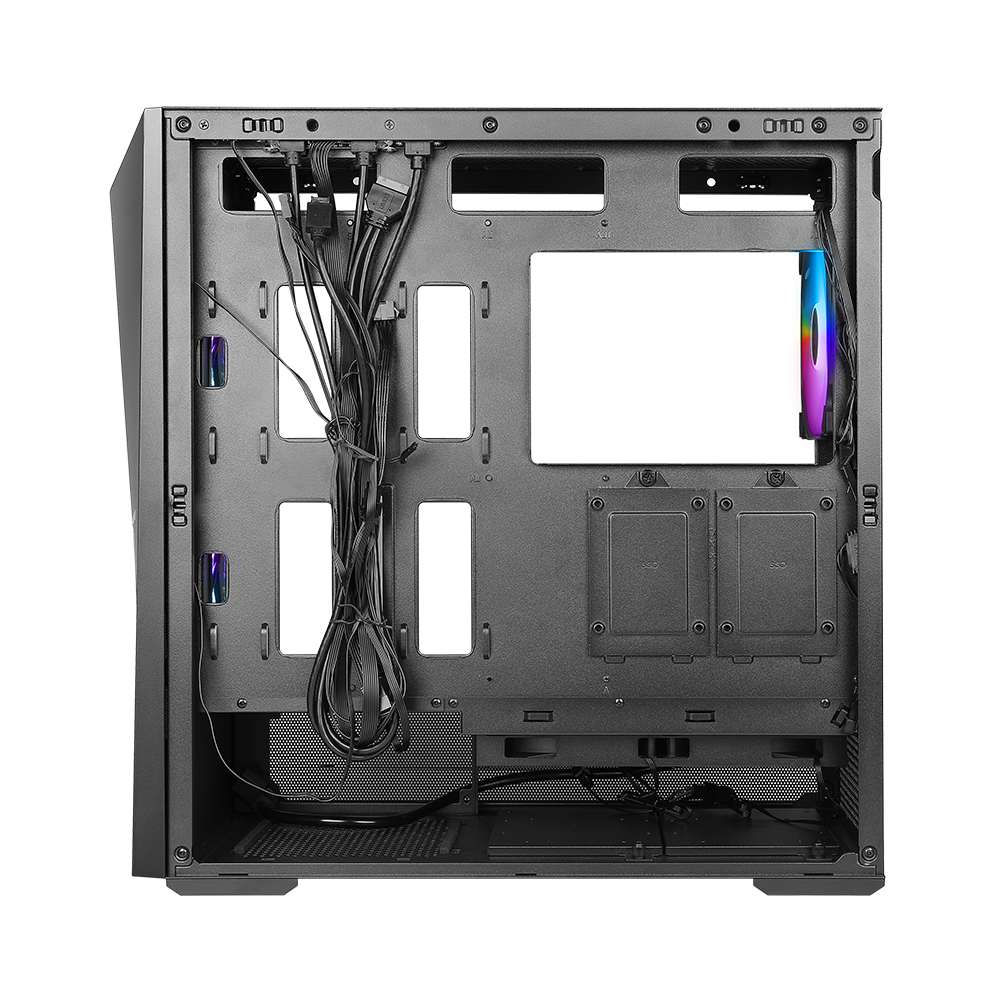

Right side panel supports 2 x 2.5" SSD

Drive cage tray supports 2 x 3.5" HDD

Top of drive cage supports 2 x 2.5" SSD

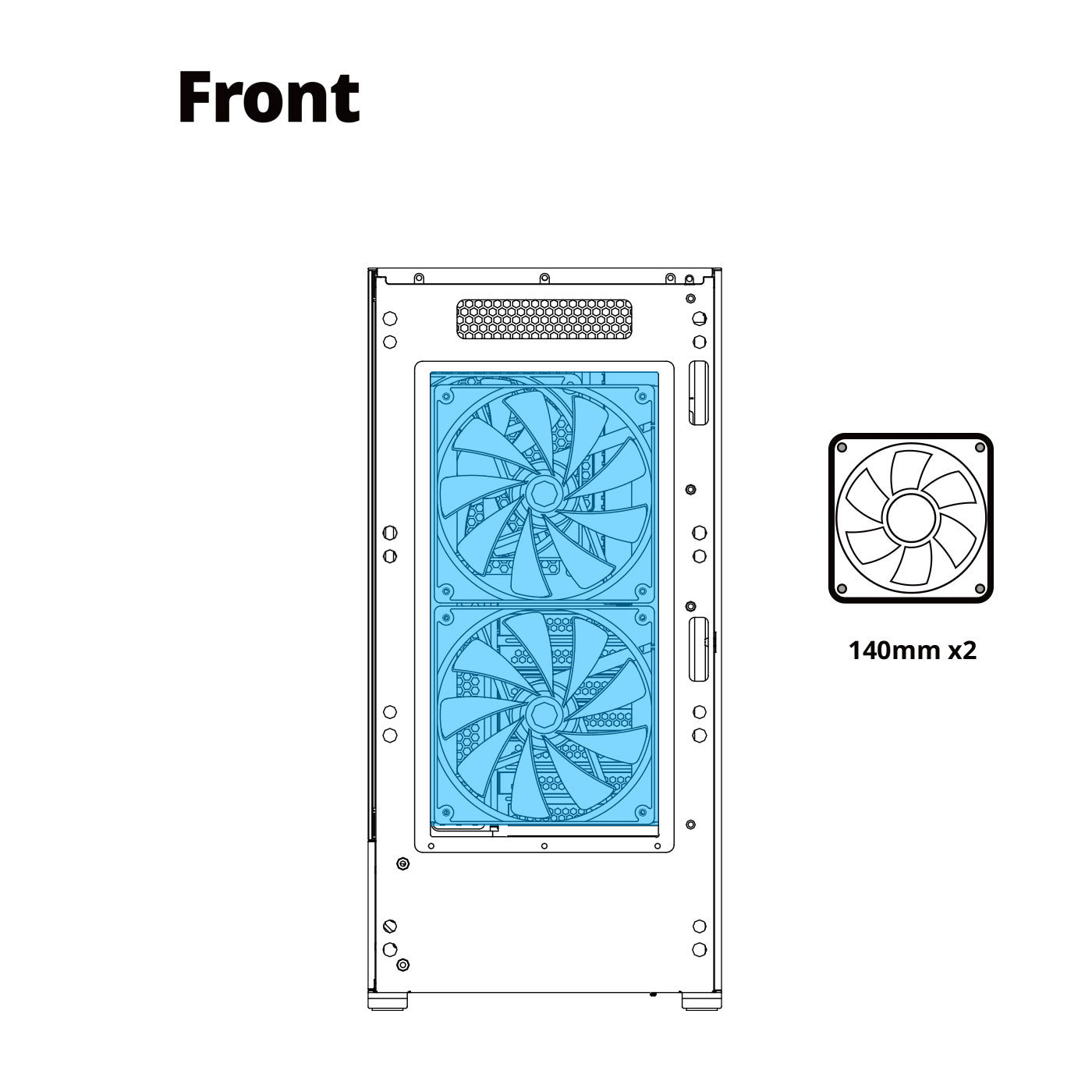

Front Cooling Support

Fans: Up to 2 x 140 mm

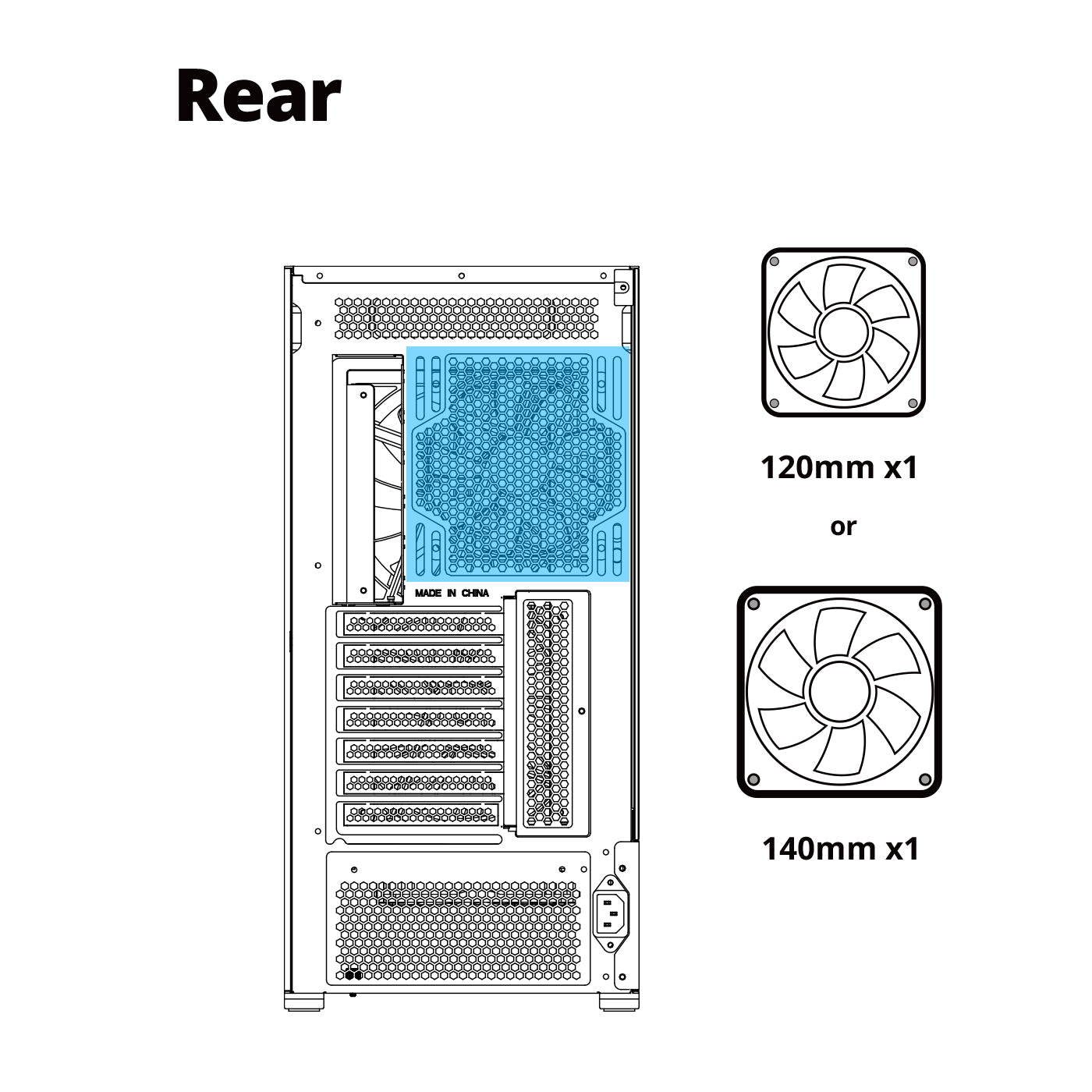

Rear Cooling Support

Fans: Up to 1 x 120 mm or 1 x 140mm

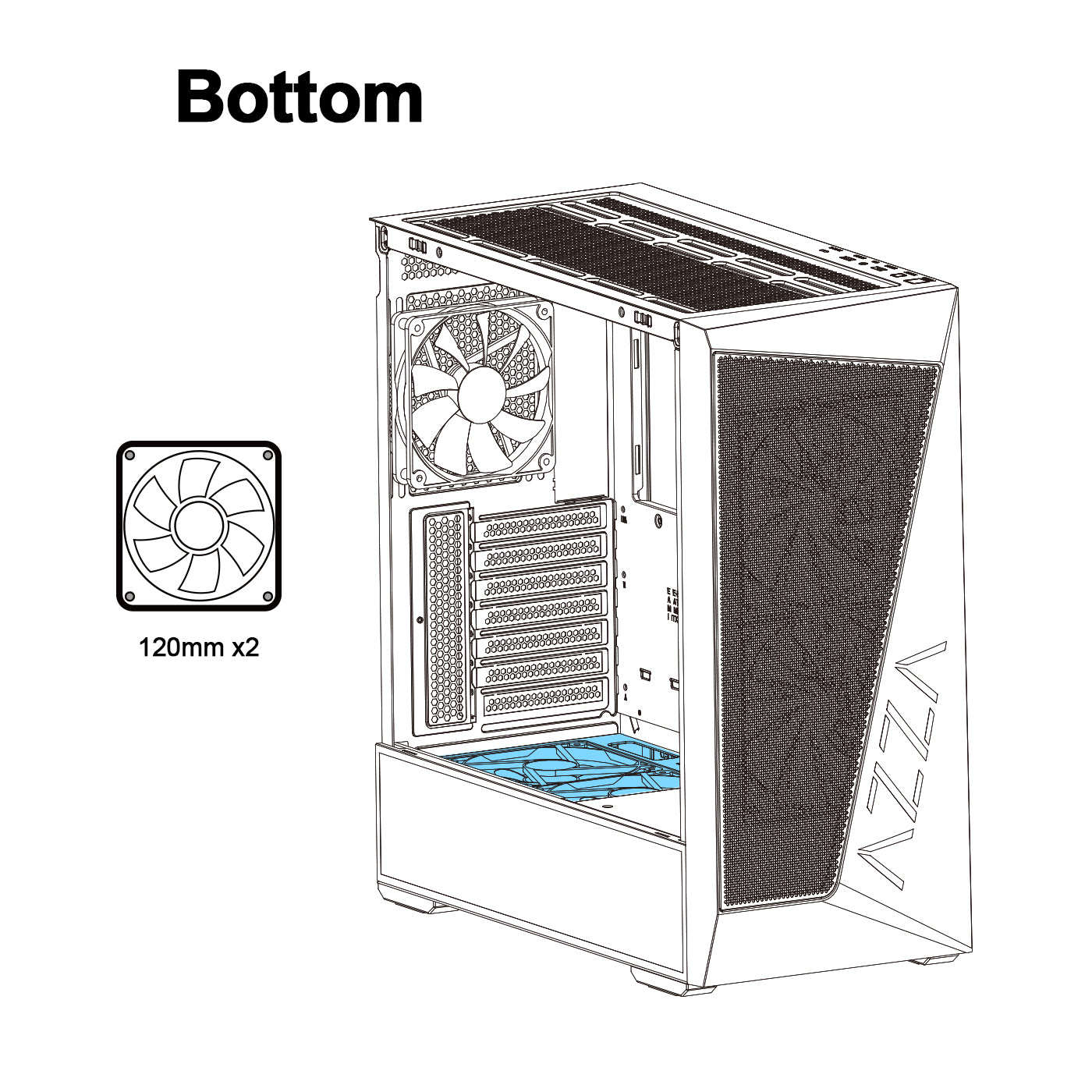

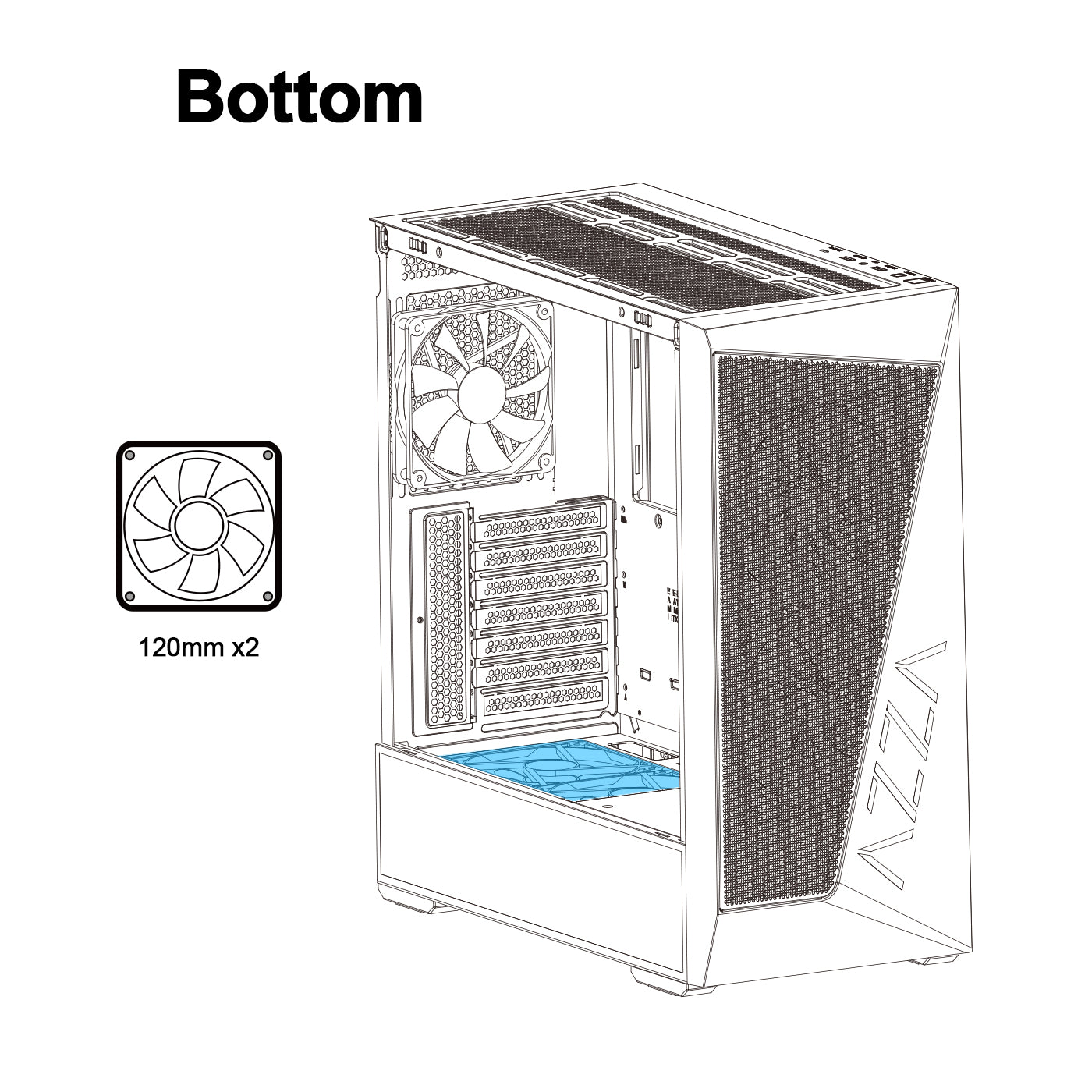

Bottom Cooling Support

Fans: Up to 2 x 120 mm

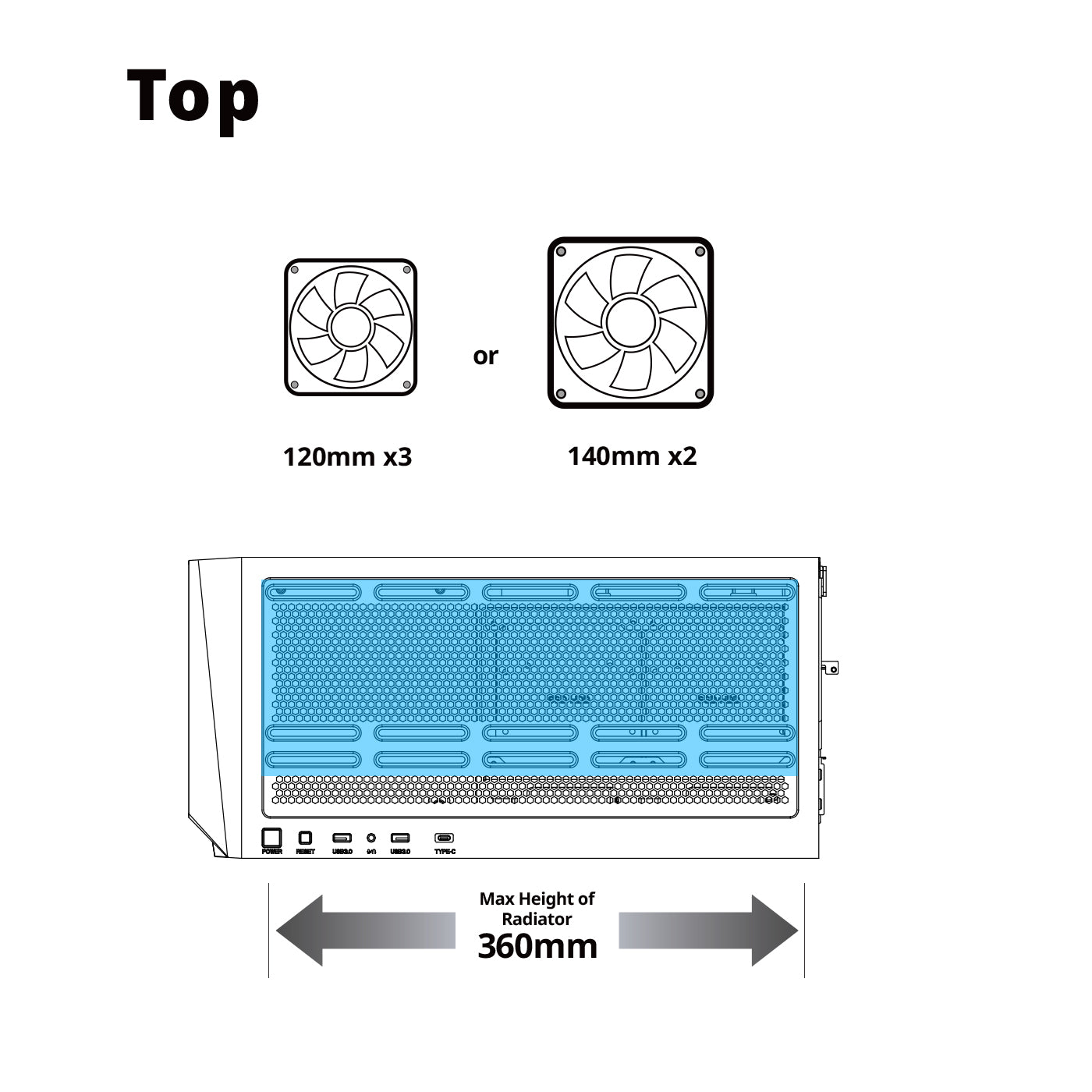

Top Cooling Support

Fan: 3 x 120 mm or 2 x 140mm

Radiator: Up to 360 mm

SPECIFICATIONS

CSAZ-225K01

Download Manual
Type

ATX Mid Tower (Support EATX)

Color

Black/Black(interior)

Side Panels

Left side panel: Tempered glass

Max CPU Cooler Height

Up to 175 mm

Max Video Card Length

Up to 400 mm long video card

Motherboard Compatibility

ATX、Micro ATX、ITX、EATX<300MM

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

Top Ports

Power button,LED button, HD Audio Combo, USB3.0 x 2, Type C x1

Case Dimension (H x W x D)

475x225x475mm/ 18.7x8.8x18.7 inches

Weight

6.9Kg /15.2lbs

Addressable RGB Light Effects

ARGB fans are controlled using the LED button. All addressable RGB devices can sync with
the motherboard, allowing the motherboard software to control lighting directly.

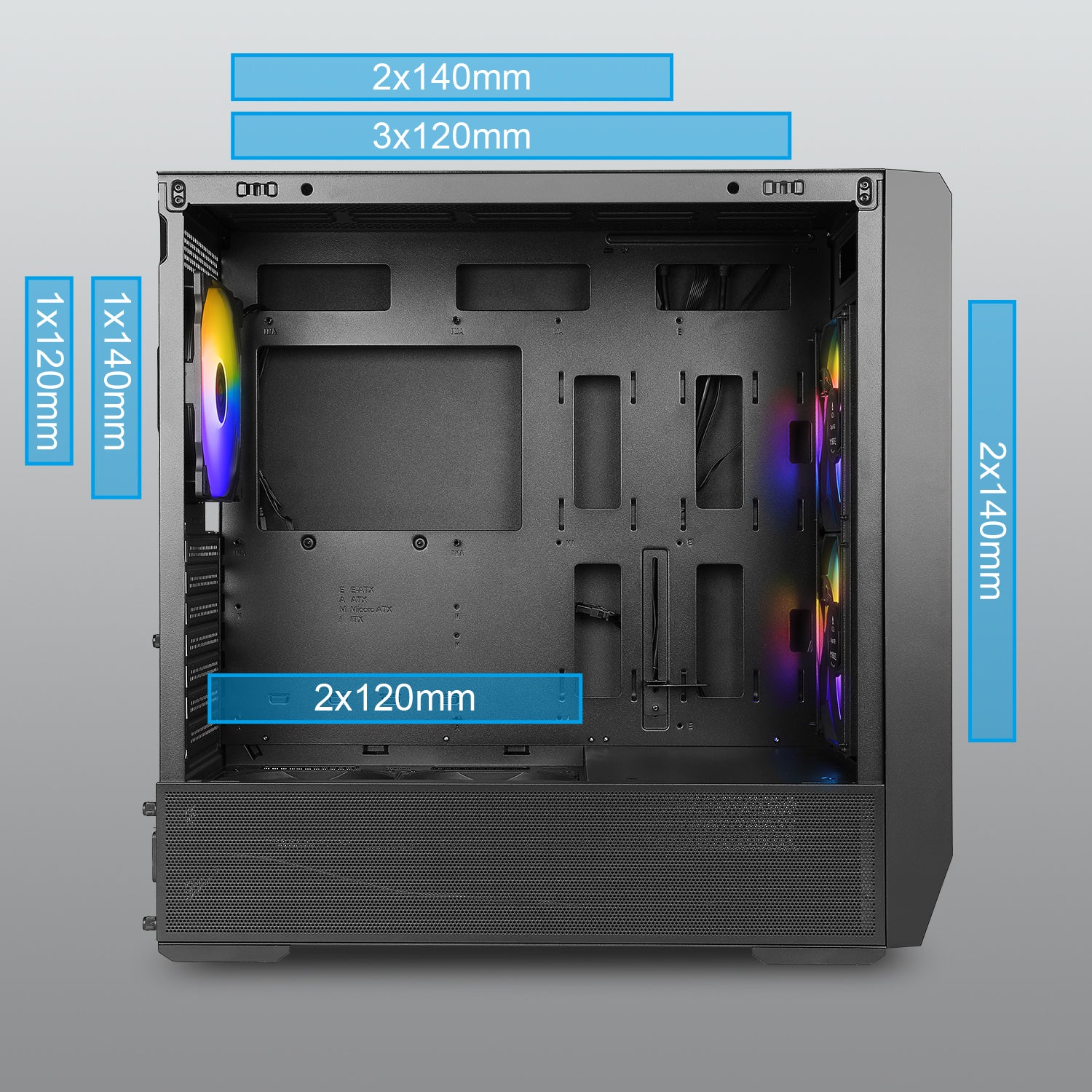

Available Fan Ports

2x140mm fan ports in the front
1x120mm or 1x140mm fan port in the rear
2x120mm fan ports Top of PSU Shroud
3x120mm or 2x140mm fan ports on the top

Included Fans

2x140mm LFO-5914D addressable ARGB fan in the front
1x140mm LFO-5914D addressable ARGB fan in the rear
2x120mm LFO-6012B black fan ports Top of PSU Shroud

Water Cooling

Supports radiators up to 280/360mm on the top

Dust Filters

Removable (magnetic) dustproof net on the top , removable dust filter on bottom of chassis.
dust filter under the right steel panel and the bottom fans.

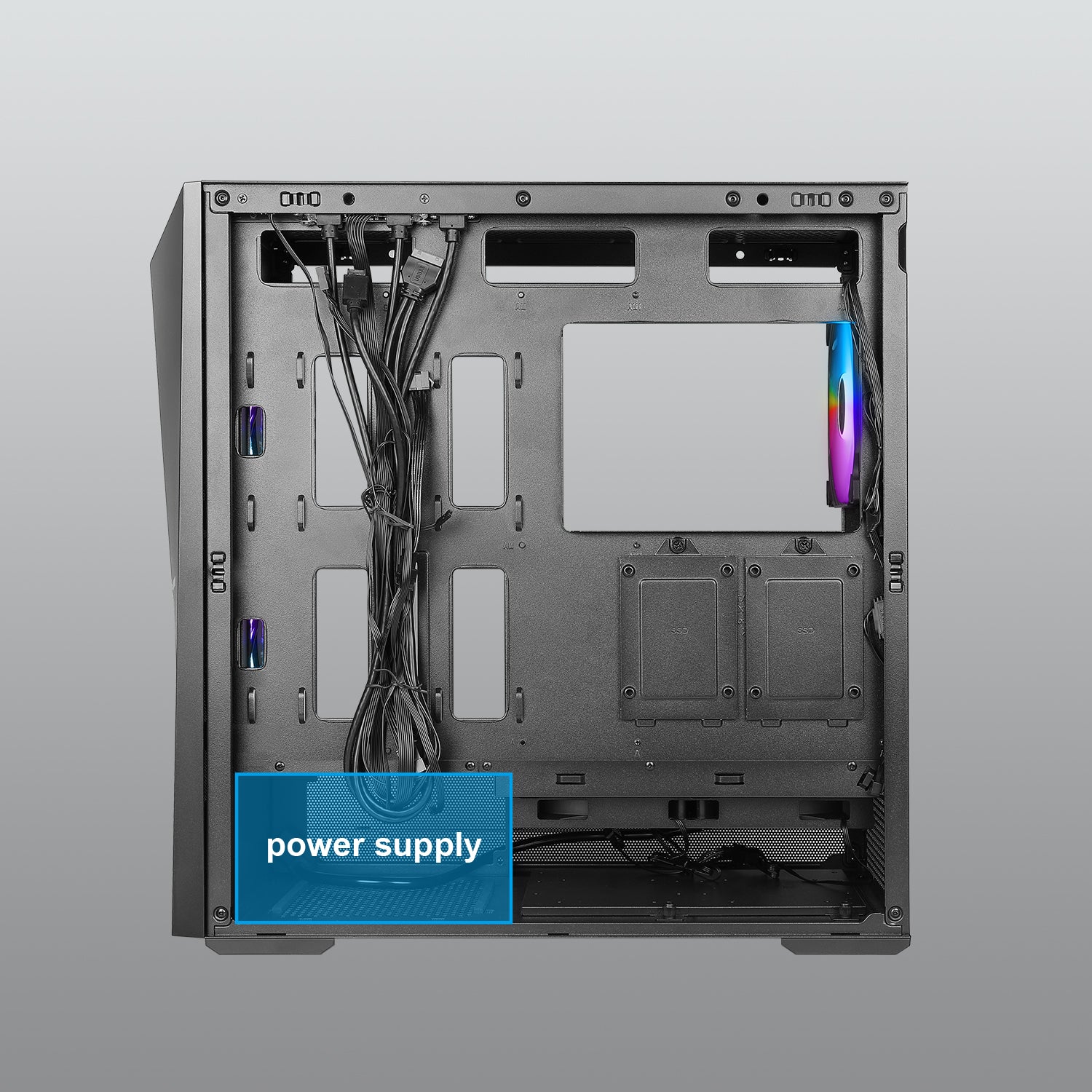

Power Supply Support

Front mounted ATX power supply

Others Features

Adjustable VGA holder mounted on the motherboard side
