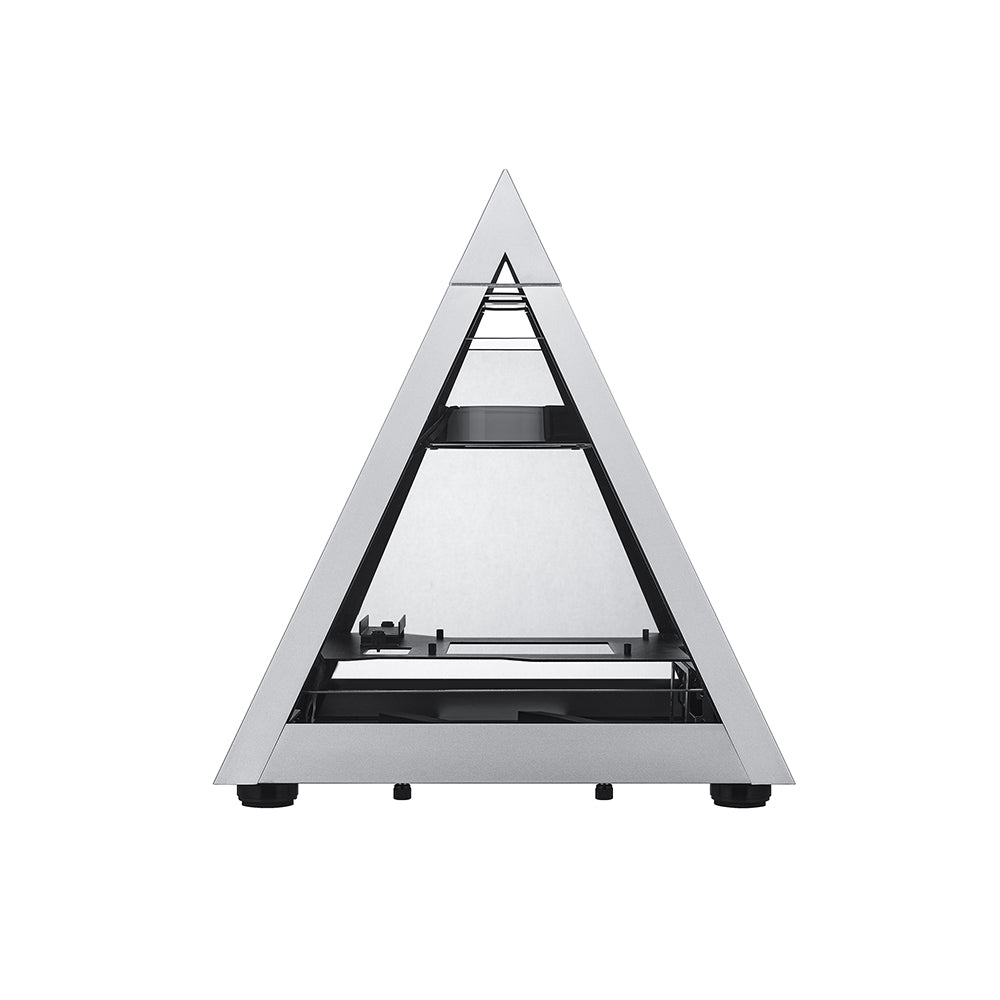

PYRAMID MINI


Dare to be different; the PYRAMID MINI completely transforms the conventional workspace into a spectacular one. With its quality design and premium finish, the chassis grants users the ability to create performance-based builds that are unique in every way.

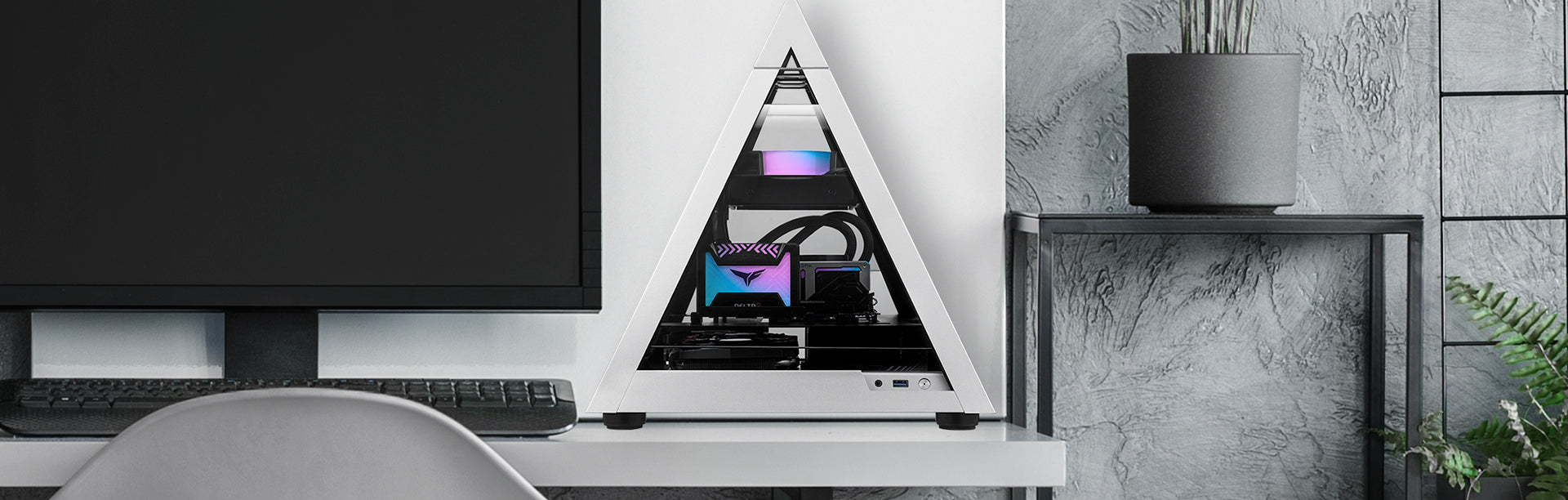

Show-Stopping Design

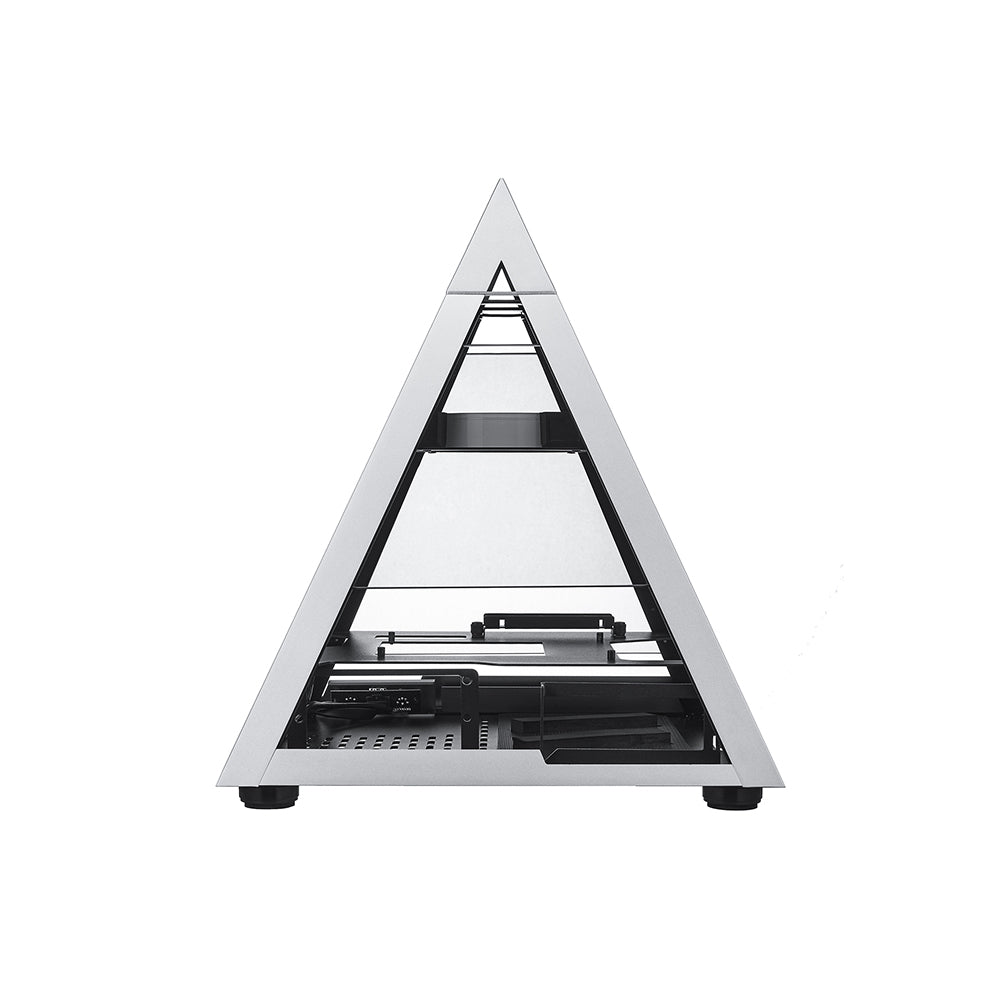

Pyramid MINI

Mini-ITX Pyramid Case

Small But Compatible

Inspired by the smaller ITX form factor, the PYRAMID MINI allows for powerful components to be easily installed without worrying about clearance or airflow.

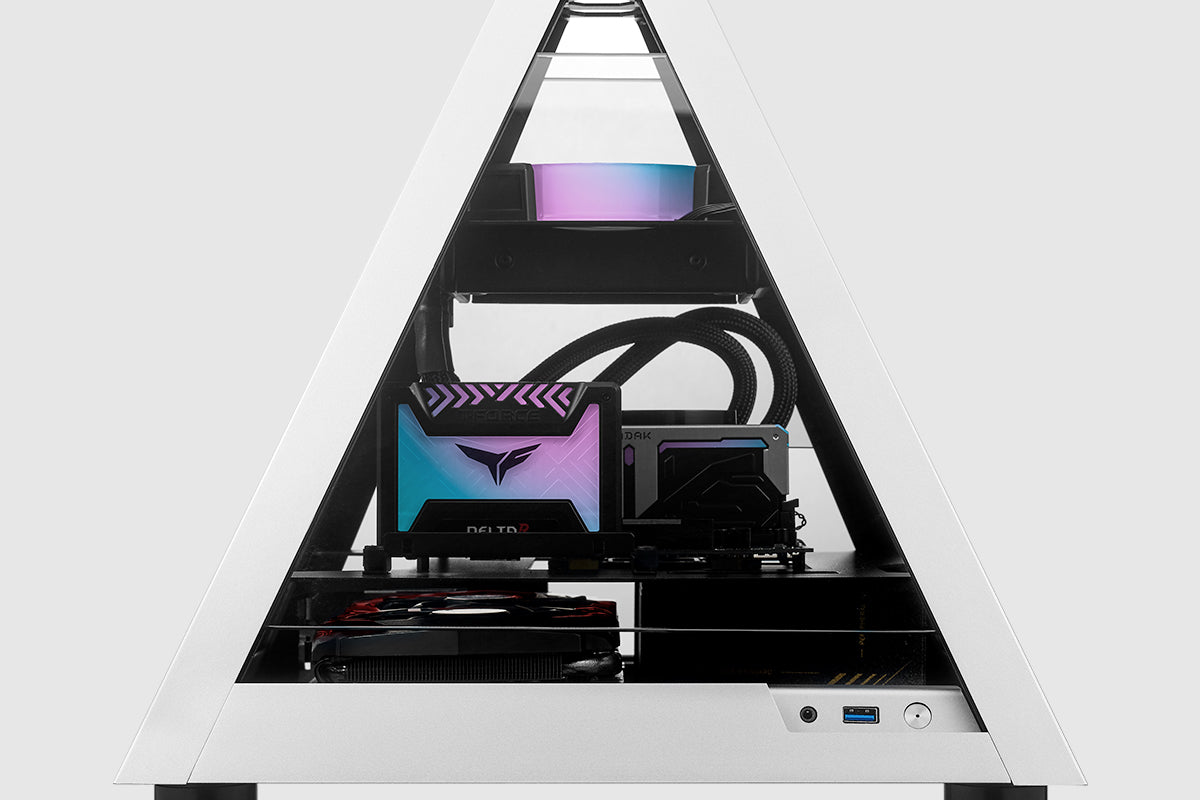

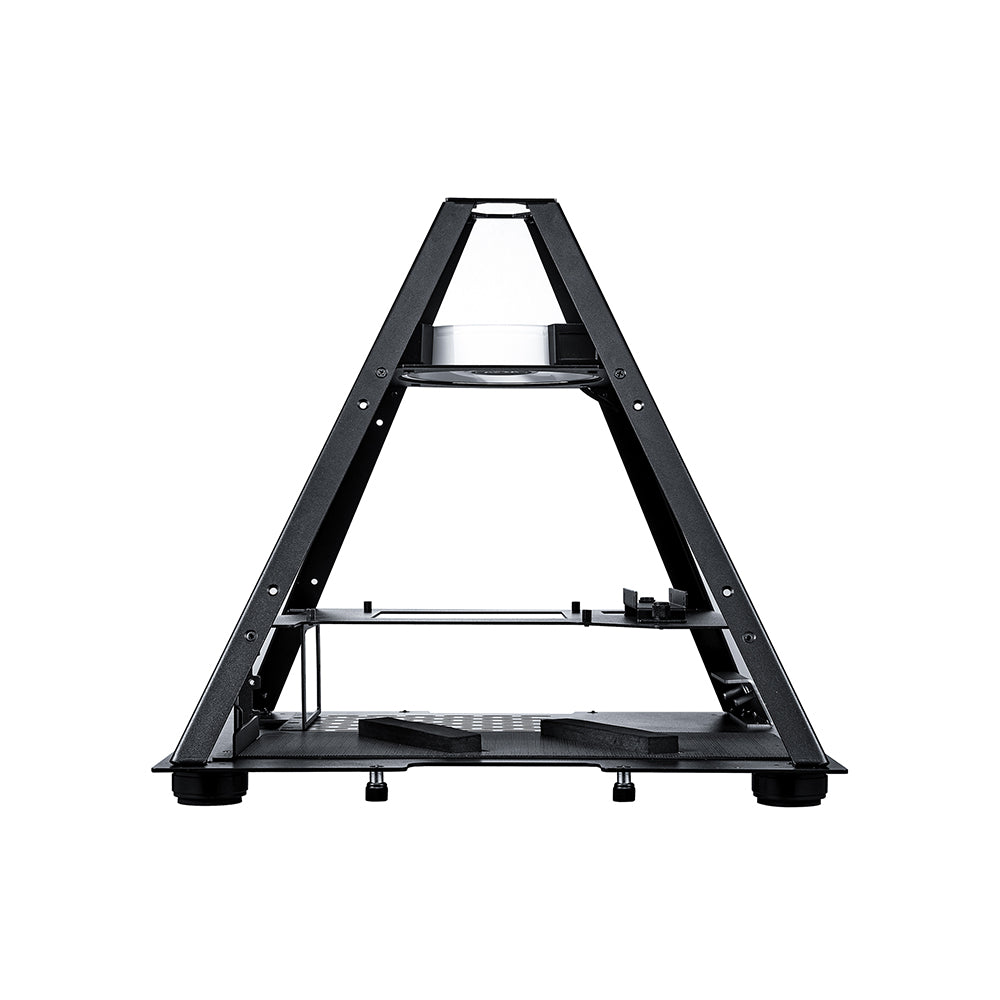

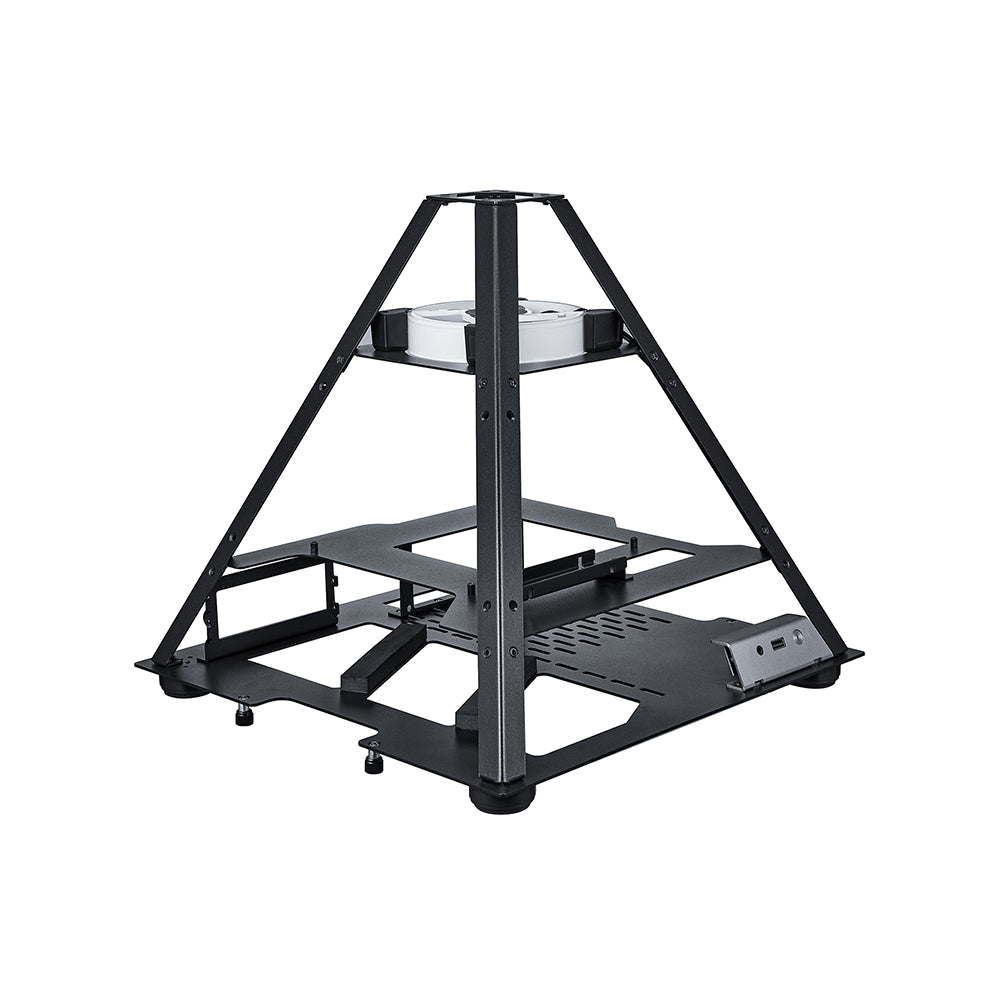

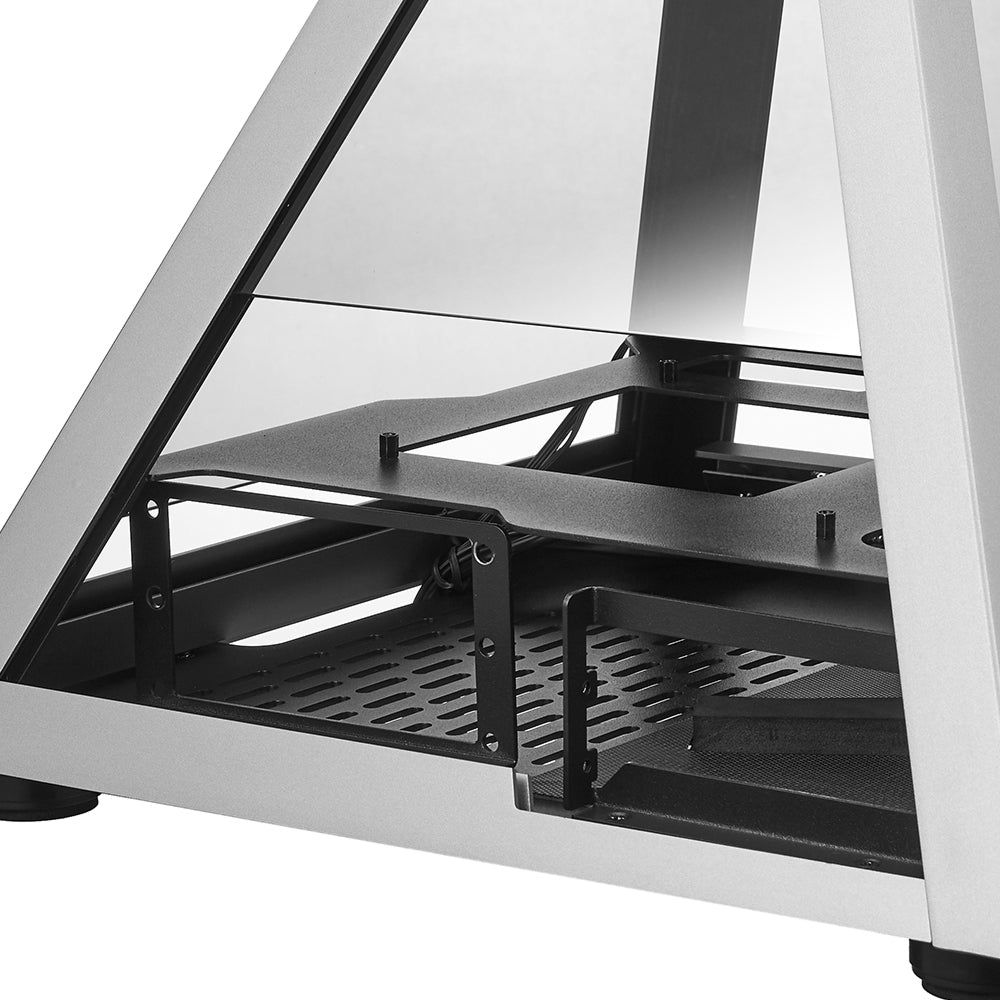

Multi-Level Access

Thinking outside the box: The PYRAMID MINI features a multi-level design for easy access to all your components.

  • Bottom level : Graphic cards and power supply
  • Second level : ITX motherboard and SSD storage
  • Third level : Cooling unit.

Not only does this design offer stylistic and organizational enhancements, but it also makes installing and upgrading components easier than ever.

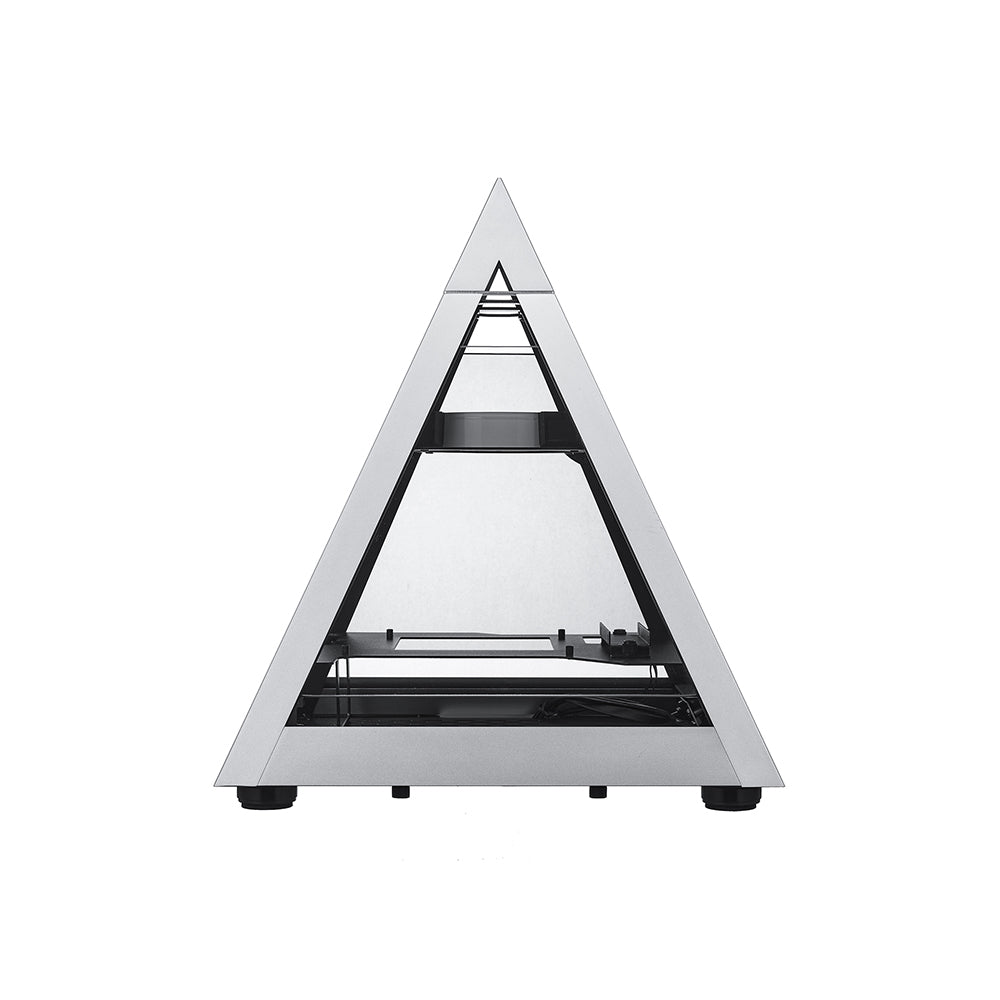

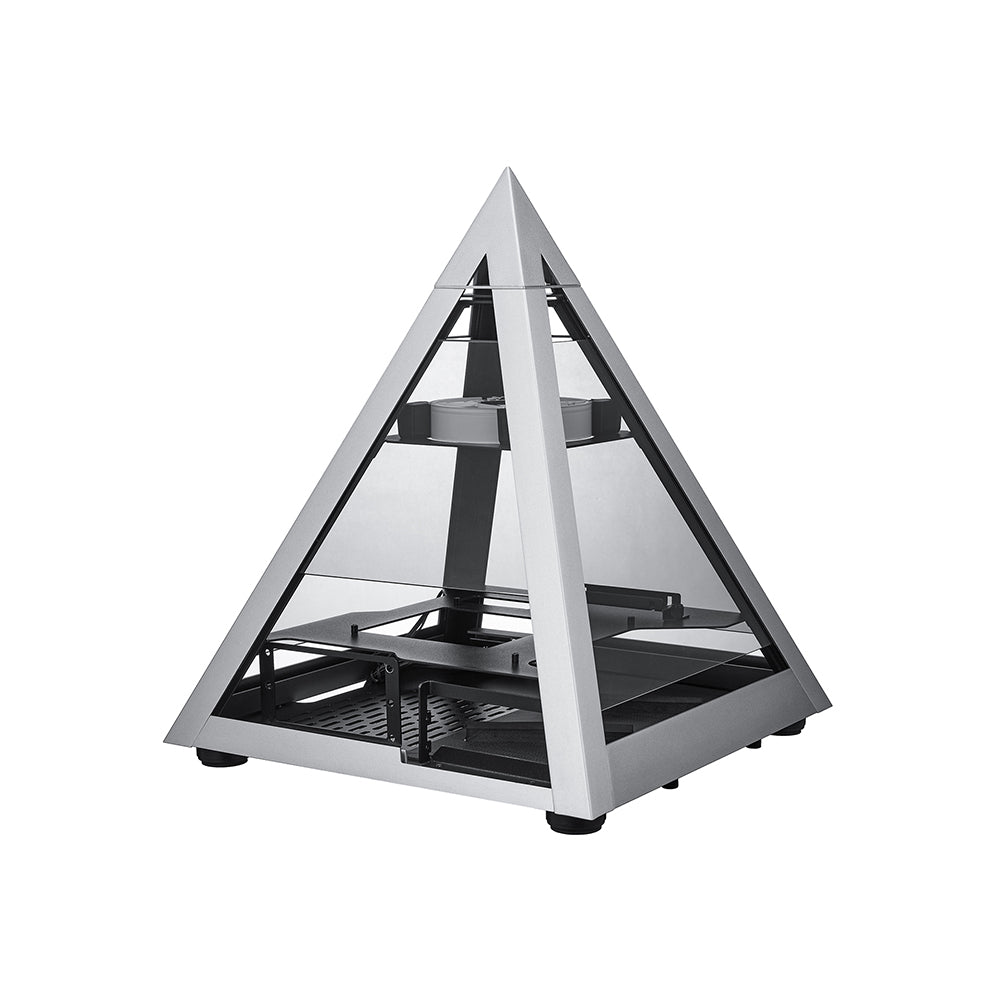

Aluminum & Glass Design

The PYRAMID MINI's smooth aluminum exterior and huge glass panels provide a stylistically elegant design that makes for a great conversation piece.

The 4-sided glass panels provide a complete view of your build from any angle.

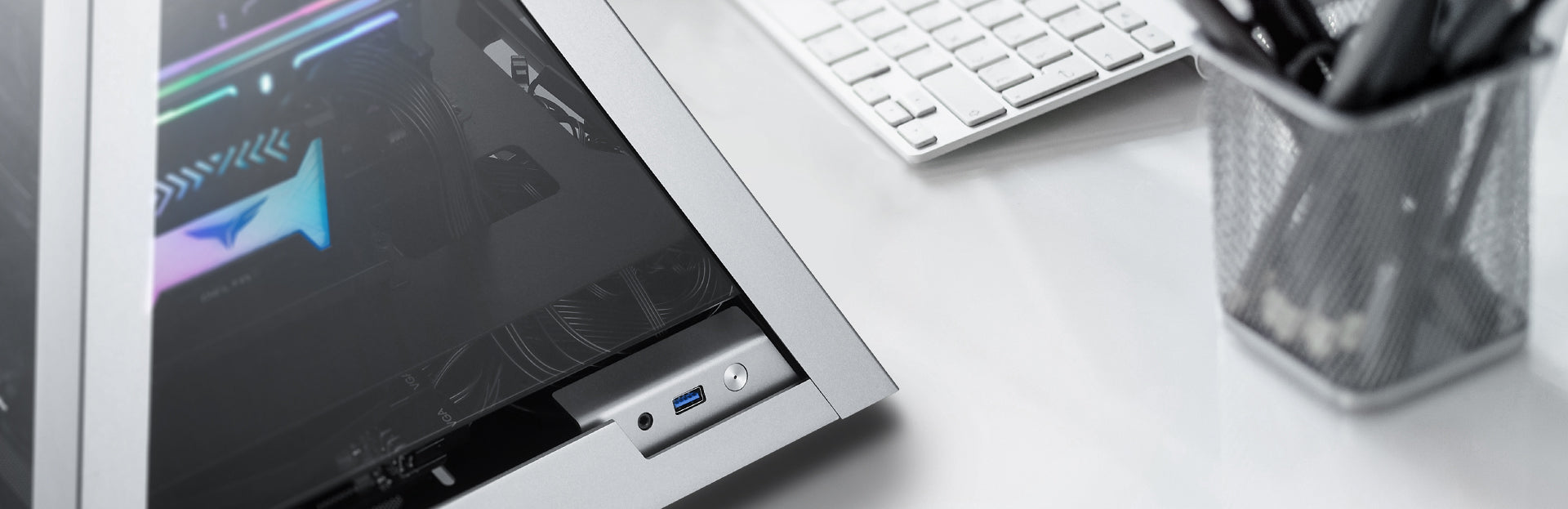

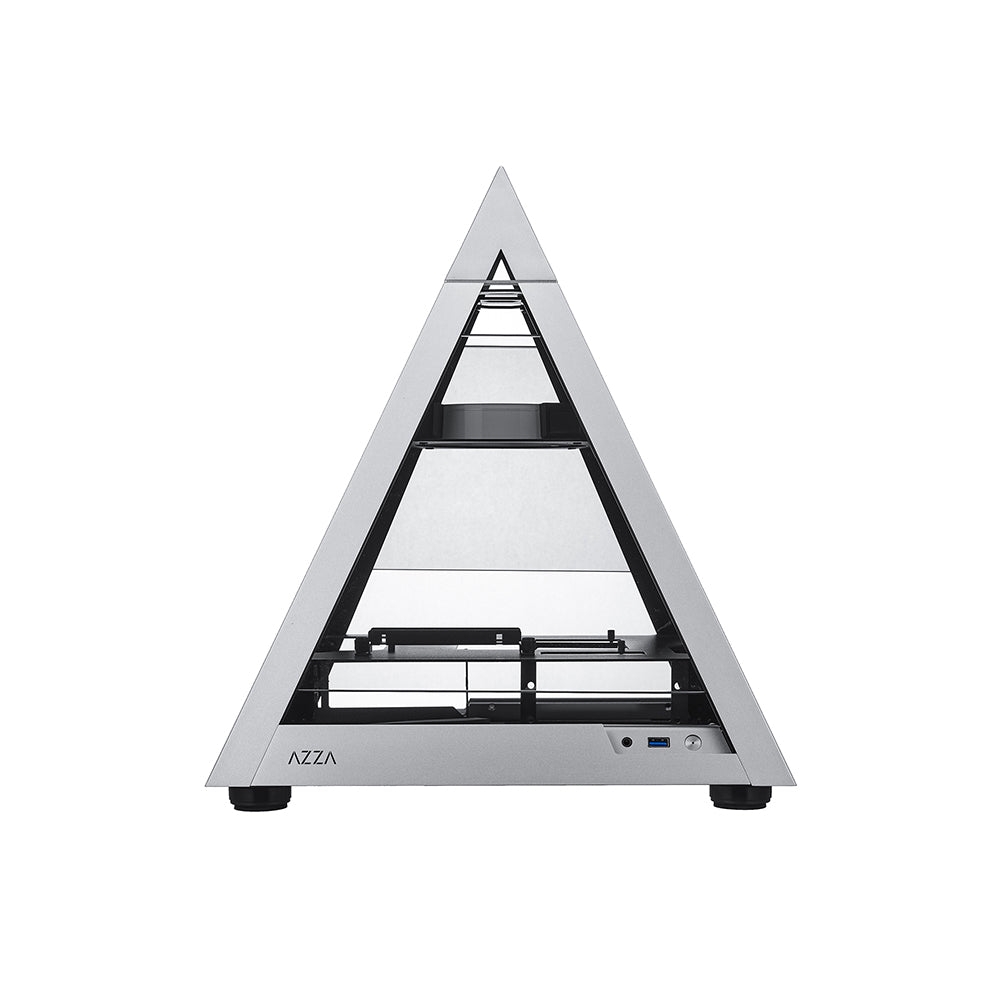

Refined Front Panel Control

The front panel control is tucked neatly at the bottom corner and has a power button, USB 3.0, and audio jack for easy-to-reach connectivity and minimal cable routing.

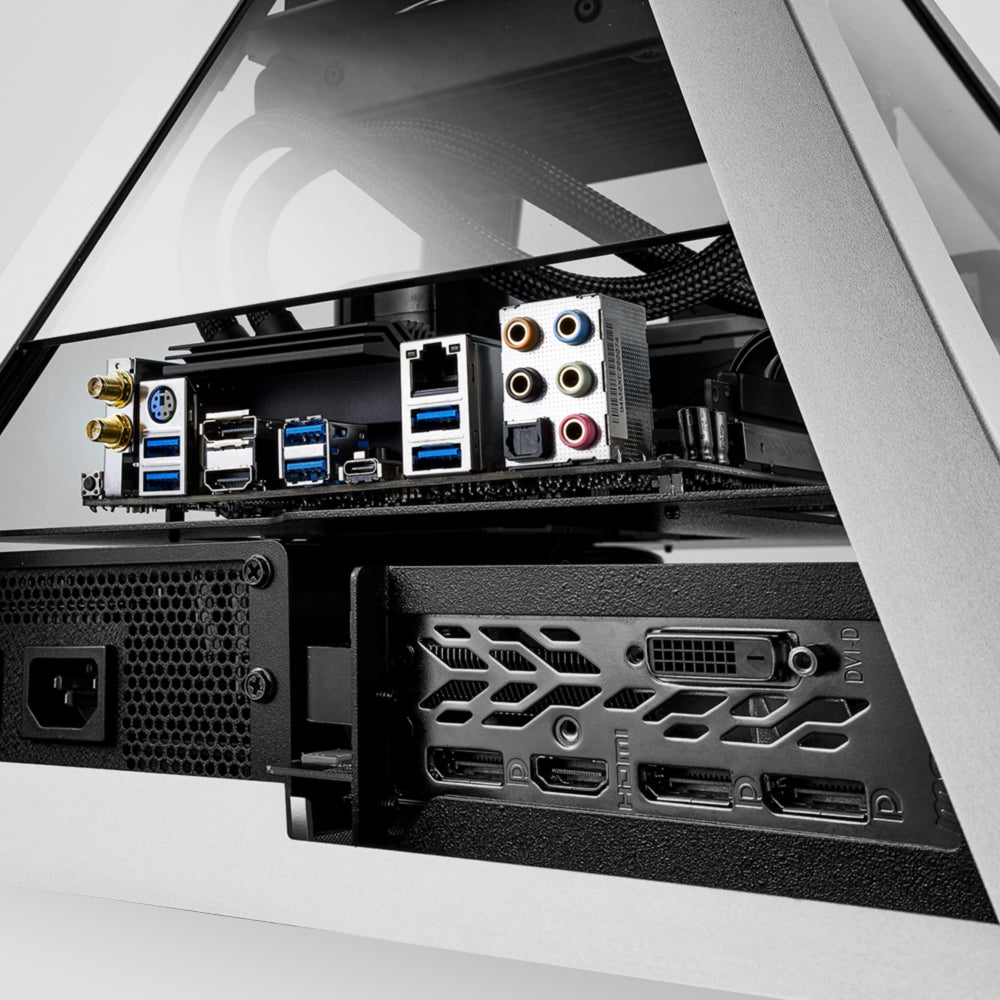

Ease Of Access

The rear panel provides easy access to the motherboard, graphics card, and power supply. Making painful peripheral connections a thing of the past.

Optimal Airflow

For greater heat dissipation, special cut-outs from the glass panels deliver unrestricted airflow and ventilation from every side of the chassis.


SPECIFICATIONS

CSAZ-806

Download Manual
Type

Mini-ITX Pyramid Enclosure

Color

Gray anodized aluminum (exterior) / Black (interior)

Side Panels

4 x Tempered glass

Max CPU Cooler Height

Up to 85 mm

Max Video Card Length

Up to 280 mm

Motherboard Compatibility

Mini-ITX

2.5" Drive Bays

Up to 2

Expansion Slots

2

I/O Ports
  • Power button
  • HD audio
  • 1 x USB 3.0
Case Dimension (H x W x D)

435 mm x 368 mm x 368 mm

Weight

6.3 kg / 13.9 lbs

Available Fan Ports

1 x 120 mm fan port on the top

Included Fan

1 x 120 mm AZZA Hurricane II ARGB Fan

Water Cooling

Supports radiators up to 120 mm on the top

Power Supply Support

SFX Power supply only

Included Accessories

200 mm PCI-e extension cable

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
