PYRAMID L


The eye-catching iconic look of our glass and aluminum pyramid case. Unobstructed 360º glass panels for a complete look at components.

Maintaining its appearance and size, the PYRAMID L has been adjusted to allow for more fan ports and up to 330 mm of GPU housing for newer generations of graphic cards.

Unconventional Mystique

PYRAMID L

Transforming what we know about computer cases, the PYRAMID L turns conventional workspace devices into a show-stopping display.



360º Glass View

4-sided tempered glass panes offer full view of the beauties within the pyramid. With intricate cutouts on the glass exterior frame for airflow, the exterior frame also detaches as a single element from the apex, allowing for 360º access to easy building and components.

Multi-Leveled Building Access

Thinking outside the box: The PYRAMID L features a multi-level design for easy access to all your components.

  • Lower platform : PSU, 360 mm radiator and storage
  • Upper platform : Motherboard, GPU and radiator

Not only does this design offer stylistic and organizational enhancements, but it also makes installing and upgrading components easier than ever.

Ease of Access

For seamless connectivity, the refined front panel I/Os include:

  • 2 x USB 3.0 ports
  • 1 x USB 3.1 Type-C port
  • High-Definition Audio In/Out jacks

The refined rear panel cut-out provides access to:

  • Motherboard
  • Graphics card
  • Power supply ports
  • Additional expansion slots

Same Iconic Look, Better Functionality

The unique aesthetics of the original Pyramid with even more expansion slots and hardware compatibility. Support for up to 5 x 120 mm fan ports have been added to the bottom for greater airflow and stunning customizability.

Additionally, cooler height and GPU dimensions have been adjusted to fit more next-gen components

4.0 The latest 4.0 version provides faster transmission speed

*This extension cable supports the following graphics cards: RTX 3000 series, RTX 3080, RTX 3090 FE, RX 5700XT and RX 6000 GPUs.

* Please note before use:
1.Measure the distance between your motherboard, PCI-E slot and GPU connection to confirm whether the length of this 4.0 cable is sufficient.
2.Update your motherboard BIOS to the latest version.
3.Update your GPU software to the latest version.
4.Check whether the motherboard BIOS setting is 4.0. Some software will not switch automatically. If the switching fails, the PC will not start normally.

Spacious Storage Room

Located under the motherboard tray, 2 mounting bays with spring bolts are provided for 2 x 2.5" SSDs, interchangeable with 1 x 3.5" HDD.

Versatile Build Options

Upper bracket supports E-ATX, Micro-ATX, Mini-ITX, ATX motherboards with room for a CPU cooler up to a height of 95 mm.

Seamless GPU Support

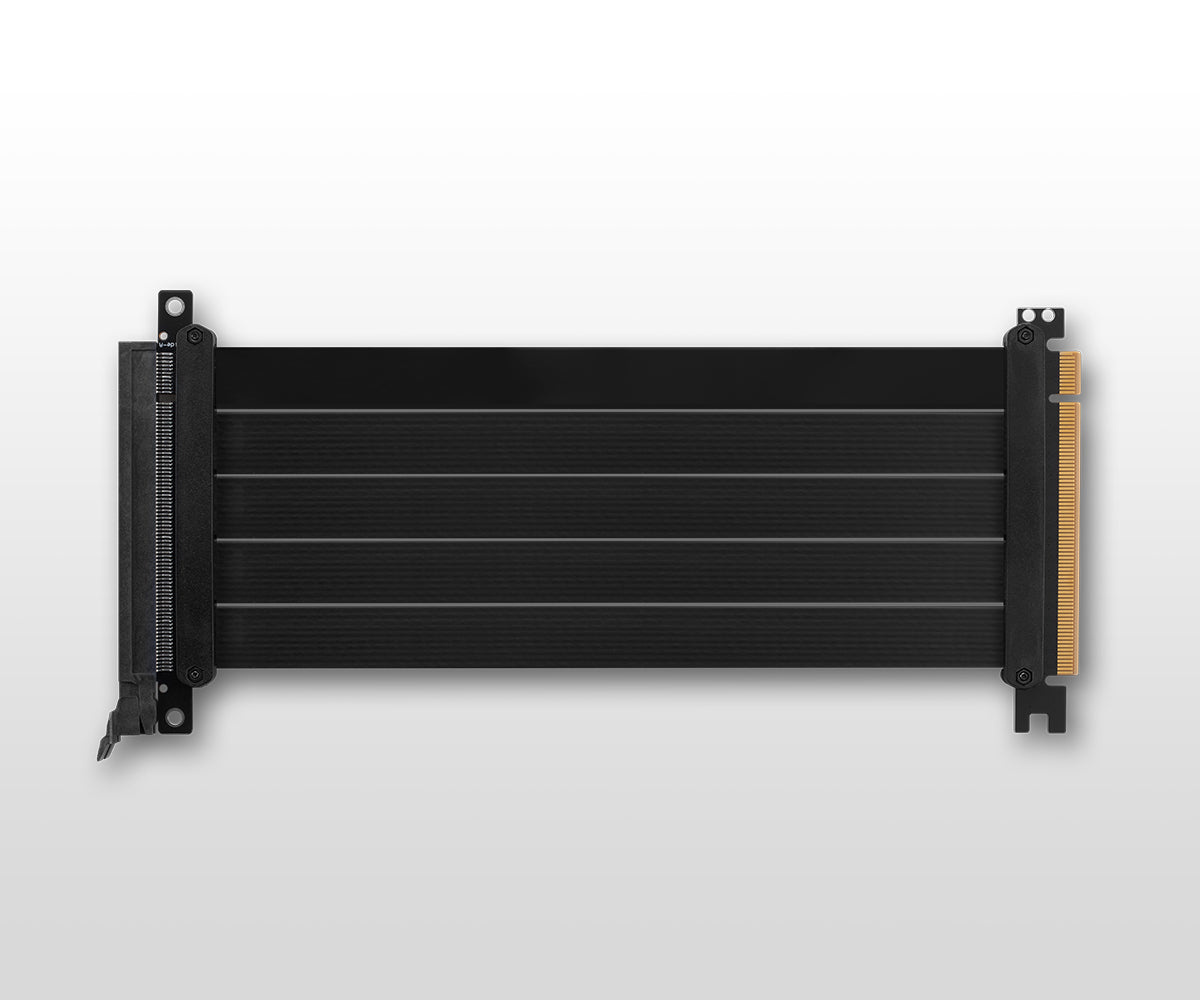

Compatible with modern GPUs, an ultra-flexible 200 mm PCI-e 4.0 cable is included to accommodate horizontal placements of GPUs.

SPECIFICATIONS

CSAZ-804L PCI-E4.0

Download Manual
Type

ATX Pyramid Enclosure

Color

Gray anodized aluminum (exterior) / Black (interior)

Side Panels

4 x Tempered glass

Max CPU Cooler Height

Up to 95 mm

Max Video Card Length

L = 330 mm / W = 150 mm / H = 70 mm (Horizontal)

Motherboard Compatibility

Less than 305 x 280 mm E-ATX, ATX, Micro ATX, ITX

2.5" Drive Bays

Up to 2

3.5" Drive Bays

Up to 1

Expansion Slots

3

I/O Ports

Power button
HD audio
2 x USB 3.0
1 x USB-C

Case Dimension (H x W x D)

585 mm x 490 mm x 490 mm

Weight

14.1 kg / 31.1 lbs

Available Fan Ports

1 x 120 mm fan port on the top
5 x 120 mm fan ports on the bottom

Included Fan

1 x 120 mm AZZA Hurricane III ARGB Fan

Water Cooling

Supports radiators up to 360 mm on the bottom right.

Power Supply Support

Bottom mounted ATX power supply

Included Accessories

200 mm PCI-e 4.0 Riser Cable

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
