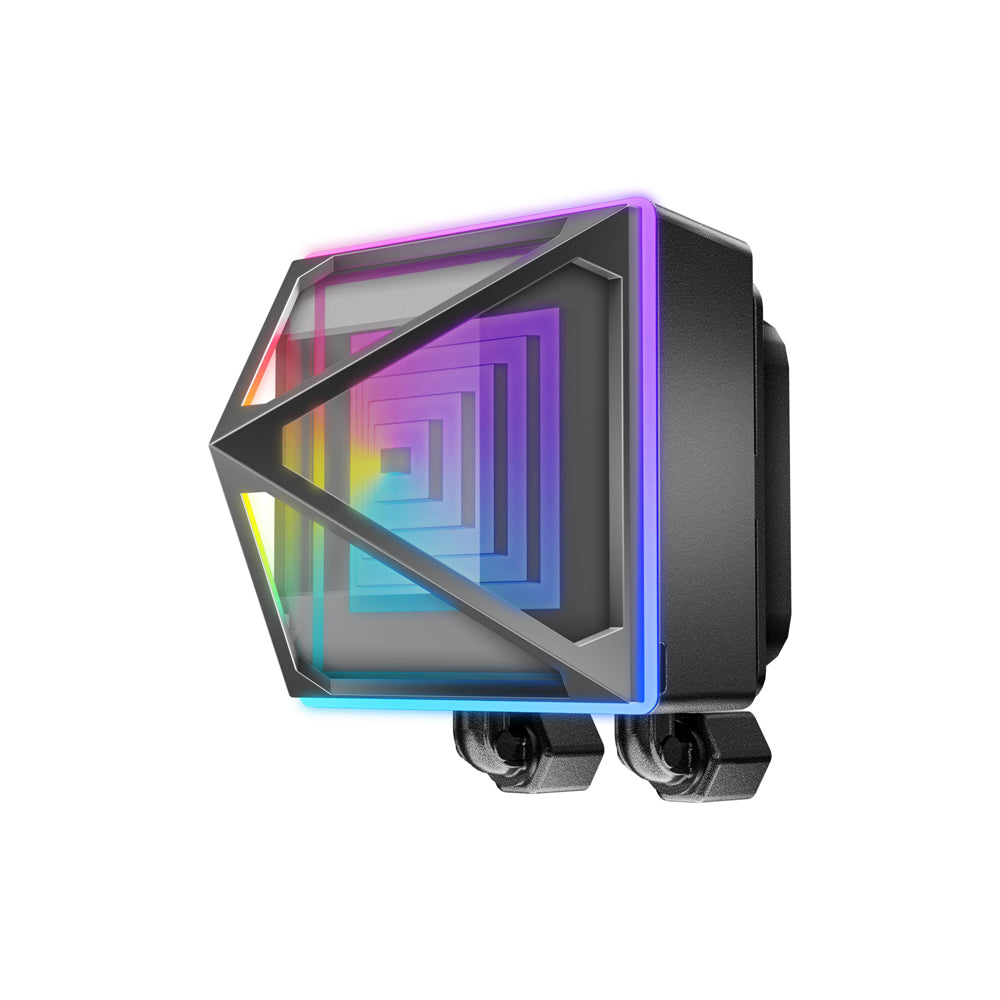

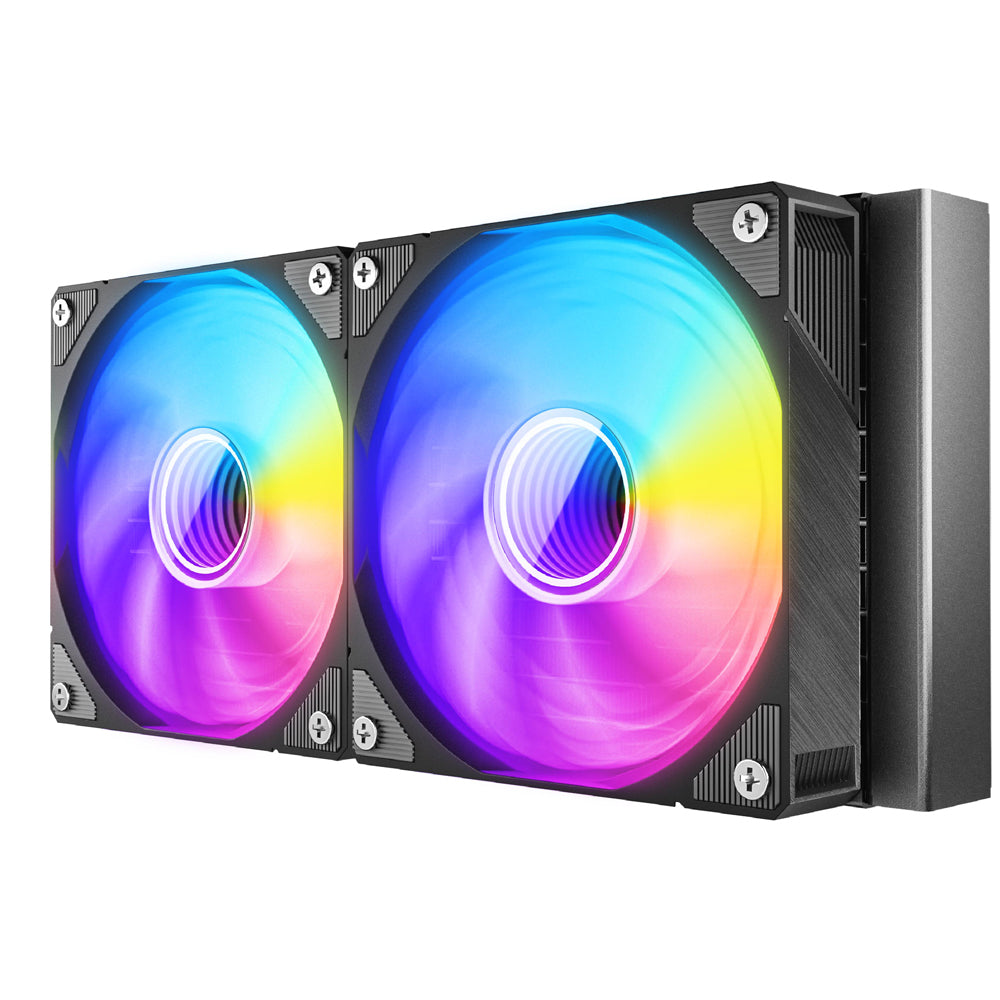

PYRAMID 240


240 mm All-in-One Liquid Cooler.

ENJOY SIMPLICITY, STYLE & SILENCE - The Pyramid 240 is designed for easy and safe installation, providing balanced performance and operational efficiency. With fan speeds up to 2000 RPM while delivering airflow levels of 57.5CFM, the pump operates at low noise levels of 34 dB (A) , keeping your system cool and quiet.

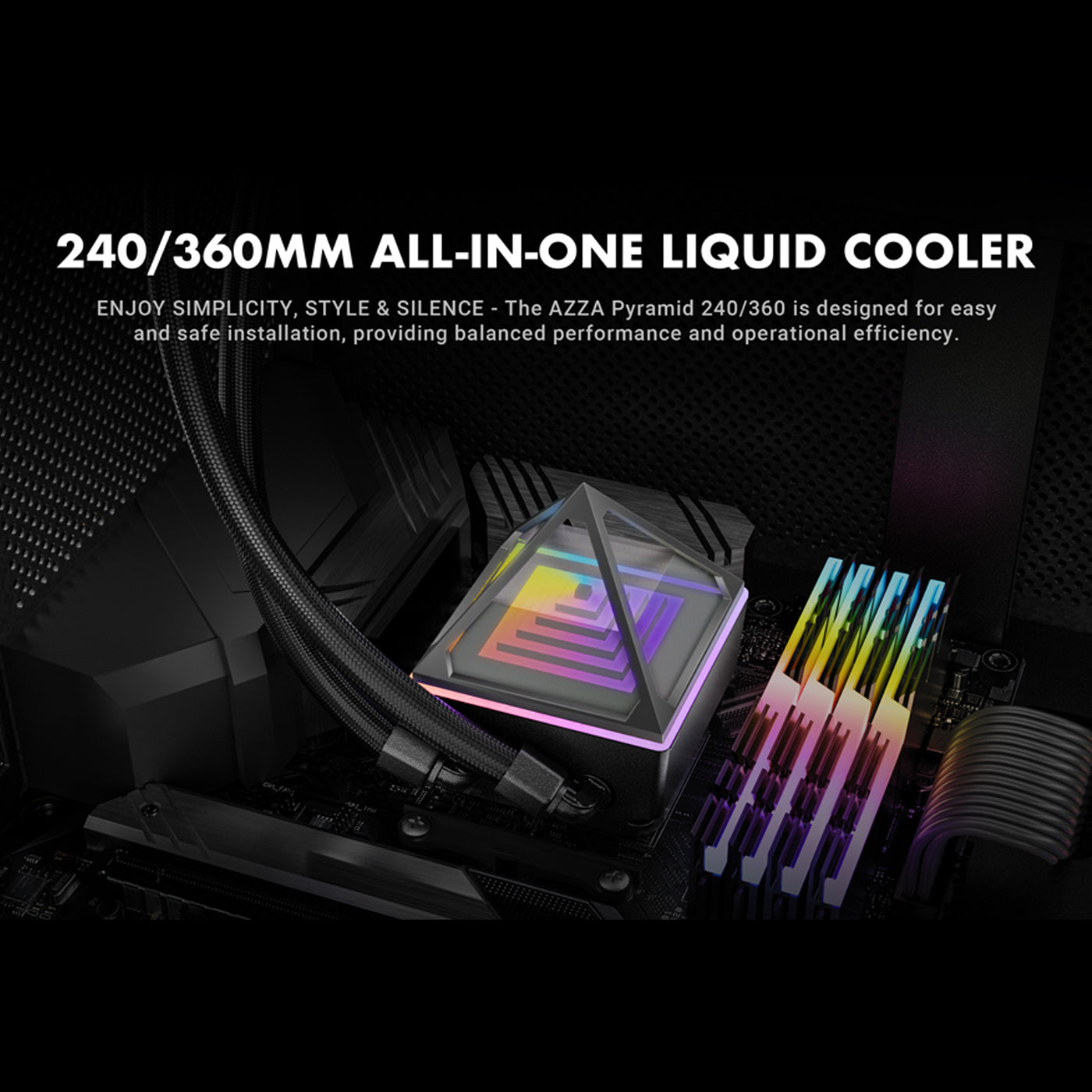

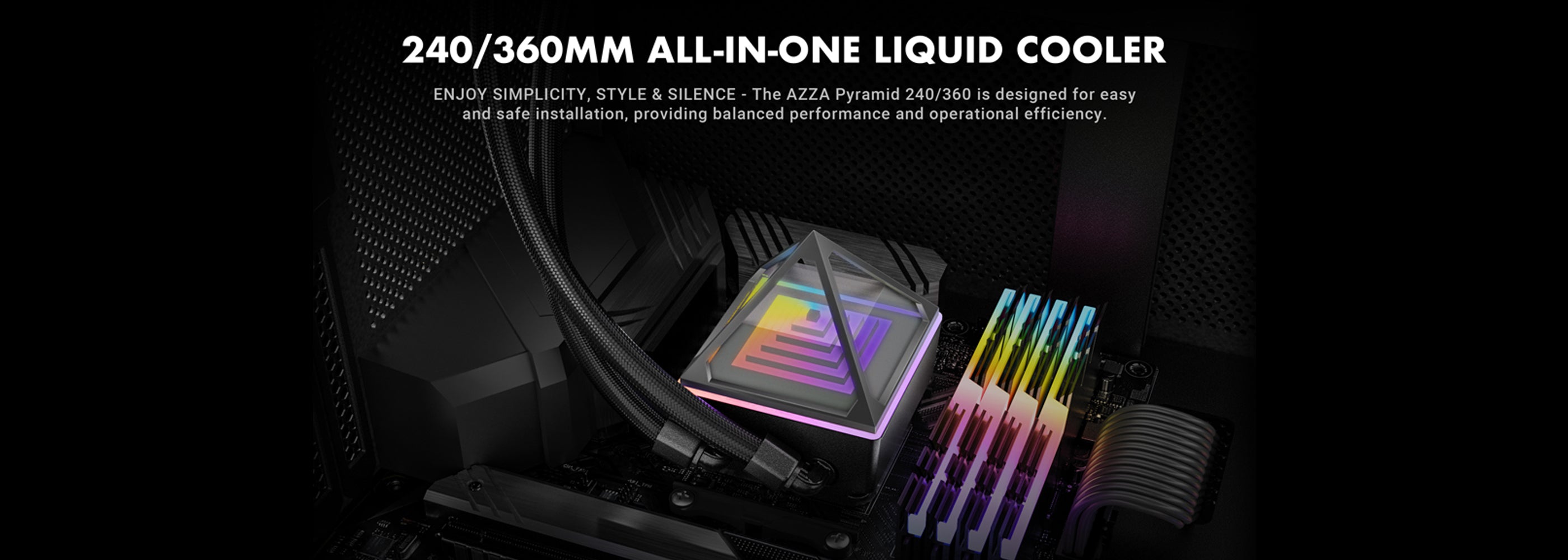

240/360MM ALL-IN-ONE LIQUID COOLER

ENJOY SIMPLICITY, STYLE & SILENCE-The AZZA Pyramid 240/360 is designed for easy and safe installation, providing balanced performance and operational efficiency.

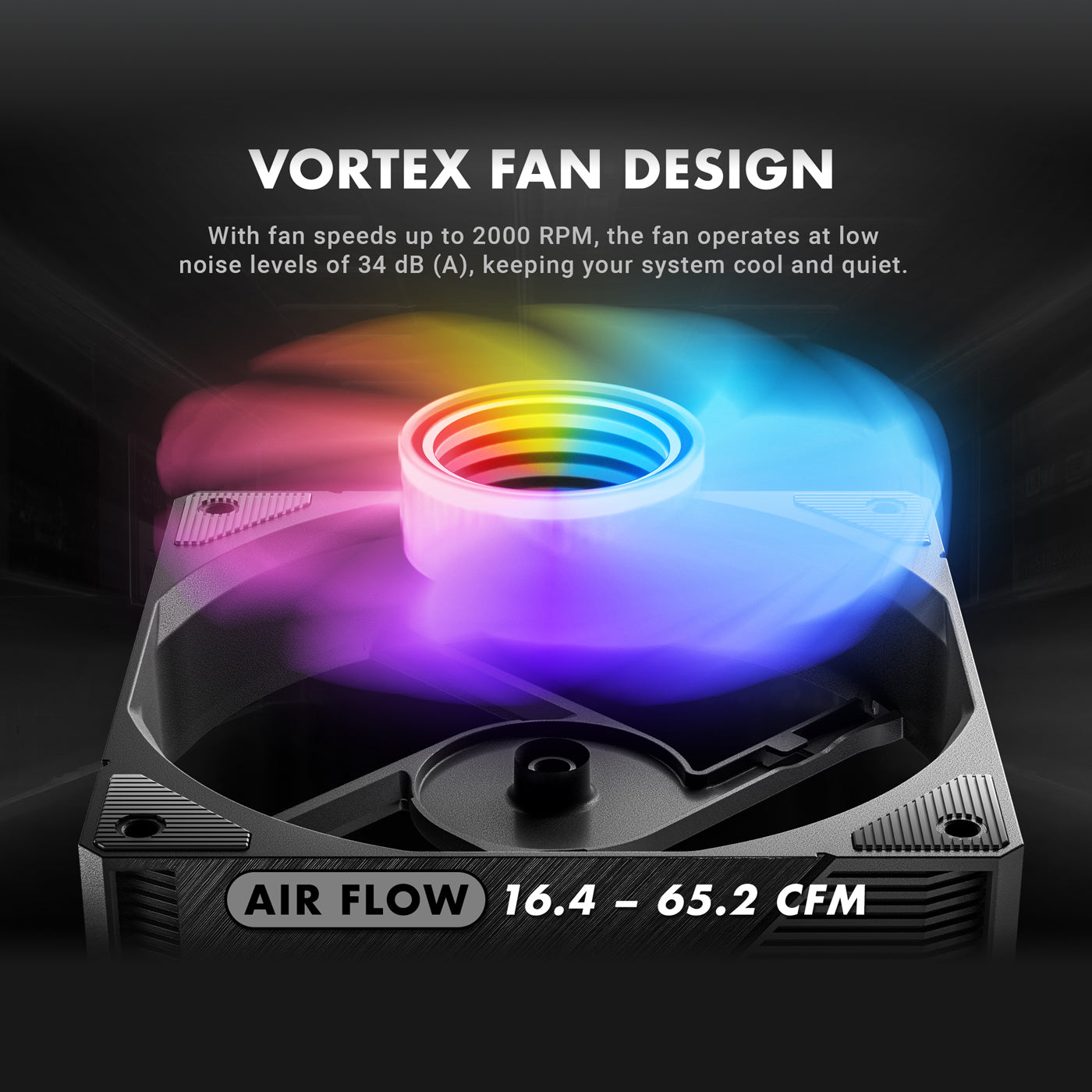

VORTEX FAN DESIGN

With fan speeds up to 2000 RPM, the fan operates at low noise levels of 34db(A), keeping your system cool and quiet.

PATENTED RECTANGULAR RADIATOR FINS

Patented water block with unique rectangular radiator fins. With these flat fins the welding is more robust. Moreover, the contact area with the water channels are greatly increased, thus better heat dissipation.

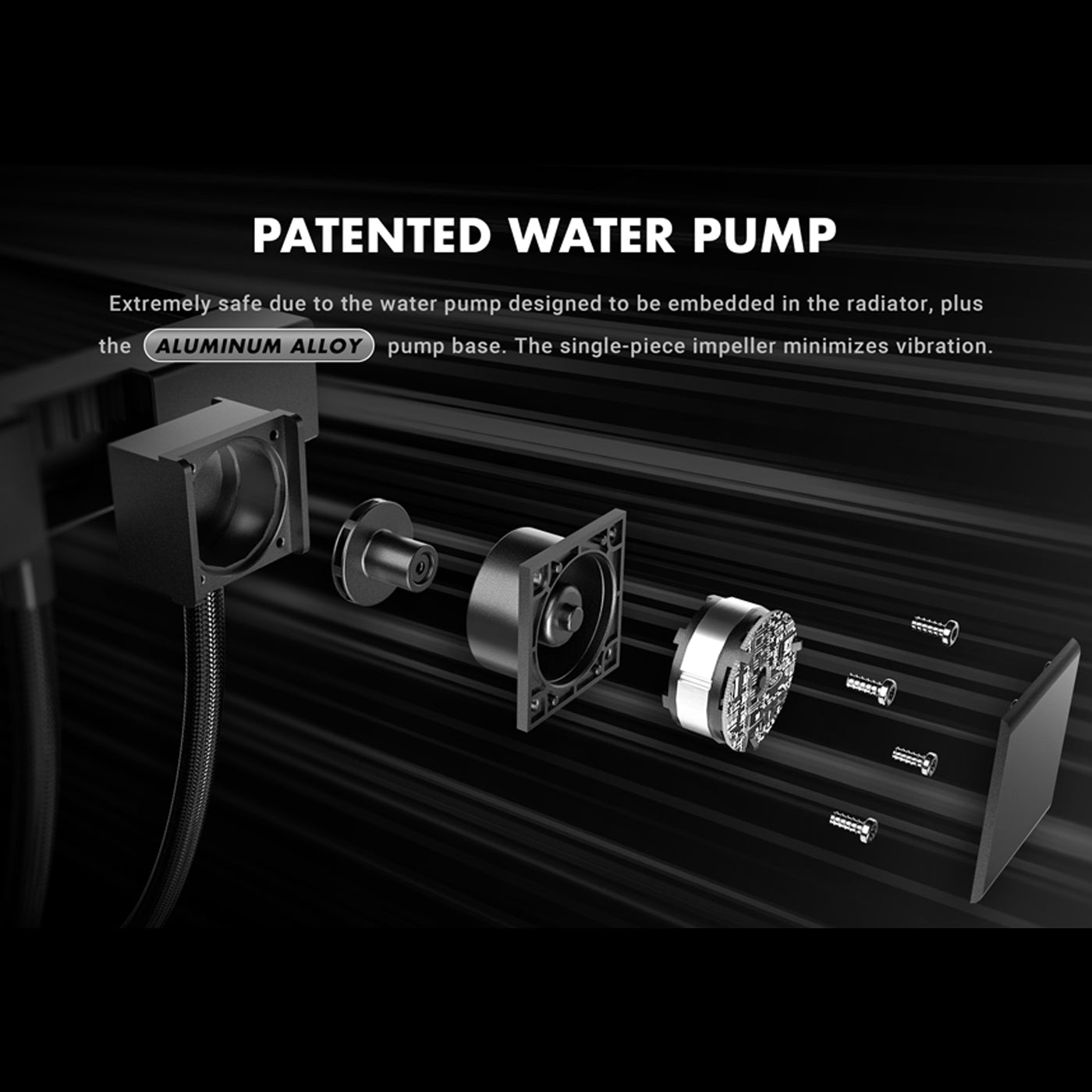

PATENTED WATER PUMP

Extremely safe due to the water pump designed to be embedded in the radiator, plus the ALUMINUM ALLOY pump base. The single-piece impeller minimizes vibration.

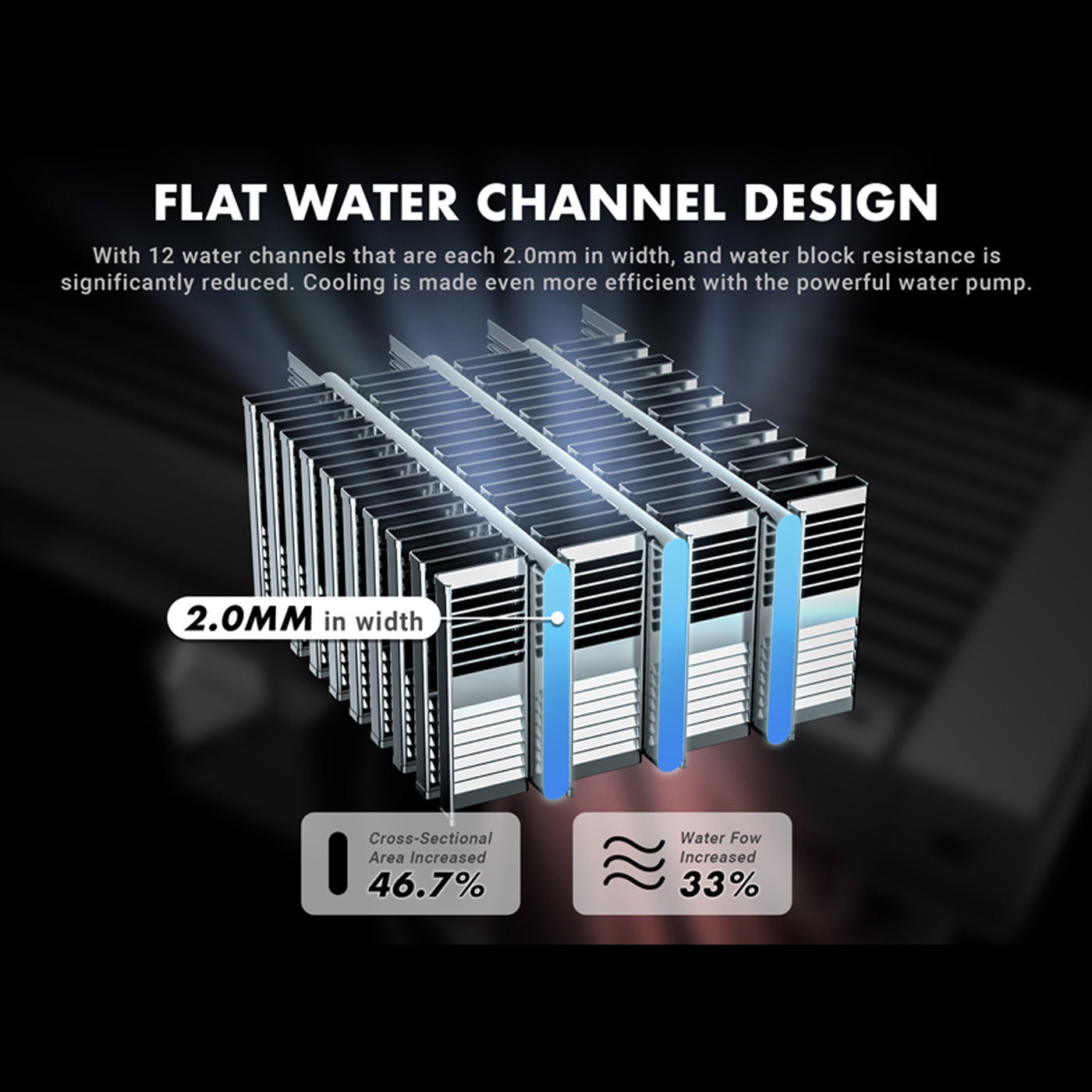

FLAT WATER CHANNEL DESIGN

With 12 water channels that are each 2.0mm in width, and water block resistance is significantly reduced. Cooling is made even more efficient with the powerful water pump.

RECTANGULAR ENHANCEMENT FOLDS ON BOTH ENDS

The rectangular enhancement folds on both ends of the fins improve the water block's resistance against pressure and bending drastically. Preventing users from bending the fins during installation.

SPECIFICATIONS

LCAZ-240Y-ARGB

Download Manual
Fan Dimensions

120 x 120 x 25mm

Speed

500±100~2000±10% RPM

Bearing Type

Hydro Bearing

Rating voltage(Fan)

DC 12.0V

Rating current(Fan)

0.28A

Power consumption(Fan)

3.36W

Rating voltage(Lights)

DC 5.0V

Rating current(Lights)

0.36A(Max)

Power consumption(Lights)

1.8W

Airflow

57.5CFM

Air Presuure

1.8mmH20

Noise

34 dB (A)

Lifespan

20000 hours at 25°C

ARGB Connector

SM2.54-3Pin(Female) to SM2.54-3Pin(Male)

Power Connector

2510-4Pin(Female) to 2510-4Pin(Male)

Radiator Dimensions

284x121x35.0mm

Material

Aluminium alloy

Water Block Dimensions

70.0x85.0x78.5mm

ARGB Connector

5V ADD-HEADER(Female) to ADD-HEADER(Male)

Rating voltage(Lights)

DC 5.0V

Rating current(Lights)

0.72A(Max)

Power consumption(Lights)

3.6W

Pump Type

Radiator built-in pump

Connector

2510-3Pin

Bearing type

Zirconia ceramic bearings

Rating voltage

DC 12.0V

Rating current

0.38A

Power consumption

4.56W

Speed

4000±10% RPM

Water Pressure

1.5 mH2O

Flow Rate

96 L/h

Motor Type

3-Phases brushless DC motor

Lifespan

50000h

Noise

<25dB(A)

Tube Dimensions

400mm

Material

EPDM+Rayon mesh

Intel Socket

LGA115X/LGA1366/LGA1200/LGA1700/LGA1851

AMD Socket

AM5/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
