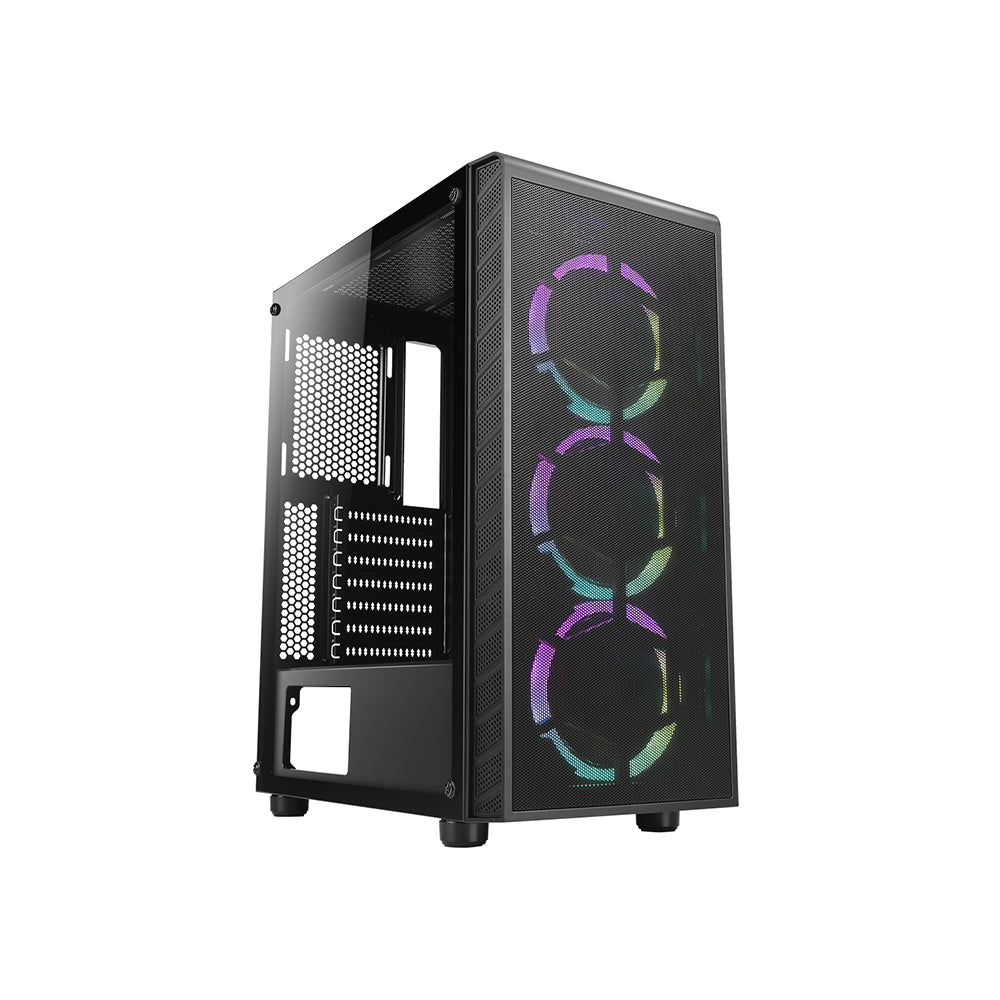

PRIME


Geared towards aesthetic-oriented users who care about appearances as much as they do about performance, the PRIME is the perfect example of balance between simple elegance and airflow.

PRIME

ATX Mid-Tower

Performance Optimized

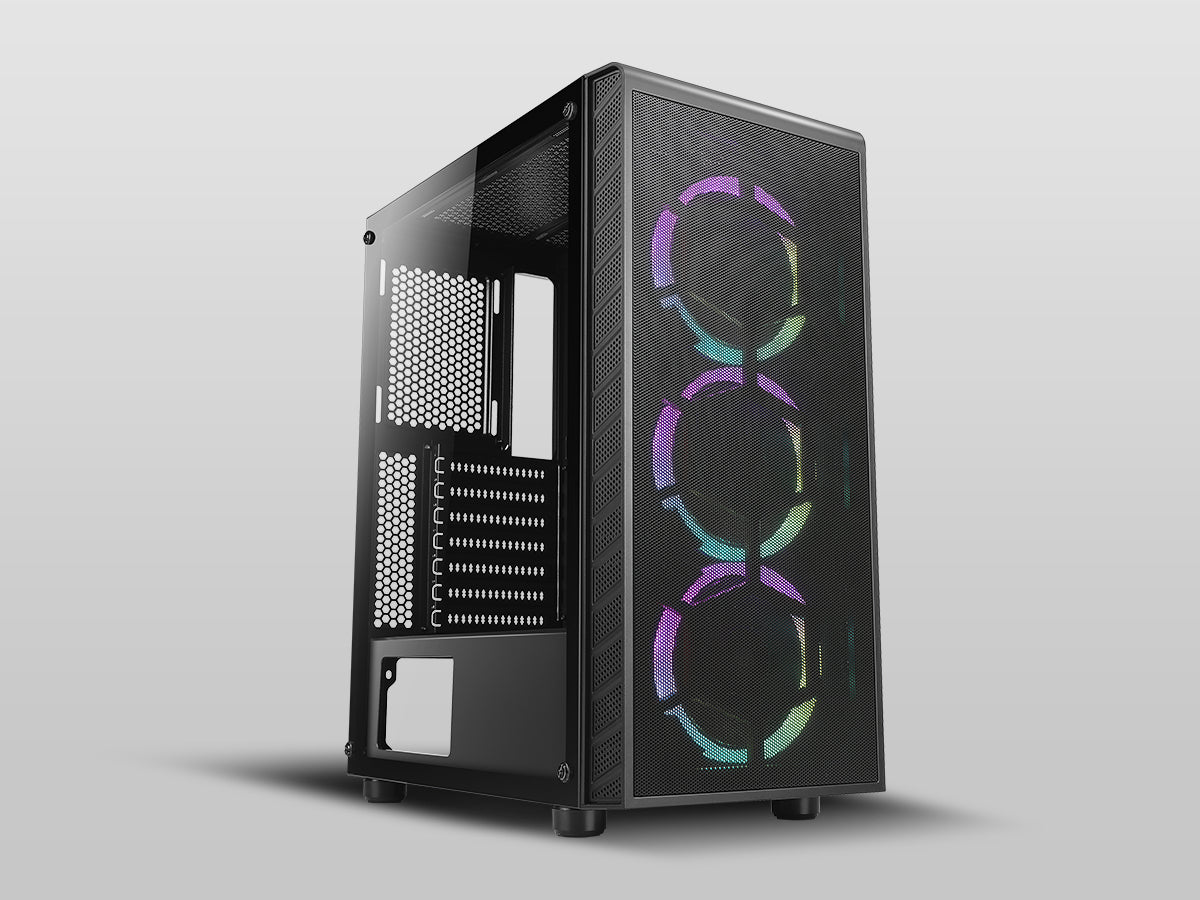

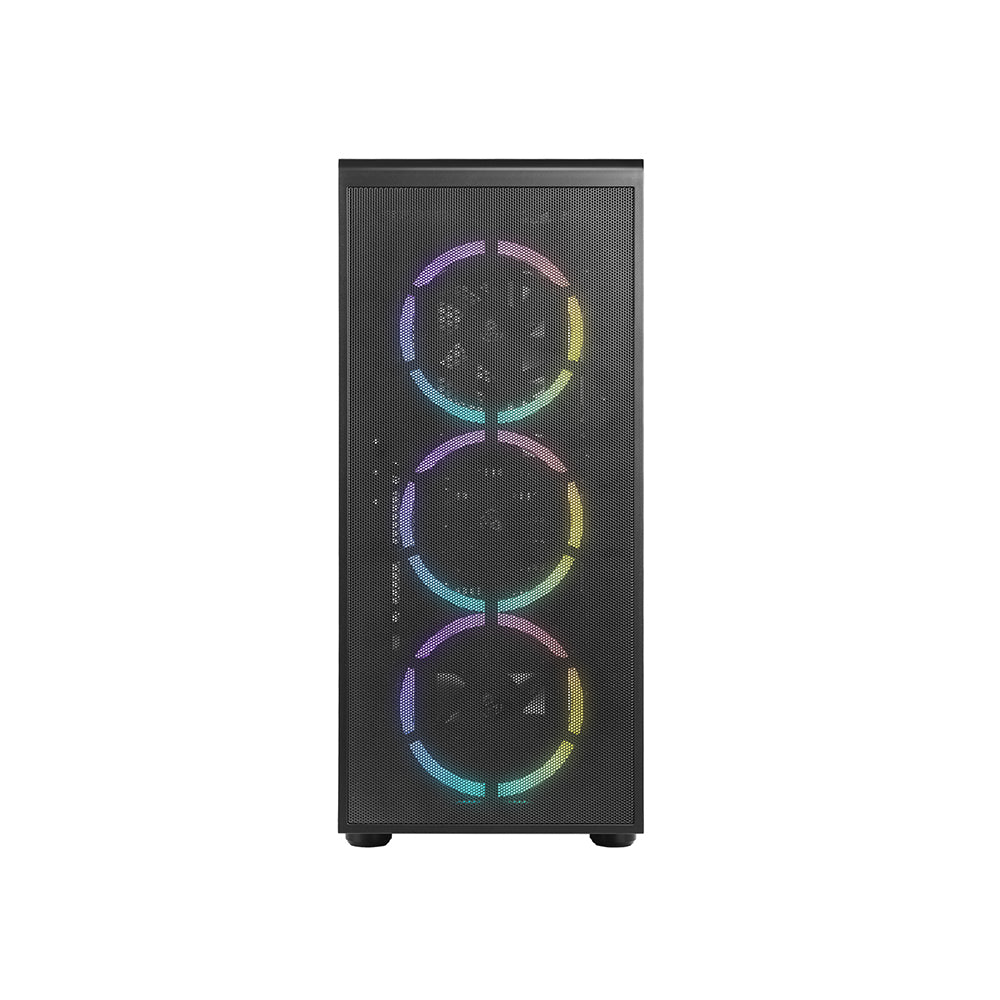

The full mesh front panel lined with 3 x 120 mm pre-installed addressable RGB fans ensures great airflow out of the box.

Multifaceted Airflow Support

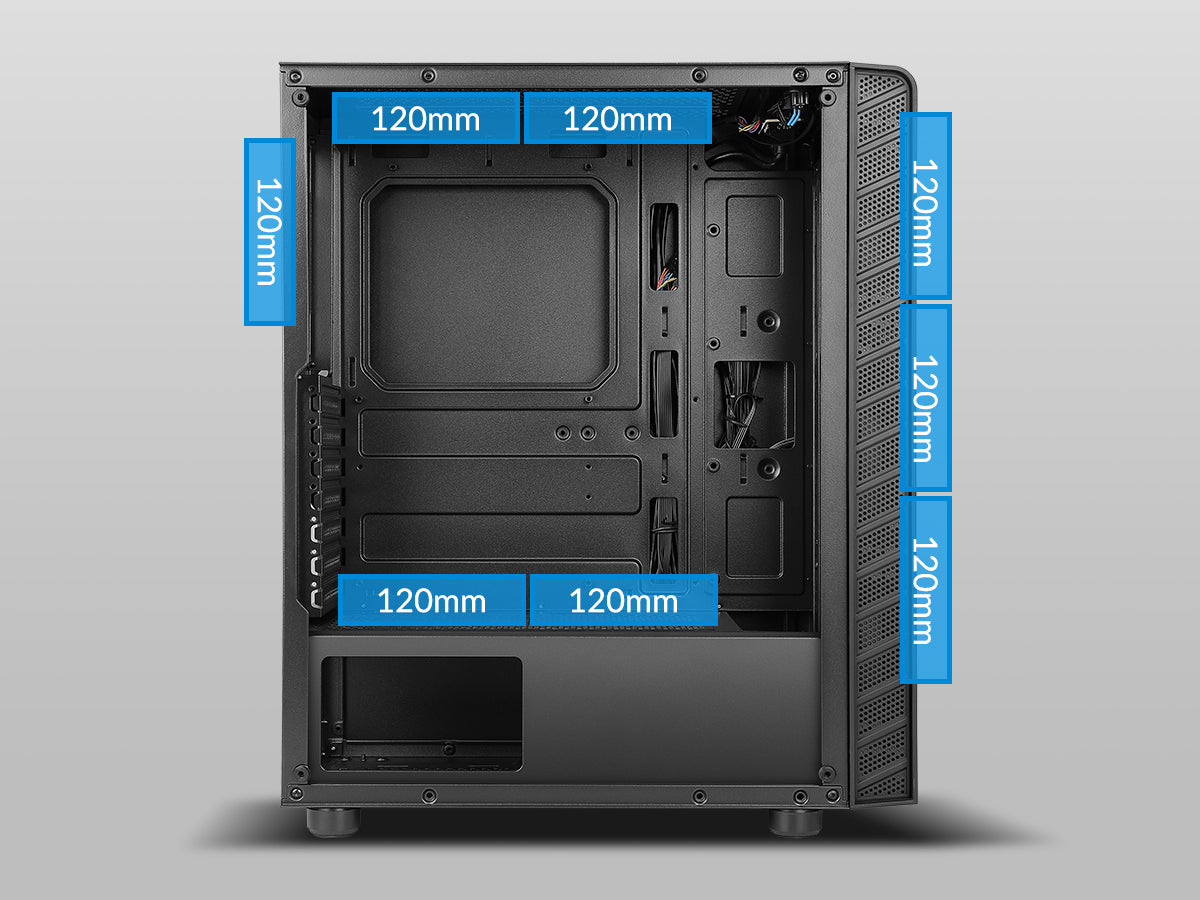

Direct airflow to the GPU can be achieved by adding 2 x 120 mm fans above the PSU shroud, bringing the total fan support up to 8 x 120 mm fans!

Customize Your Styles

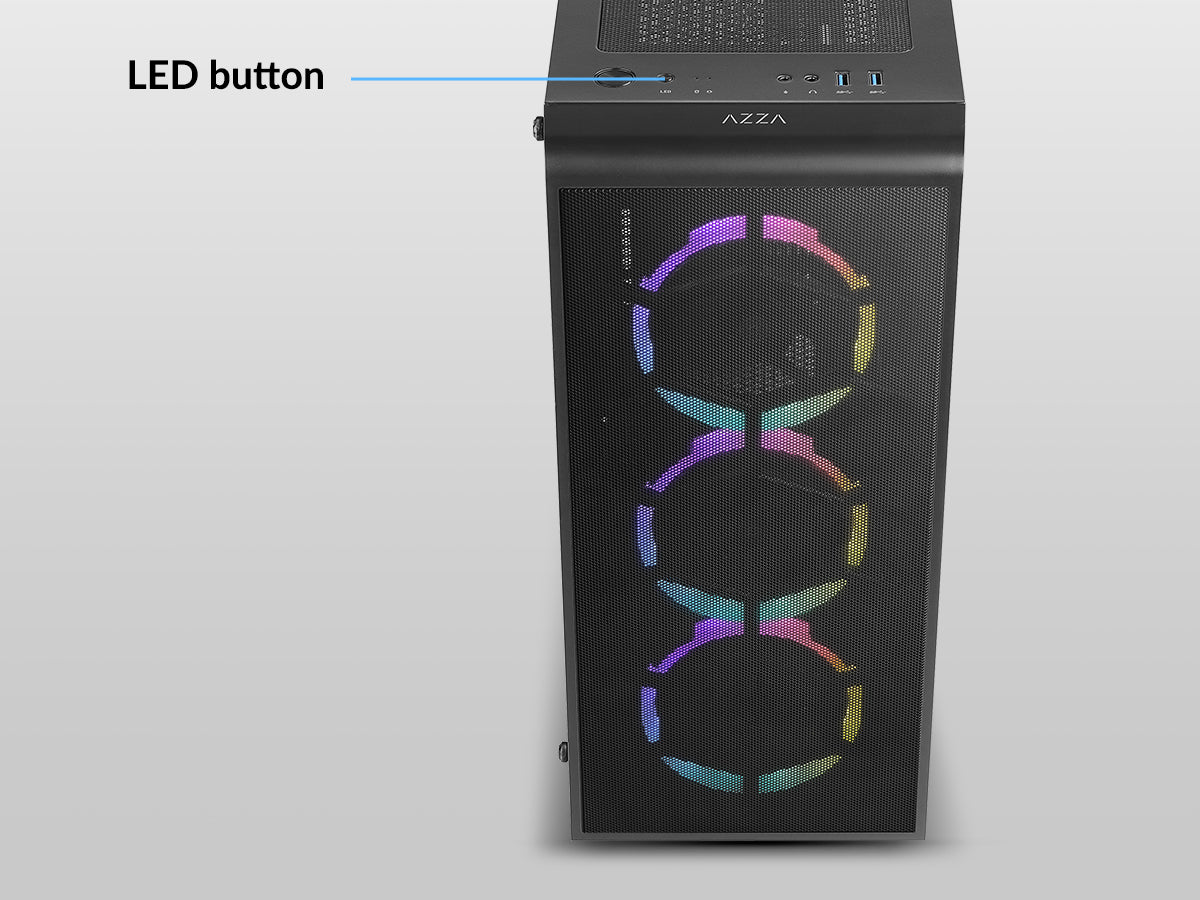

Controllable fan lighting via the top panel LED button offers 13 different lighting modes. Motherboard RGB software synchronization is also supported.

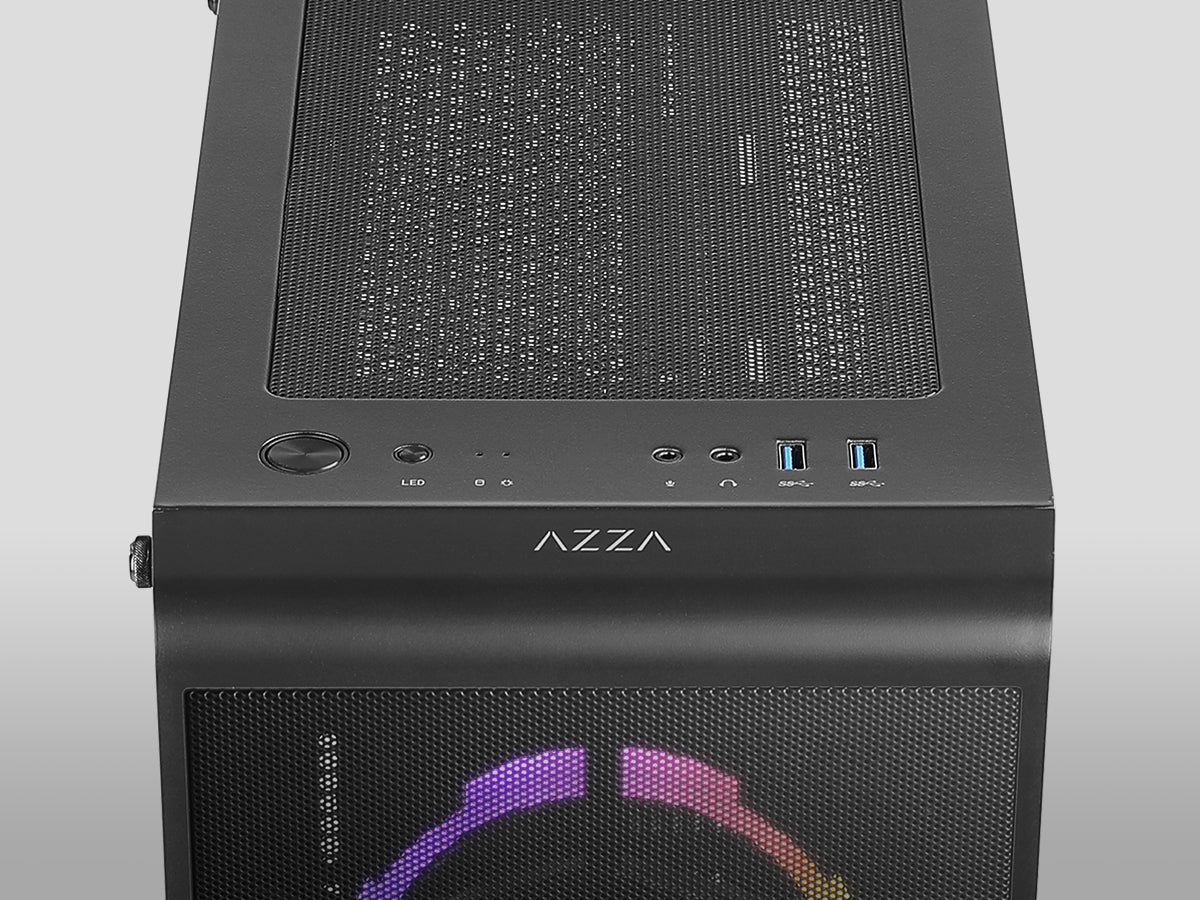

Intuitive I/O

The PRIME presents a clean front I/O which includes:

  • Power button
  • LED button
  • Individual Mic and HD Audio jacks
  • 2 x USB 3.0 ports

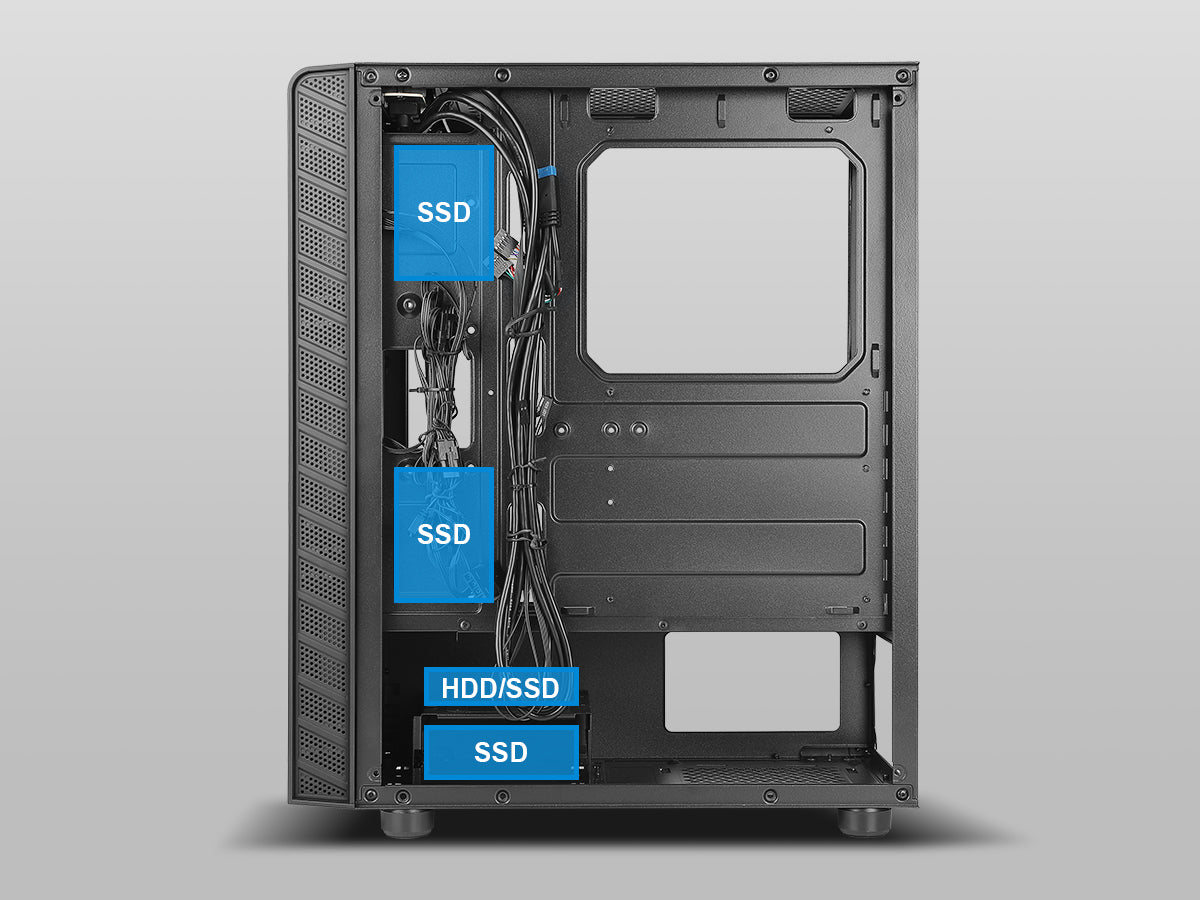

Flexible Storage Options

Drive cage tray supports 1 x 3.5" HDD
Top of drive cage supports 1 x 2.5" SSD or 1 x 3.5" HDD

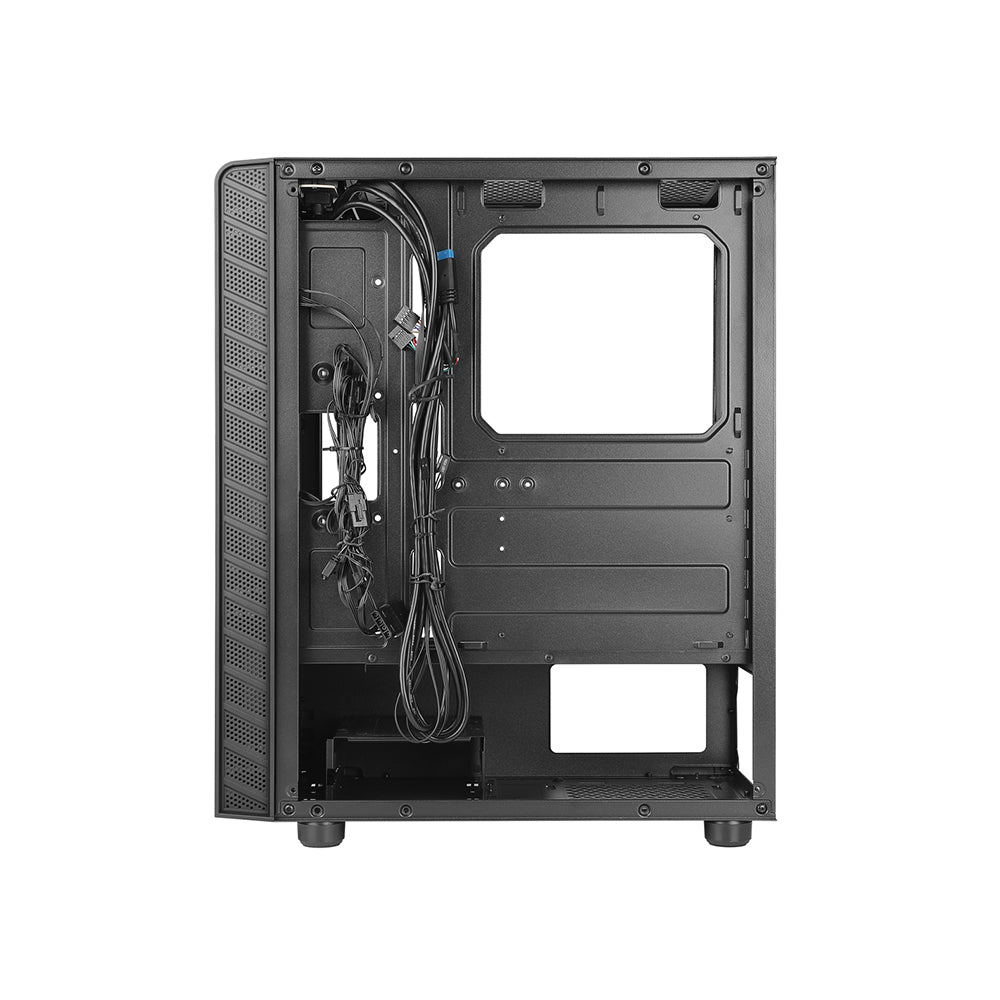

Right side panel support 2 x 2.5" SSDs

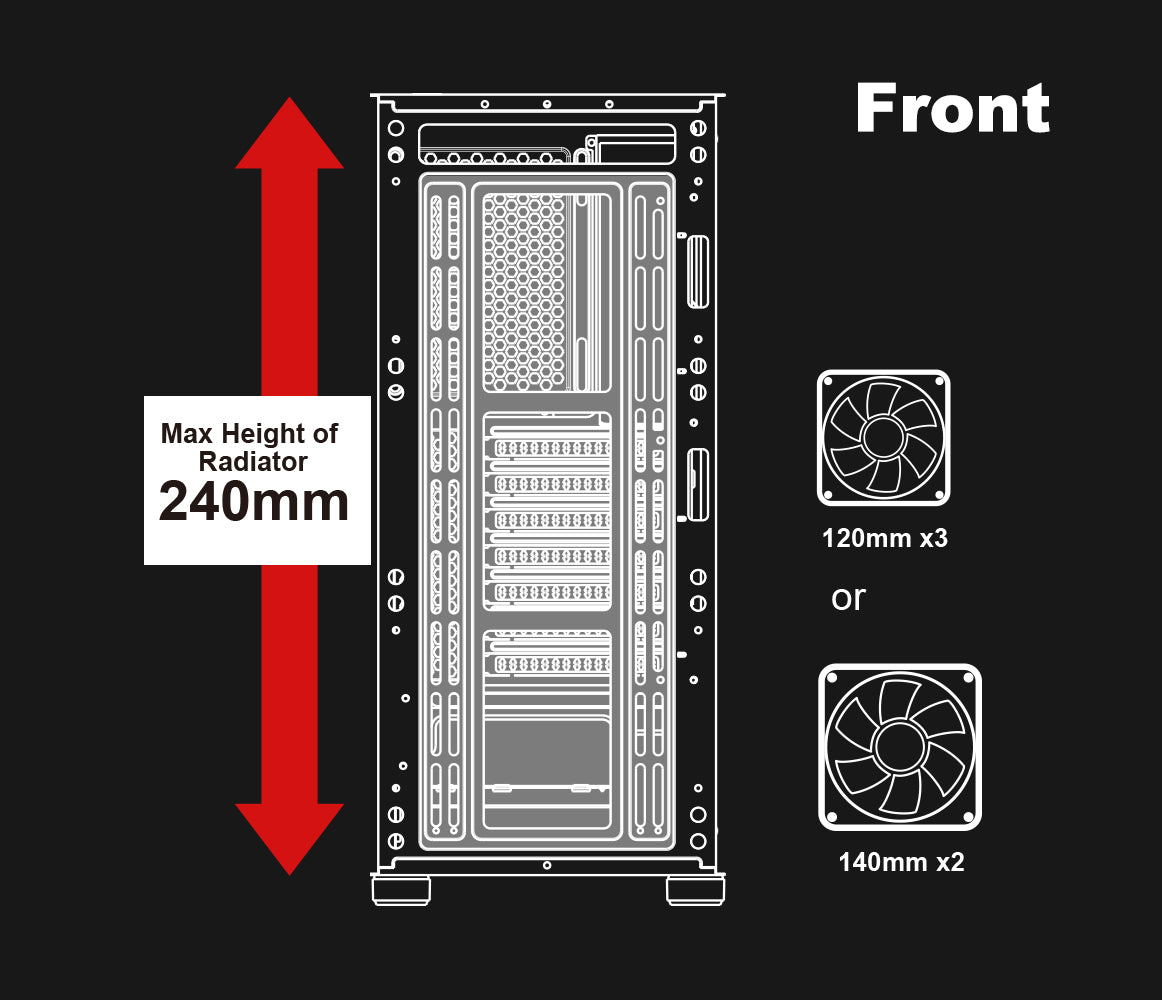

Front Cooling Support

Fans: Up to 3 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

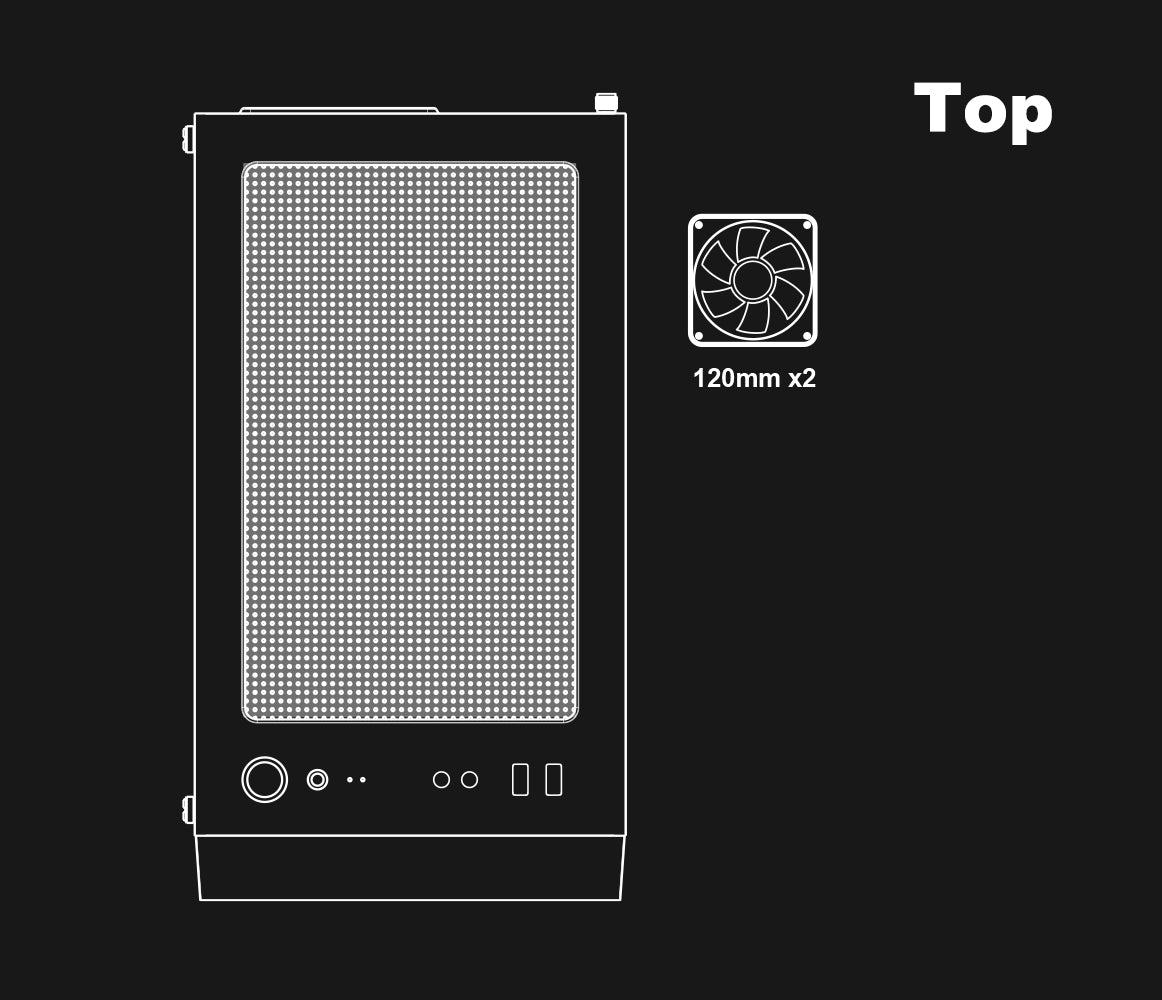

Top Cooling Support

Fan: 2 x 120 mm

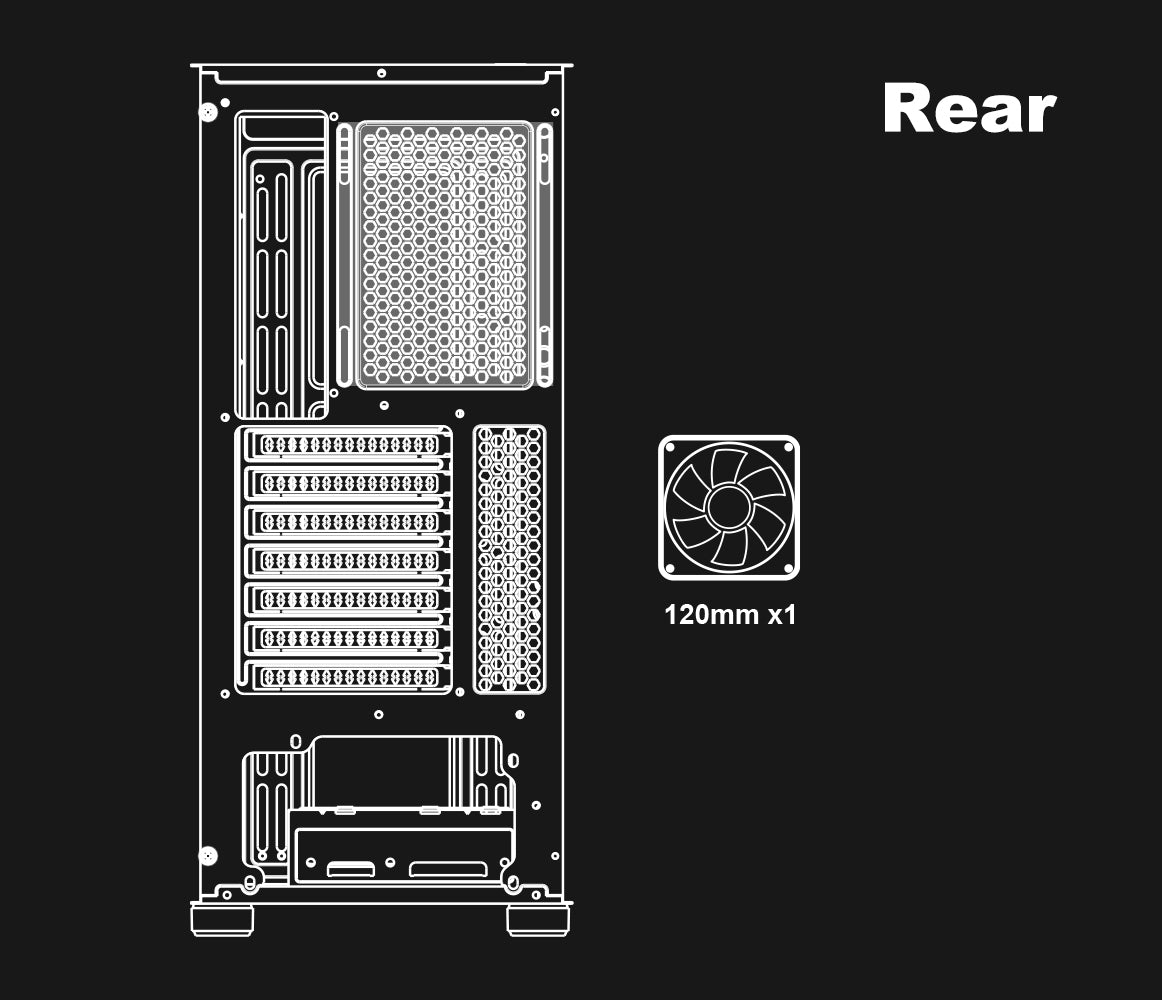

Rear Cooling Support

Fan: 1 x 120 mm

SPECIFICATIONS

CSAZ-360

Download Manual
Type

ATX Mid Tower

Color

Black (exterior) / Black (interior)

Side Panels

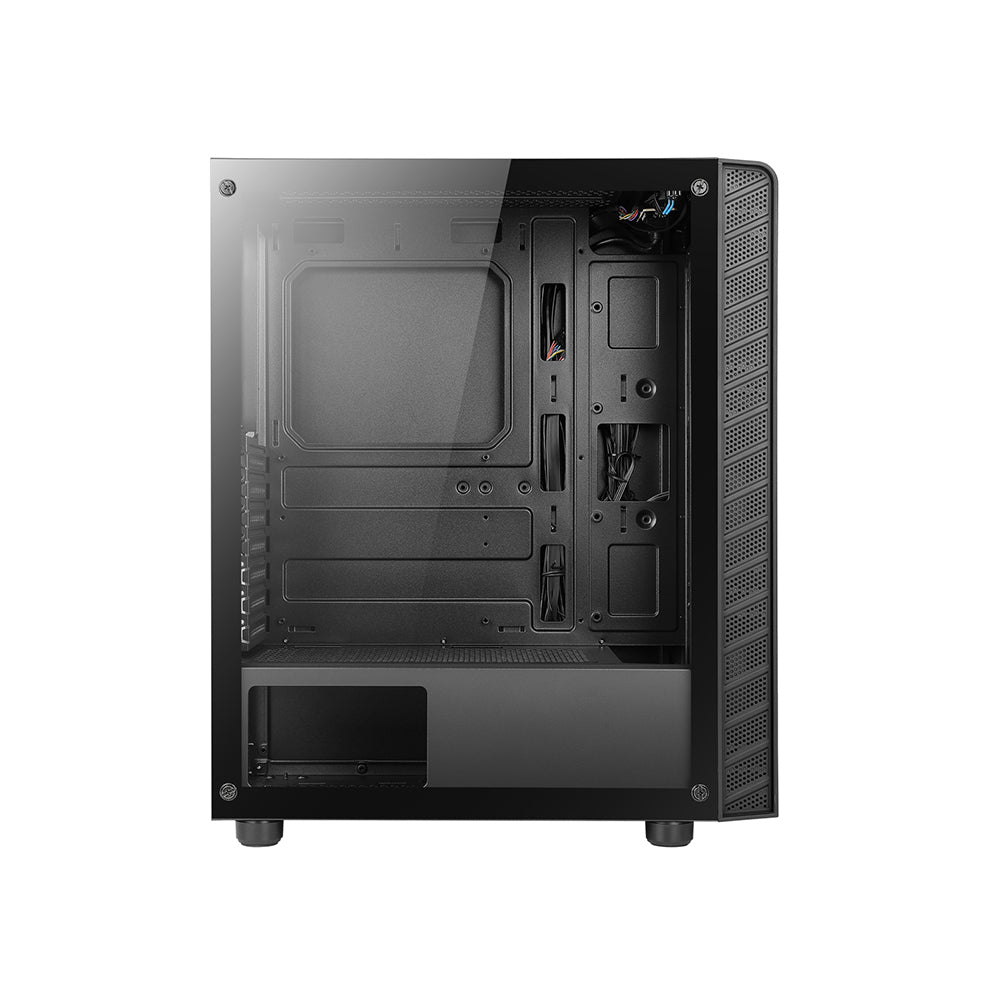

Left side panel : Tempered glass with rubber mounts
Right : Steel panel

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 310 mm

Motherboard Compatibility

ATX, Micro ATX, ITX

2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 2

Expansion slots

7

Top I/O Ports

Power button
LED button
HD audio
2 x USB 3.0

Case Dimension (H x W x D)

458 mm x 200 mm x 375 mm

Weight

4.8 kg /10.6 lbs.

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.
All addressable RGB devices can sync with the
motherboard, allowing the motherboard software
to control lighting directly.

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in the front
2 x 120 mm fan ports on the top
1 x 120 mm fan port in the rear
2 x120 mm fan ports on the power supply shroud

Included Fans

3 x 120 mm LFO-4012D addressable ARGB fan in front

Water Cooling

Supports radiators up to 240 mm in the front

Power Supply Support

Bottom mounted ATX power supply
