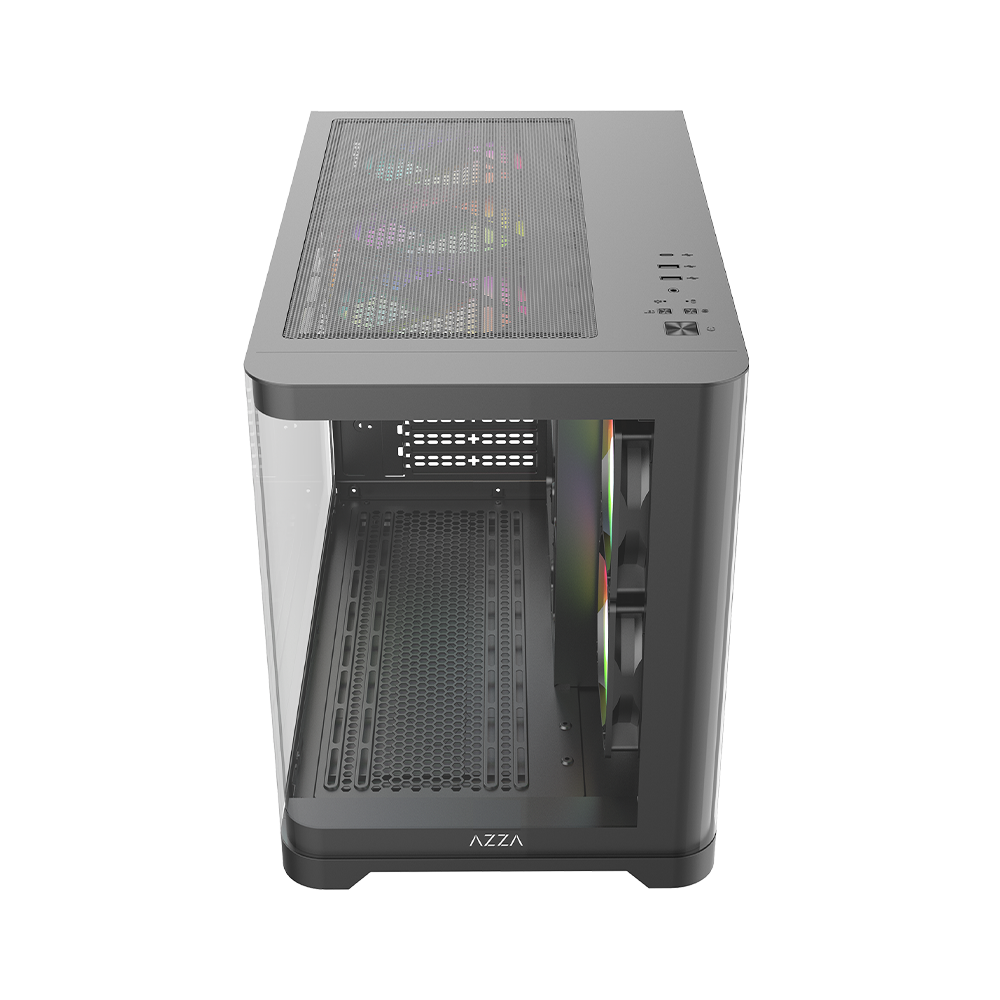

CSAZ-278B01M

ORBIT DUAL-M

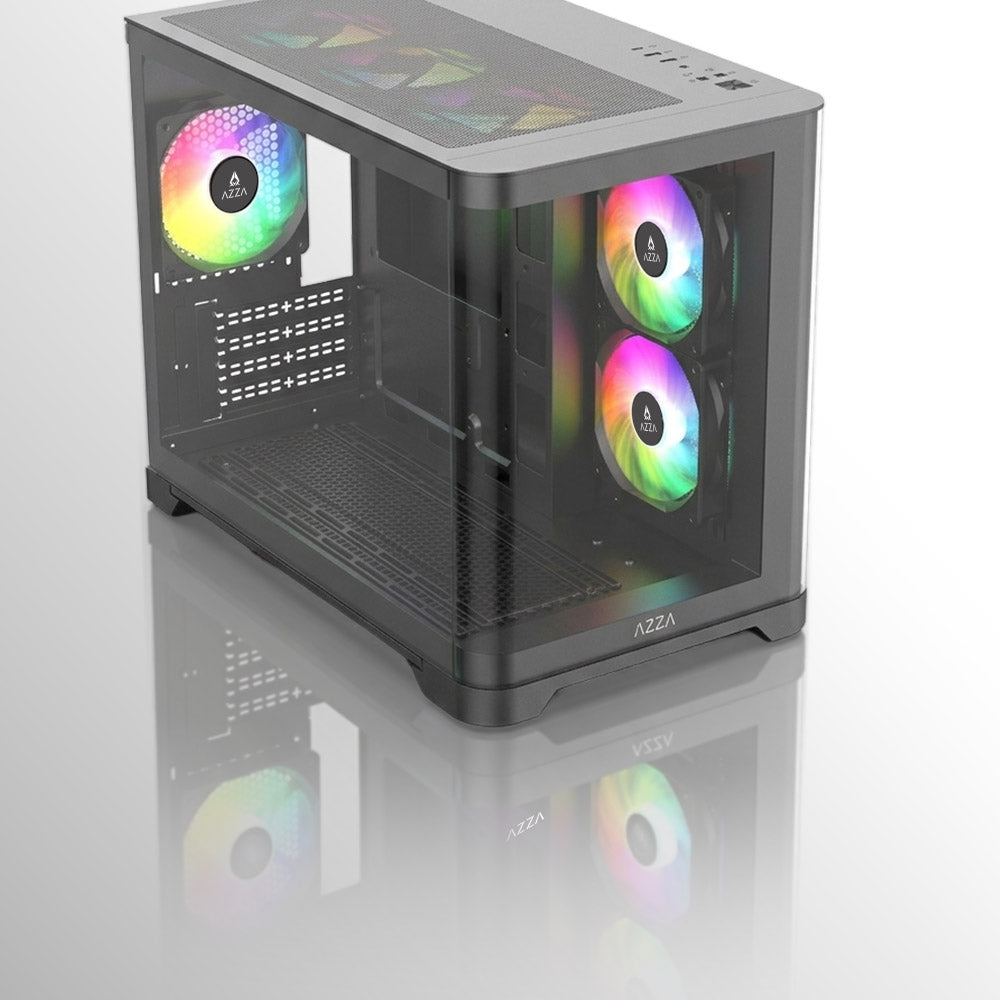

Unveil your dream build with the ORBIT DUAL-M. Featuring a unique hyperbolic curved front glass panel and a panoramic tempered glass side panel, this case offers an unobstructed view of your components and vibrant RGB lighting.
Designed with modern gaming setups in mind, the case supports back-connected Micro-ATX motherboards for ultra-clean cable management. It comes fully equipped with 6 pre-installed ARGB PWM fans and offers outstanding hardware compatibility, supporting high-end graphics cards up to 410 mm in length and top-mounted 360 mm liquid coolers.

ORBIT DUAL-M

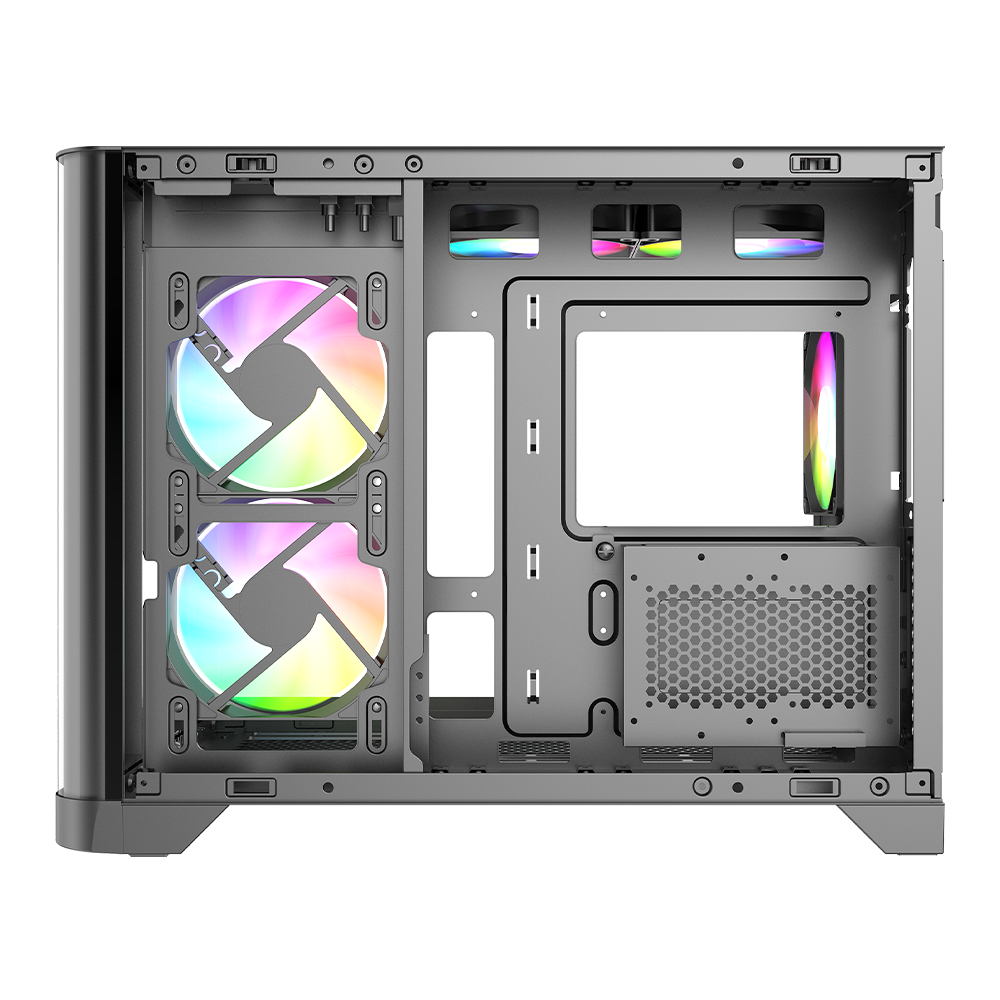

Micro-ATX Support Back-Connected Motherboard

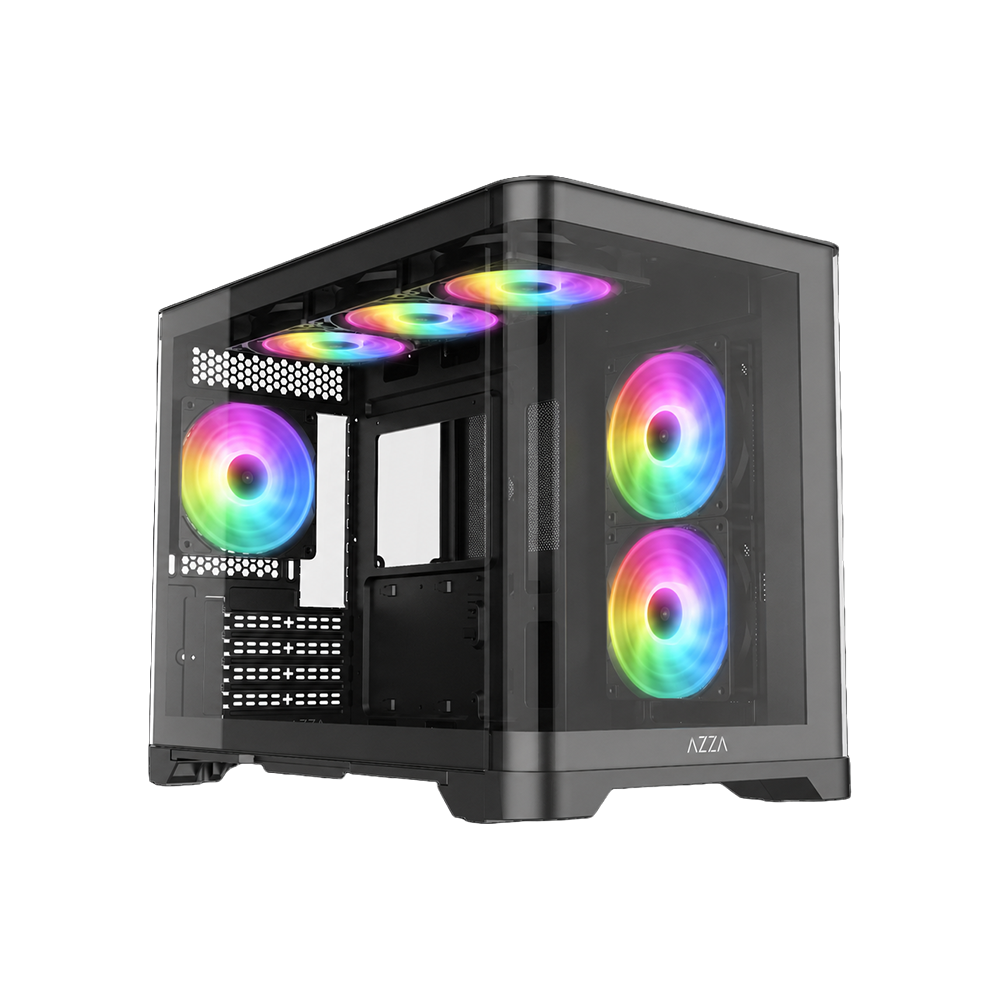

Panoramic Hyperbolic Glass View

Showcase your build in dynamic clarity. The front and left hyperbolic tempered glass panels offer a seamless, futuristic perspective of your graphics card and lighting effects.

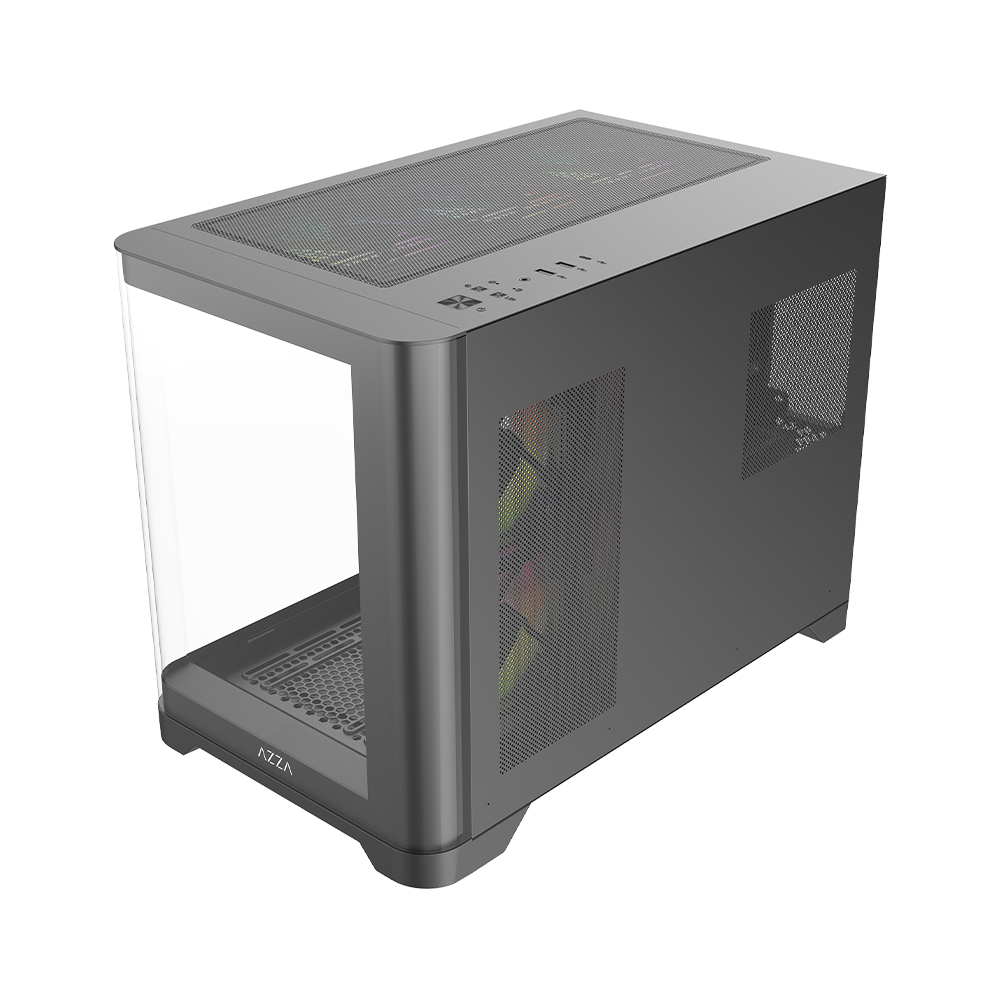

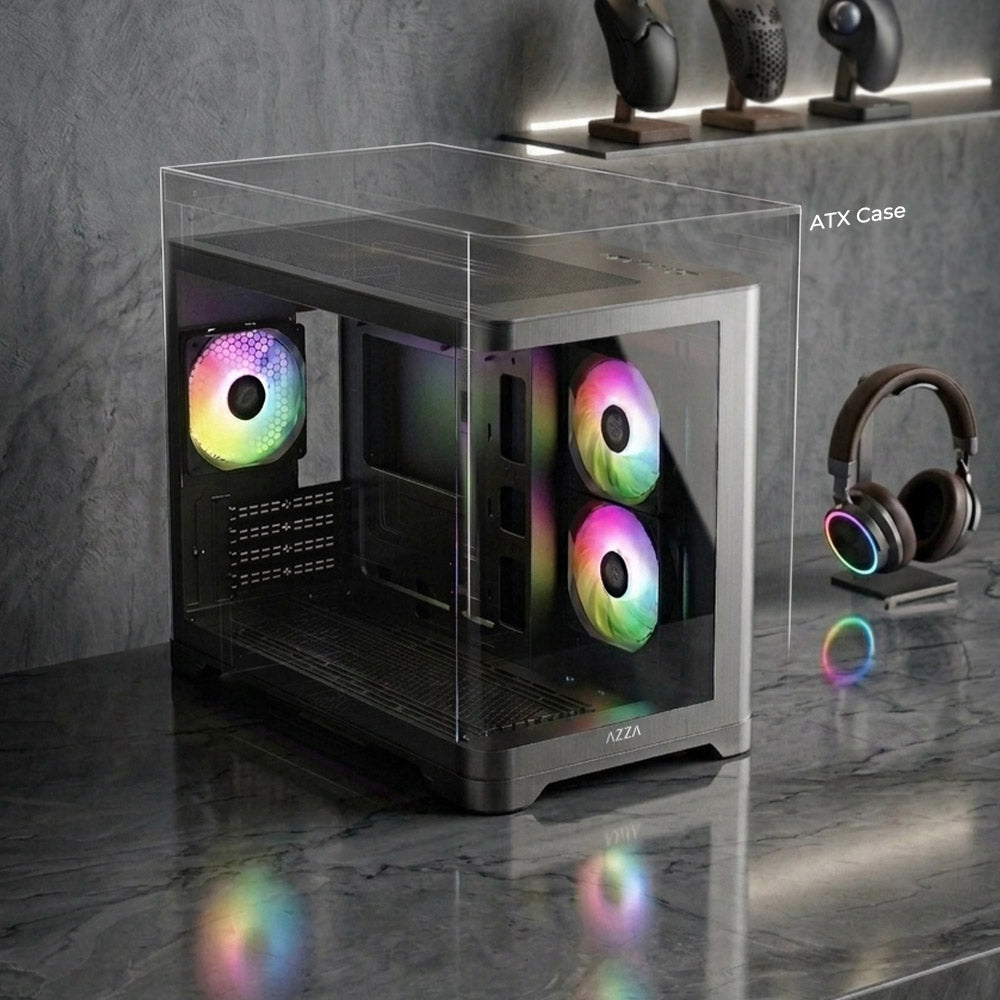

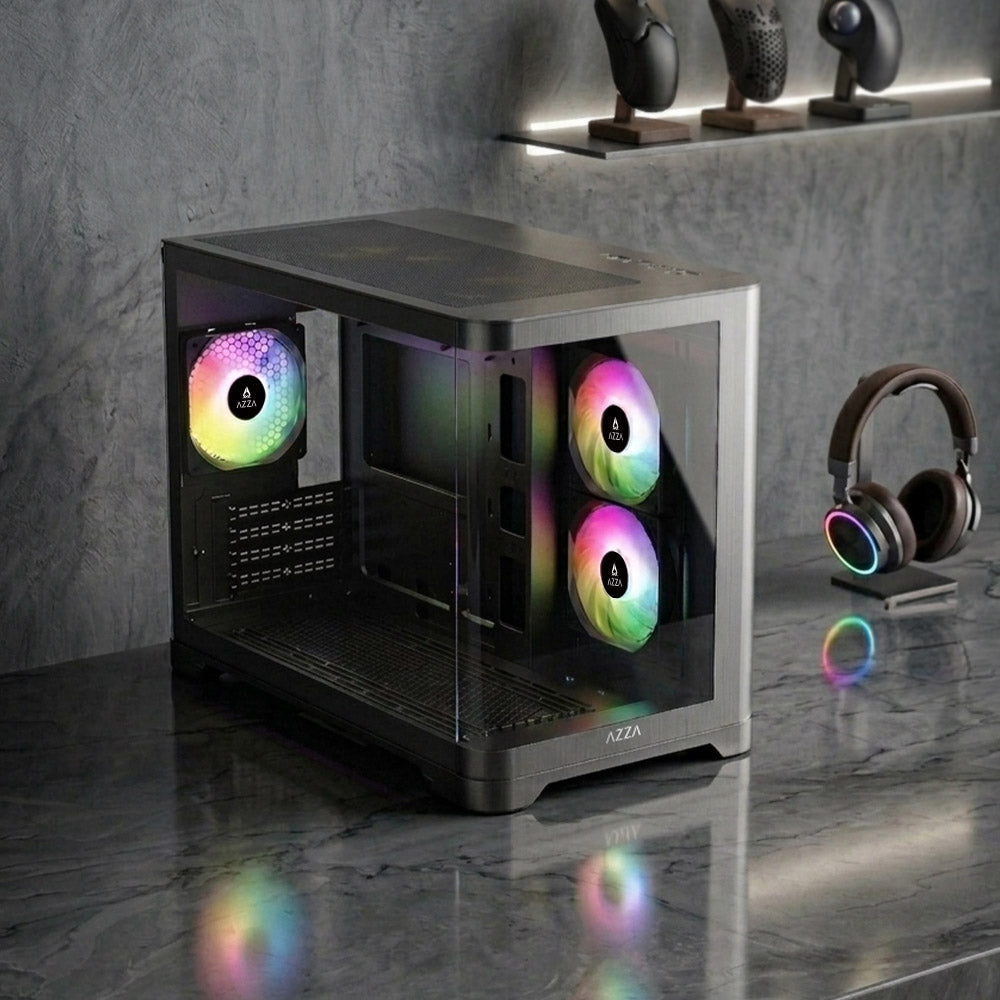

Compact Size Effortless Fit

Featuring a compact M-ATX footprint that effortlessly blends into any living space or home office without cluttering your desk. With full support for back-connect Micro-ATX and Mini-ITX motherboards, it delivers a clean, distraction-free setup.

Unbox High Performance

Don't let its compact footprint fool you. Delivering power that puts standard ATX cases to shame, it supports up to 9 fans and accommodates high-end graphics cards up to 410mm. Even better, it comes with 6 ARGB PWM fans pre-installed, letting you enjoy extreme performance straight out of the box.

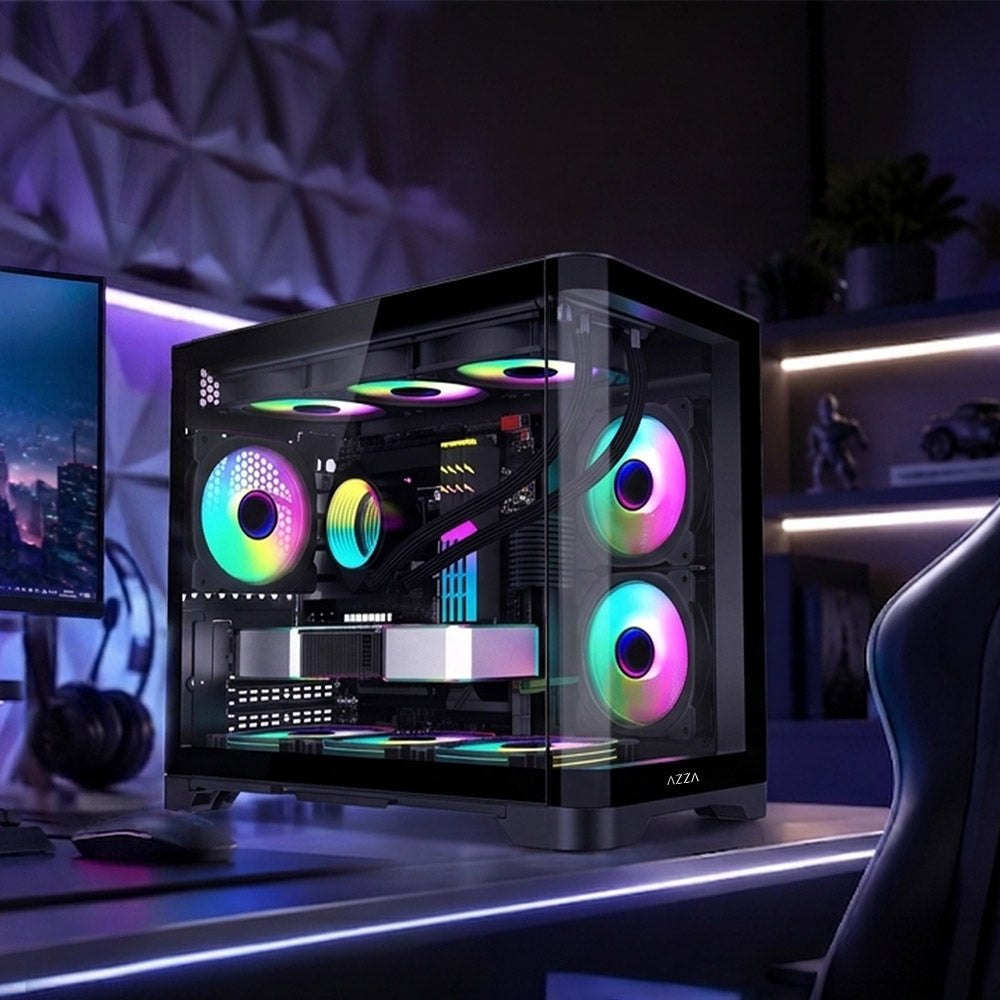

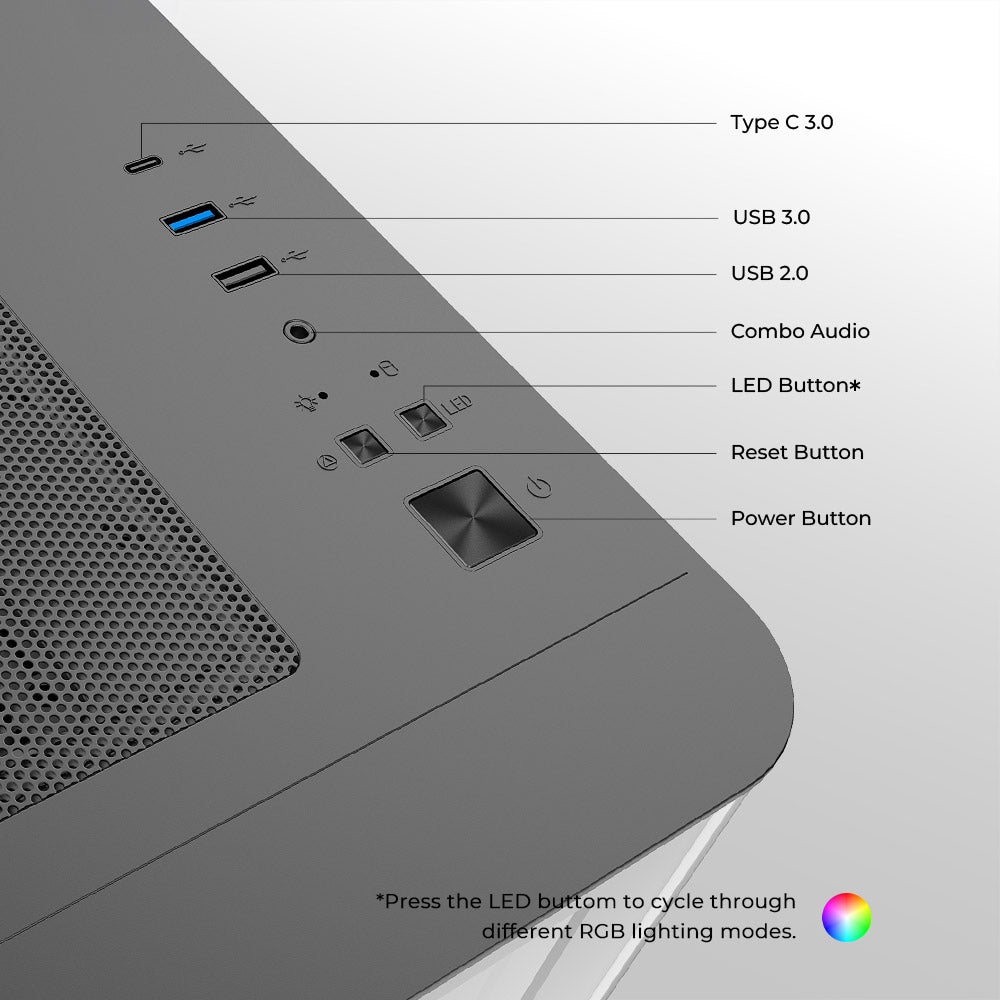

The Modern Desk Hub

Elevate your connectivity with a modern I/O panel featuring high-speed Type-C 3.0, USB 3.0, and an RGB LED control button.
Even in the smallest I/O details, traditional screen printing is replaced with a one-piece molded embossed finish—delivering a tactile, elevated look.

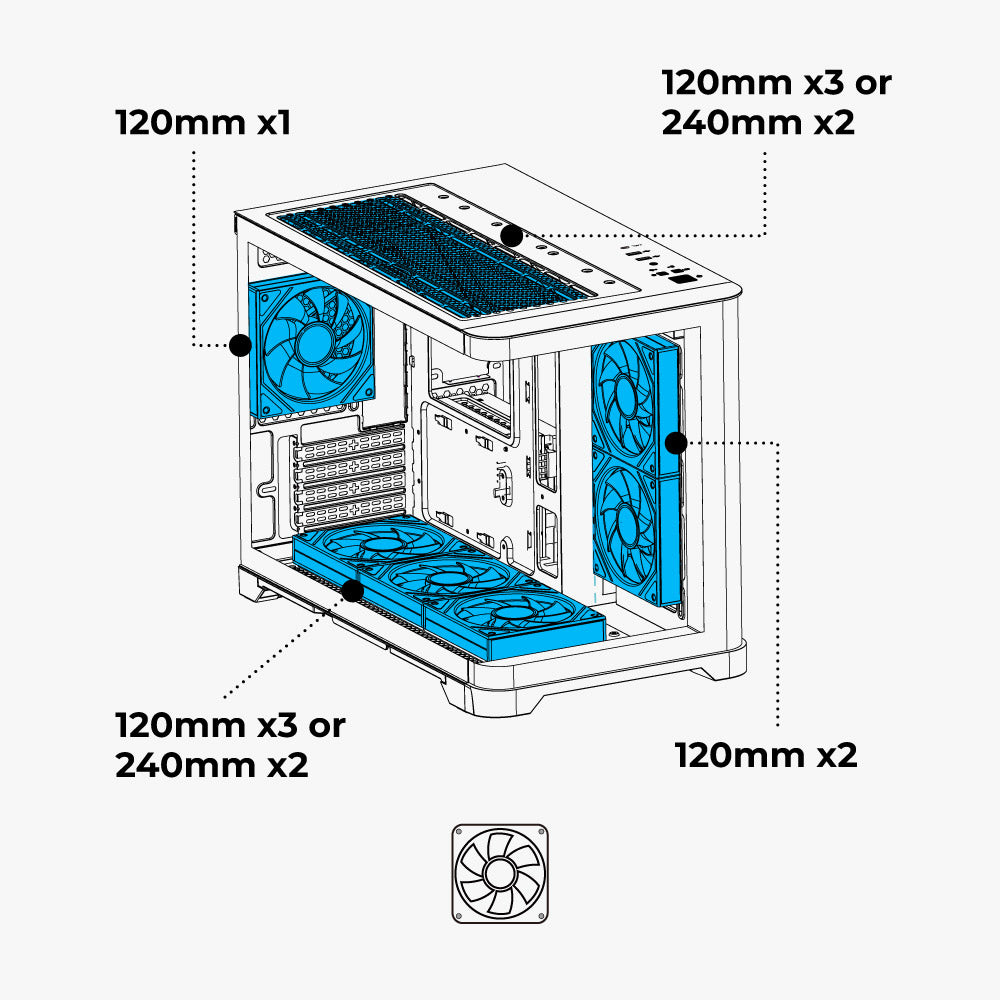

Supports up to 9 cooling fans

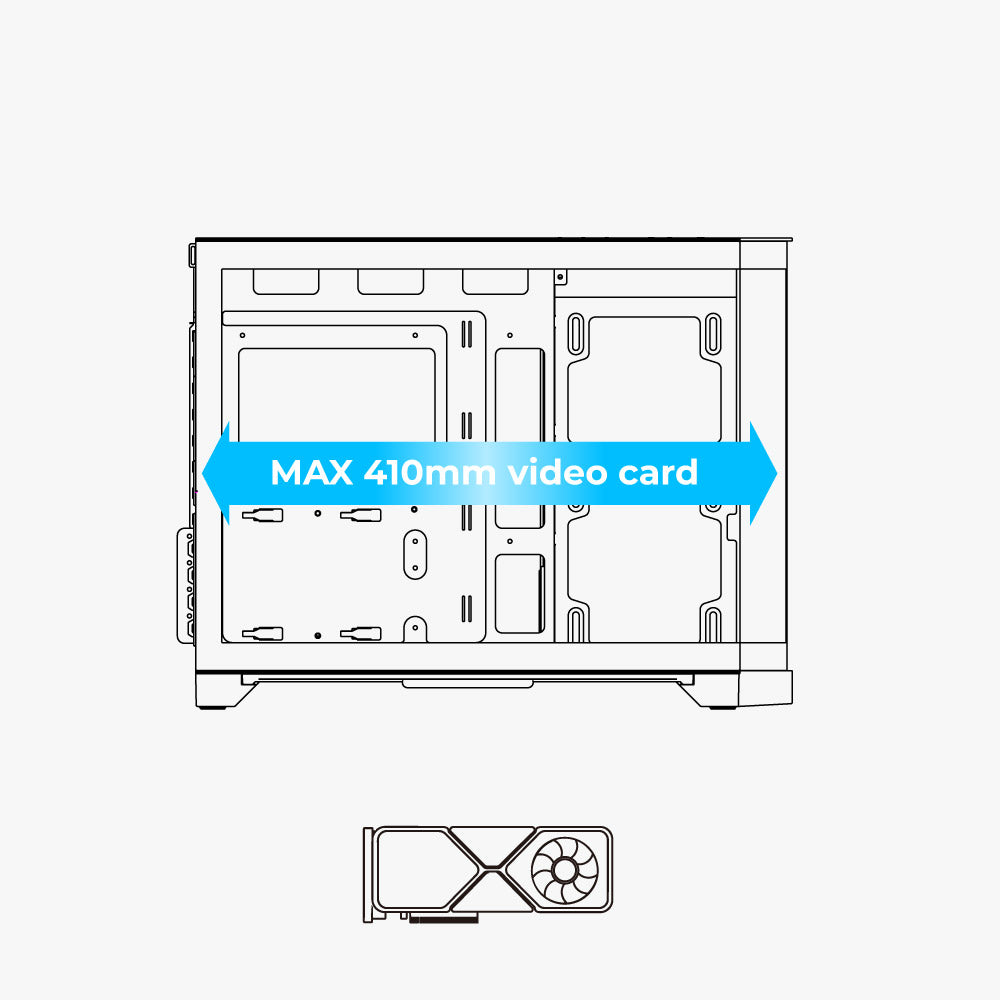

Up to 410mm long video card

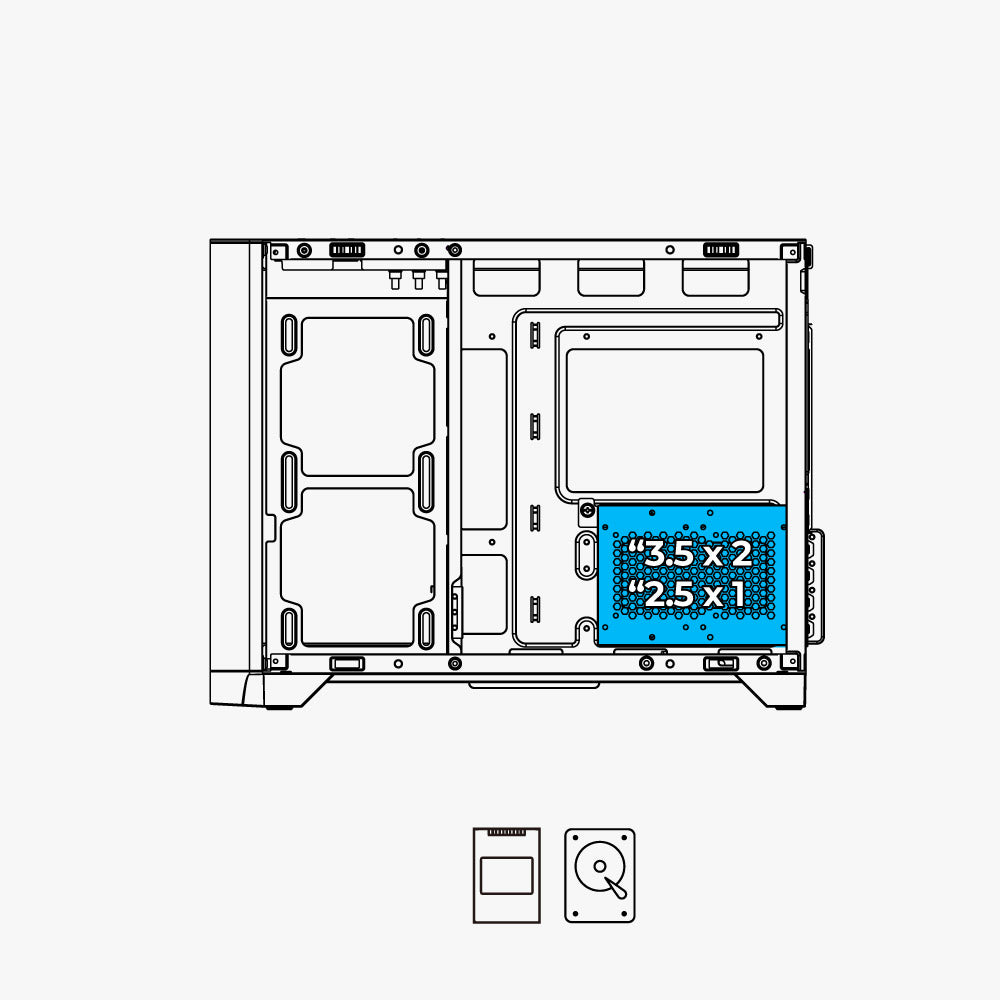

Supports up to 3 storage drives

SPECIFICATIONS

CSAZ-278B01M

Download Manual
EXTERIOR
Type

Micro-ATXSupport Back-Connected Motherboard

Color

Black / White

Front Panel

Tempered glass panel(Hyperbolic glass)

Side Panel

Left : Tempered glass panel
Right : Metal

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.
All addressable RGB devices can syncwith the motherboard, allowing the motherboard software to control lighting directly

COMPATIBILITY
Max CPU Cooler Height

UP to 158 mm

Max VGA Card Length

Up to 410 mm long video card

Motherboard Support

Micro ATX / ITX

STORAGE & I/O
2.5" Drive Bays

Up to 1

3.5" Drive Bays

Up to 2

Expansion Slots

4

Front I/O Ports

Power button
Reset button
LED button
Combo audio
USB 2.0 x1
USB 3.0 x 1
USB 3.0 Type C x 1

DIMENSION
Chassis Dimension (H*W*D)

360 x 278 x 456mm / 14.17 × 10.94 × 17.95 inches

Weight

5.9Kg / 13.0lbs

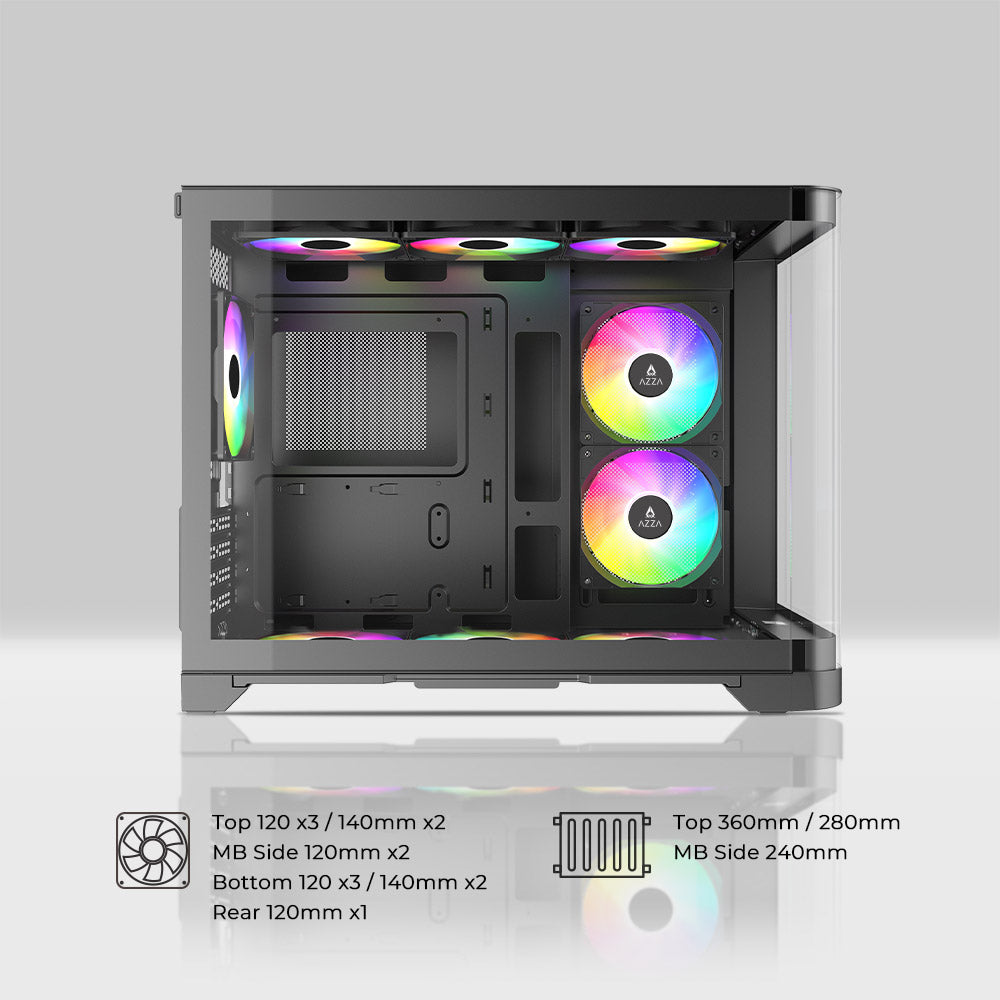

COOLING & SUPPORT
Available Fan Ports

Top : 3x 12cm or 2x 14cm(3x 120mm LFO-6512D ARGB PWM Fan included)
MB side : 2x 12cm (2x 120mm LFO-6512DR ARGB PWM Fan included)
Rear : 1x 12cm(1x 120mm LFO-6512D ARGB PWM Fan included)
Bottom : 3x 12cm or 2x 14cm

Water Cooling

Supports radiators up to 240mm on the mb side
Supports radiators up to 360/280mm in the Top

Dust Filters

Removable (magnetic) dustproof net on the top
Dustproof PVC net on bottom of chassis

Power Supply Support

ATX power supply
