CSAZ-278B01

ORBIT DUAL

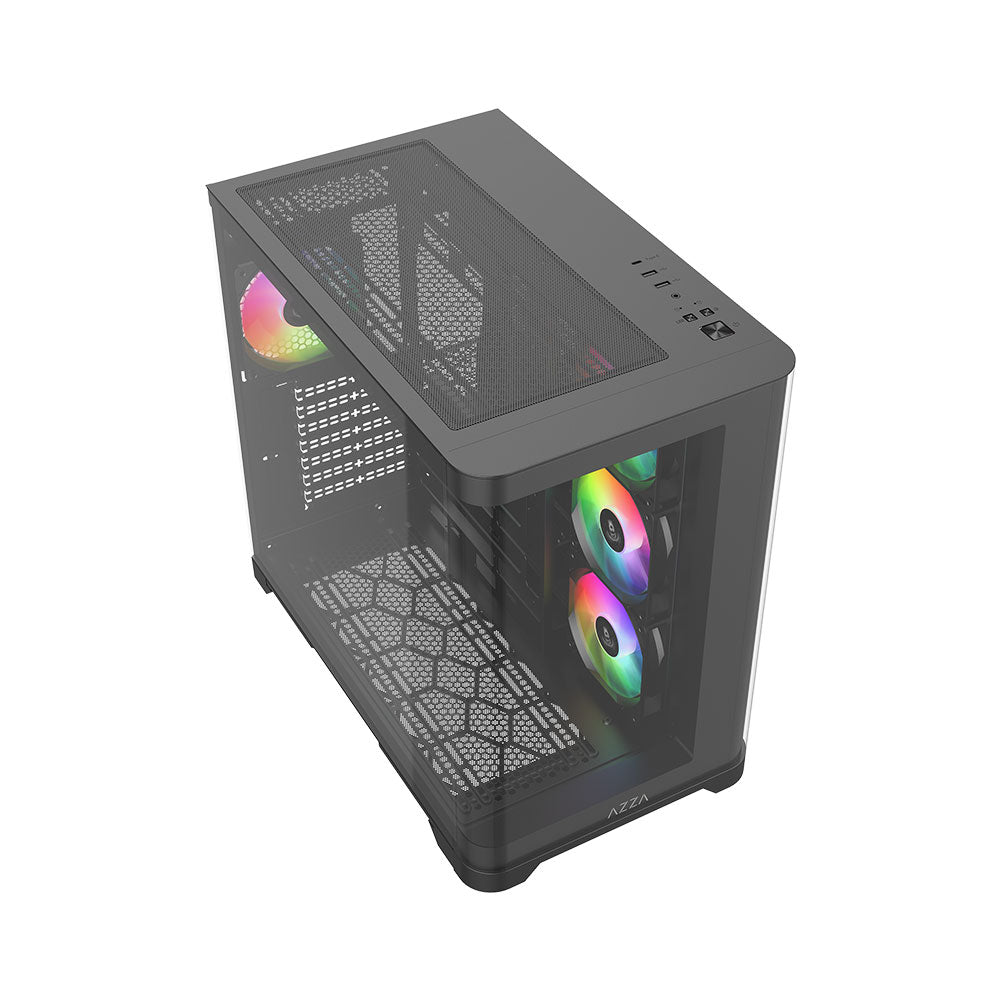

Unlock your ultimate PC build with the Orbit Dual, combining a luminous aesthetic with high-end performance.
Featuring a front hyperbolic tempered glass panel and a side glass window, it delivers an unobstructed panoramic view, while full support for back-connected motherboards ensures a clean, cable-free look.
Equipped with 4 pre-installed ARGB PWM fans, support for GPUs up to 410mm, up to 10 fan mounts, and dual 360mm radiators, the Orbit Dual keeps thermal bottlenecks from limiting your performance. The versatile top-panel I/O provides effortless connectivity for all your devices.
Available in classic black and versatile white, the Orbit Dual offers ample hardware space for both stunning visuals and peak performance.

CURVE YOUR VIEW
POWER YOUR PLAY

ATX / MICRO-ATX BACK-CONNECT CASE ｜ ORBIT DUAL

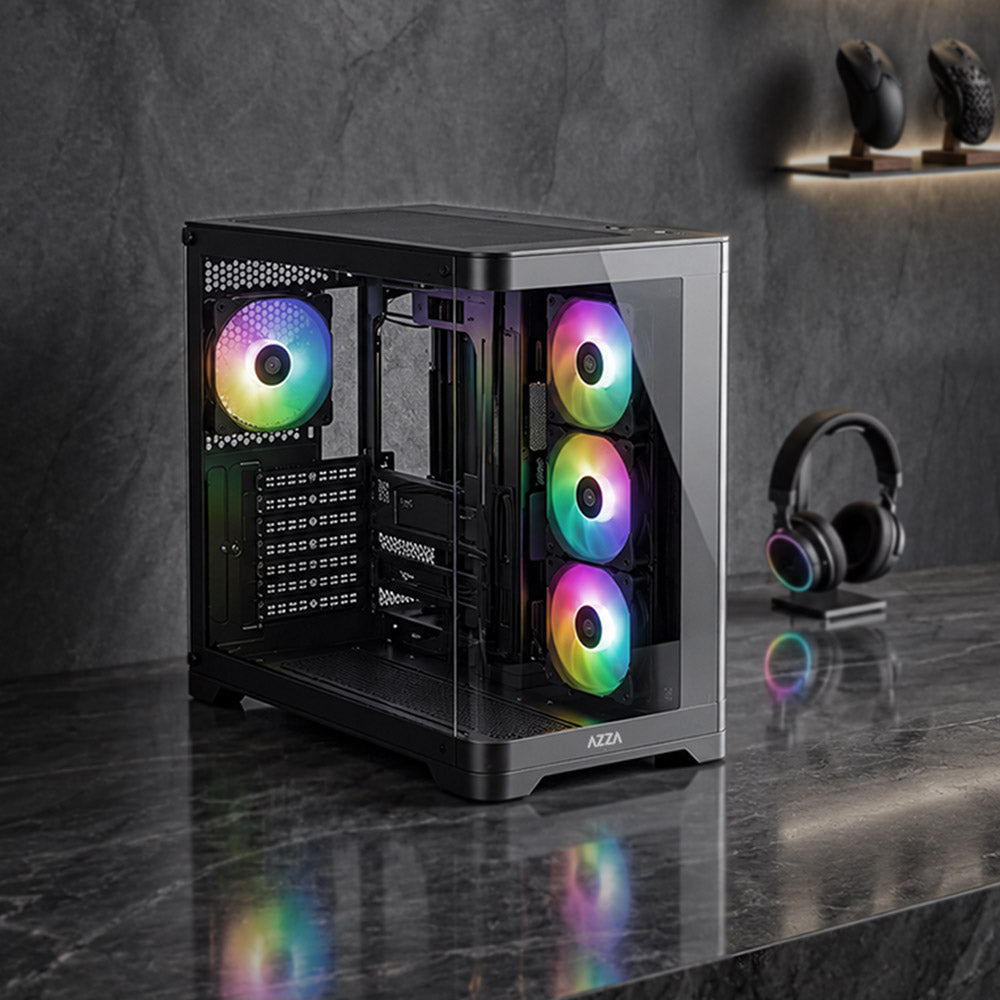

Panoramic Dual Glass & Hyperbolic Design

Showcase your build in dynamic clarity. The front and left hyperbolic tempered glass panels offer a seamless, futuristic perspective of your graphics card and lighting effects.

Back-Connect Motherboard & High-End Hardware Support

Supports ATX / Micro-ATX back-connected motherboards for ultra-clean cable management, fitting long GPUs up to 410mm and CPU coolers up to 158mm.

Ultimate Cooling Performance

Pre-installed with 4 ARGB PWM fans (x3 MB Side, x1 Rear) for immediate out-of-the-box airflow. Supports dual 360mm liquid cooling radiators on both the top and motherboard side, with a total capacity for up to 10 fans to ensure maximum thermal efficiency under heavy loads.

Modern Top I/O & Easy Dust Protection

Elevate your connectivity with a modern I/O panel featuring high-speed Type-C 3.0, USB 3.0, and an RGB LED control button.
Even in the smallest I/O details, traditional screen printing is replaced with a one-piece molded embossed finish—delivering a tactile, elevated look.

Supports up to 10 cooling fans

Up to 410mm long video card

Supports up to 4 storage drives

SPECIFICATIONS

CSAZ-278B01

EXTERIOR
Type

ATX / Micro-ATX (Support Back-Connected Motherboard)

Color

Black / White

Front

Tempered glass panel(Hyperbolic glass)

Left

Tempered glass panel

Right

Metal

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.
All addressable RGB devices can syncwith the motherboard, allowing the motherboard software to control lighting directly
COMPATIBILITY
Max CPU Cooler Height

UP to 158 mm

Max VGA Card Length

Up to 410 mm long video card

Motherboard Support

ATX、Micro ATX、ITX (Support Back-Connected Motherboard)
STORAGE & I/O
2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 1

Expansion Slots

7

Front I/O Ports

Power button
Reset button
LED button
Combo audio
USB 2.0 x1
USB 3.0 x 1
USB 3.0 Type C x 1
DIMENSION
Chassis Dimension (H*W*D)

440 x 278 x 456 mm / 17.32 × 10.94 × 17.95 inches

Weight

6.8 Kg / 15 lbs
COOLING & SUPPORT
Available Fan Ports

Top : 3x 12cm / 2x 14cm
MB Side : 3x 12cm / 2x 14cm(3x 120mm LFO-6512DR ARGB PWM Fan included)
Rear : 1x 12cm(1x 120mm LFO-6512D ARGB PWM Fan included)
Bottom : 3x 12cm / 2x 14cm

Water Cooling

Supports radiators up to 360mm on the mb side
Supports radiators up to 360 / 280mm in the Top

Dust Filters

Removable(magnetic) dustproof net on the top
Dustproof PVC net on bottom of chassis

Power Supply Support

ATX power supply
