OPUS


ELEGANTLY FUTURISTIC - The OPUS can rest both vertically or horizontally without affecting performance.

PREMIUM ALUMINUM FRAME - Clean diamond cut edges with meticulous, tightly-calibrated CNC machines.

4-SIDED TINTED, TEMPERED GLASS - Eye-catching 360° view of the system. Panels are easily removable with a toolless mounting mechanism for quick access to the components inside.

UNRESTRICTED AIRFLOW - Fully open at all sides, top and bottom, providing enhanced cooling from all sides.

Luxury Showpiece

OPUS

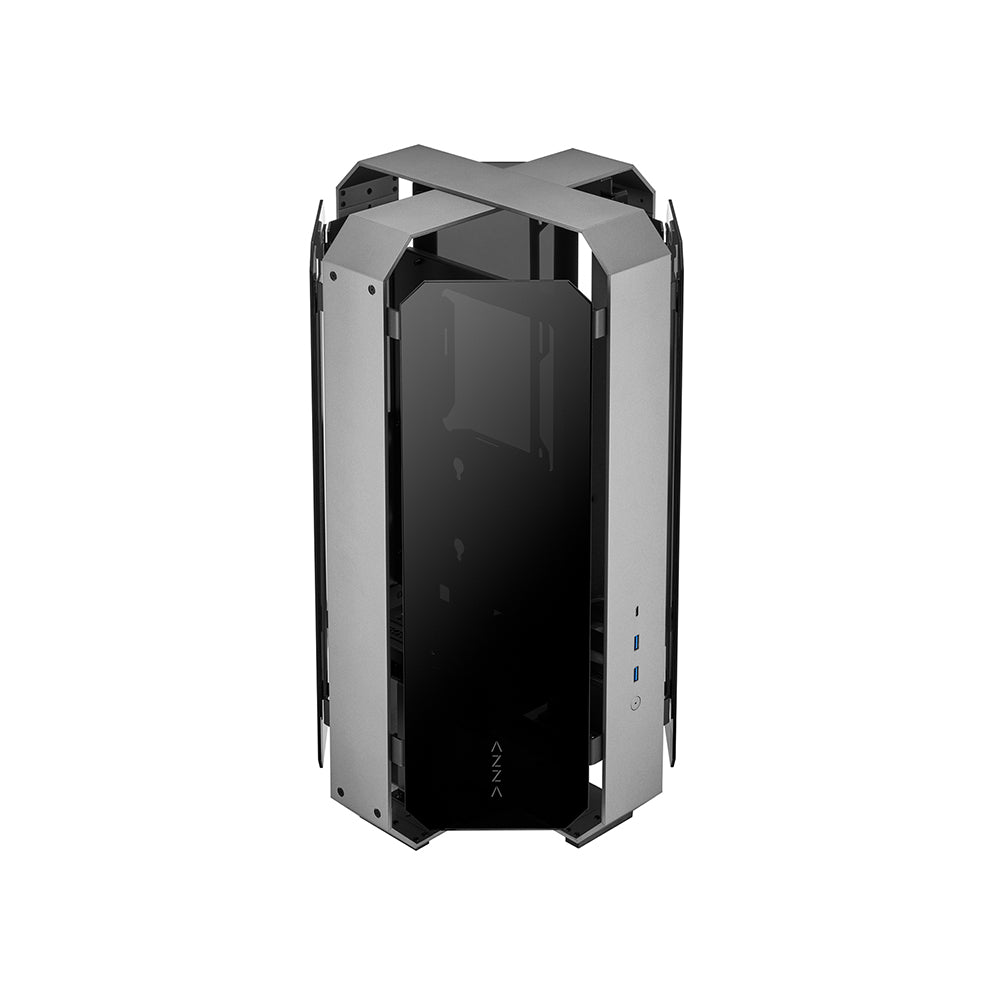

A unique expression of a PC case, the OPUS is a semi-open air case with dual orientation - vertical or horizontal. The precision-cut CNC frame is flanked by 4 sides of tinted tempered glass panels to exude a mysterious yet futuristic look.

4-Sided Tempered Glass

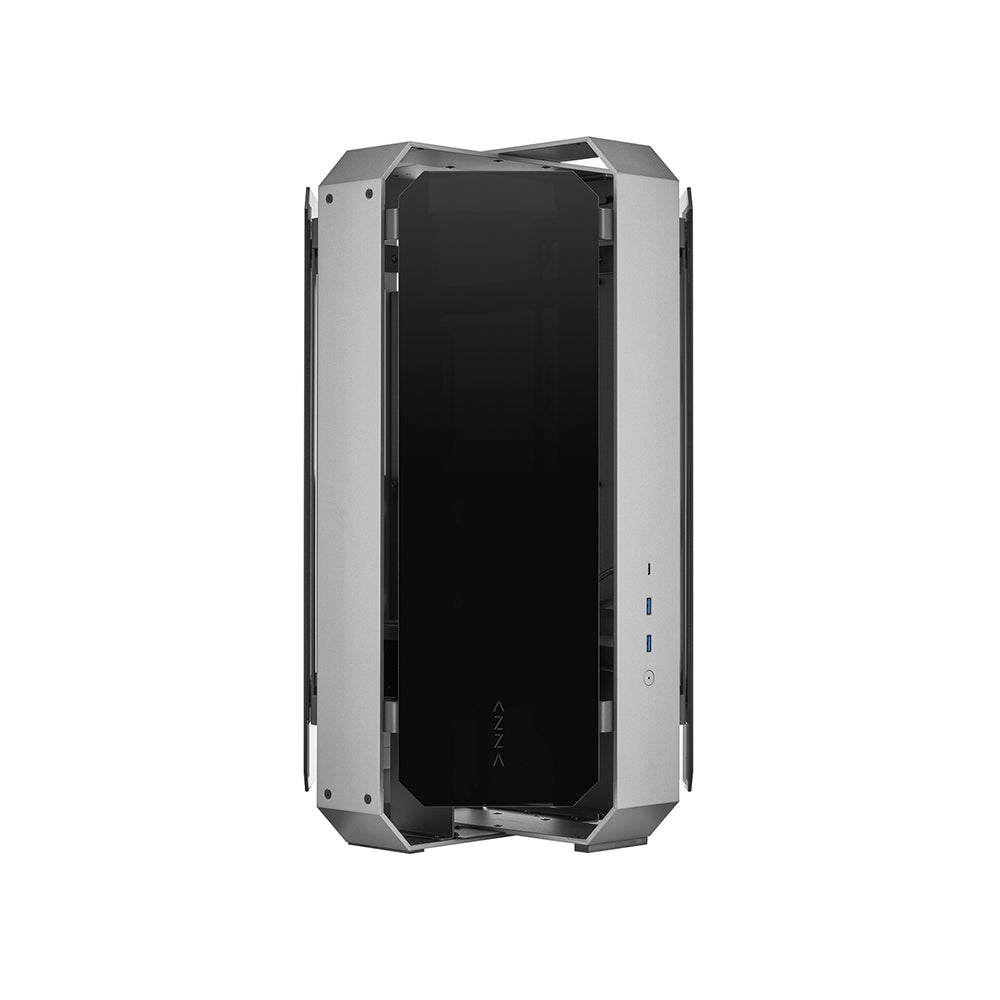

With 4 tinted tempered glass panels, the OPUS offers a 360 degree view of the system. Each panel can be easily removed with a toolless mounting mechanism for quick access to the components inside.

Refined Aluminum Frame

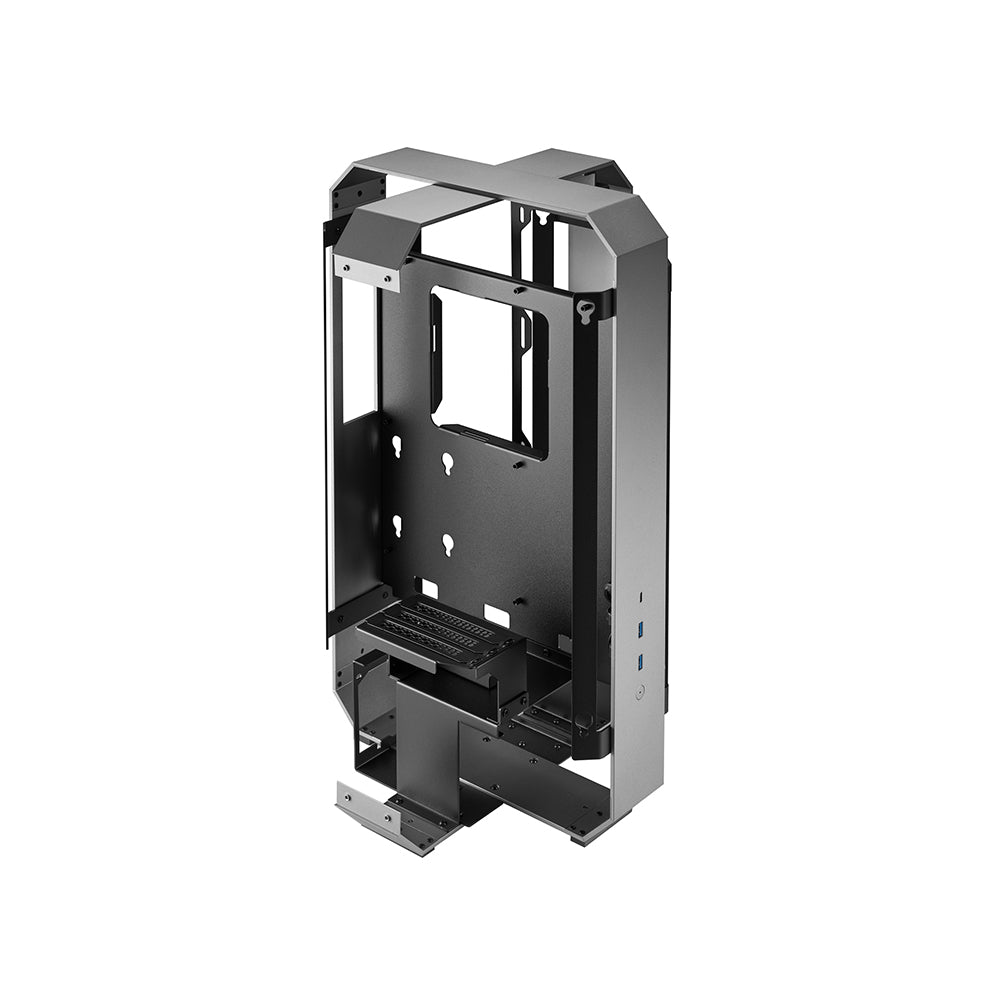

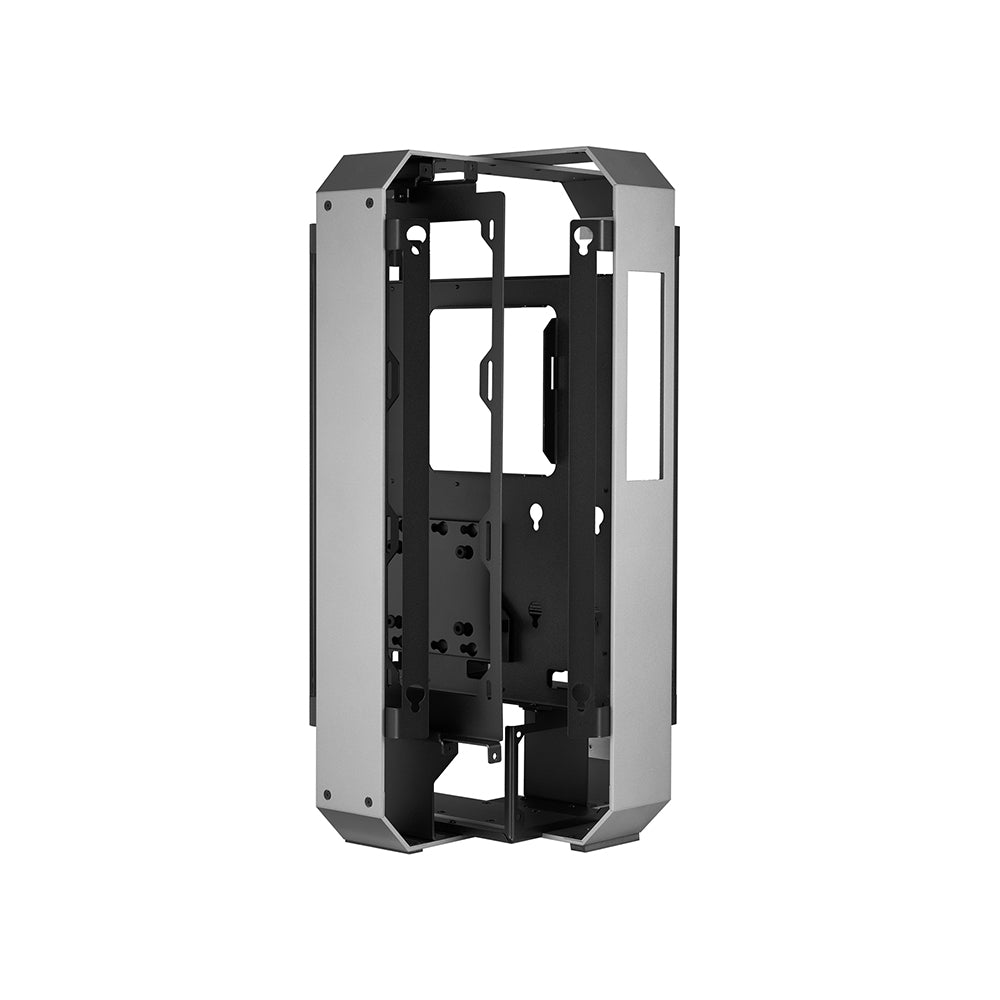

The beautiful aluminum structure of the OPUS is meticulously cut by tightly calibrated CNC machine to offer a seamless fit with clean diamond cut edges.

Re-interpretation of PC Cases

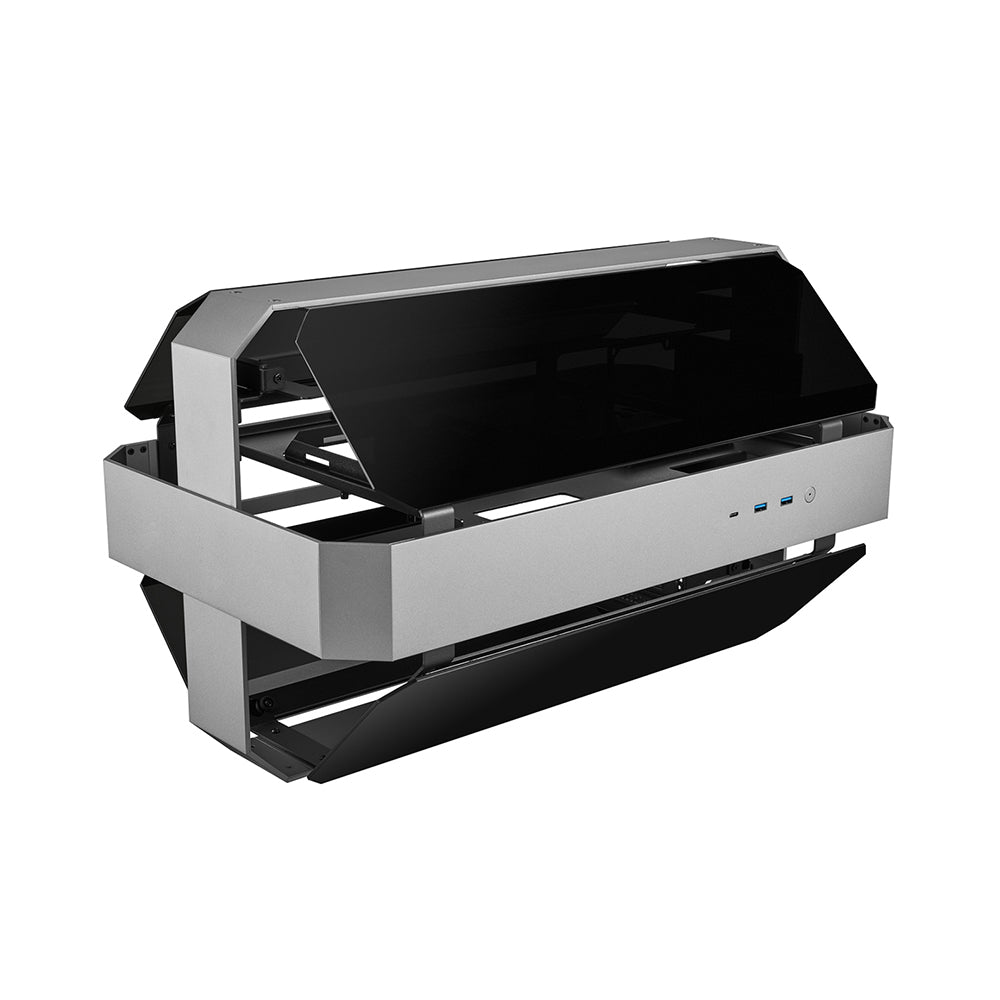

The OPUS pushes the boundaries with an elegant yet futuristic design. It can also be placed vertically for a different orientation without affecting performance.

4.0 The latest 4.0 version provides faster transmission speed

*This extension cable also supports the following graphics cards: RTX 3000 series, RTX 3080, RTX 3090 FE, RX 5700XT and RX 6000 GPUs.

* Please note before use:
1.Measure the distance between your motherboard, PCI-E slot and GPU connection to confirm whether the length of this 4.0 cable is sufficient.
2.Update your motherboard BIOS to the latest version.
3.Update your GPU software to the latest version.
4.Check whether the motherboard BIOS setting is 4.0. Some software will not switch automatically. If the switching fails, the PC will not start normally.

Unrestricted Ventillation

Massive openings at the top and bottom along with ventilation on all sides provides maximized airflow from every direction for enhanced cooling.

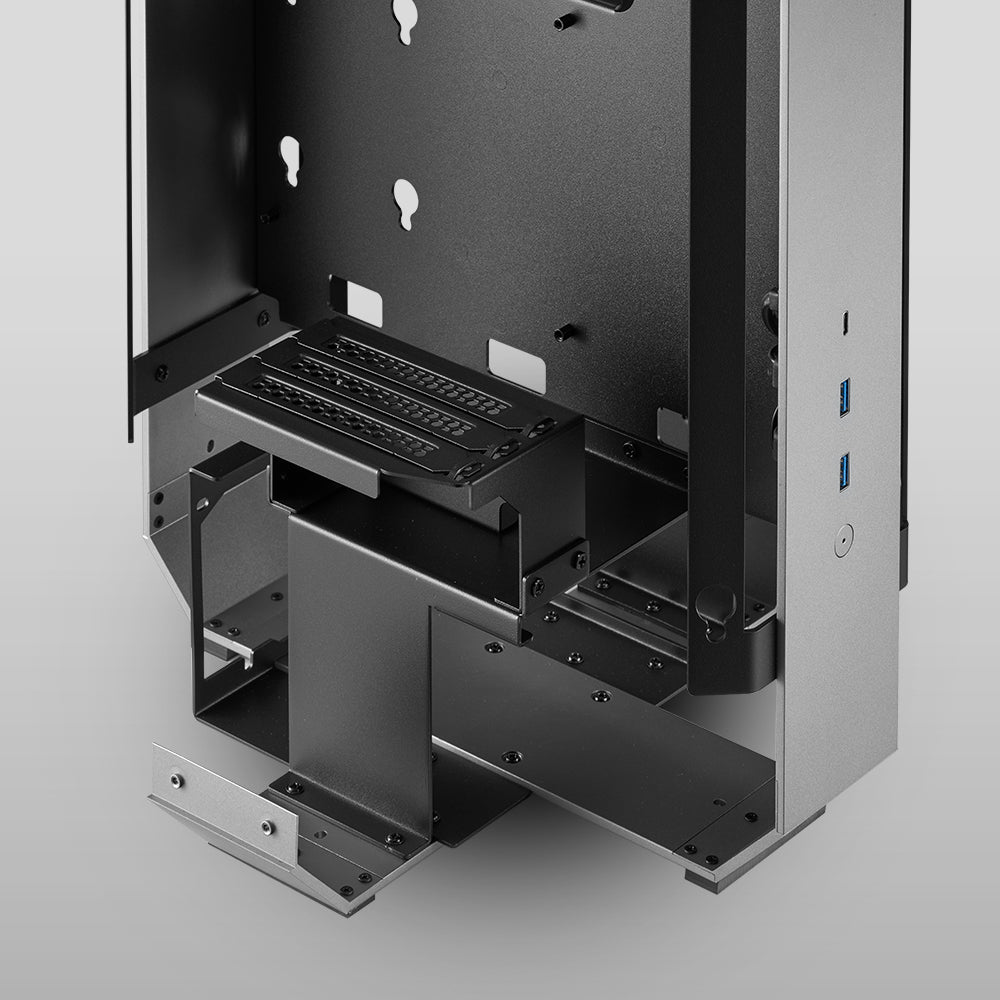

Triple Slot GPU & PCI-e 4.0 Ready

OPUS supports up to 360 mm long and triple slot GPUs. The sturdy GPU bracket supports monstrous graphics card, and comes included with a 300 mm long PCI-e 4.0 riser cable.

360 Radiator Support

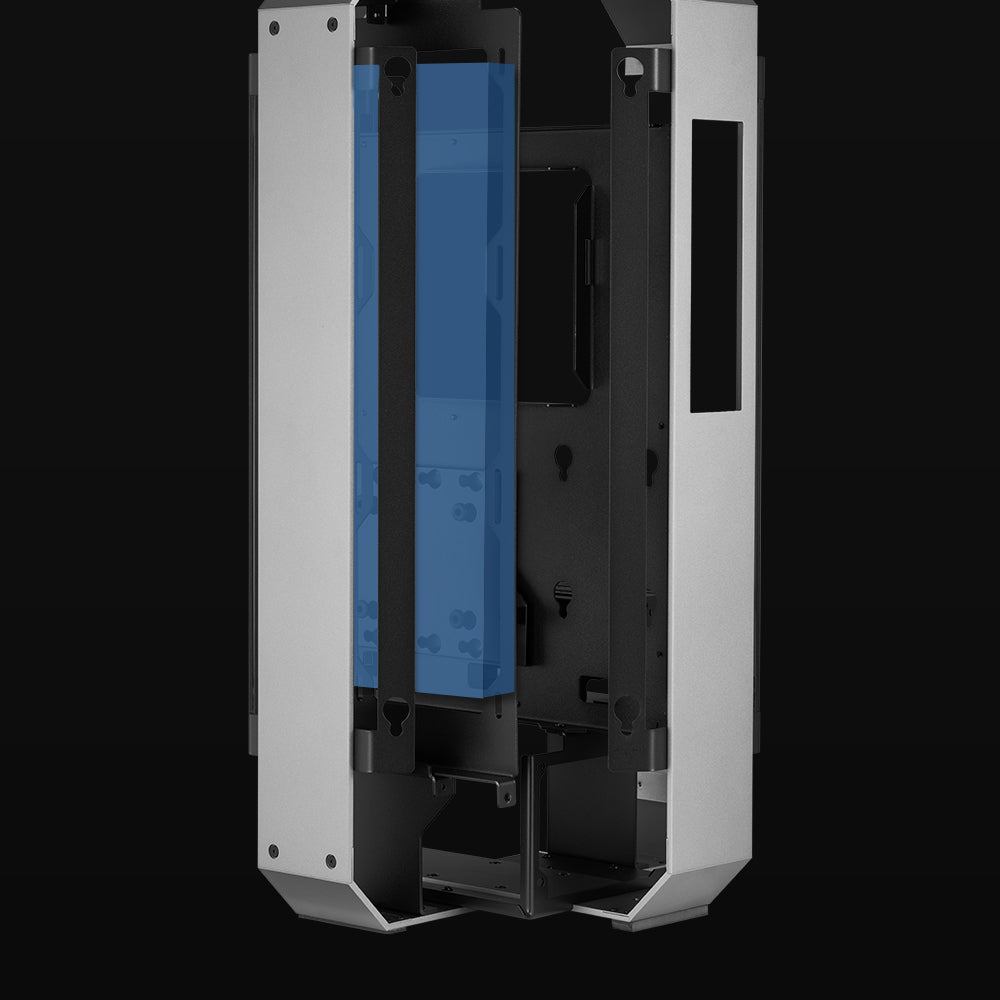

An easily removable bracket supports up to 3 x 120 mm fans or a 360 mm radiator. The bracket can be removed to simplify the installation process with more space for component tinkering.

Ample Storage Space

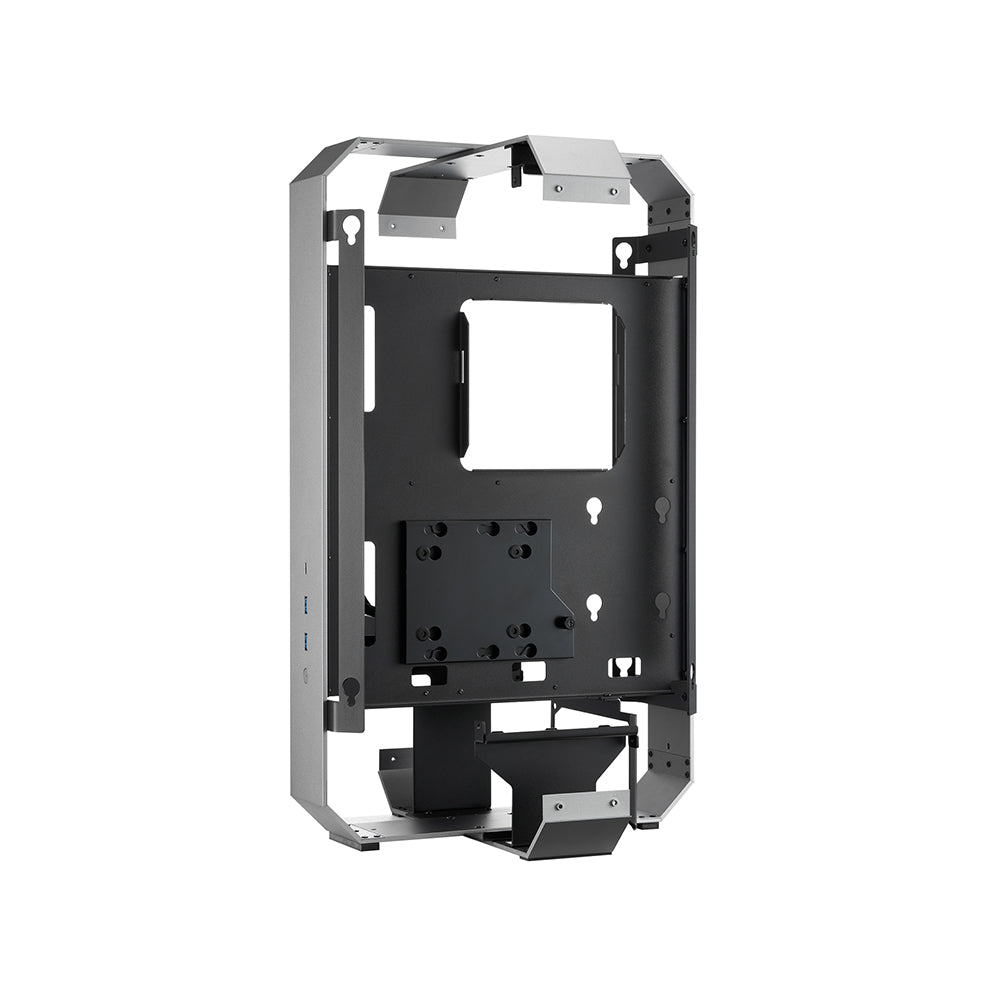

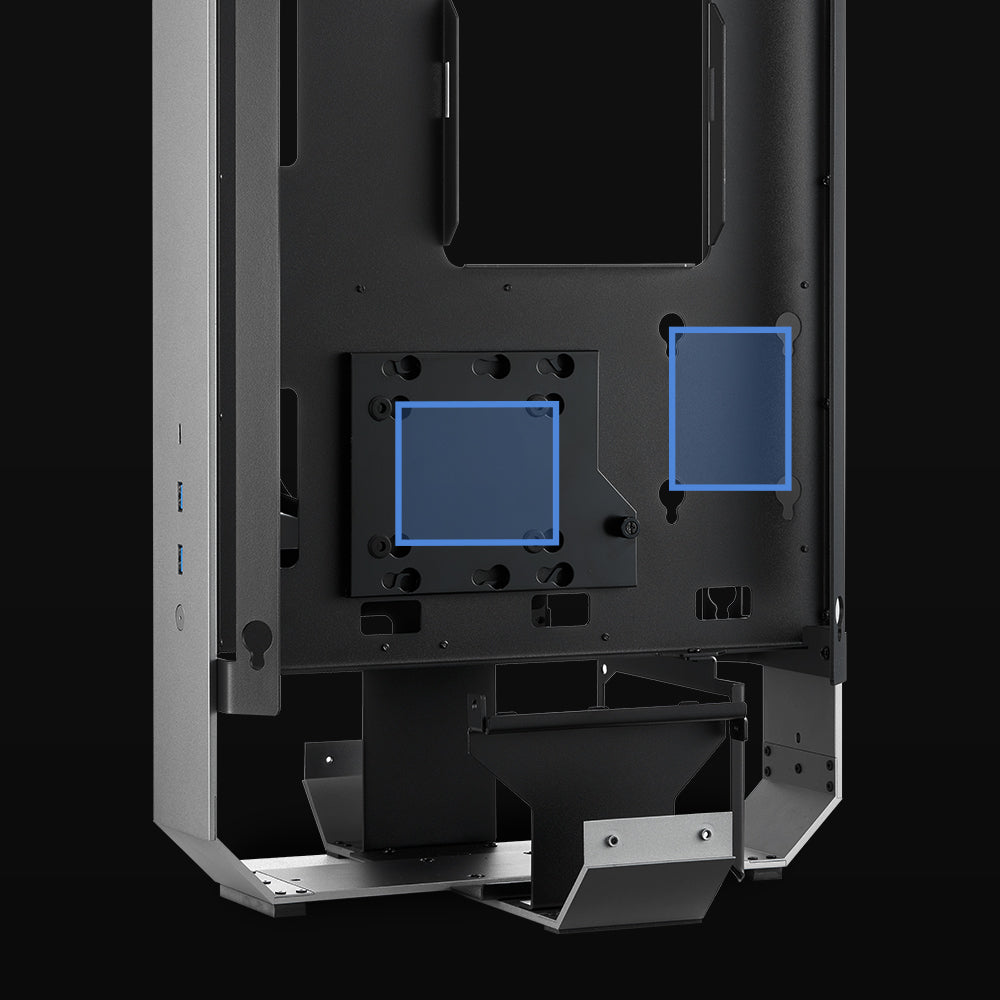

Located at the rear of the motherboard tray, two mounting locations are provided for 2 x 2.5” SSDs, with one swappable to support a 3.5” HDD.

SPECIFICATIONS

CSAZ-809

Download Manual
Type

ATX Tower

Color

Space Gray with Tinted Glass (exterior) / Black (interior)

Side Panels

4 x Tempered glass
Sandblasted Anodized Aluminum Structure

Max CPU Cooler Height

Up to 60 mm

Max Video Card Length

Up to 360 mm (Vertical)

Motherboard Compatibility

E-ATX, ATX, Micro-ATX, Mini-ITX

2.5" Drive Bays

Up to 2

3.5" Drive Bays

1

Expansion Slots

3 (Vertical)

I/O Ports

Power button
2 x USB 3.0
1 x USB-C

Case Dimension (H x W x D)

539 x 320 x 320 mm / 21.2 x 12.6 x 12.6 inches

Weight

8.7 kg / 19.2 lbs

Available Fan Ports

3 x 120 mm fan ports in the rear

Included Fan

None

Water Cooling

Supports radiators up to 360 mm in the rear

Power Supply Support

Bottom mounted ATX power supply

Included Accessories
  • 1 x 300mm PCI-e 4.0 Riser Cable
  • 1 x PSU mesh dust filter
