MESA

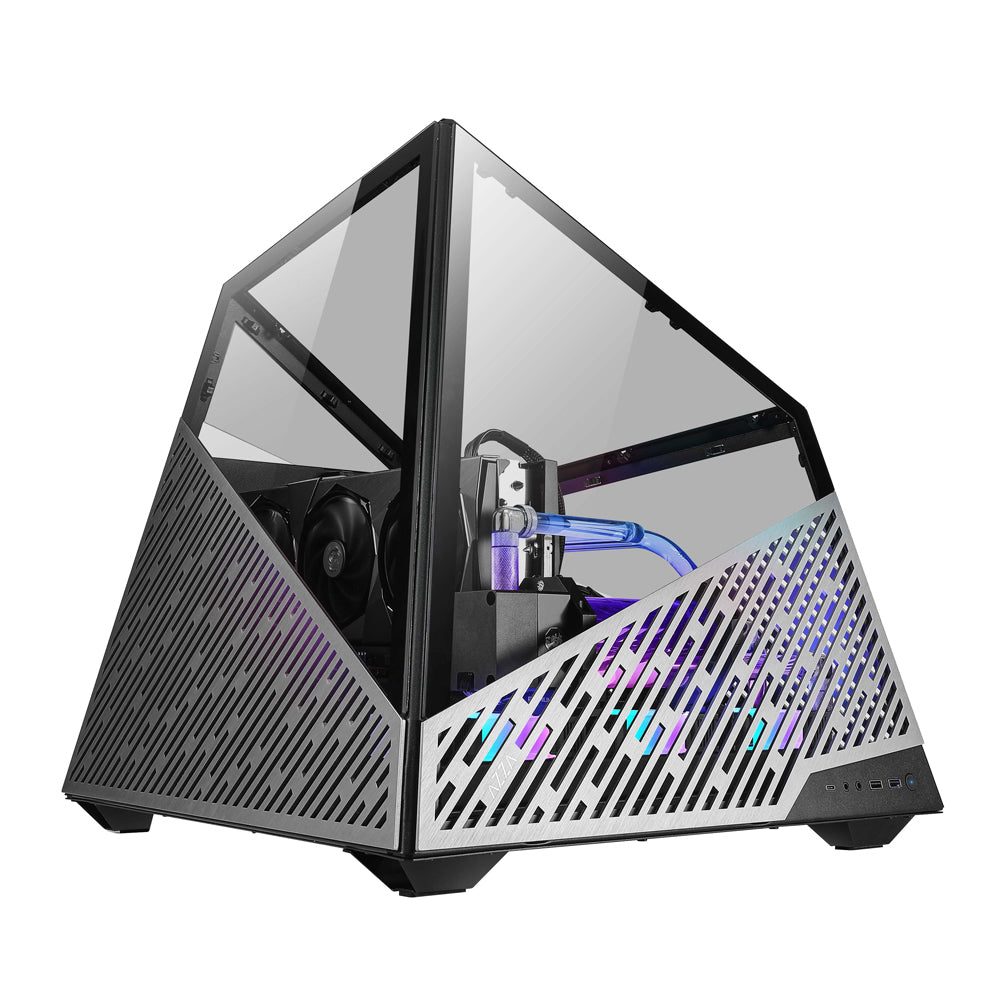

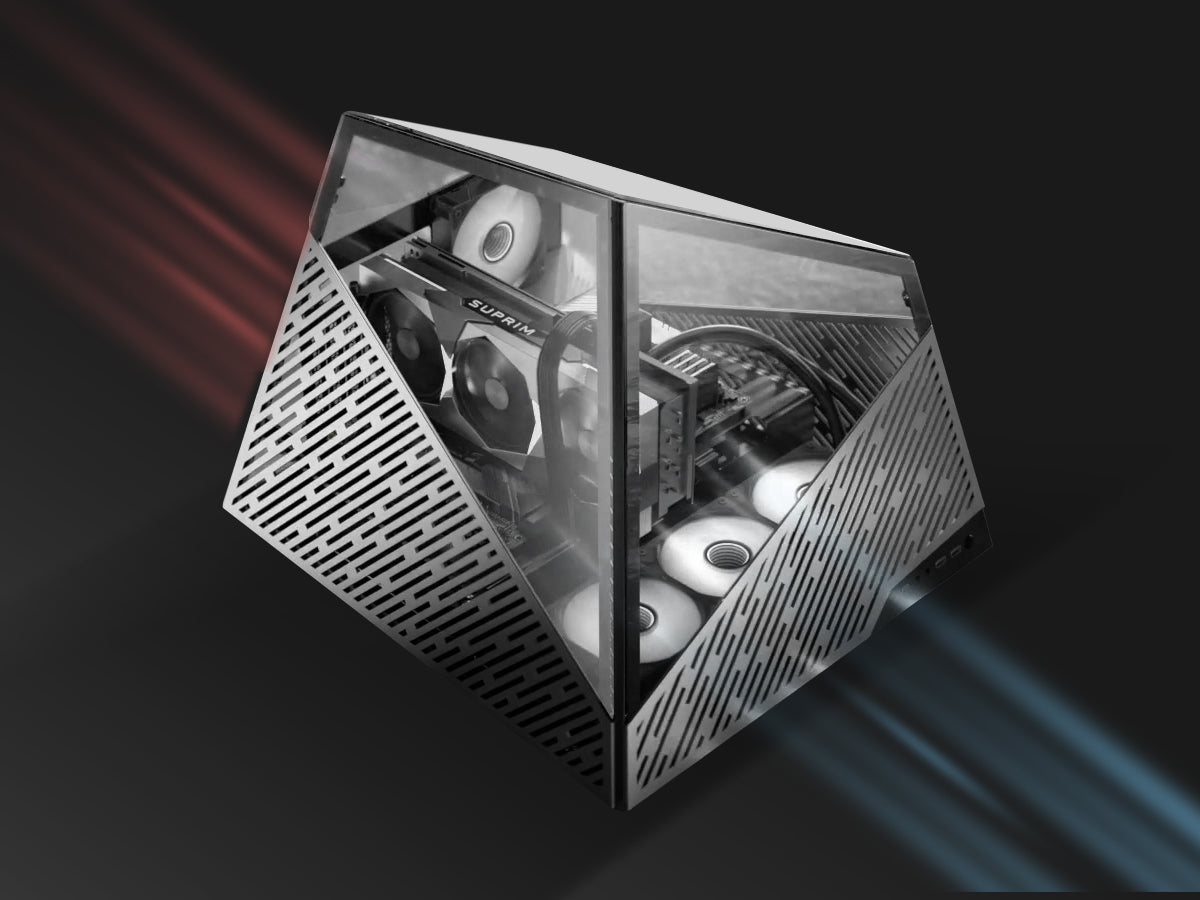

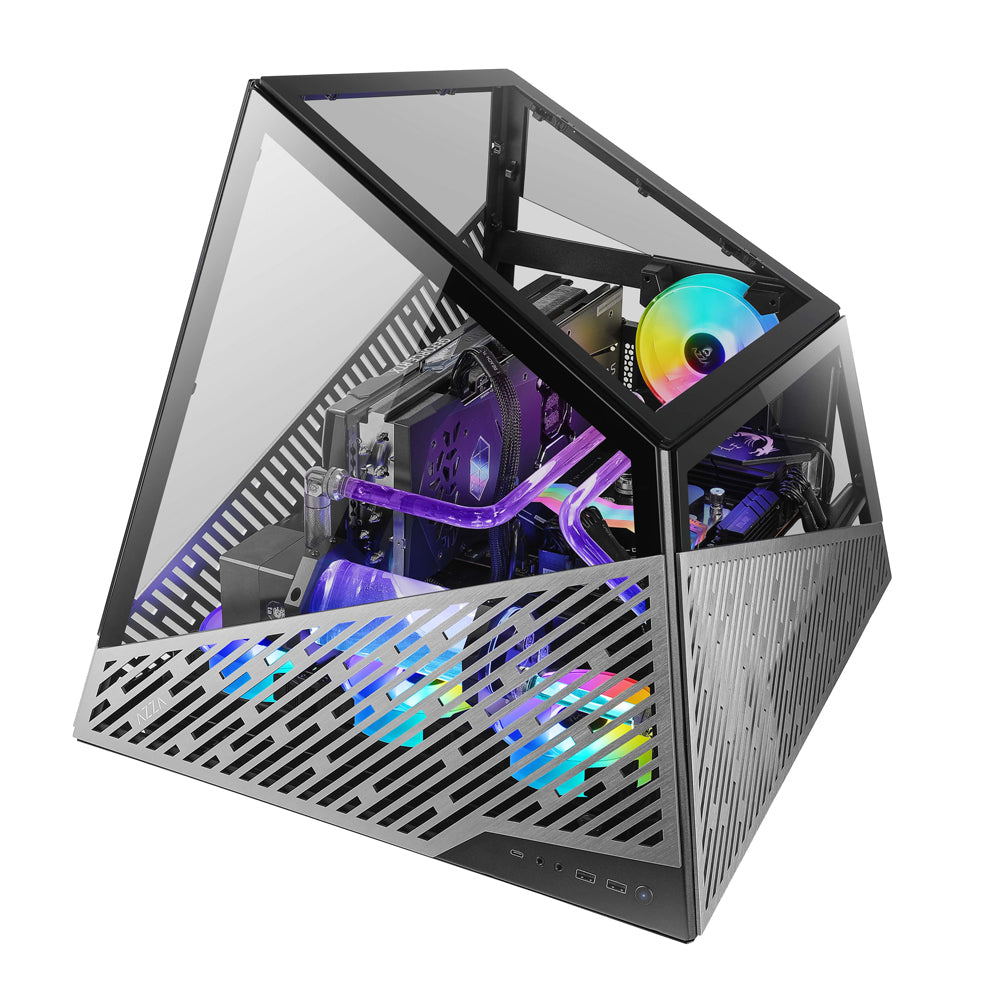

Inspried by the contours of an iceberg, featuring a bench table design supported by a spacious foundation crafted from ventilated aluminum panels. These panels gracefully converge at the apex, resembling the ice-like formation, which comprises tempered glass panels that provide breathtaking view. The distinctive shape not only ensures a harmonious balance between performance and visual appeal but also facilitates unrestricted access to the system components.

AZZA

MESA

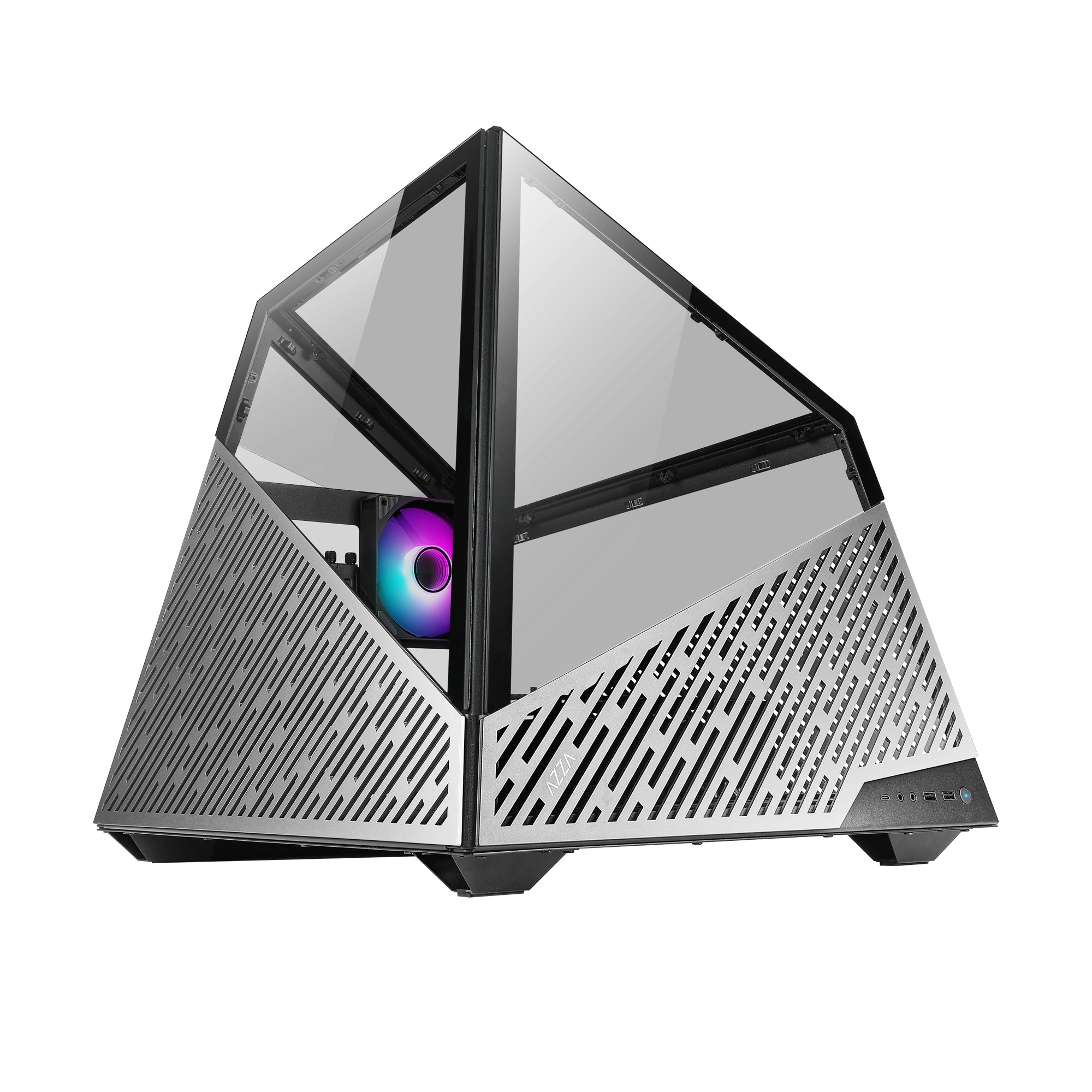

Completely Removeable Side Panels

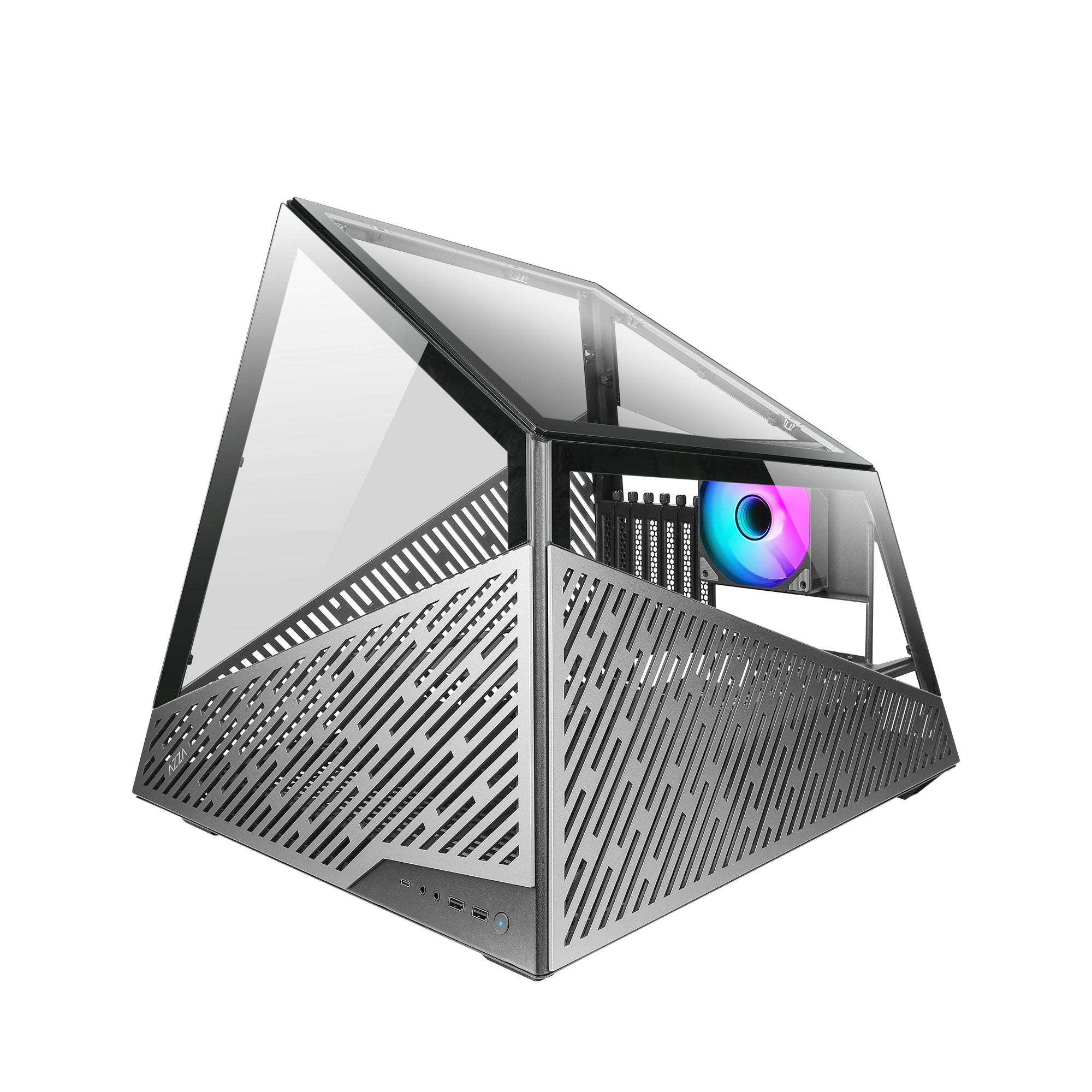

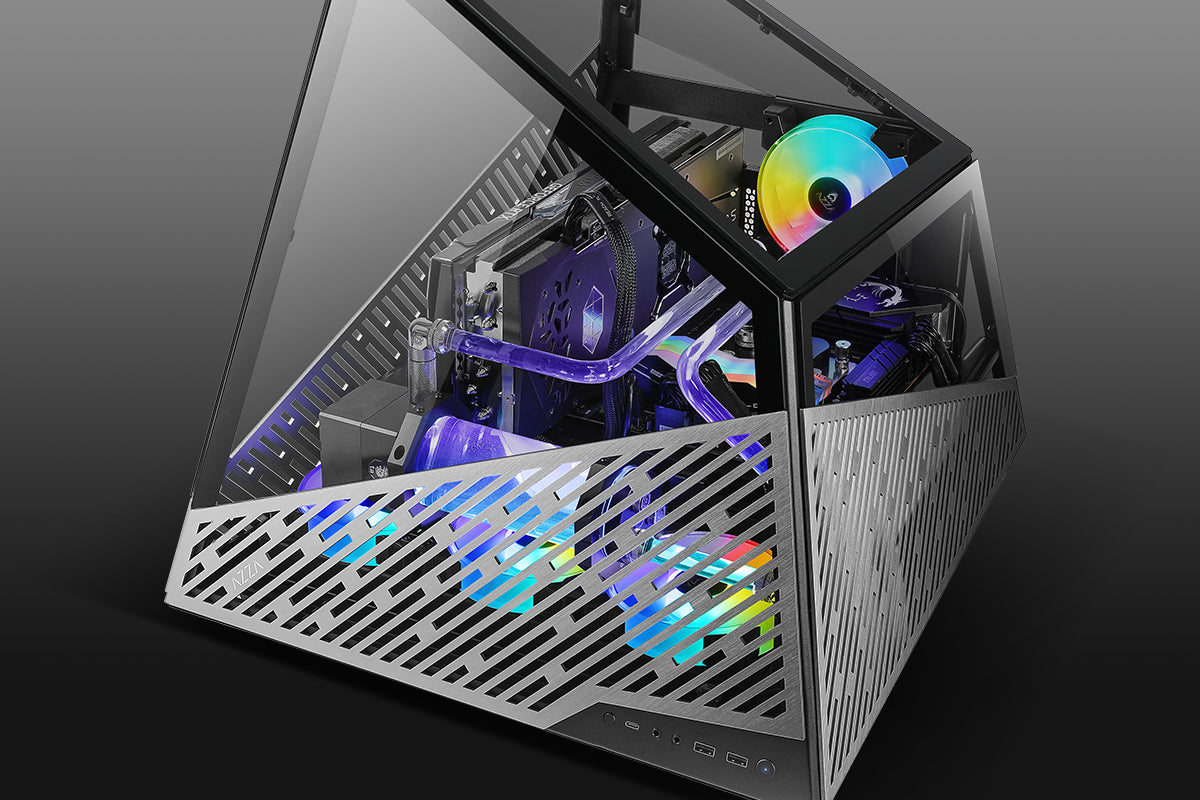

The MESA 811 showcases a seamless blend of elegance and functionality. Asymmetrical shaped tempered glass panels provides a unique view from any angle. Surrounding the base is the brushed aluminum panels that are perforated for optimal ventilation, maintaining the case's stunning appearance. Thanks to a tooless approach, all side panels can be quickly removed for full access to the system.

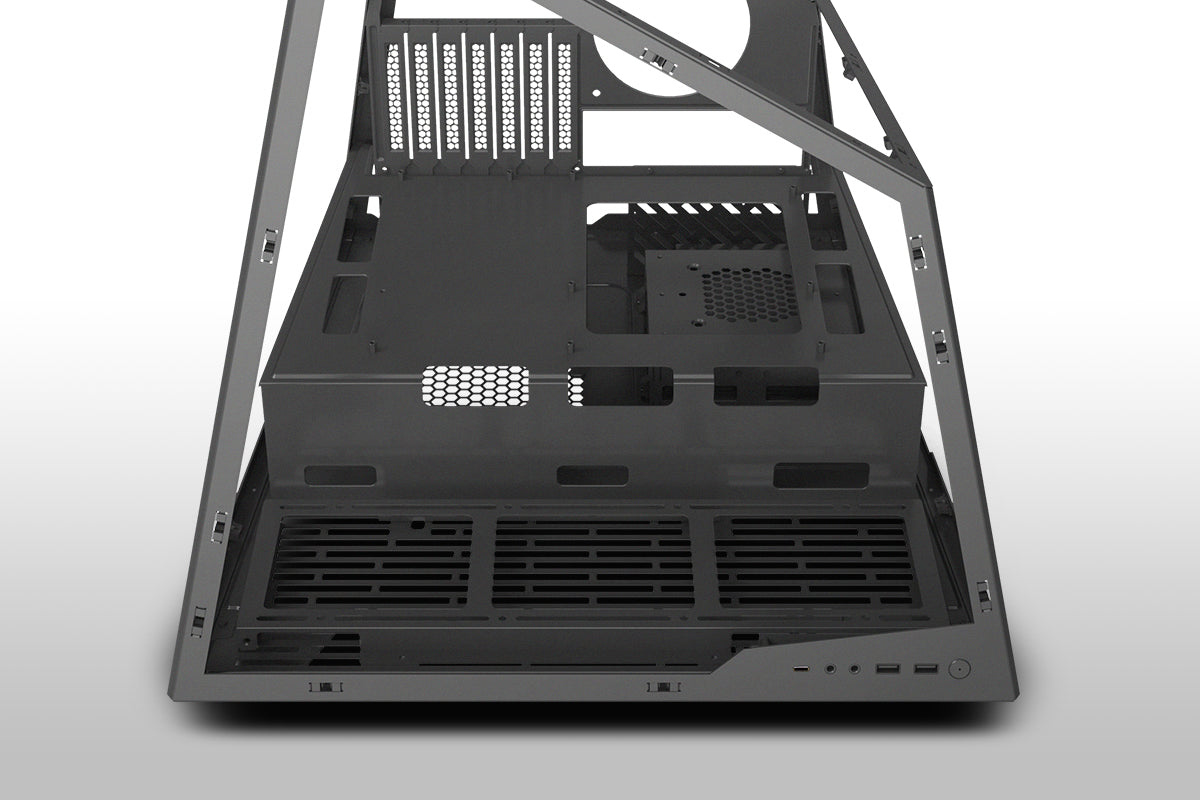

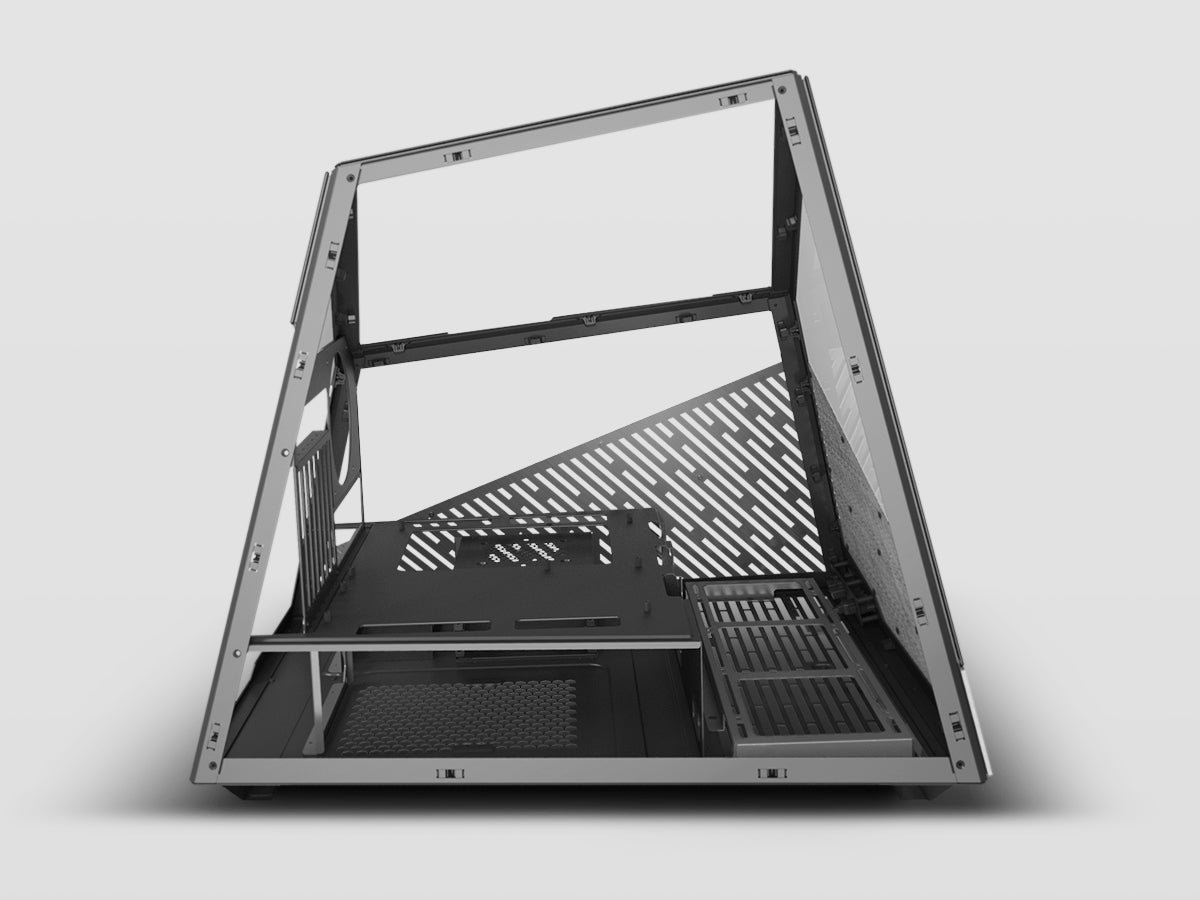

Bench Table Layout

Unleash the full potential of your system with the MESA 811 horizontal layout, creating a dual chamber case that locates the cables at the bottom, and allows for easy access of the main components at the top. The layout offers plenty of room for large components, plenty of cooling, and eliminates any GPU sag from large graphics cards.

Uncompromised Cooling

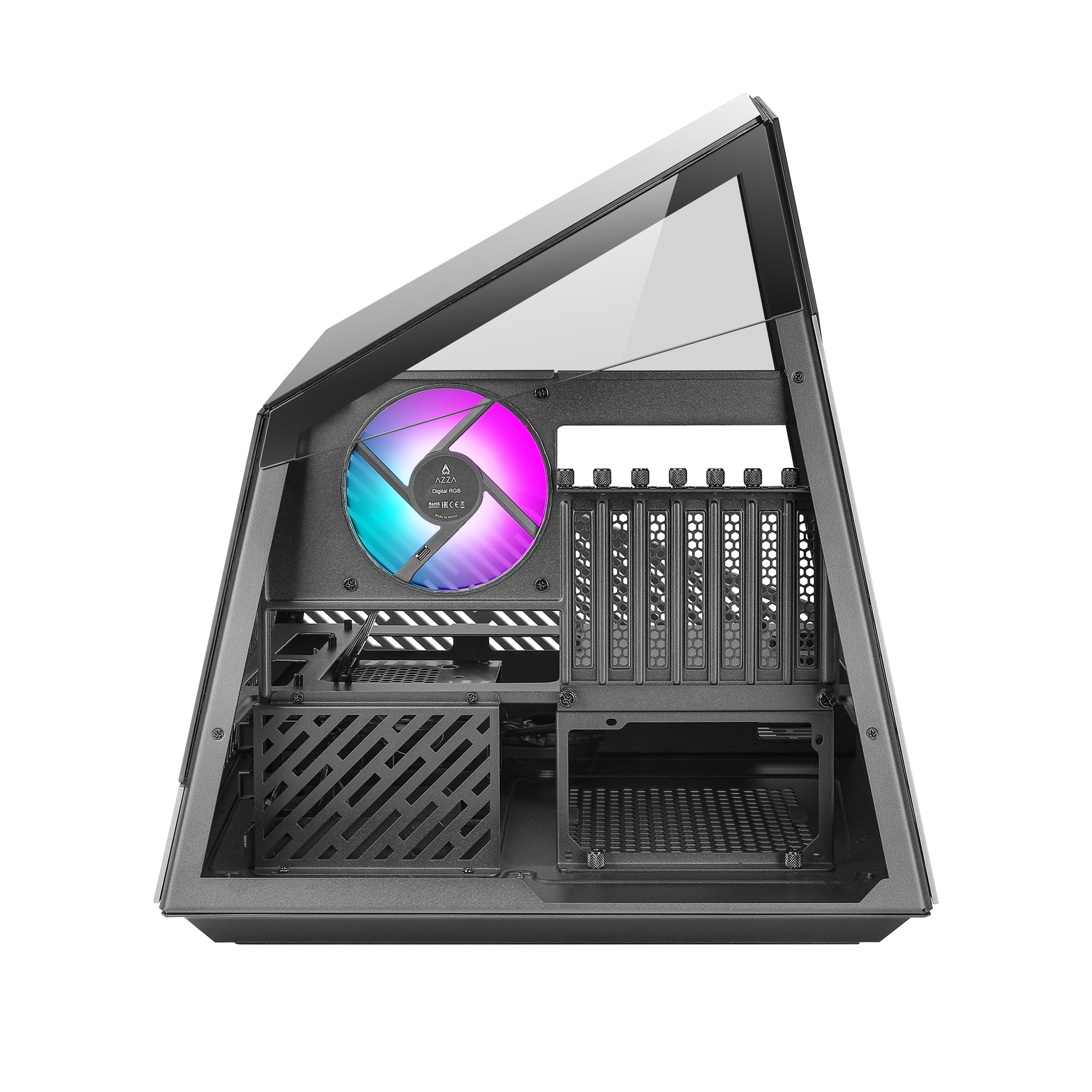

While the side panels provide airflow for the GPU and CPU cooling, sitting beside the motherboard tray at the bottom of the case is a removable mounting bracket for 3x120mm fans. The placement is perfect for a direct air intake from the bottom and is complemented nicely with the included rear exhaust 120mm fan located above the motherboard rear I/O.

High-End System Ready

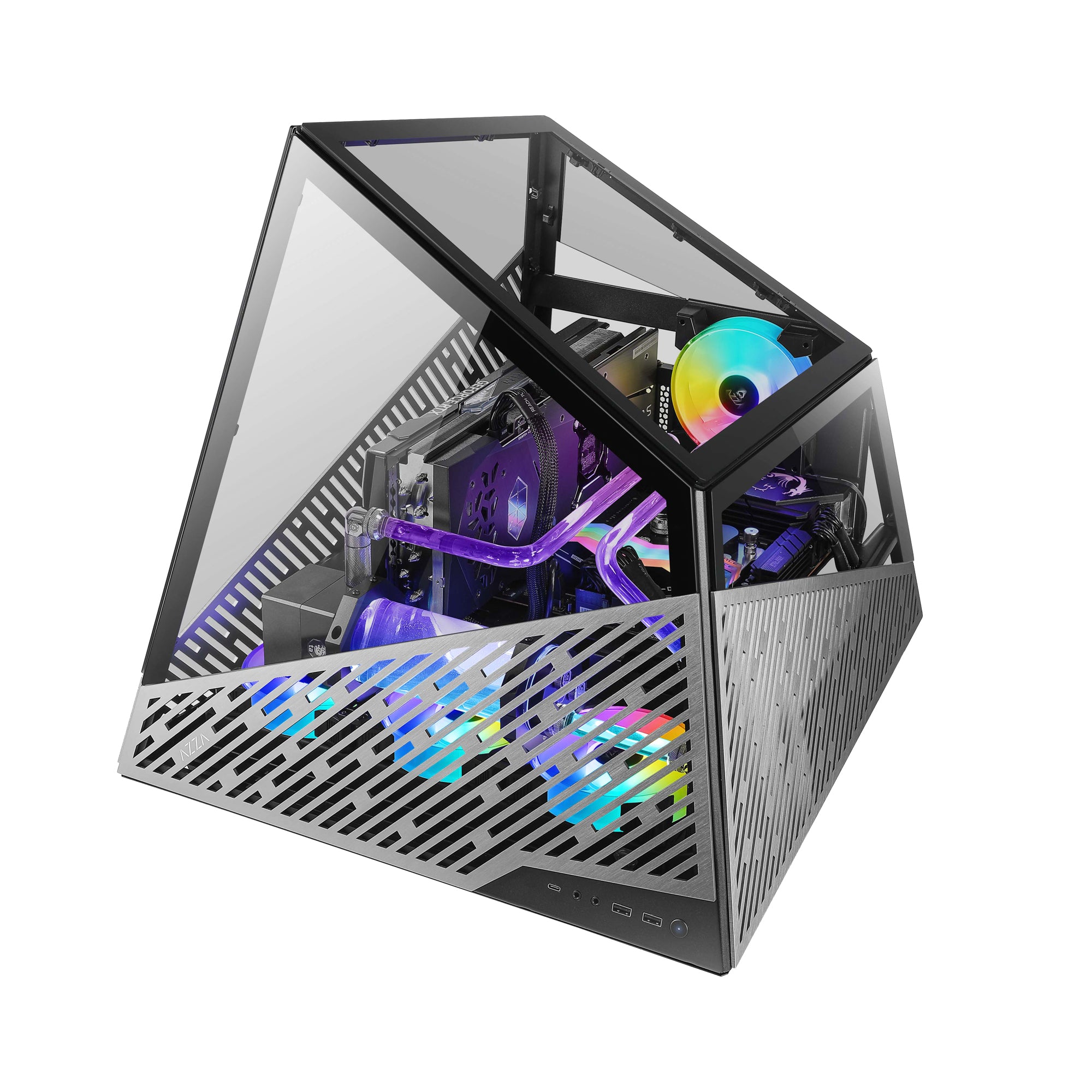

The Mesa 811's asymmetrical enclosure offers room to accommodate E-ATX to MINI-ITX-sized motherboards while supporting maximum CPU cooler heights of 140mm. It accommodates graphics cards up to 380mm in length.

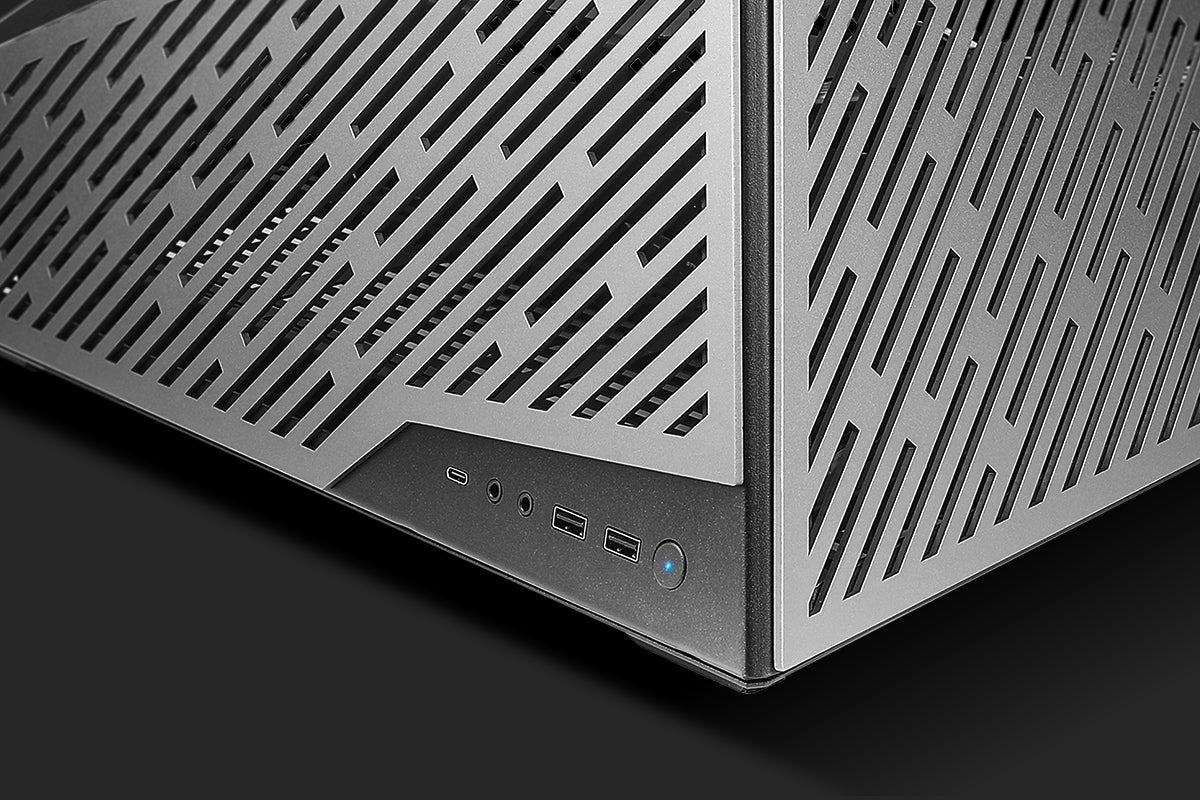

Refined Front Panel Control

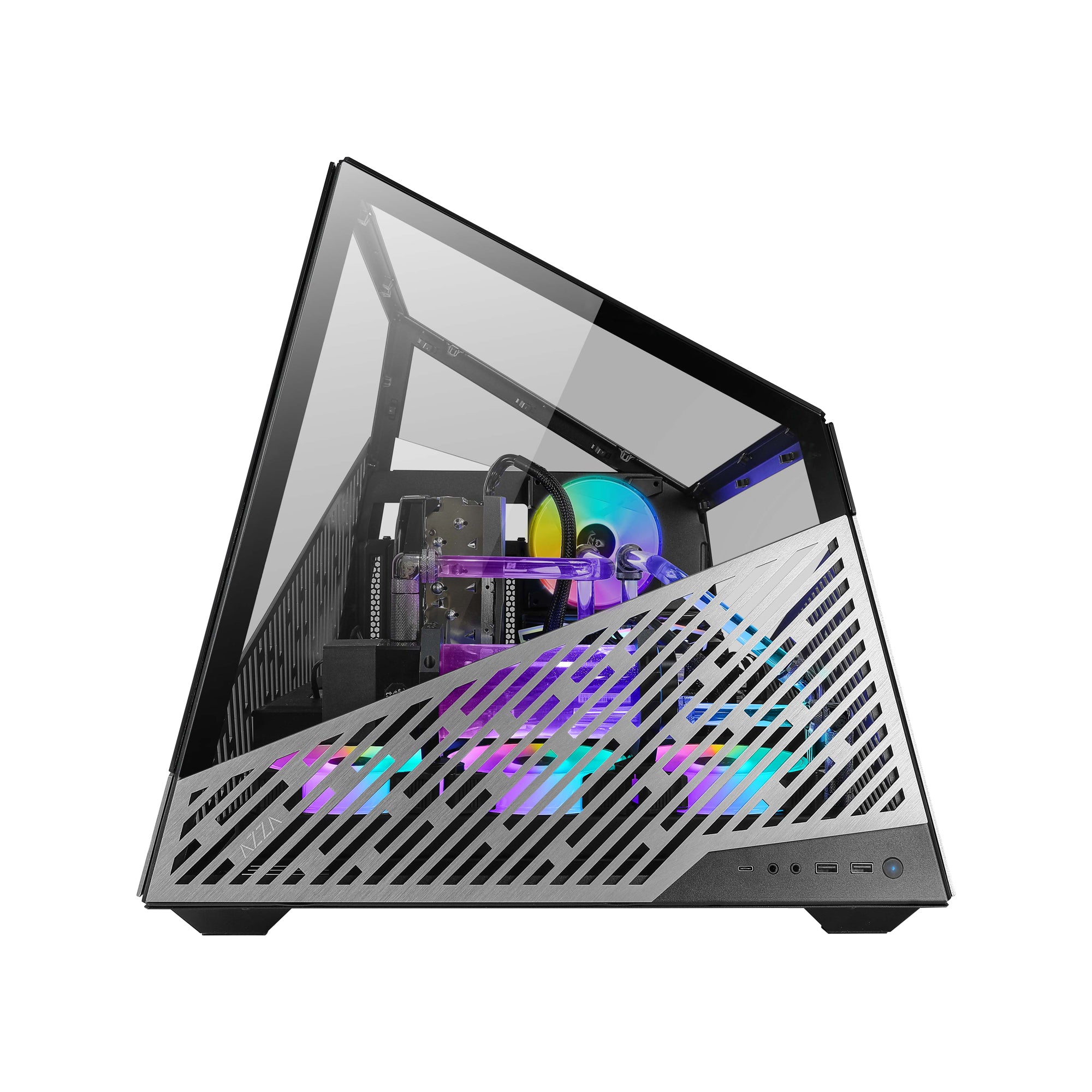

Elegantly cut our from the side panel, the front panel controls include a power button, HD audio, 2x USB 3.0 ports and a USB Type C port.

PSU And Storage Support

Located in the bottom chamber, the MESA 811 can support ATX PSUs with plenty of room to tuck away extra cables. On two removable trays, 2x 2.5" SSDs or 2x 3.5" HDDs can be added to the enclosure for added storage support.

SPECIFICATIONS

CSAZ-811

Download Manual
Type

ATX

Chassis Thickness

SPCC 1-1.5 mm / AL 3mm

Max CPU Cooler Height

Up to 140mm

Max Video Card Length

Up to 380mm

Power Supply

Not included

Motherboard Compatibility

ATX, Micro-ATX, Mini-ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

I/O Ports

Power button, HD Audio, USB 3.0 x 2,Type-C

Case Dimension (H x W x D)

494x489x539 mm / 19.4 x 19.3 x 21.2 inches

Weight

10.3kg / 22.7 lbs

Addressable RGB Light

All addressable RGB light devices controlled by motherboard

Available Fan Port
  • 1 x 120 mm ports on the rear (1x120mm LFO-4312D ARGB fan included)
  • 3 x 120 mm ports on the front (with radiator bracket)
Water Cooling

Supports radiators up to 360 mm in the front

Power Supply Support

Bottom mounted ATX power supply

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
