HIVE M
HIVE M
HIVE M
CSAZ-450M

HIVE M

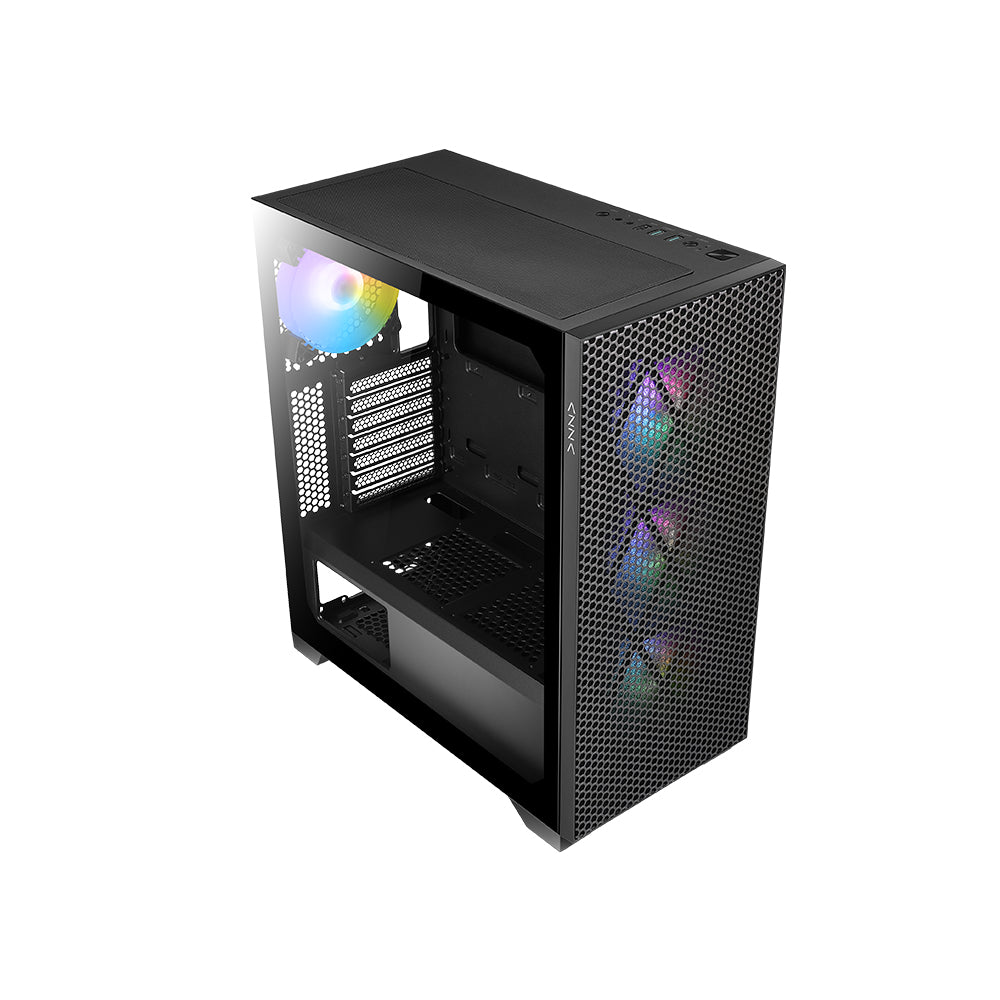

Designed with cooling in mind, the HIVE M, which comes with 4 pre-installed ARGB fans, is a collection of good thermals, dust protection, and subtlety all-in-one case. A fine layer of breathable mesh covers the entire front panel, providing dust protection while muting excessive lighting from inside the case.

HIVE M

ATX Mid-Tower

Performance Ready. Airflow Optimized

With a uniquely aesthetic honeycomb mesh front panel, the built-in dust filters within are backed by 3 x 120 mm pre-installed ARGB fans to cool down your PC in style.

Impressive Airflow Support

The HIVE M can accommodate an impressive total of 9 x 120 mm fans. 3 x 120 mm fans come pre-installed at the front, 1 x 120 mm fan pre-installed in the rear, with room for 3 more at the top, and 2 more above the PSU shroud.

Customize Your Styles

Further customize your ARGB fan light effects via the top panel LED button, or simply sync up and personalize through your motherboard software.

Intuitive I/O

The Hive M presents a simple top I/O which includes:

  • Power button
  • LED button
  • Reset button
  • Individual Mic and HD Audio jacks
  • 2 x USB 3.0 ports
  • 1 x USB 2.0 port

Accomodating GPU Support

Supports graphic cards of up to 360 mm in length and CPU cooling towers of up to 165 mm

Array of Storage Options

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD

Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD

Right side panel support 2 x 2.5" SSDs

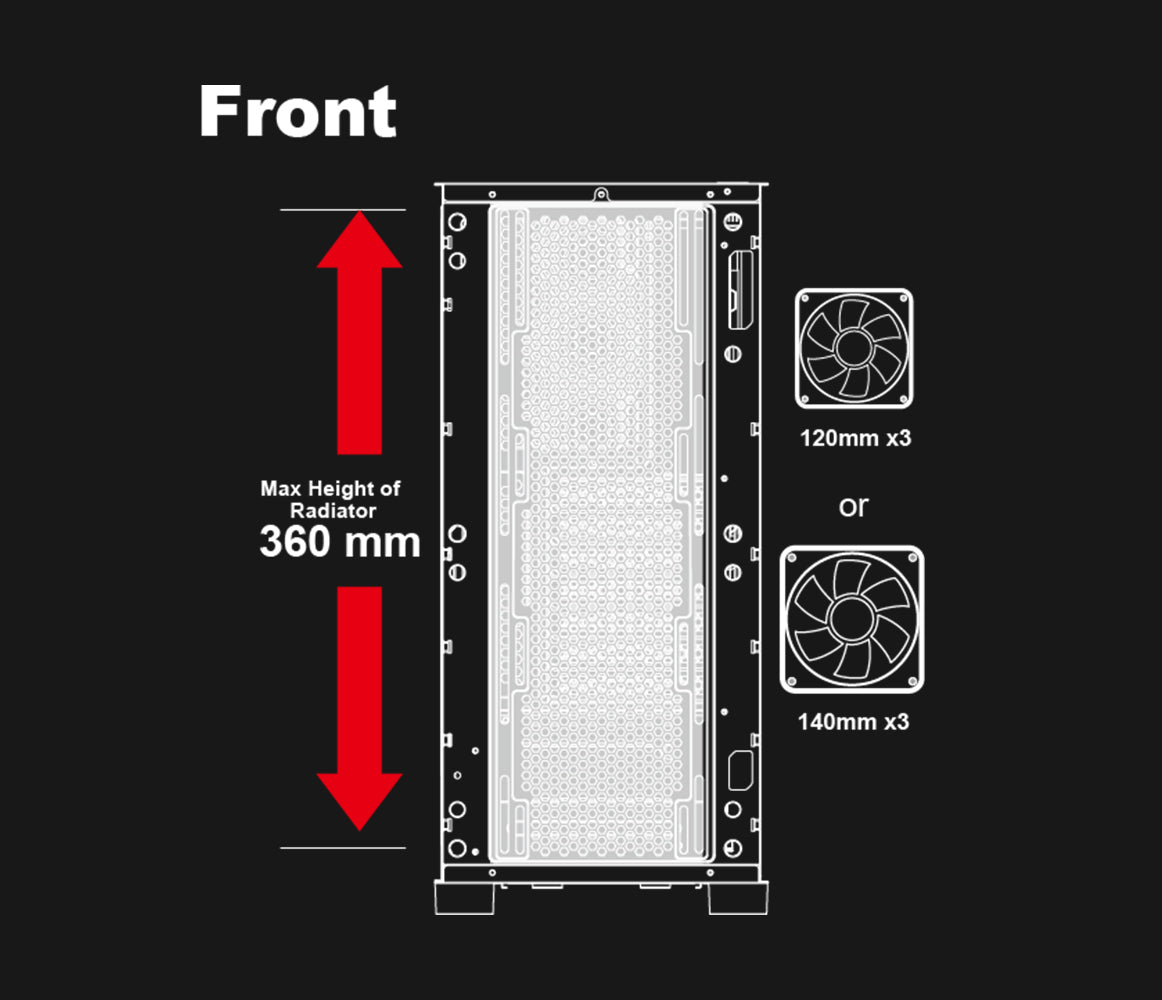

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

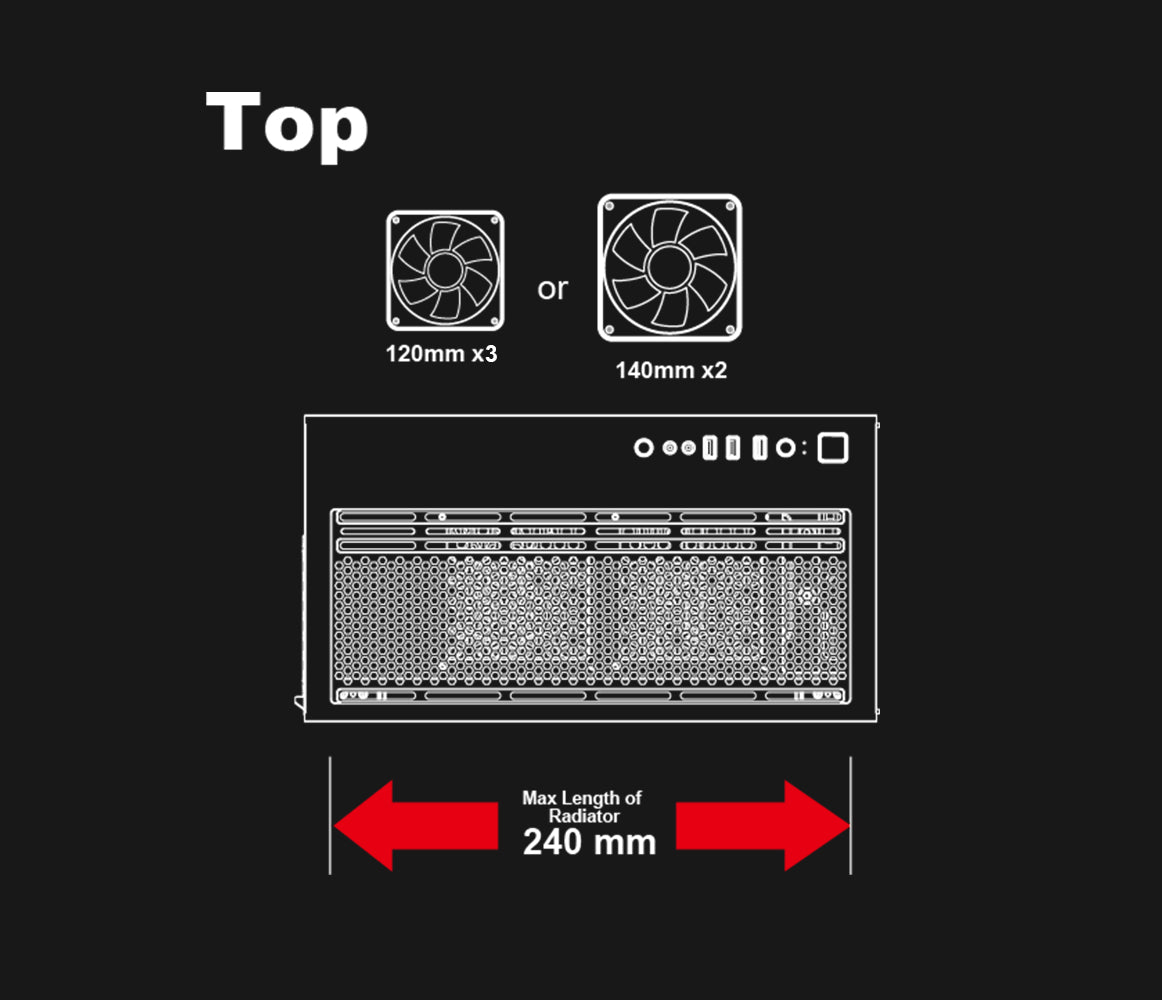

Top Cooling Support

Fan: 3 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

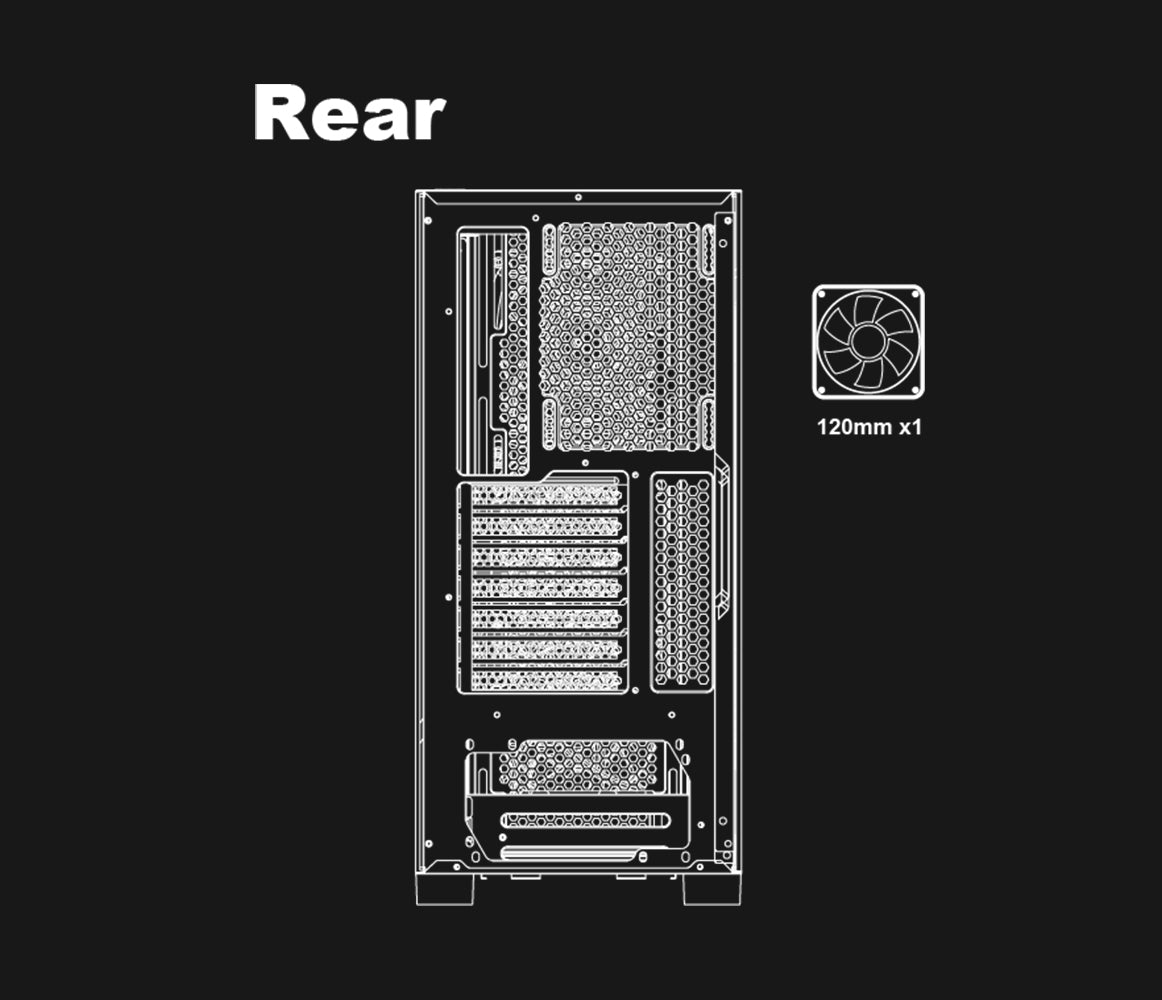

Rear Cooling Support

Fan: 1 x 120 mm

SPECIFICATIONS

CSAZ-450M

Download Manual
Type

ATX Mid Tower

Color

Black (exterior) / Black (interior)

Side Panels

Left : Tempered glass with rubber mounts
Right : Steel panel

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 360 mm

Motherboard Compatibility

E-ATX (<270 mm), ATX, Micro-ATX, Mini-ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion slots

7

Top I/O Ports

Power button
Reset button
LED button
HD audio
2 x USB 2.0
1 x USB 3.0

Case Dimension (H x W x D)

470 mm x 215 mm x 415 mm

Weight

6.3 kg / 13.9 lbs

Addressable RGB Light Effects

All ARGB light sync.
Devices connected to the 5pin ARGB control hub allow the LED button to directly control the ARGB lighting or switch to the motherboard sync software for control.

Available Fan Ports

3 x 120 mm or 3 x 140 mm fan ports in the front
3 x 120 mm or 2 x 140 mm fan ports on the top
1 x 120 mm fan port in the rear
2 x 120 mm fan ports on top of the power supply shroud

Included Fans

3 x 120 mm ARGB fan in front

1 x 120 mm ARGB fan in rear

Water Cooling

Supports radiators up to 280/360 mm in the front
Supports radiators up to 240 mm on the top

Power Supply Support

Bottom mounted ATX power supply
