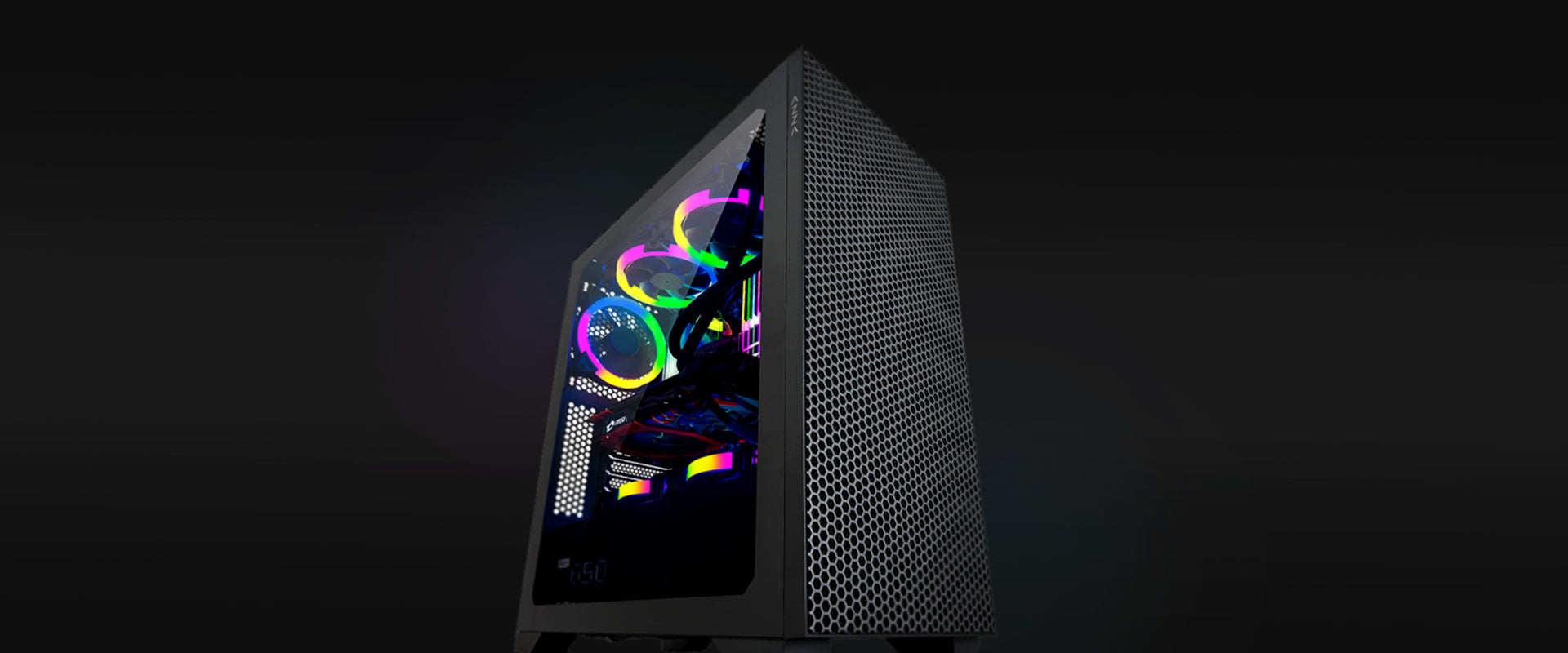

Designed with cooling in mind, the HIVE is a collection of good thermals, dust protection, and subtlety all in one case. A fine layer of breathable mesh covers the entire front panel, providing dust protection while muting excessive lighting from inside the case.


ATX Mid-Tower

Accomodating GPU Support

Supports graphic cards of up to 360 mm in length and CPU cooling towers of up to 165 mm

Impressive Airflow Support

The HIVE can accommodate an impressive total of 9 x 120 mm fans. 2 x 120 mm above the PSU shroud, 3 more in both the front and top, and 1 x 120mm pre-installed in the back.

Intuitive I/O

The Hive presents a simple top I/O which includes:

  • Power button
  • LED button
  • Reset button
  • Individual Mic and HD Audio jacks
  • 2 x USB 3.0 ports
  • 1 x USB 2.0 port

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD

Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD

Right side panel support 2 x 2.5" SSDs

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

Fan: 3 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

Fan: 1 x 120 mm



Download Manual

ATX Mid Tower


Black (exterior) / Black (interior)

Side Panels

Left : Tempered glass with rubber mounts
Right : Steel panel

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 360 mm

Motherboard Compatibility

E-ATX (<270 mm), ATX, Micro-ATX, Mini-ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion slots


Top I/O Ports

Power button
Reset button
LED button
HD audio
2 x USB 2.0
1 x USB 3.0

Case Dimension (H x W x D)

470 mm x 215 mm x 415 mm


6.3 kg / 13.9 lbs

Addressable RGB Light Effects

Addressable RGB fan in the front. An ARGB control board
is included, allowing the LED button to control lighting.
ARGB devices can sync with motherboard lighting software.

Available Fan Ports

3 x 120 mm or 3 x 140 mm fan ports in the front
3 x 120 mm or 2 x 140 mm fan ports on the top

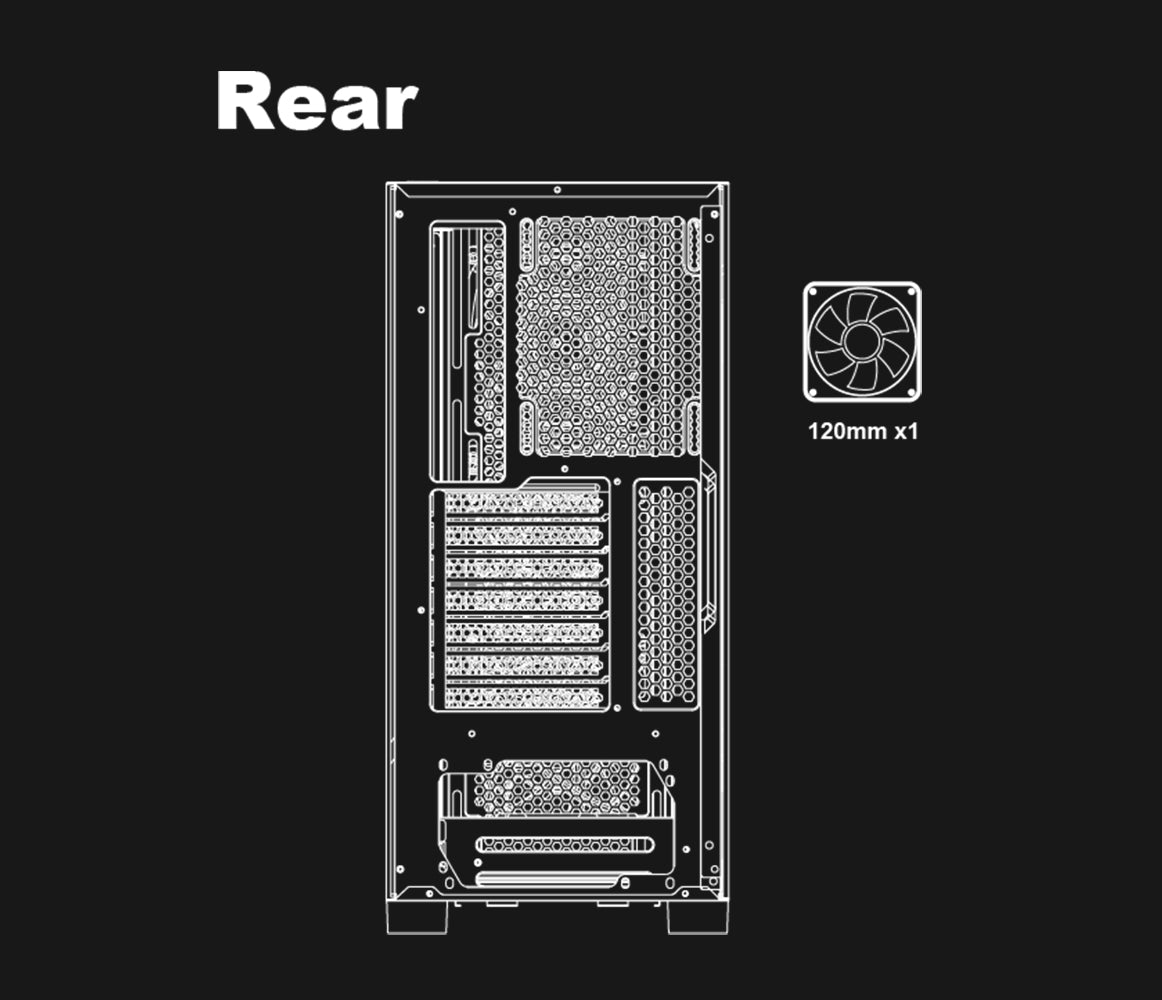

1 x 120 mm fan port in the rear
2 x 120 mm fan ports on top of the power supply shroud

Included Fan

1 x 120 mm ARGB fan

Water Cooling

Supports radiators up to 280 / 360 mm in the front
Supports radiators up to 240 mm on the top

Power Supply Support

Bottom mounted ATX power supply
