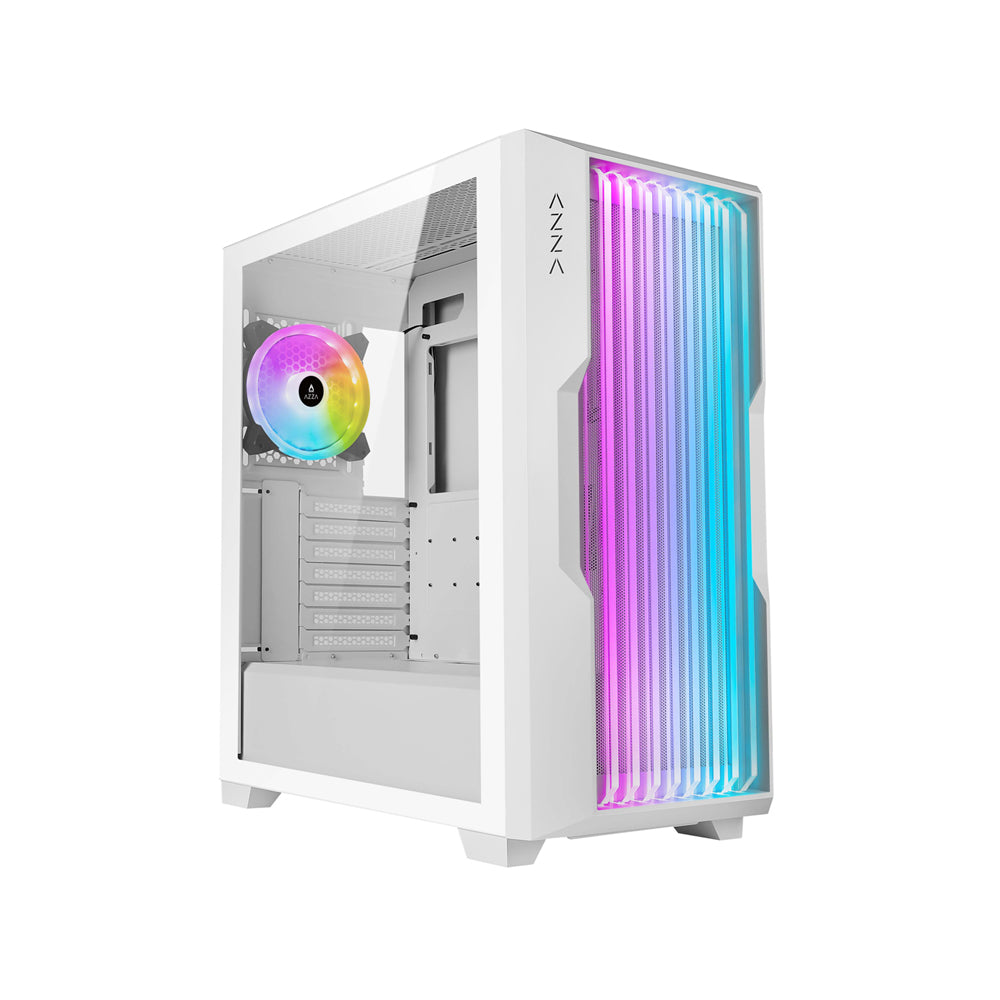

GUARDIAN GLASS WHITE



The Guardian epitomizes the fusion style and function for your ATX setup. With its stunning transparent glass grill, this case delivers breathtaking ARGB effects. Not only that, the grill is engineered for optimal airflow and cooling performance. The Guardian provides lighting options to empower and customize your setup to suit your style.

GUARDIAN GLASS

ATX Mid-Tower Case

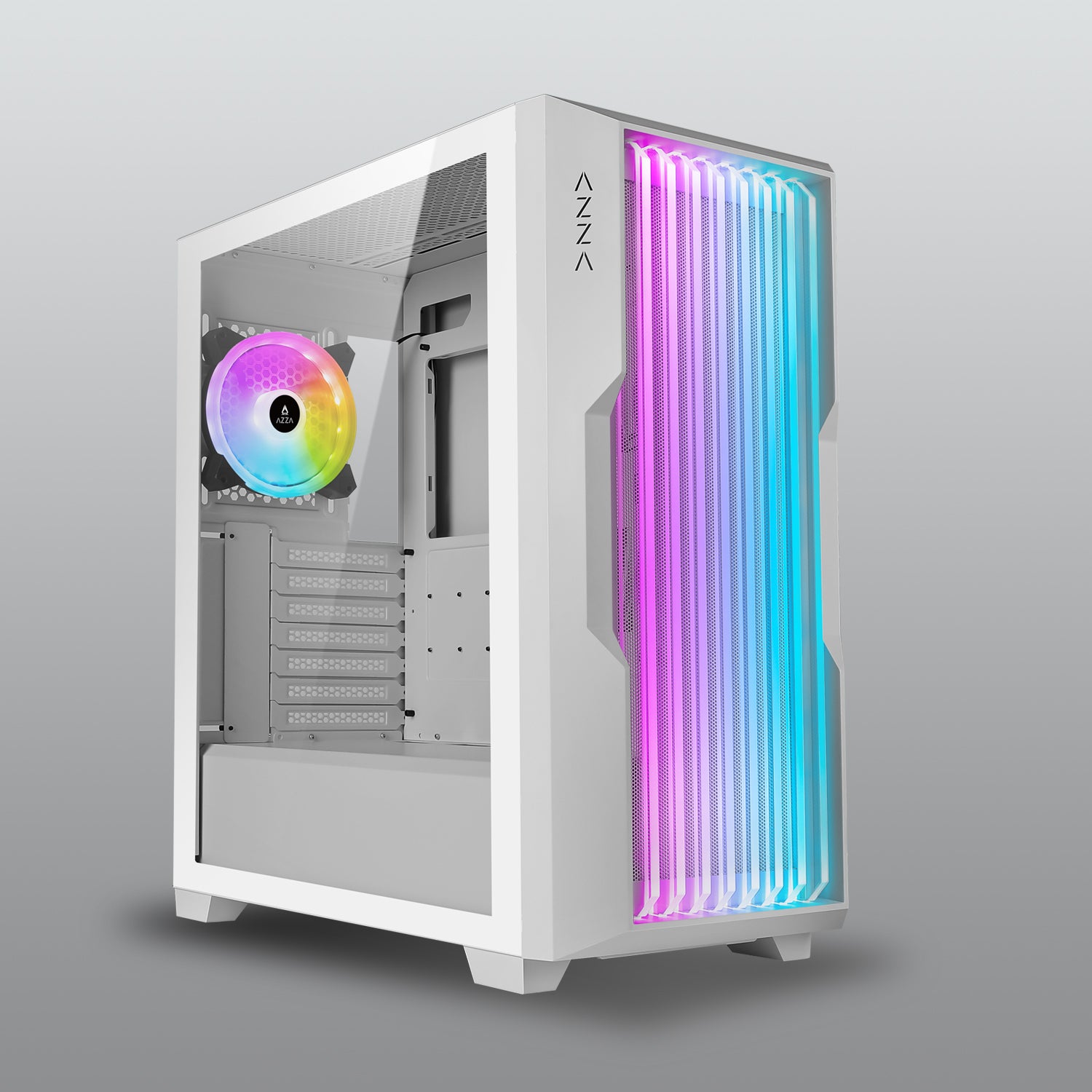

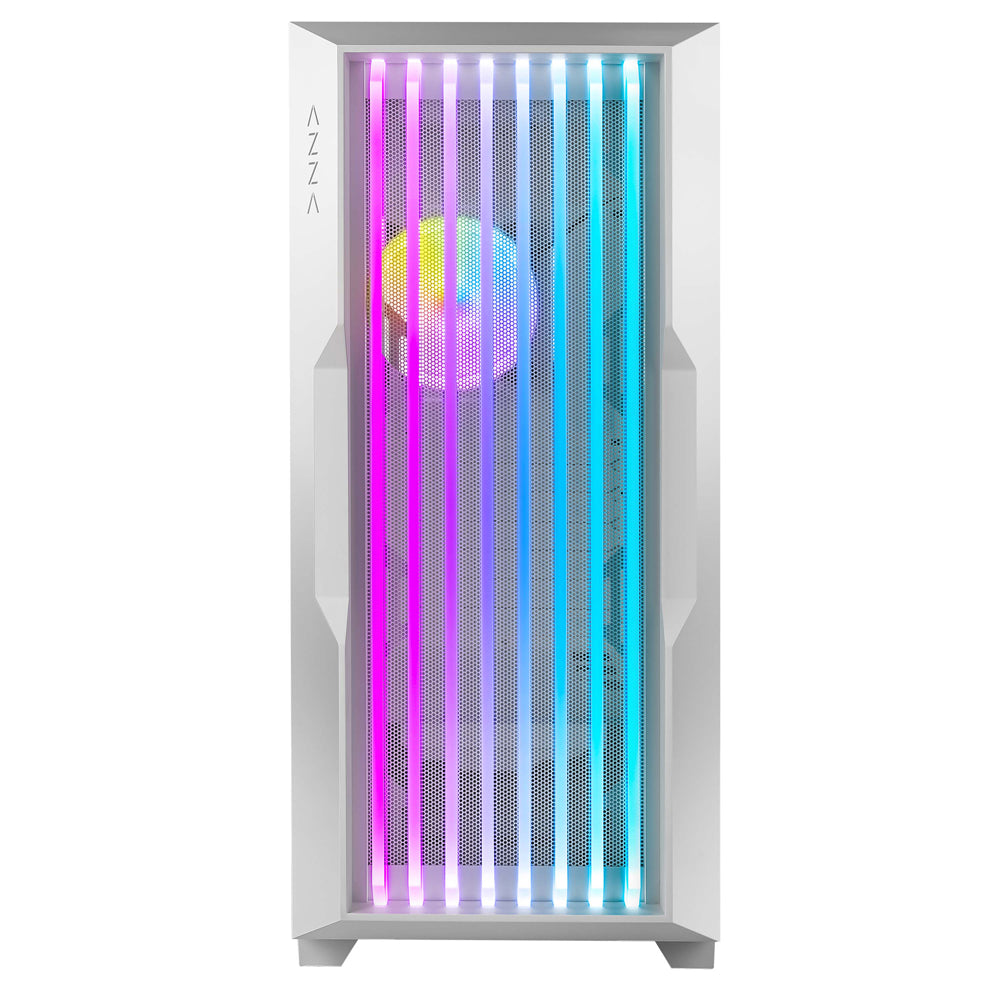

Premiunm Look

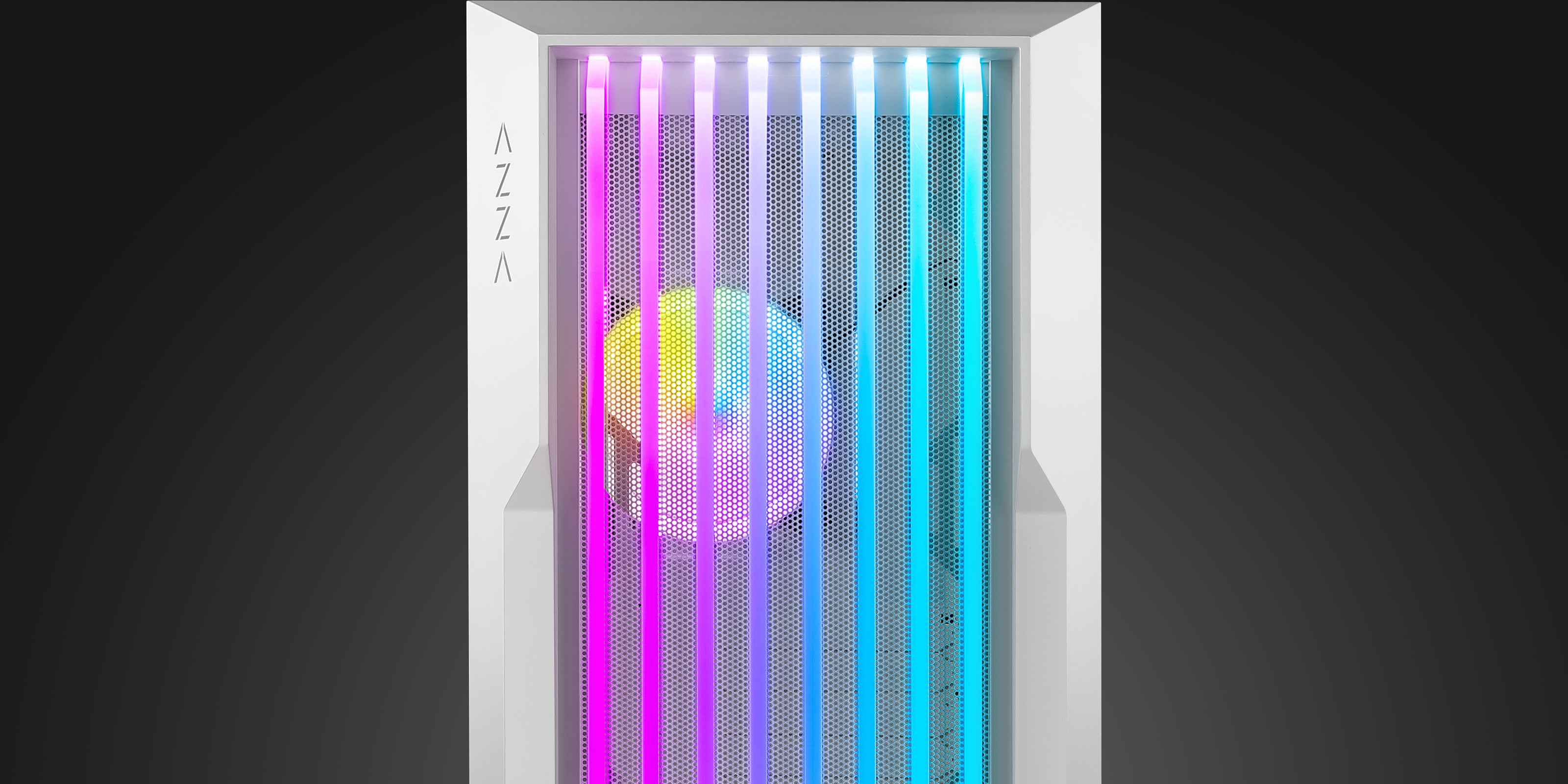

With its stunning transparent glass grill,this case delivers breathtaking ARGB effects.Not only that,the grill is engineered for optimal airflow and cooling performance

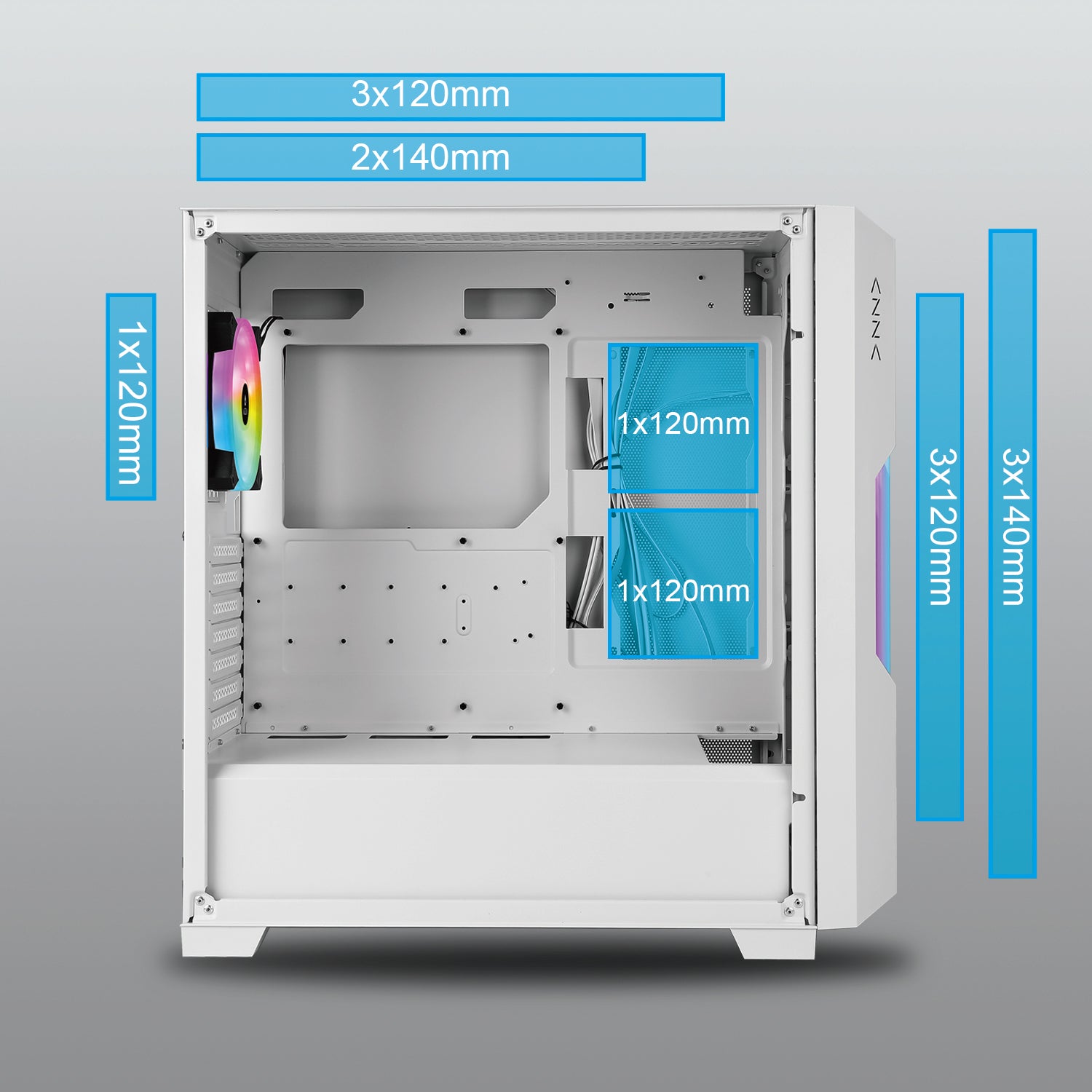

Impressive Airflow Support

The GUARDIAN GLASS can accommodate impressive total of 9 x 120mm fans. 2x120mm fan ports on the mb side,3 morein both the front and top,and 1 x 120mm pre-installed in the back.

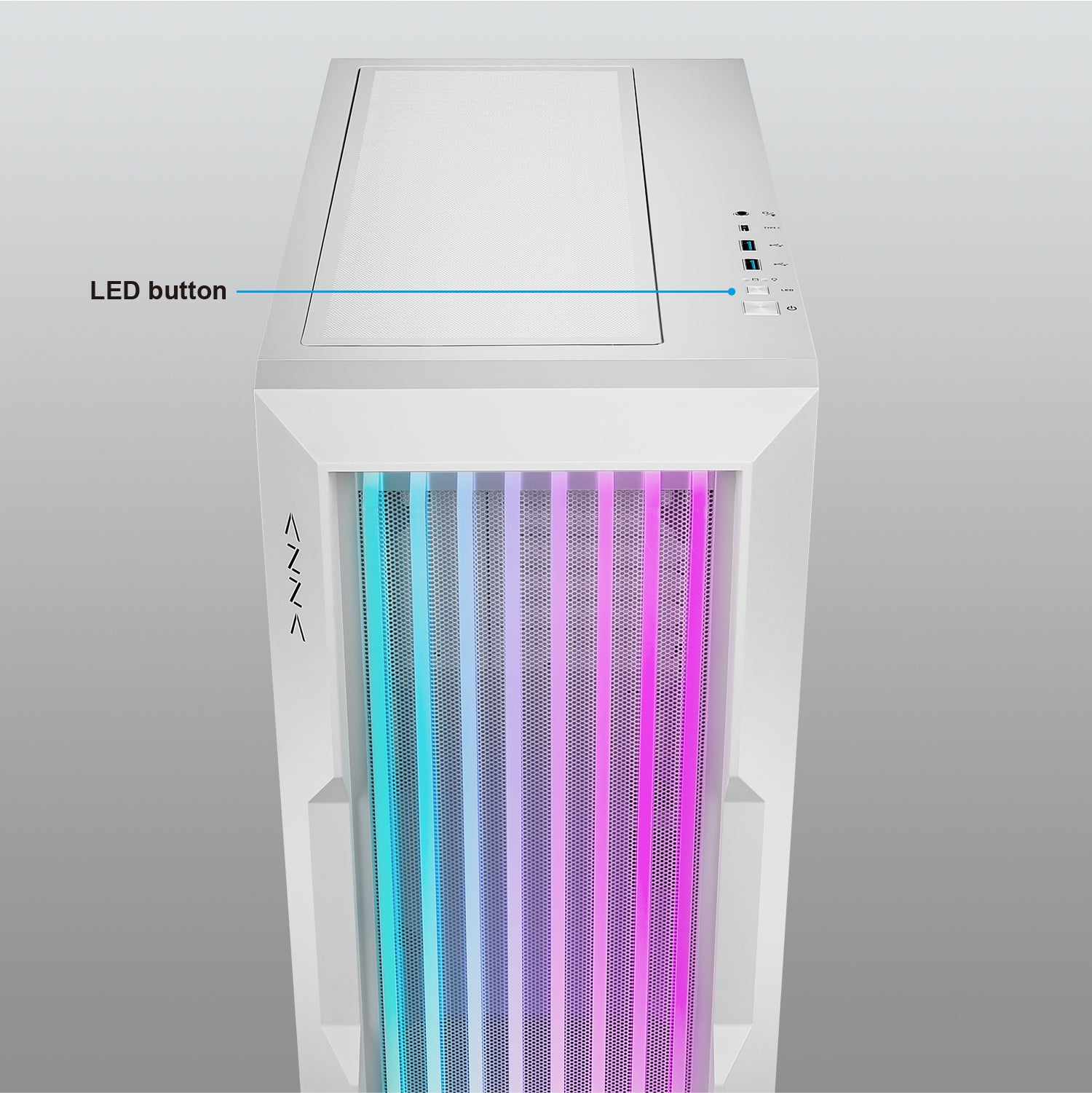

Customize Your Styles

Contrallable fan lighting via the top panel LED button offers different lighting modes.

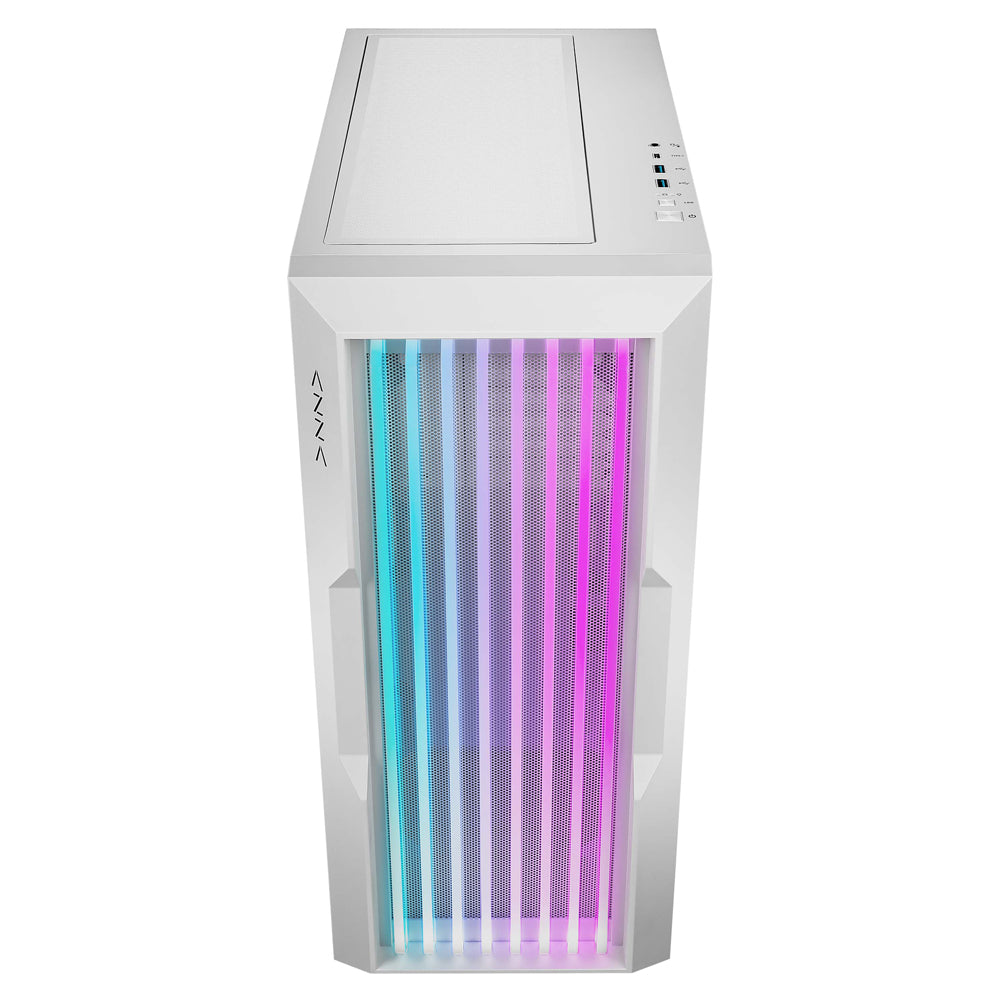

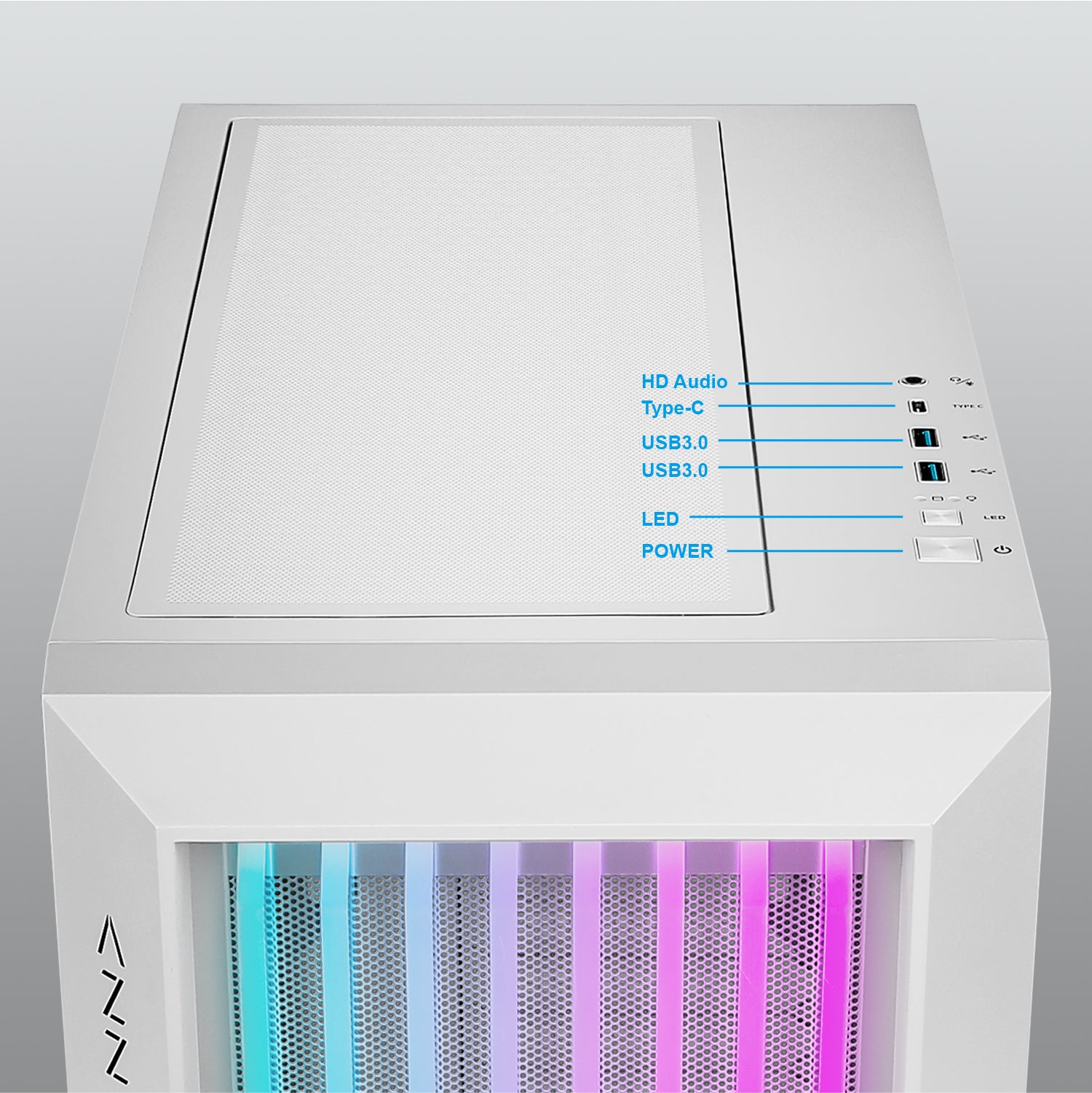

Intuitive I/O

The sentinel presents a simple top I/O which includes:

  • Power button
  • LED button
  • 2x USB 3.0 port
  • 1 x Type-C
  • HD Audio

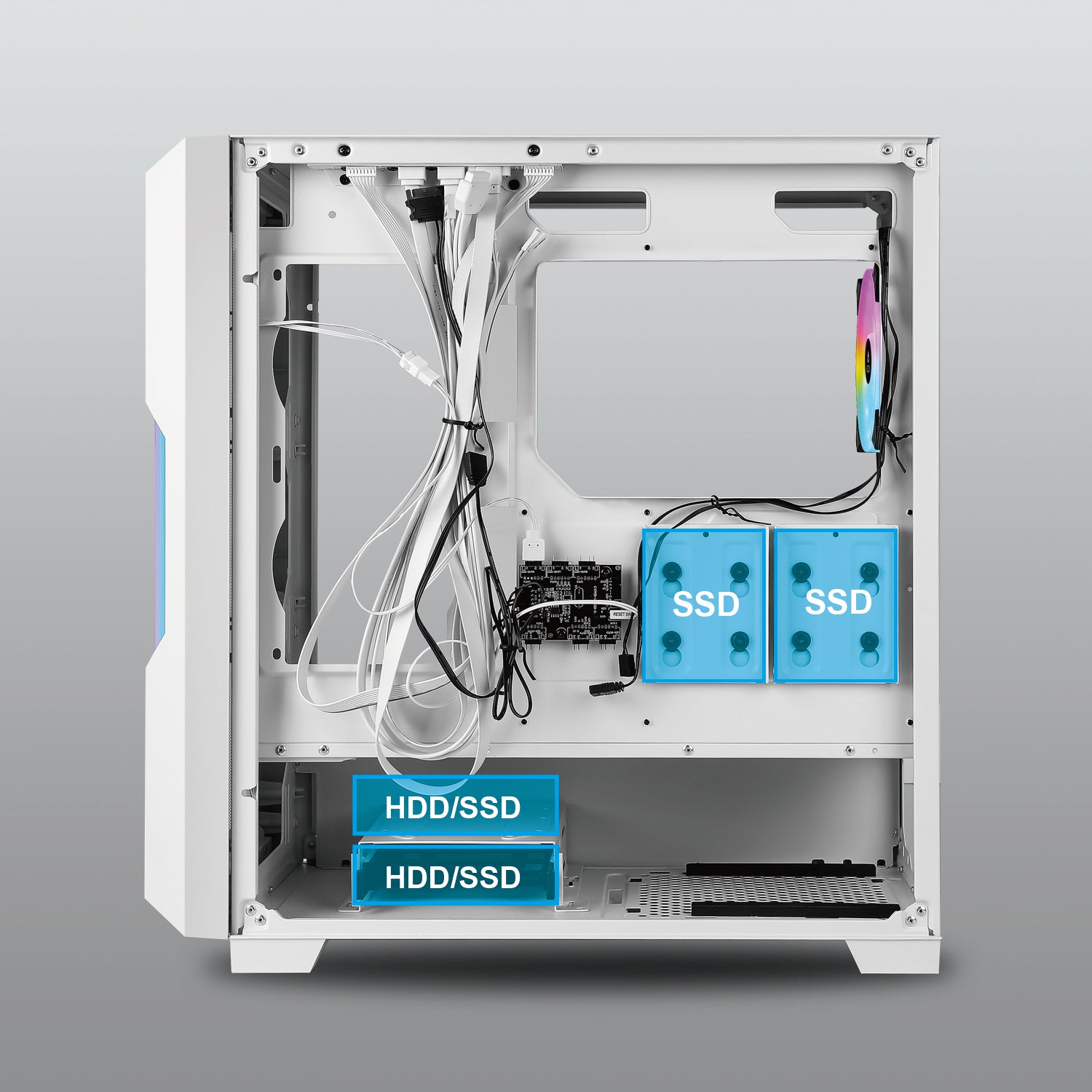

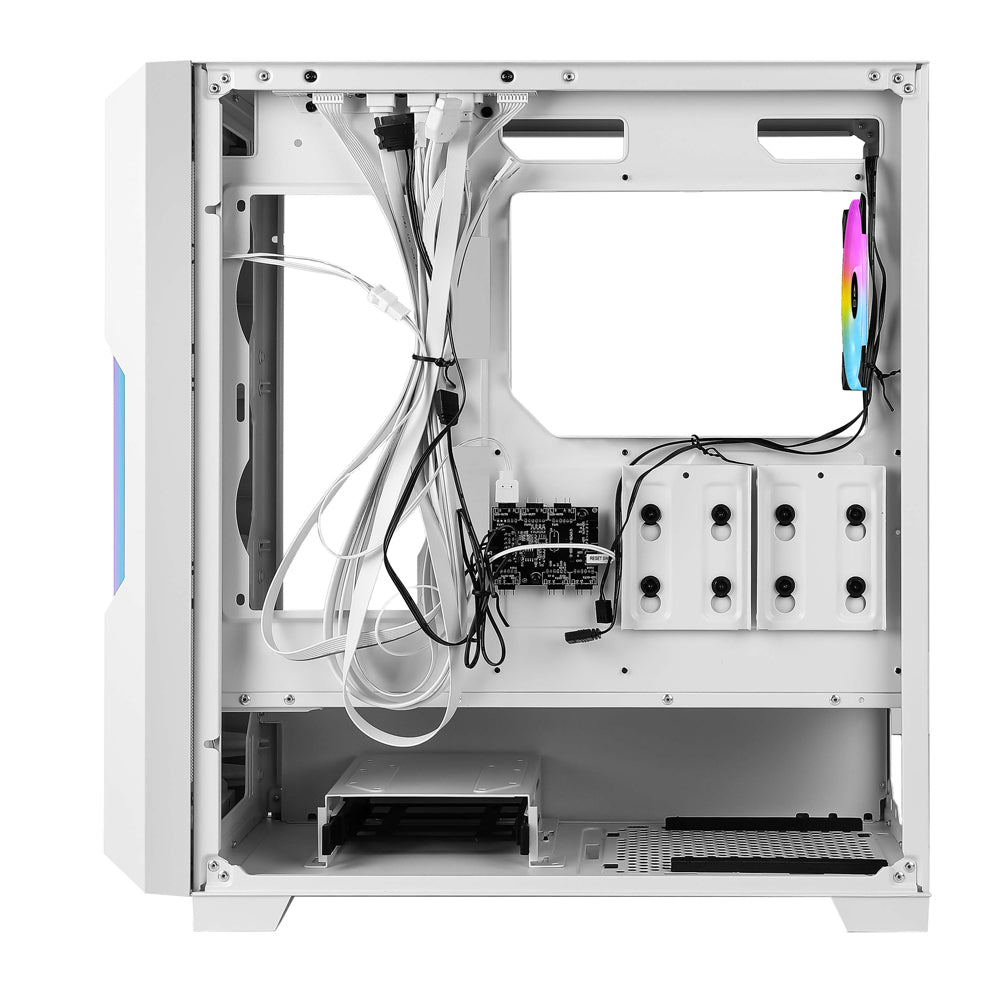

Flexible Storage Options

Drive cage tray supports 1x 2.5” SSD or 1x 3.5" HDD
Top of drive cage support 1x 2.5” SSD or 1x 3.5" HDD
Right side panel support 2x 2.5” SSDs

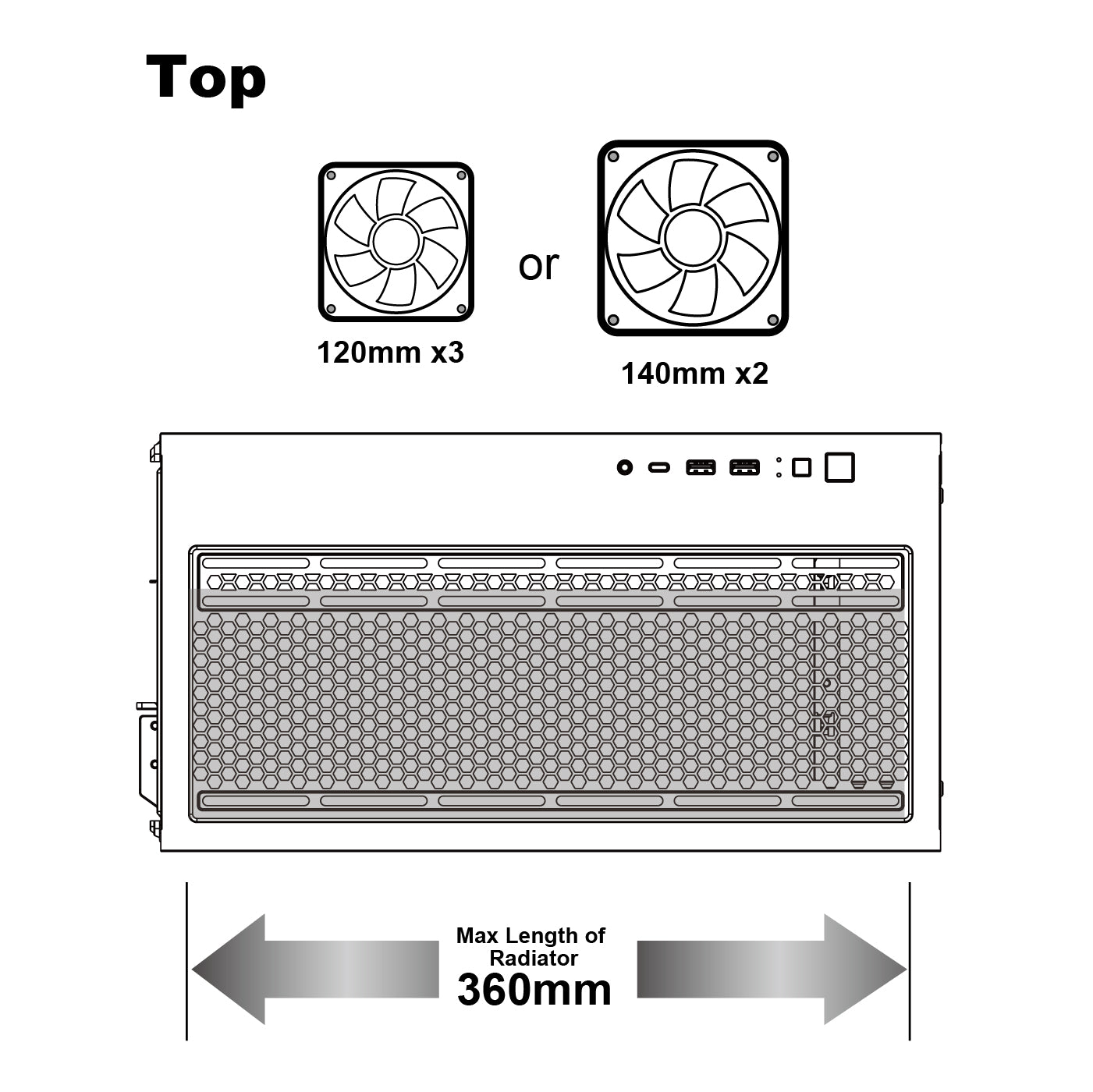

Top Cooling Support

Fans: Up t3x120mm or 3x140mm
Radiator: Up to 360mm

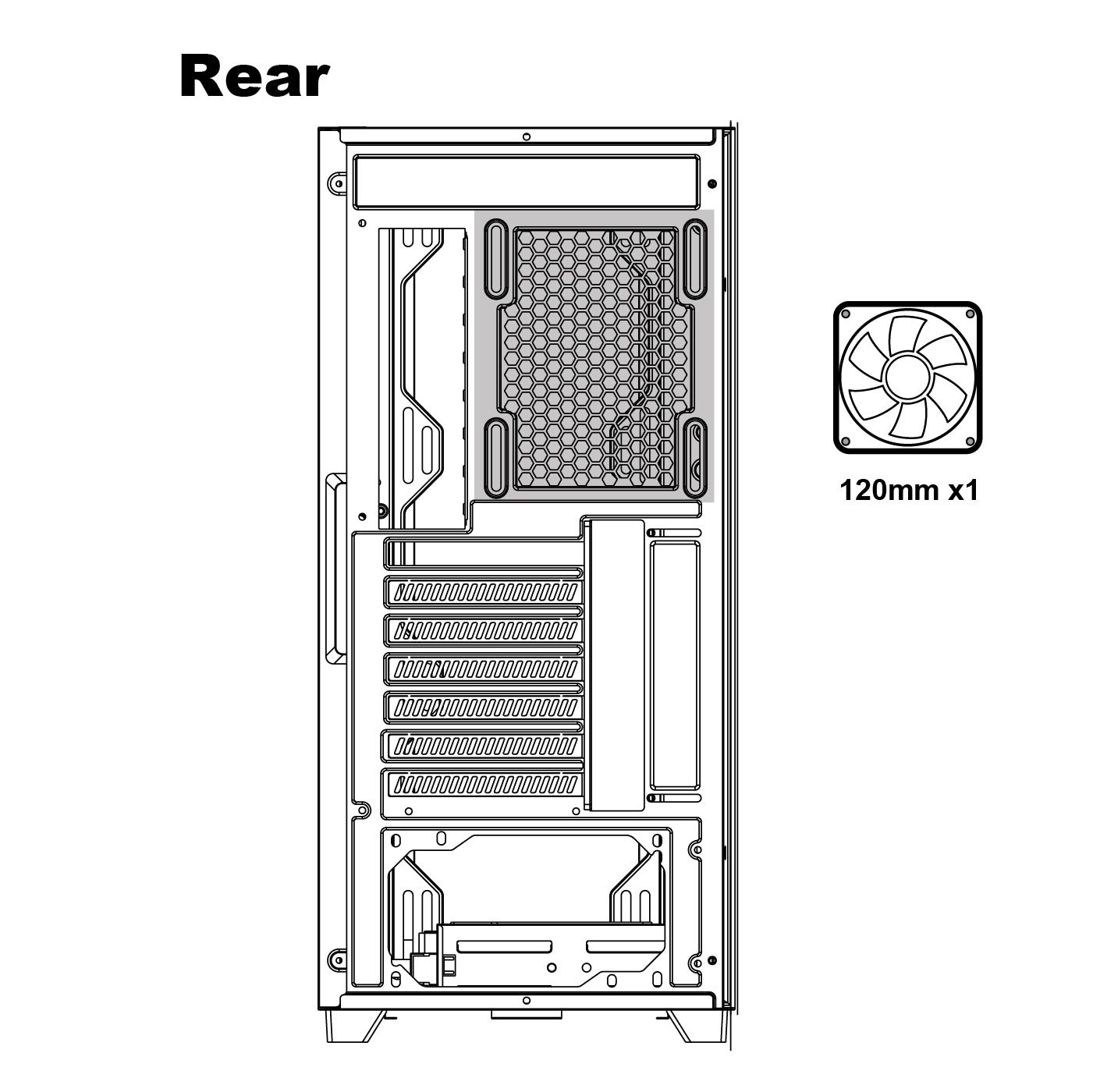

Rear Cooling Support

Fans: 1 x 120mm

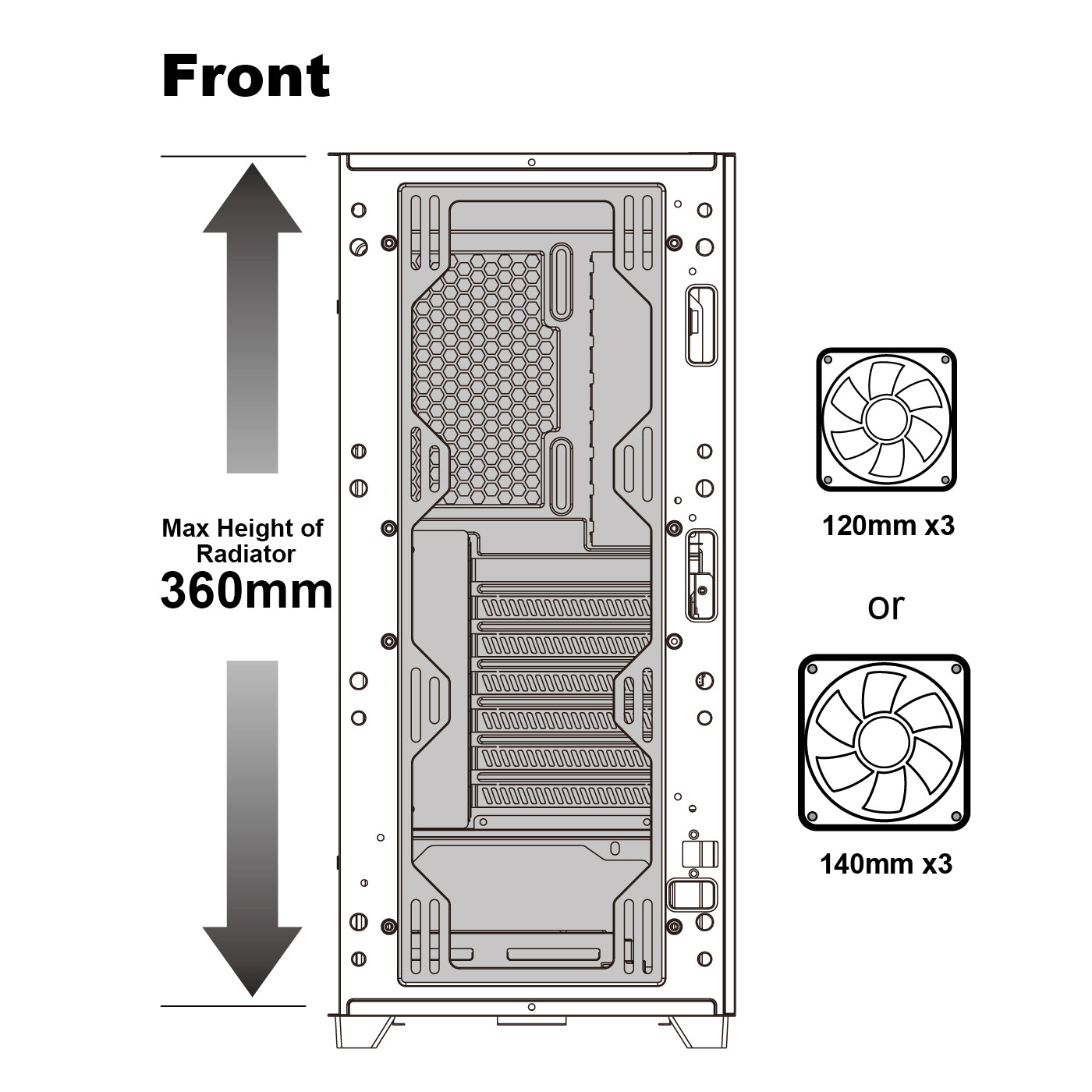

Front Cooling Support

Fans: Up to 3 x 120mm or 3 x 140mm
Radiator: Up to 360mm

SPECIFICATIONS

CSAZ-520WG

Download Manual
Type

ATX Mid Tower

Color

White/White(interior)

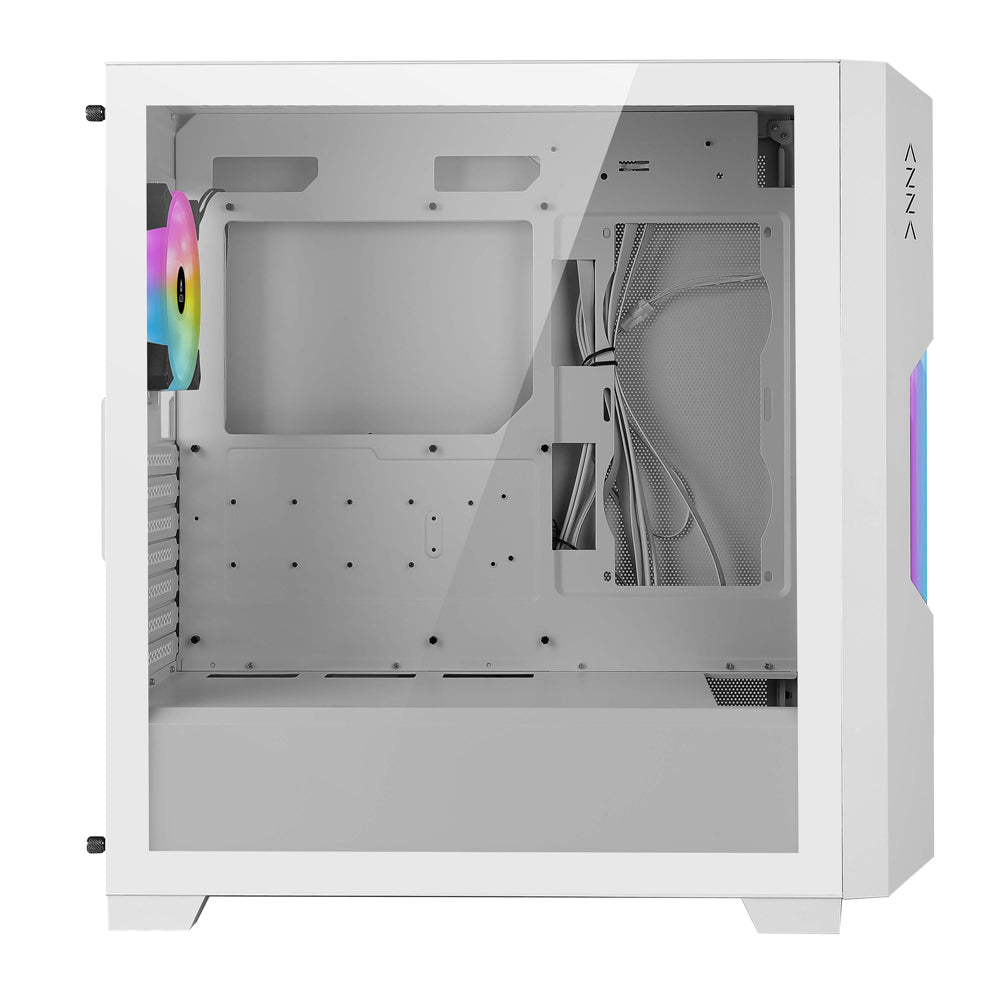

Side Panels

Left side panel: Slidable tempered glass panel

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 400 mm

Motherboard Compatibility

E-ATX<300、ATX、Micro ATX、ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion Slots

7

Top I/O Ports

Power button
LED button
HD Audio
USB 3.0 x 2
Type C

Case Dimension (H x W x D)

486 mm x 220 mm x 466 mm

Weight

8.1Kg /17.9lbs

Addressable RGB Light Effects

Addressable RGB light fan in the rear. All Addressable RGB light sync. devices connected to the 6 ports ARGB hub , allowing the LED button to directly control the ARGB lighting

Available Fan Ports

3x120mm or 3x140mm fan ports in the front
3x120mm or 2x140mm fan ports on the top
2x120mm fan ports on the mb side
1x120mm fan port in the rear

Included Fan

1x120mm addressable ARGB fan port in the rear

Water Cooling

Supports radiators up to 280/360mm in the Front
Supports radiators up to 280/360mm in the Top

Power Supply Support

Bottom mounted ATX power supply
