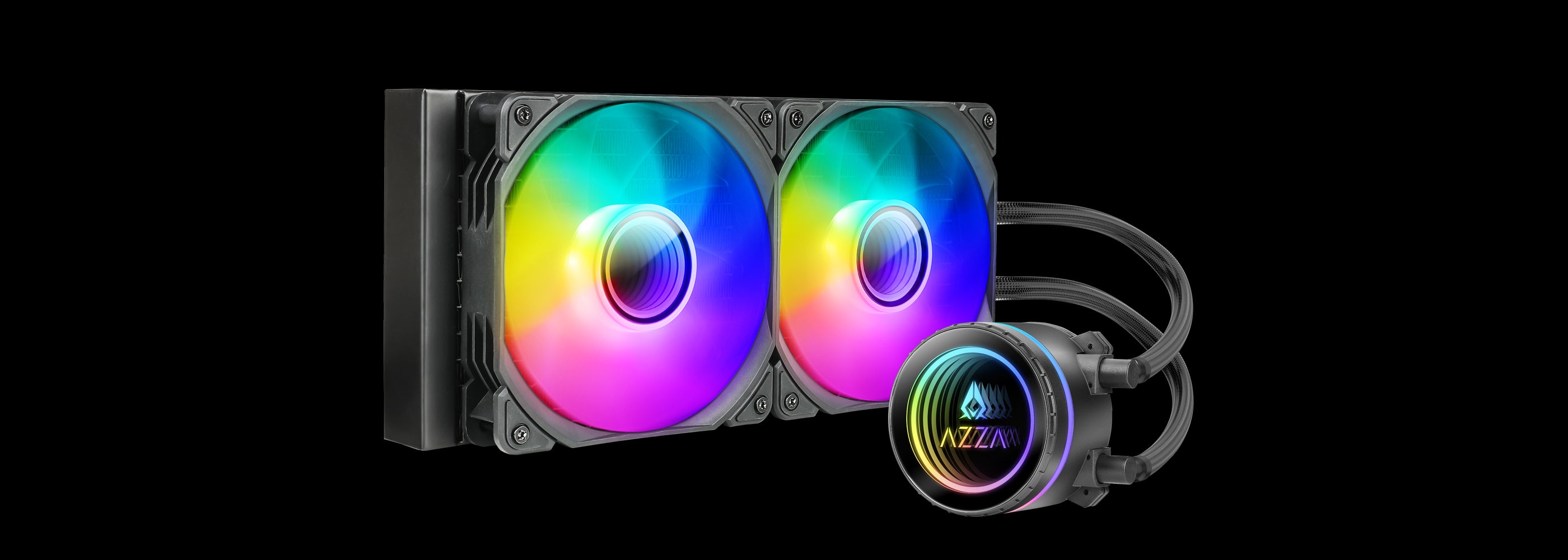

Galeforce 240 V.2


240 mm All-in-One Liquid Cooler

EXPERIENCE INTRICATE INFINITY MIRRORS - Featuring an addressable RGB system that includes a refined infinity mirror pump cover with fan shafts & a thinly-stenciled logo design.

ELEVATE ANY SETUP WITH SYNCHRONIZED COLORS - Easily control the colors of both the pump and fans by using your motherboard's software or customize them using the included ARGB controller.

ENJOY SIMPLICITY, STYLE & SILENCE - The GALEFORCE 240 is designed for easy and safe installation, providing balanced performance and operational efficiency. With fan speeds up to 1800 RPM while delivering airflow levels of 75.5 CFM, the pump operates at low noise levels of ≤ 36.5 db(A), keeping your system cool and quiet.

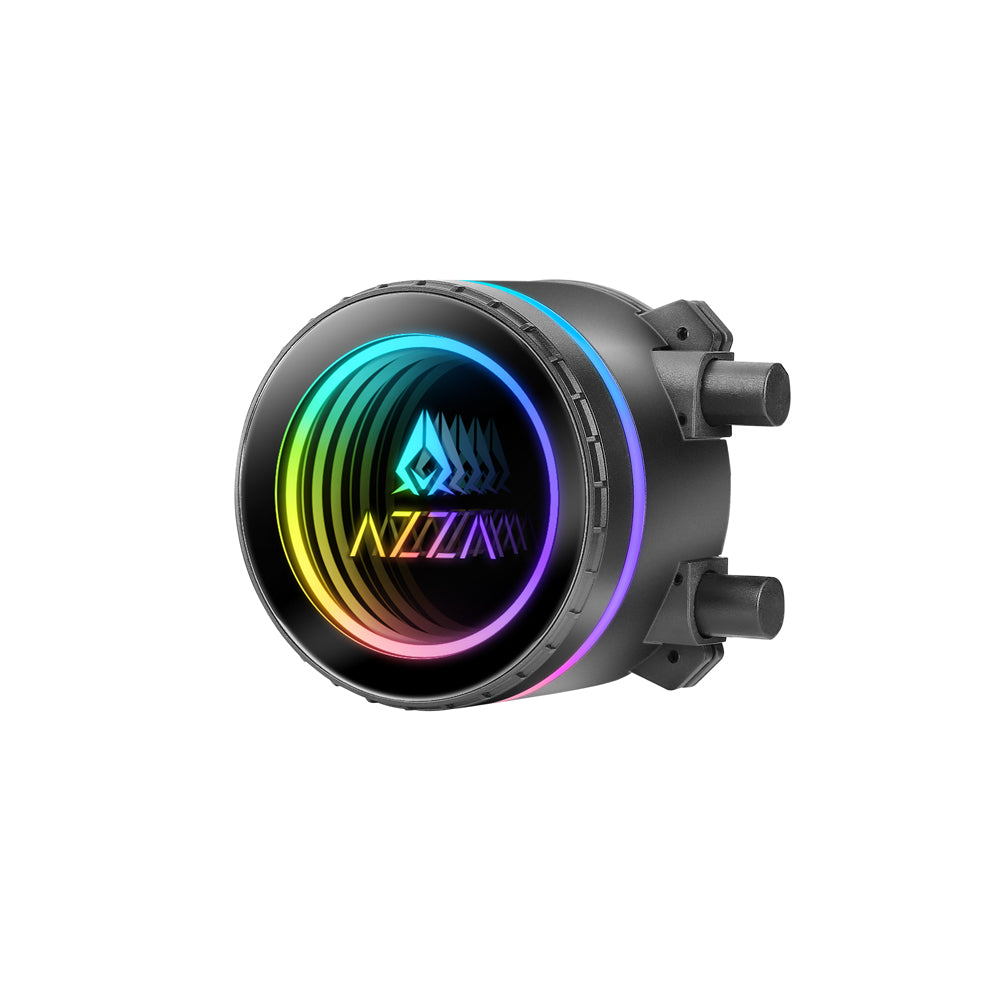

Infinity Mirror Design

SPECIFICATIONS

LCAZ-240C-ARGB

Download Manual
Pump Speed

2600 RPM

Water Pressure

1.8 m

Flow Rate

1.5 L/min

Lifespan

40,000 Hrs

Sound Level

36.5 dB(A)

Pump Control

No

Dimensions (H x W x D)

70 mm x 81.5 mm x 52.9 mm

Connectors

3 pin(DC12V) + ARGB Connector

Material

Aluminum

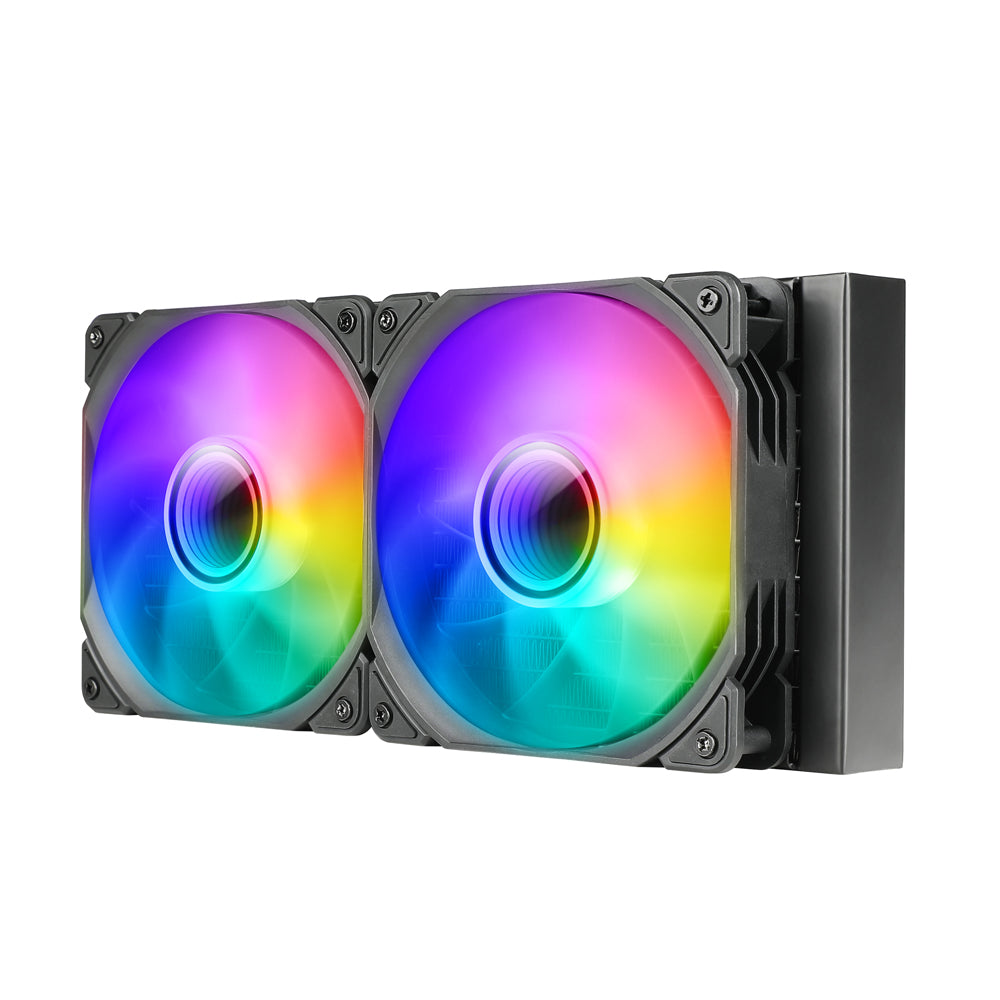

Dimensions (H x W x D)

397 mm x 120 mm x 27 mm

Type

PWM (4 pin) ARGB LED fan

Speed

800 - 1800 RPM ± 10%

Bearing Type

Hydraulic bearing

Max Airflow

75.5 CFM

Max Static Pressure

2.35 mm-H2O

Sound Level

29.5 dB(A)

Fan PWM Control

Yes

Connectors

5V,3pin ARGB Male & Female Header

Dimensions

120 x 120 x 25 mm

Intel Sockets

LGA 2066 / 2011-V3 / LGA2011 / LGA1366 / LGA1200
LGA1156 / 1155 / 1151 / 1150 / 1700 / 1851

AMD Sockets

AM5 / AM4 / AM3+ / AM3 / AM2+
AM2 / FM2+ / FM2 / FM1
