FIGHTER


It presents how vigor and elegance are combined. The Fighter shows a concept of middle way, a vibrancy of emotions and the deep enthusiasm of life. With breathable mesh covers in the front allows unrestricted airflow.

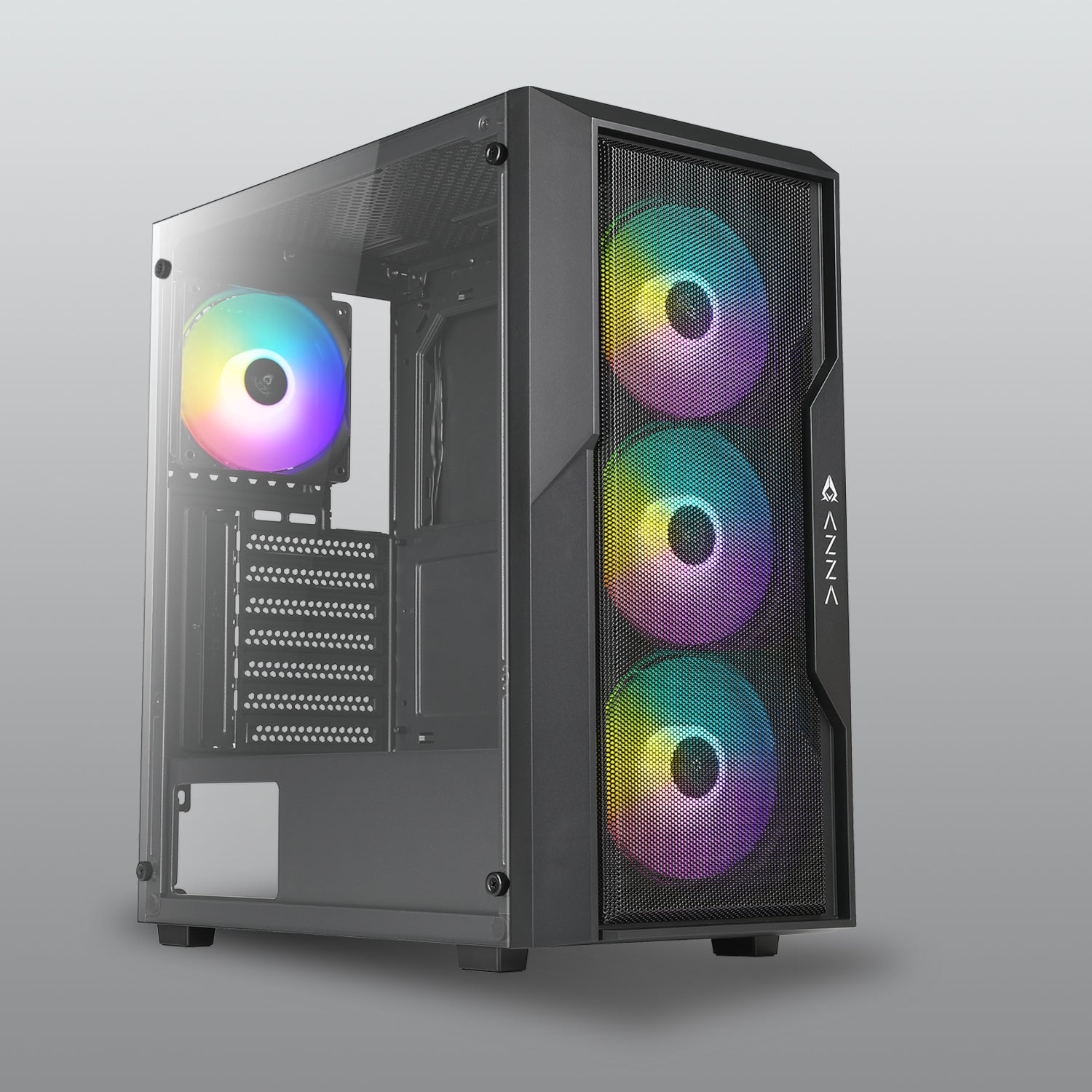

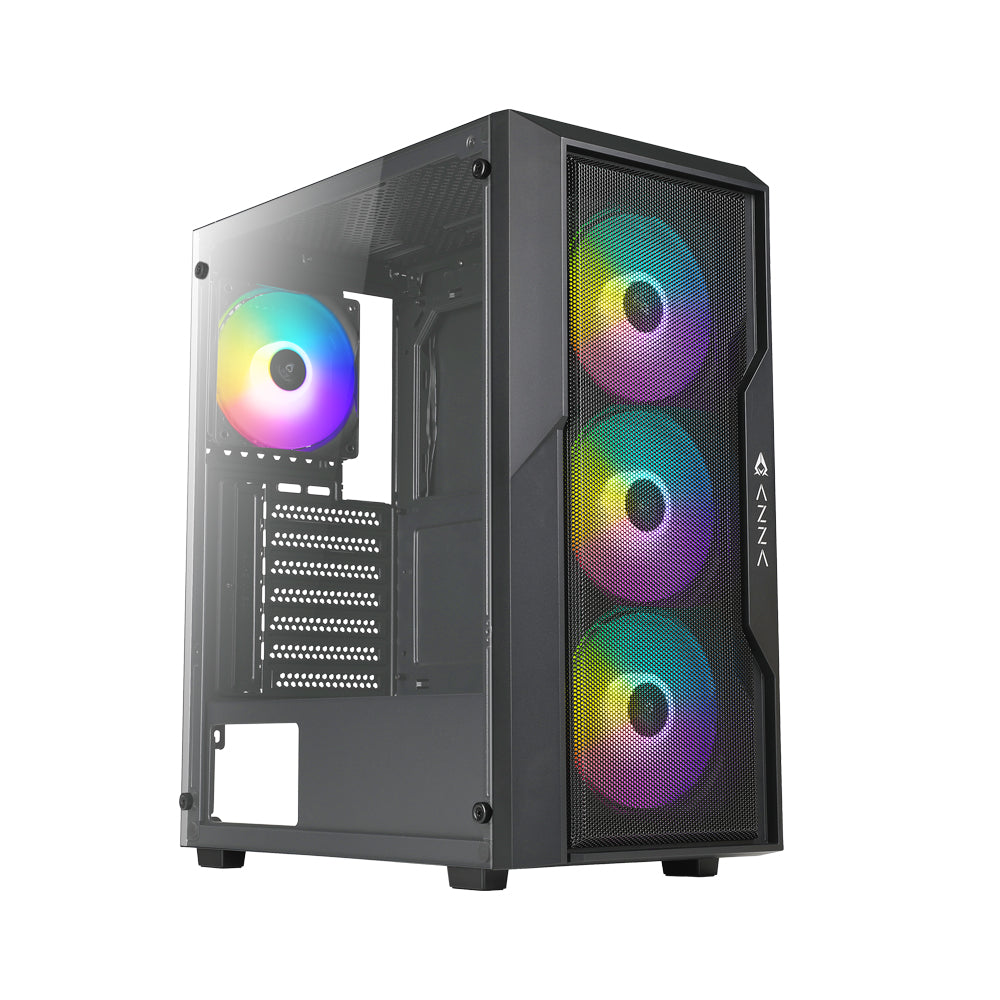

FIGHTER

ATX Mid-Tower

Premium Look

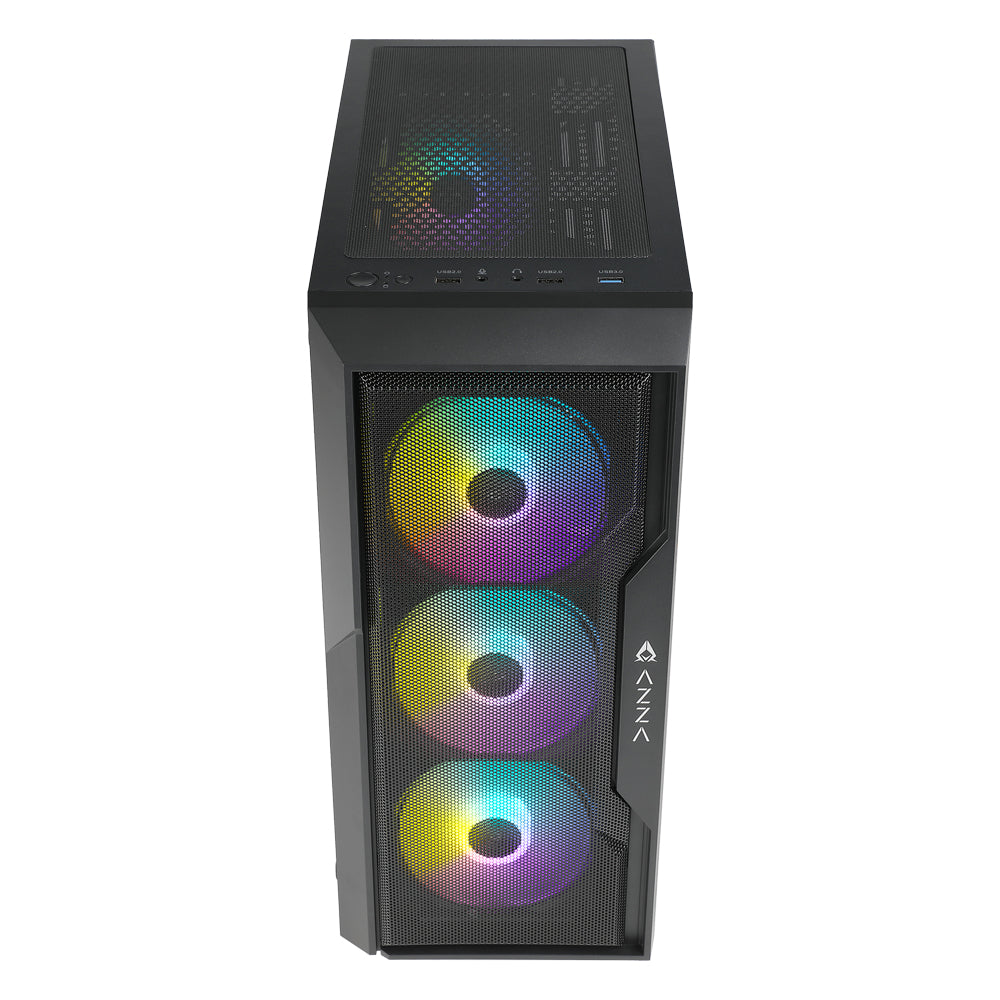

The Fighter includes three in one ARGB front fans, and 1 x 120 mm ARG rear fan, which makes the installation easier. The light mesh panel in the front ensures great airflow all around.

Impressive Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120 mm fans above the PSU shroud, bringing the total fan support up to 8 x 120 mm fans!

Customize Your Styles

Controllable fan lighting via the top panel LED button offers different lighting modes.

Intuitive I/O

The Fighter presents a clean front I/O which includes:

  • Power button
  • LED button
  • 2 x USB 2.0 ports
  • HD-Audio
  • 1 x USB 3.0 ports

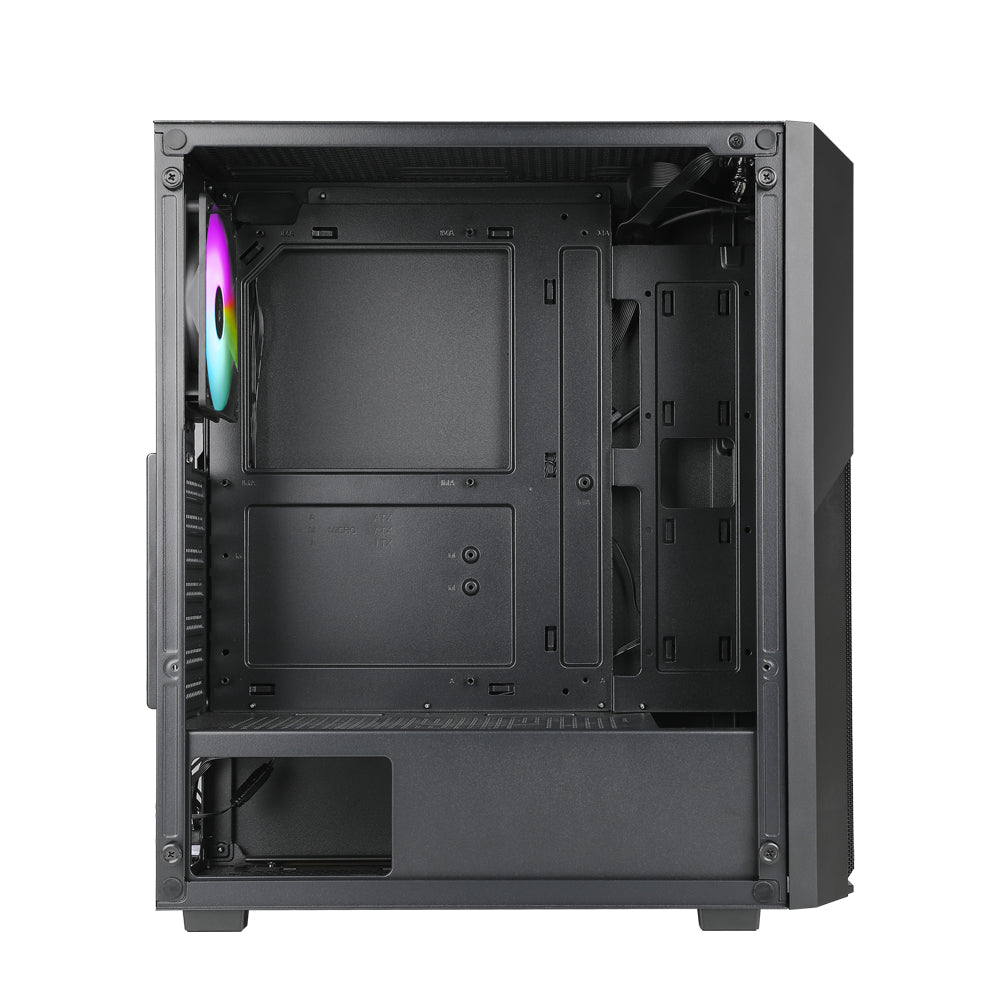

Flexible Storage Options

Drive cage tray supports 1 x 2.5" SSD or 1 x 3.5" HDD
Top of drive cage supports 1 x 3.5" HDD

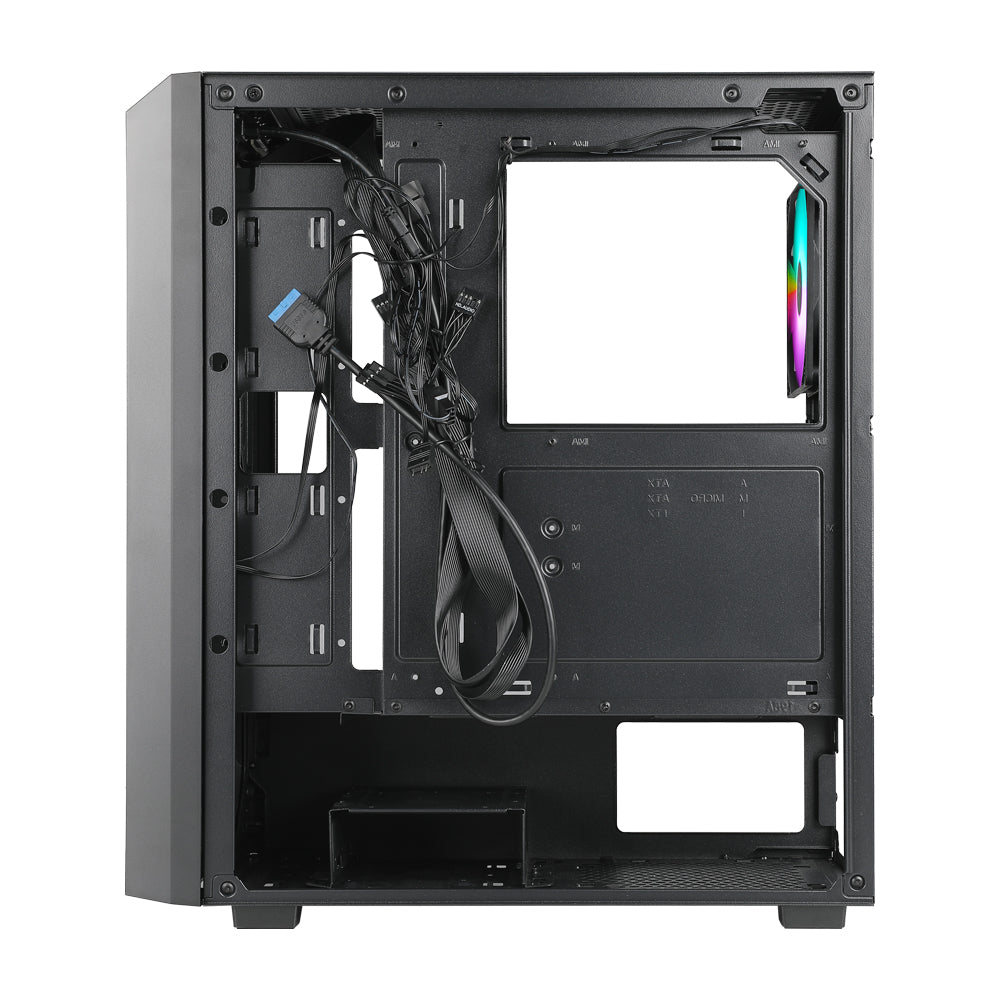

Right side panel support 2 x 2.5" SSDs

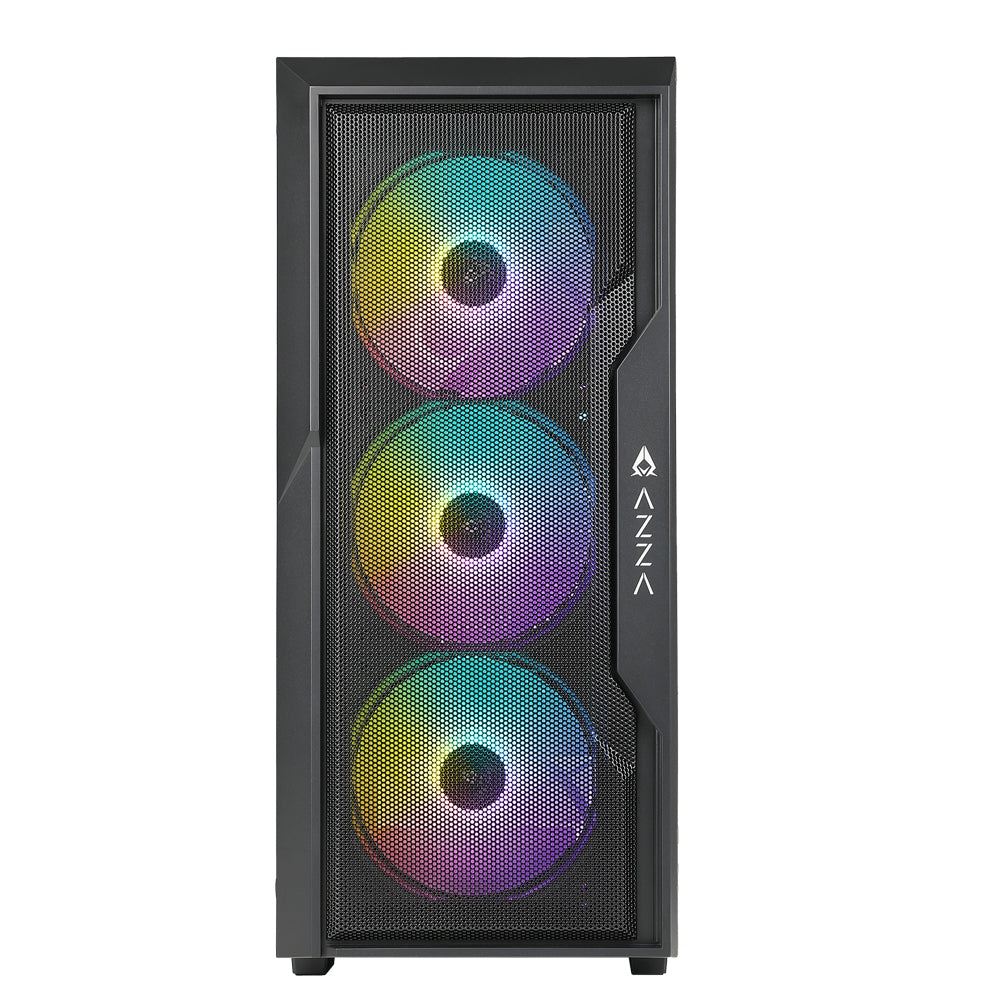

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

Top Cooling Support

Fans: Up to 2 x 120 mm or 2 x140 mm

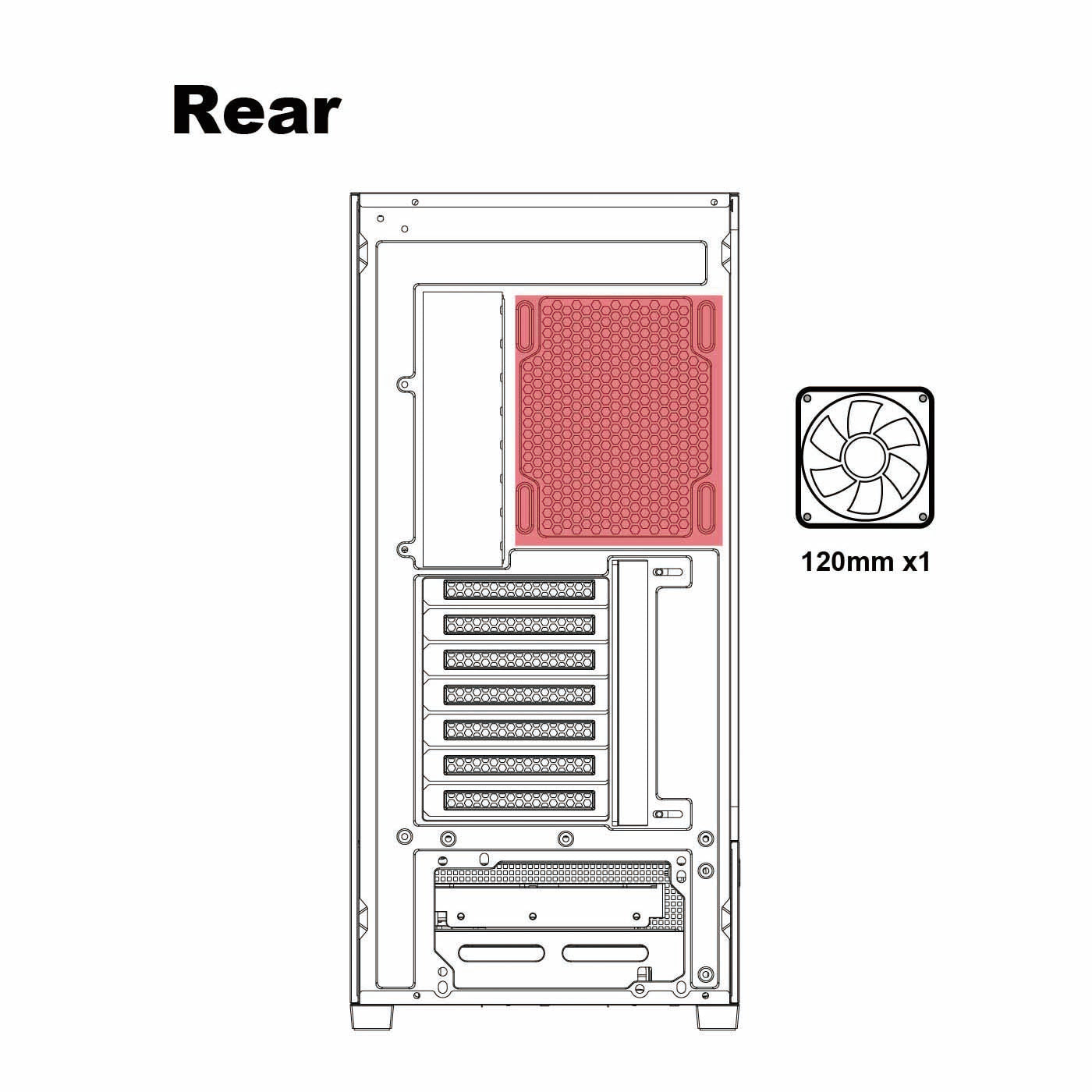

Rear Cooling Support

Fan: 1 x 120 mm

SPECIFICATIONS

CSAZ-290

Download Manual
Type

ATX Mid Tower

Color

Black

Side Panels

Left side panel: Tempered glass with rubber mounts

Max CPU Cooler Height

Up to 155 mm

Max Video Card Length

Up to 320 mm

Motherboard Compatibility

ATX、Micro ATX、ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 3

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

Top Ports

Power button, LED button, HD Audio, USB 2.0 x2,USB 3.0 x1

Case Dimension (H x W x D)

450x195x390mm/17.7x7.7x15.4 inches

Weight

4.6Kg /10.1lbs

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.All addressable RGB devices can sync with themotherboard, allowing the motherboard softwareto control lighting directly.

Available Fan Ports

3x120mm fan ports in the front

2x120mm or 2x140mm fan ports on the top

1x120mm fan port in the rear

2 x 120 mm fan ports on the PSU shroud

Included Fans

3x120mm LFO-5312D One-piece ARGB Fan in the front

1x120mm LFO-5312D ARGB Fan in the rear

Water Cooling

Supports radiators up to 360mm in the Front

Dust Filters

Removable (magnetic) dustproof net on the top , dust filter on bottom of chassis

Power Supply Support

Bottom mounted ATX Power Supply
