ELISE M


The ELISE M is a highly customizable Micro-ATX enclosure. With its unique front panel pegboard design and interchangeable colors on the dust mesh, freely attach the included board hooks to showcase personal items or hang your headphones. Seated behind the panel, the ELISE M is packed with 3 x 120 mm ARGB fans to further accentuate this distinctive case.



Elise M

Micro-ATX Case

Creative Panel Design

The front panel features a unique pegboard hole design that allows for a high airflow intake and an added layer of customizability. Includes two hook accessories to hang or display personal items and collectibles. All parts and pieces are easily removable for cleaning and maintenance.

Performance Ready

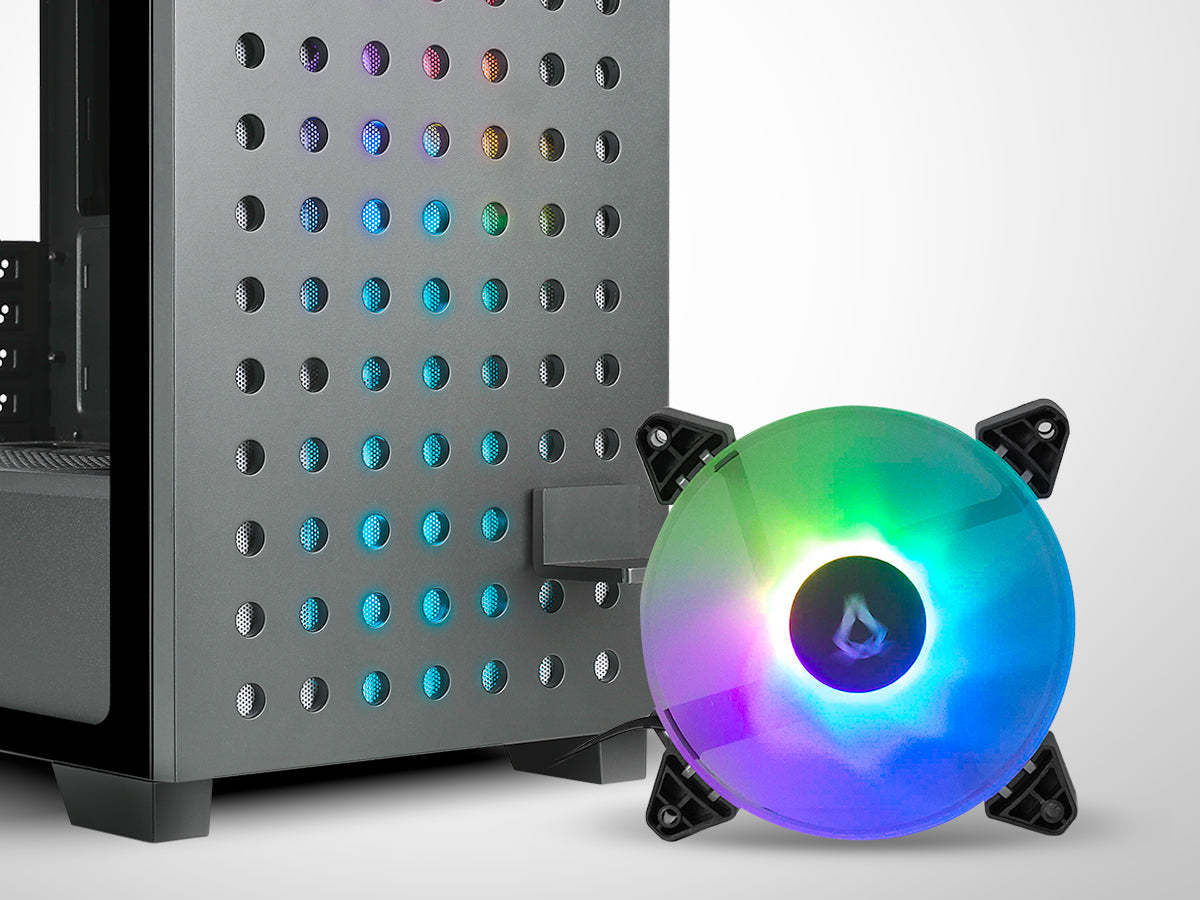

Behind the pegboard front panel, 3 x 120 mm ARGB fans come pre-installed for a great out-of-the-box visual and airflow experience.

Customizable, Dust-free Airflow

Removable filter under front mesh panel is reversible for color display options (White or pink). Another removable magnetic mesh filter on top gives access to airflow while keeping dust out.

Removable Component Attachments

Detachable hard disk bracket for easy installation of extended power supplies.

Motherboard & Power Supply

Motherboard Compatibility:
Micro-ATX 、Mini-ITX
Max Power Supply Length:
≤ 170 mm (with HDD)
≤ 260 mm (without HDD)

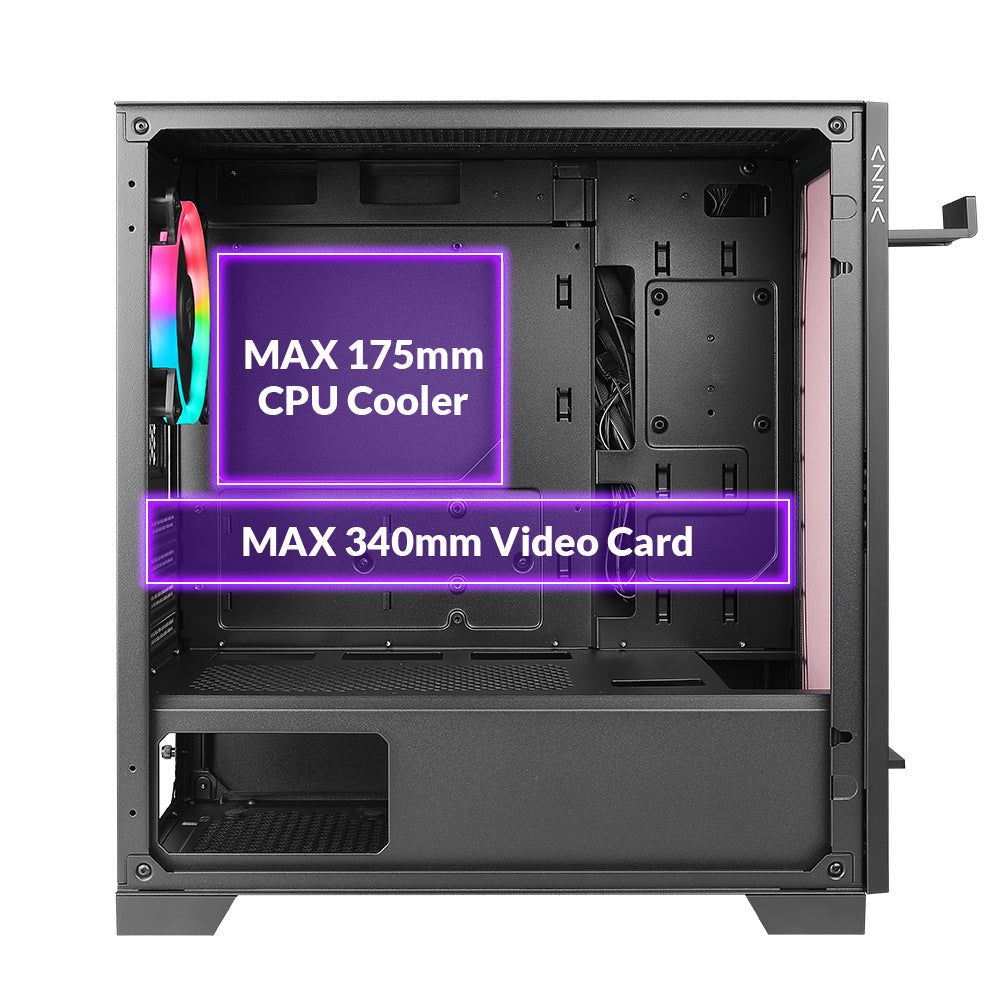

CPU Cooler & Video Card

Max CPU Cooler Height:
≤ 175 mm
Max Video Card Length:
≤ 340 mm

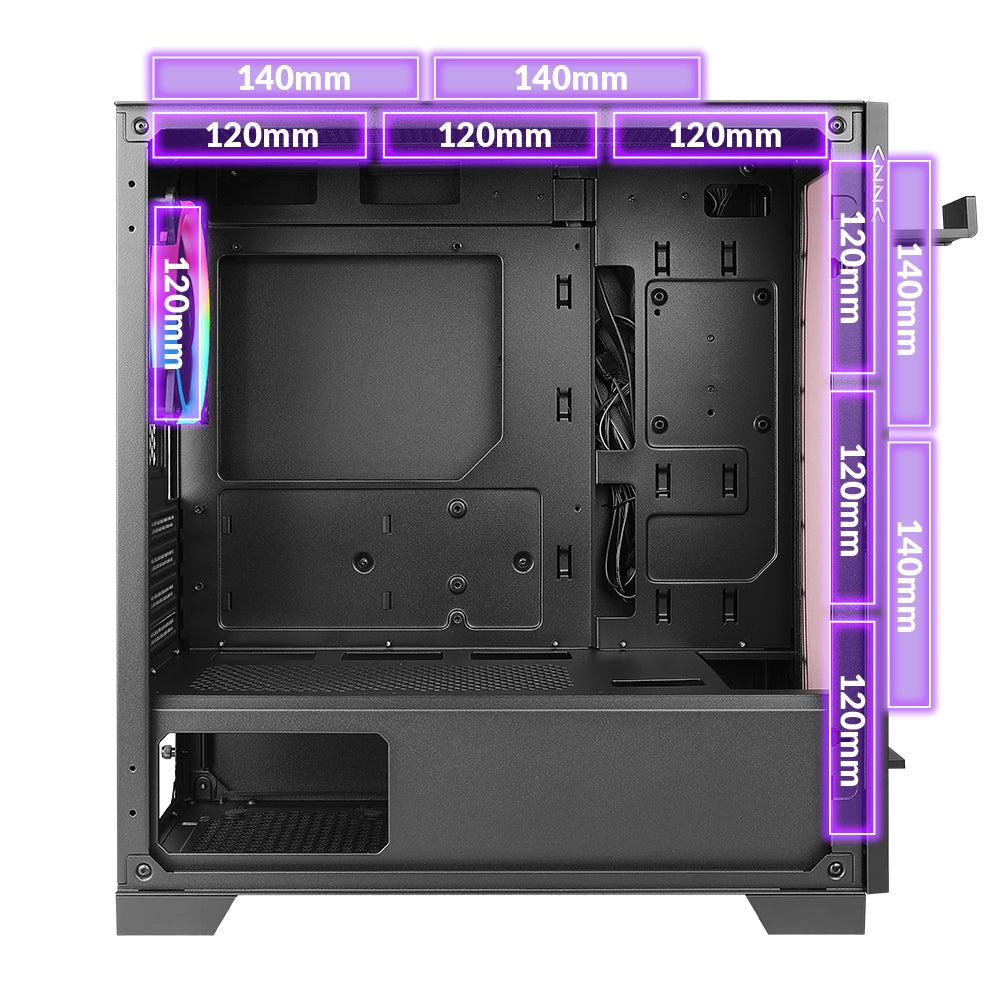

Diverse Cooling Solutions

Front:
Fan / 3 x 120mm / 2 x 140mm (3 x 120 mm Pre-installed)
Radiator / 240 mm / 280 mm
Top:
Fan / 3 x 120 mm / 2 x 140 mm
Radiator / 240 mm / 280 mm
Rear:
Fan / 1 x 120 mm (1 x 120mm Pre-installed)

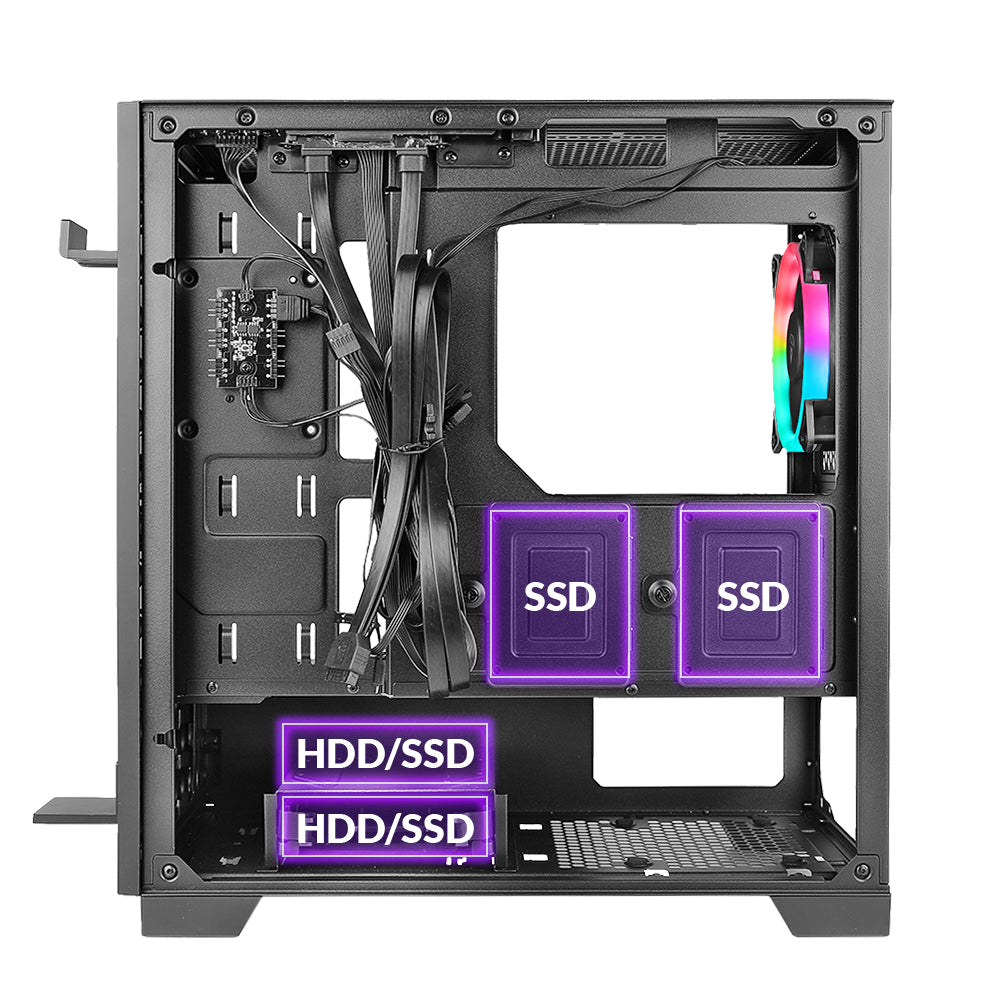

Flexible Storage Options

Drive cage tray supports 2 x 3.5" HDDs or 2 x 2.5" SSDs
Right side panel brackets 2 x 2.5" SSDs

SPECIFICATIONS

CSAZ-140M

Download Manual
Type

Micro-ATX Tower

Color

Black (exterior) / Black (interior)

Side Panels

Left : Sliding tempered glass
Right : Steel panel

Max CPU Cooler Height

Up to 175 mm

Max Video Card Length

Up to 340 mm

Motherboard Compatibility

Micro-ATX, ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion Slots

4

Top I/O Ports

Power button
LED button
HD audio
2 x USB 3.0

Case Dimension (H x W x D)

410 mm x 220 mm x 381 mm

Weight

5.1 kg / 11.3 lbs

Addressable RGB Lighting Effects

All ARGB light sync.
devices connected to the 5 pin ARGB control hub,
allowing the LED button to directly control the ARGB lighting or
switch to the motherboard sync.
software to control.

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in the front
3 x 120 mm or 2 x 140 mm fan ports on the top
1 x 120 mm fan port in the rear

Included Fans

3 x ARGB fan included in the front
1 x ARGB fan included in the rear

Water Cooling

Supports radiators up to 240 / 280 mm in the front
Supports radiators up to 240 / 280 mm on the top

Power Supply Support

Bottom mounted ATX power supply

Included Accessories

1 x Headphone holder
1 x Display stand
