The ELISE is a highly customizable Micro-ATX enclosure. With its unique front panel pegboard design and interchangeable colors on the dust mesh, freely attach the included board hooks to showcase personal items or hang your headphones. For this distinctive case, enjoy a level of personalization that is only limited by your imagination.
Amazon
Newegg

Elise

Micro-ATX Case

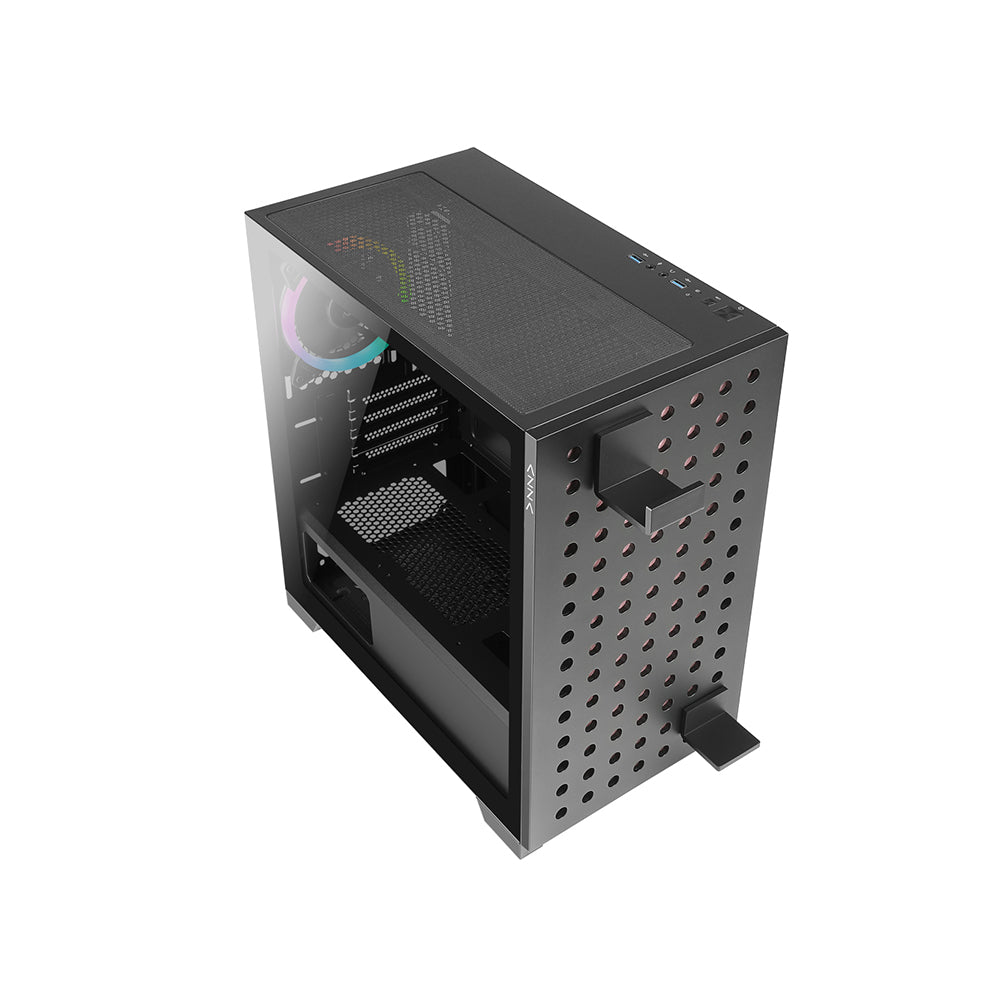

Creative Panel Design

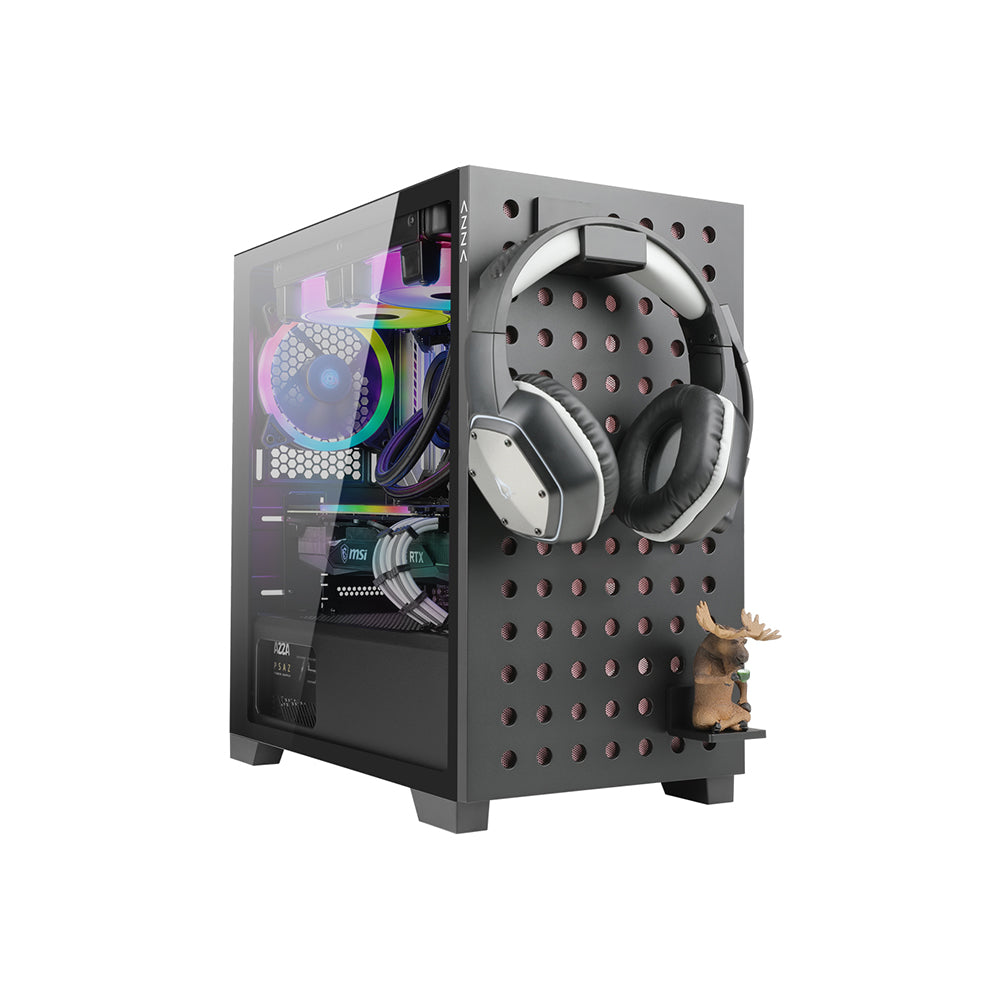

The front panel features a unique pegboard hole design that allows for a high airflow intake and an added layer of customizability. Includes two hook accessories to hang or display personal items and collectibles. All parts and pieces are easily removable for cleaning and maintenance.

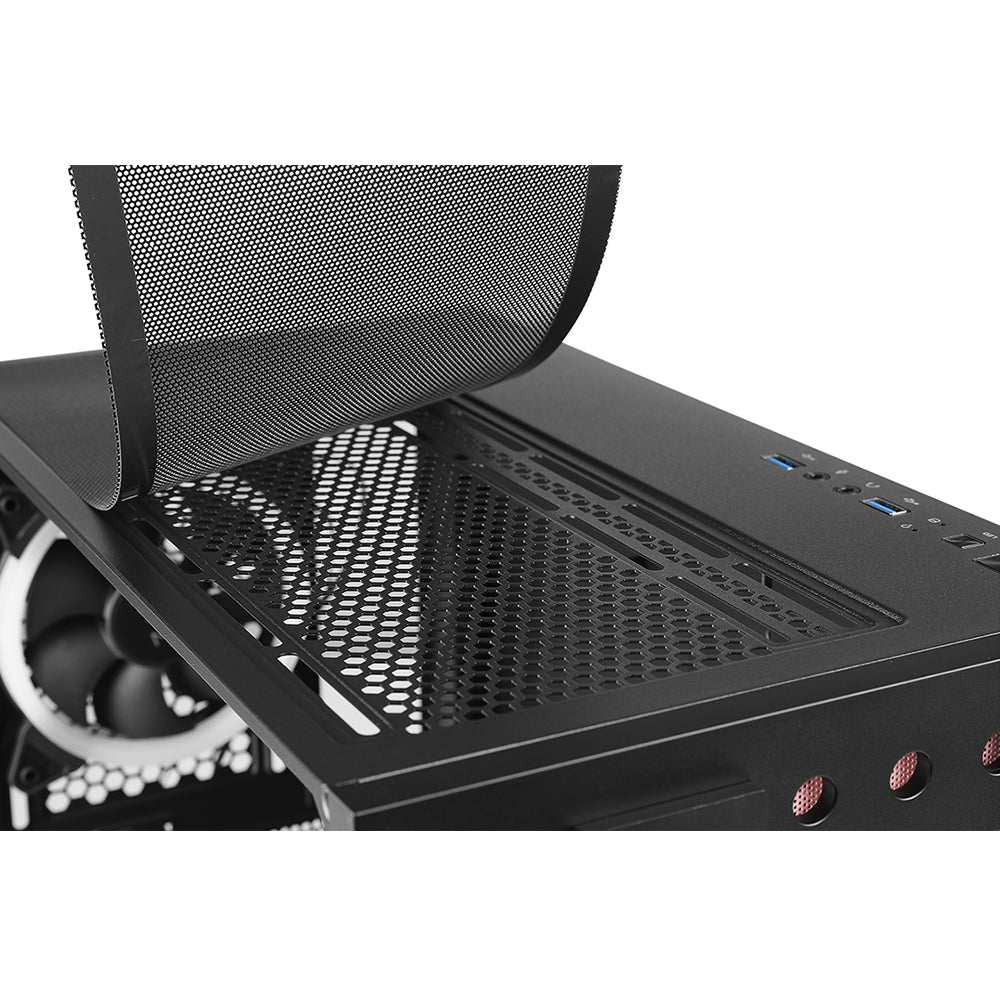

Customizable, Dust-Free Airflow

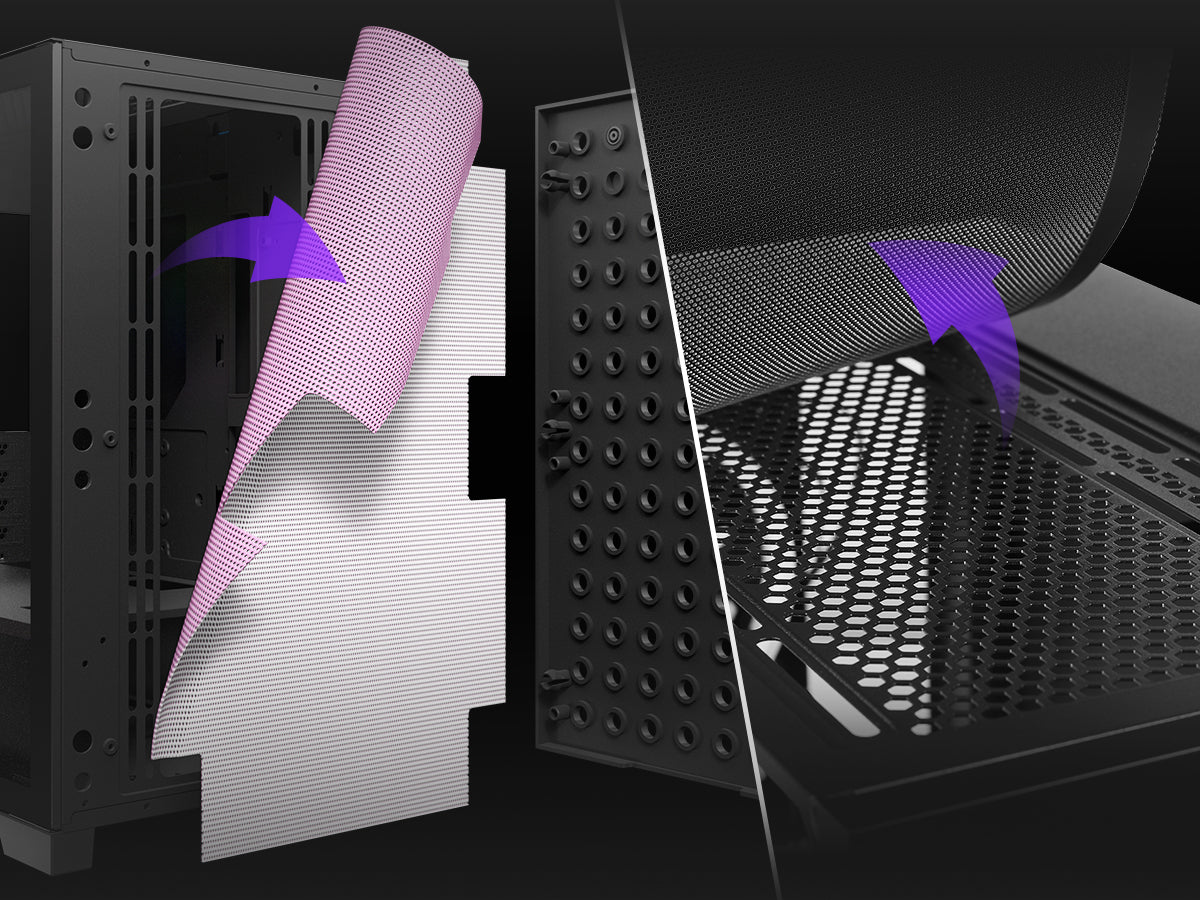

Removable filter under front mesh panel is reversible for color display options (White or pink). Another removable magnetic mesh filter on top gives access to airflow while keeping dust out.

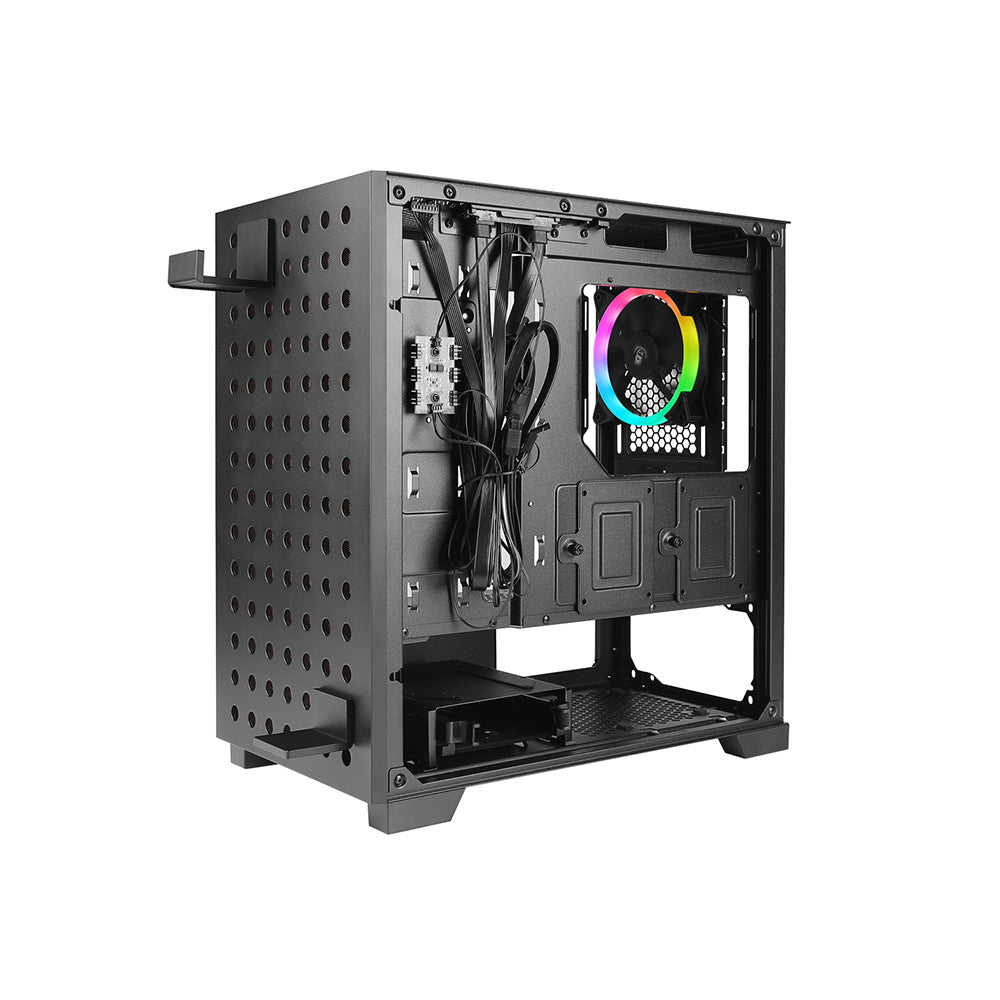

Removable Component Attachments

Detachable hard disk bracket for easy installation of extended power supplies.

Customize Your Style

Includes an RGB HUB for ARGB LED devices. Easily connect up to 6 x ARGB devices for synchronized lighting and change through the LED button or through motherboard software.

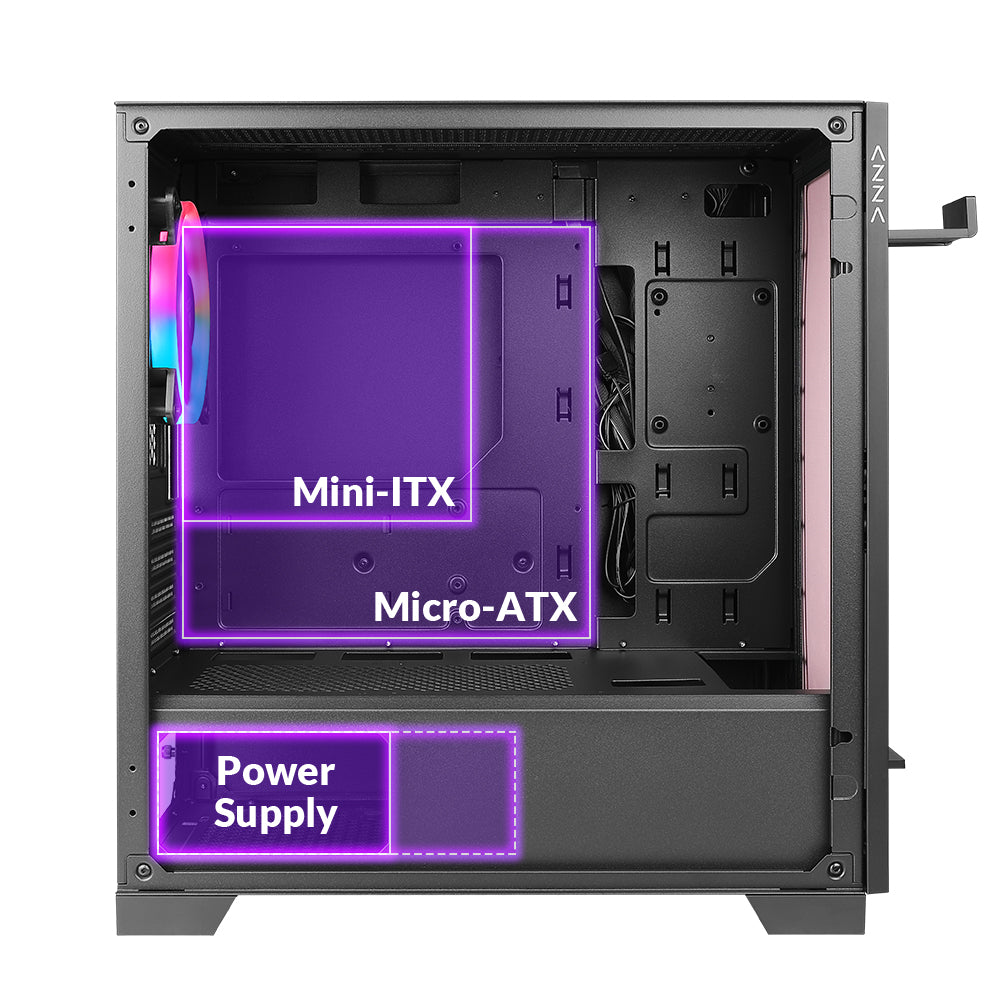

Motherboard & Power Supply

Motherboard Compatibility:
Micro-ATX 、Mini-ITX
Max Power Supply Length:
≤ 170 mm (with HDD)
≤ 260 mm (without HDD)

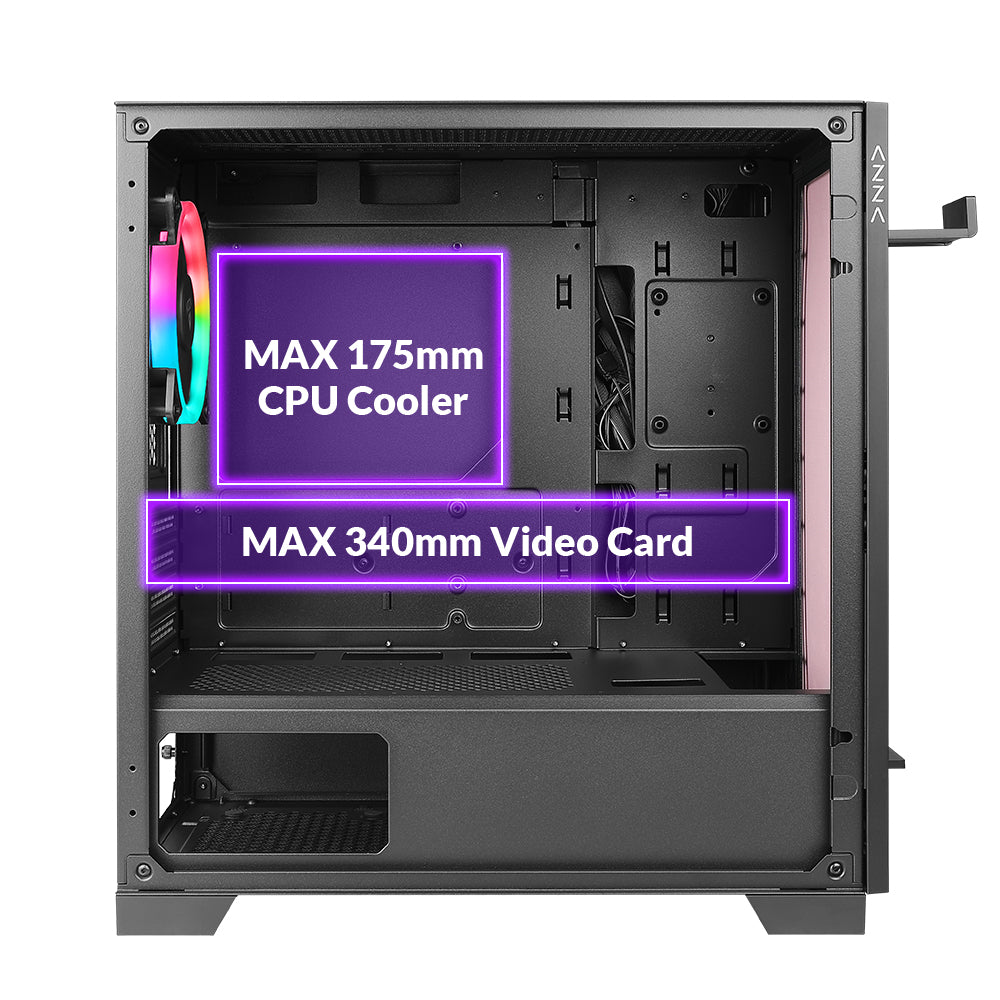

CPU Cooler & Video Card

Max CPU Cooler Height:
≤ 175 mm
Max Video Card Length:
≤ 340 mm

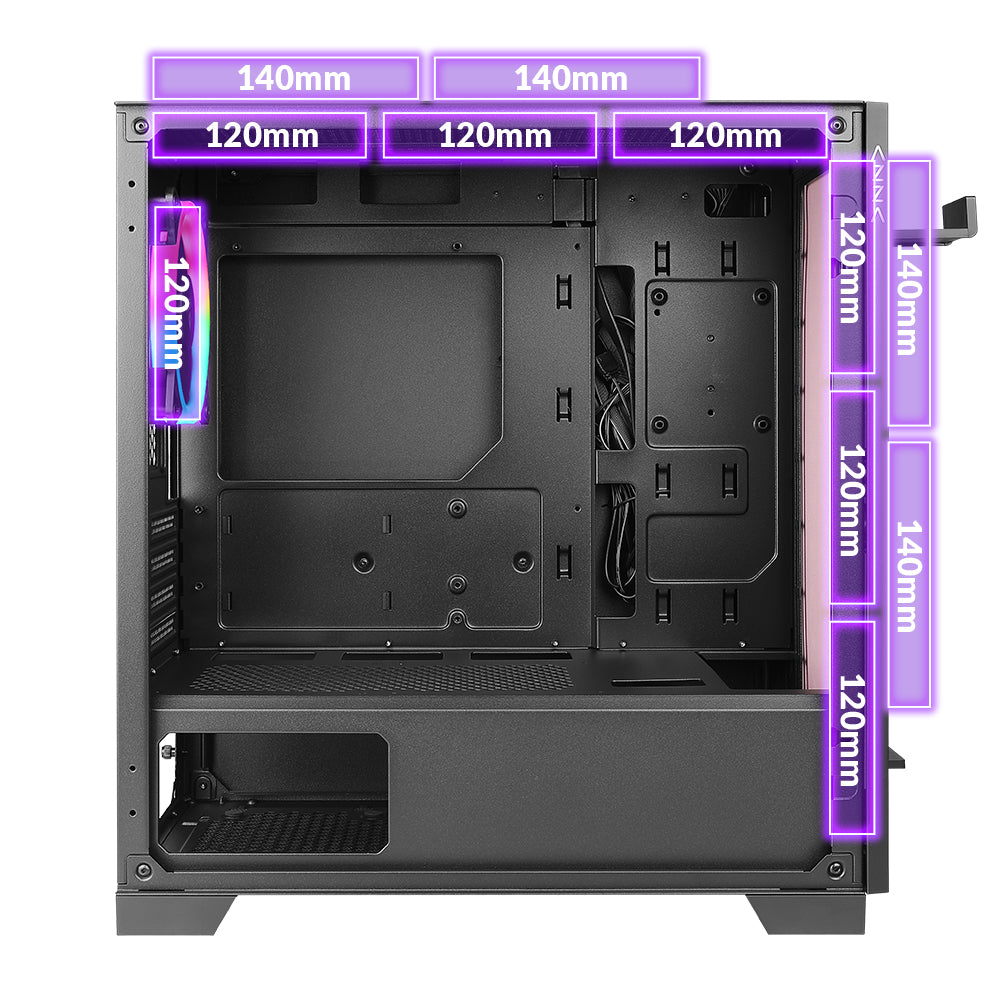

Diverse Cooling Solutions

Front:
Fan / 3 x 120 mm / 2 x 140 mm
Radiator / 240 mm / 280 mm
Top:
Fan / 3 x 120 mm / 2 x 140 mm
Radiator / 240 mm / 280 mm
Rear:
Fan / 1 x 120 mm (Pre-installed)

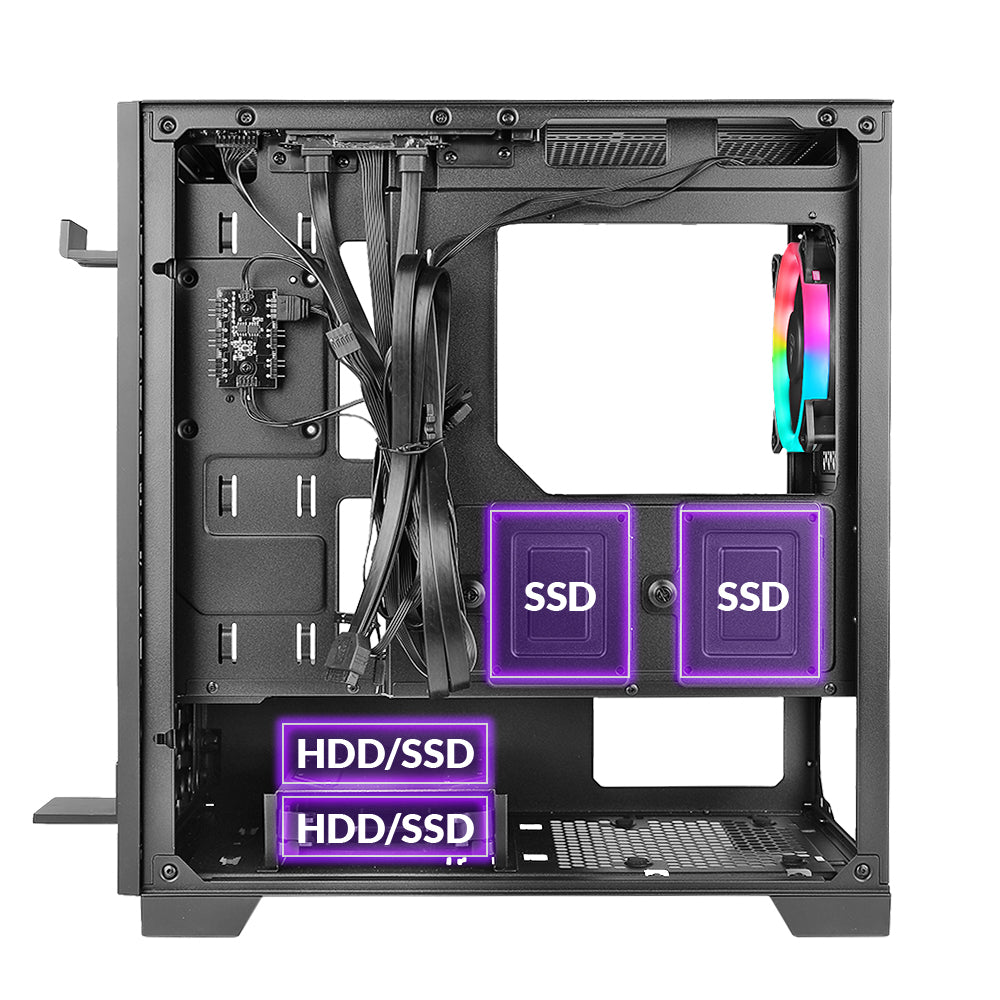

Flexible Storage Options

Drive cage tray supports 2 x 3.5" HDDs or 2 x 2.5" SSDs
Right side panel brackets 1 x 2.5" SSD

SPECIFICATIONS

CSAZ-140

Download Manual
Type

Color

Black (exterior) / Black (interior)

Side Panels

Left : Sliding tempered glass
Right : Steel panel

Max CPU Cooler Height

Up to 175 mm

Max Video Card Length

Up to 340 mm

Motherboard Compatibility

Micro-ATX, ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion Slots

4

Top I/O Ports

Power button
LED button
HD audio
2 x USB 3.0

Case Dimension (H x W x D)

410 mm x 220 mm x 381 mm

Weight

5.1 kg / 11.3 lbs

Addressable RGB Lighting Effects

Addressable RGB devices connected to the ARGB
control board can be controlled with the reset
button or motherboard lighting software.

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in the front
3 x 120 mm or 2 x 140 mm fan ports on the top
1 x 120 mm fan port in the rear

Included Fan

1 x 120 mm ARGB fan

Water Cooling

Supports radiators up to 240 / 280 mm in the front
Supports radiators up to 240 / 280 mm on the top

Power Supply Support

Bottom mounted ATX power supply

Included Accessories

1 x Headphone holder
1 x Display stand
