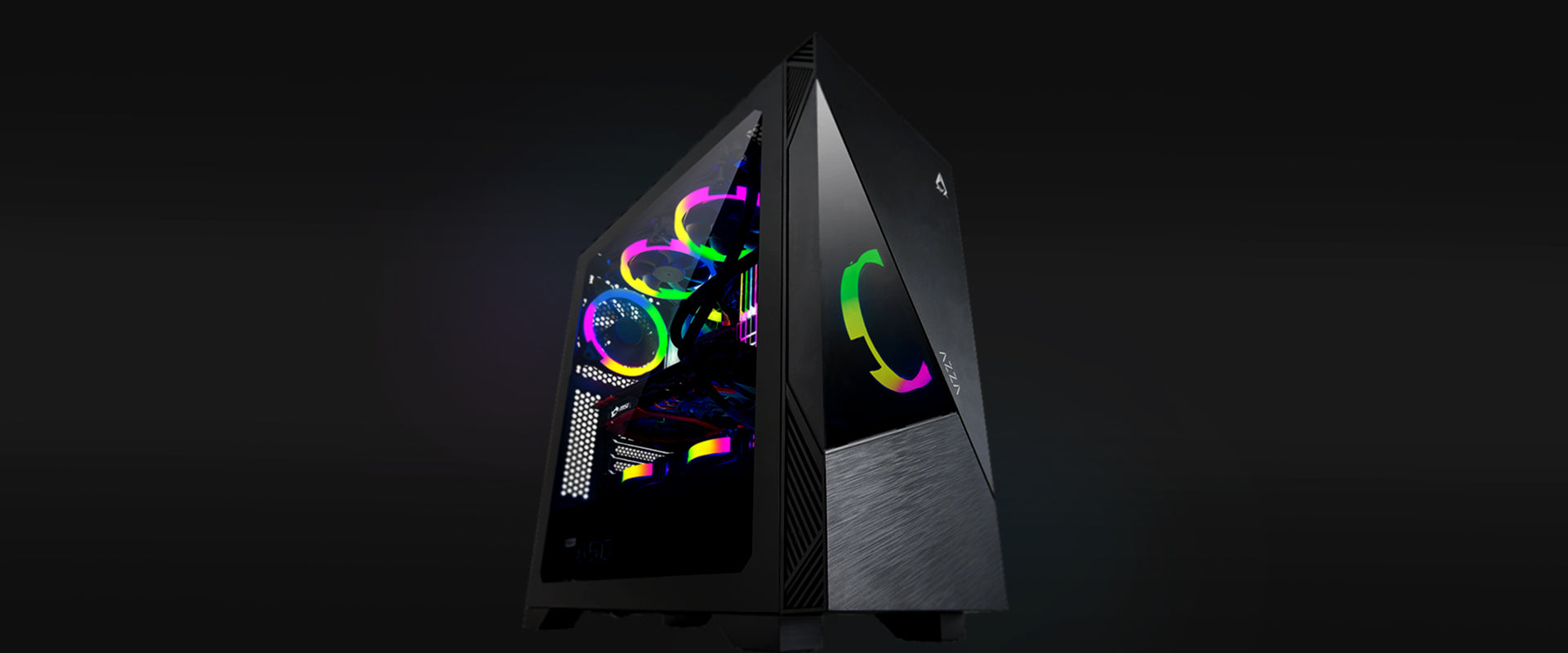

The ECLIPSE is an enticing offering for those looking for a clean and subdued aesthetic. Designed to only reveal one fan, the front panel covers up excessive RGB lighting with a premium front finish.


ATX Mid-Tower

Premium Style

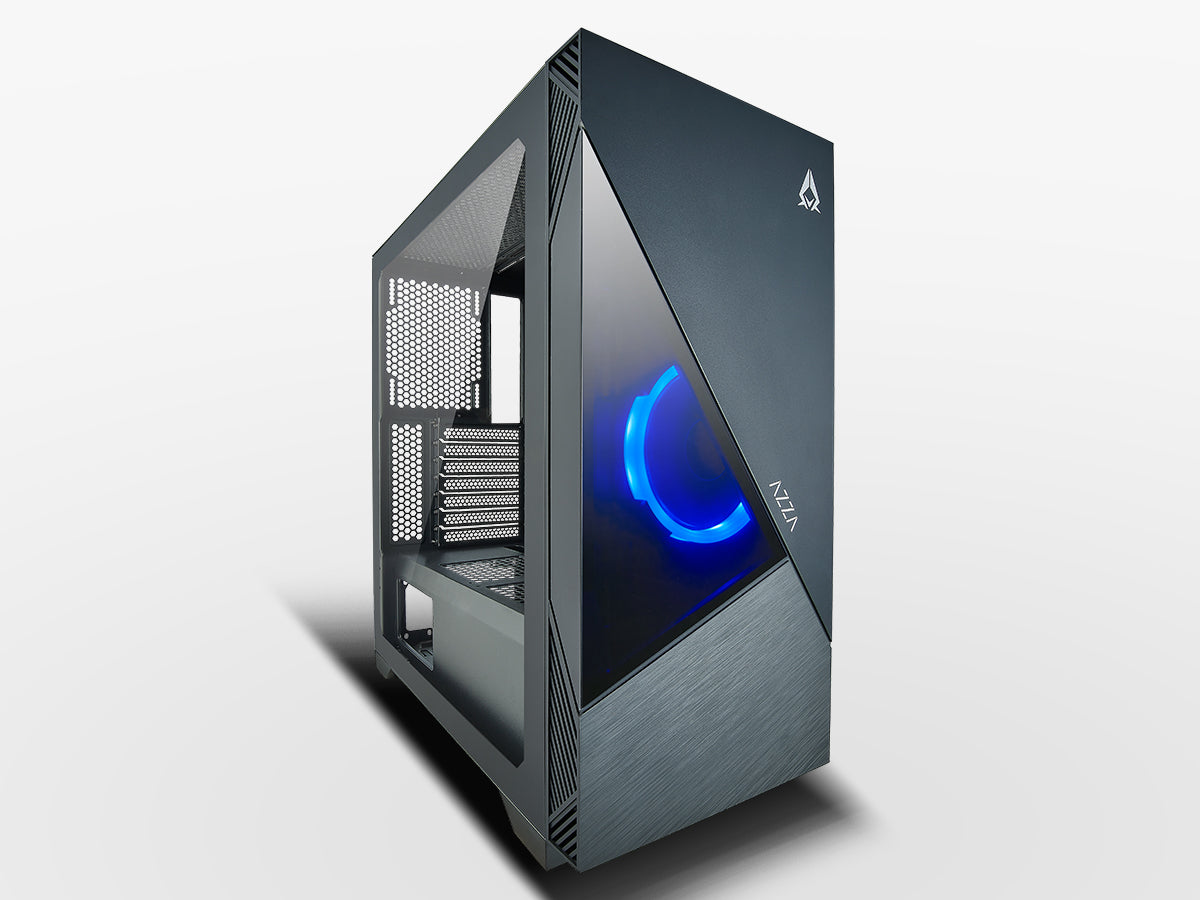

Right out of the box, marvel at the beautiful singularity of the pre-installed 120 mm ARGB fan peeking from within a sleek brushed-metal front panel.

Customize Your Aesthetics

An included ARGB hub provides ease of connectivity for up to 6 ARGB devices which can be controlled via the top panel LED button, or personalize through your motherboard RGB synchronization software.

Multifaceted Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120 mm fans above the PSU shroud, bringing the total fan support up to 9 x 120 mm fans!

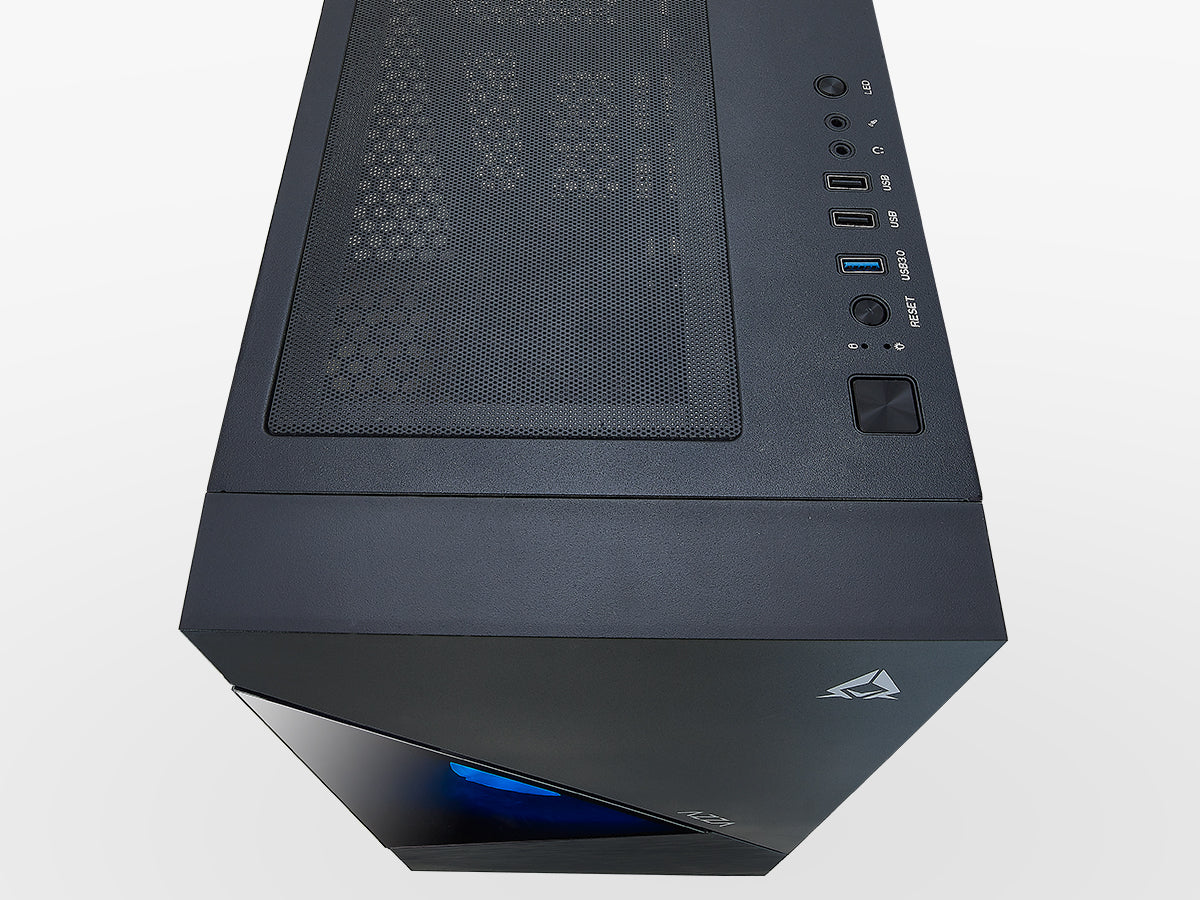

Dust-Proof Airflow

The top and bottom panels of the ECLIPSE are equipped with removable dust filters, one magnetic at the top, and a steel tray style one at the bottom.

Intuitive I/O

The ECLIPSE presents a comprehensive front I/O which includes:

  • Power button
  • Reset button
  • 1 x USB 3.0 ports
  • 2 x USB 2.0 ports
  • Individual Mic and HD Audio jacks
  • LED button

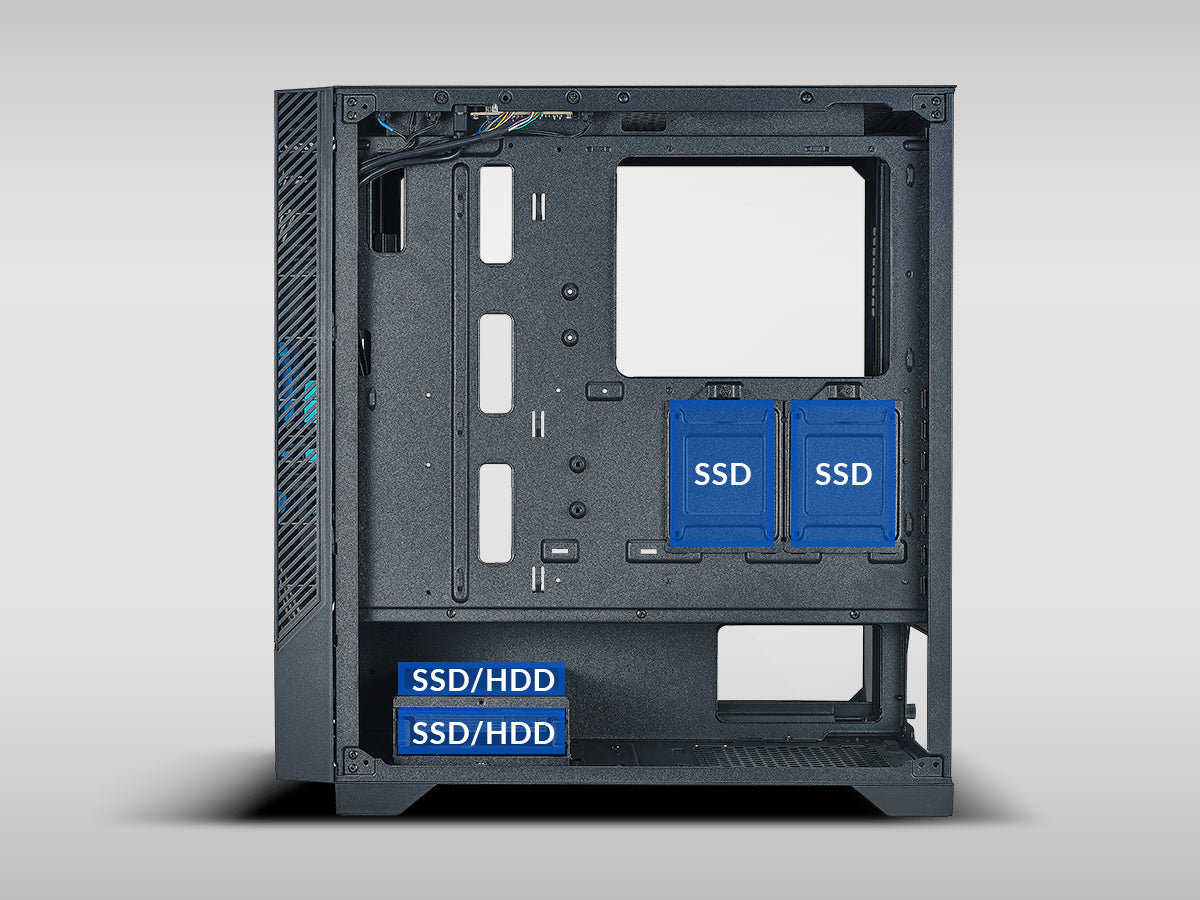

Flexible Storage Options

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD

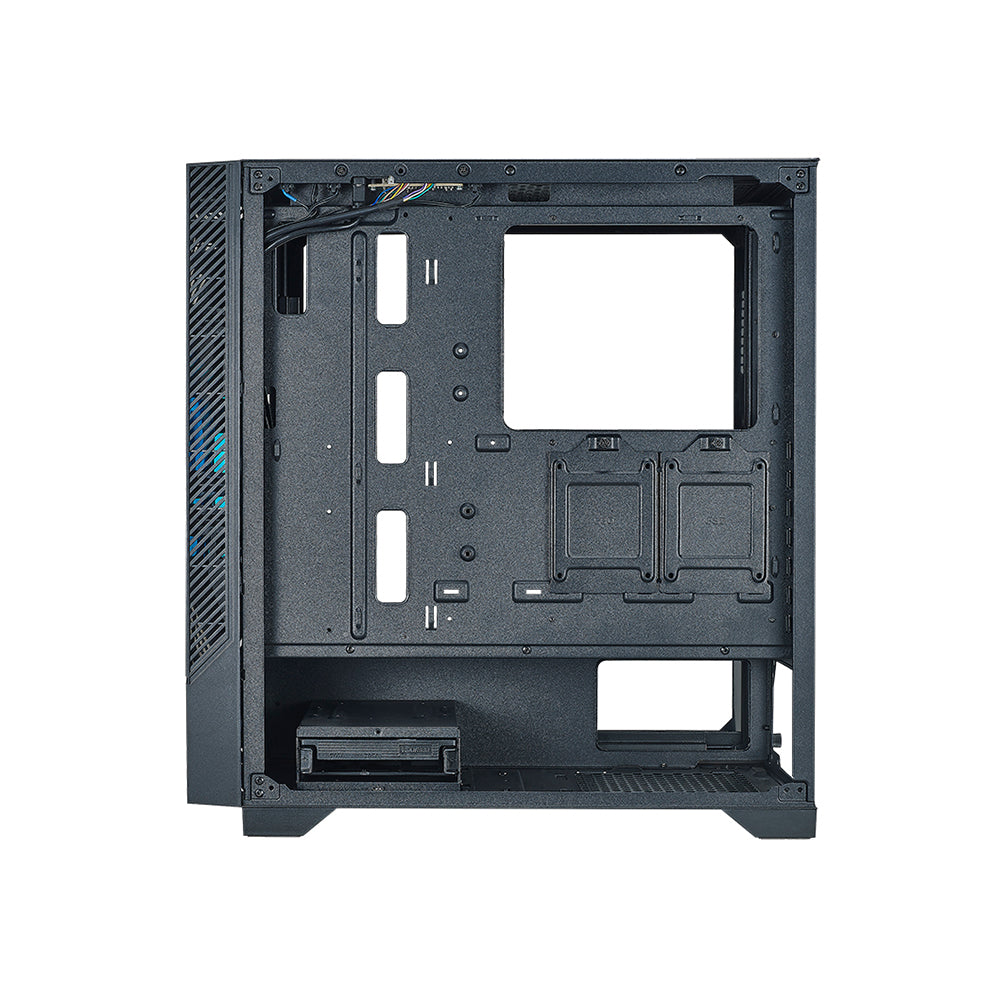

Right side panel supports 2 x 2.5" SSDs

Top Cooling Support

Fans: Up to 3 x 120 mm or 2 x 140 mm (1 x 120 mm included)

Radiator: Up to 240 mm

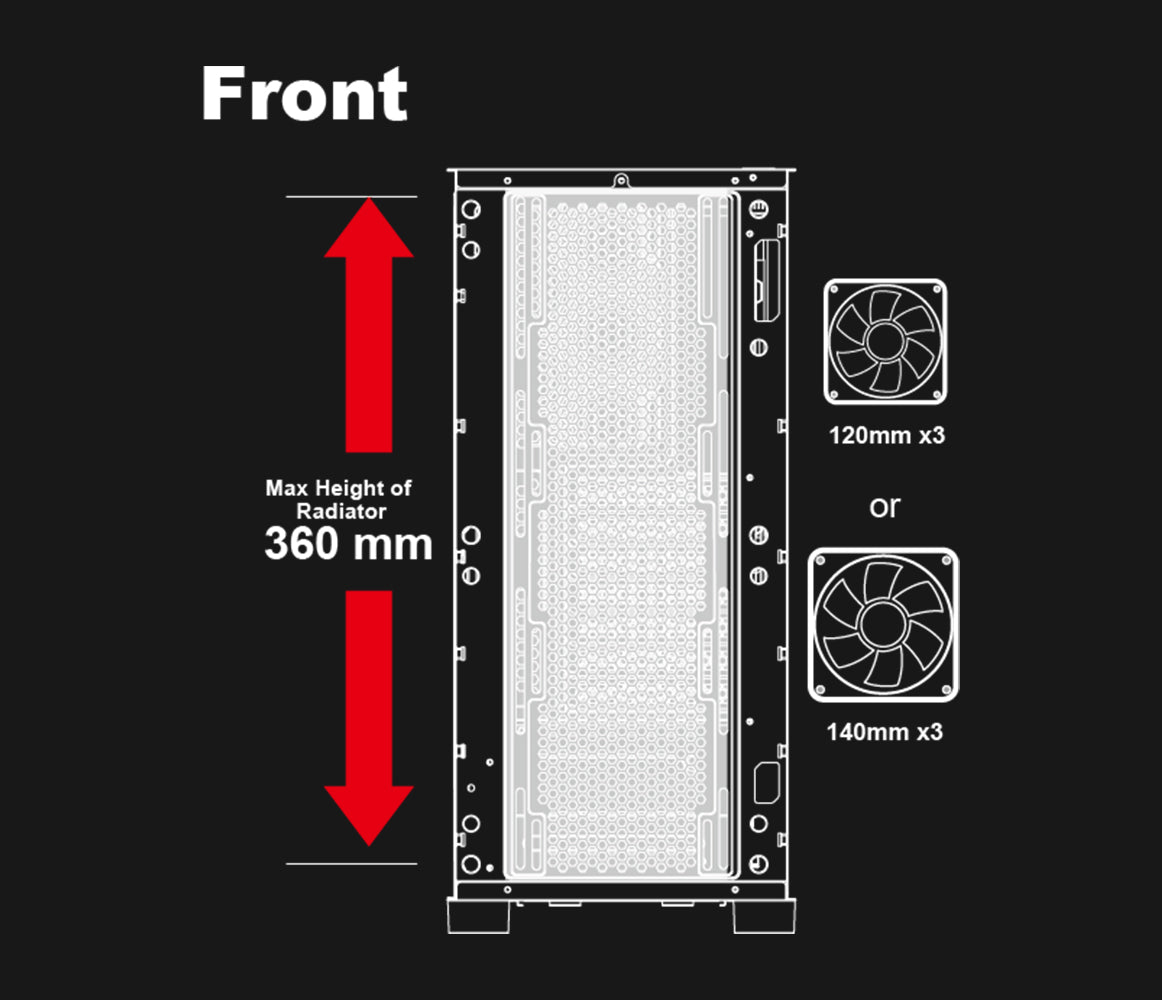

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

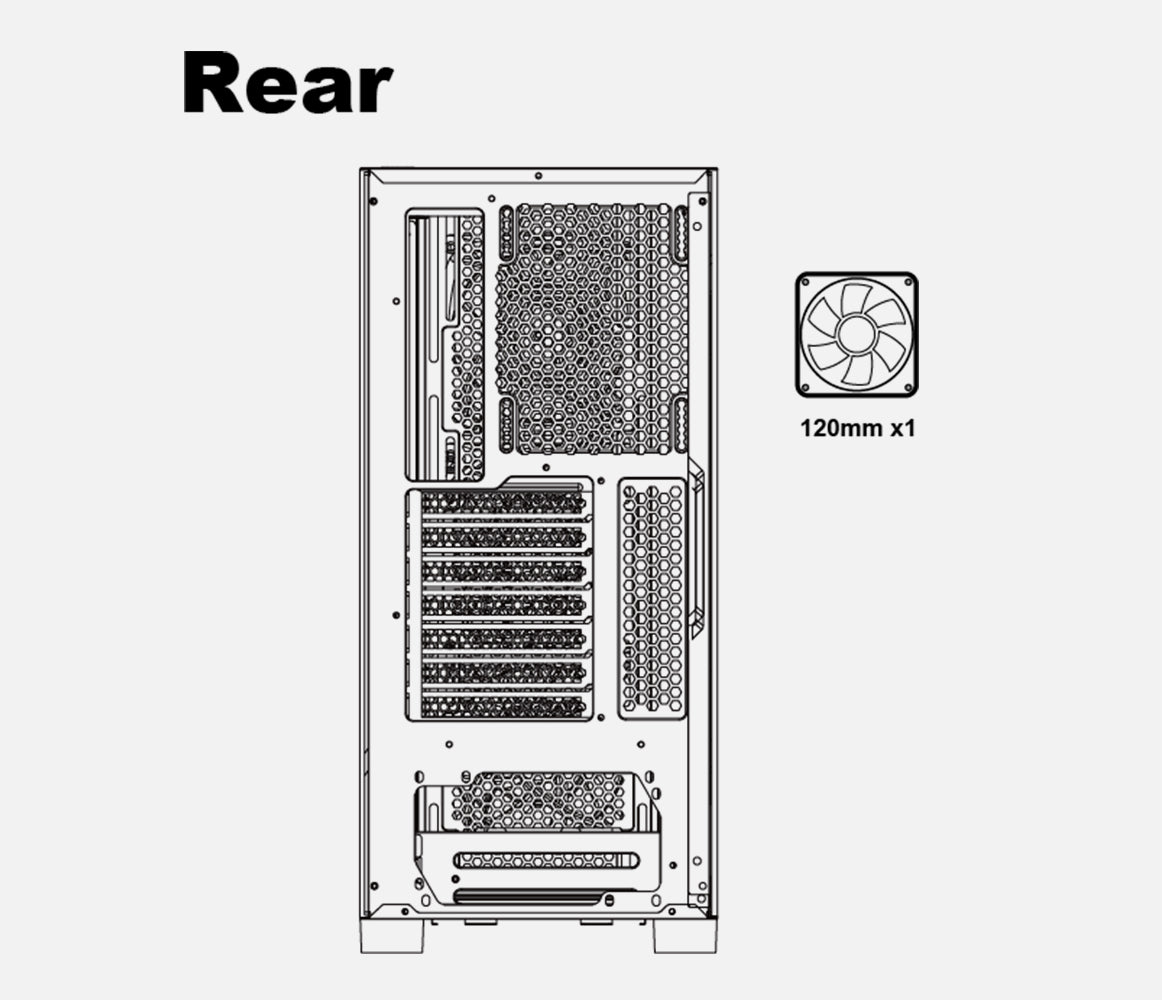

Rear Cooling Support

Fan: 1 x 120 mm



Download Manual

ATX Mid Tower


Black (exterior) / Black (interior)

Side Panels

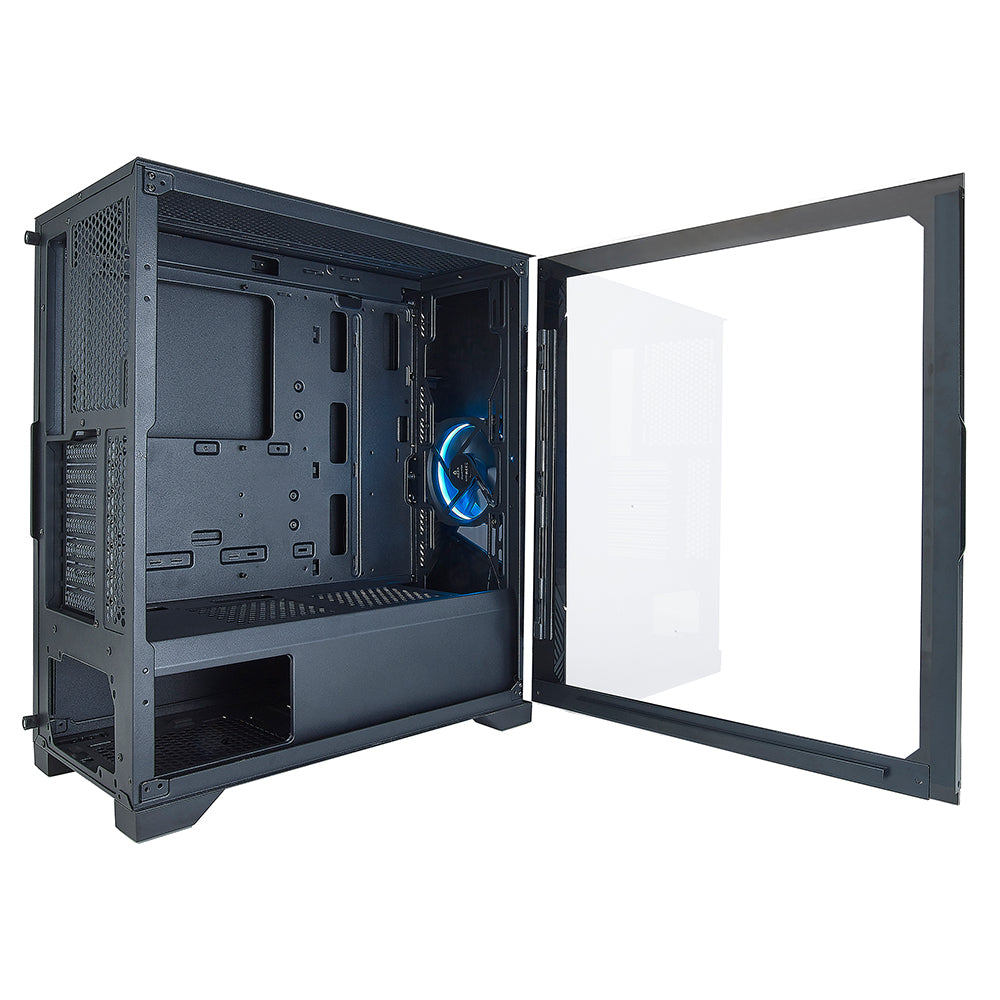

Left : Tempered glass with rubber mounts
Right : Steel panel

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 360 mm

Motherboard Compatibility

E-ATX (<270 mm), ATX, Micro-ATX, Mini-ITX

2.5" Drive Bays

Up to 4

3.5" Drive Bays

Up to 2

Expansion slots


Top I/O Ports

Power button
Reset button
LED button
HD audio
2 x USB 2.0
1 x USB 3.0

Case Dimension (H x W x D)

470 mm x 215 mm x 450 mm


6.3 kg / 13.9 lbs

Addressable RGB Light Effects

Addressable RGB fan in the front. An ARGB control board
is included, allowing the LED button to control lighting.
ARGB devices can sync with motherboard lighting software.

Available Fan Ports

3 x 120 mm or 3 x 140 mm fan ports in the front
3 x 120 mm or 2 x 140 mm fan ports on the top
1 x 120 mm fan port in the rear
2 x 120 mm fan ports on top of the power supply shroud

Included Fan

1 x 120 mm ARGB fan

Water Cooling

Supports radiators up to 280 / 360 mm in the front
Supports radiators up to 240 mm on the top

Power Supply Support

Bottom mounted ATX power supply
