COVE

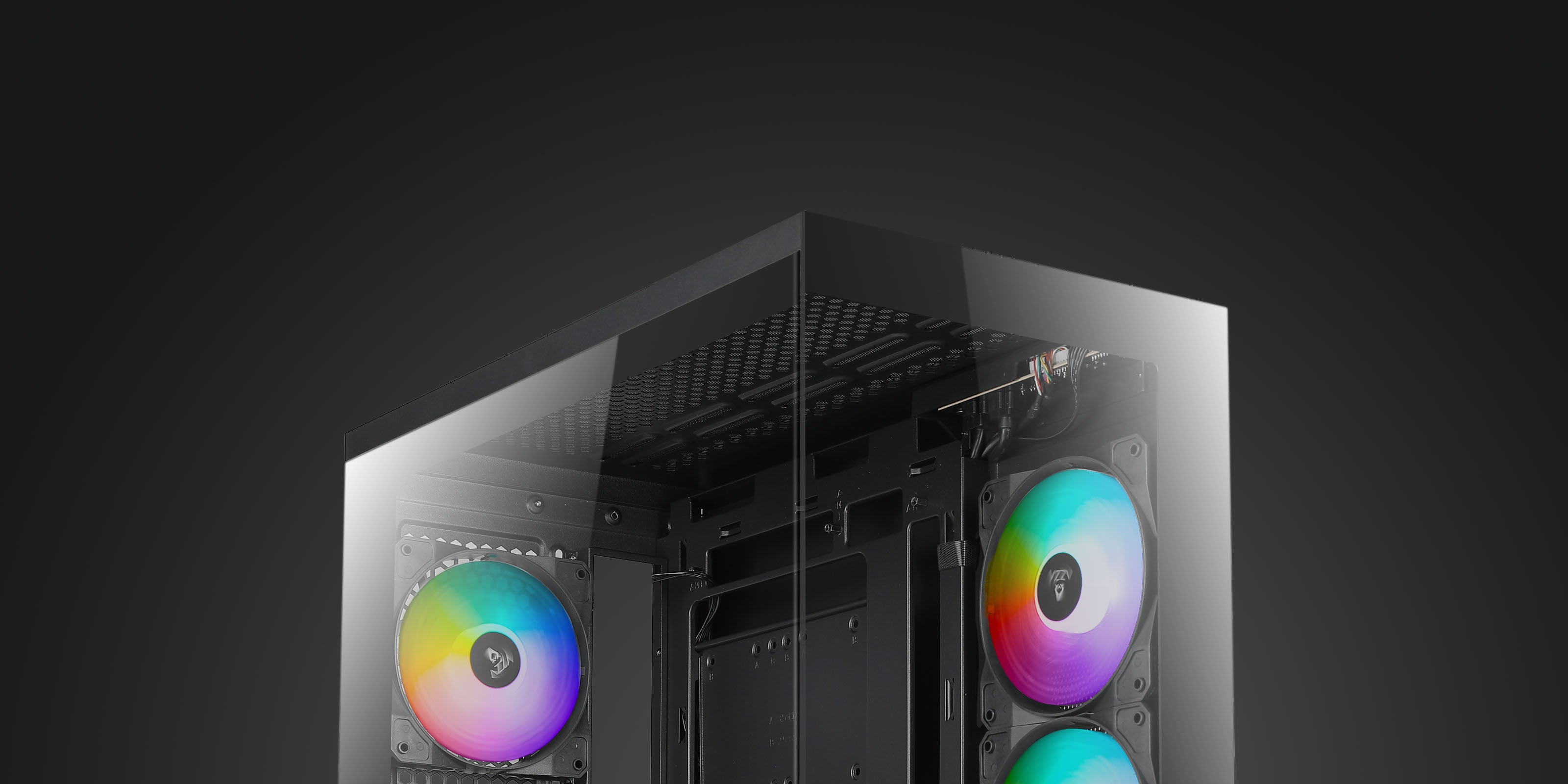

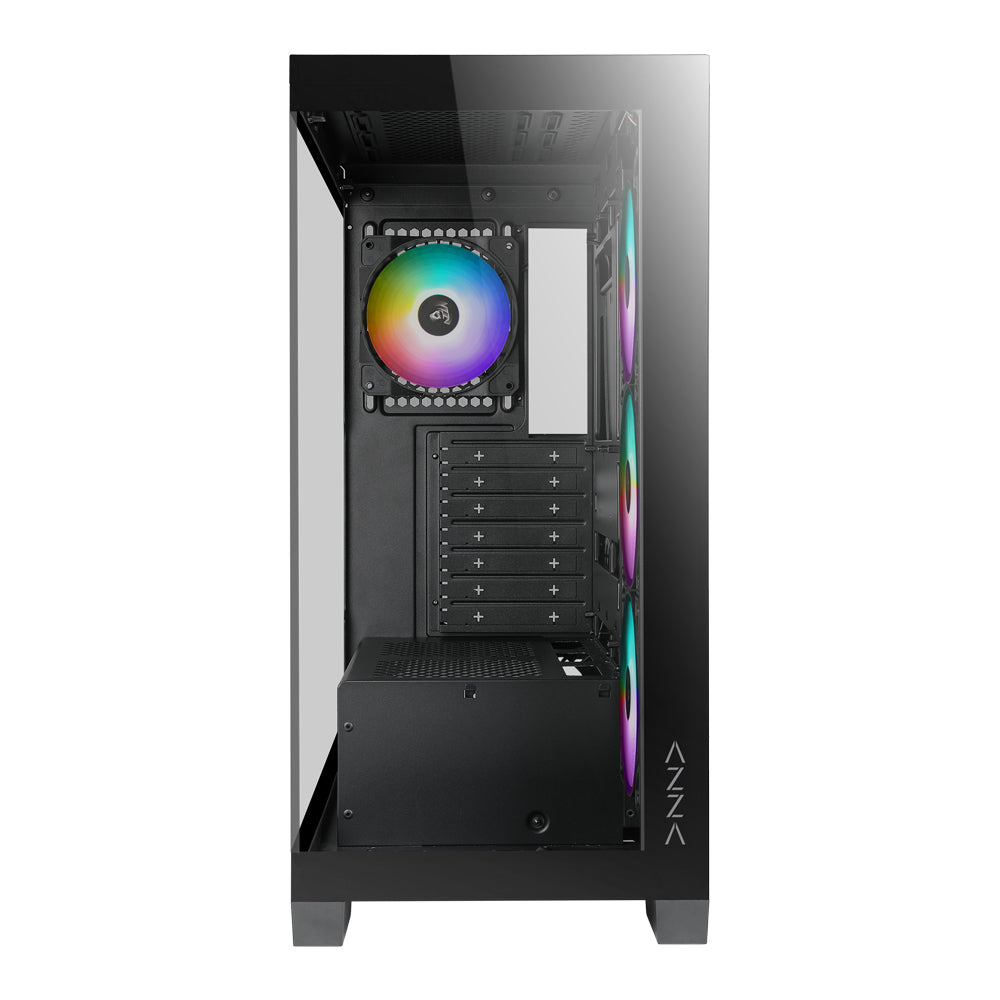

270° full-view tempered glass panel. The Cove is reminiscent of the ocean’s waves cascading onto the shore at midnight. The inner space supports back-connect motherboards for a cleaner build and a better visual showcase.

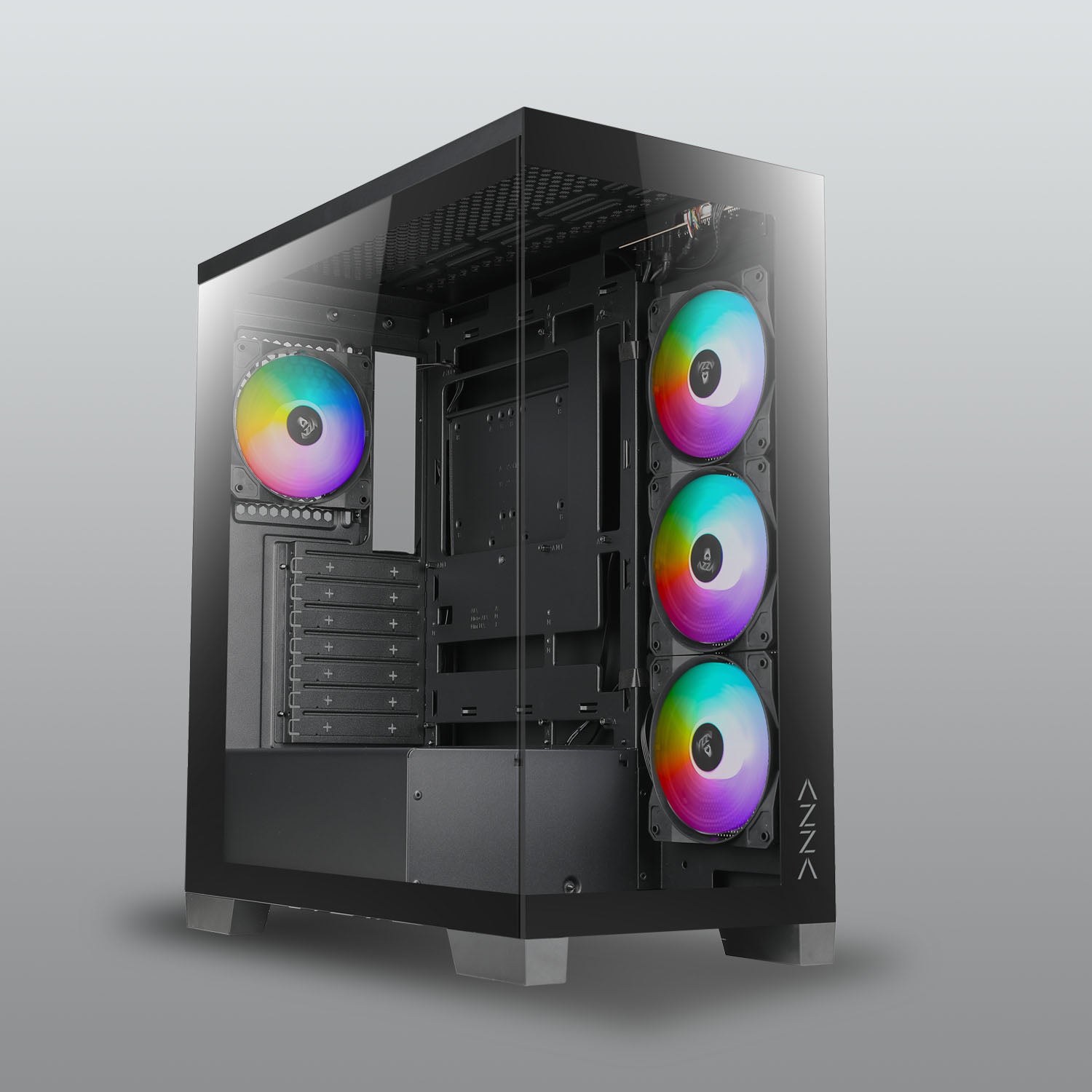

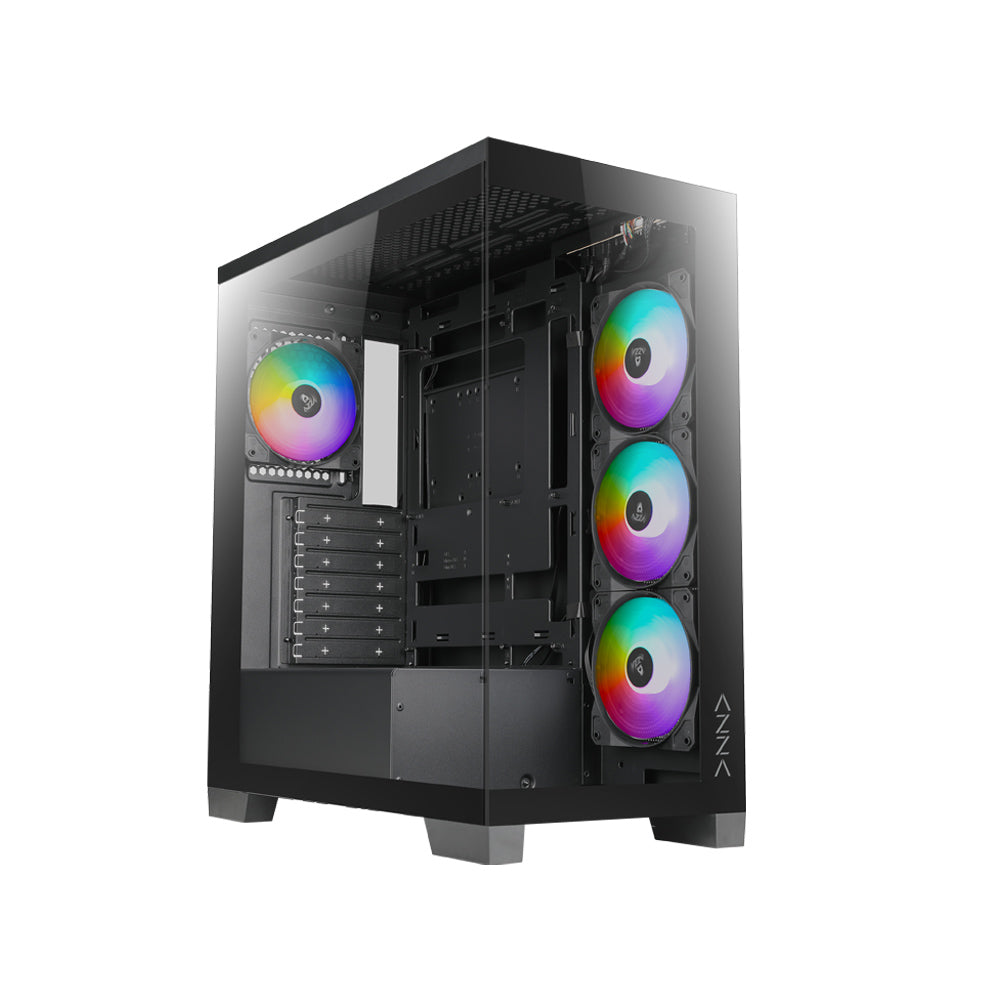

COVE

ATX Mid-Tower Case

Premiunm Look

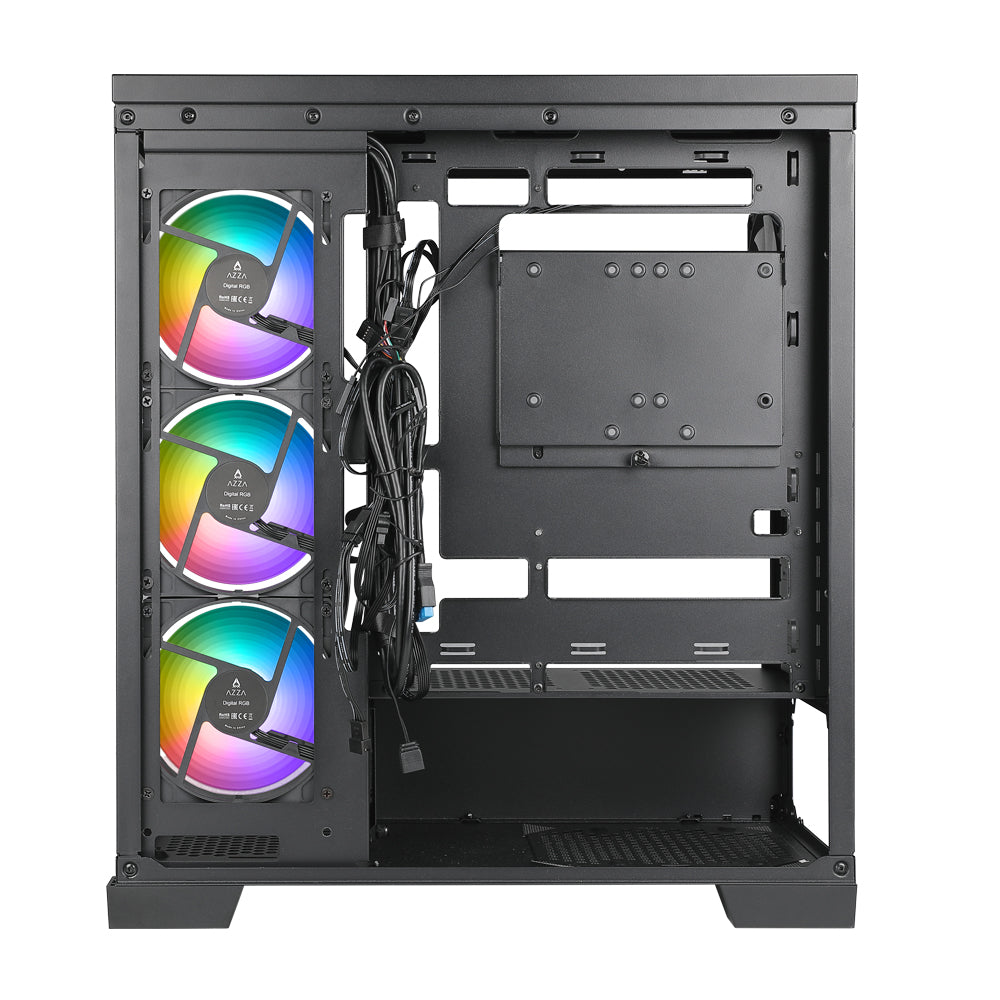

The Neptune supports reverse connector motherboard compatibility, keeping cablesout of your sight for a panoramic view.



Impressive Airflow Support

Direct airflow to the GPU can be achieved by adding 2 x 120mm fans above the PSU shroud,bringing the total fans support up to 10 x 120mm fans!

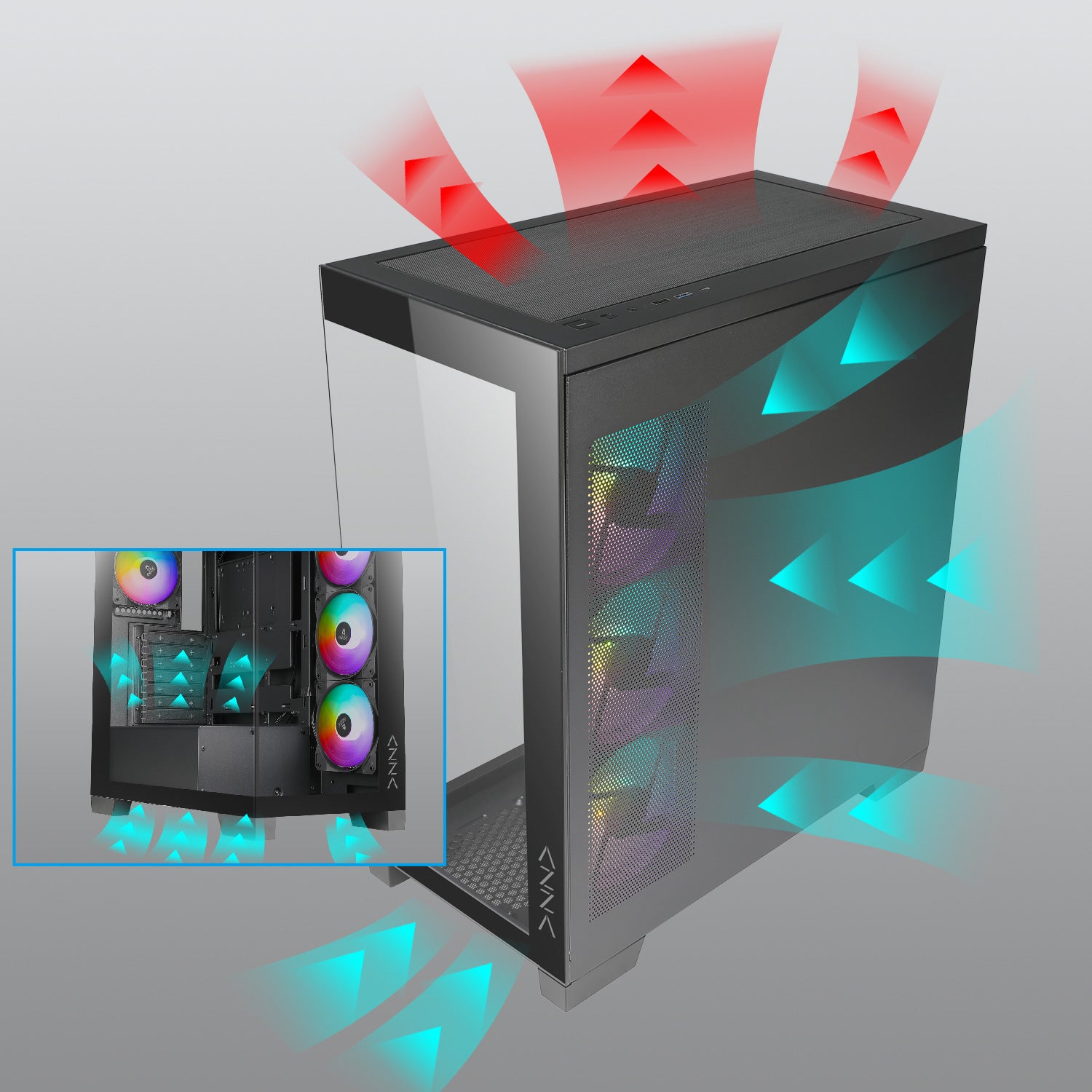

Wonderful Unrestricted Airflow

Design your cooling dream with fan and radiator mounting positions all around the chamber to ensure enough airflow for a better experience.

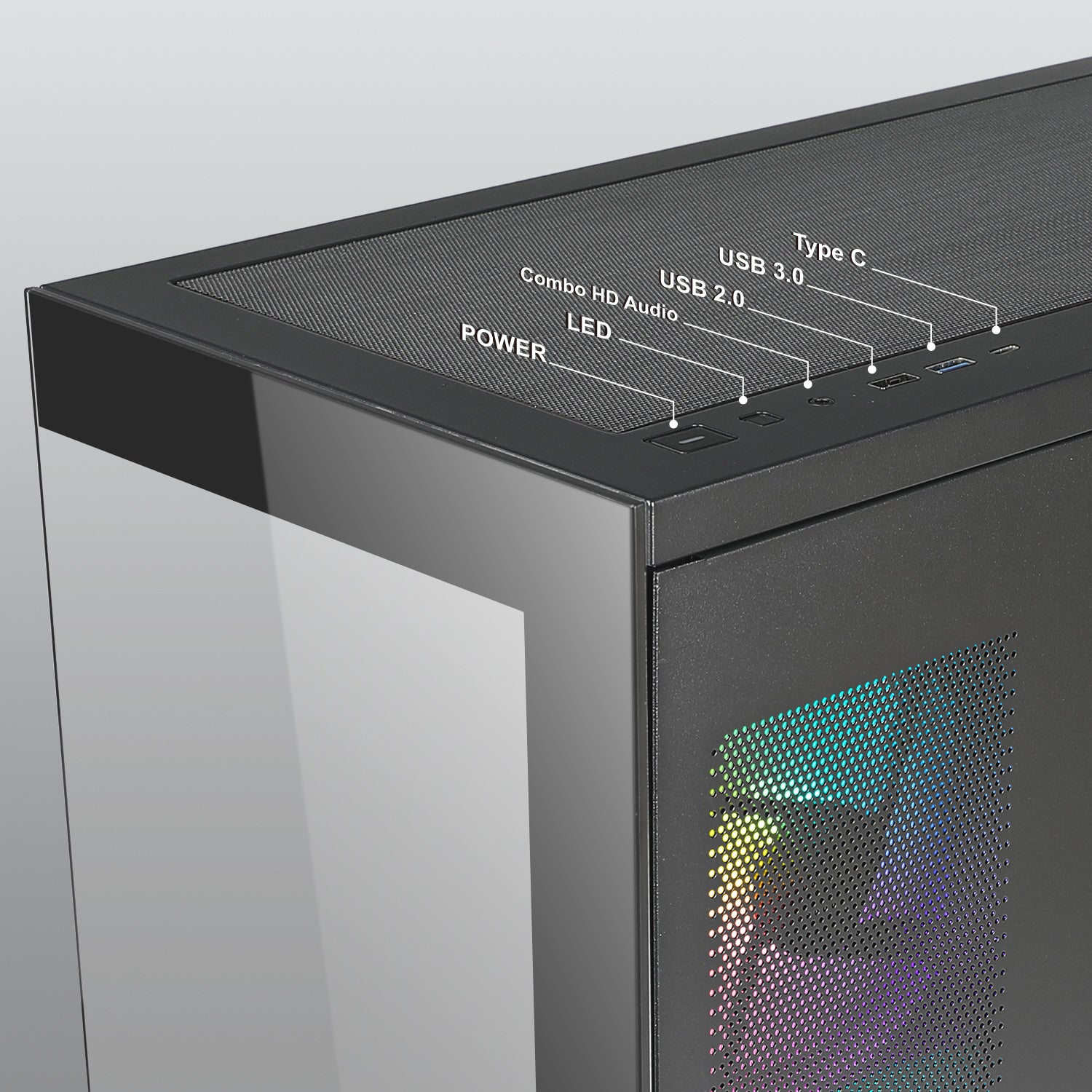

Intuitive I/O

The Cove presents a simple top I/O which includes:

  • Power button
  • LED button
  • Combo HD Audio
  • 1 x USB 2.0 port
  • 1 x USB 3.0 port
  • 1 x Type C

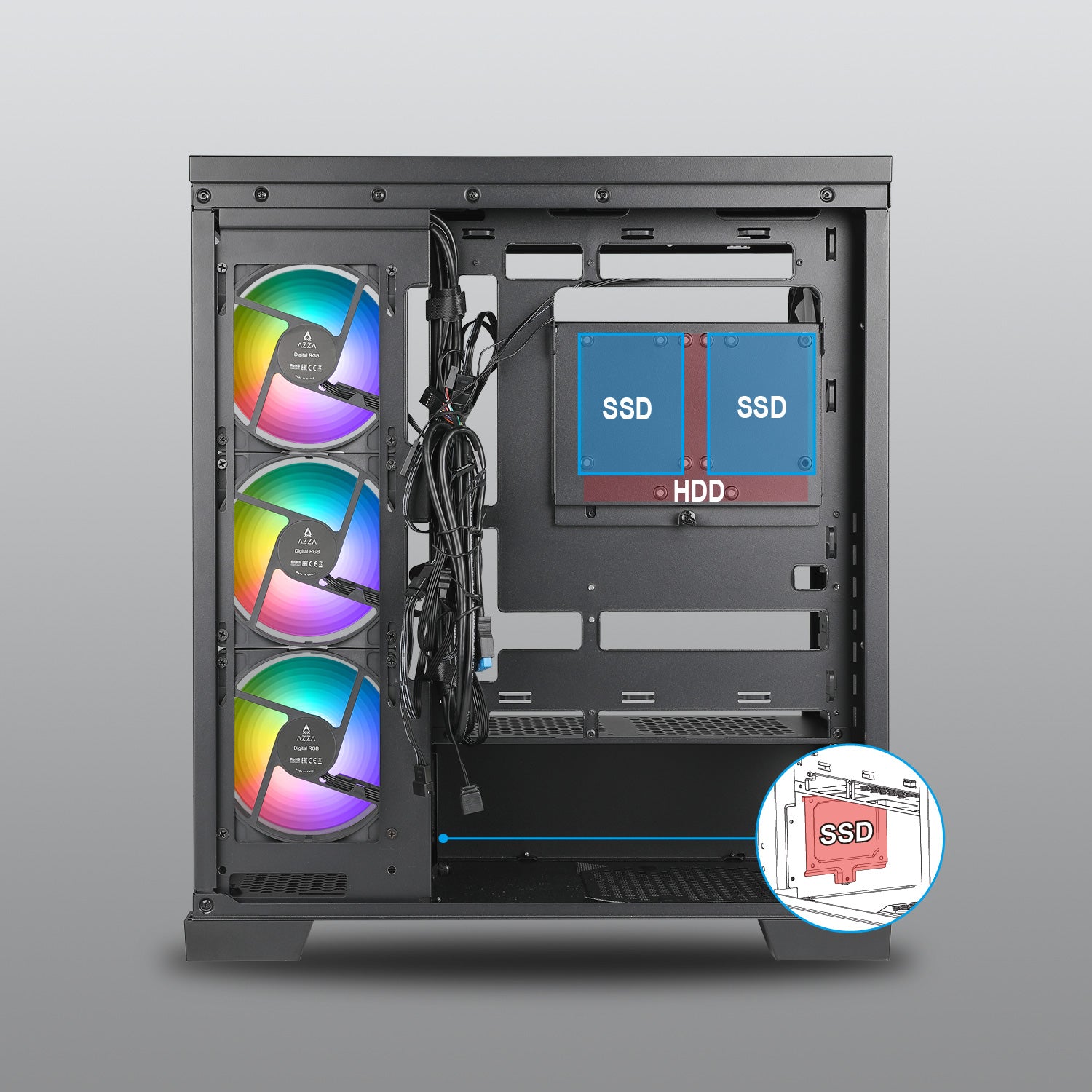

Flexible Storage Options

Right side panel supports 2 x 2.5” SSD or 1 x 3.5" HDD
Metal tray supports 1x 2.5” SSD

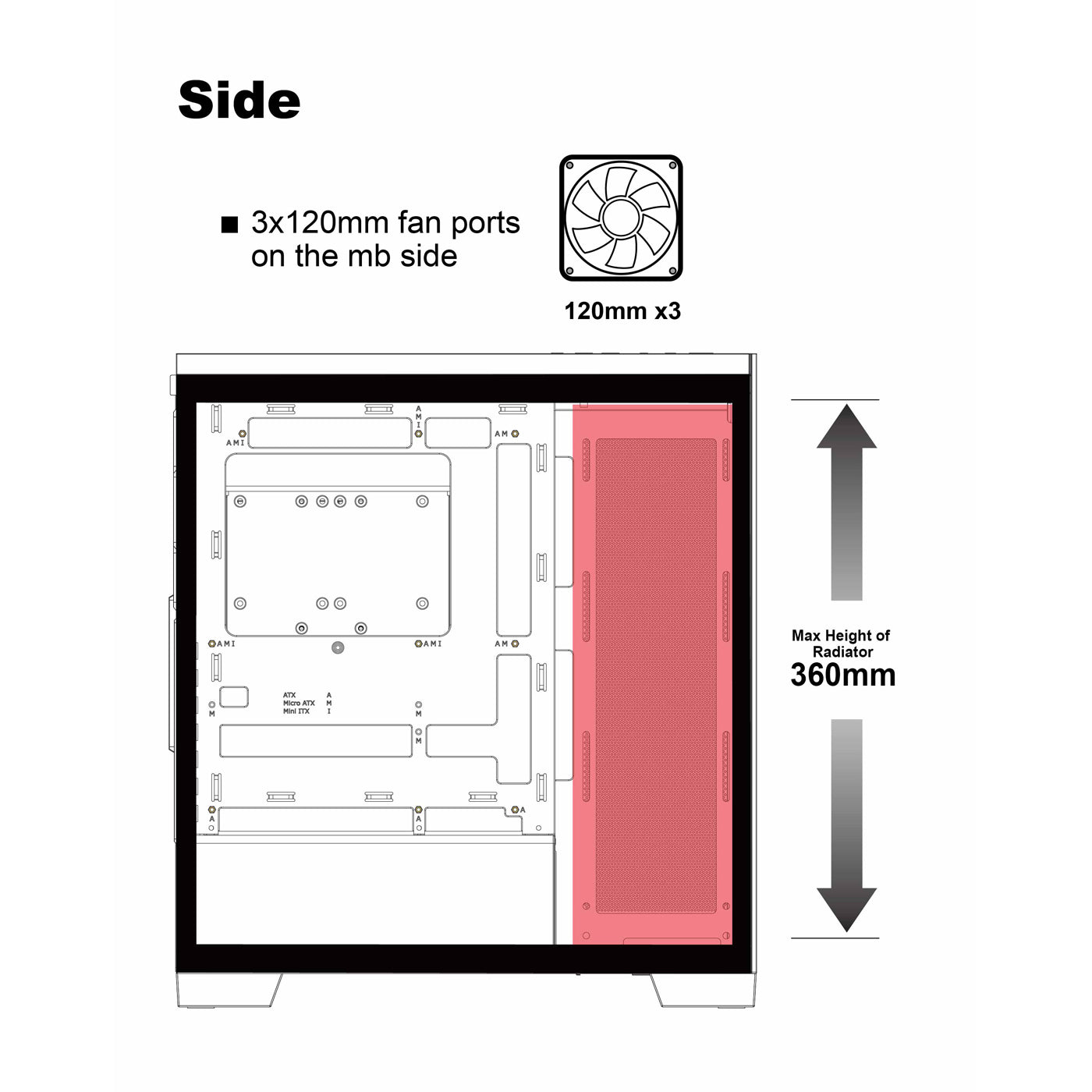

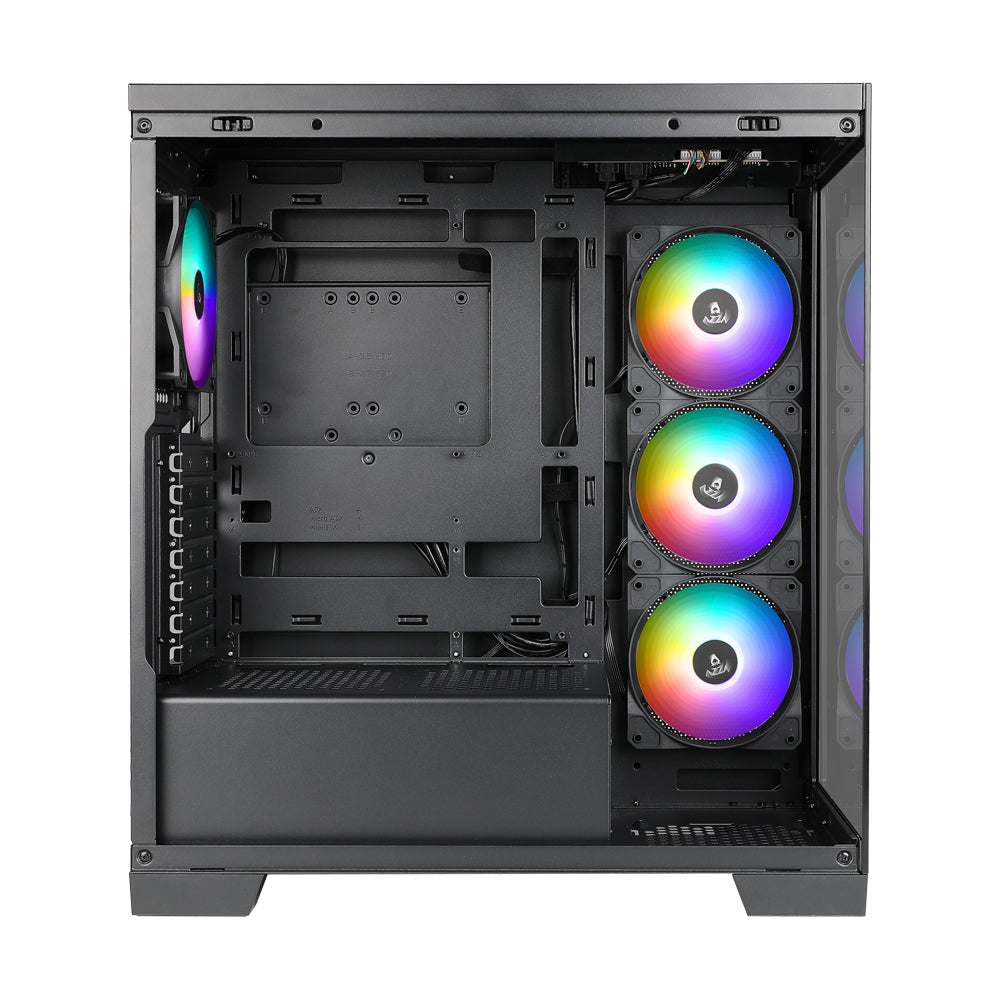

Side Cooling Support

Fans: Up to 3 x 120mm

Radiator: Up to 360mm

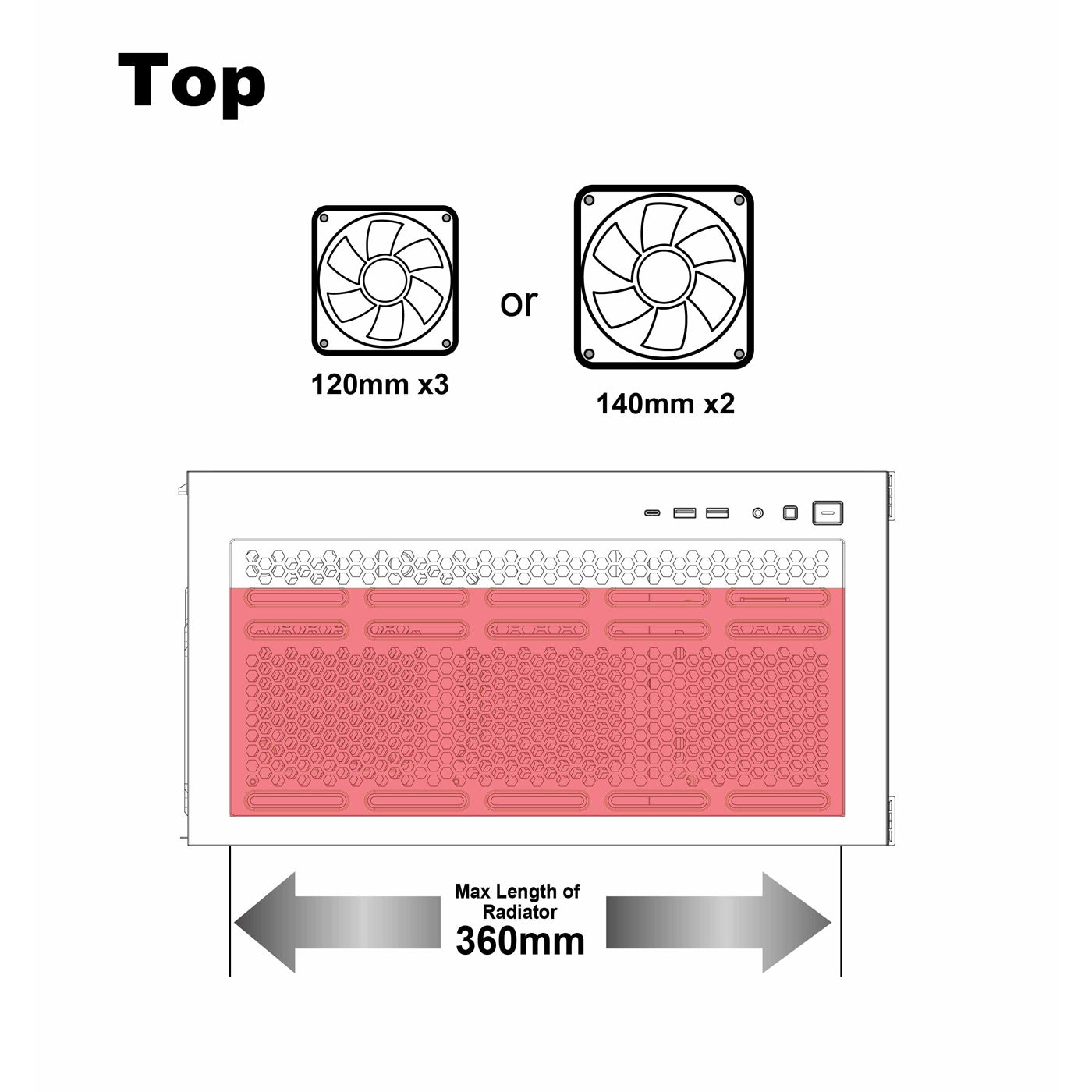

Top Cooling Support

Fans: Up to 3 x 120mm or 2 x 140mm

Radiator: Up to 360mm

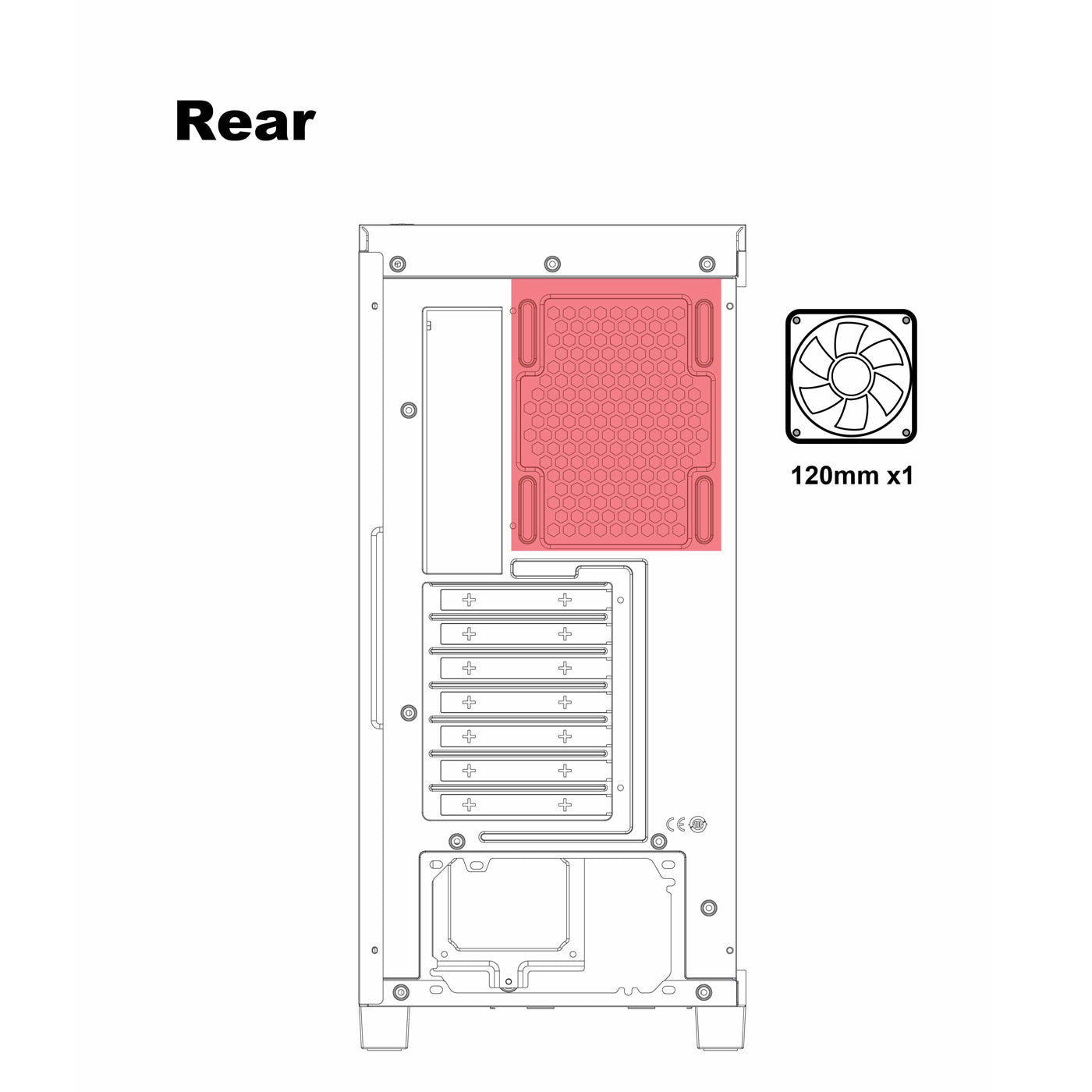

Rear Cooling Support

Fans: Up to 1 x 120mm

SPECIFICATIONS

CSAZ-570

Download Manual
Type

ATX Mid Tower

Color

Black

Side Panels

side panel: Tempered Glass

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 400 mm

Motherboard Compatibility

ATX、Micro ATX、ITX

2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 1

Expansion Slots

7

Top I/O Ports

Power button
LED button
Combo HD Audio
USB2.0 x 1
USB 3.0 x 1
Type C x1

Case Dimension (H x W x D)

490 mm x 230 mm x 435 mm

Weight

8Kg /17.6lbs

Addressable RGB Light Effects

ARGB fans are controlled using the LED button.All addressable RGB devices can sync with the motherboard, allowing the motherboard softwareto control lighting directly.

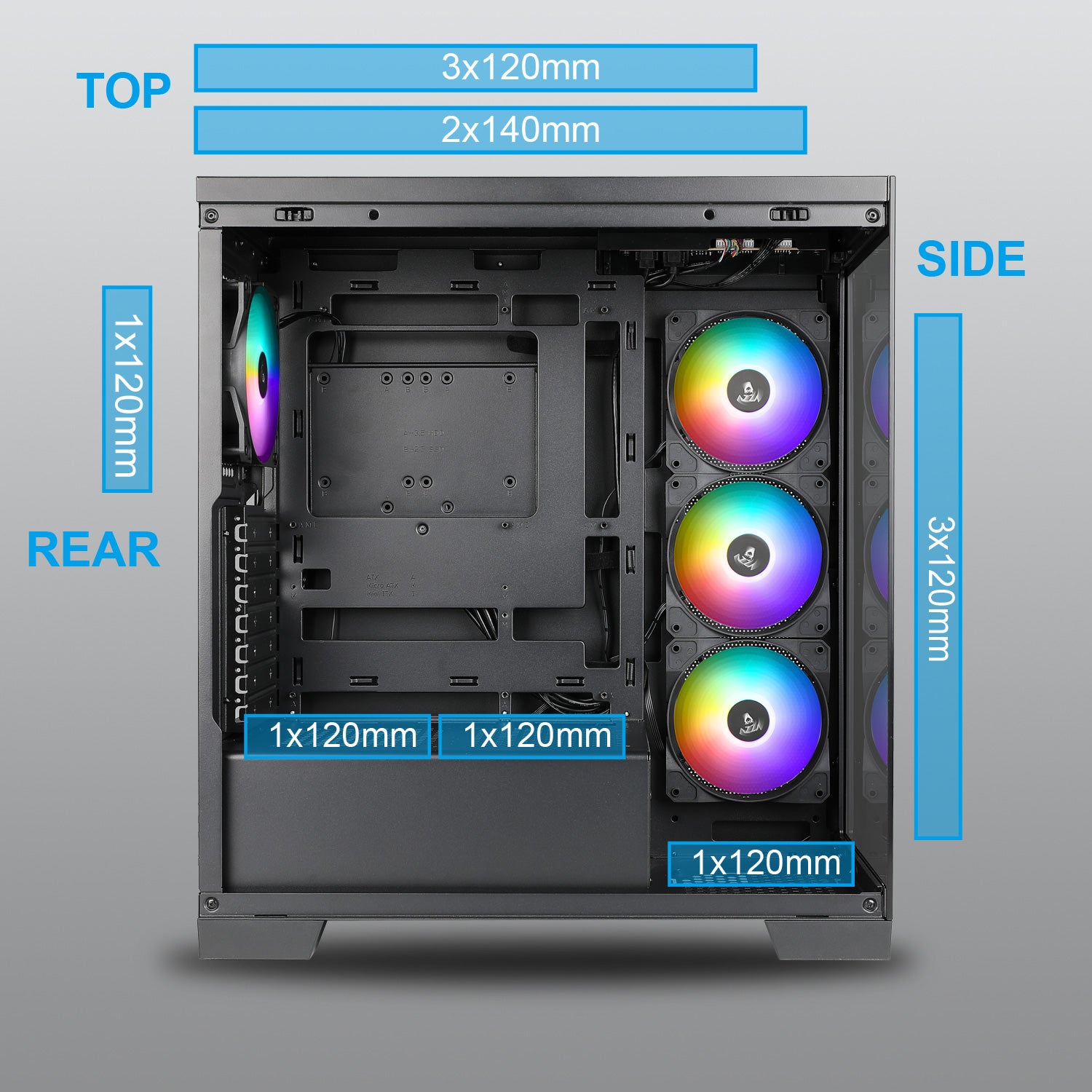

Available Fan Ports

3x120mm or 2x140mm fan ports on the top
1x120mm fan port in the rear
1x120mm fan port on the bottom
3x120mm fan ports on the MB side
2 x 120 mm fan ports on the PSU shroud

Included Fan

3x120mm LFO-5512D ARGB Fan on the MB side
1 x 120mm LFO-5512DR ARGB fan in the rear

Water Cooling

Supports radiators up to 360mm on the mb side
Supports radiators up to 360/280mm in the Top

Power Supply Support

Bottom mounted ATX power supply
