CSAZ-340F

CELESTA F

Inspired by the majestic night sky, the CELESTA's dazzling front panel design brings a bright and unique new aesthetic while still offering good thermal performance. Not only is there freedom to build a robust system, but this is truly a beauty to behold.
Amazon
Newegg

Celesta

ATX Mid-Tower

Beautifully Functional

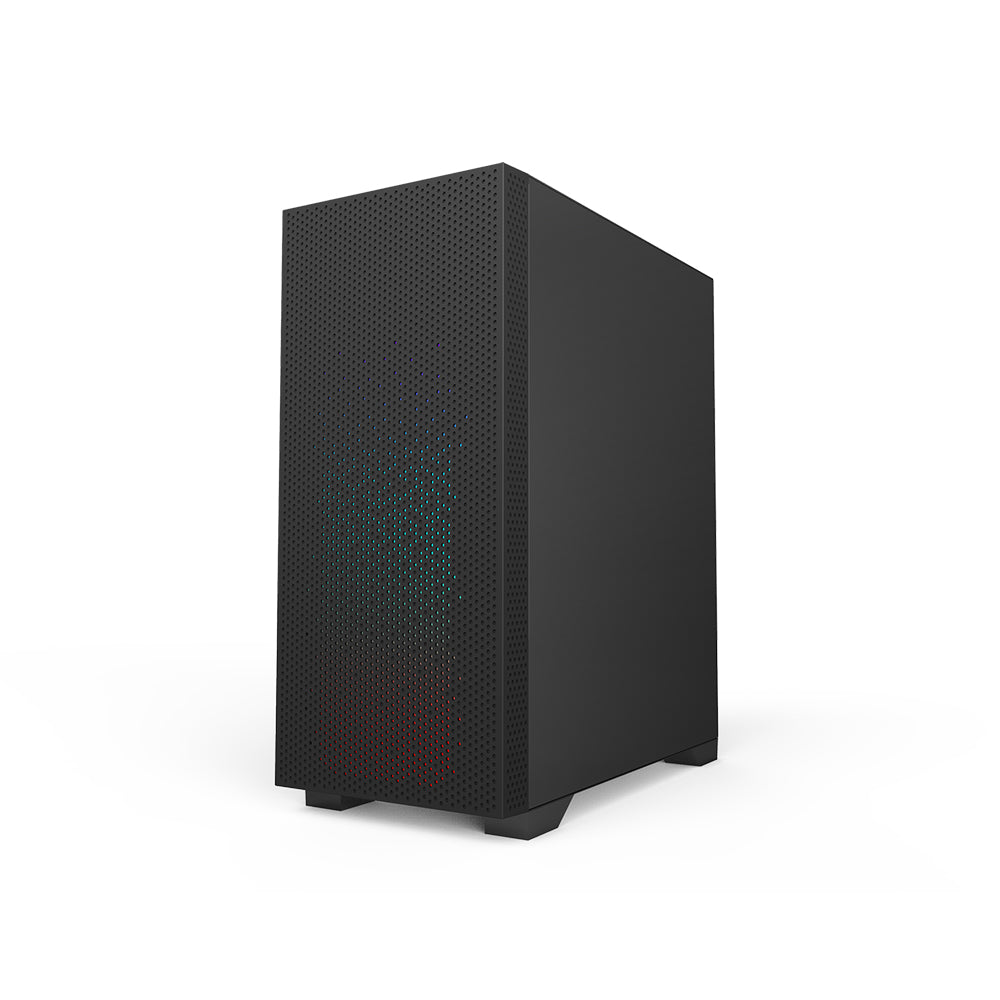

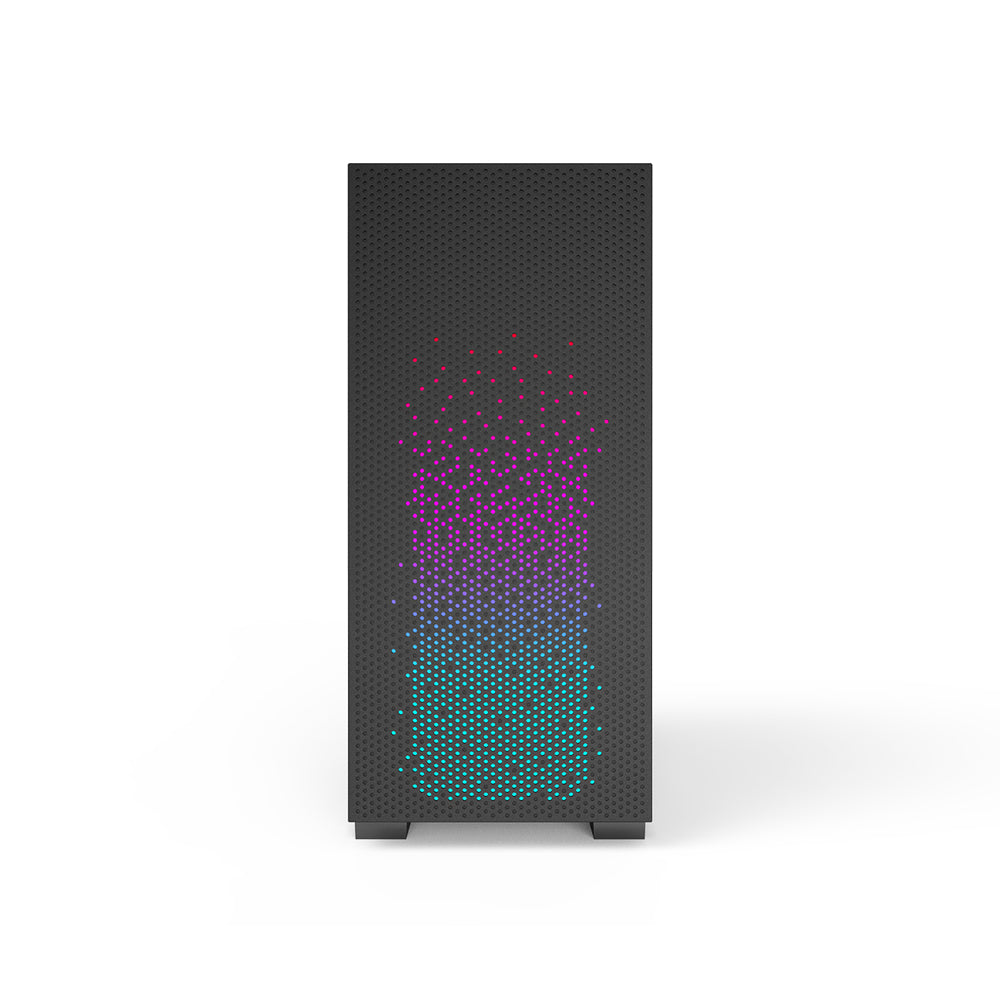

A light guide mesh sheet is the secret to the dancing stars on the CELESTA F. The layer rests between the mesh front panel and the fan brackets, with options of installing up to 3 x 120 mm/140 mm fans to ensure great airflow all around.

Filtered Ventilation

In addition to the light guide mesh sheet and front mesh panel, the top and bottom panels of the CELESTA F are equipped with removable dust filters, one magnetic net at the top, and a steel tray style one at the bottom.

Intuitive I/O

The CELESTA F presents a comprehensive front I/O which includes:

  • Power button
  • Reset button
  • 1 x USB 3.0 port
  • 2 x USB 2.0 ports
  • Individual Mic and HD Audio jacks
  • LED button

Flexible Build Options

The main chamber supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards with room for a CPU cooler up to 165mm in height.

Array of Storage

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD
Right side panel supports 2 x 2.5" SSDs

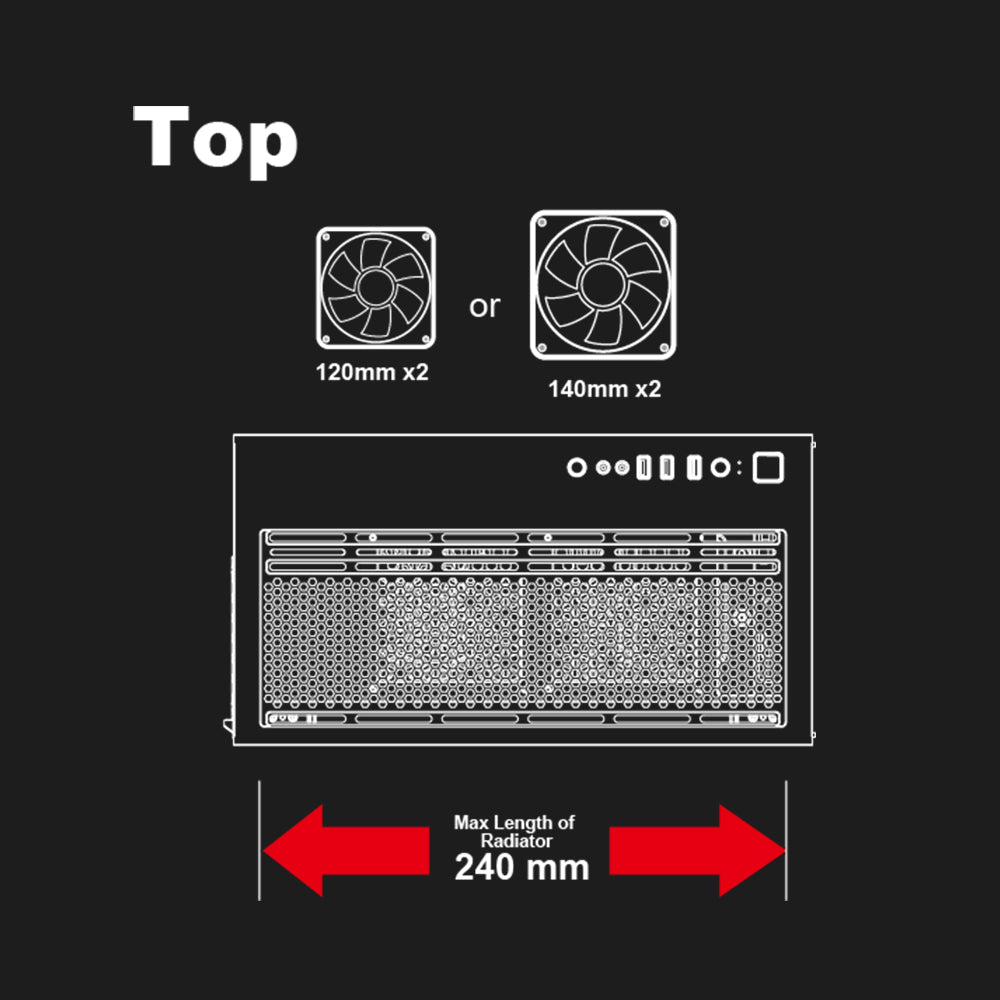

Top Cooling Support

Fans: 2 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

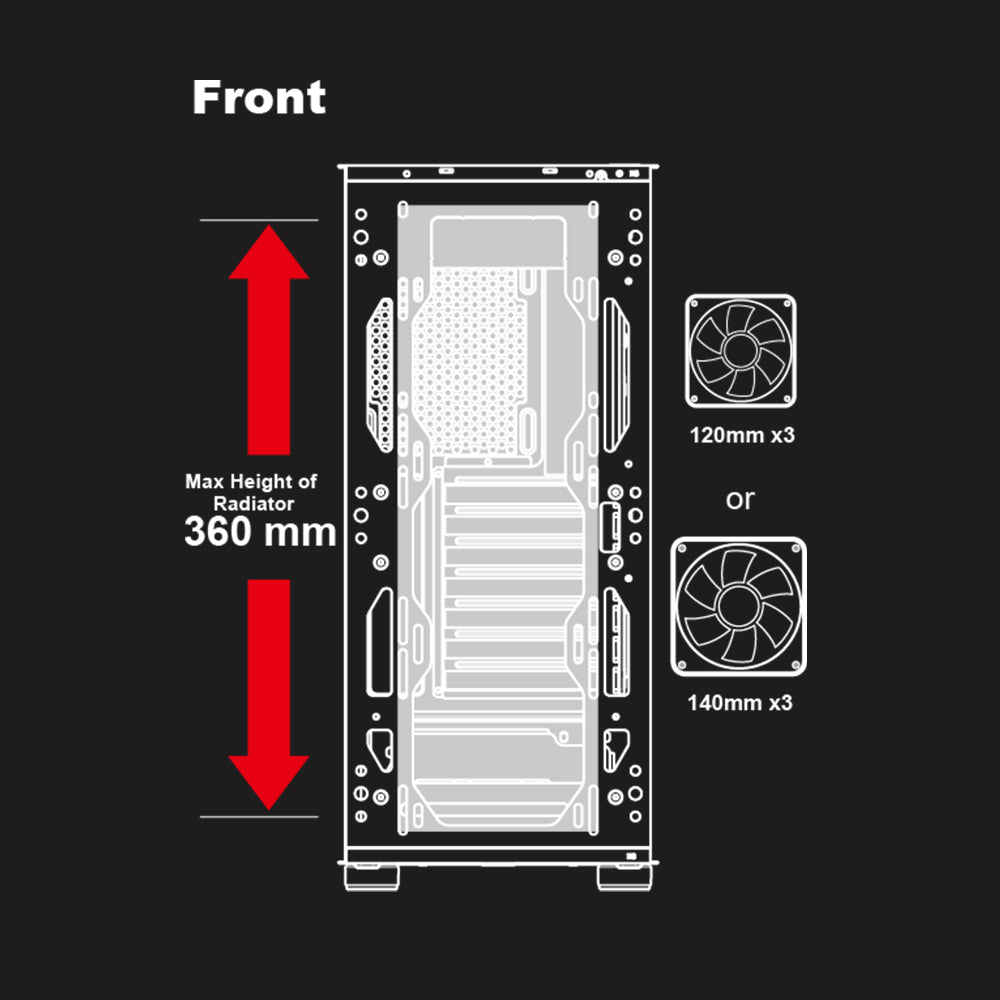

Front Cooling Support

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

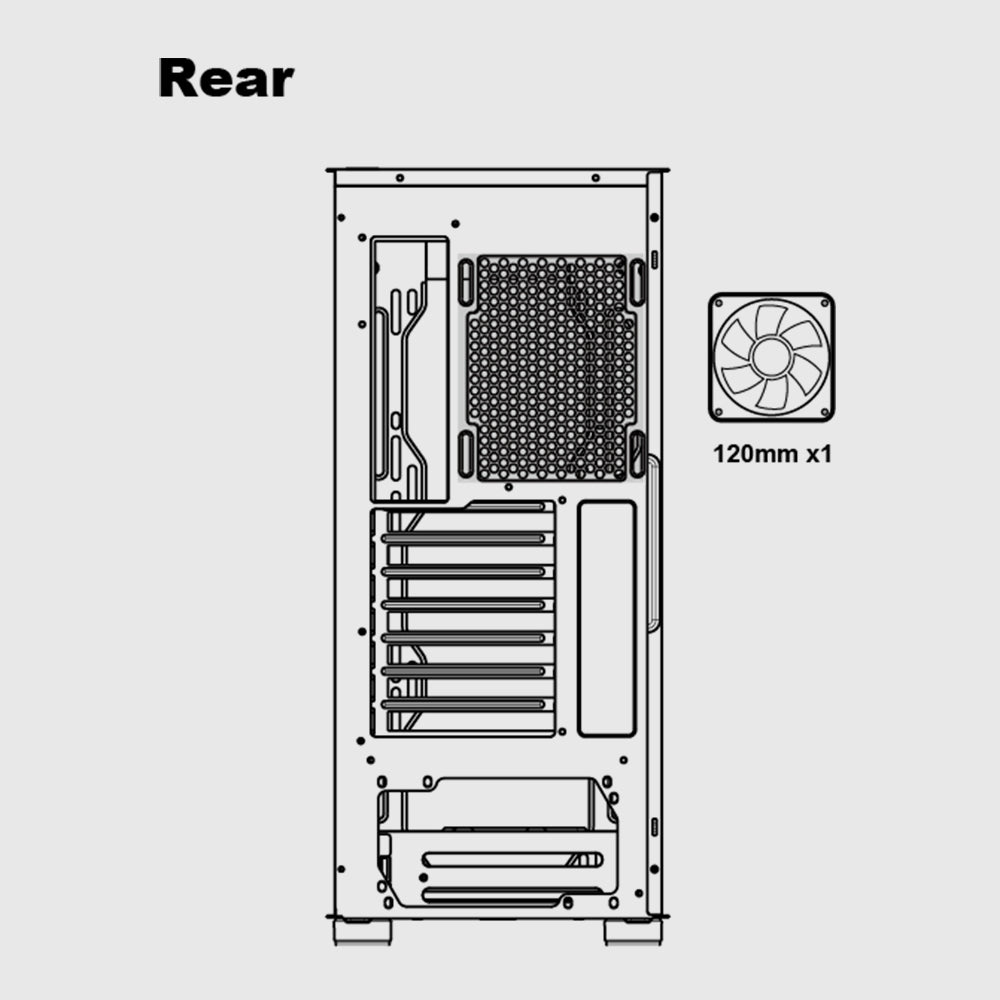

Rear Cooling Support

Fan: 1 x 120 mm (1 x 120 mm black fan included)

SPECIFICATIONS

CSAZ-340F

Download Manual
Type

ATX Mid Tower

Color

Black / Black (interior)

Side Panel Window

Left side panel : tempered glass with rubber mounts

Max CPU Cooler Height

UP to 165 mm

Max video Card Length

Up to 320 mm long video card

Motherboard Compatibility

ATX, Micro ATX, ITX

External 5.25" Drive Bays:

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 2

Expansion slots

7

Top Ports

Power button

Reset button

Led button

HD audio

1 x USB 3.0

2 x USB 2.0

Dimension with Case Stand(HxWxD)

478 x 210 x 400 mm / 18.8 x 8.3 x 15.7"

Weight

6 kg / 13.2 lbs.

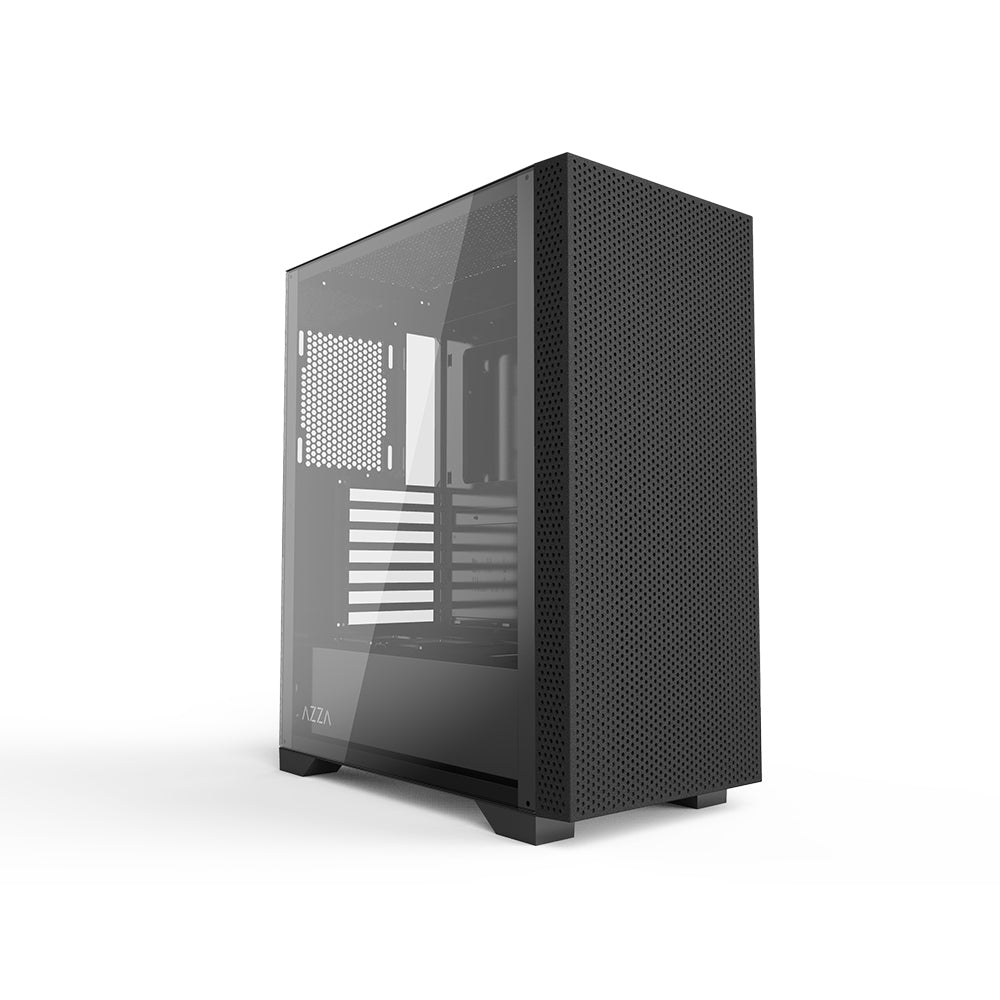

Tempered Glass on Side Window

High-quality tempered glass side window allows for clear visuals to inner components

Addressable RGB Light Effects

Addressable RGB light strip in the front controlled the lighting by the LED button. To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.

Available Fan Ports

3 x 120 mm or 3 x 140 mm fan ports in the front

2 x 120 mm or 2 x 140 mm fan ports on the top

1 x 120 mm fan port in the rear

Included Fan

1 x Rear black fan

Water Cooling

Supports radiators up to 280 / 360 mm in the front

Supports radiators up to 240 mm on the top

Dust Filters

Removable (magnetic) dustproof net on the top , iron net on bottom of chassis.

Power Supply Support

Bottom mounted ATX Power Supply
