CAST WHITE


INNOVATIVE DESIGN - A luxury case featuring unique gull-wing panels, minimalist lines, and a detachable frame for easier & stylish customization

SUPERB CRAFTSMANSHIP - Both aluminum gull wings have premium hinges & attach magnetically to the frame; while the removable shell can be easily personalized with color schemes or finishes

SIMPLY COOL - An open design ensures high-volume air cooling, particularly around the GPU; the included mesh panel further enhances airflow potential

Minimalistic Masterpiece

CAST

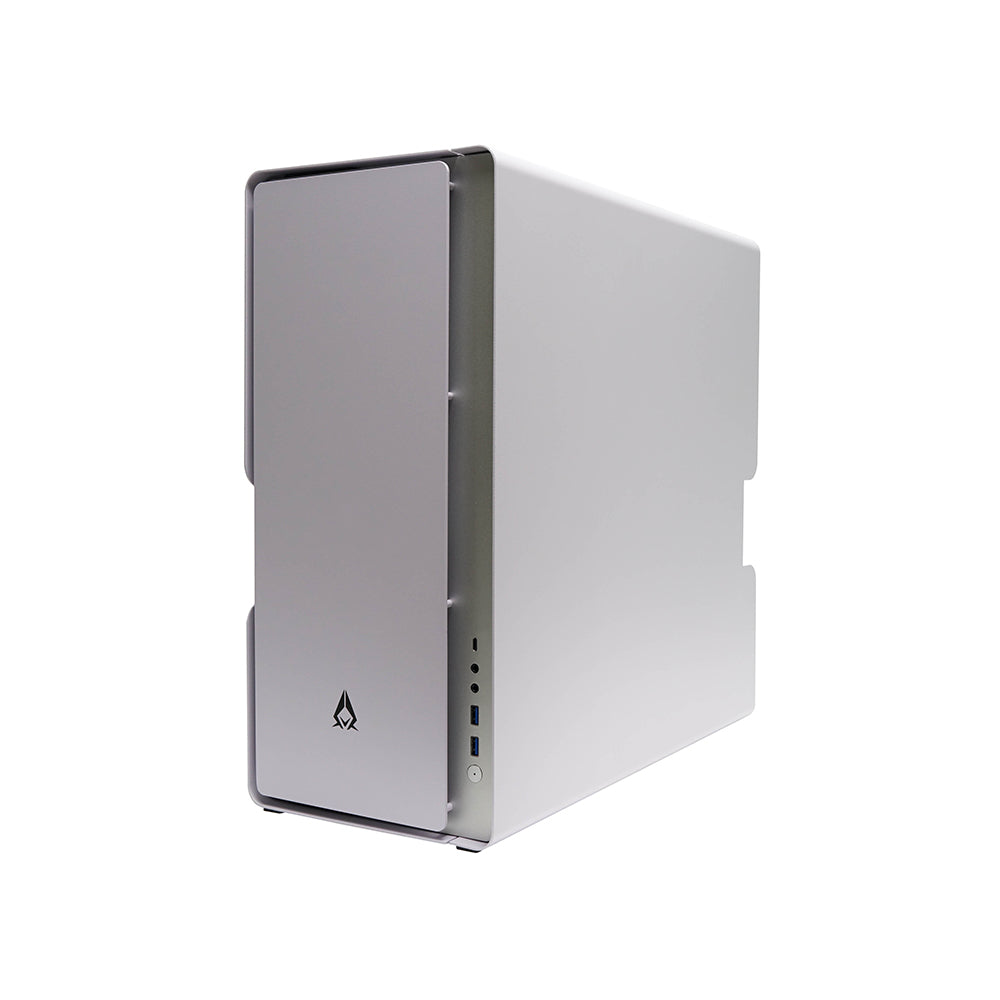

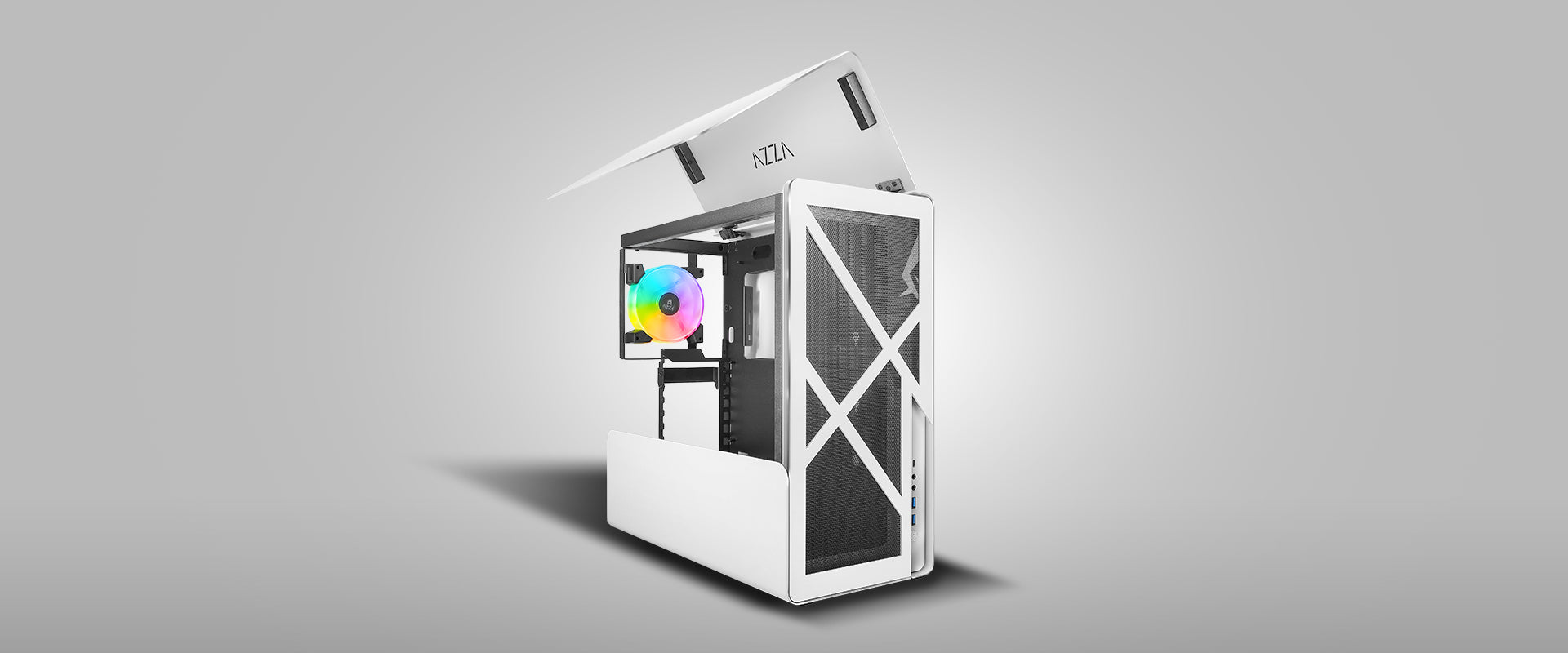

A stand-out luxury ATX mid-tower featuring gull-wing panels, minimalist elements, and a sleek exterior for a wide range of customization needs. The CAST chassis is constructed with rounded corners and offset lines for a succinct yet stylish visual statement.



Dual Tower & Test Bench Orientation

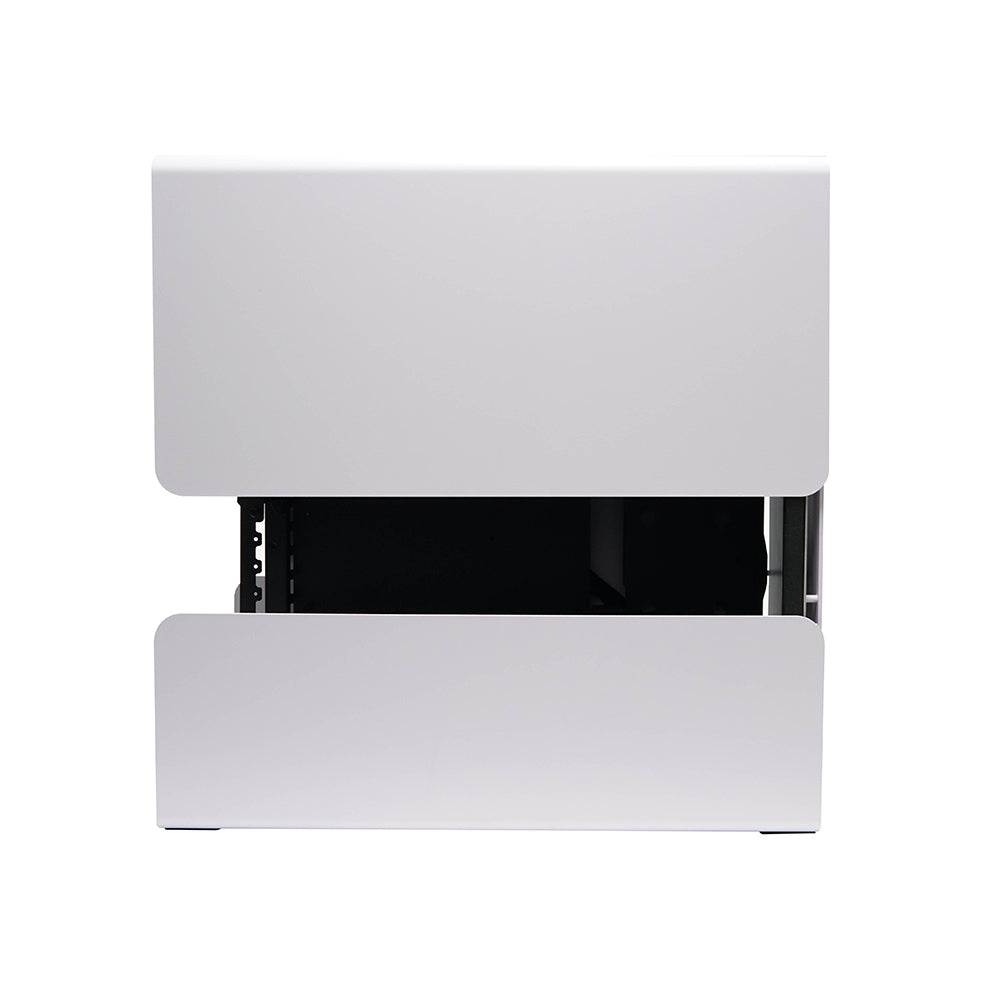

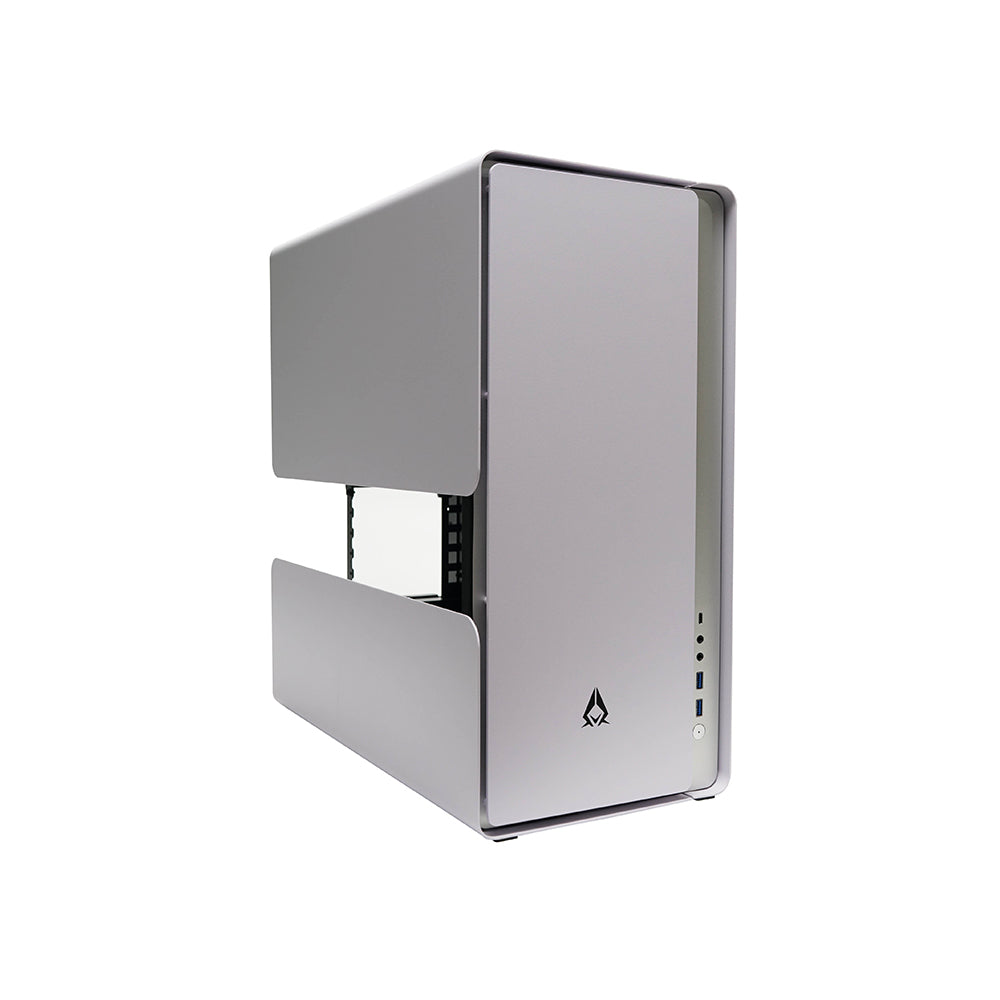

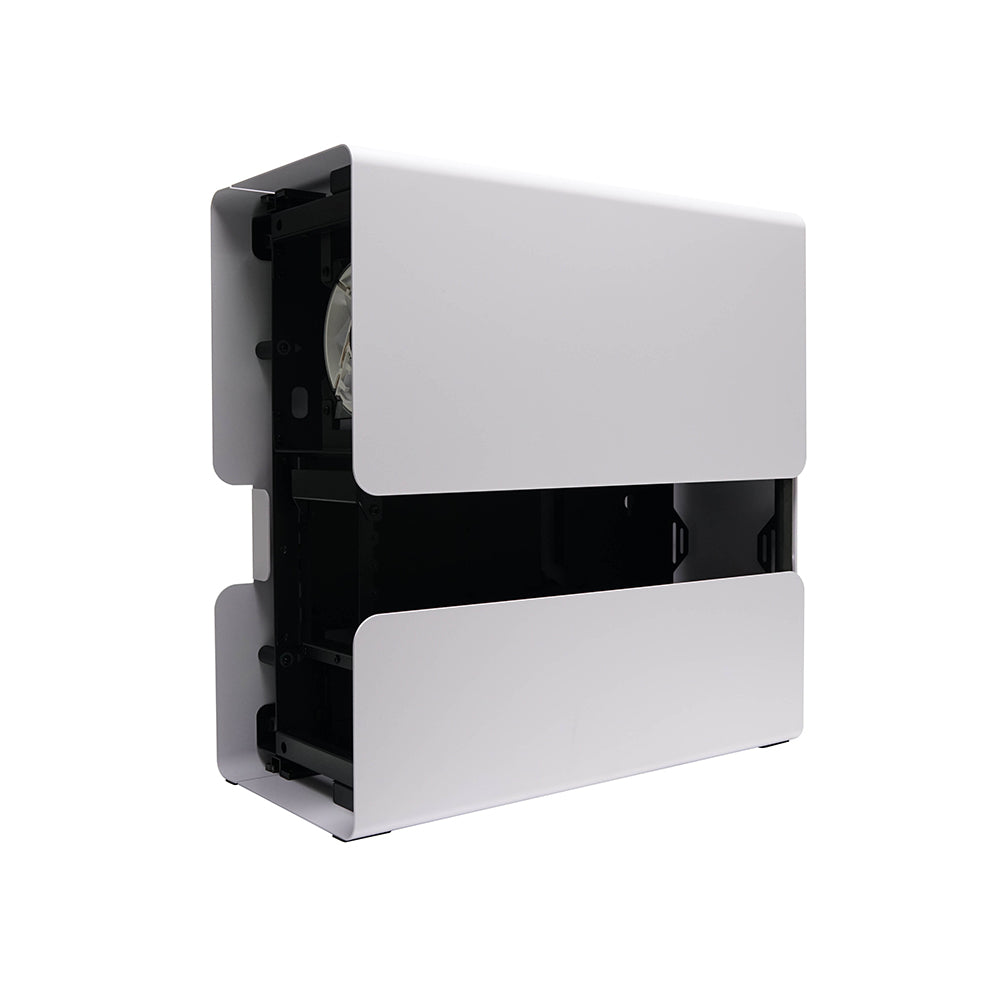

The CAST is an ATX mid-tower that features clean minimalist lines and stunning gull-wing aluminum panels.

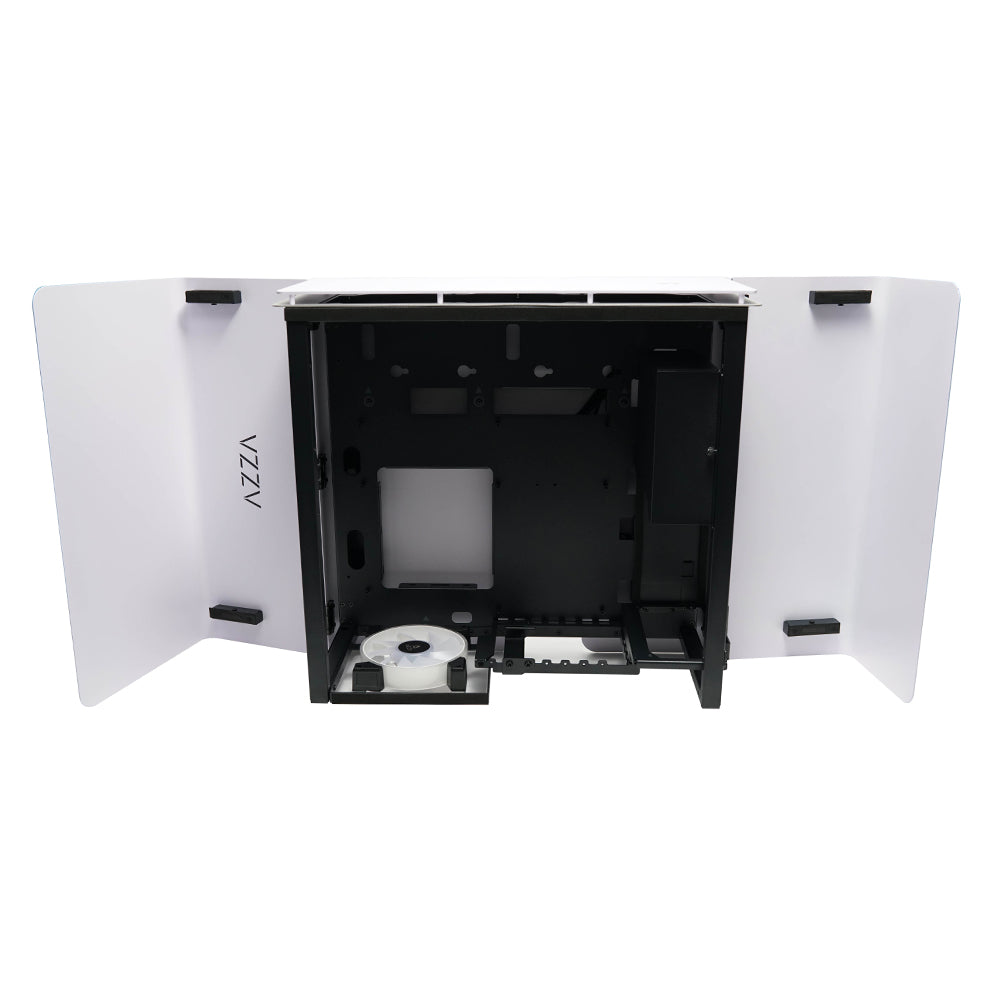

Designed primarily for tower orientation, the CAST can also function as a laid-down test bench, or as a rotated tower with its rear panel facing down as a stand-on-end showpiece.

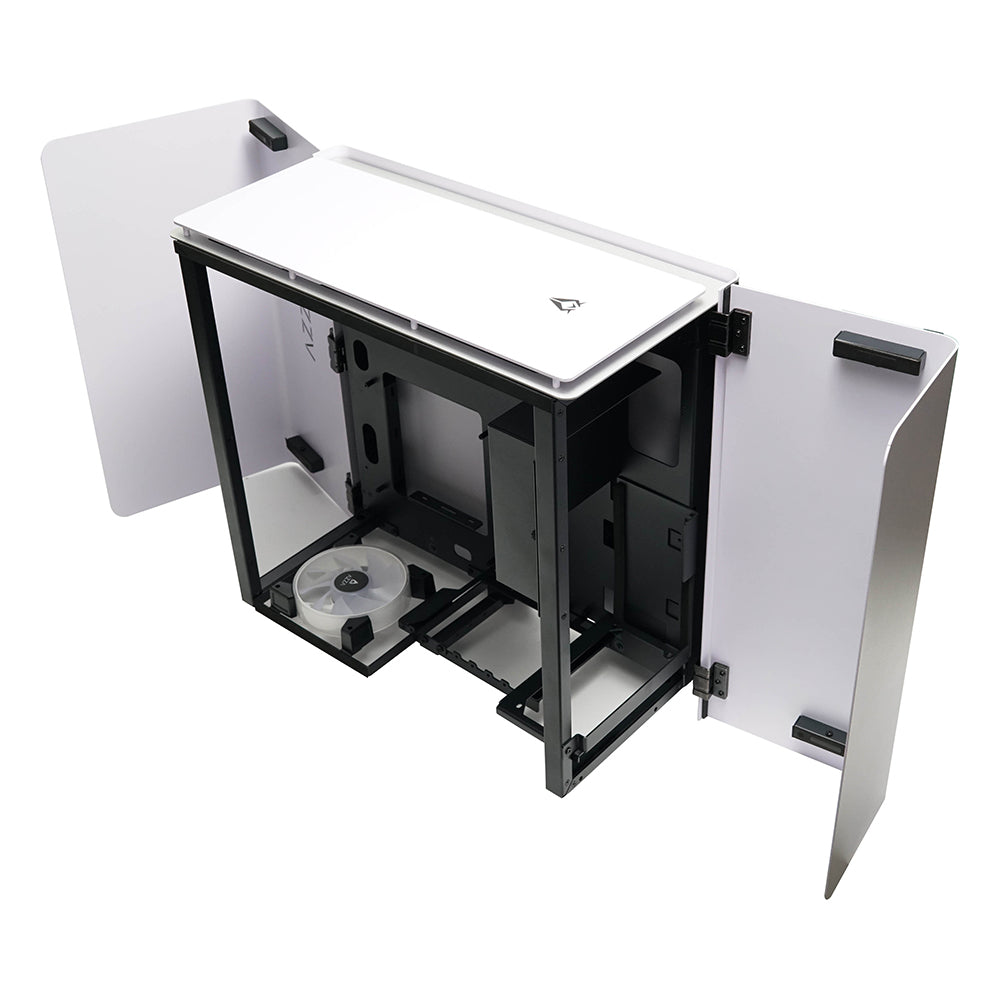

Detachable Frame & Chassis

The aluminum & steel exterior chassis can be fully detached from the robust steel frame.
This enables unrestricted access to components & cabling from any angle during assembly.

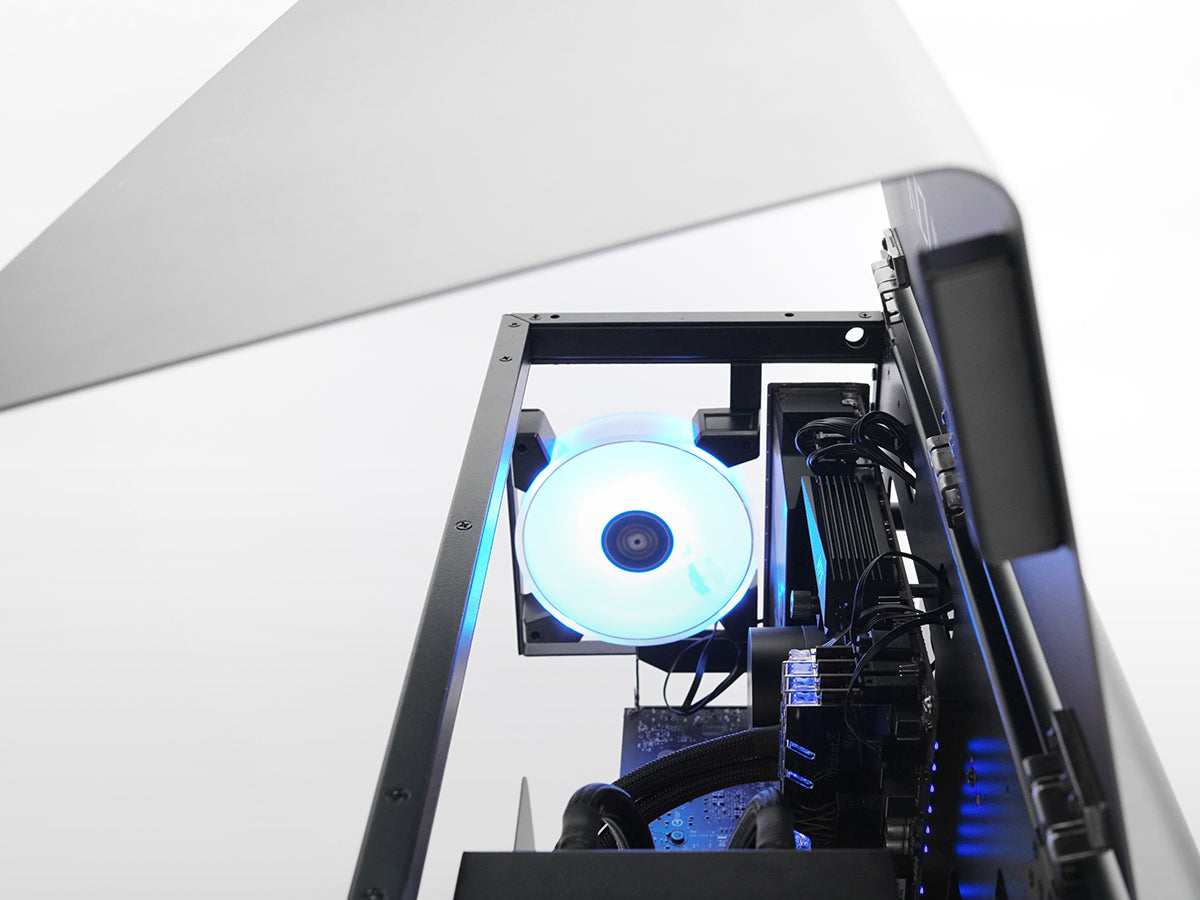

Open-Framed Airflow

Designed to have front-to-side/back airflow, the CAST also supports:

  • 1 x 280 / 360 mm radiator in the front
  • 3 x 120 mm fans or 2 x 140 mm fans behind the front panel
  • Includes 1 x 120 mm Hurricane III ARGB fan in the rear

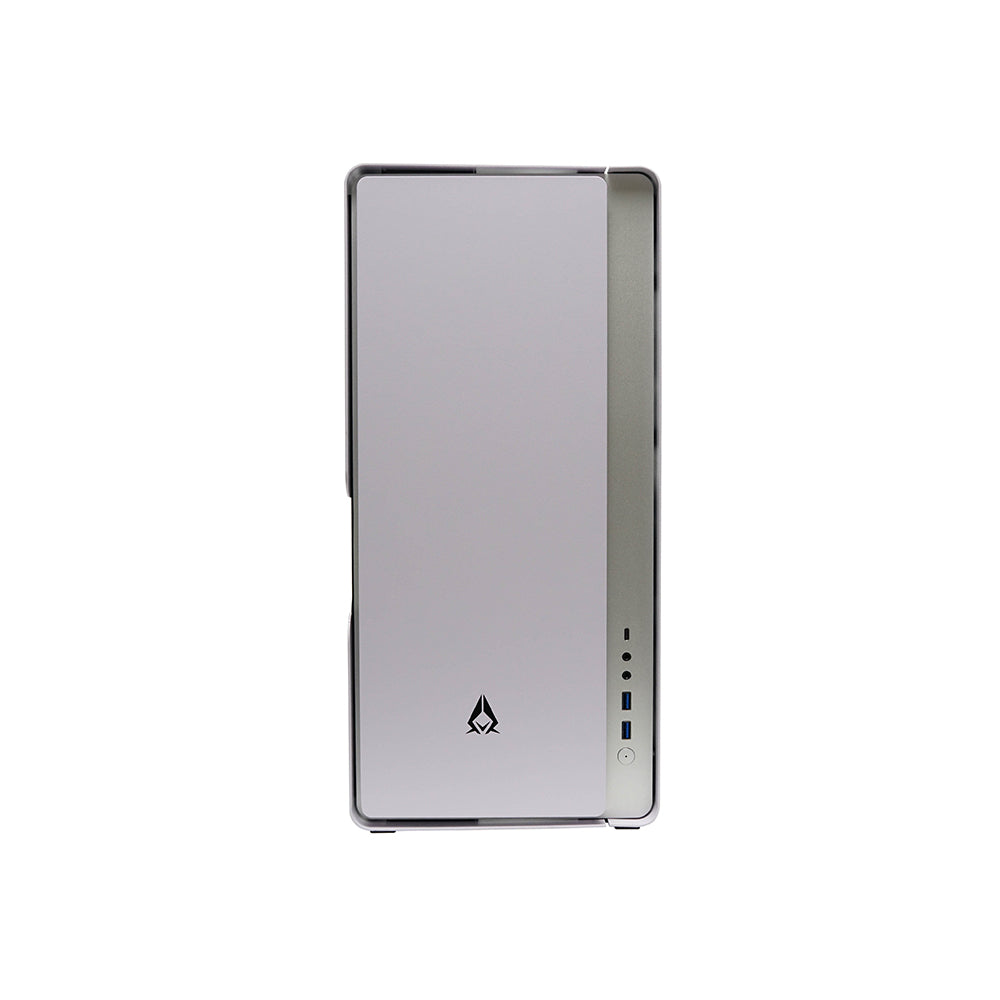

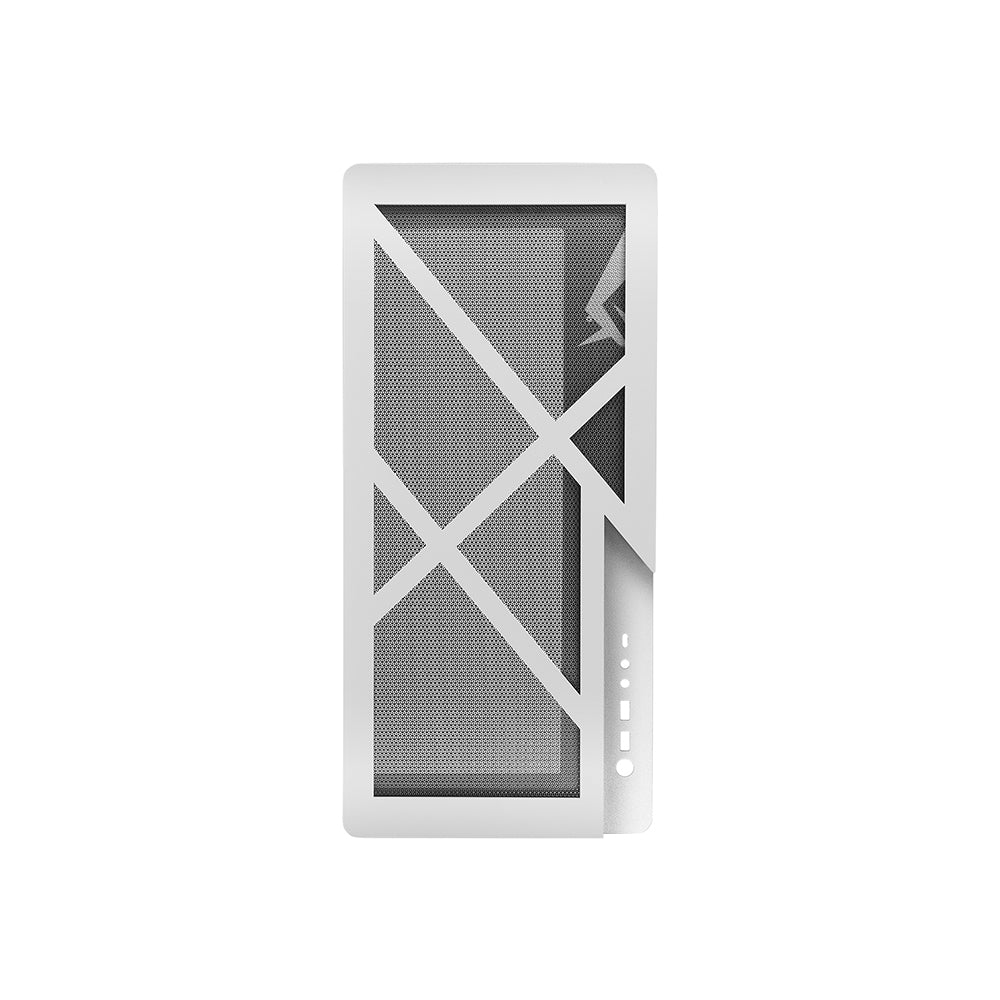

The default front panel employs an offset aluminum plate to allow air in, while an optional mesh variant (included) provides even more airflow.

Superb Craftsmanship

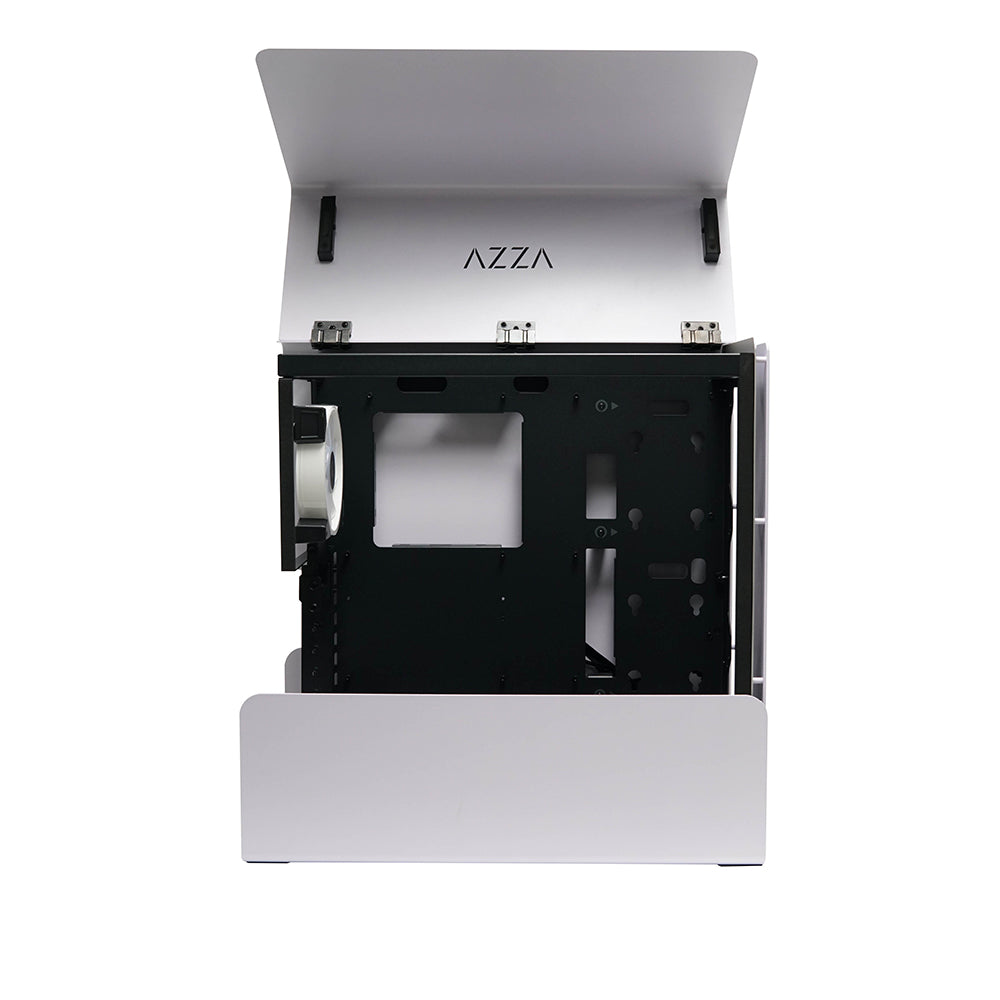

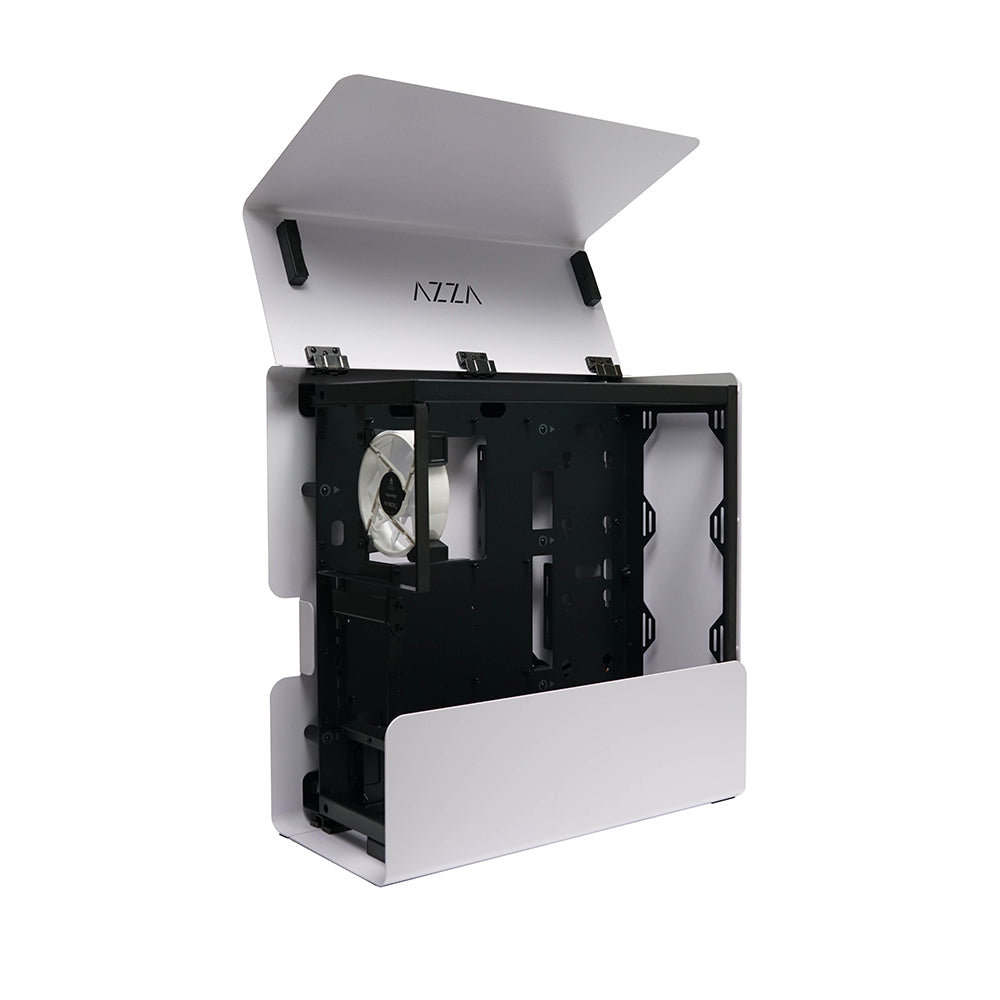

Both aluminum gull wings have good density and utilize robust premium hinges that can support their weight at any angle.
The wings attach using strong responsive magnets to the inner frame for seamless convenience and a satisfying finish.

SMART & CONVENIENT I/O

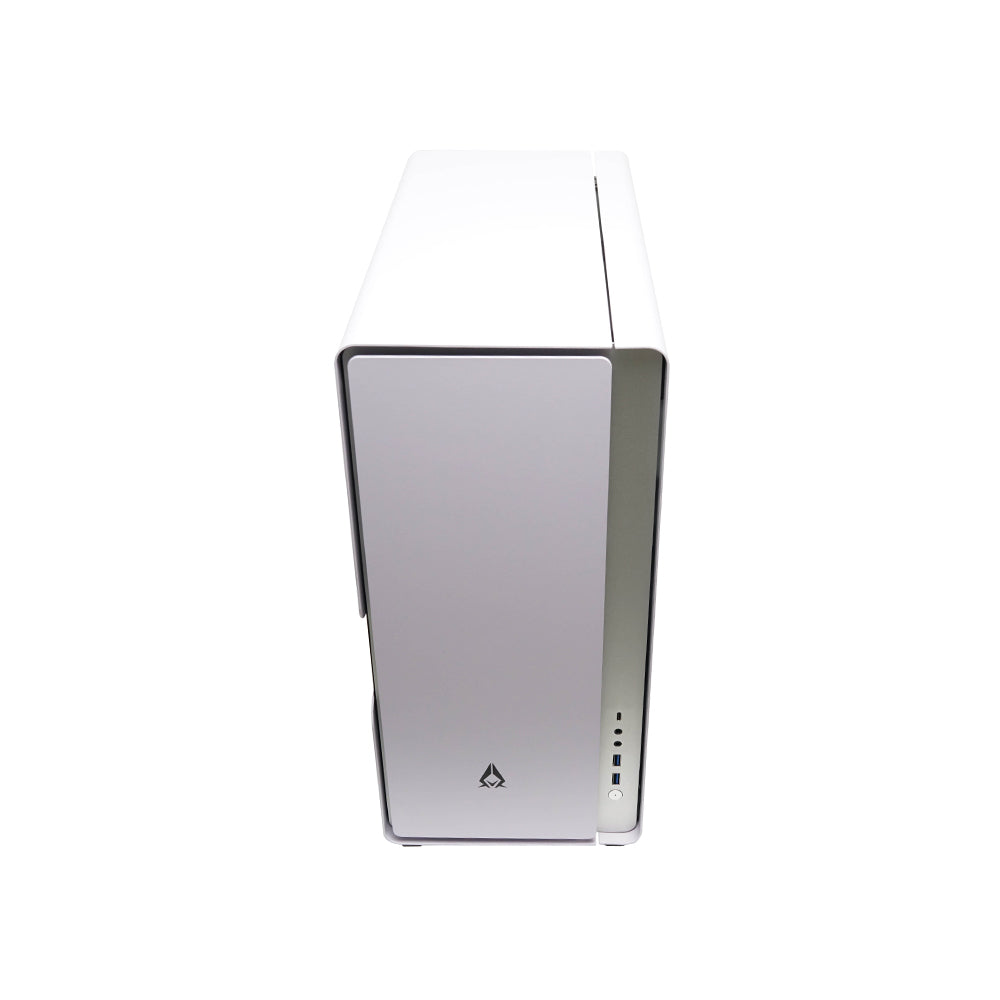

The front I/O panel features:

1 x USB 3.1 Type-C port, 2 x USB 3.0 ports, HD audio & mic ports

Build Variety

The inner frame supports ATX, Micro-ATX, and Mini-ITX motherboards. Behind the motherboard tray, allows support for 2 x 2.5" SSD slots and a 2.5/3.5" HDD bay.
Thanks to the extra chassis depth, the rear panel is set back from the edge and includes an opening for cables as a stand-on-end display.

SPECIFICATIONS

CSAZ-808W-M

Download Manual
Type

ATX Mid Tower

Color

CSAZ-808W-M : White (exterior) / Black (interior)

Side Panels

Top : Aluminum Wing
Bottom : Aluminum Wing
Side : Steel Plate

Max CPU Cooler Height

Up to 165 mm

Max Video Card Length

Up to 360 mm

Motherboard Compatibility

ATX, Micro-ATX, Mini-ITX

2.5" Drive Bays

Up to 3

3.5" Drive Bays

Up to 1

Expansion Slots

6 Horizontal + 3 Vertical

I/O Ports

Power button
HD Audio
2 x USB 3.0
1 x USB-C

Case Dimension (H x W x D)

470 mm x 220 mm x 460 mm

Weight

10.9 kg / 24.03 lbs

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in front
1 x 120 mm fan port in the rear

Included Fan

1 x 120 mm AZZA Hurricane III ARGB Fan

Water Cooling

Supports radiators up to 280 mm / 360 mm in the front

Power Supply Support

ATX power supply

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
