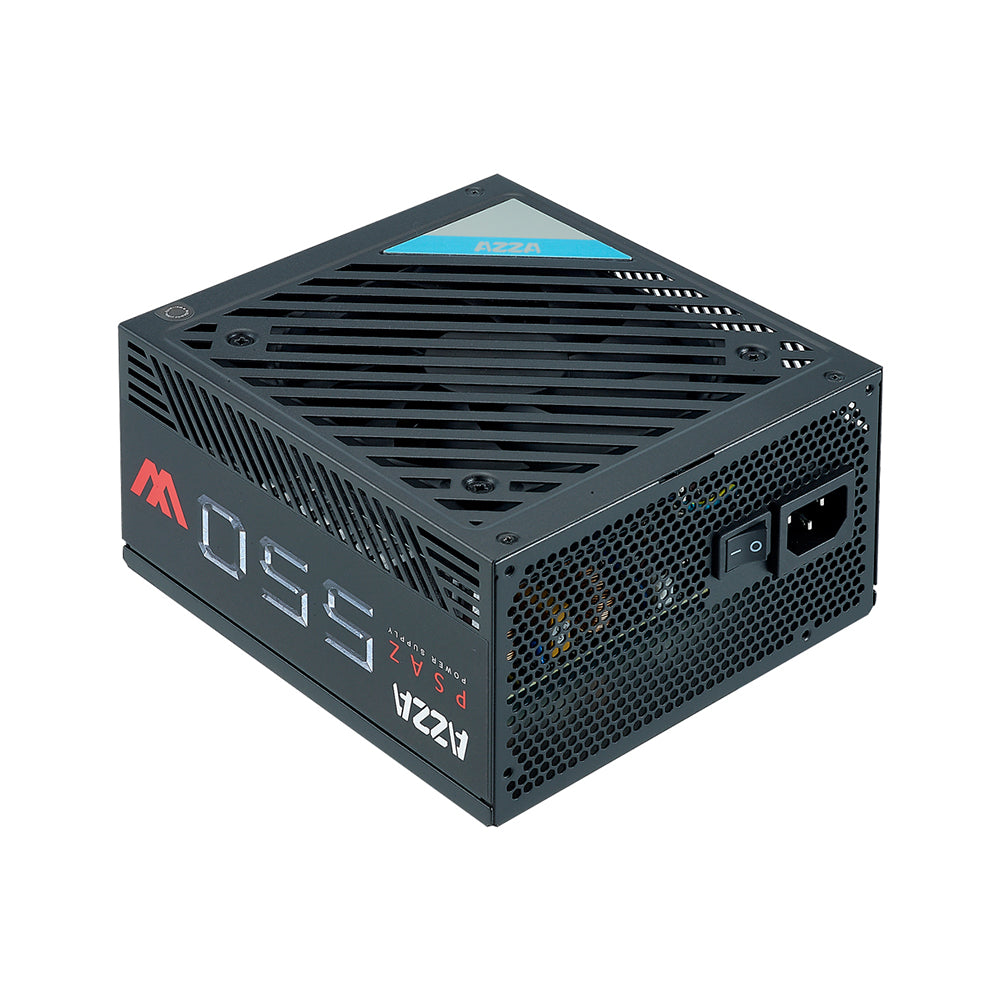

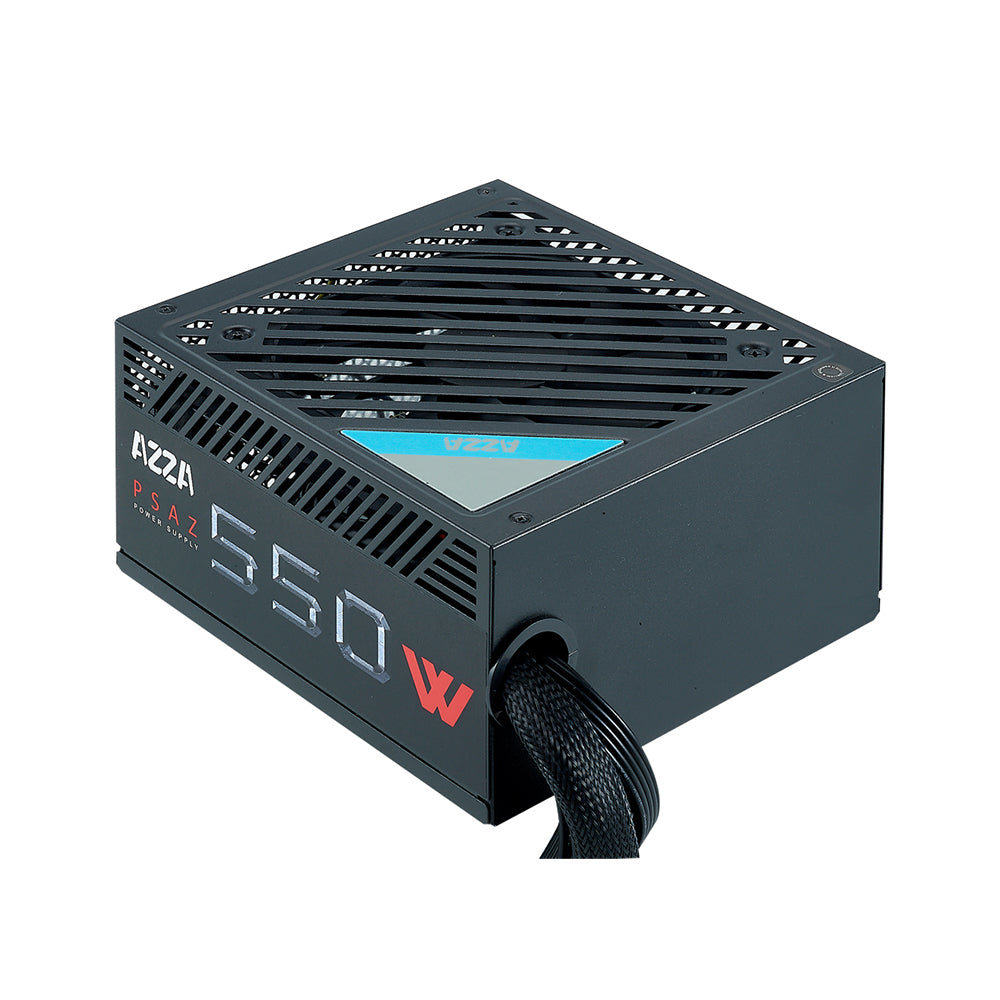

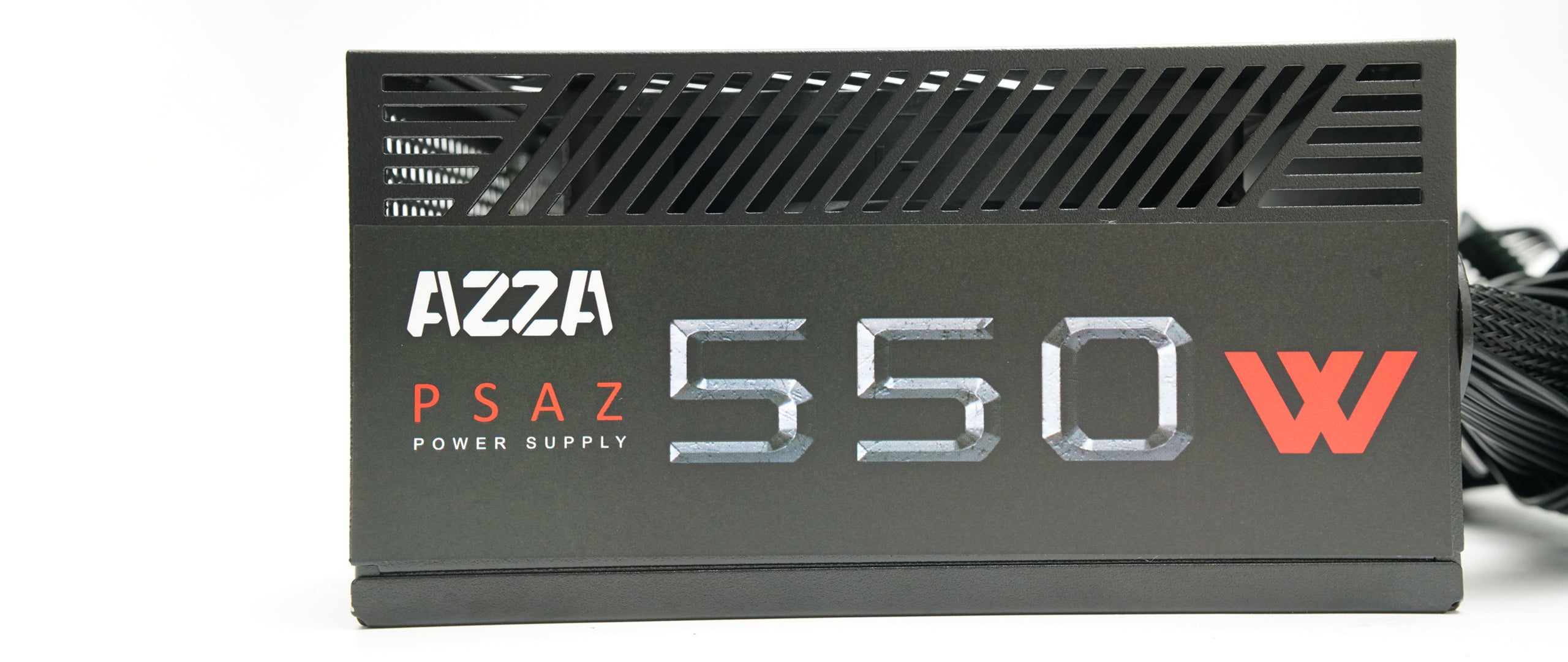

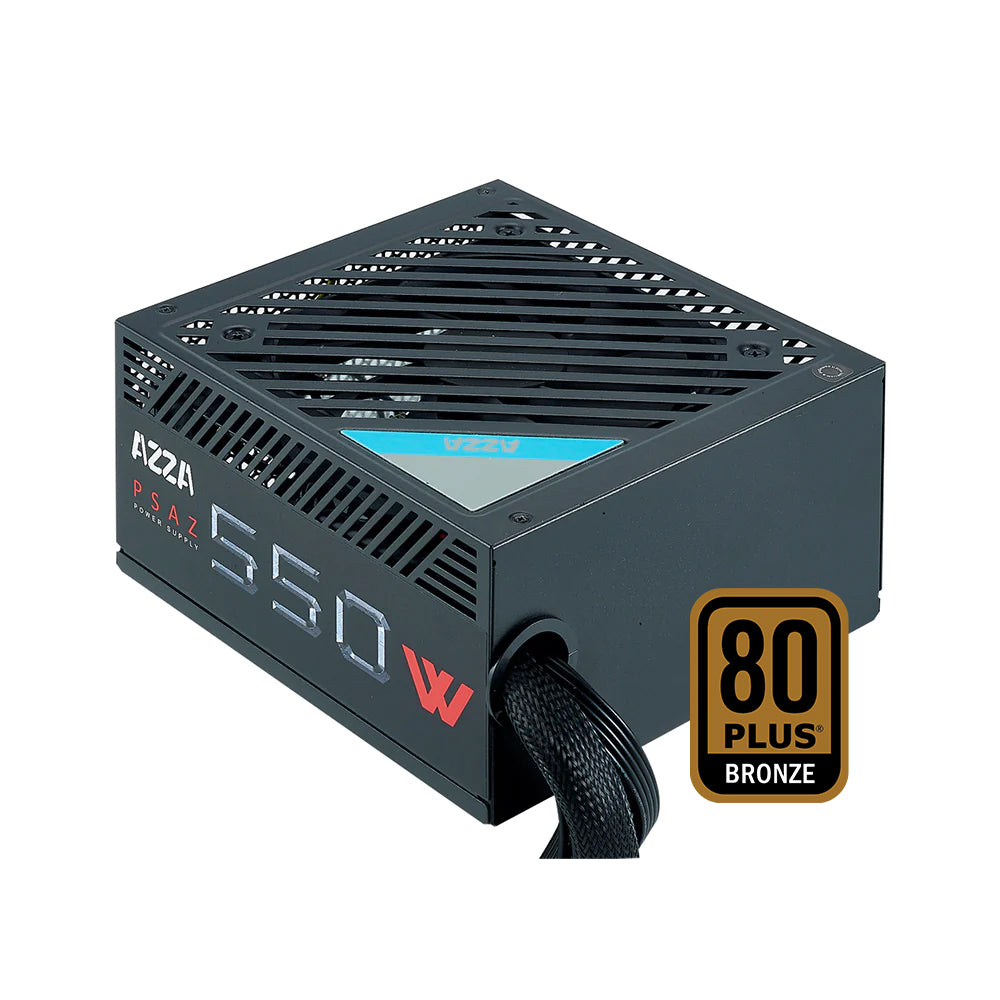

550W PSU


80 PLUS BRONZE CERTIFIED - Quality components that deliver 85.95% efficiency under typical load, lowering energy cost and excess heat waste.

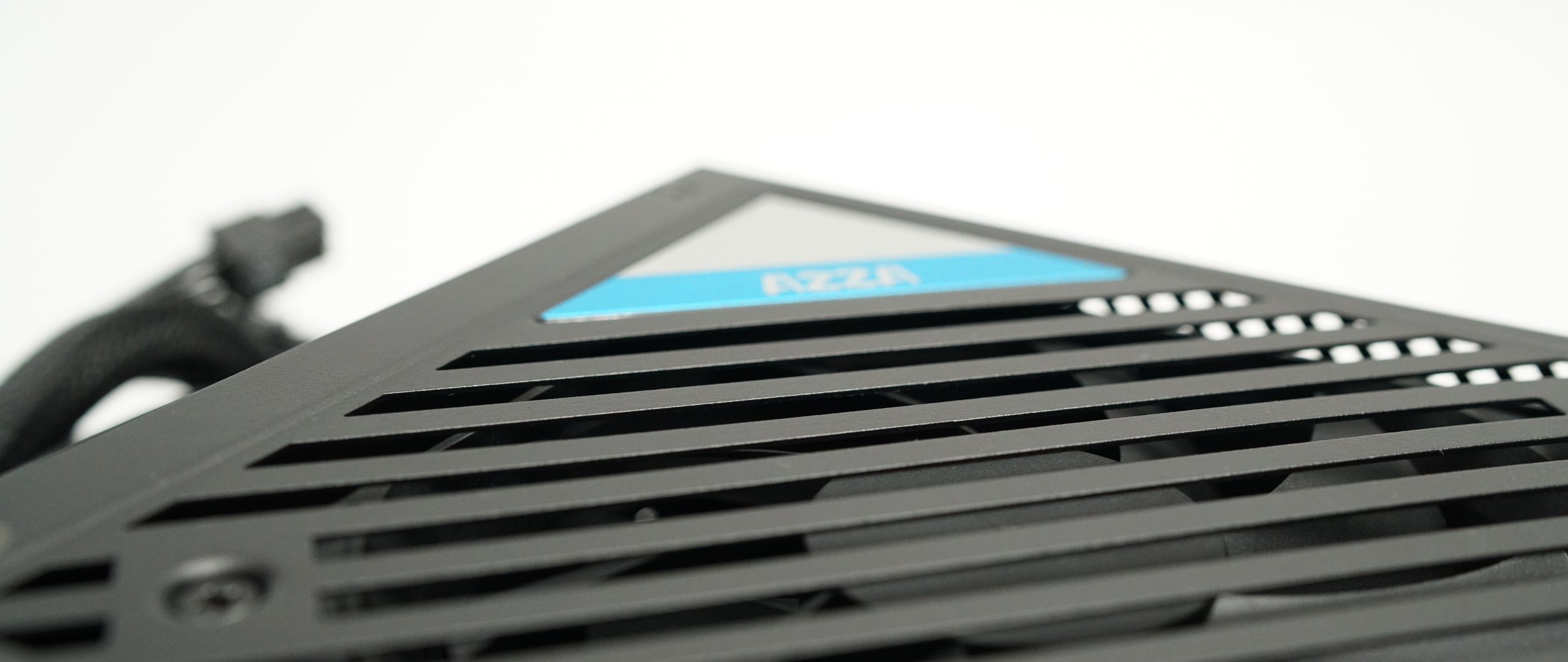

  • Silent fan for low acoustics
  • 2-year warranty
  • Intel ATX12V
  • Non-Modular
  • 100 V - 240 V

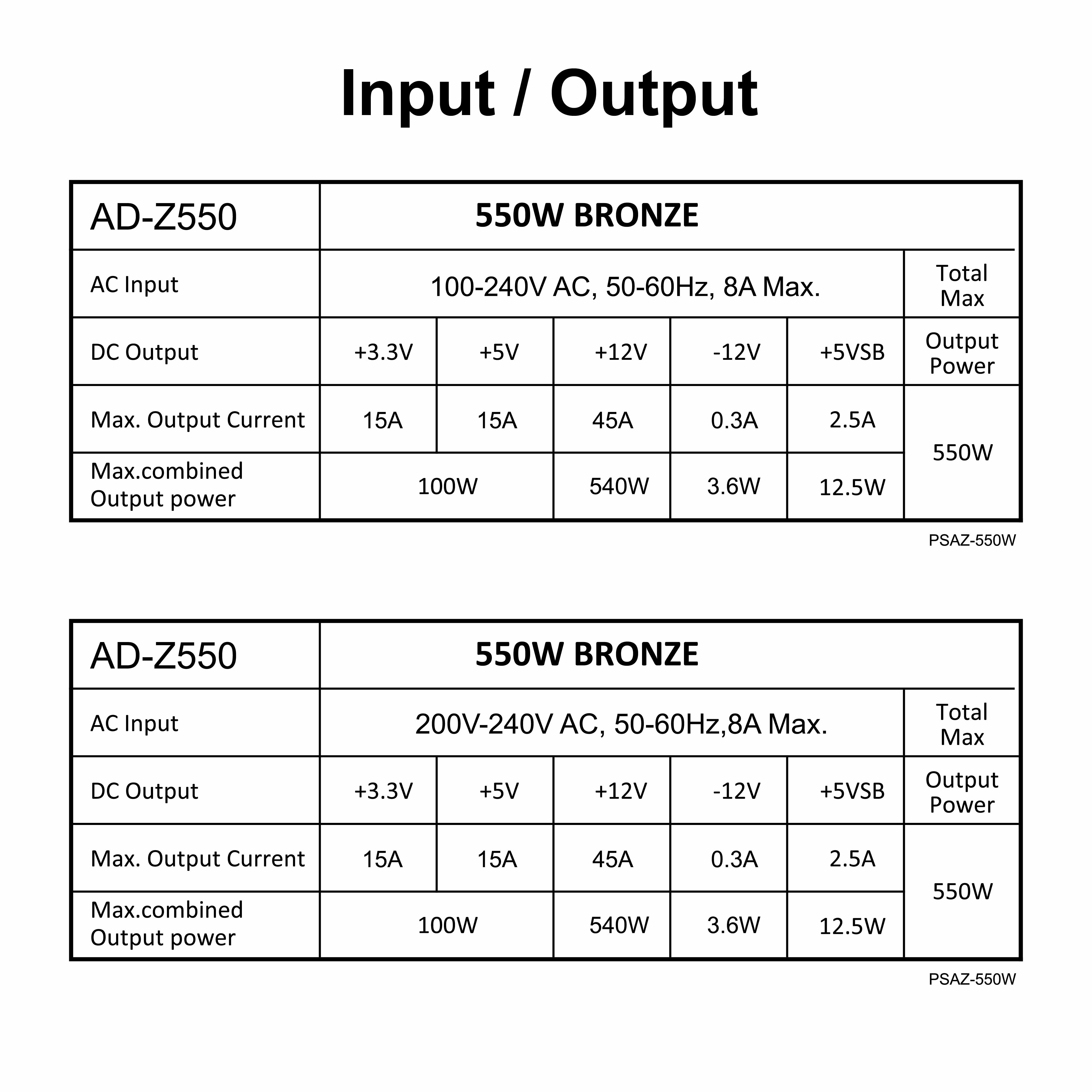

SPECIFICATIONS

PSAZ-550W

Download Manual
Total Power

550 Watts

PSU Form Factor

ATX

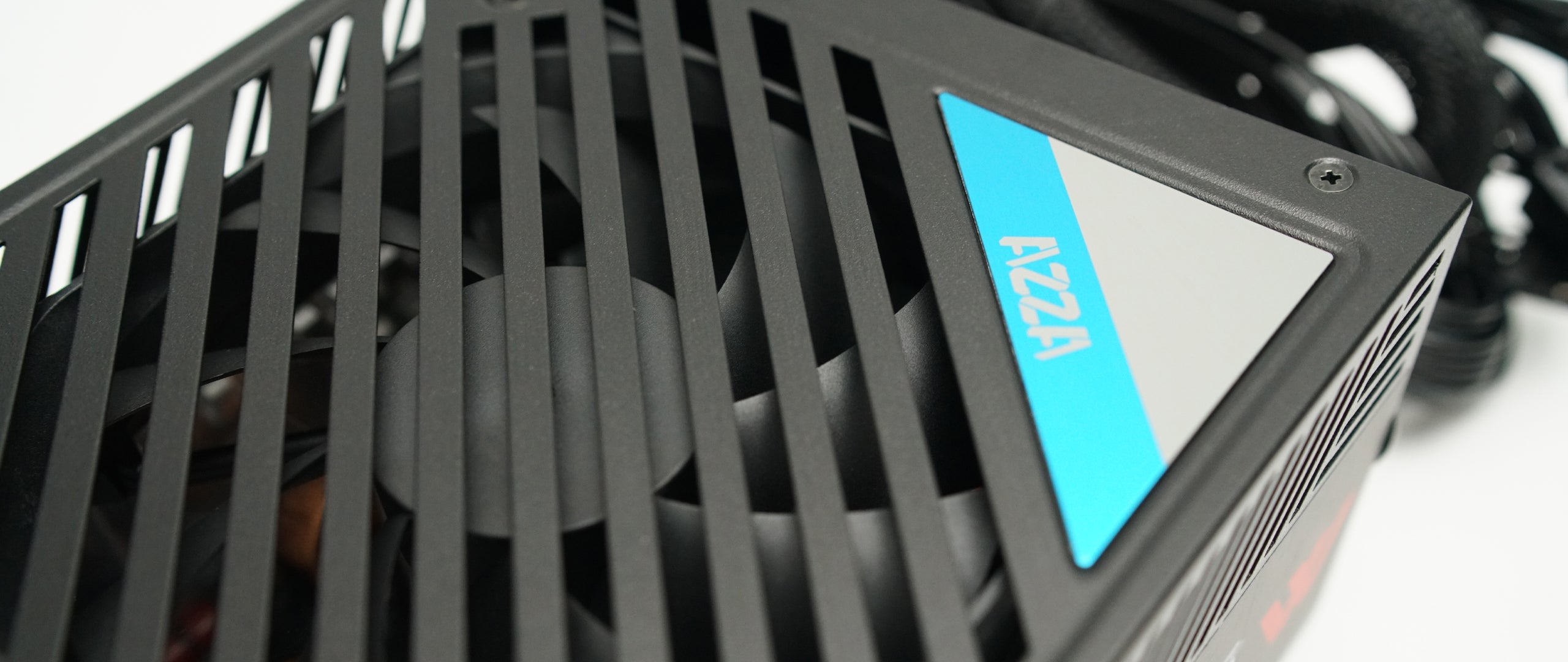

Fan size

120 mm

80 Plus Efficiency

Bronze

AC Input Voltage

100 V - 240 V / 200 V - 240 V

Modularity

Not modular

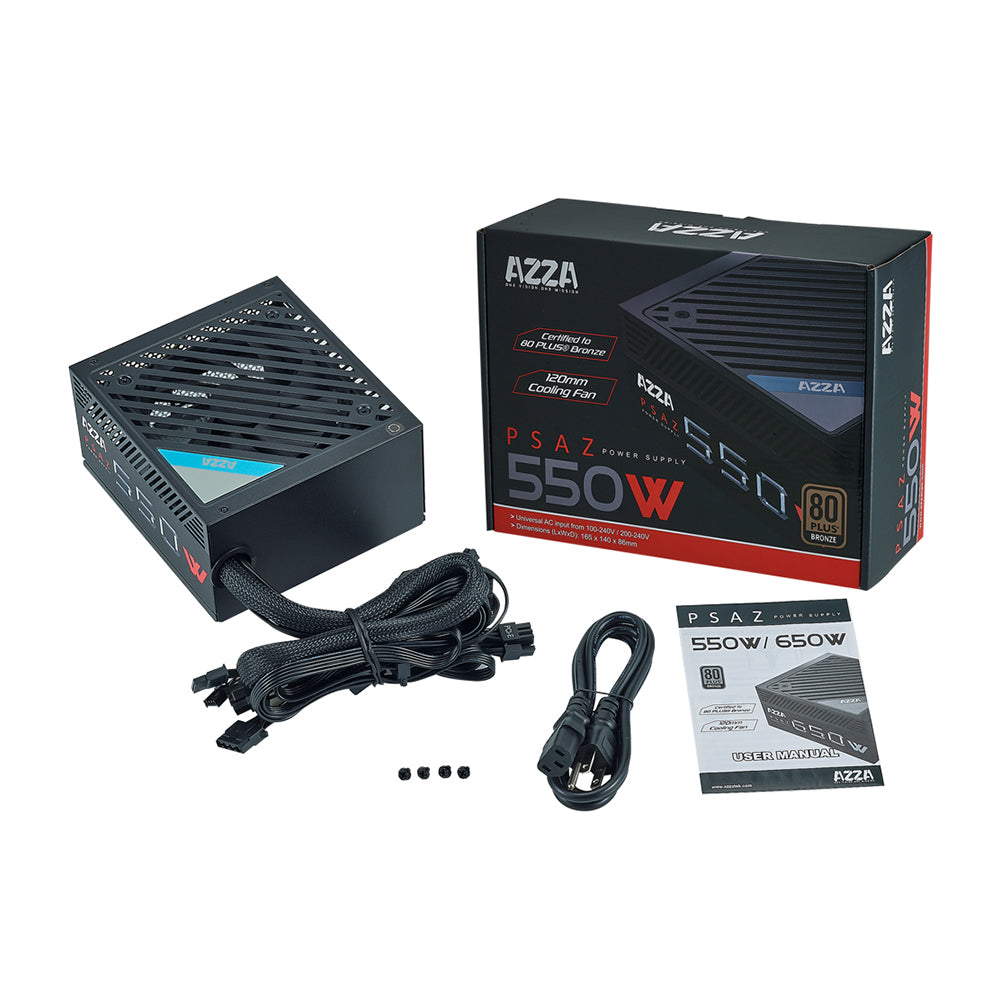

Included cables

1 x ATX cable (20 + 4 PIN)
1 x EPS cable (4 + 4 PIN)
1 x PCI-e cable (2 x 6 + 2 PIN)
1 x SATA power cable (3 x connectors)
1 x SATA + Molex + Floppy cable (2 * SATA + 2 * Molex + 1 * FDD)

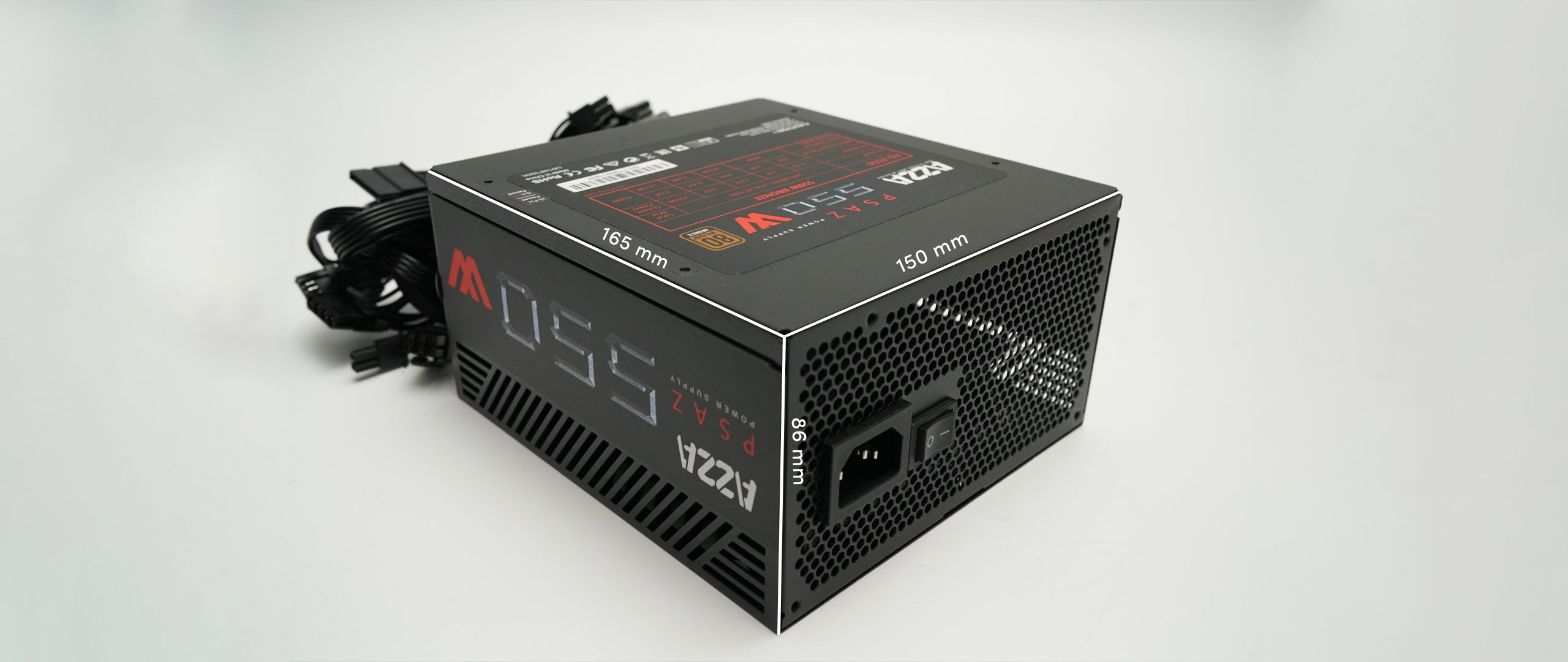

Dimensions (H x W x D)

86 mm x 150 mm x 165 mm

Protective Features

UVP
OVP
OPP
OCP
SCP

Safety Certifications

FCC
CE
TUV
RoHS
RCM
