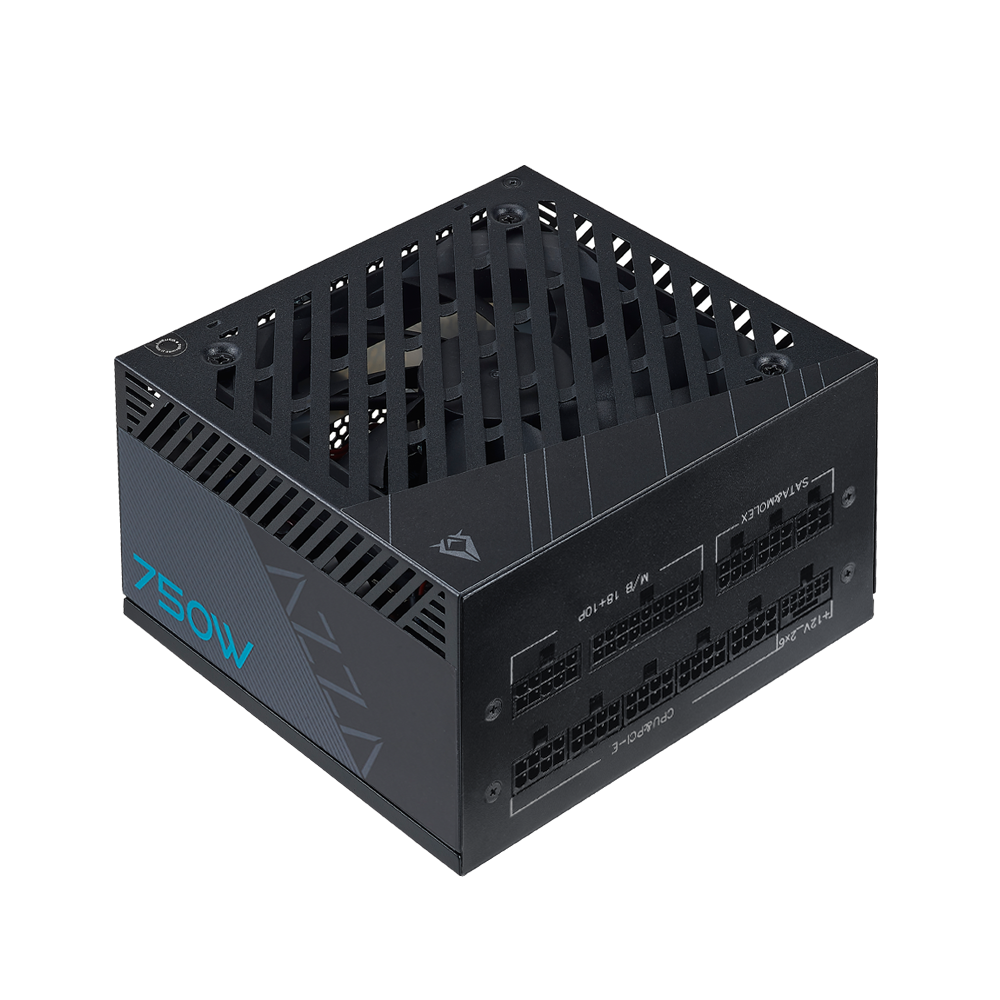

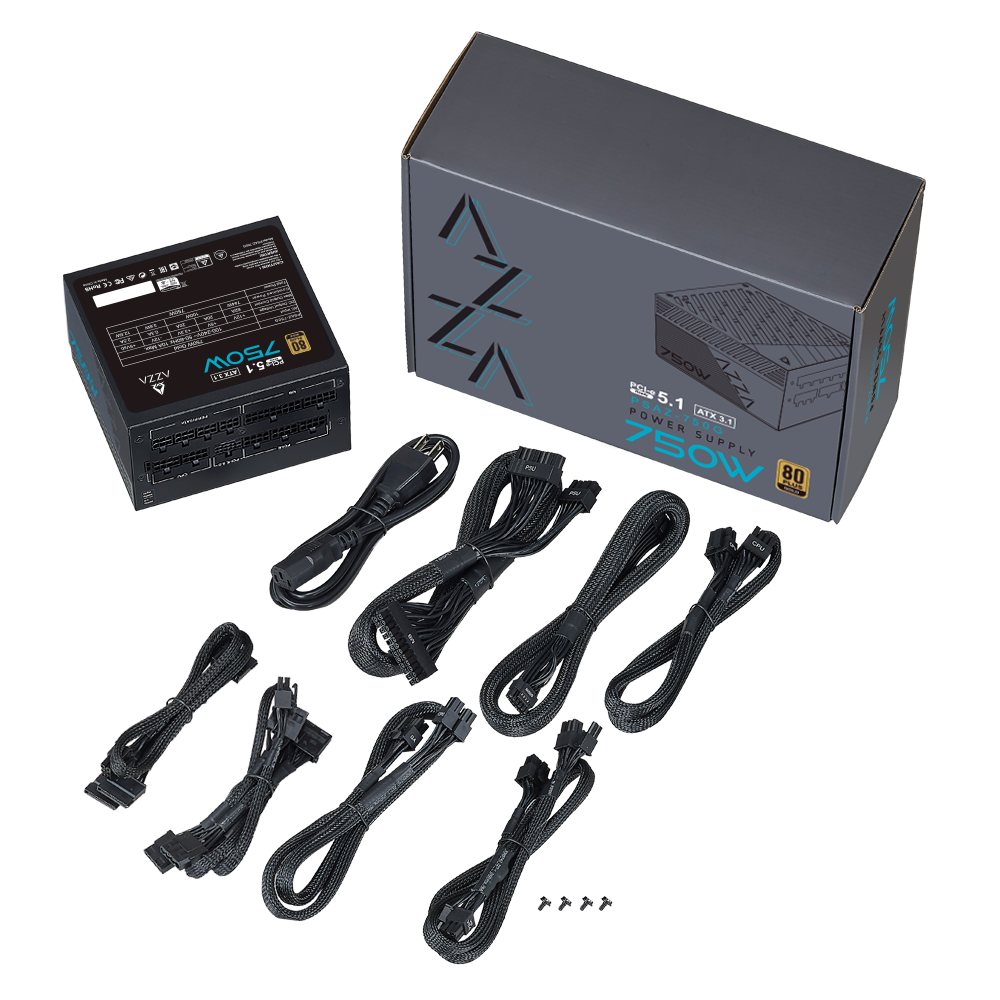

ATX3.1 750G GOLD


80 PLUS GOLD CERTIFIED - Quality components that deliver 90% efficiency under typical load, lowering energy cost and excess heat waste.

ECO FAN CONTROL - Rear button controls the efficiency & noise levels of fan. Save on energy costs and unnecessary fan use.

ATX 3.1 READY - 12V-2x6 16-pin PCI-e 5.1 connector helps to safely utilize the PSU for PCI- e  5.1 next-gen graphics cards.

  • Silent fan for low acoustics
  • 2-year warranty
  • Fully Modular
  • 100 V - 240 V



SPECIFICATIONS

PSAZ-750G Fully modular

Download Manual

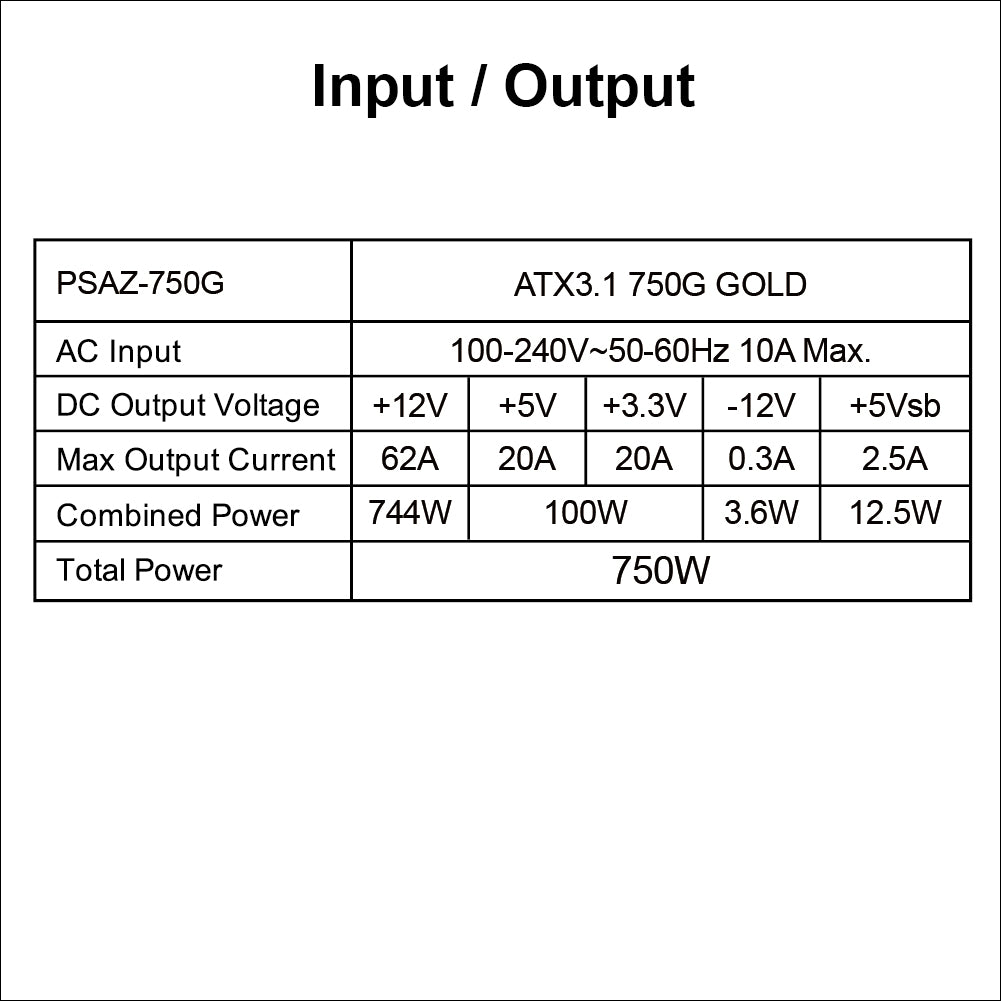

Total Power

750 Watts

PSU Form Factor

ATX 12V

Fan size

120 mm

80 Plus Efficiency

Gold

AC Input Voltage

100 V - 240 V

Modularity

Fully modular

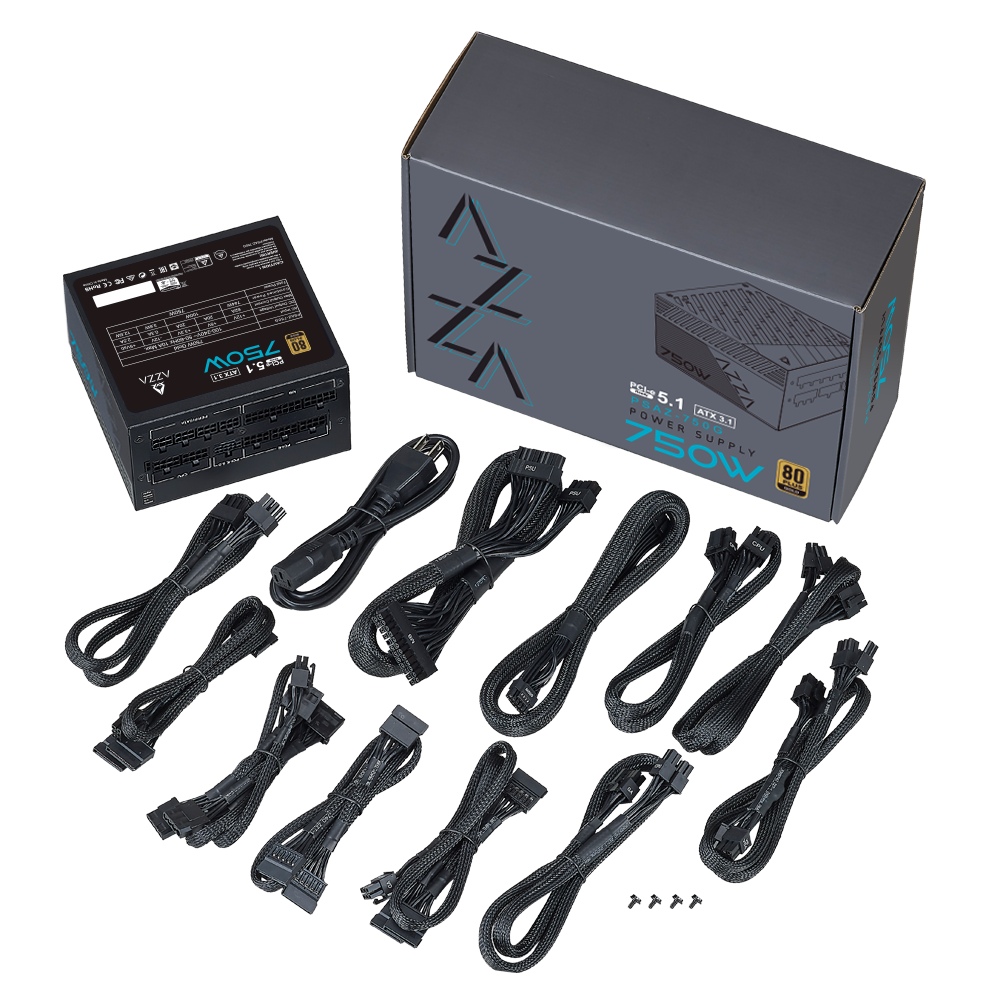

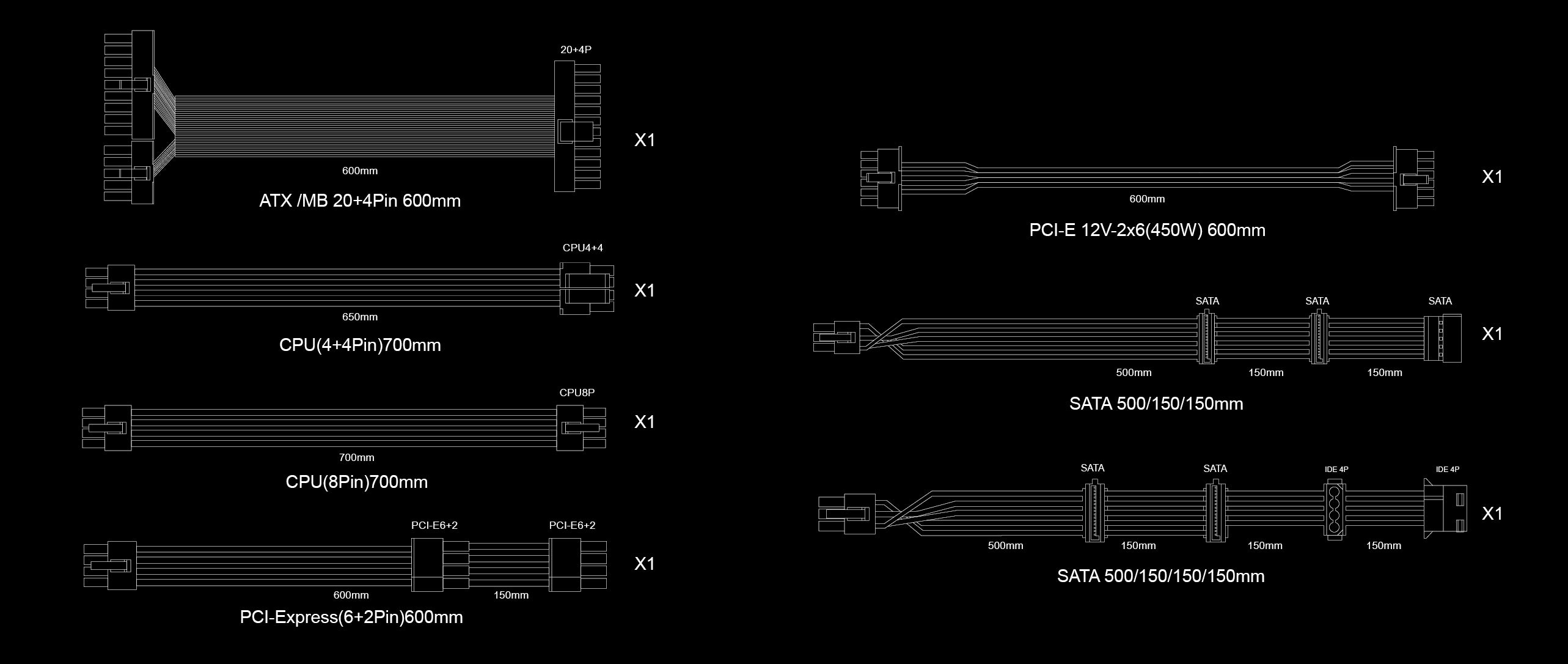

Included cables

1 x ATX / MB cable (20 + 4 PIN)
1 x CPU / EPS cable (4 + 4 PIN)
1 x CPU(8 PIN)
1 x PCI-e 12V-2x6 (12+4Pin)
1 x PCI-e (6 + 2 PIN)
1 x SATA Cable (3 x SATA)
1 x SATA+Molex Cable (3 x SATA+1 Molex)

Dimensions (H x W x D)

86 mm x 150 mm x 140 mm

Protective Features

OVP

OPP

SCP

UVP

OCP

OTP

Safety Certifications

FCC
CE
TUV
RoHS
RCM
CB
