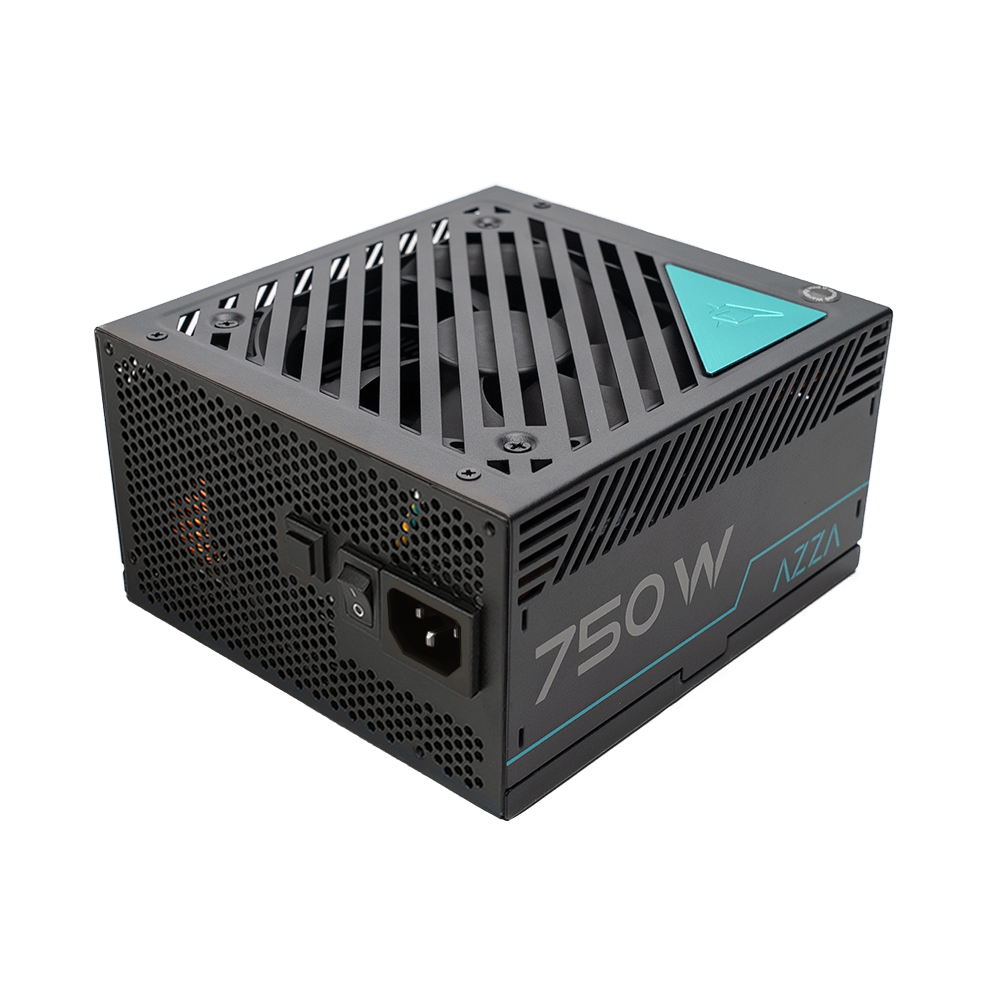

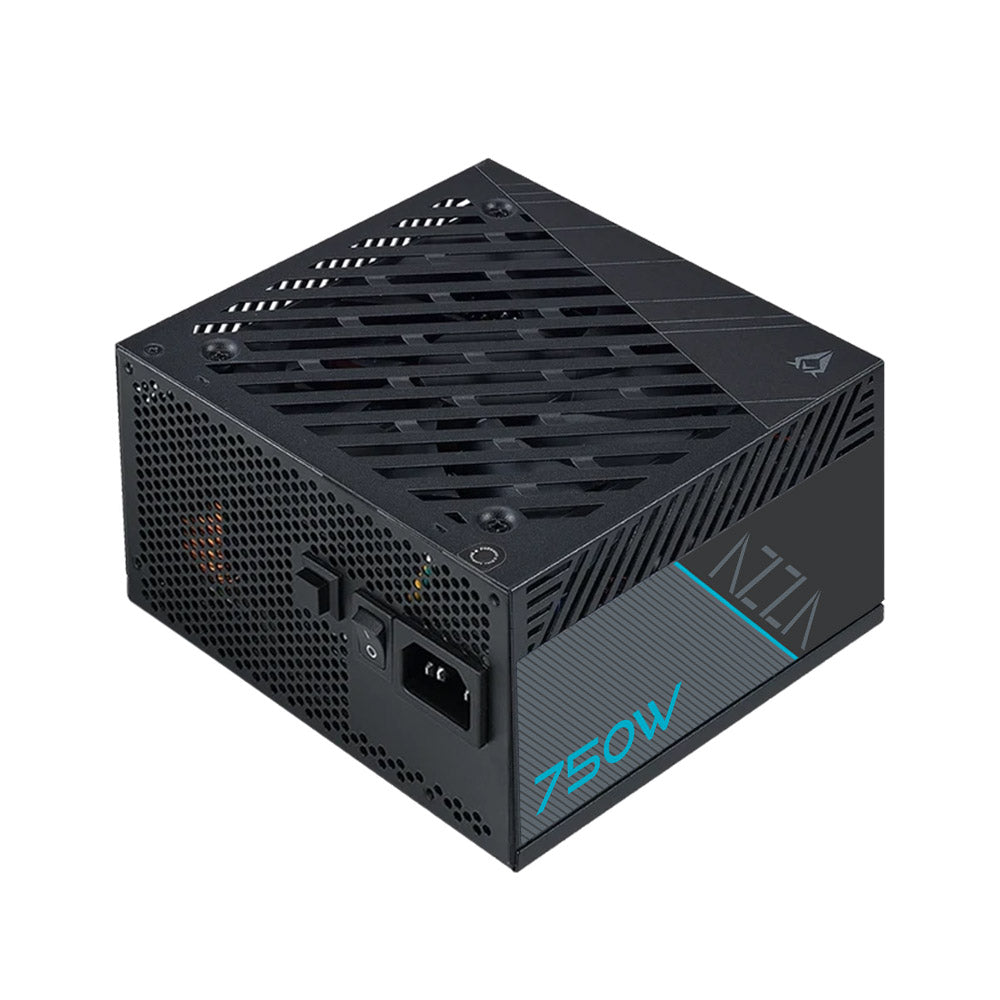

ATX3.1 750G GOLD


80 PLUS GOLD CERTIFIED - Quality components that deliver 90% efficiency under typical load, lowering energy cost and excess heat waste.

ECO FAN CONTROL - Rear button controls the efficiency & noise levels of fan. Save on energy costs and unnecessary fan use.

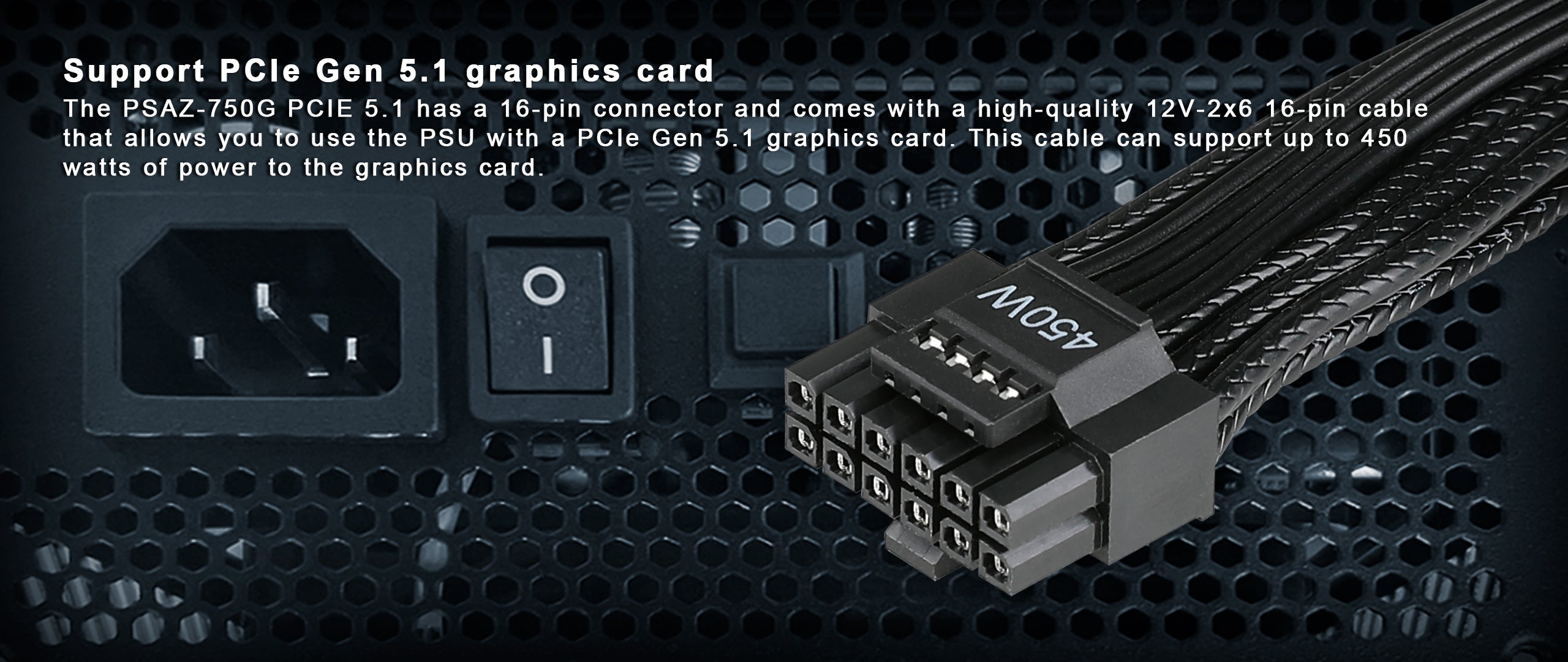

ATX 3.1 READY - 12V-2x6 16-pin PCI-e 5.1 connector helps to safely utilize the PSU for PCI- e  5.1 next-gen graphics cards.

  • Silent fan for low acoustics
  • 2-year warranty
  • Non-Modular
  • 100 V - 240 V

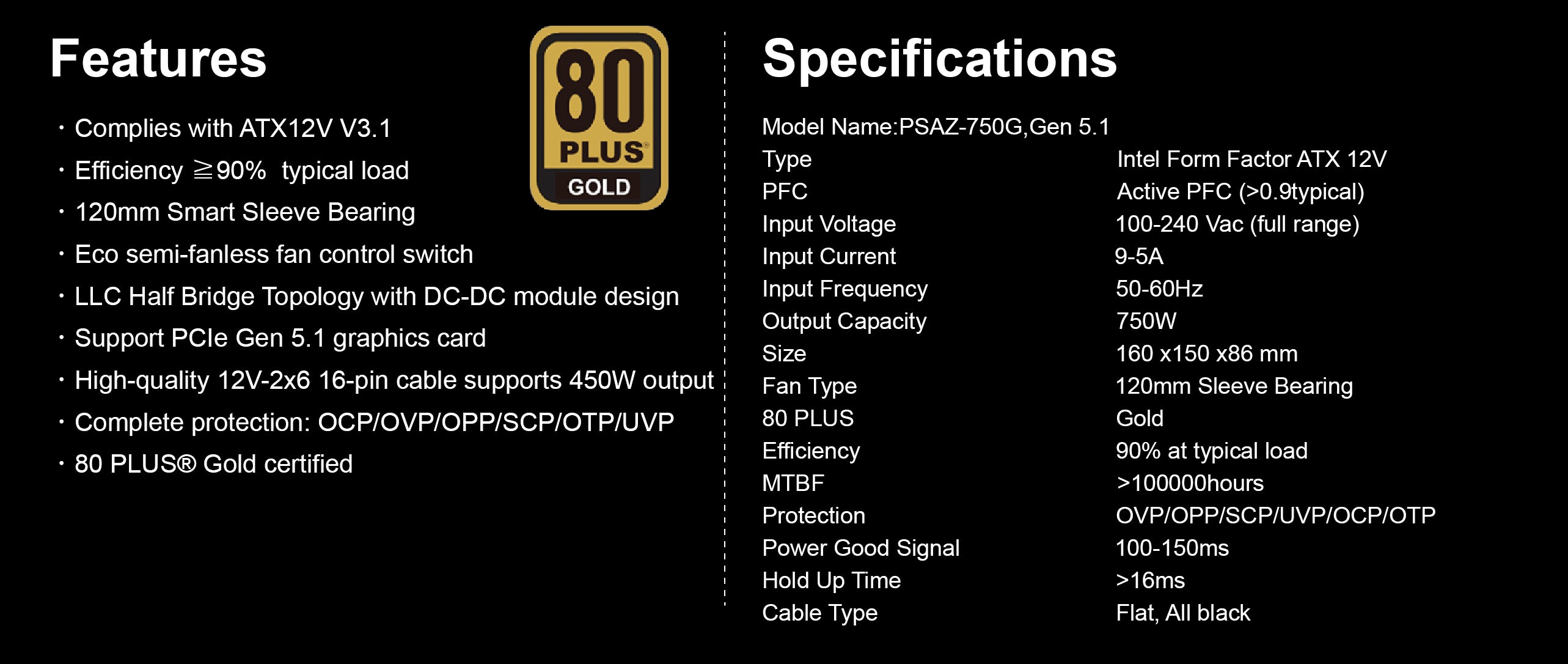

SPECIFICATIONS

PSAZ-750G(ATX3.1)

Download Manual

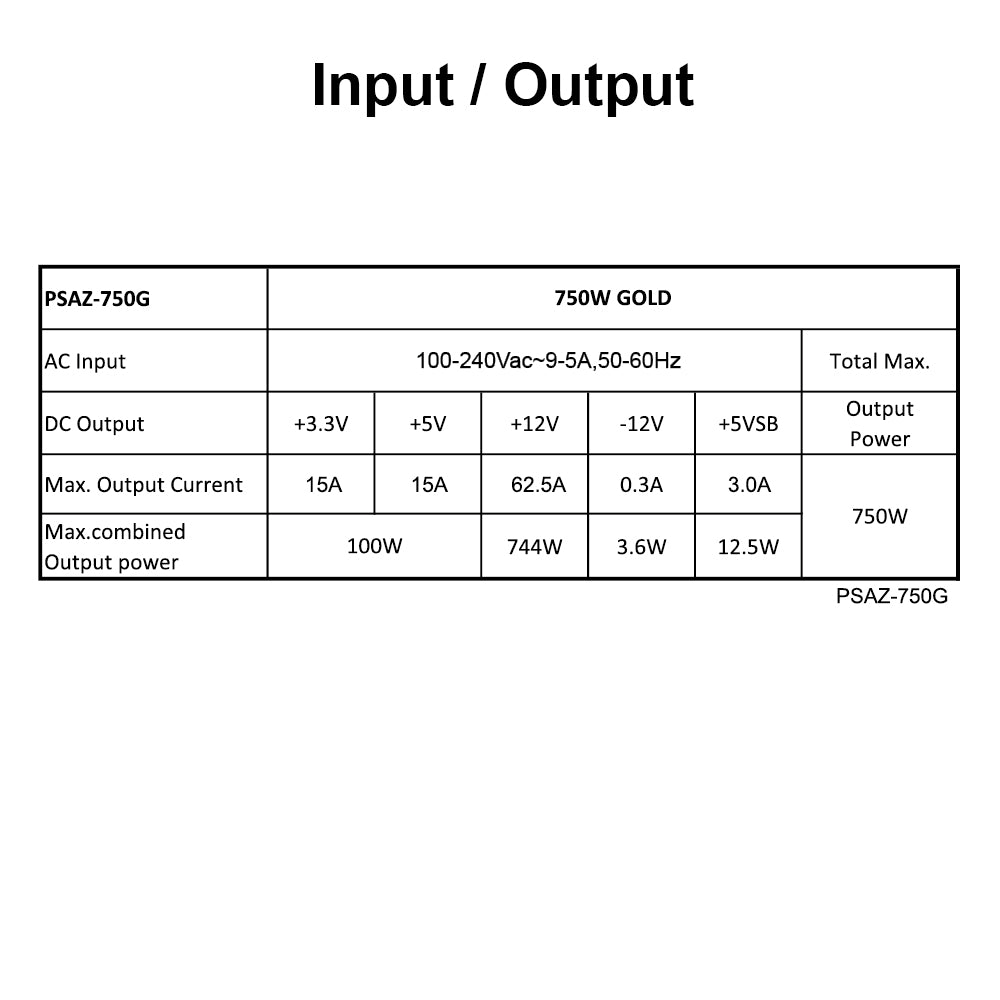

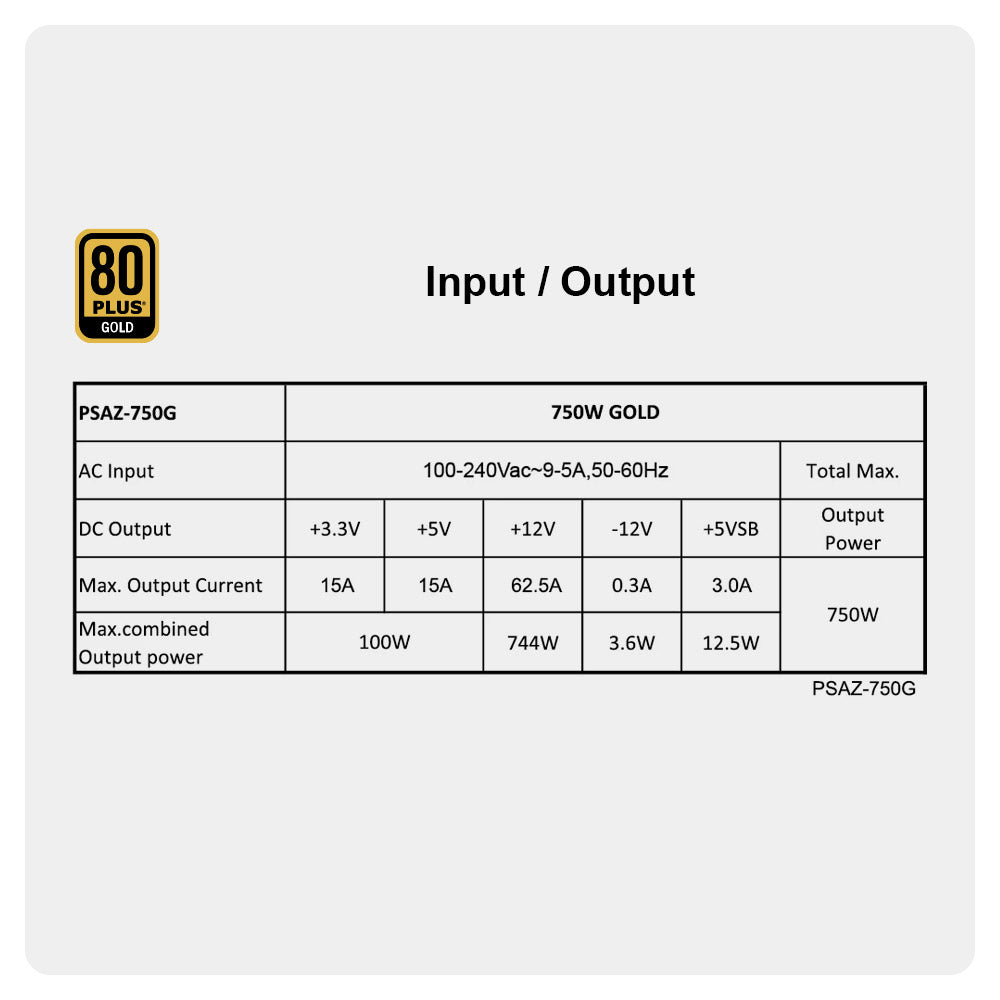

Total Power

750 Watts

PSU Form Factor

ATX 12V

Fan size

120 mm

80 Plus Efficiency

Gold

AC Input Voltage

100 V - 240 V

Modularity

Non-Modular

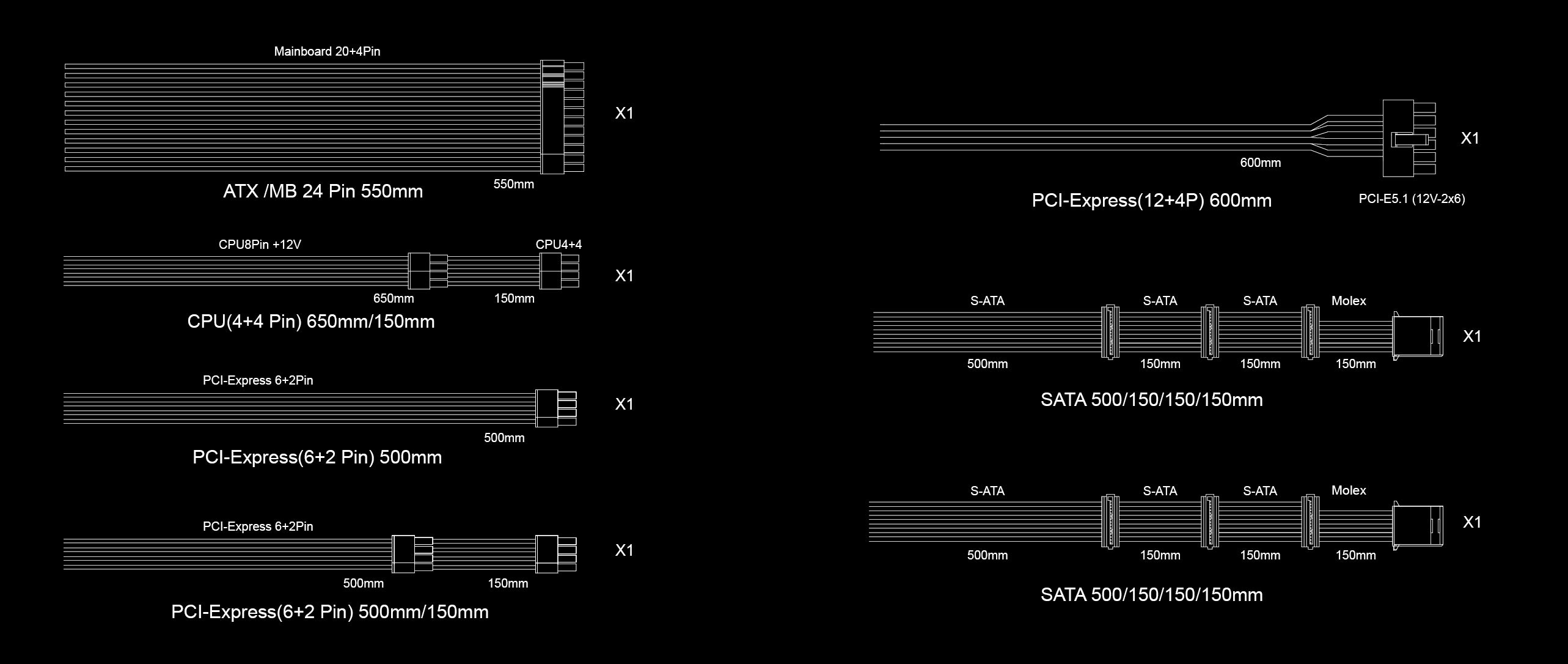

Included cables

1 x ATX / MB cable 1 x (20 + 4 PIN)
1 x CPU / EPS cable 2 x (4 + 4 PIN)
2 x PCI-e cable 3 x (6 + 2 PIN)
1 x PCI-e 5.1 1 x (12 + 4 Pin)
2 x SATA cable 6 x (SATA)
2 x Molex cable 2 x (Molex)

Dimensions (H x W x D)

86 mm x 150 mm x 160 mm

Protective Features

UVP
OVP
OPP
OCP
SCP
OTP

Safety Certifications

FCC
CE
TUV
RoHS
CB
