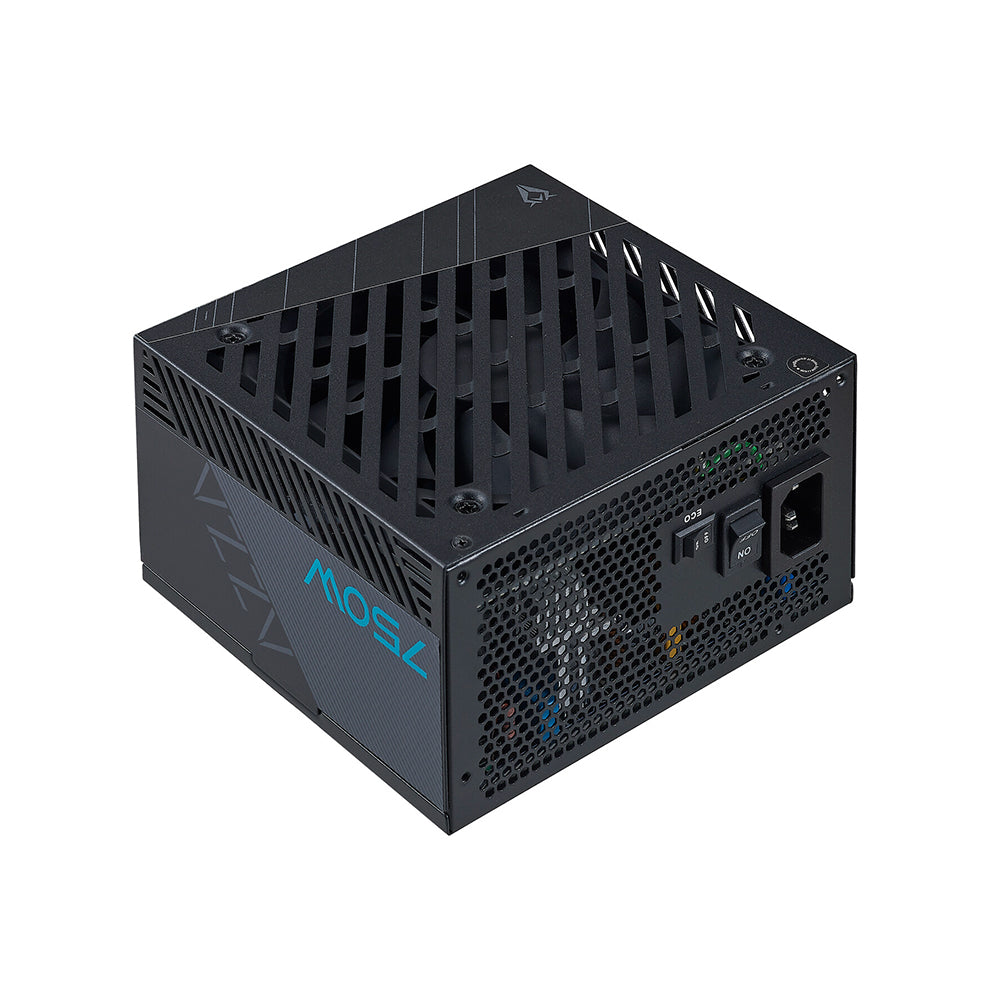

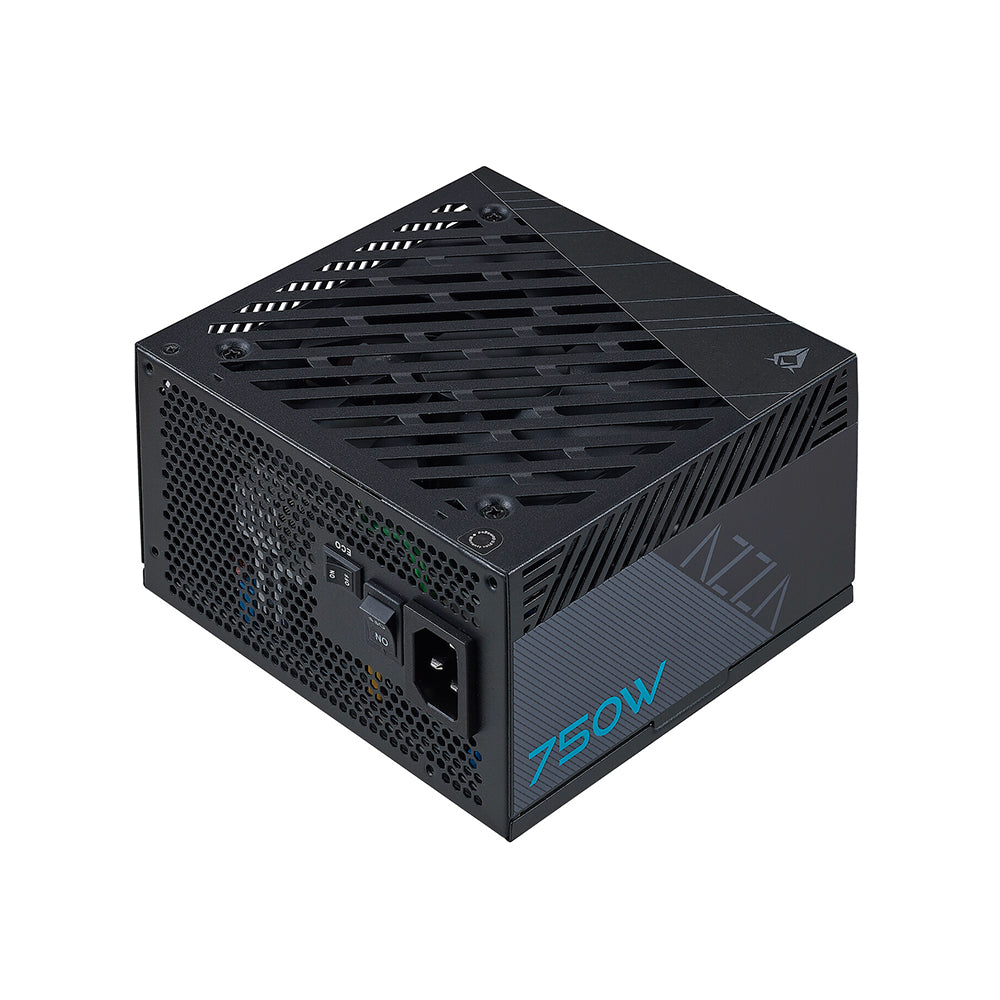

ATX3.0 750W GOLD


80 PLUS GOLD CERTIFIED - Quality components that deliver 90% efficiency under typical load, lowering energy cost and excess heat waste.

ECO FAN CONTROL - Rear button controls the efficiency & noise levels of fan. Save on energy costs and unnecessary fan use.

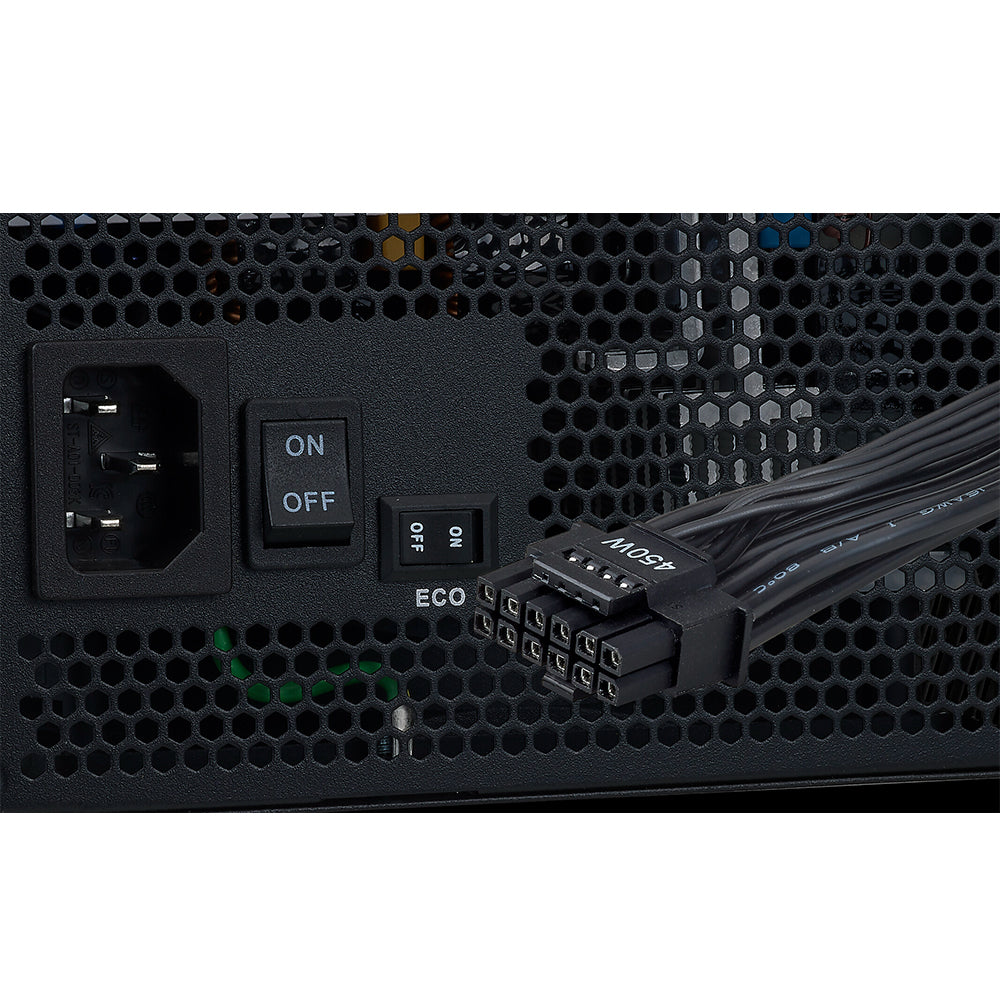

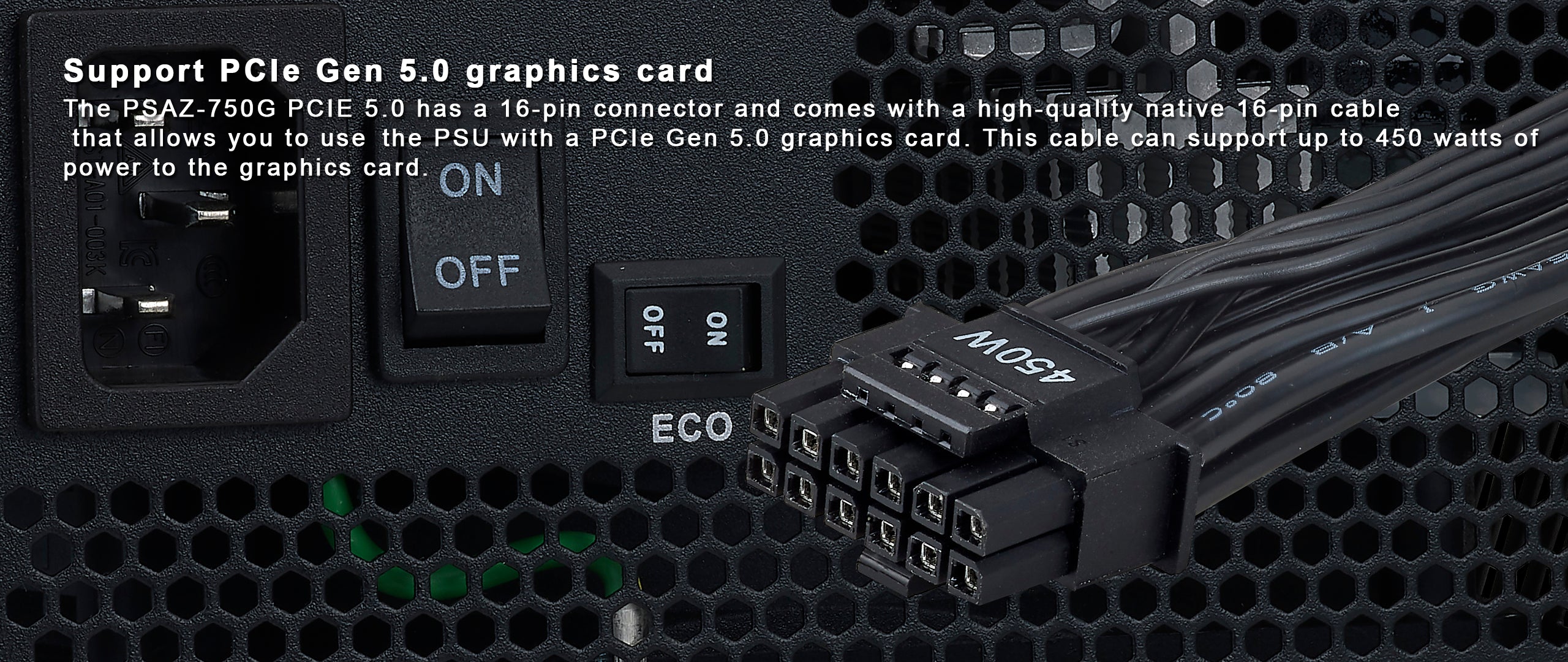

ATX 3.0 READY - Native 16-pin PCI-e 5.0 connector helps to safely utilize the PSU for PCI-e 5.0 next-gen graphic cards.

  • Silent fan for low acoustics
  • 2-year warranty
  • Non-Modular
  • 100 V - 240 V

SPECIFICATIONS

PSAZ-750G

Download Manual
Total Power

750 Watts

PSU Form Factor

ATX 12V

Fan size

120 mm

80 Plus Efficiency

Gold

AC Input Voltage

100 V - 240 V

Modularity

Not Modular

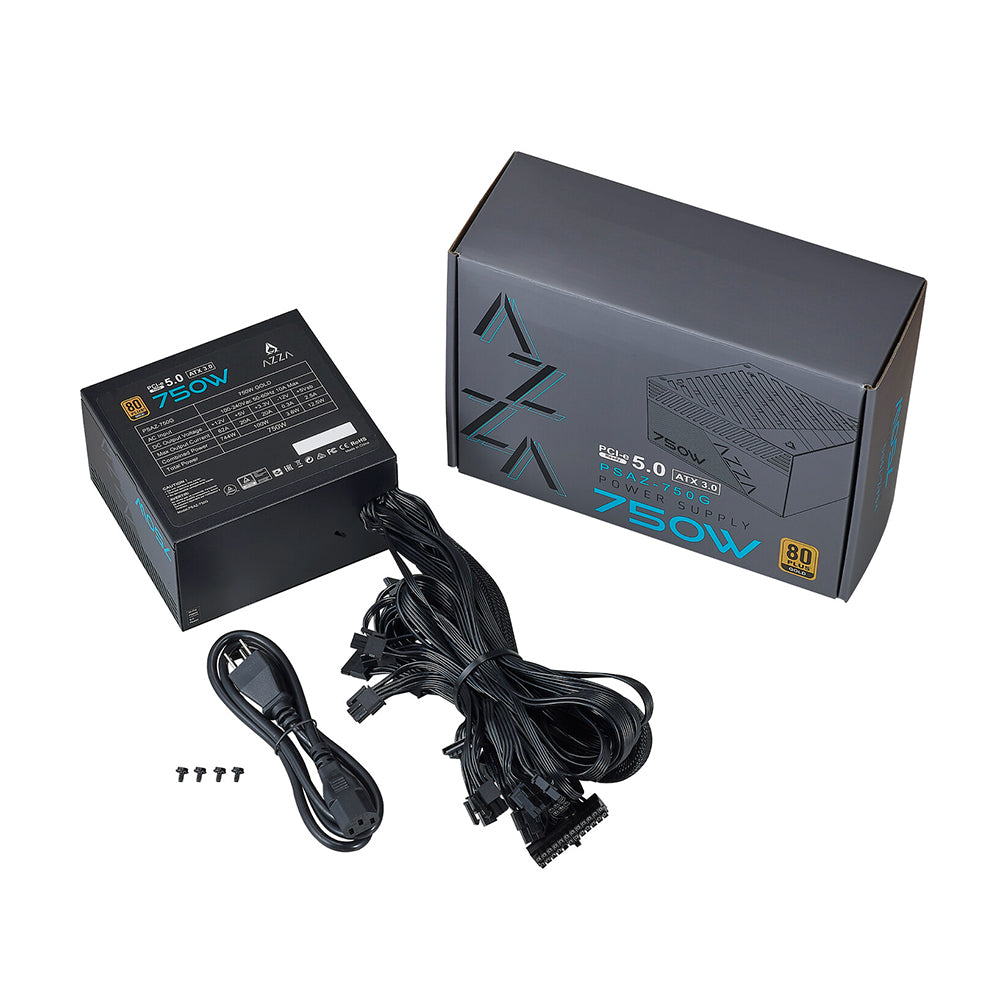

Included cables

1 x ATX / MB cable (1 x 20 + 4 PIN)
1 x CPU / EPS cable (2 x 4 + 4 PIN)
2 x PCI-e cable (4 x 6 + 2 PIN)
2 x SATA cable (6 x SATA)
1 x Molex cable (3 x Molex)
1 x PCI-e 5.0 (1 x 12 + 4 Pin)

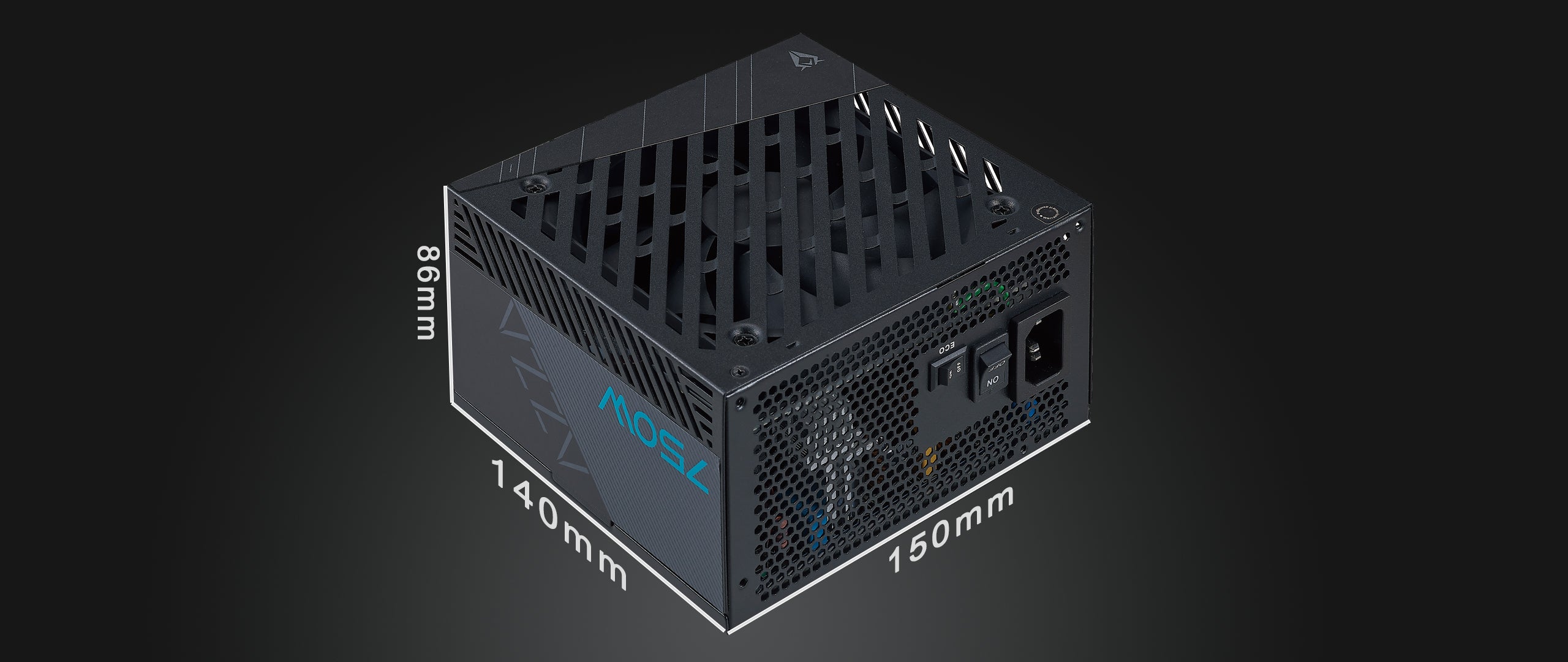

Dimensions (H x W x D)

86 mm x 150 mm x 140 mm

Protective Features

UVP
OVP
OPP
OCP
SCP
OTP

Safety Certifications

FCC
CE
TUV
RoHS
CB
