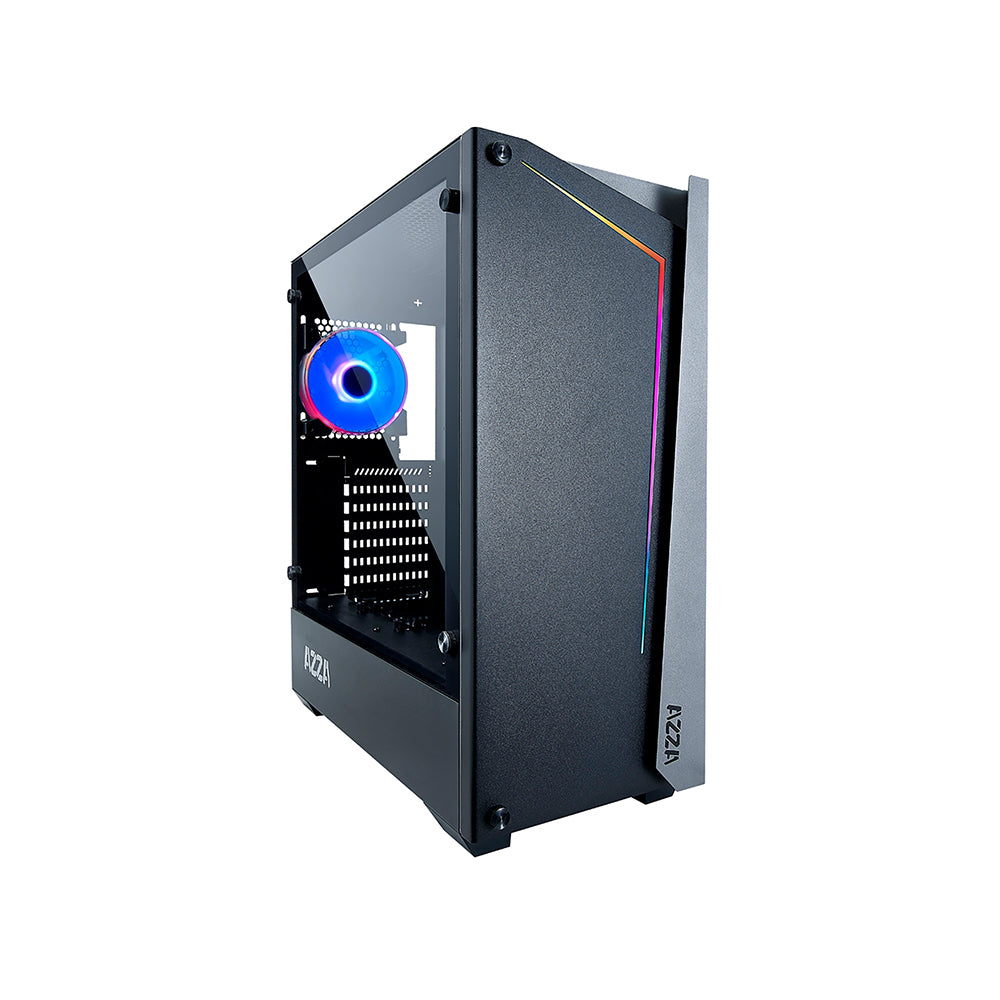

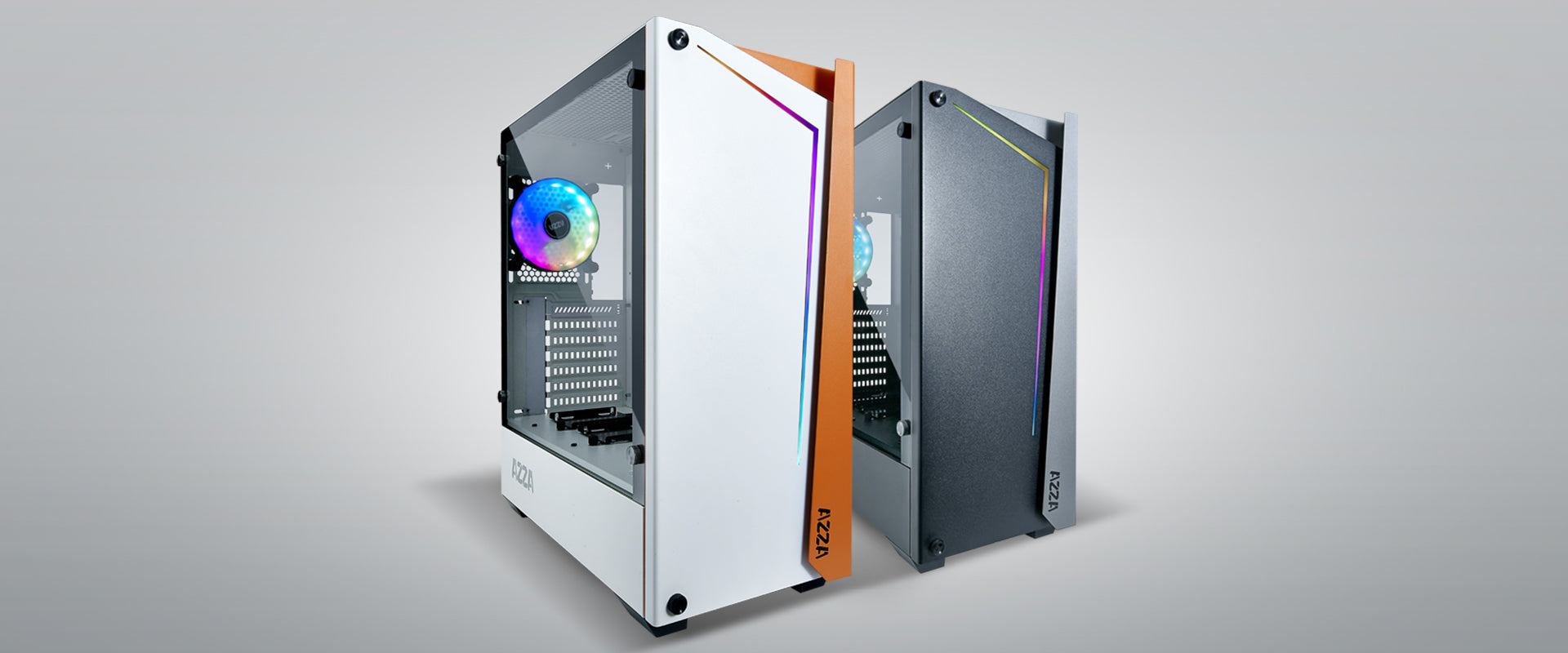

APOLLO BLACK

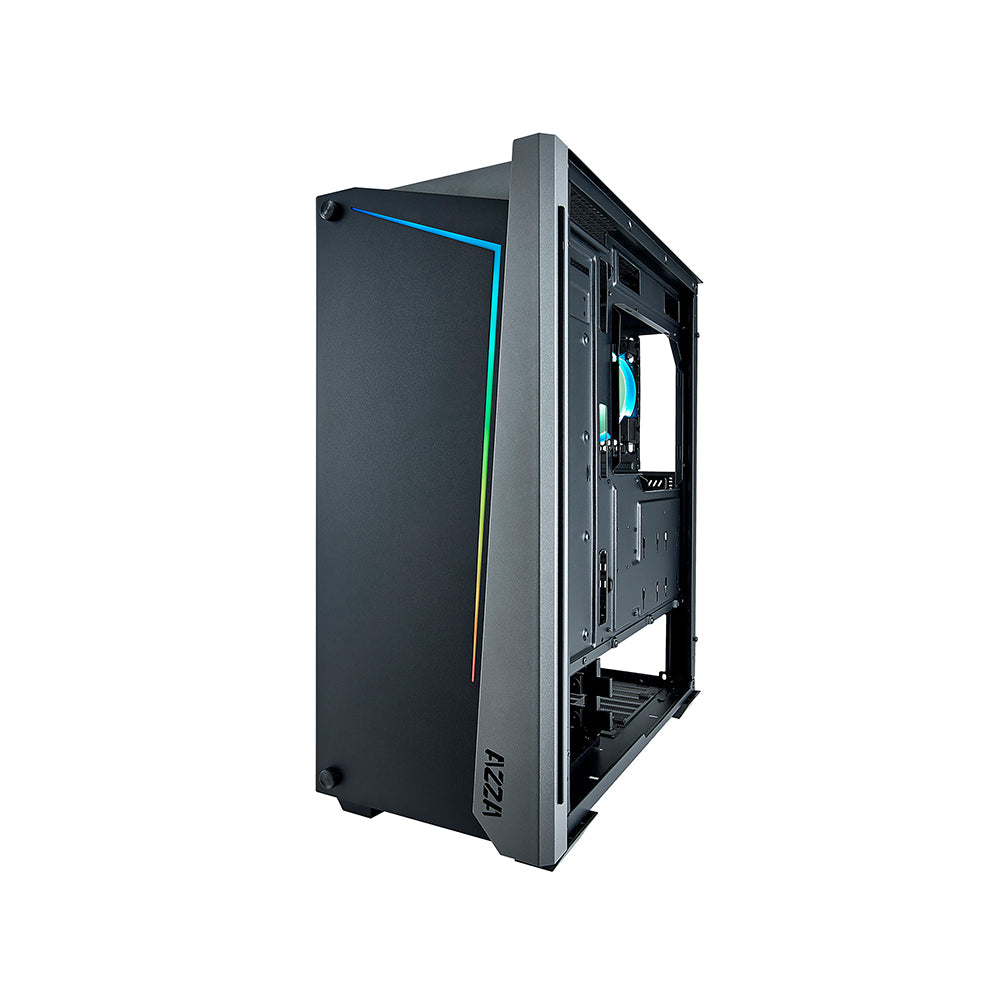

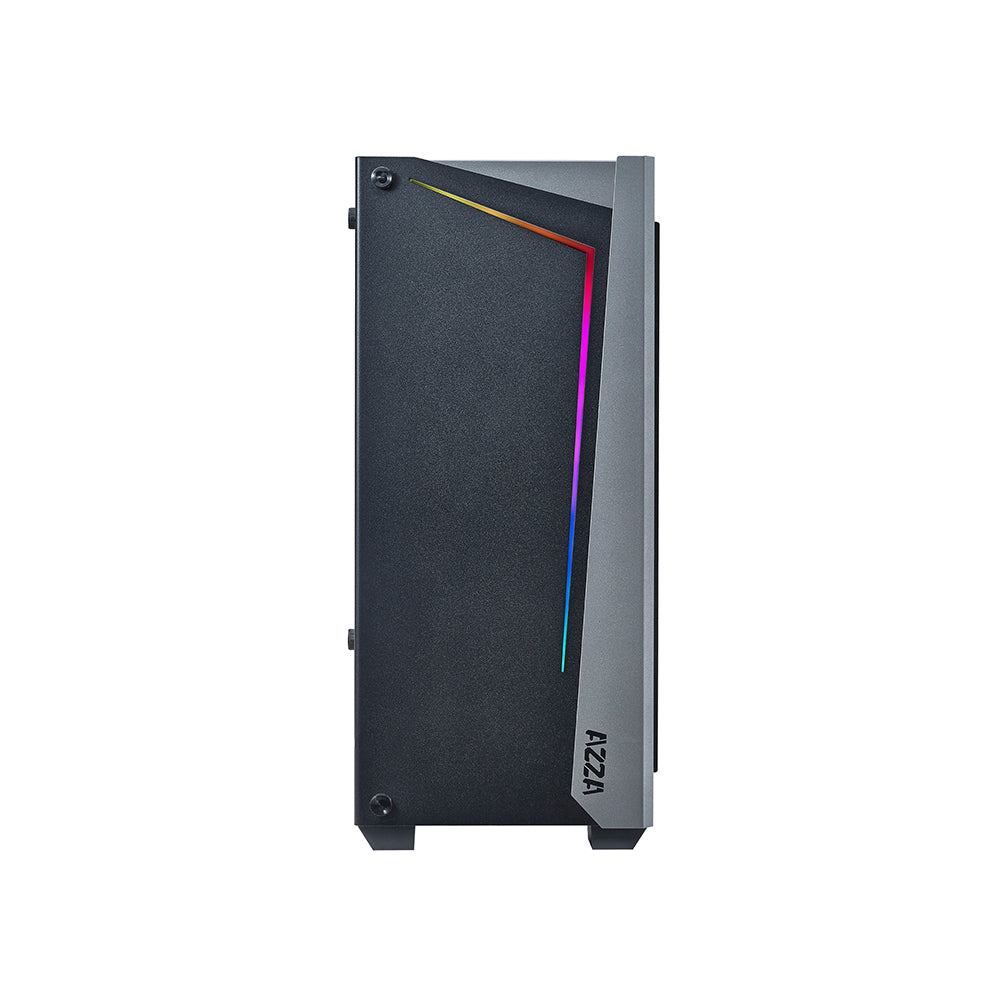

An RGB strip that parallels the unique steel accent piece with an engraved logo cutout. Combining an aeronautical design with bright orange overtones befitting its name, the APOLLO is surely a spotlight for any setup.

APOLLO B

ATX Mid-Tower Case

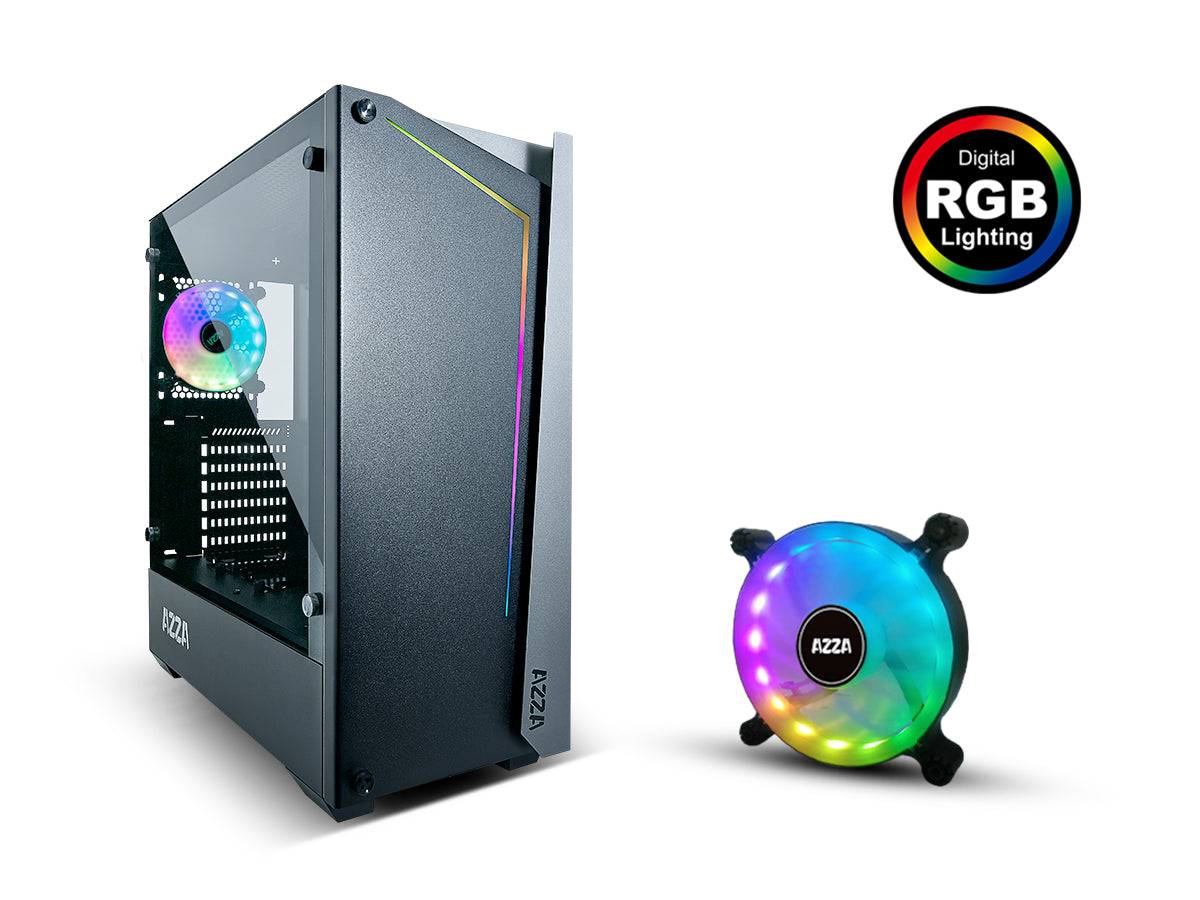

Alternative Flair - Option 1

APOLLO-DF1 includes 1 x 120 mm AZZA Hurricane II ARGB rear fan

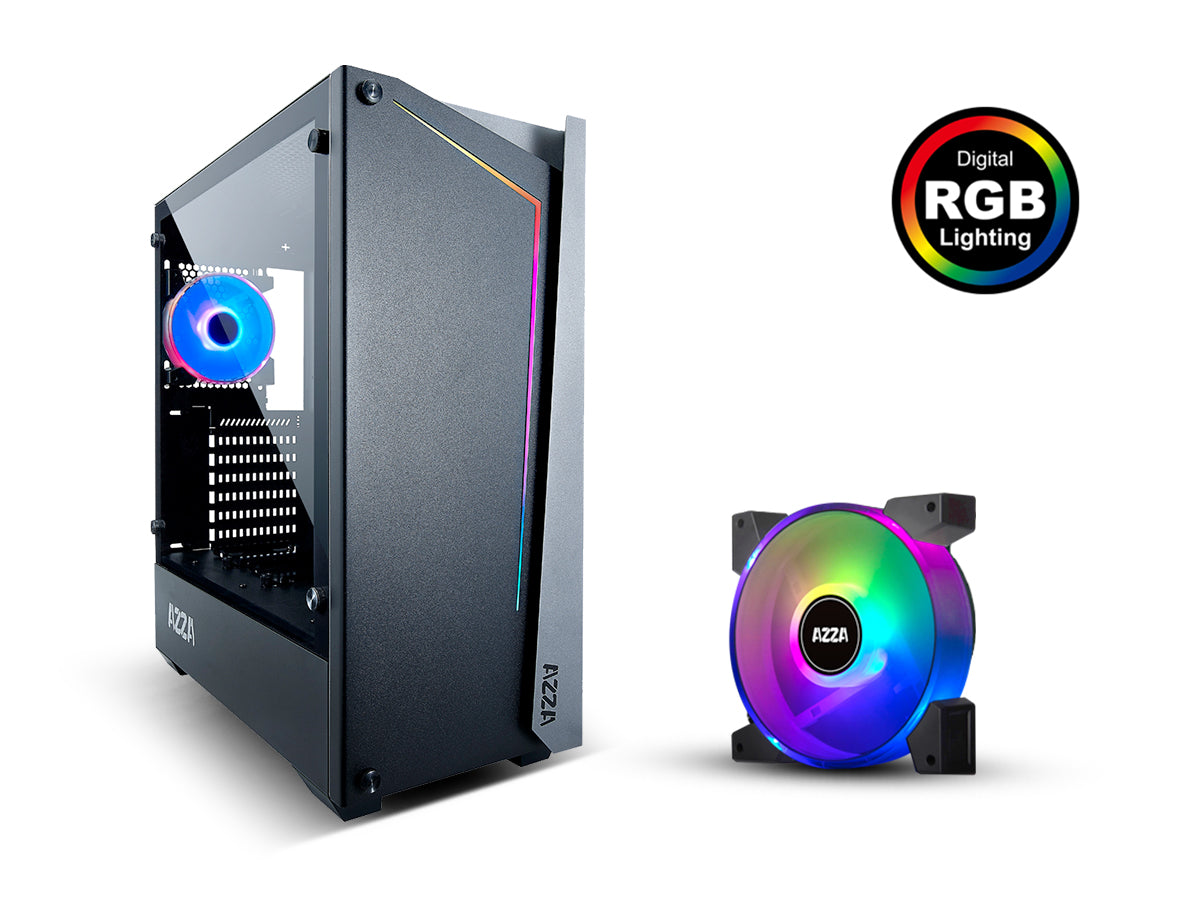

Alternative Flair - Option 2

APOLLO-DF2 includes 1 x 120 mm ARGB rear fan

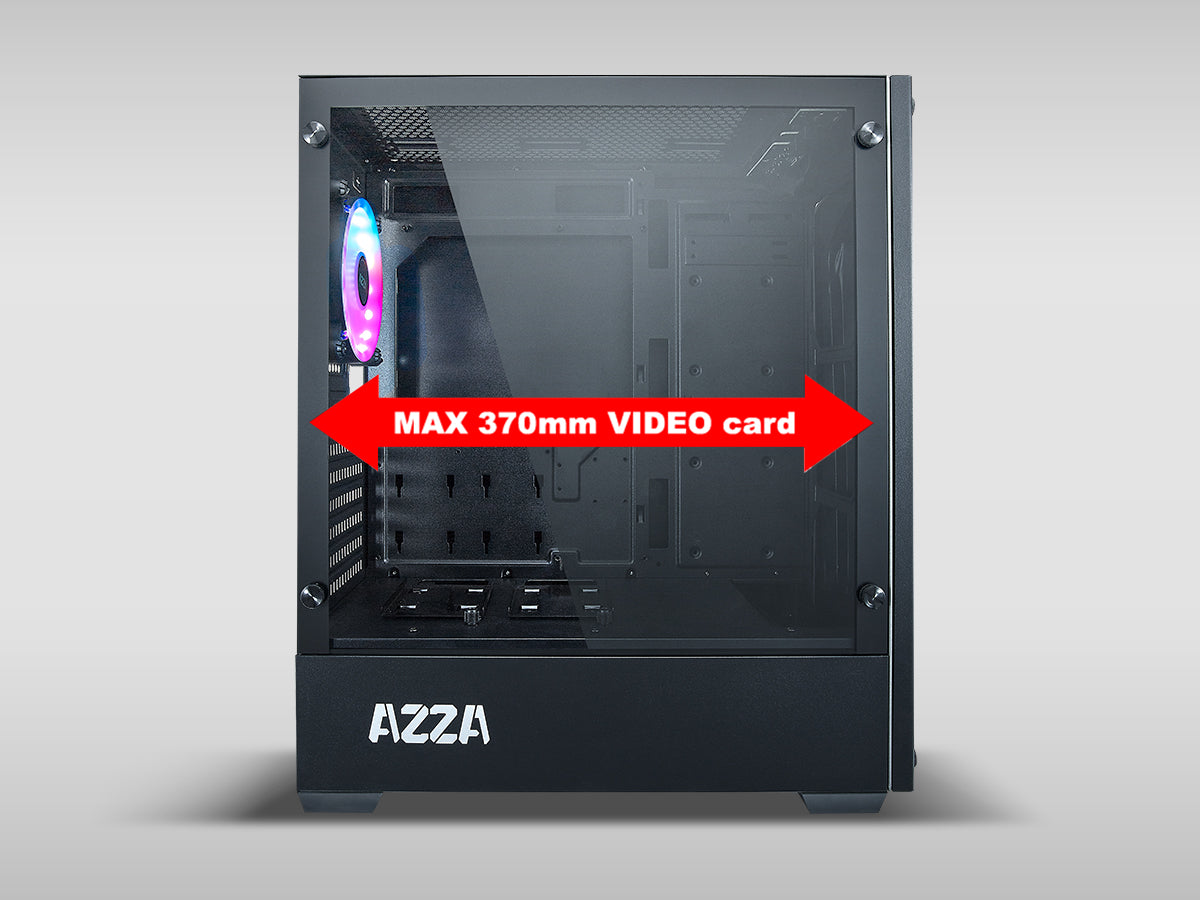

Sizeable GPU Support

Allows for graphic cards of up to 370 mm and CPU cooler height up to 155 mm.

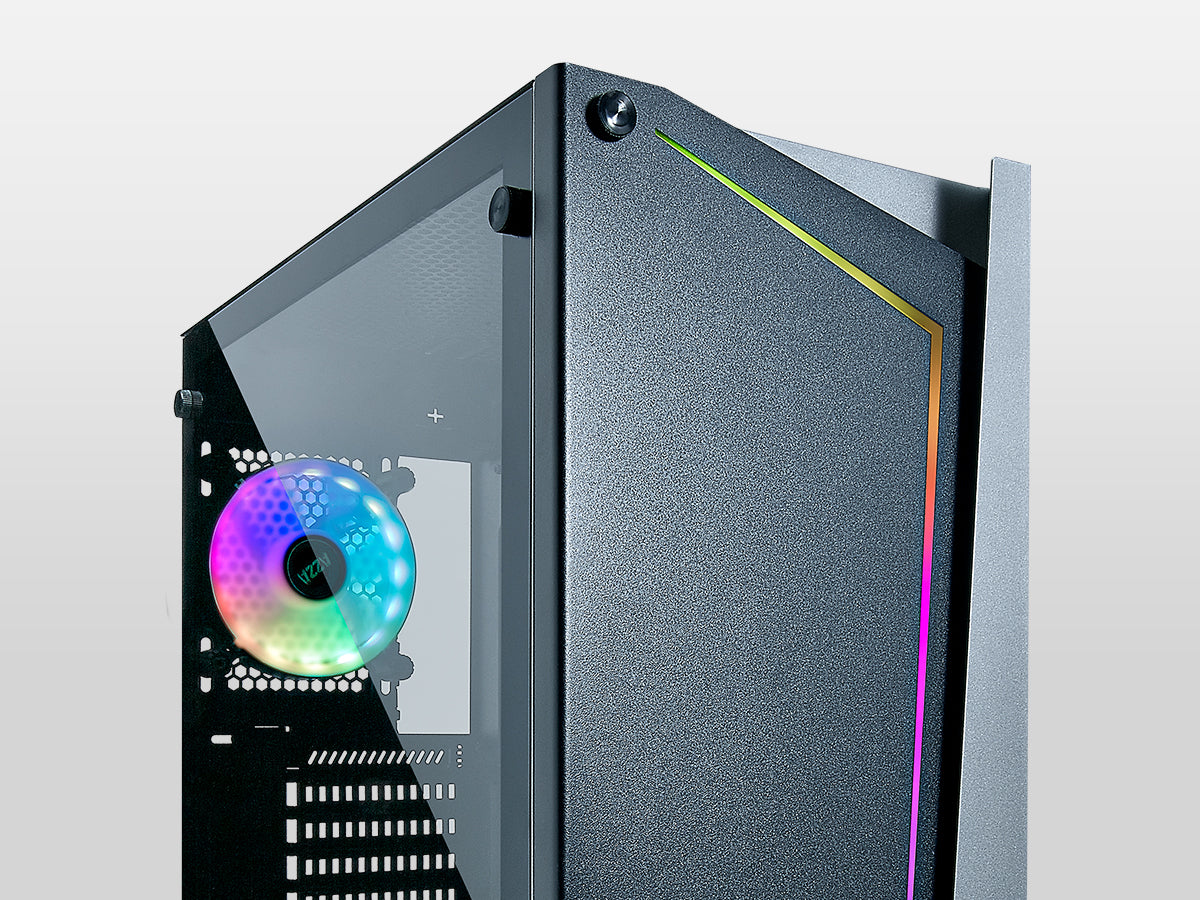

Customize Your Style

Addressable RGB fans and light strips in the front are fully customizeable via motherboard software synchronization.

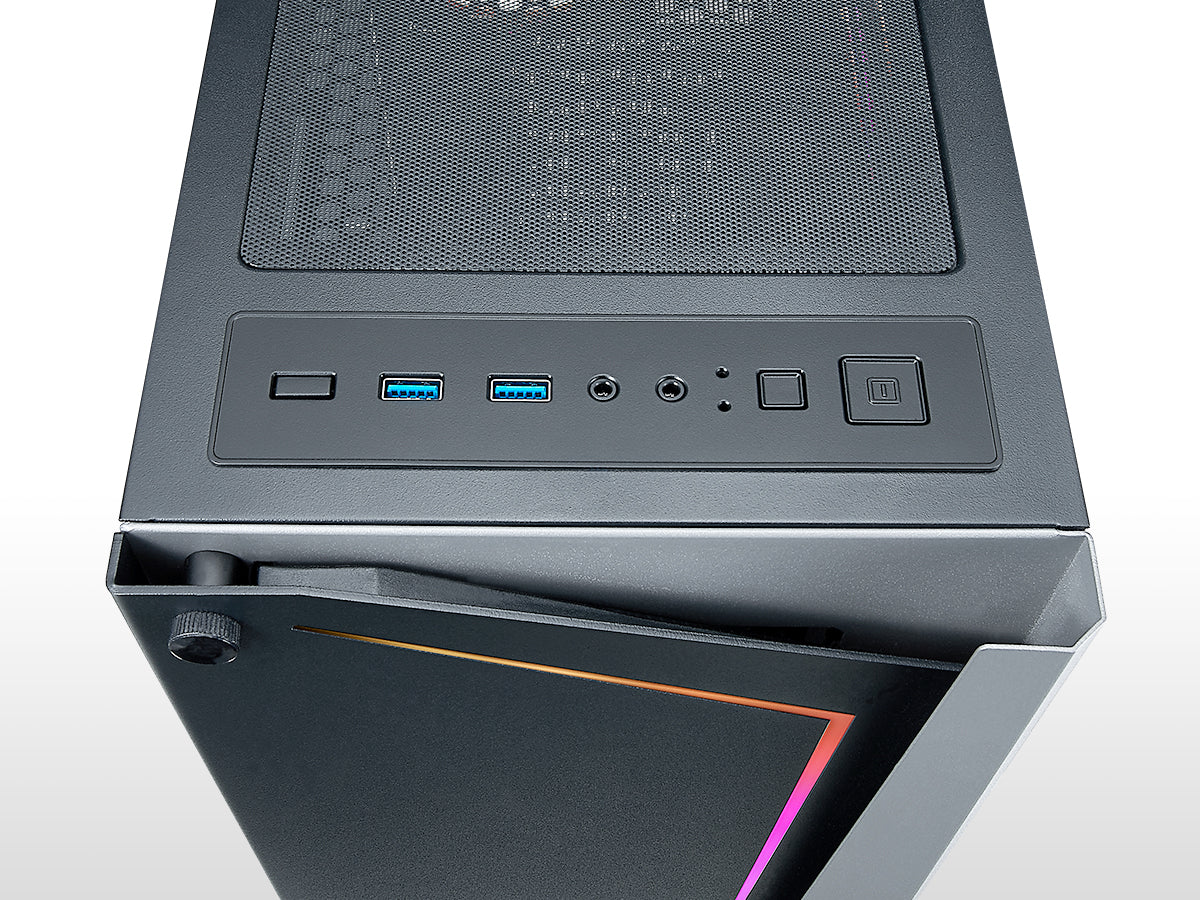

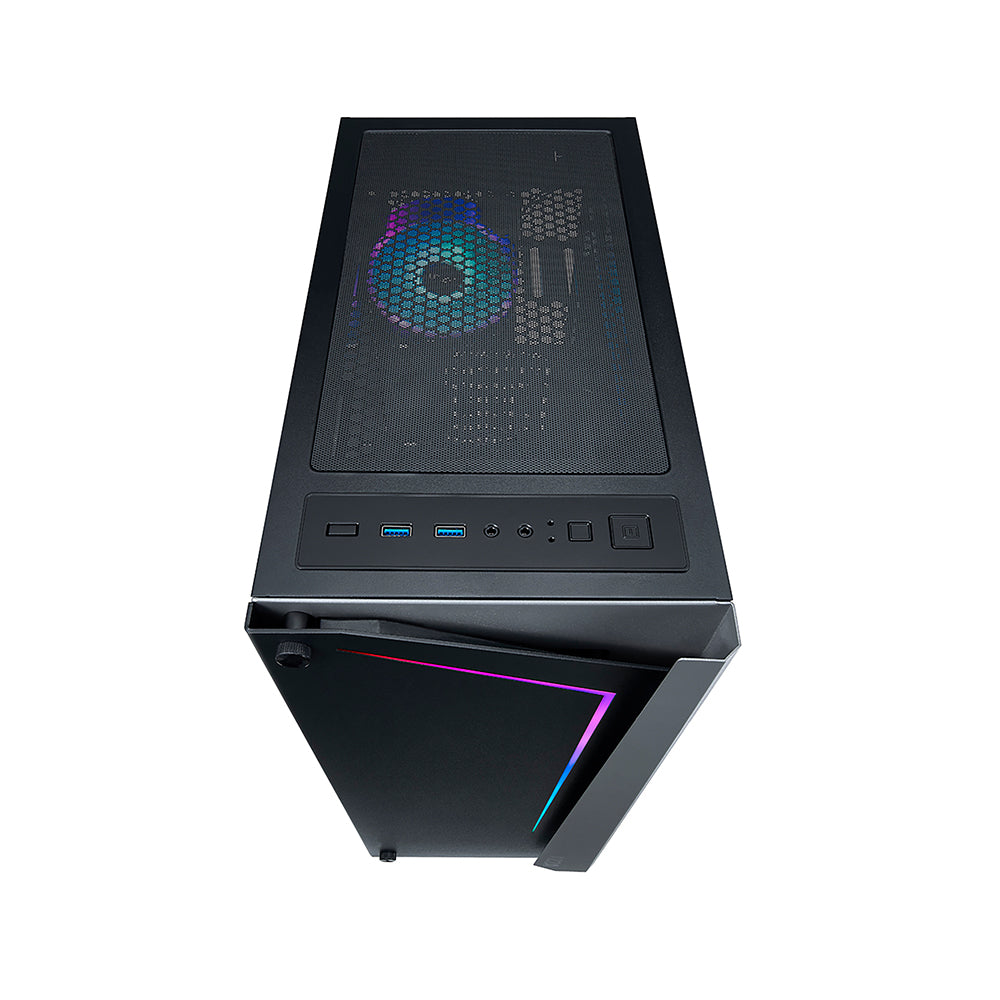

Intuitive I/O

The APOLLO presents a simple top I/O which includes:

  • Power button
  • Reset button
  • Individual Mic and HD Audio jacks
  • 2 x USB 3.0 port

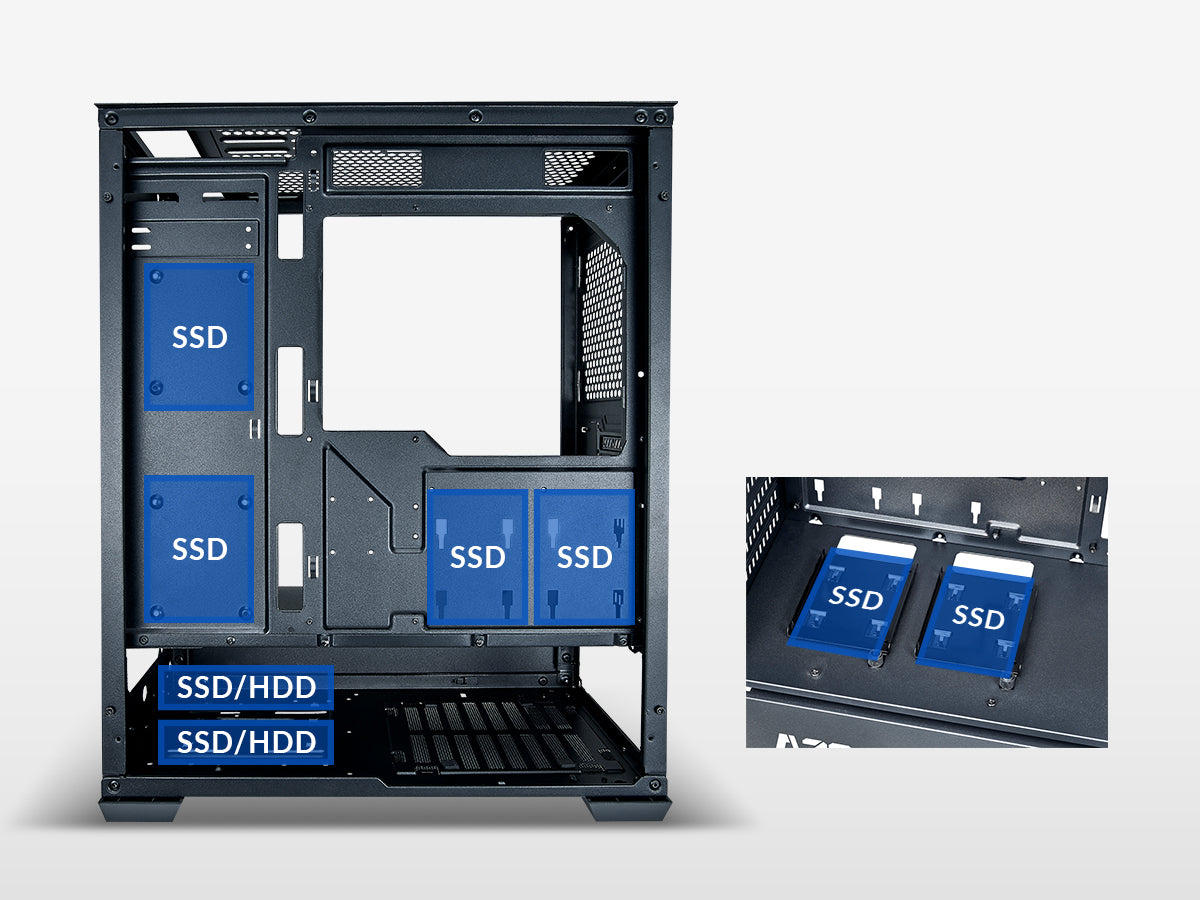

Multitude of Storage Options

Drive cage tray supports 1 x 3.5" HDD or 1 x 2.5" SSD
Top of drive cage supports 1 x 3.5" HDD or 1 x 2.5" SSD
Mounting holes support 2 x 2.5" SSDs
Right side brackets support 2 x 2.5" SSDs
Front side above PSU shroud supports 2 x 2.5" SSDs

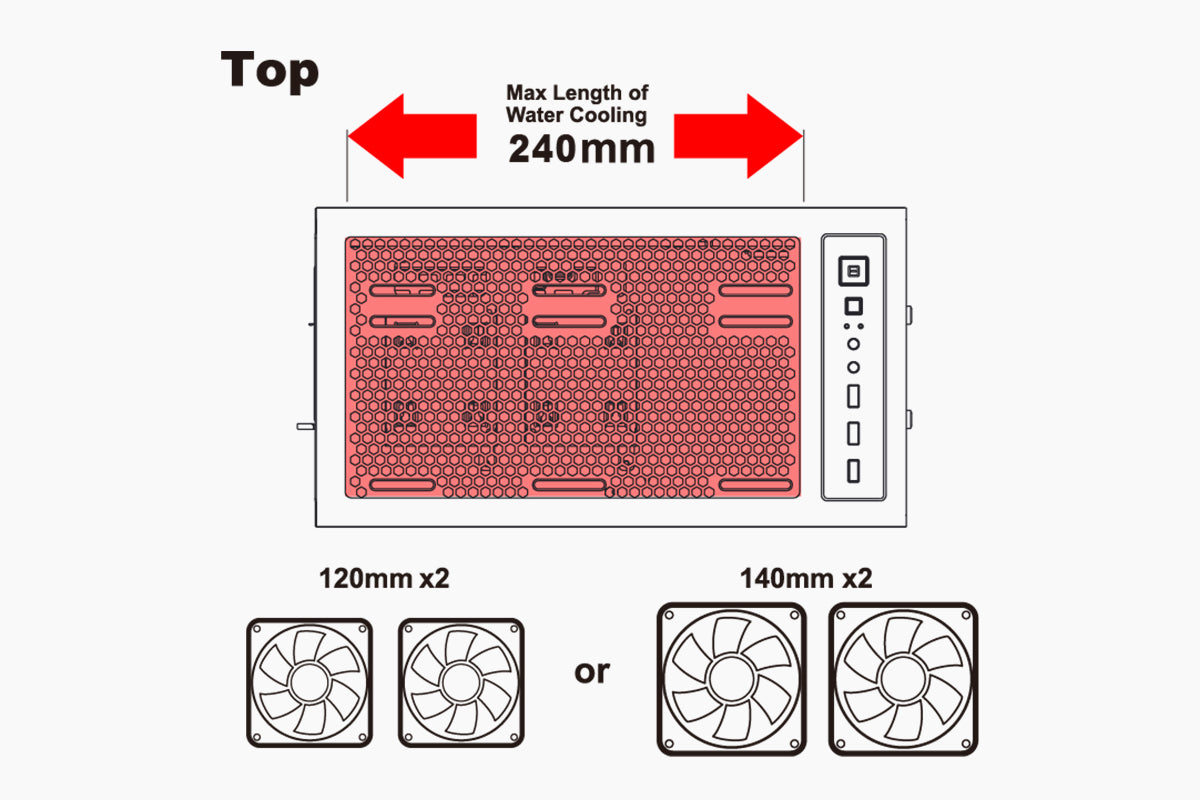

Top Cooling Support

Fans: 2 x 120 mm or 2 x 140 mm

Radiator: Up to 240 mm

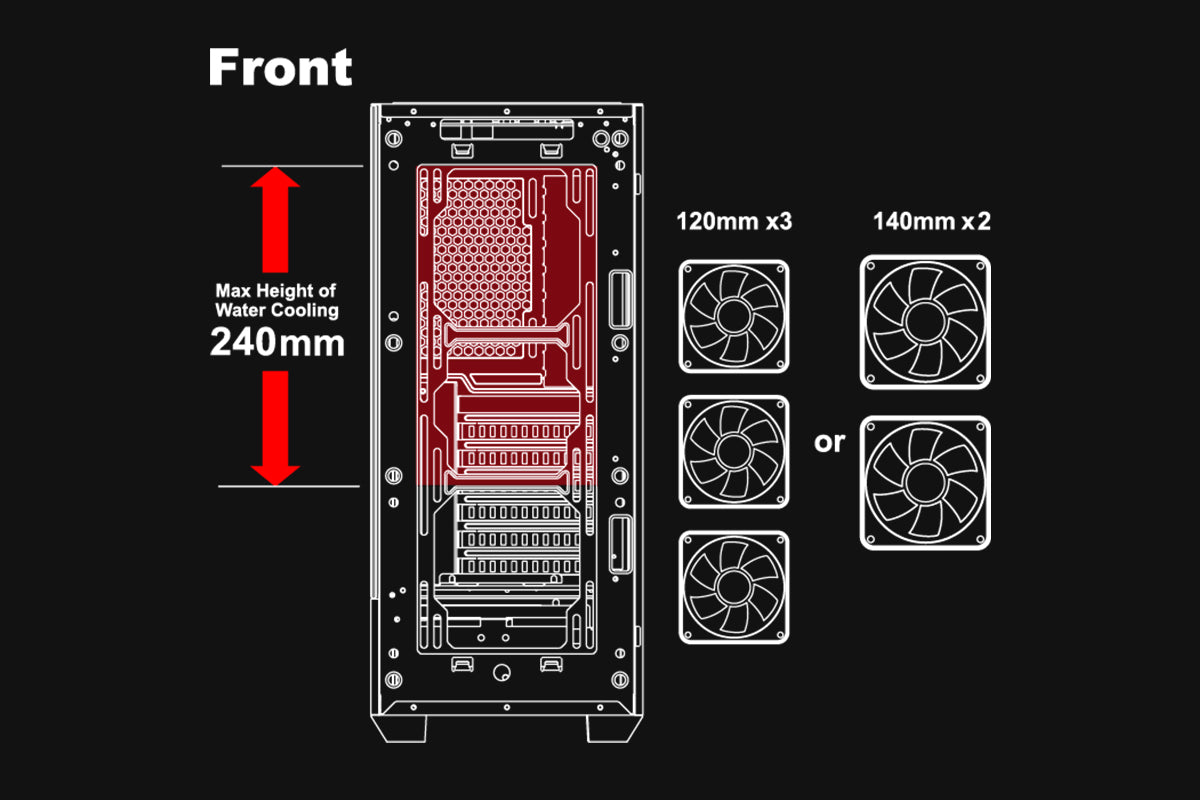

Front Cooling Support

Fans: Up to 3 x 120mm or 2 x 140mm

Radiator: Up to 240mm

SPECIFICATIONS

CSAZ-430B

Download Manual
Type

ATX Mid Tower

Color

Black (exterior) / Black (interior)

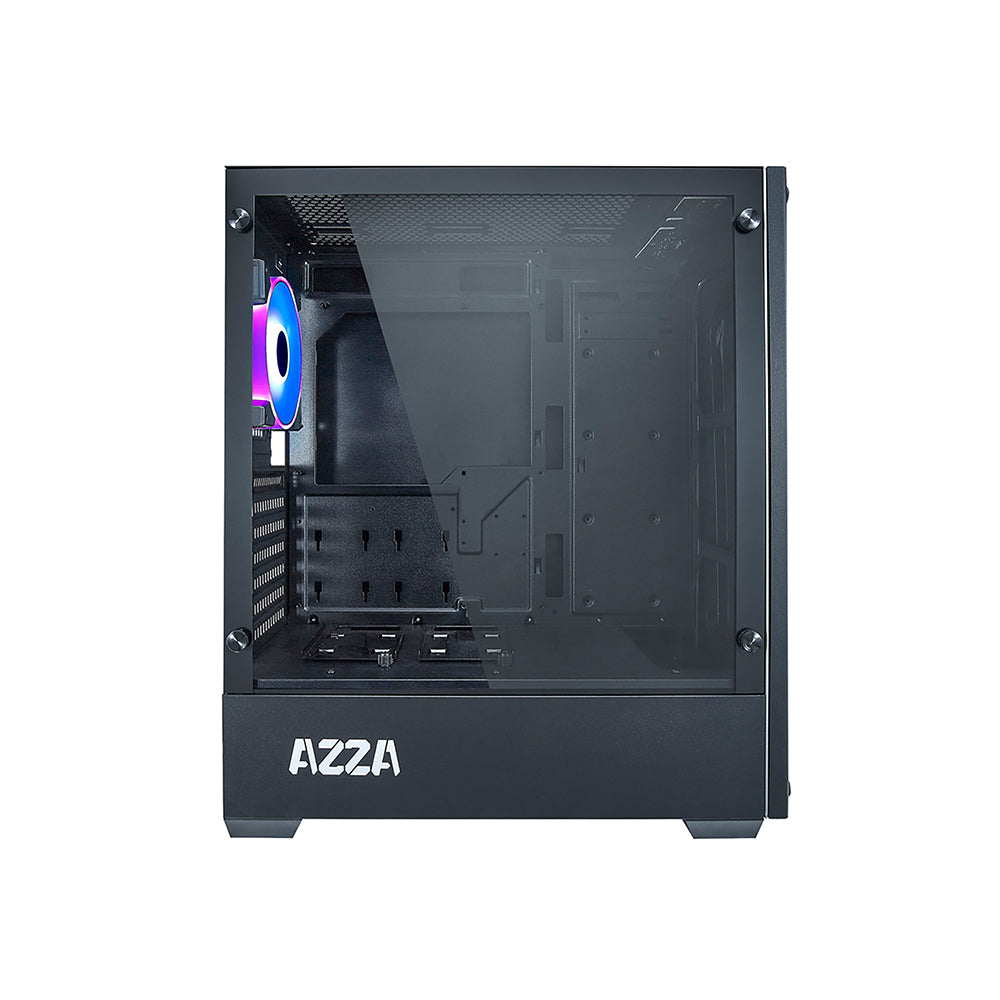

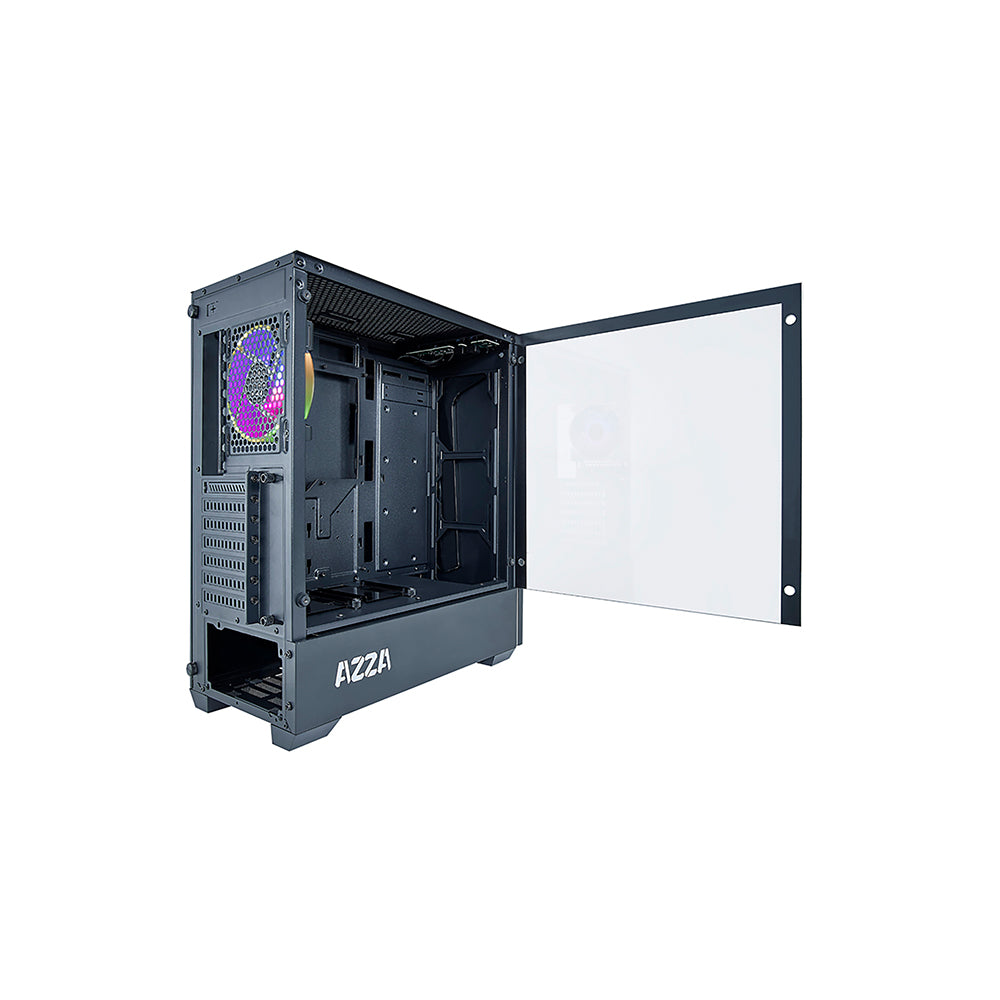

Side Panels

Left : Tempered glass with rubber mounts
Right : Steel panel

Max CPU Cooler Height

Up to 155 mm

Max Video Card Length

Up to 370 mm

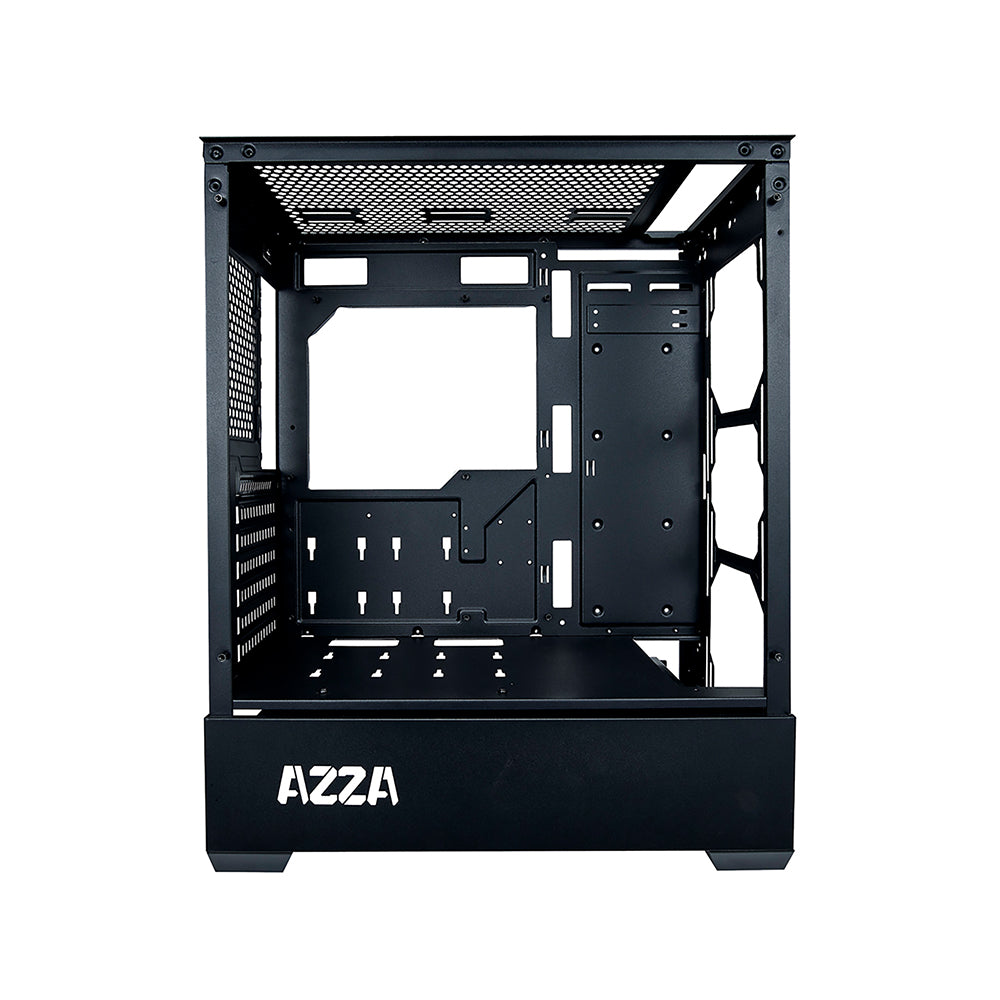

Motherboard Compatibility

ATX, Micro-ATX

2.5" Drive Bays

Up to 6

3.5" Drive Bays

Up to 2

Expansion Slots

7

Top I/O Ports

Power button
Reset button
HD audio
2 x USB 3.0

Case Dimension (H x W x D)

480 mm x 205 mm x 420 mm

Weight

7.9 kg / 17.4 lbs

Addressable RGB Light Effects

Addressable RGB fan in the rear. All addressable RGB
devices sync with the motherboard, allowing the
motherboard software to control lighting directly.

Available Fan Ports

3 x 120 mm or 2 x 140 mm fan ports in the front
2 x 120 mm or 2 x 140 mm fan ports on the top
1 x 120 mm fan port in the rear

Included Fan

CSAZ-430B-DF1 : 1 x 120 mm AZZA Hurricane II ARGB fan
CSAZ-430B-DF2 : 1 x 120 mm ARGB fan

Water Cooling

Supports radiators up to 240 mm in the front
Supports radiators up to 240 mm on the top

Power Supply Support

Bottom mounted ATX power supply
