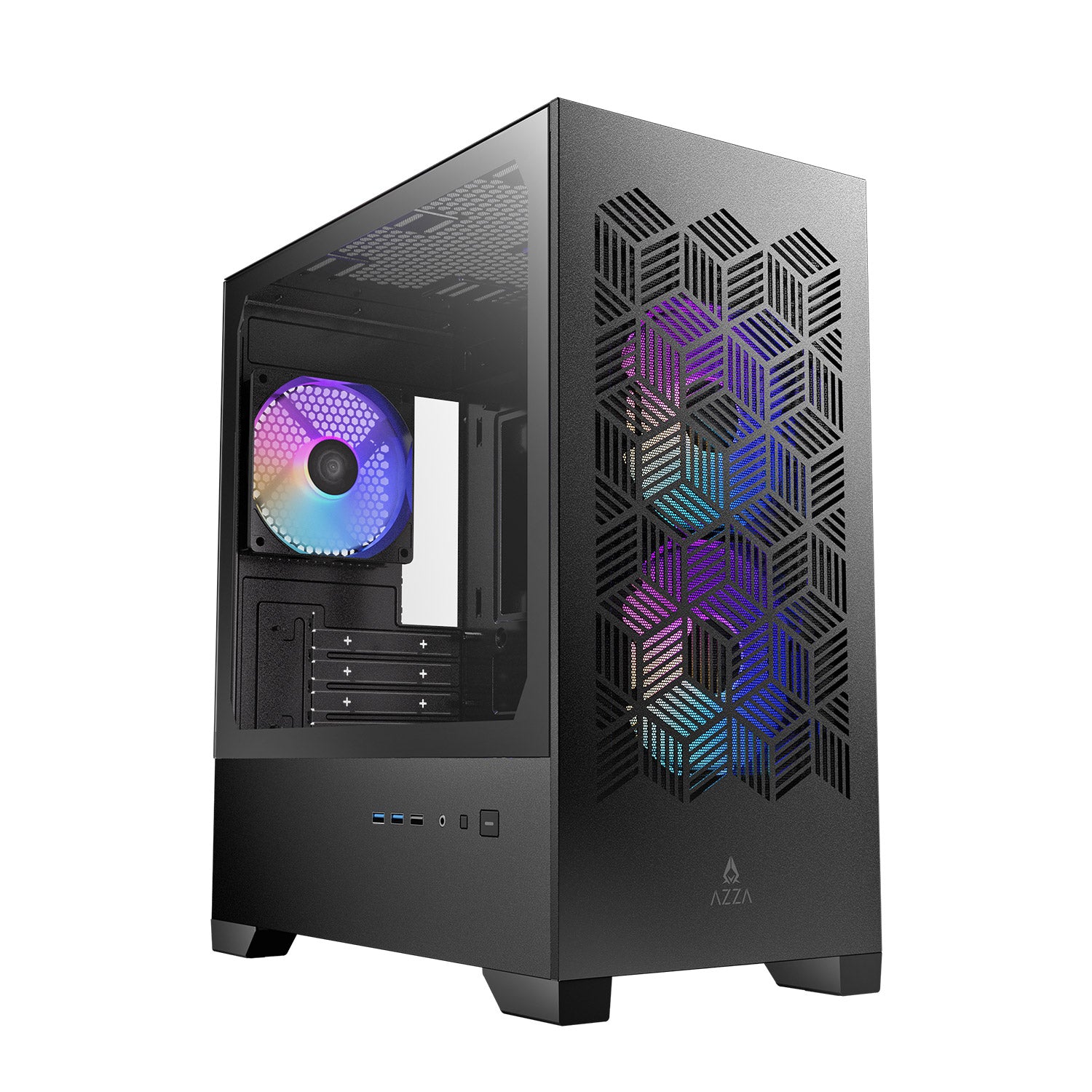

AEROHEX-M(Micro ATX)

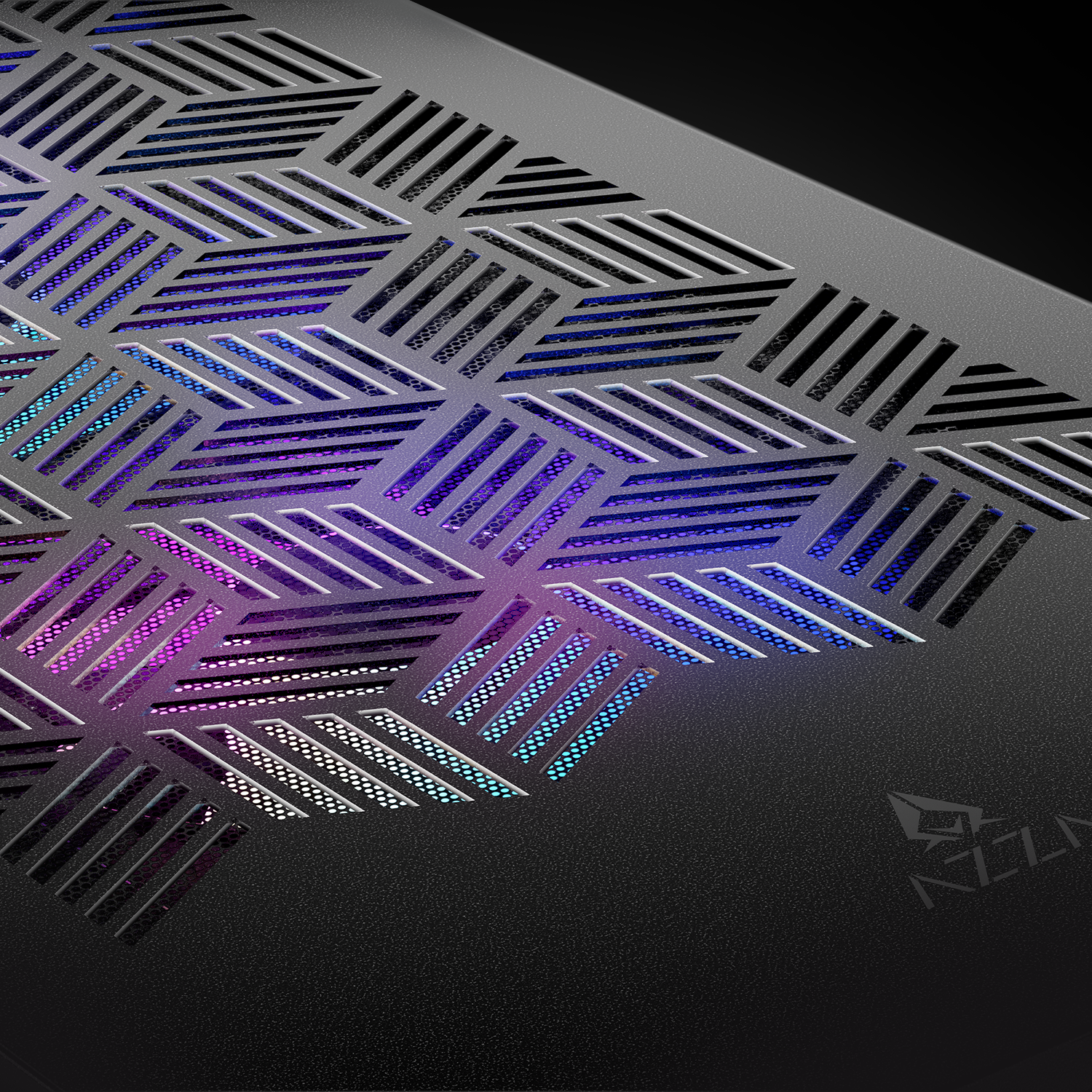

Geometric Light & Shadow with Minimalist Craftsmanship. The core of this design lies in the seamless integration of visual depth and functional aesthetics. The front panel features 2D hexagonal linework that creates a striking 3D visual illusion. Through the interplay of light and shadow, it delivers a mesmerizing sense of layered depth.
Micro ATX Mid Tower
Performance Integration

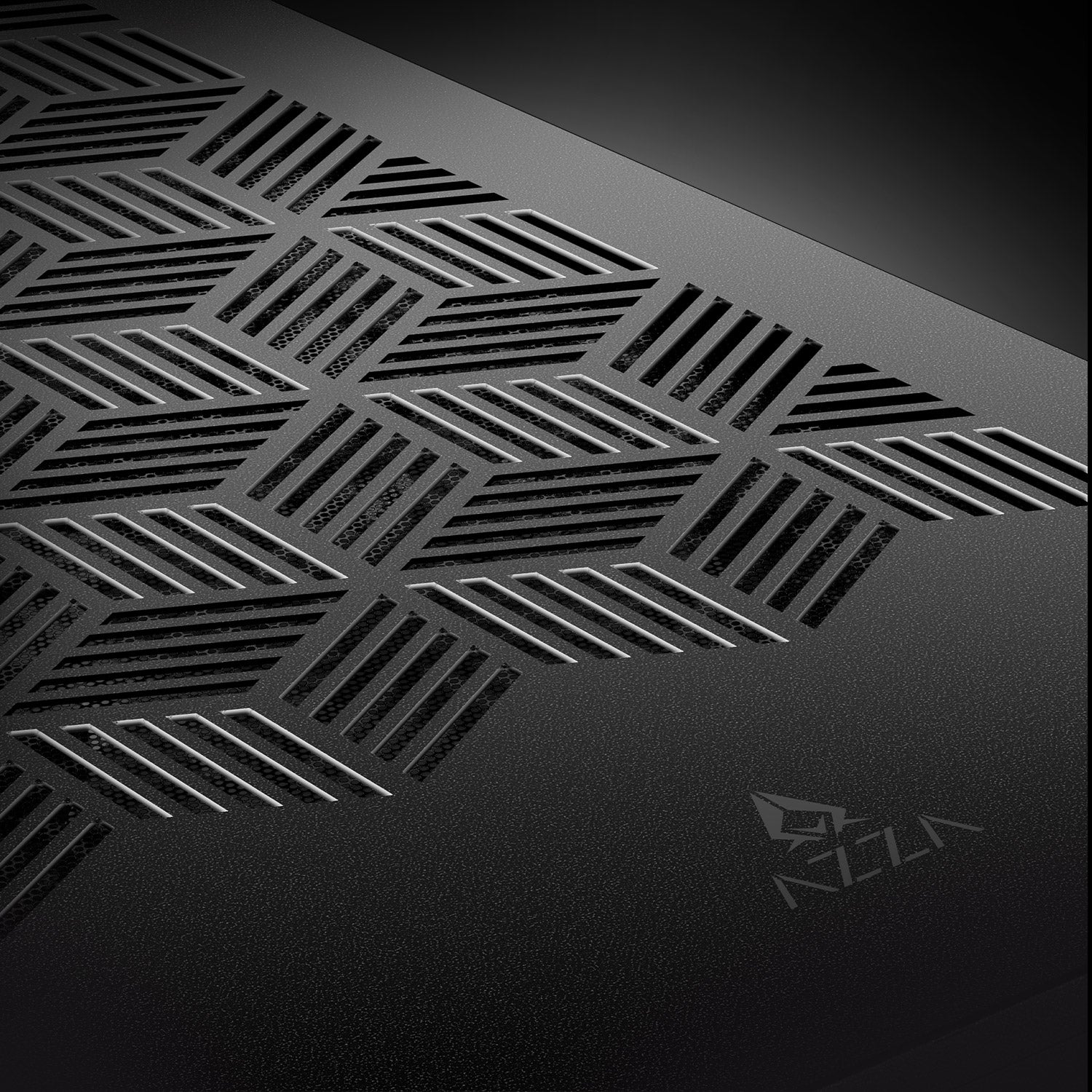

The precisely engineered perforated pattern is not only a visual focal point, but also optimizes airflow intake to achieve superior cooling performance

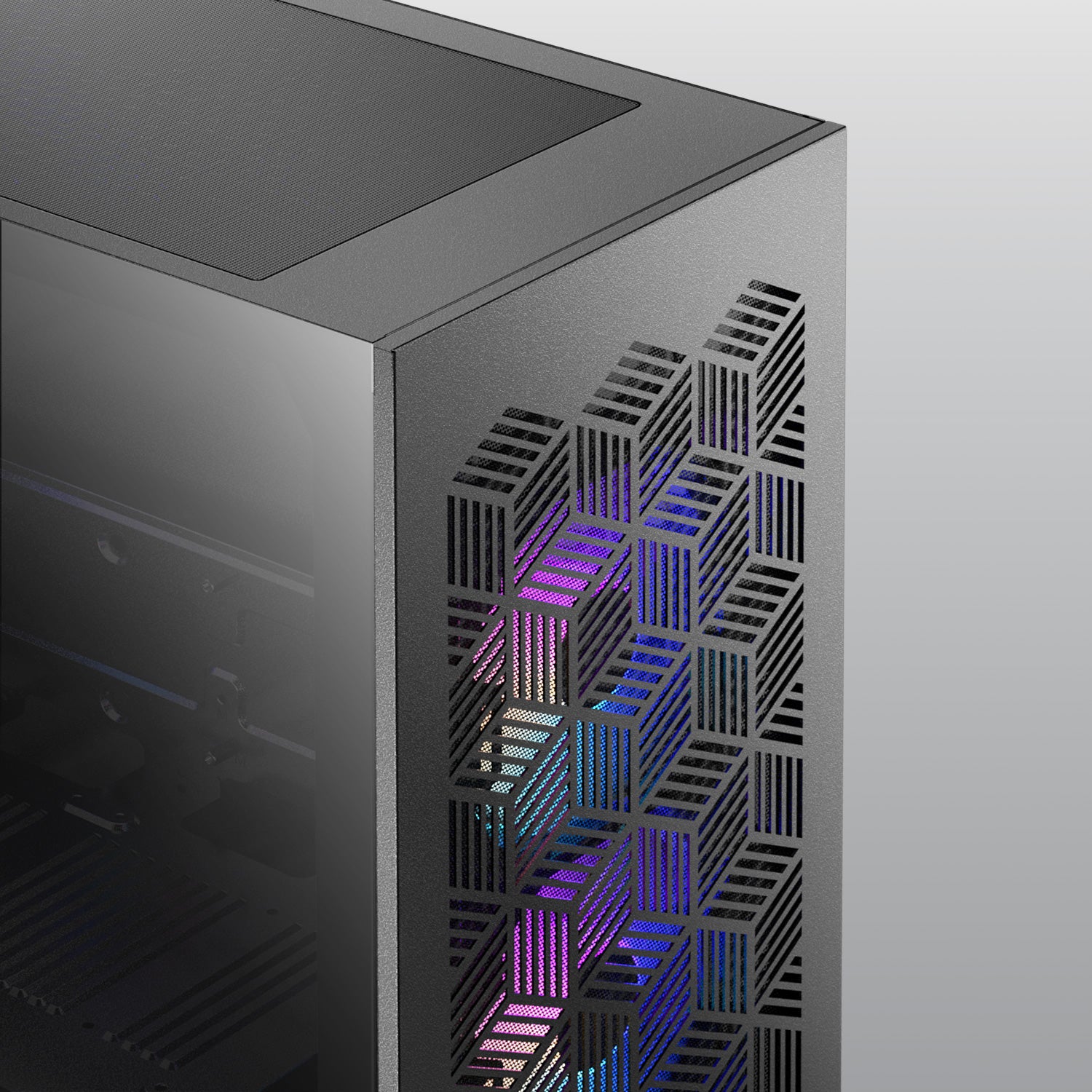

Geometric Aesthetics
Clean metallic lines paired with a metal-finish panel embody a subtle sense of luxury, where technology and art converge in perfect harmony

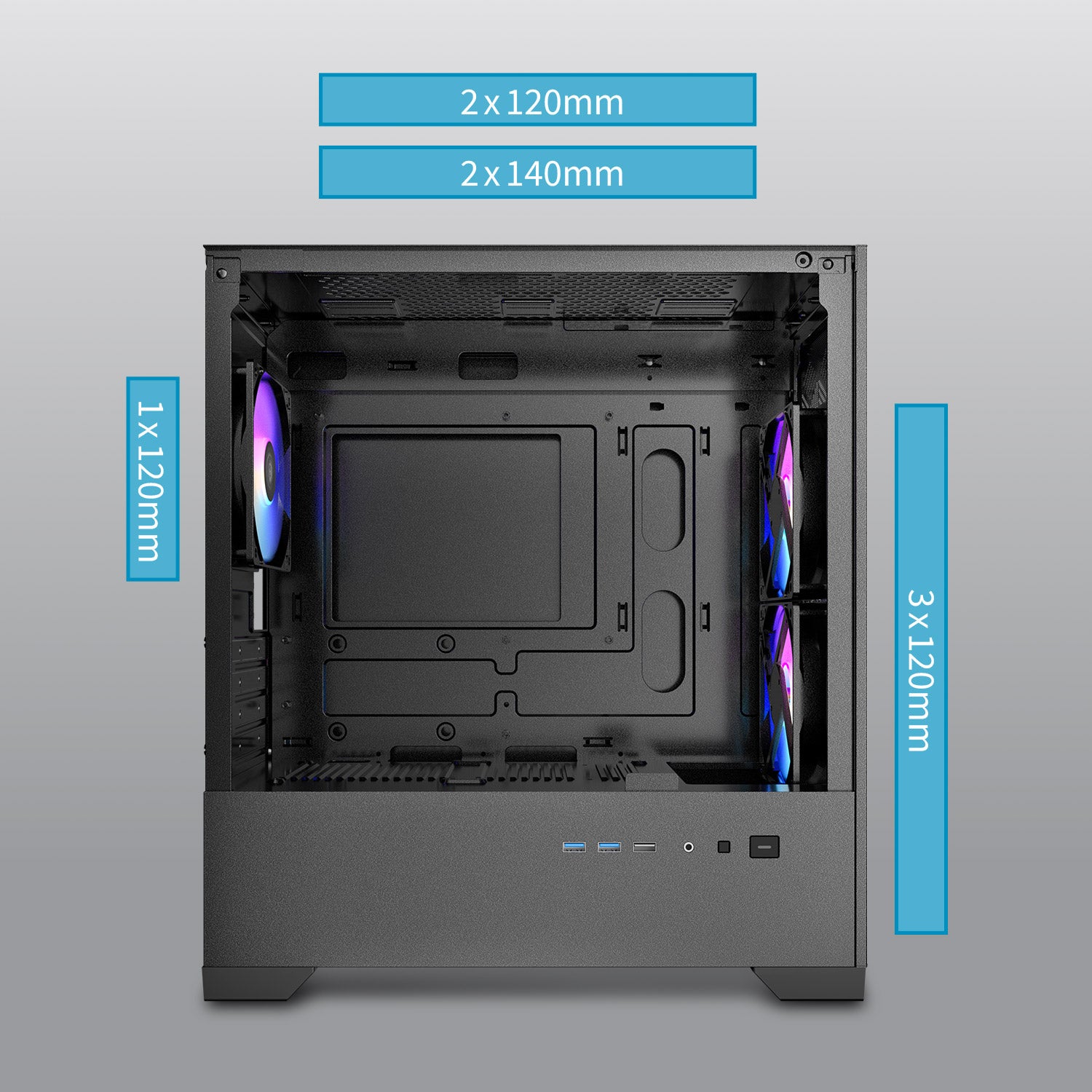

Available Fan Port
3x120mm fan ports in the front
2x120 or 2x140 mm fan ports on the top
1x120mm fan port in the rear
2 x 120 mm fan ports on the PSU shroud

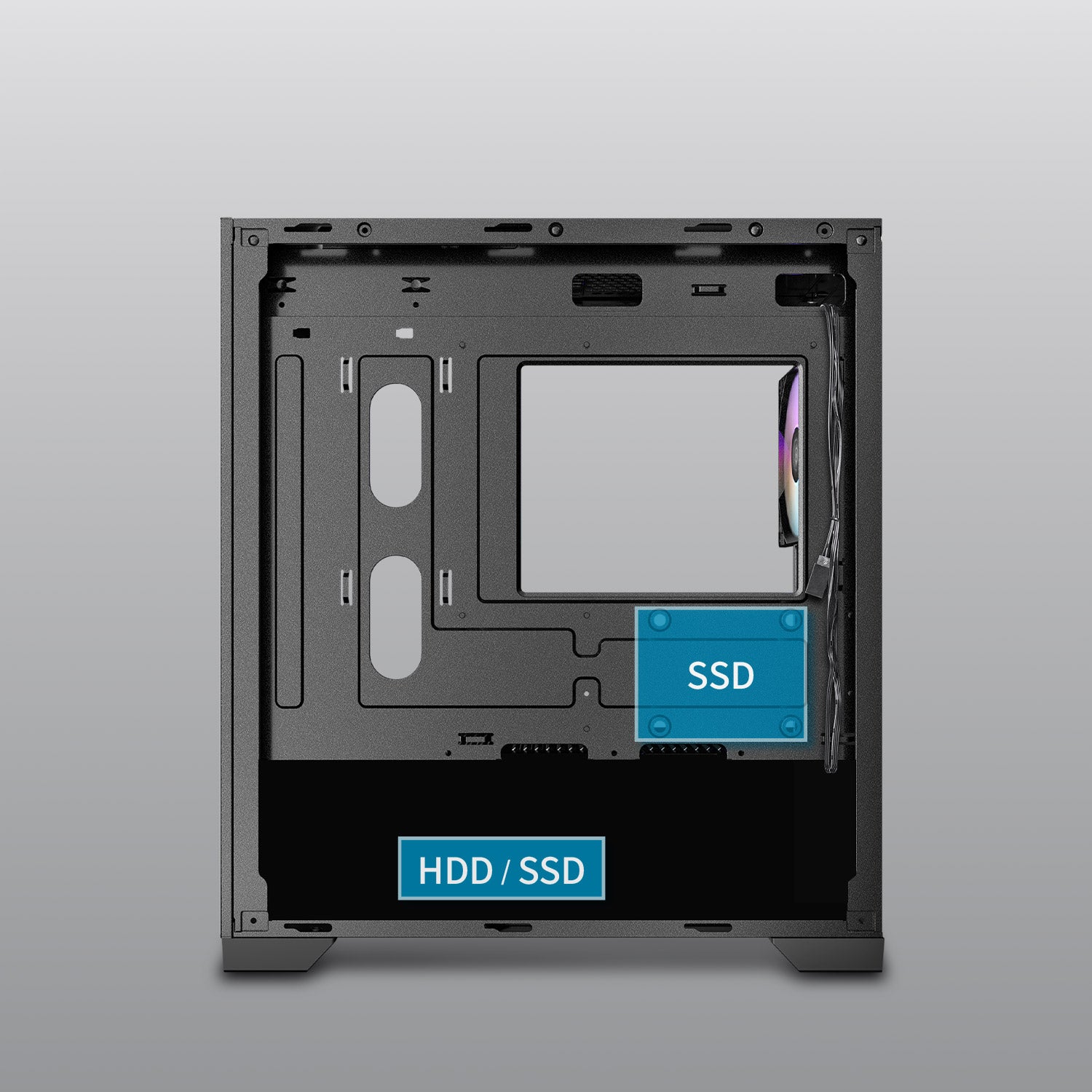

Array of Storage
1x hard disk bracket support 3.5” HDD or 2.5” SSD
2x 2.5” SSD metal base supports

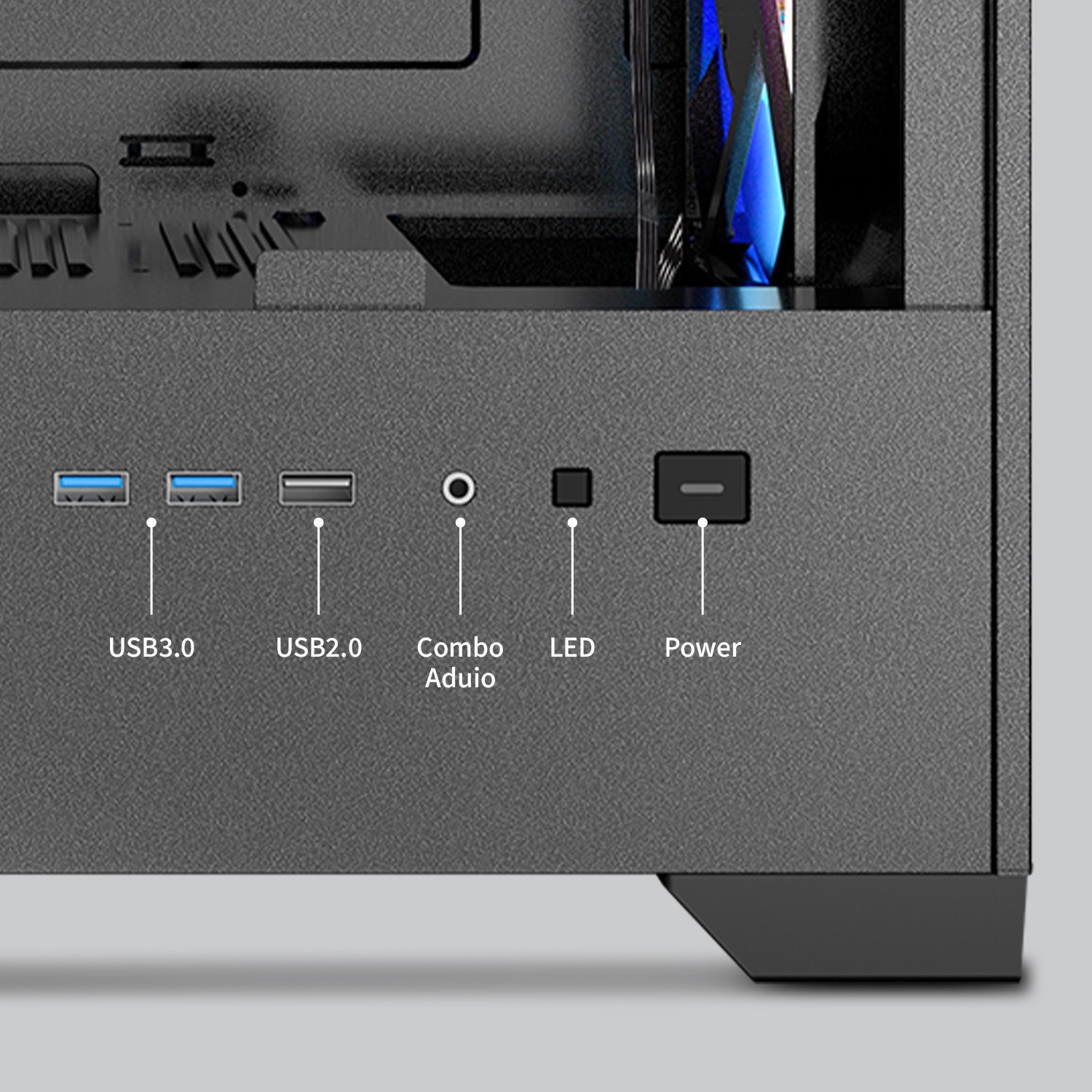

Intuitive I/O
The AEROHEX-M presents a simple top I/O which includes:
- Power button
- LED button
- Combo Audio
- 1x USB 2.0 port
- 2x USB 3.0 port
Top Cooling Support
Fans: 2x120mm or 2x140mm
Rear Cooling Support
Fans: Up to 1 x 120mm
Front Cooling Support
Fans: Up to 3 x 120mm
Micro ATX Mid Tower
Black
Left side panel: Tempered glass with metal mounts
Up to 160 mm
Up to 320mm long video card
Micro ATX、ITX
Up to 2
Up to 1
4
Power button
LED button
Combo Audio
USB3.0*2
USB2.0*1
431.4 mm x 203.5 mm x 377 mm
5.07Kg /11.18lbs

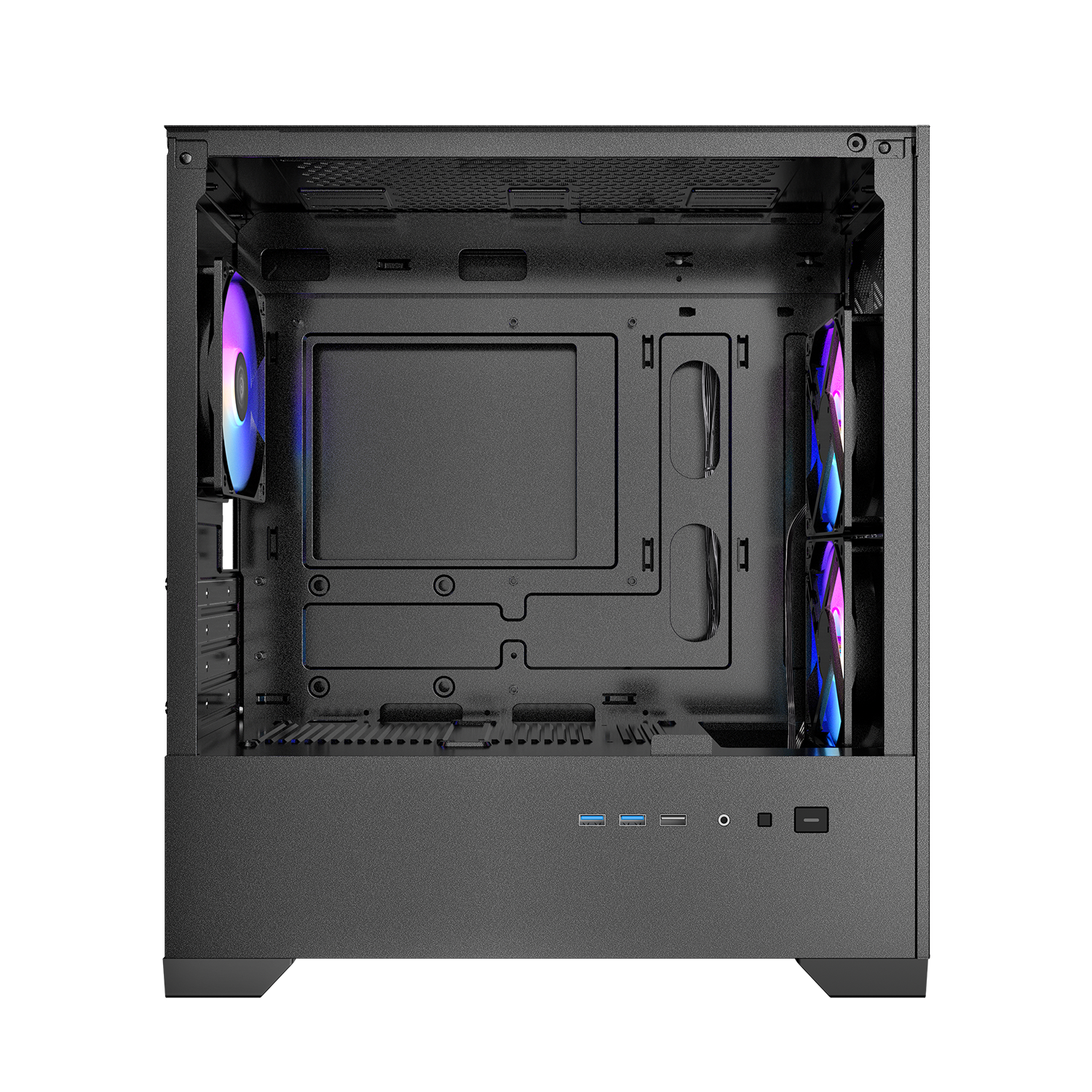

High-quality tempered glass side window allows for clear visuals to inner components
ARGB fans are controlled using the LED button.All addressable RGB devices can sync with the motherboard, allowing
the motherboard software to control lighting directly.
3x120mm fan ports in the front
2x120 or 2x140 mm fan ports on the top
1x120mm fan port in the rear
2 x 120 mm fan ports on the PSU shroud

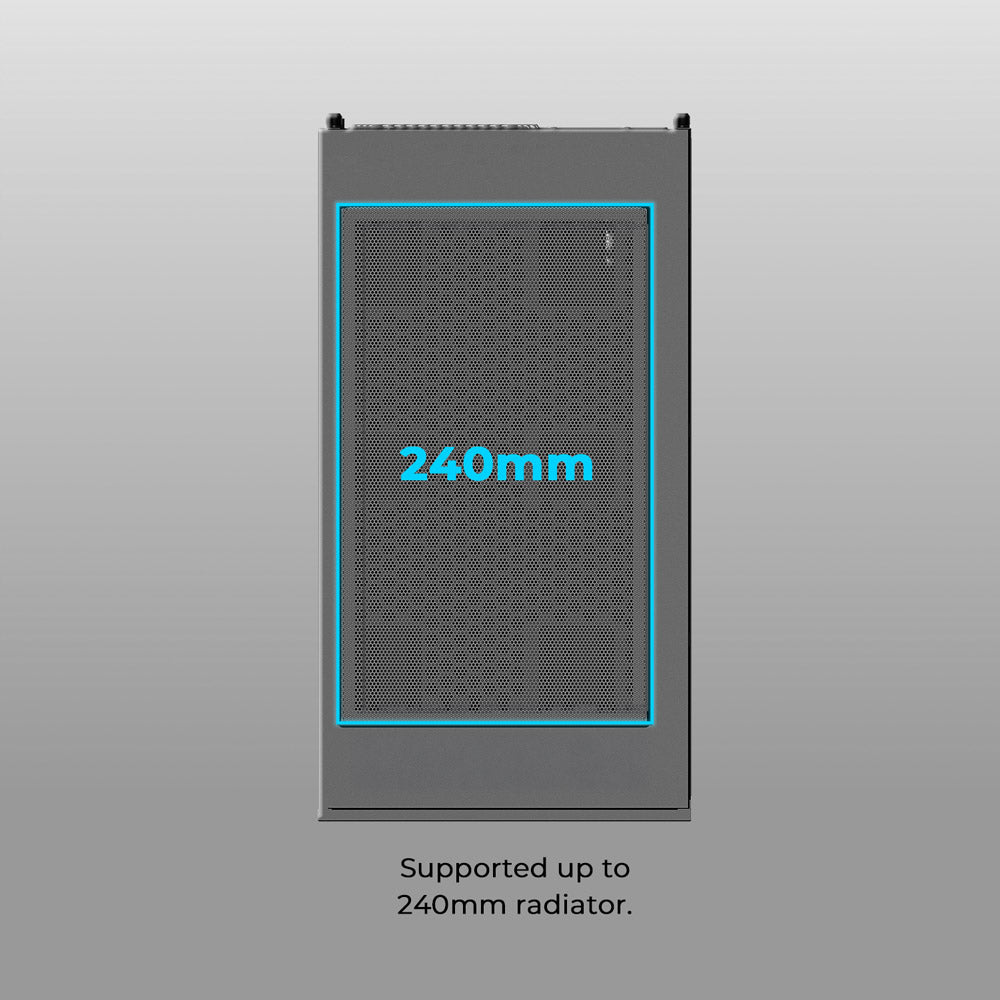

Supports radiators up to 240mm on the Top
Supports radiators up to 360mm in the Front
Removable (magnetic) dustproof net on the top and Front, removable dust
Bottom mounted ATX power supply
