CSAZ-228B01

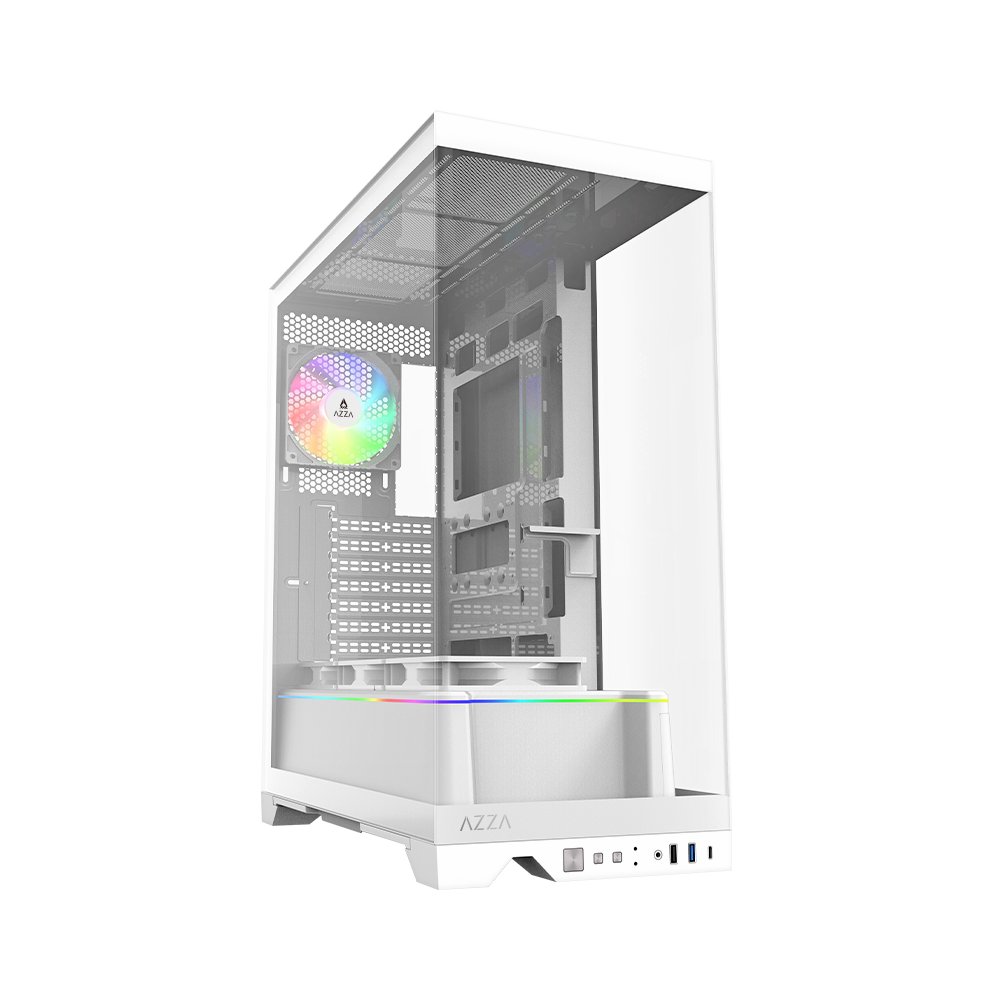

ABYSS White

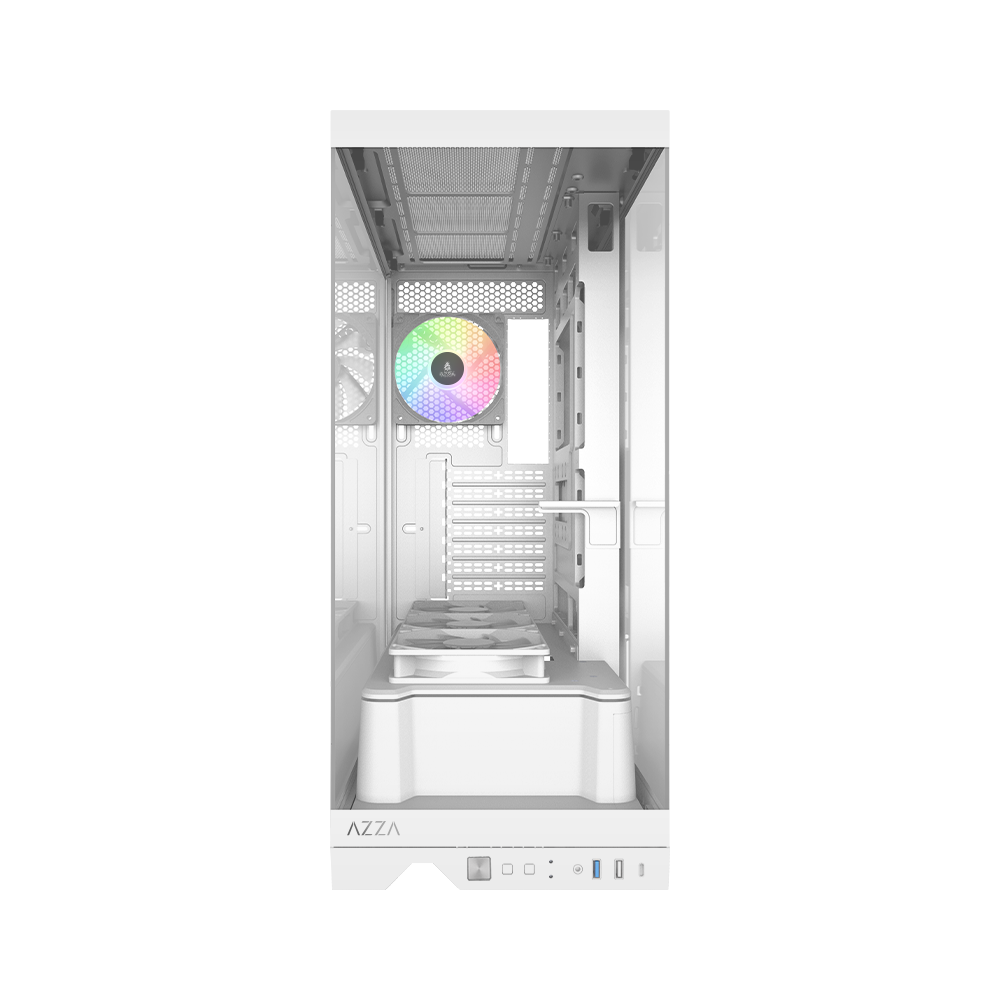

Unleash the full visual potential of your high-performance rig with the ABYSS. Crafted for enthusiasts, gamers, and PC builders who demand perfection, the ABYSS features a stunning three-sided tempered glass design (front, left, and right) that offers a seamless, panoramic view of your internal components. It’s not just a computer case; it is a premium display gallery for your hardware.


ABYSS
ATX / Micro-ATX Support Back-Connected Motherboard

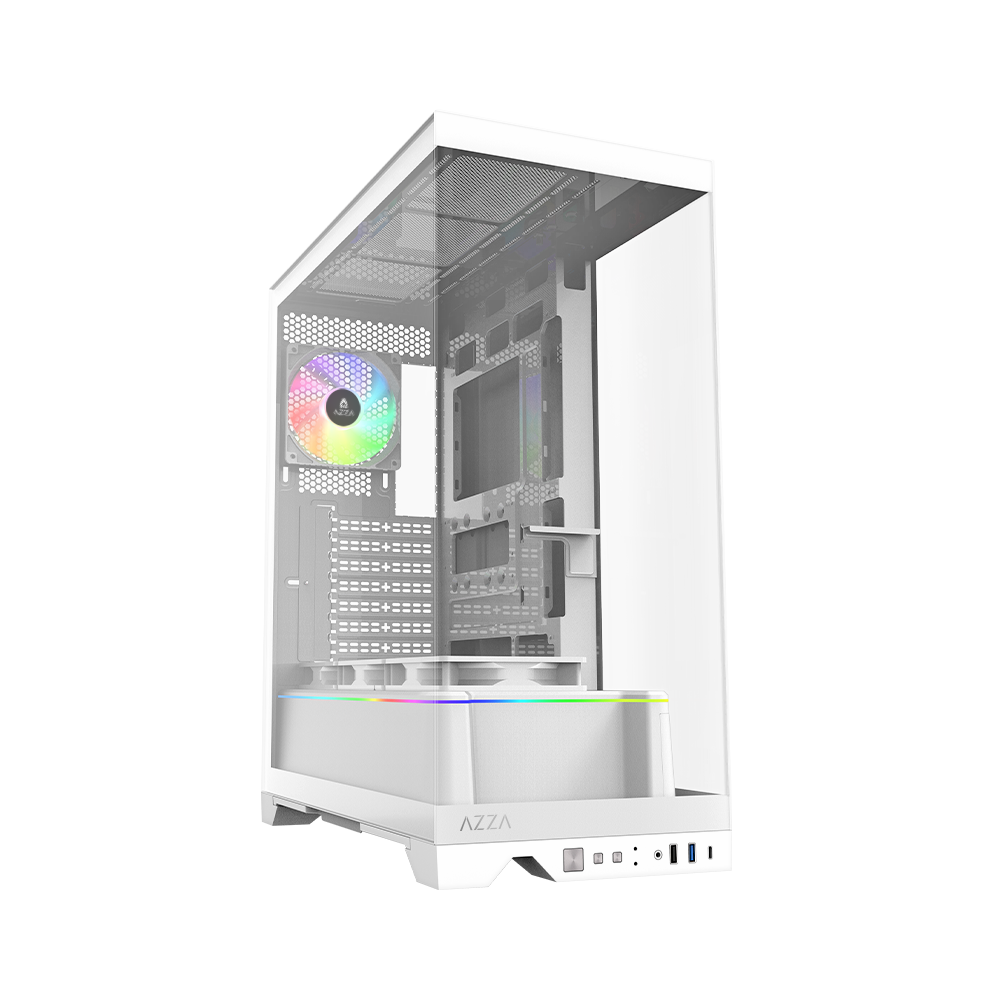

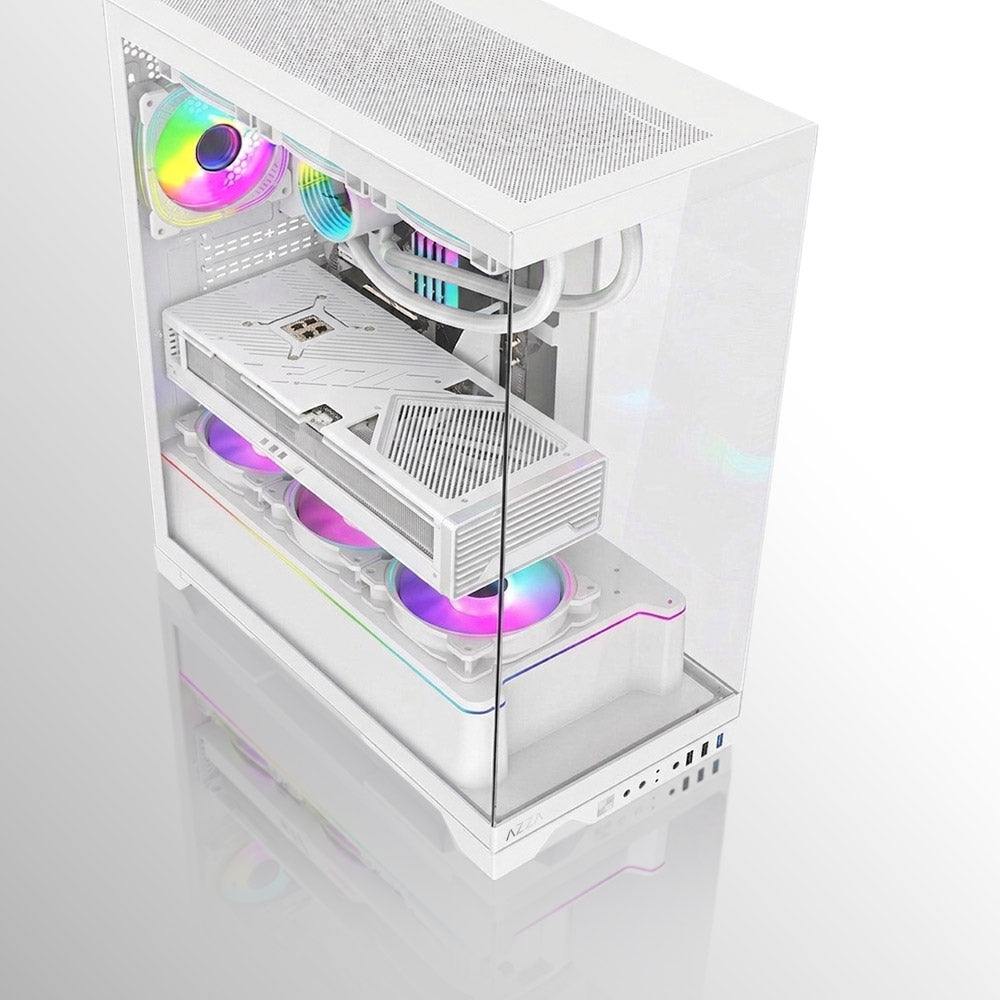

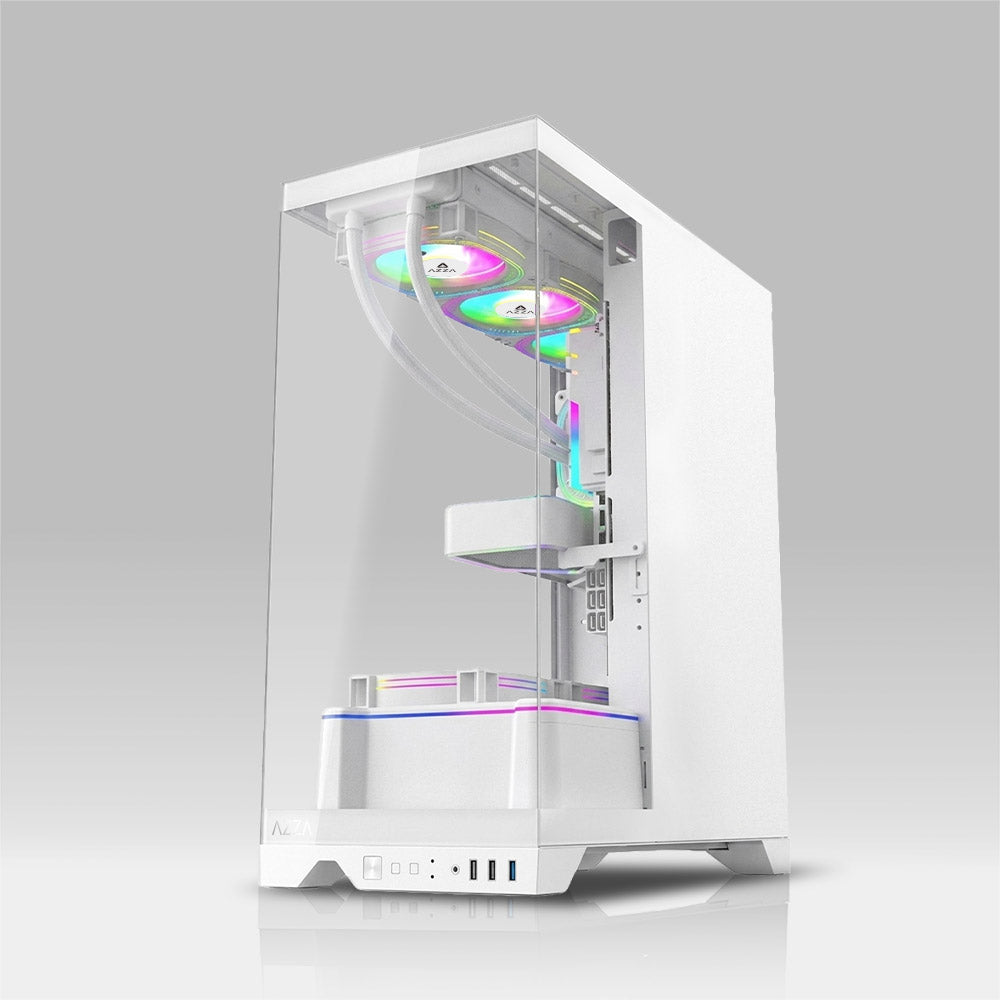

270° Panoramic Glass View
With three premium tempered glass panels, your build takes center stage, bathed in vibrant RGB lighting from every angle.

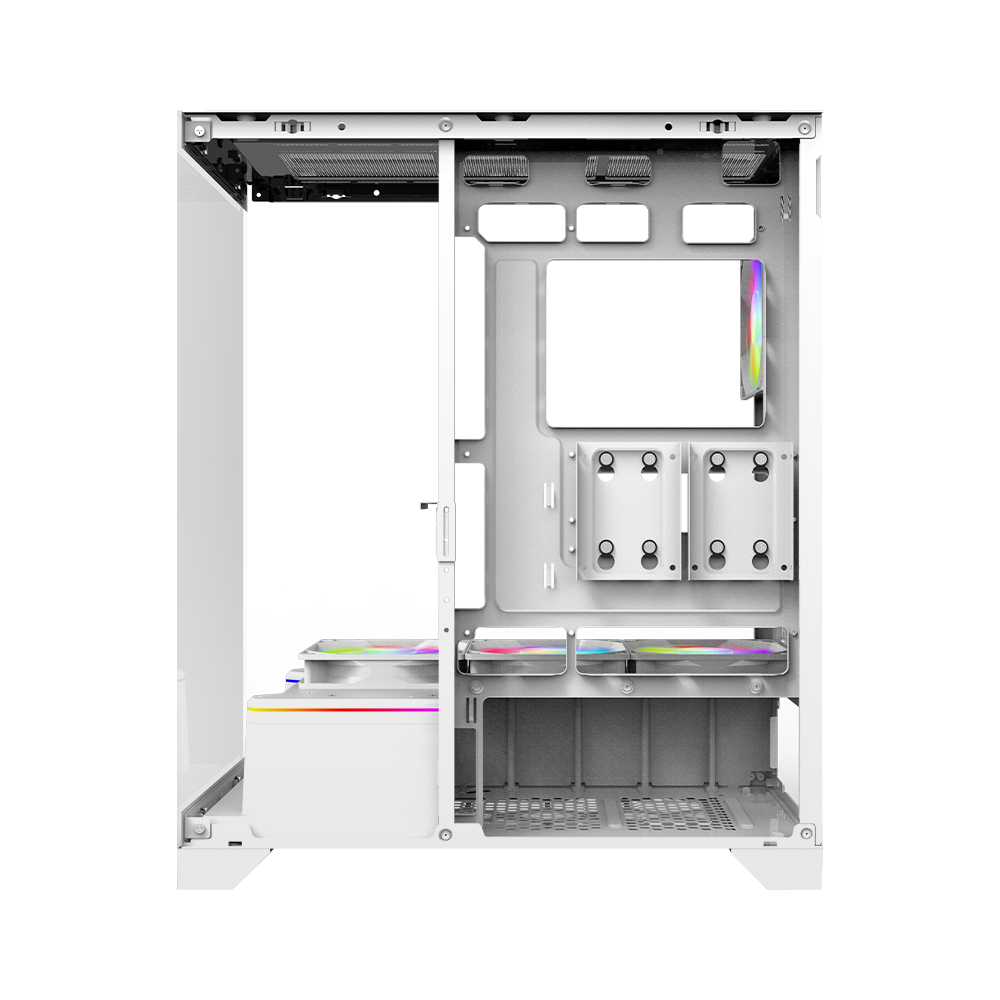

Back-Connected Motherboard Support
Fully supports ATX and Micro-ATX back-connected motherboards, keeping cable clutter virtually invisible for a pristine, clean aesthetic.

Pre-installed ARGB Cooling

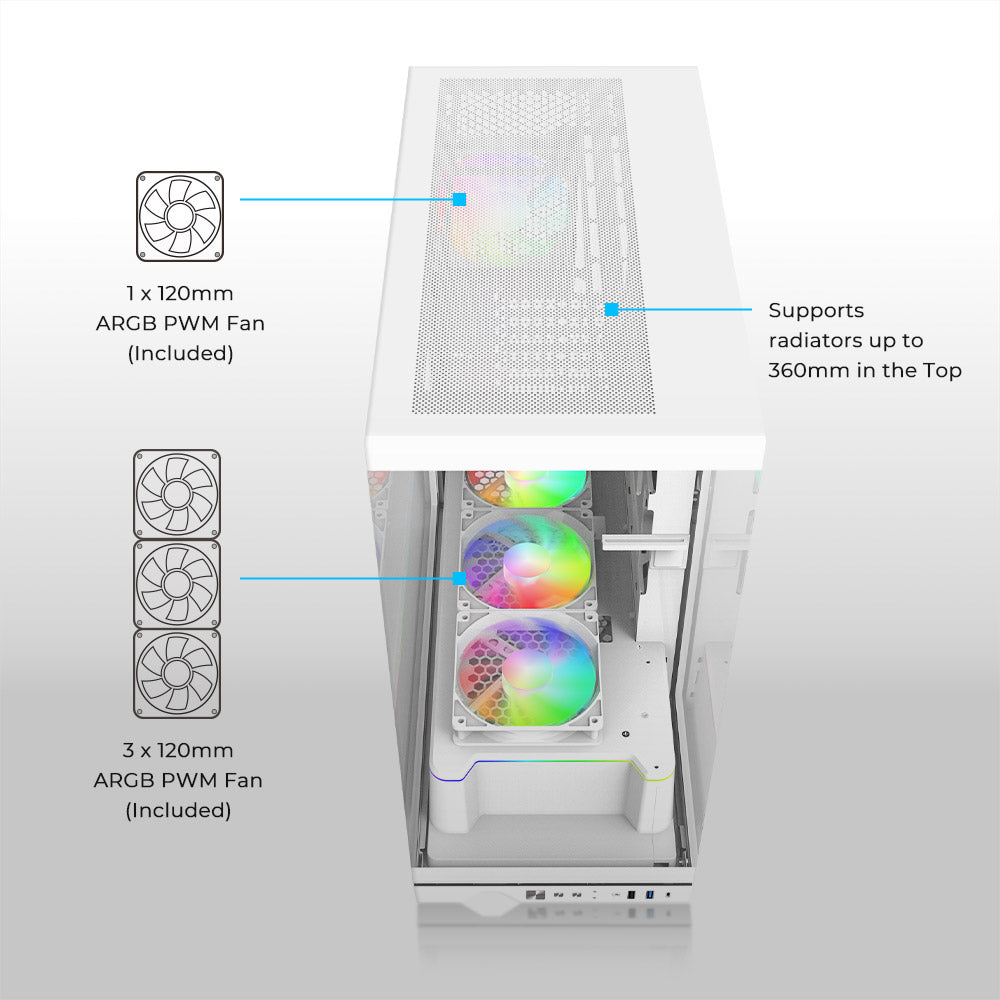

Keep your system running cool and looking brilliant right out of the box. The ABYSS comes equipped with four pre-installed LFO-6512 ARGB PWM fans—three reverse-blade fans at the bottom drawing fresh air in, and one at the rear

Integrated ARGB PSU Shroud

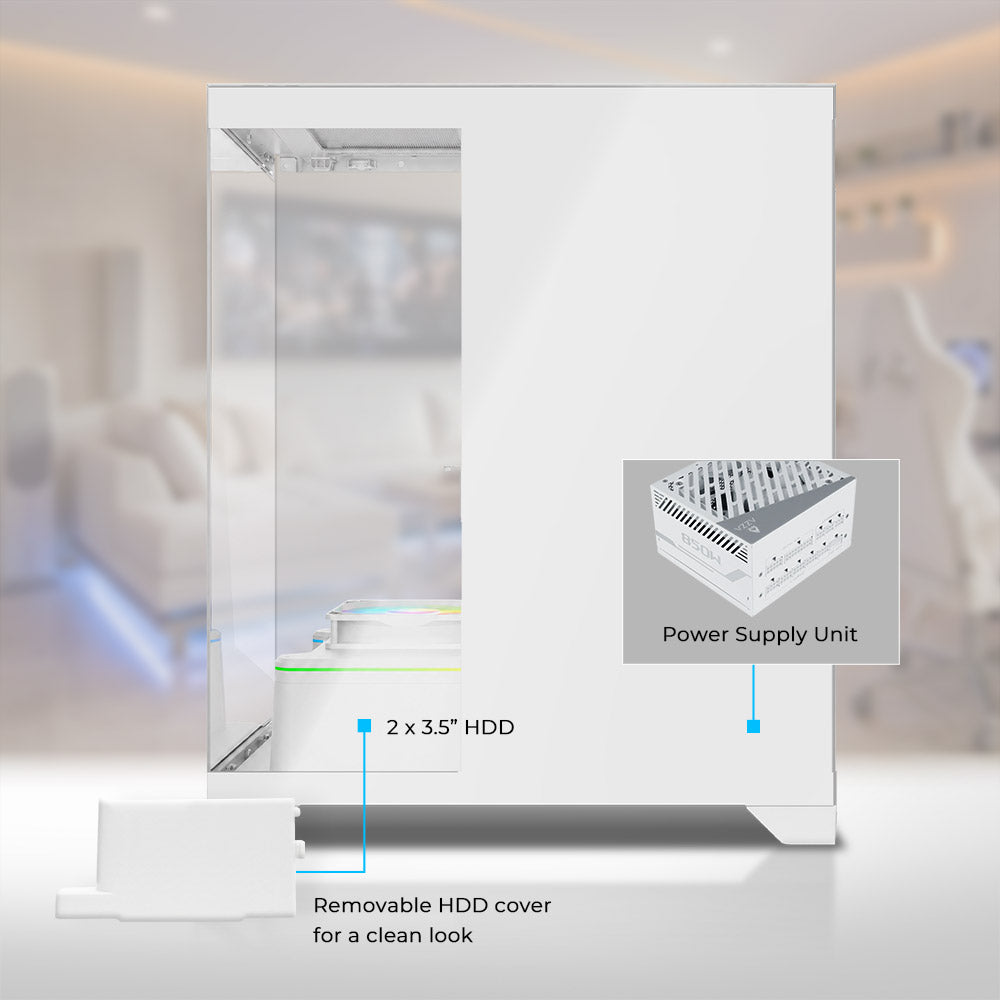

We believe beauty shouldn’t stop at the front, which is why we’ve added a removable rear cover to hide messy cables and drives. This seamless design ensures the chassis blends perfectly into any interior setting.

Built for High-Performance

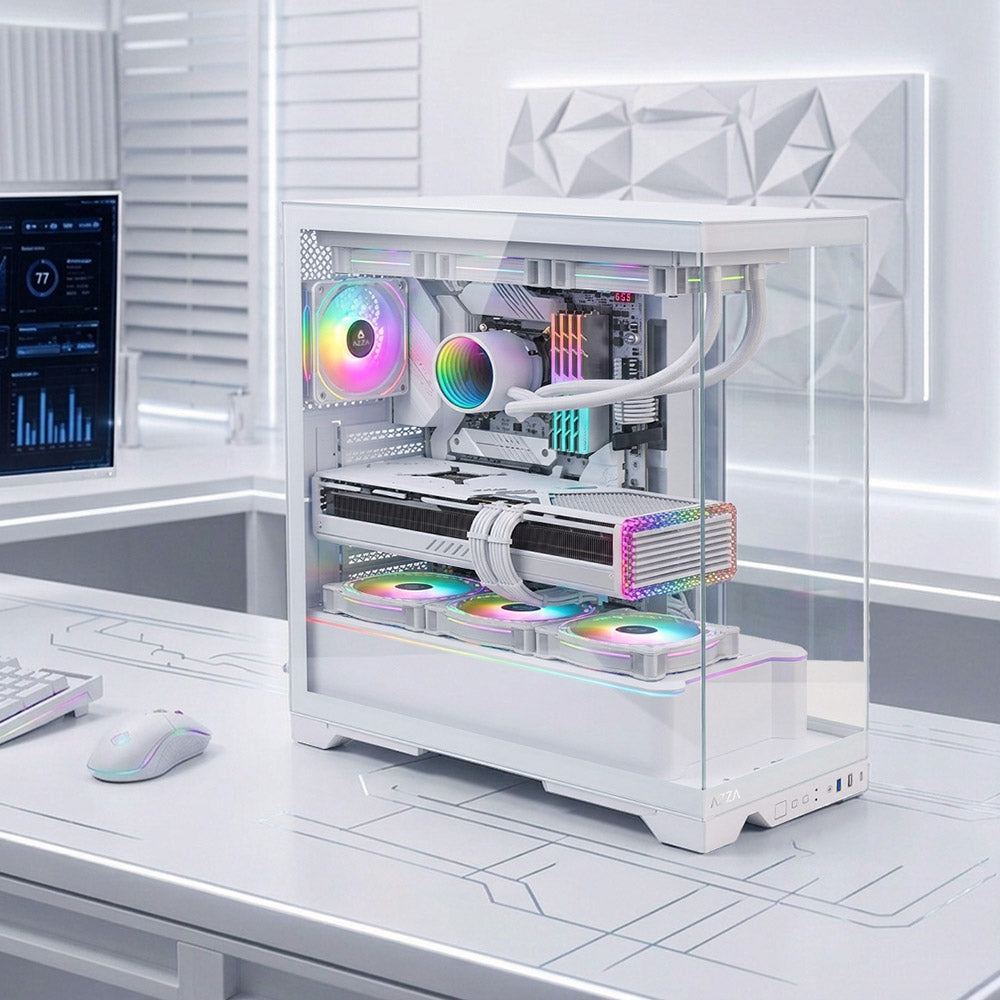

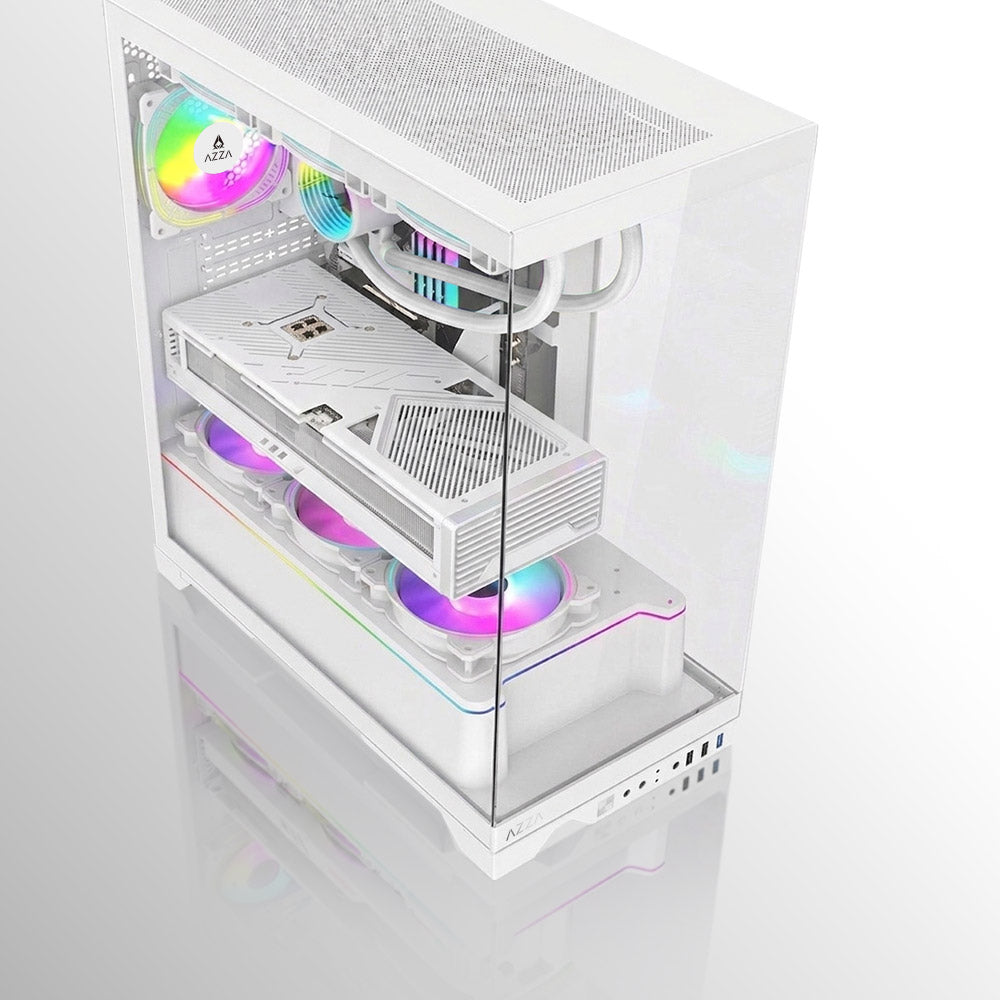

Engineered with optimized airflow pathways and flexible cooling support to keep your powerful hardware running at peak performance. Supporting up to a massive 420mm GPU, this system lets you dominate any game or workload with ultimate ease.
Supports up to 7 cooling fans
Up to 420mm long video card
Supports up to 4 storage drives
ATX / Micro-ATXSupport Back-Connected Motherboard
Black / White
Tempered glass panel
Left: Tempered glass panel
Right: Tempered glass panel
ARGB fans are controlled using the LED button. All addressable RGB devices can syncwith the motherboard, allowing the motherboard software to control lighting directly
UP to 165mm
Up to 420mm long video card
ATX, Micro ATX, ITX
Up to 2
Up to 2
7
Power button
LED button
Combo audio
USB 2.0 x1
USB 3.0 x 1
USB 3.0 Type C x 1
525 x 228 x 435 mm
8.1Kg / 17.8lbs
Top: 3 x 12cm or 2*14cm
Rear: 1 x 12cm(1 x 120mm LFO-6512D ARGB PWM fan included)
Bottom: 3 x 12cm(3 x 120mm LFO-6512DR ARGB PWM fan included)

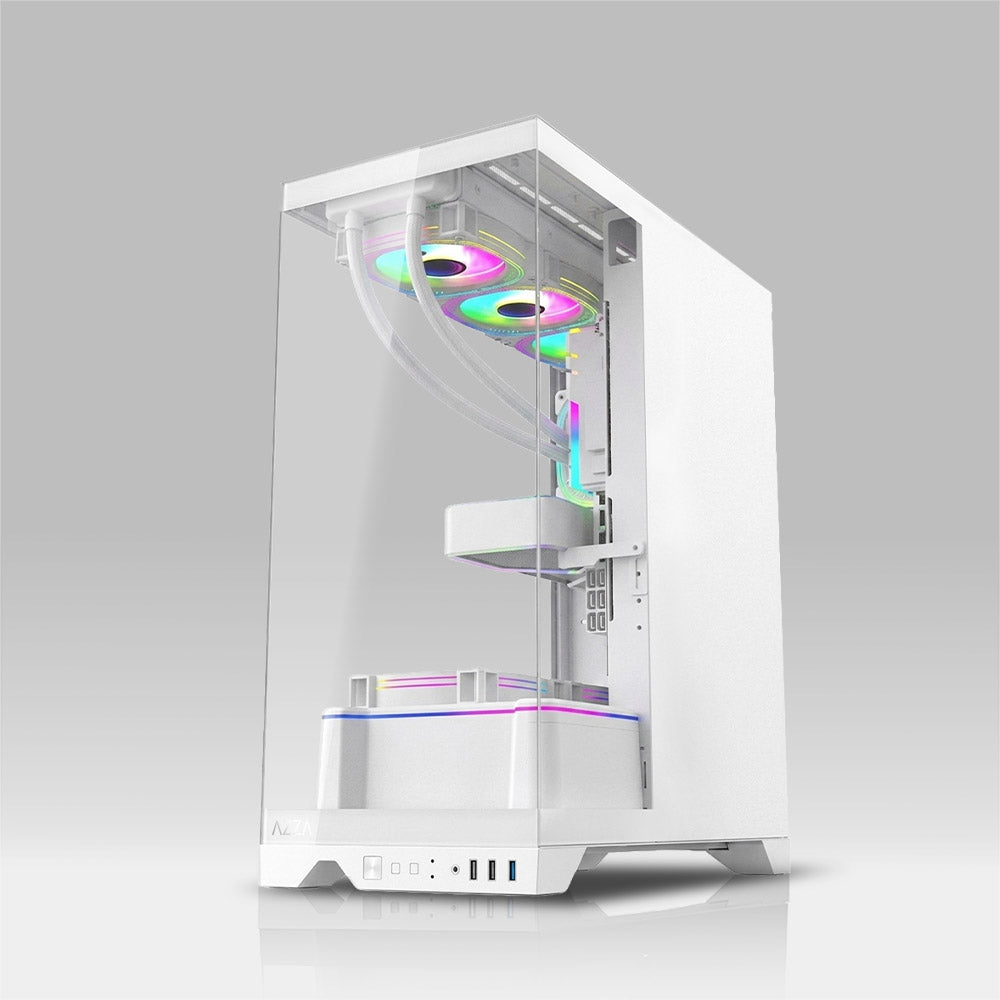

Supports radiators up to 360mm in the Top
Dustproof PVC net on bottom of chassis
ATX power supply
