CSAZ-228B01

ABYSS



Unleash the full visual potential of your high-performance rig with the AZZA ABYSS PC case. Crafted for enthusiasts, gamers, and PC builders who demand perfection, the ABYSS features a stunning three-sided tempered glass design (front, left, and right) that offers a seamless, panoramic view of your internal components. It’s not just a computer case; it is a premium display gallery for your hardware.

ABYSS

ATX / Micro-ATX Support Back-Connected Motherboard

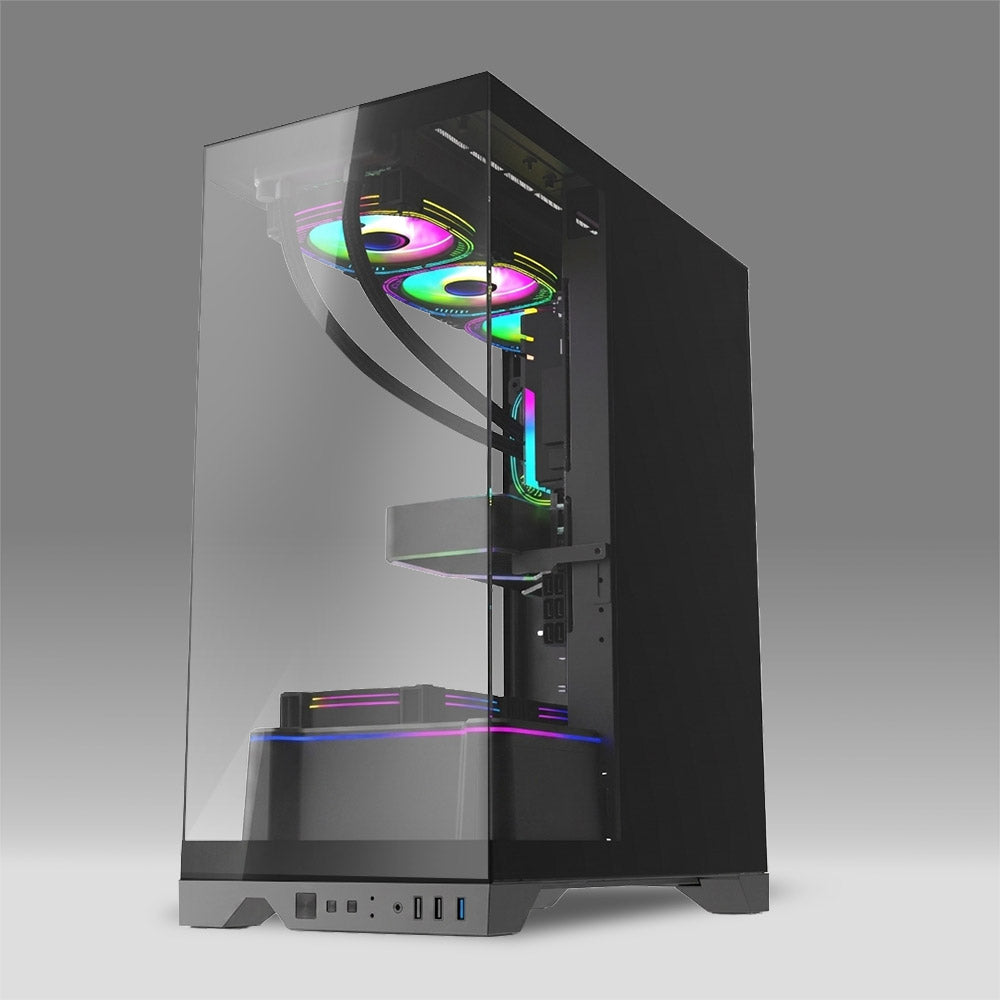

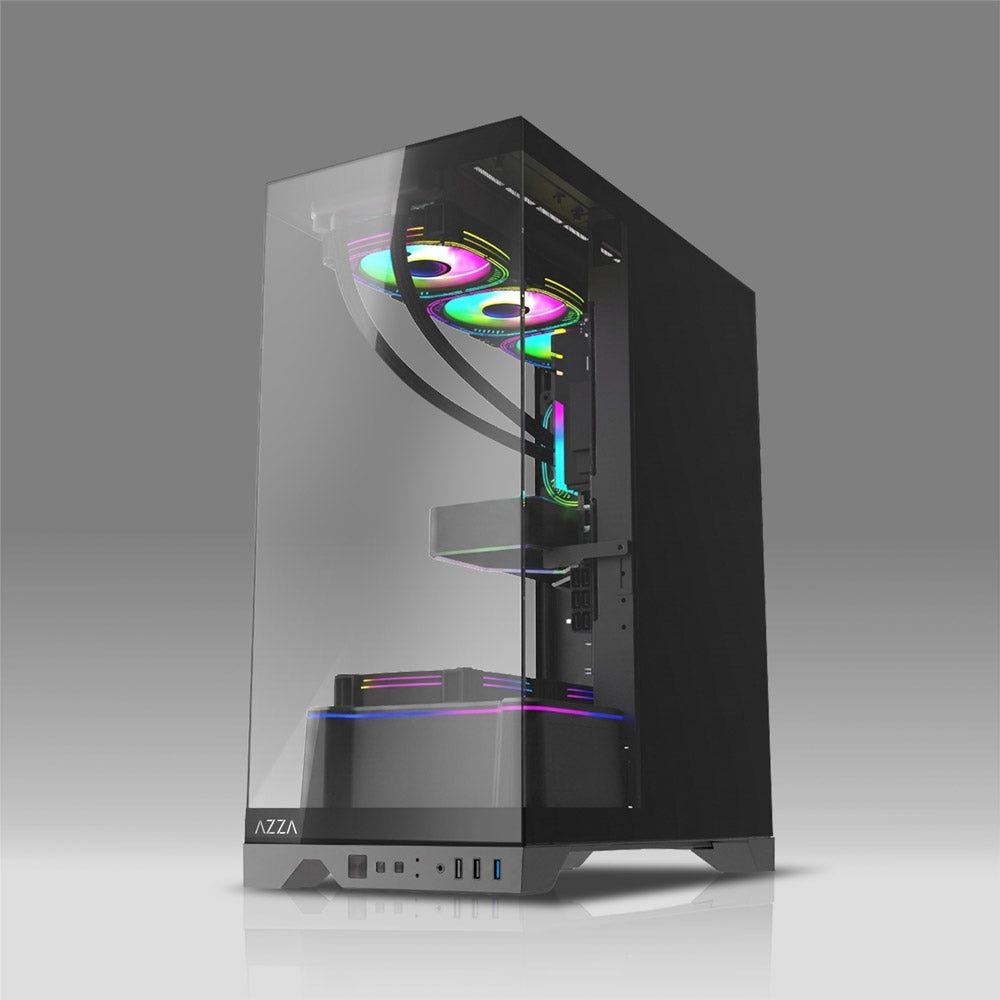

270° Panoramic Glass View

With three premium tempered glass panels, your build takes center stage, bathed in vibrant RGB lighting from every angle.

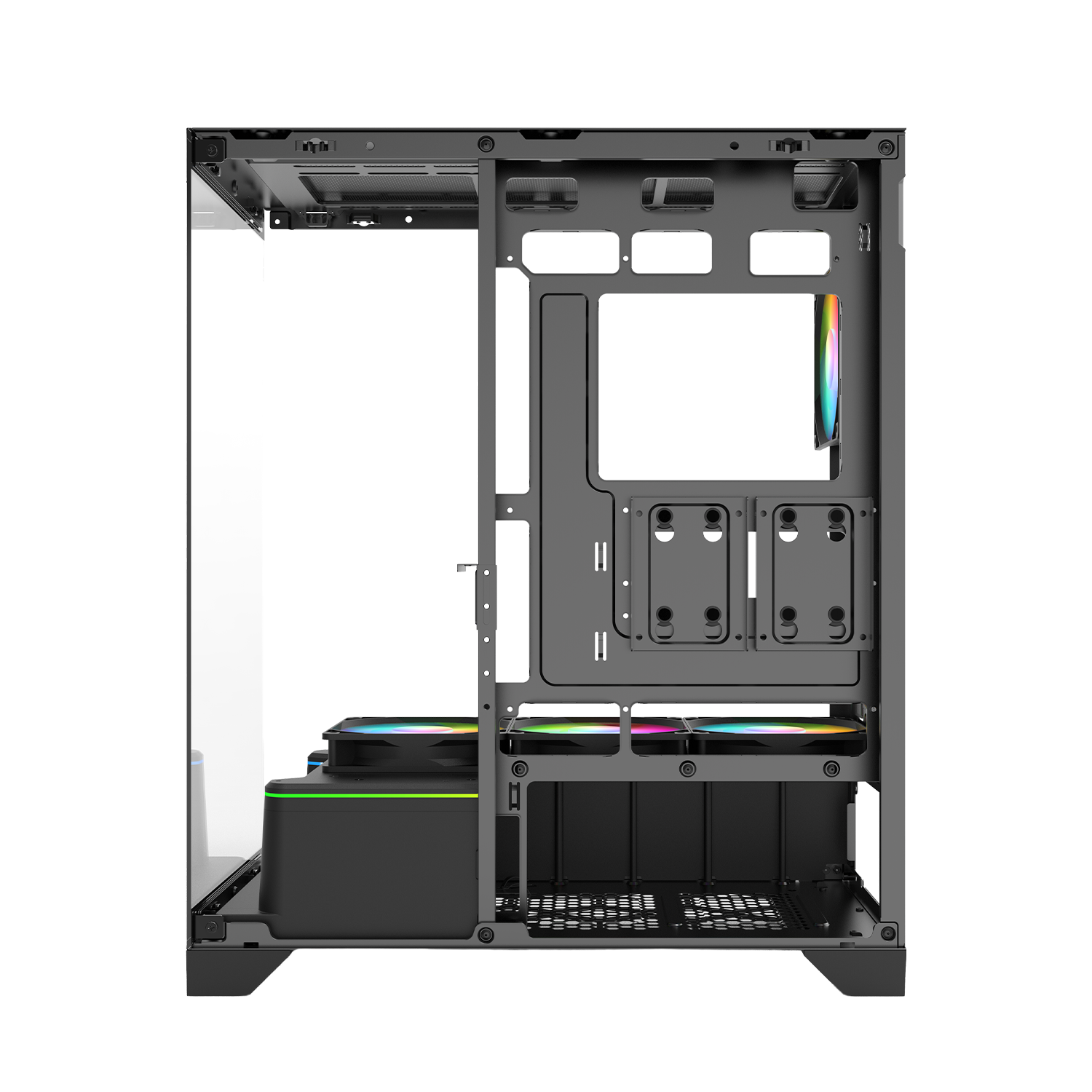

Back-Connected Motherboard Support

Fully supports ATX and Micro-ATX back-connected motherboards, keeping cable clutter virtually invisible for a pristine, clean aesthetic.

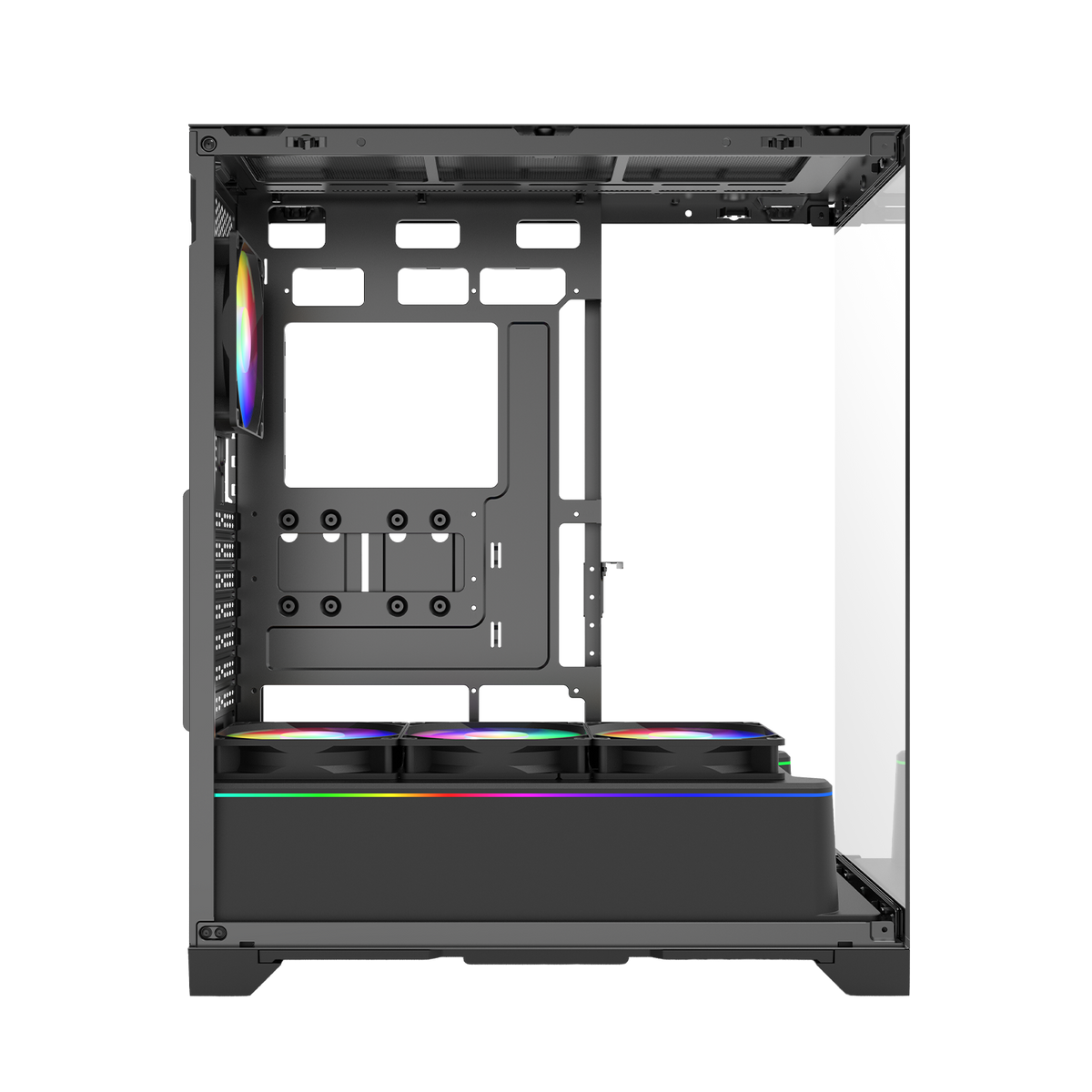

Pre-installed ARGB Cooling

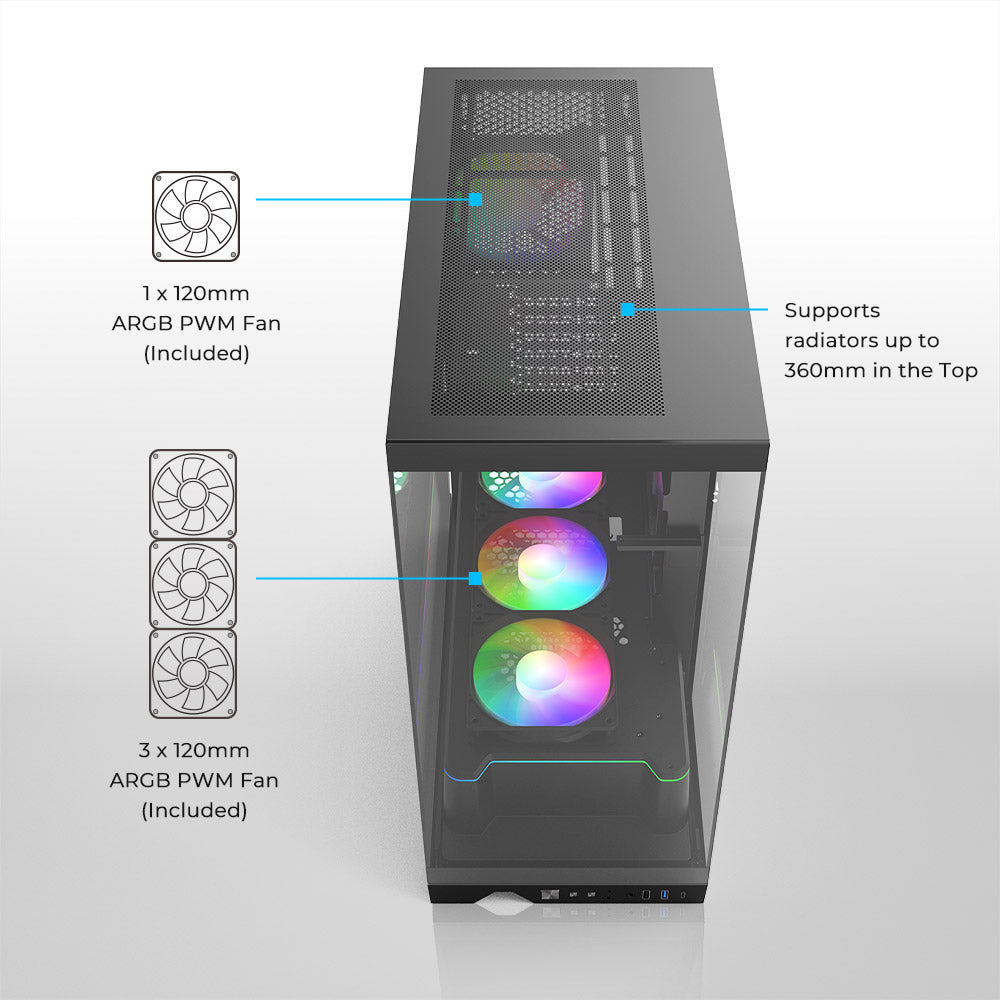

Keep your system running cool and looking brilliant right out of the box. The ABYSS comes equipped with four pre-installed LFO-6512 ARGB PWM fans—three reverse-blade fans at the bottom drawing fresh air in, and one at the rear

Integrated ARGB PSU Shroud

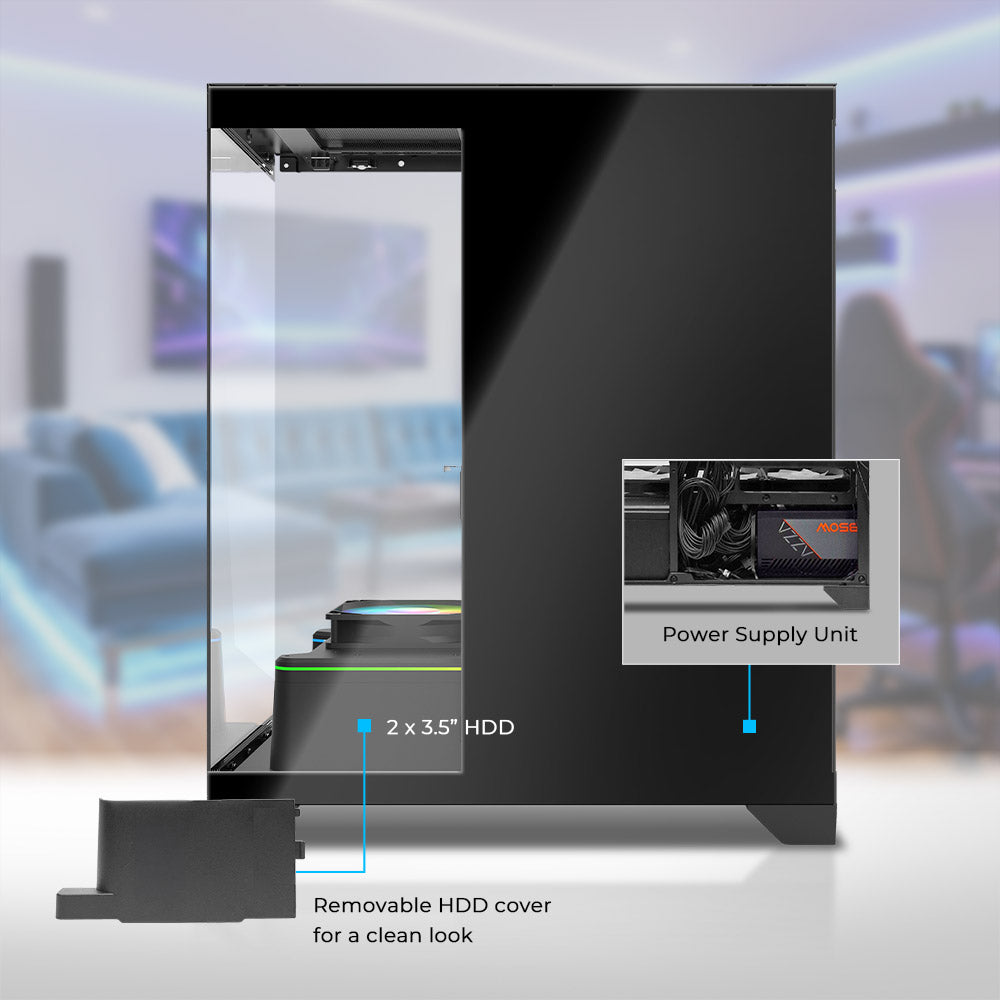

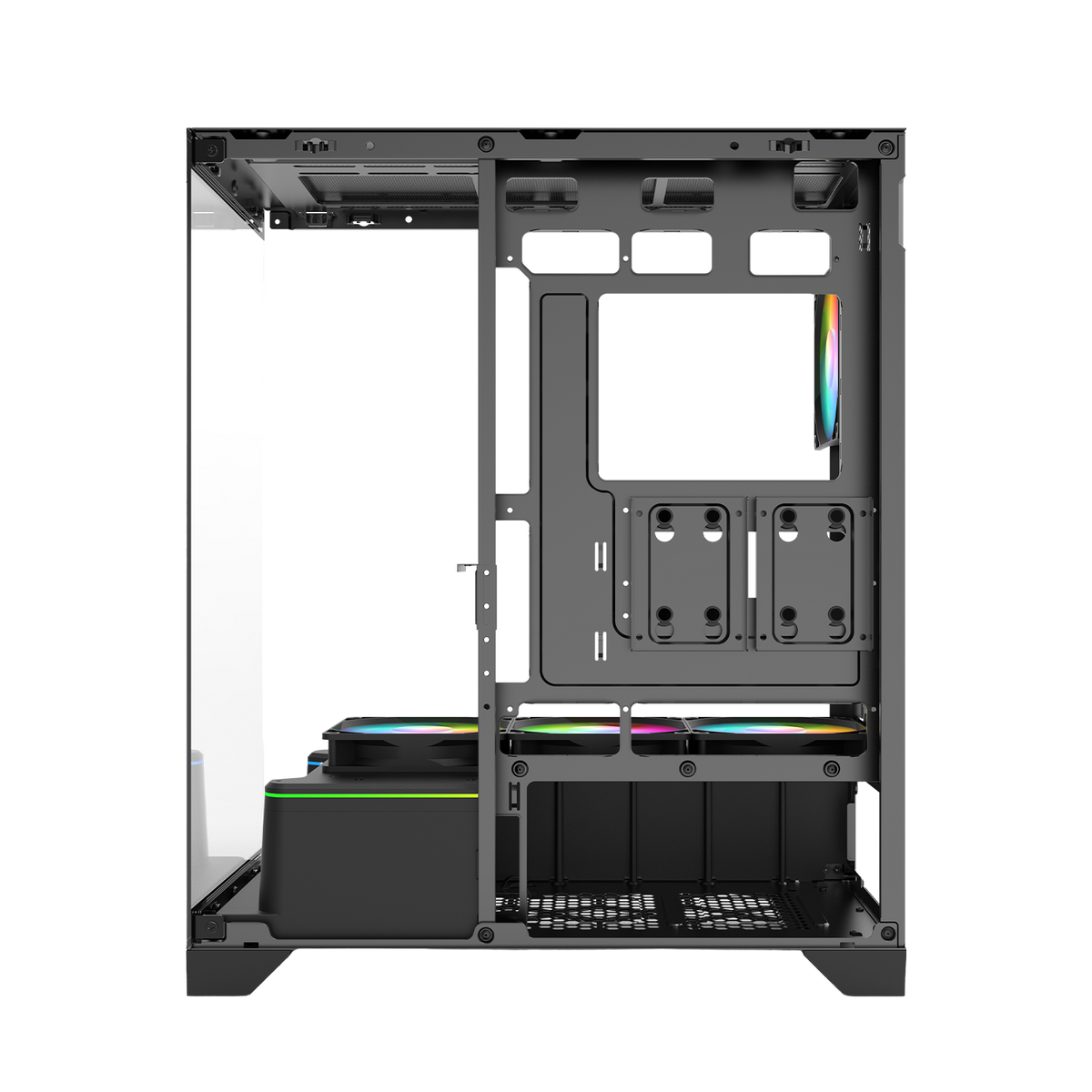

We believe beauty shouldn’t stop at the front, which is why we’ve added a removable rear cover to hide messy cables and drives. This seamless design ensures the chassis blends perfectly into any

Built for High-Performance

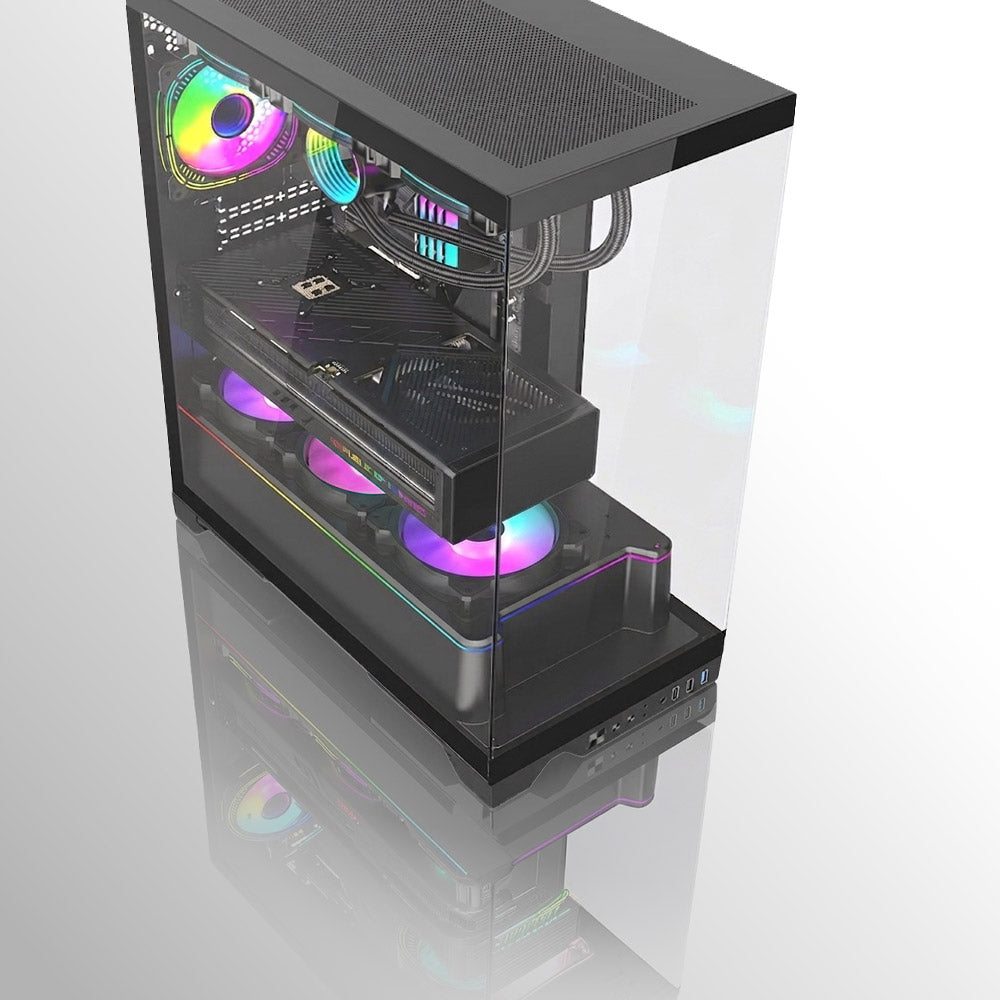

Engineered with optimized airflow pathways and flexible cooling support to keep your powerful hardware running at peak performance. Supporting up to a massive 420mm GPU, this system lets you dominate any game or workload with ultimate ease.

SPECIFICATIONS

CSAZ-228B01

Download Manual
EXTERIOR
Type

ATX / Micro-ATXSupport Back-Connected Motherboard

Color

Black / White

Front Panel

Tempered glass panel

Side Panel

Left: Tempered glass panel
Right: Tempered glass panel

Addressable RGB Light Effects

ARGB fans are controlled using the LED button. All addressable RGB devices can syncwith the motherboard, allowing the motherboard software to control lighting directly

COMPATIBILITY
Max CPU Cooler Height

UP to 165mm

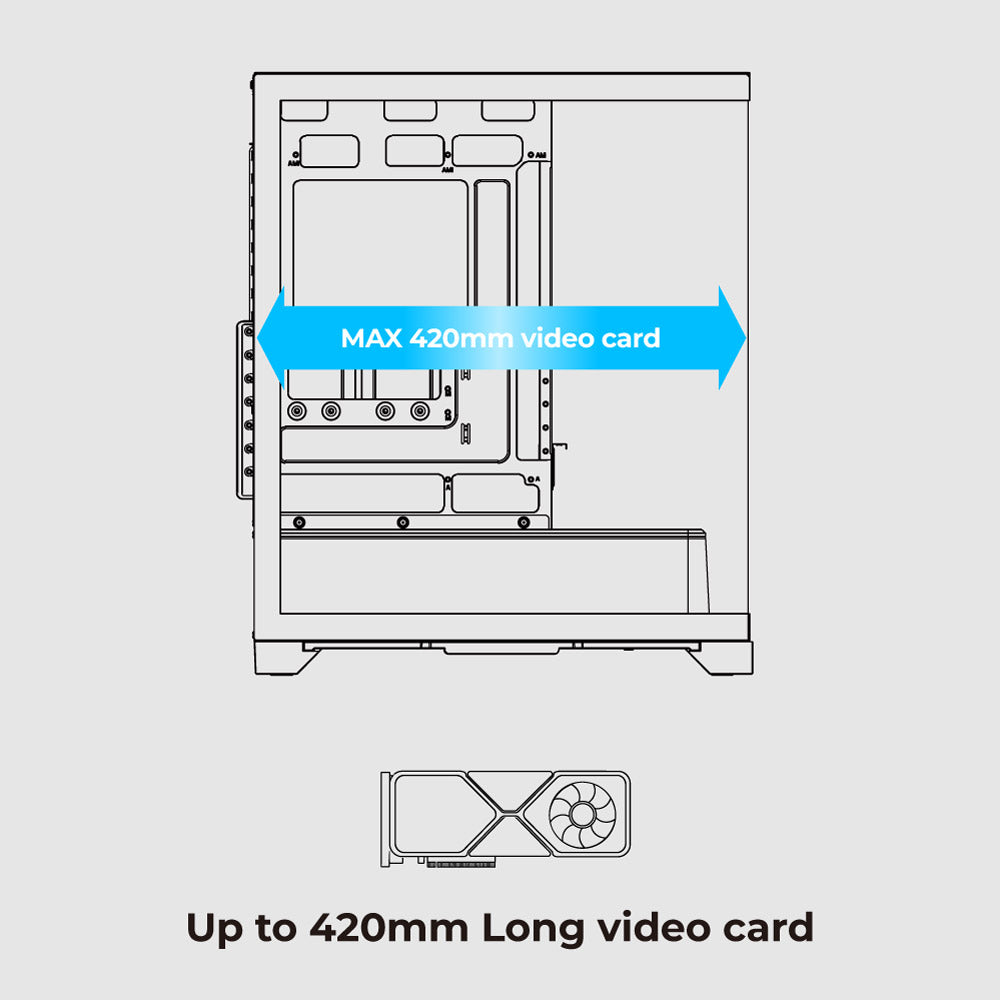

Max VGA Card Length

Up to 420mm long video card

Motherboard Support

ATX, Micro ATX, ITX

STORAGE & I/O

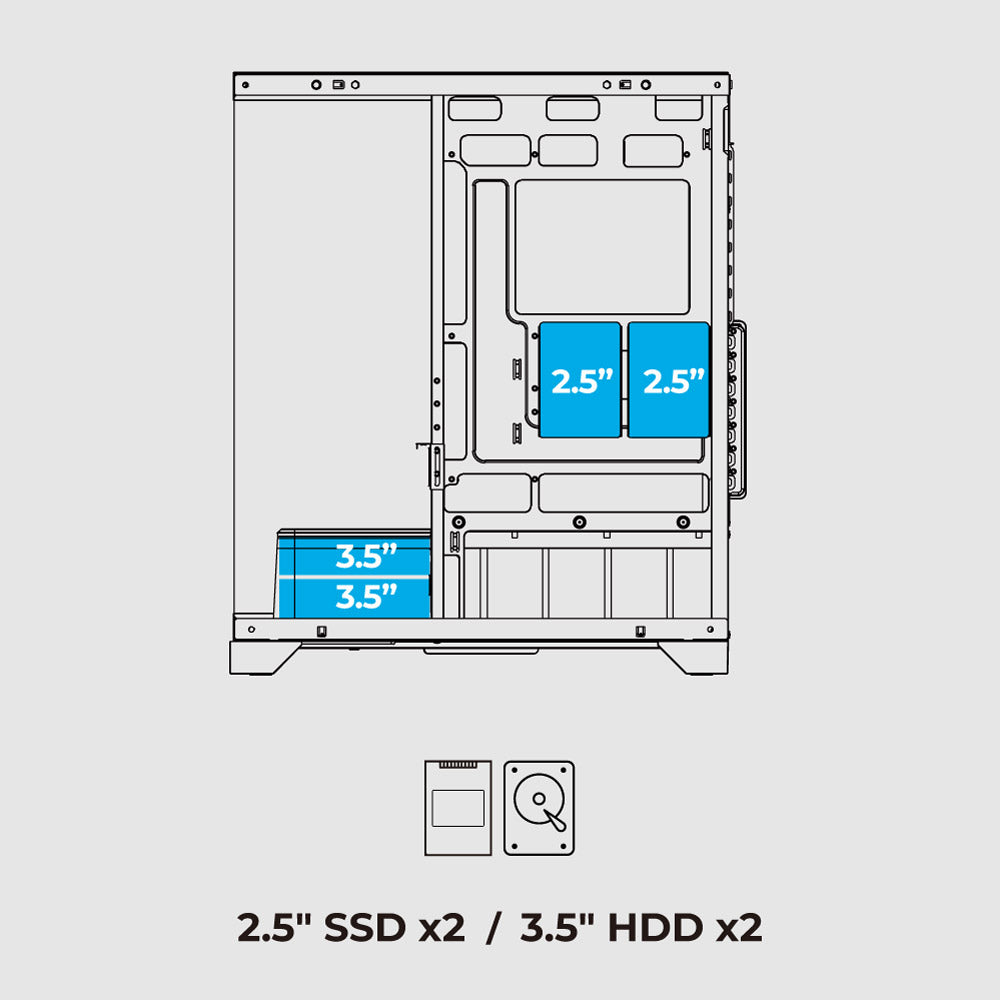

2.5" Drive Bays

Up to 2

3.5" Drive Bays

Up to 2

Expansion Slots

7

Front I/O Ports

Power button
LED button
Combo audio
USB 2.0 x1
USB 3.0 x 1
USB 3.0Type C x 1

DIMENSION
Chassis Dimension (H*W*D)

525 x 228 x 435 mm

Weight

7.8Kg / 17.2lbs

COOLING & SUPPORT

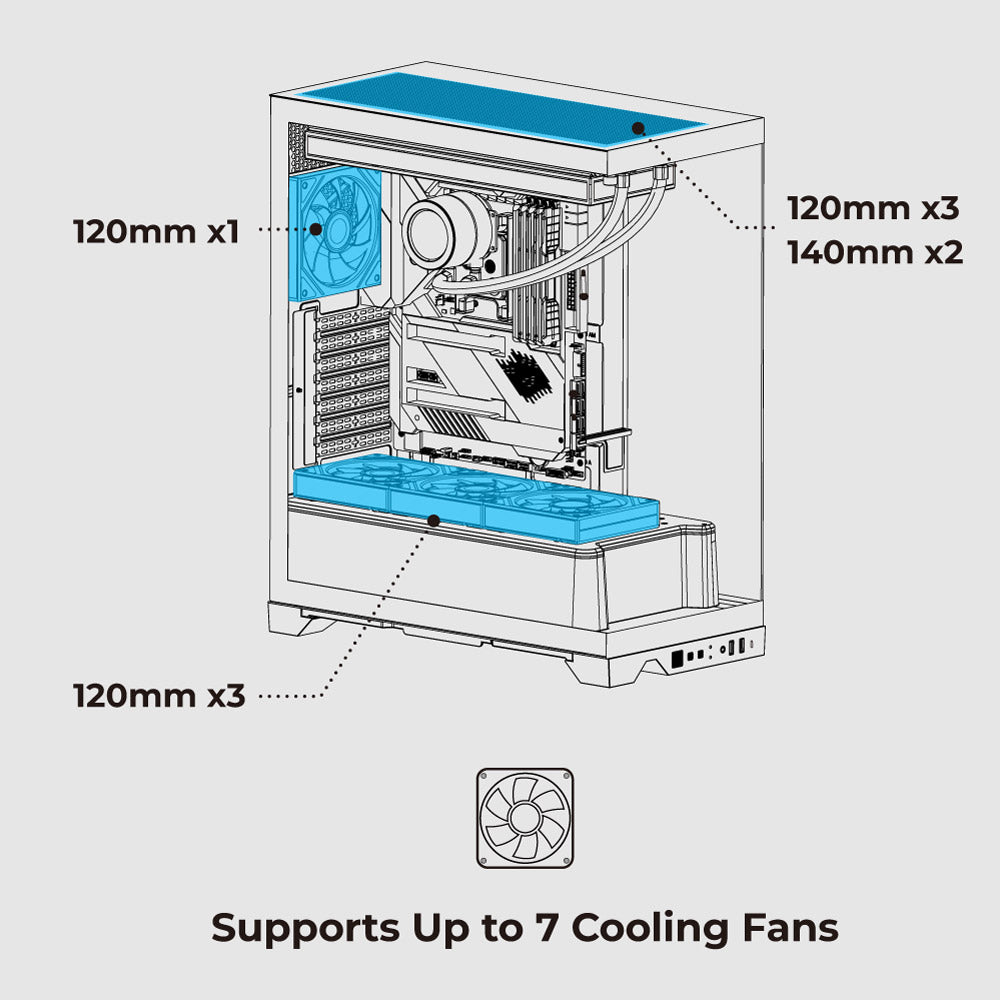

Available Fan Ports

Top: 3 x 12cm or 2*14cm
Rear: 1 x 12cm(1 x 120mm LFO-6512D ARGB PWM fan included)
Bottom: 3 x 12cm(3 x 120mm LFO-6512DR ARGB PWM fan included)

Water Cooling

Supports radiators up to 360mm in the Top

Dust Filters

Dustproof PVC net on bottom of chassis

Power Supply Support

ATX power supply
