LEGIONAIRE


The LEGIONAIRE 470 stands out with its distinctive metal mesh sliding side panel and clean, subdued front panel, providing E-ATX capabilities along with the standard features of ARGB controls, four pre-installed fans, max video card length of 400 mm, and ample radiator support.

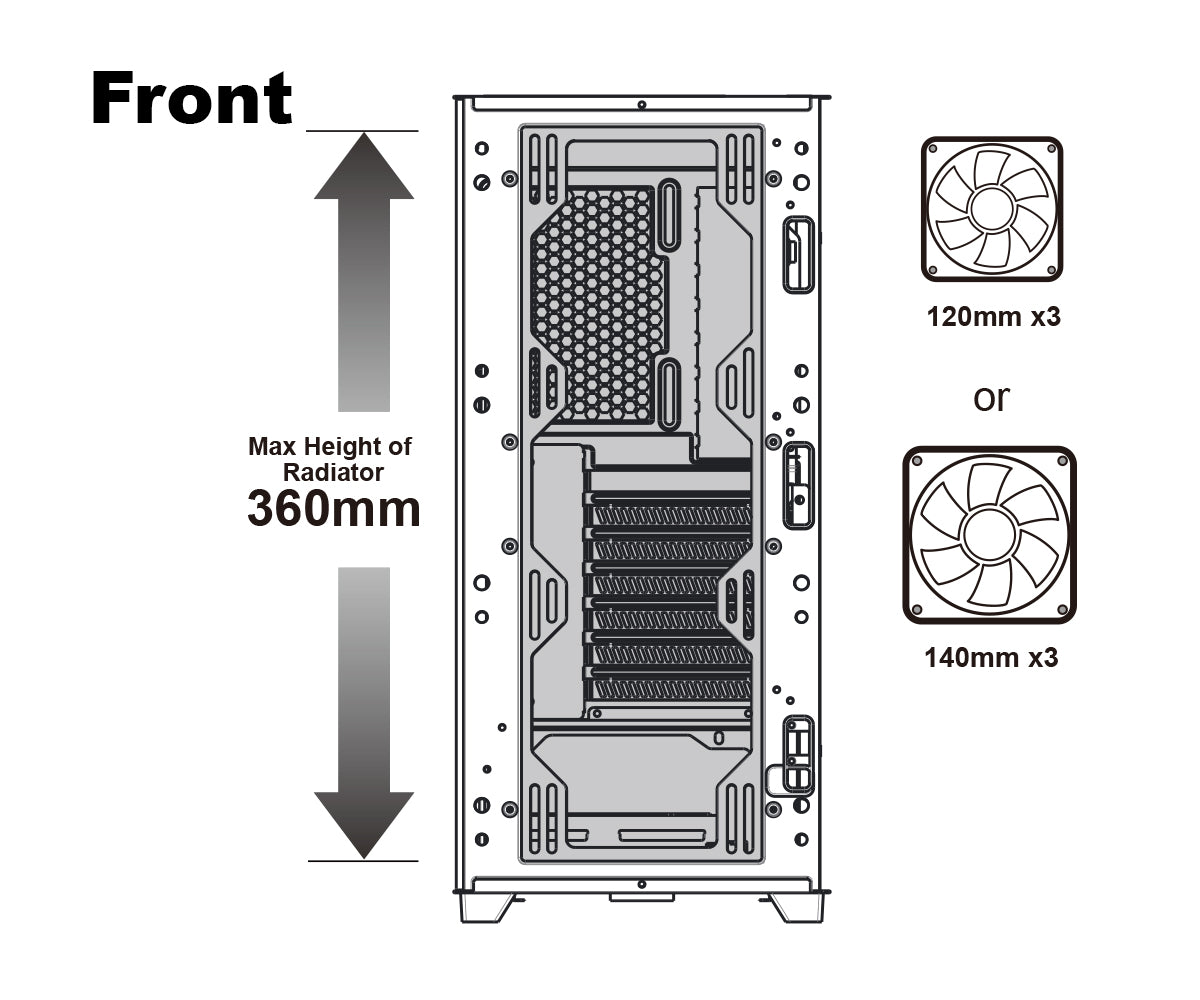

Fans: Up to 3 x 120 mm or 3 x 140 mm

Radiator: Up to 360 mm

Fans: 3 x 120 mm or 2 x 140 mm

Radiator: Up to 280 mm

Fan: 1 x 120 mm

SPECIFICATIONS

CSAZ-470

Download Manual
Type

ATX Mid Tower

Color

Black / Black (interior)

Side Panels

Left side panel: Slidable iron mesh side panel

Max CPU Cooler Height

Up to 170 mm

Max Video Card Length

Up to 400 mm long video card

Motherboard Compatibility

E-ATX, ATX, Micro-ATX, ITX

External 5.25" Drive Bays

0

Internal 2.5" Drive Bays

Up to 4

Internal 3.5" Drive Bays

Up to 2

Expansion Slots

7

Top Ports

Power button, LED button, HD Audio, USB 3.0 x 2

Case Dimensions (H x W x D)

483 x 220 x 440 mm / 19 x 8.7 x 17.3 inches

Weight

6.1 kg / 13.5 lbs

Mesh side panel

The full mesh side windows allow for clear visuals to inner components and increased air intake, giving maximum airflow performance

Addressable RGB Light Effects

ARGB fans are controlled using the LED button. All addressable RGB devices can sync with the motherboard, allowing the motherboard software to control lighting directly

Available Fan Ports

3 x 120 mm or 3 x 140 mm fan ports in the front

3 x 120 mm or 2 x 140 mm fan ports on the top

1 x 120 mm fan port in the rear

2 x 120 mm fan ports on the PSU shroud

Included Fans

3 x 120 mm addressable ARGB fans at the front
1 x 120 mm addressable ARGB PWM fan in the rear

Water Cooling

Supports radiators up to 280 / 360 mm in the front

Supports radiators up to 240 / 280 mm in the top

Dust Filters

Removable (magnetic) dustproof net on the top, dust filter at bottom of chassis

Power Supply Support

Bottom mounted ATX power supply

PWM Fan

The model comes with PWM fans and will run at top speed unless connected to a motherboard or controller.
